HARTING, Inc. Of North America    Elgin, IL 60123 5538
Mar 12, 2004 RJ® Industrial Push Pull provides standard interface for Industrial Ethernet communication and PROFInet applications. It requires as little space as one M12 jack, which facilitates a high packaging density of ports in miniaturized devices. Connector may be terminated without any special tools to industrial cables with diameters up to AWG 22, while smart push pull design allows locking and unlocking with one hand.

Ideal Industries, Inc.    Sycamore, IL 60178
Mar 12, 2004 Grit Hole Saw features tungsten carbide cutting edges that are permanently bonded to alloy blade body, making it suited for cutting surfaces that are too hard, abrasive, or thin for standard bi-metal hole saw. Ranging in size from 3/4 to 6 7/8 in., saw is suited for cutting cast iron, composites, drywall, plaster, stucco, ceramics, fiberglass, and hardwood.

Netech Corp.    Hicksville, NY 11801-1502

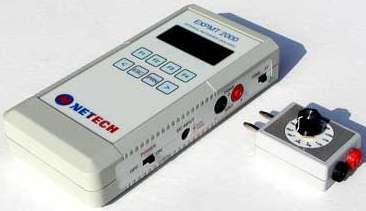

Mar 12, 2004 Featuring menu-driven operation with 8 tactile keys and 4-line LCD display, portable EXPMT 2000 tests and verifies all functions of any external pacemaker. ECG snaps (5) are standard along with RS 232 serial port, which allows for printing heading and test measurements on separate printer. Information can also be sent to Palm Pilot. For use with transcutaneous pacers, External Test Load has 12 user-selectable loads from 100–1,000 ohms.

Netech Corp.    Hicksville, NY 11801-1502

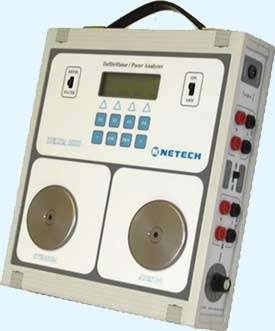

Mar 12, 2004 Delta 3000A analyzes defibrillators with monophasic or bi-phasic waveforms and all AEDs. With 12 built-in user-selectable test loads, unit can also test transcutaneous pacemakers. ECG simulator provides 12 arrhythmias plus sine, square, and triangle performance waveforms. Operation is via menus and 8 tactile feel keys. Instructions and measurements are displayed on 4-line, LCD display, while print key ouputs test measurements to RS-232 serial port.

Southco    Concordville, PA 19331 0116
Mar 12, 2004 Sealed for NEMA 4/IP 66 applications, key-locking quad panel latch is designed for interior and exterior hinged doors or lift-off access panels that must be securely latched to frame and have minimal compression load. It incorporates internal O-ring, external sealing washer, and stainless steel lock cover. Unit operates with quarter turn to latch and unlatch, and pawl indicator on housing provides visual confirmation of open/closed state.

Bell & Gossett    Morton Grove, IL 60053

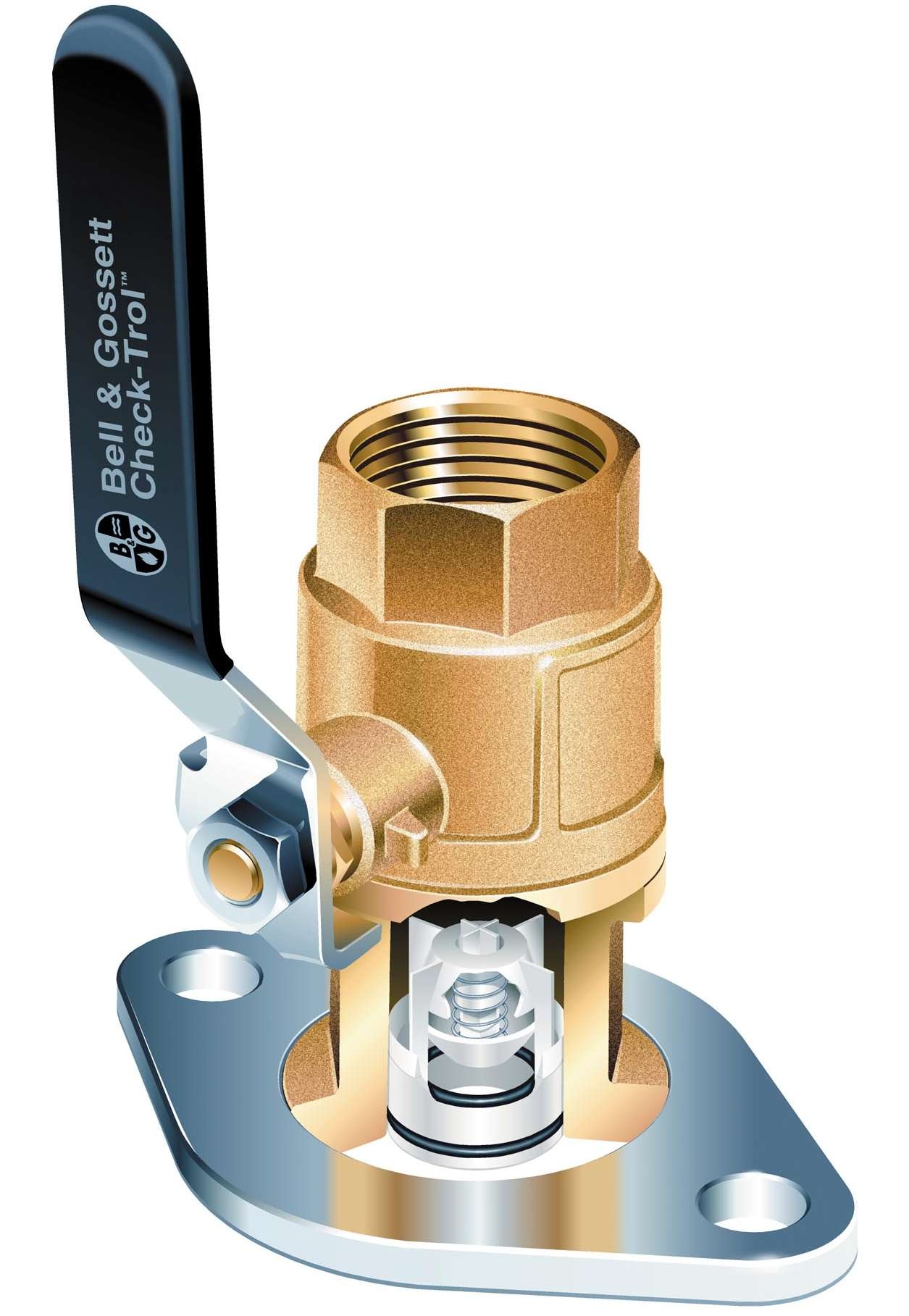

Mar 12, 2004 Check-Trol® combines features of flow control valve, isolation valve, and companion flange in single valve. Full port ball valve allows circulator to be removed without draining system. Internal spring check prevents gravity circulation and flow in wrong direction, while free-floating companion flange provides alignment and simplifies installation. Suited for all major circulators, Check-Trol® is available in ¾, 1, and 1¼ in. NPT and Sweat models.

Balzers, Inc.    Elgin, IL 60123

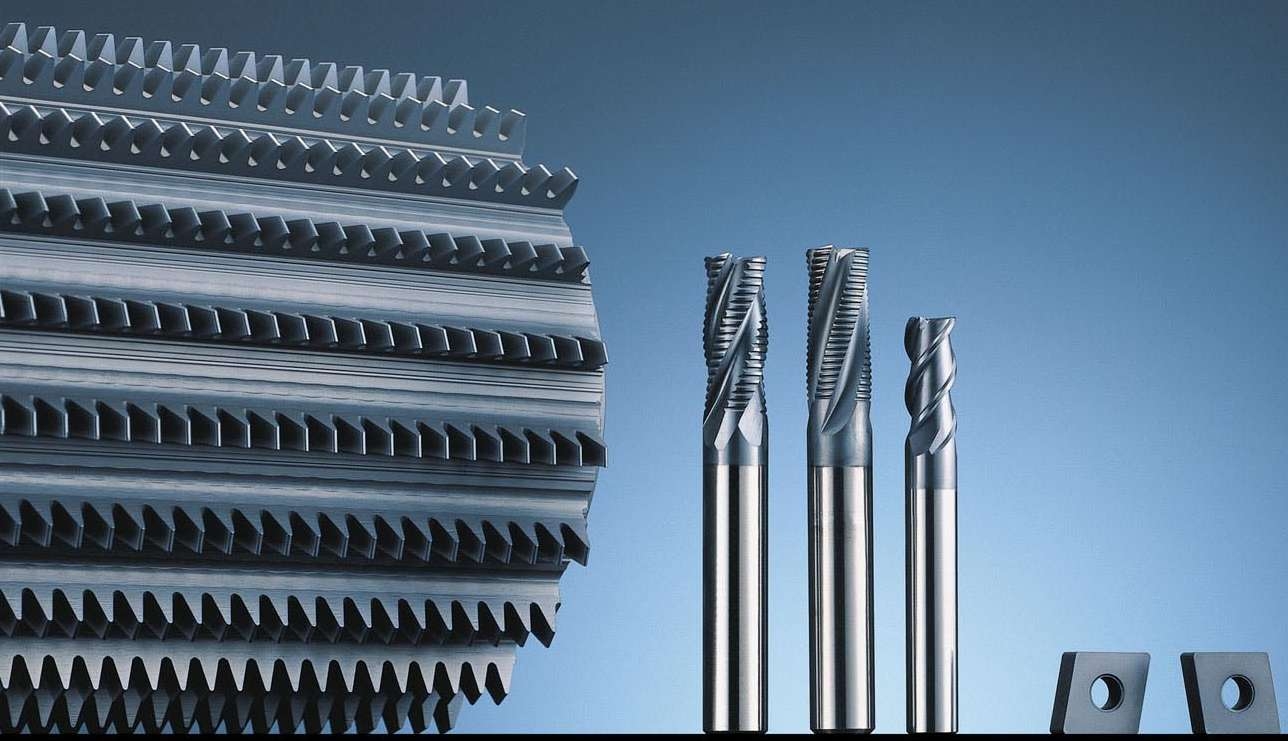

Mar 12, 2004 With AlCrN (aluminum chromium nitride) formula, BALINIT® ALCRONA exhibits oxidation- and wear-resistance. It is suited for dry and wet machining of unalloyed steels as well as high-strength and high-hardness (up to 54 HRC) steels. Coating is also suited for use in applications involving heavy mechanical and thermal stresses.

E Instruments International LLC    Langhorne, PA 19047
Mar 12, 2004 Portable, hand-held, Mini Pressure Pro Model MP50 measures positive, negative, and differential pressure with accuracy of ±2.5% of reading and 0.1 in. H₂O resolution. Unit provides measurements in mmH₂O, kPa, inWg, mbar, and mmHg. It records minimuum and maximum values and can display 2 parameters simultaneously. Protective rubber boot is available on request.

Maple Systems Inc.    Everett, WA 98204

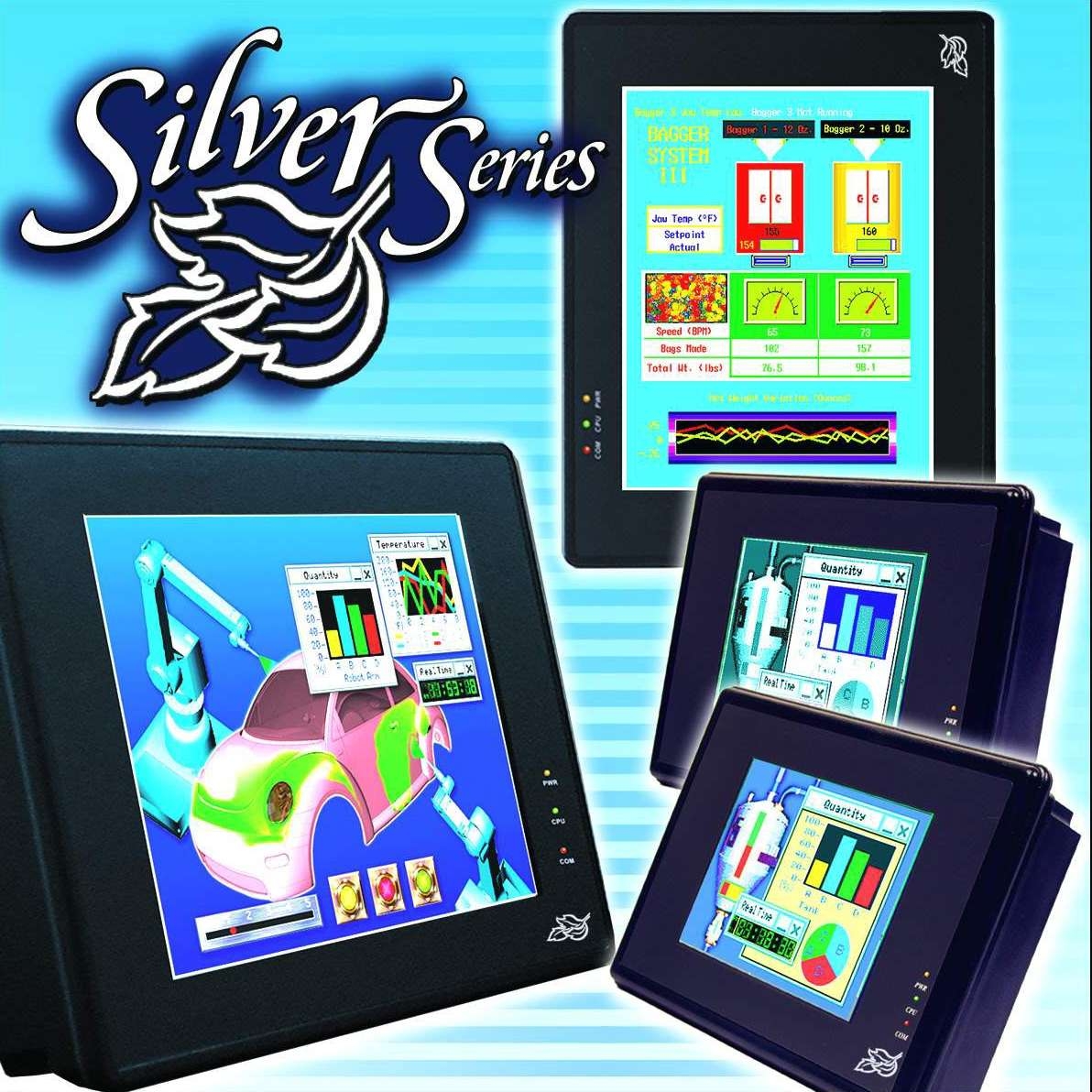

Mar 12, 2004 Silver Series consists of 6, 8, and 10 in. touchscreen HMIs with 10BaseT Ethernet, compact flash interface, real-time clock, and printer connectivity. The 4 Mbyte expanded memory can process graphics-intensive information. Interfaces support multi-language function, macro-scripting language, and protocol support for over 85 controllers. Software includes tag databases, recipes that allow uploads and downloads of up to 32,000 registers, and data monitoring objects.

Ludeca Inc.    Miami, FL 33172

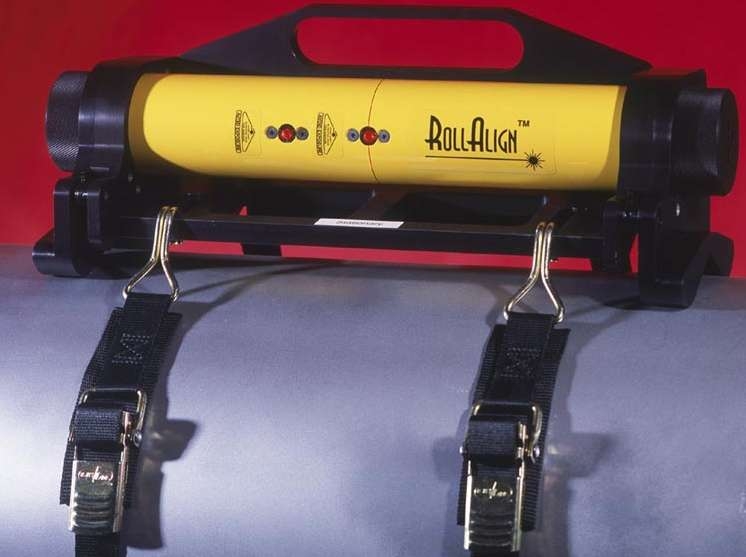

Mar 12, 2004 RollAlignâ„¢ visual laser tool facilitates field replacement of process rolls. Laser emitter unit, mounted on reference roll, projects two Class 2 fanned 635 nm laser lines onto reflector unit mounted on roll to be moved. This allows operator to view vertical angle (pitch) and horizontal angle (parallelity) as roll is adjusted into alignment. Product fits rolls of any diameter spaced between ½ in. to 10 ft apart. Crowned rolls can also be measured and aligned.

Valley Craft, Inc.    Lake City, MN 55041

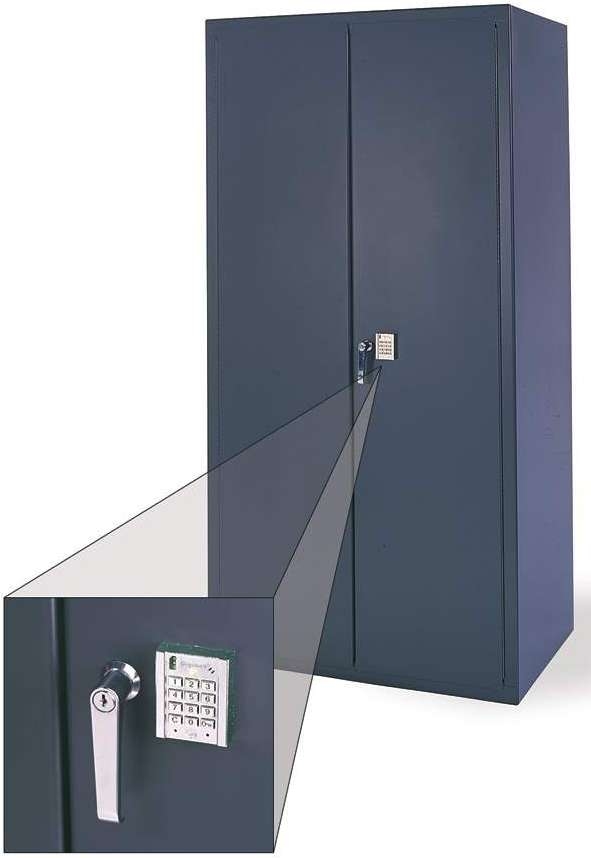

Mar 12, 2004 Vari-Tuffâ„¢ Electronic Locking Cabinet, crafted of heavy-duty steel, secures with 3-point locking system, anchored by electronic lock that operates via code/electronic key. Each cabinet can be programmed individually for multiple users to manage access in single- or multiple-cabinet applications. Mobile version rolls on 2 swivel and 2 rigid casters for safe transport. Various colors, sizes, and bin and shelving configurations are available.

Parker Hannifin Corp., Hose Products Division    Wickliffe, OH 44092 1797
Mar 12, 2004 Suited for applications where space is tight, Model 791TC Extreme Hose features constant working pressure of 6,000 psi. Neoprene synthetic-rubber inner tube is surrounded by 4 or 6 spirals of high-tensile steel wire reinforcement. MSHA-accepted Tough Cover resists abrasion in aggressive environments. Offered in ¾, 1, 1¼, and 1½ in. ID, hose handles petroleum-base hydraulic fluids, lubricating oils, water/oil, and water/glycol hydraulic fluids.

Anderol Company    East Hanover, NJ 07936
Mar 12, 2004 ANDEROL® PumpJack 150, formulated to optimize pump-jack energy efficiency and performance, decreases energy consumption and minimizes maintenance expenditures in cold-weather environments. It provides wear and rust protection and oxidation stability. ROYCO 800 compressor lubricants are formulated with pour points as low as -55°C to provide cold-weather protection for critical application components.

Ideal Industries, Inc.    Sycamore, IL 60178

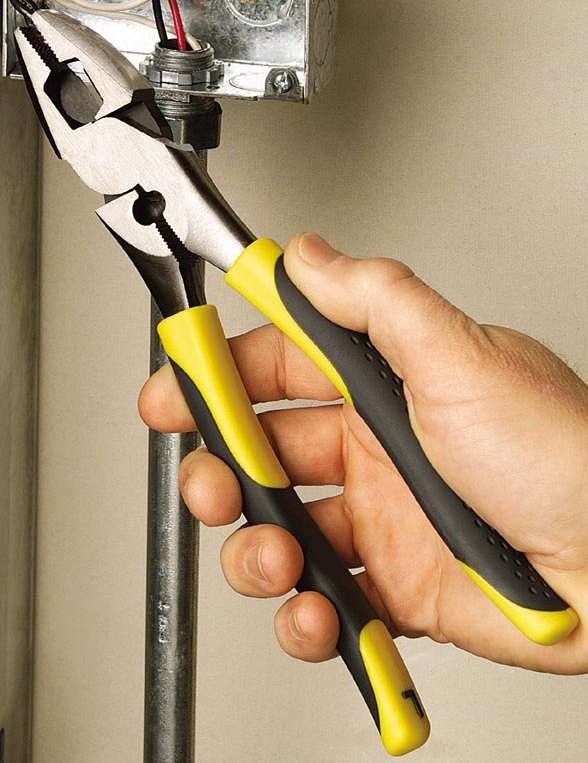

Mar 12, 2004 Smart-Gripâ„¢ electrician's tools include 9¼ in. side-cutting linesman pliers with optional crimp, 8 in. diagonal pliers with optional angled head, 7¾ and 8½ in. needle-nose pliers, 9½ and 10 in. tongue-and-groove pliers, cable cutter, and multi-crimp tool. Pliers are rated for cutting screws, nails, hardened wire, and ACSR. All tools have textured, dual-durometer Santoprene® handle and feature dropforged carbon-steel construction and induction-hardened cutting edges.

IIMAK    Amherst, NY 14228
Mar 12, 2004 Type GP725 with Clean Start(TM) print-head cleaner, assures barcodes and images are clear, consistent, and readable. Located between leader and ribbon, Clean Start consists of thin, white film coated with mild cleanser that removes debris before it builds up on printhead. Ribbon is suited for wide range of energy settings, facilitating changeover from other wax ribbon without adjusting printer's heat setting. It delivers sharp, black print at speeds up to 12 ips.

HED, Inc.    Hartford, WI 53027

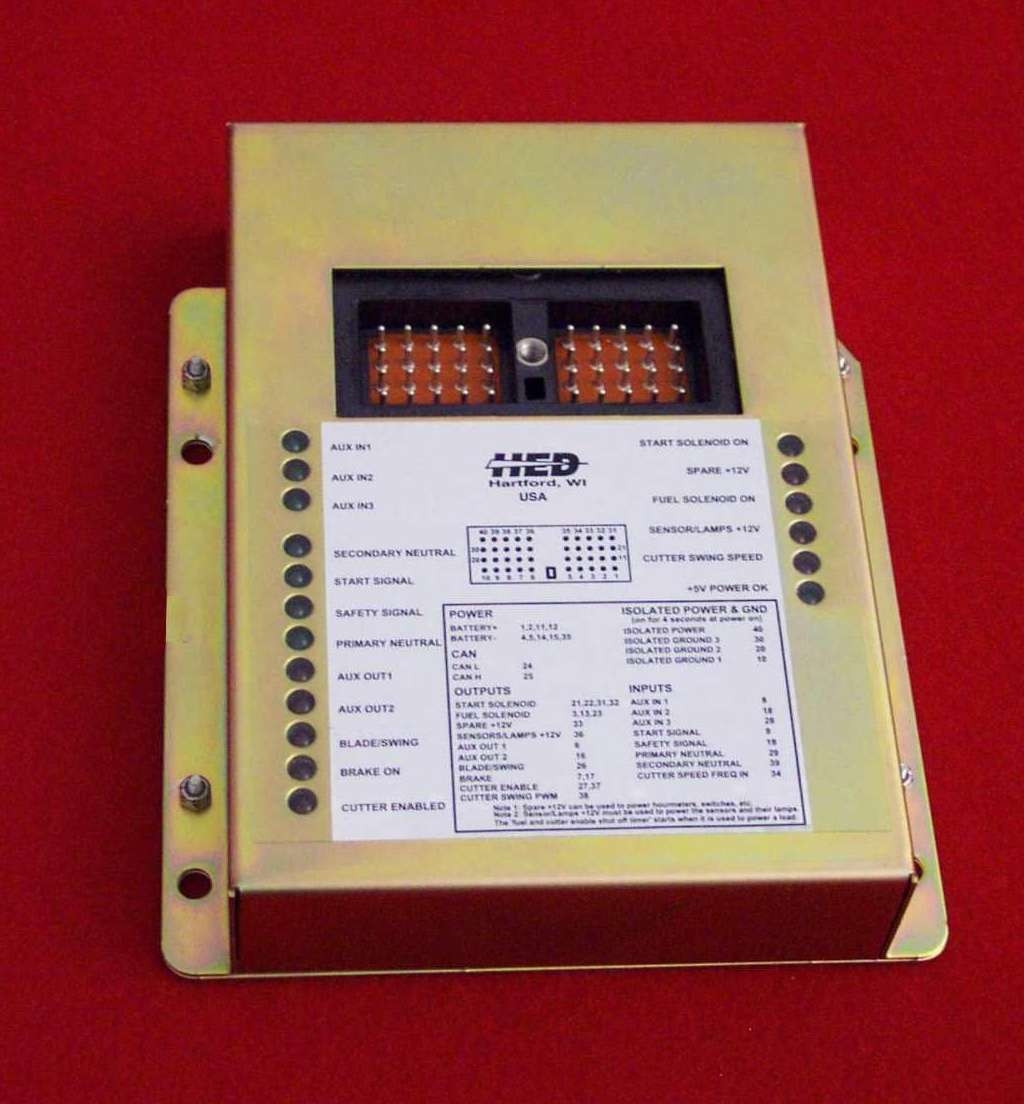

Mar 12, 2004 Model CL-410 has 8 total inputs, including one frequency or digital input for load control functions, and 7 analog or digital inputs. As single board controller, it offers load shedding and safety interlock features to prevent damage from activity. It delivers proportional control to machine's hydraulics, controls starter and fuel solenoids, and manages interface to ignition key. Model CL-410 uses SmartFETS for diagnostic feedback and has built-in CAN capabilities.

Sixnet    Clifton Park, NY 12065 0767

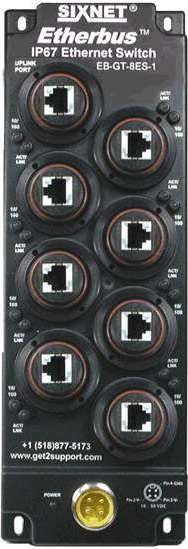

Mar 12, 2004 Suited for military applications, 8-port Model EB-GT-8ES-1EP offers protection against over voltage, power dips, and power spikes as large as 250 V. Fieldbus-style, real-time Ethernet technology switch mounts directly on machine or vehicle, with no enclosure required. Vibration and corrosion-resistant packaging is IP67-rated against water, oil, and dust. Switch is certified for marine and offshore use and operates in -40 to +60°C conditions.

Magtrol, Inc.    Buffalo, NY 14224-1322

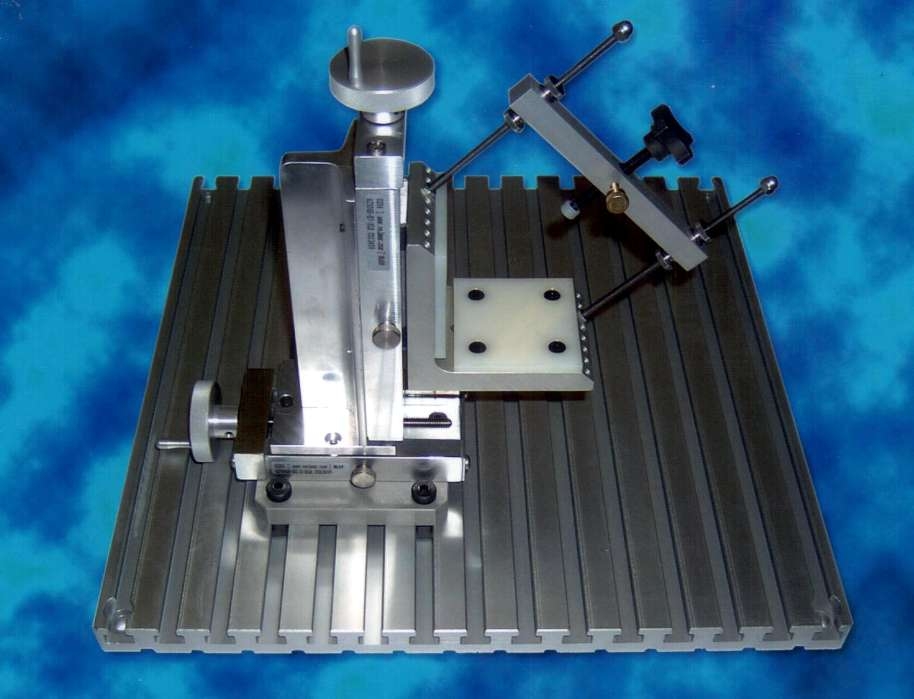

Mar 12, 2004 Adjustable Motor Fixture locates and holds motor in place for running any test, while maintaining center height required for coupling to company's HD-106 through HD-715 Hysteresis Short Base Plate Dynamometer. Lead screw adjustment provides centering for motor while T-Slot Base supplies multiple position options for various motor lengths. Adjustable bridge provides clamping anywhere along axis of motor and thumbscrew protects against vibration.

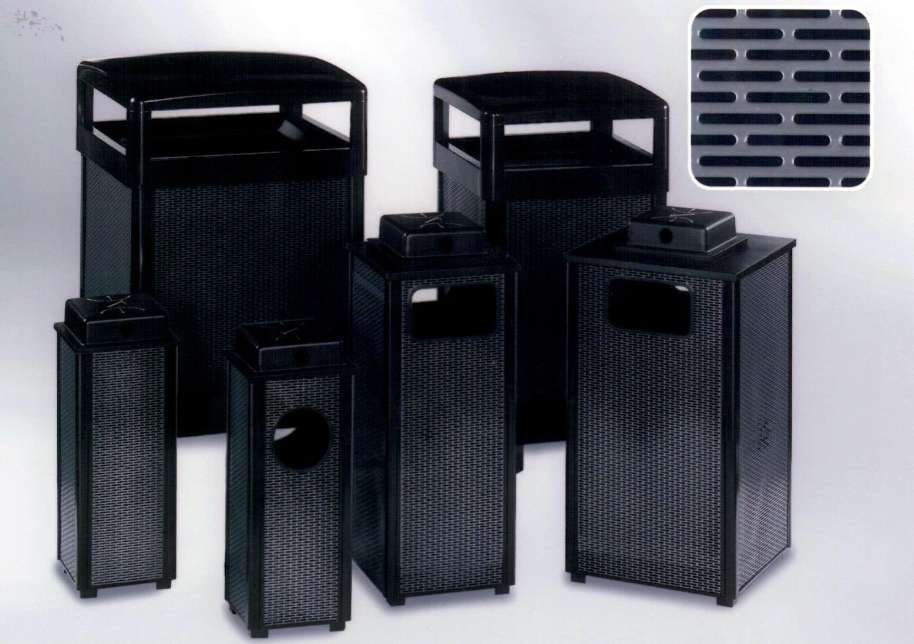

United Receptacle, Inc.    Pottsville, PA 17901-0870
Mar 12, 2004 Dimension 500 Series outdoor receptacles feature UV stabilized Uni-Koat® powder coated finish and choice of galvanized or rigid plastic liners. Products are constructed from hot dipped galvanized, fire-safe steel and incorporate perforated steel panels. Black with Anthracite panels create layered dimension. Urn and ash/trash models have weather urn top. Available in 2.5-38 gal capacities.

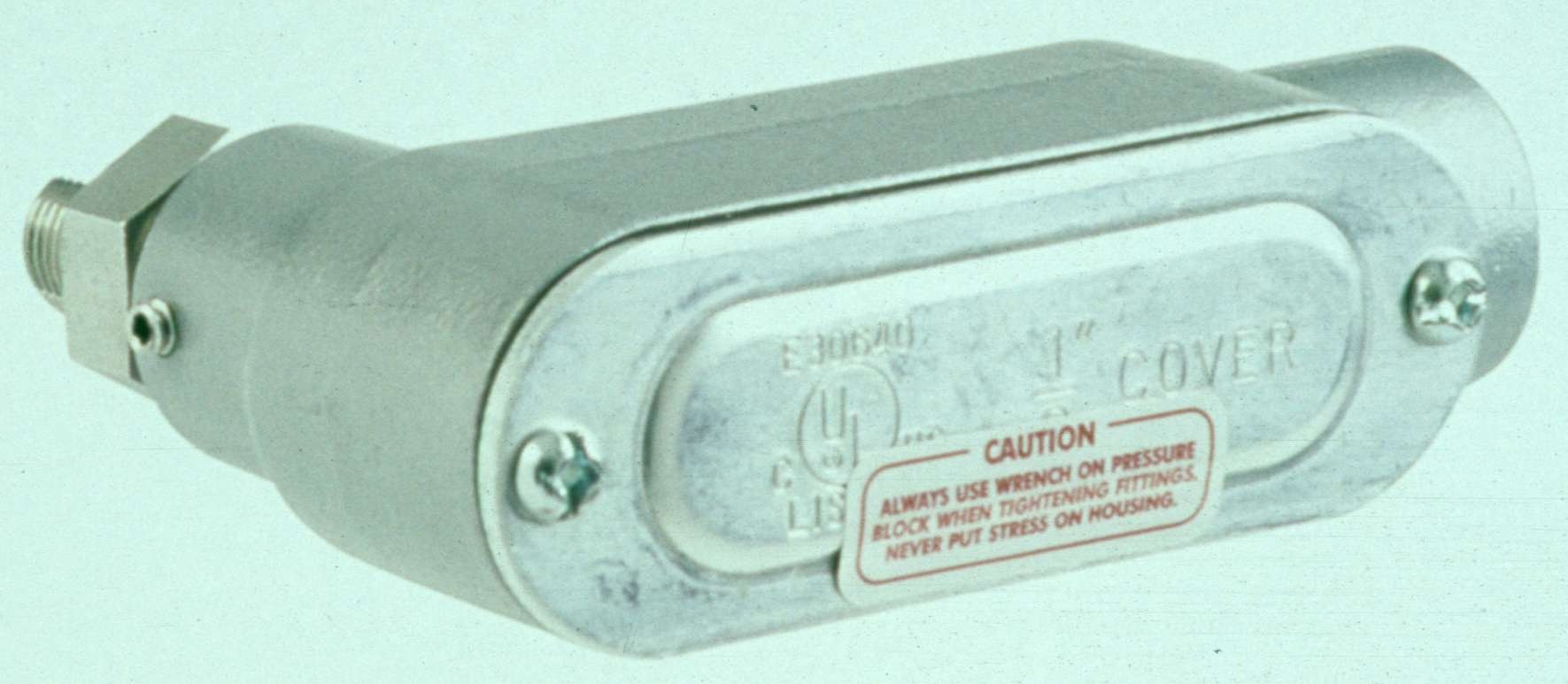

Dwyer Instruments, Inc.    Michigan City, IN 46361
Mar 12, 2004 Series 626 Industrial Pressure Transmitter contains pressure sensor that offers 0.25% FS accuracy on ranges from 15-500 psig. Product senses pressure of air and compatible gases and liquids, then sends 4-20 mA output signal. Enclosed within NEMA 4X housing, it withstands temperatures to 200°F. Wetted parts of 316 and 316L stainless steel permit use in various applications.
