Siemens Energy & Automation Inc., Motors & Drives Div.    Alpharetta, GA 30005
Mar 16, 2004 Simatic OP 73, OP 73micro, and OP 77A are equipped with 3 or 4.5 in. display with resolution of 160 x 48 or 160 x 64 pixels. Models OP 73 and OP 77A feature onboard Profibus DP interface capable of communicating at data rate of 1.5 Mbits/sec with Simatic S7 controller. Model OP 73micro communicates via PPI or MPI point-to-point connection with Simatic S7-200 mini PLC. Alarm system provides message history and freely definable message classes.

Siemens Energy & Automation Inc., Motors & Drives Div.    Alpharetta, GA 30005
Mar 16, 2004 Transmag 11 electromagnetic flowmeter measures sludges, pastes, and slurries. It is suitable for custody transfer measurements and for pulsating media. Measuring range covers 10³ and unit measures reliably with large variations in pressure, temperature, density, electrical conductivity, and viscosity. It can be fitted directly in base of supply lines without requiring further enclosure. Unit offers protection rated at IP68.

Siemens Energy & Automation Inc., Motors & Drives Div.    Alpharetta, GA 30005
Mar 16, 2004 The IQ-Sense optoelectronic and ultrasonic sensors have been integrated into the Moby-P RFID system. Sensors are individually parameterized simultaneously with production process to provide parameter, production and diagnostics data. Teach-in function copies the values set on a sensor to other sensors, while system diagnostics finds faults such as open-circuit, short-circuit or sensor failure. Anti-interference function prevents mutual influencing of sensors.

Dillon, Inc., A Div. Of Avery Weigh-Tronix    Fairmont, MN 56031-1439
Mar 16, 2004 Checkpoint models feature electromagnetic force restoration technology, offering precision to weigh, sort, or classify at throughput of 230 weighings per min. Optional rejection mechanisms automatically remove unsuitable packages from production flow. In-feed, weighing, and out-feed transport conveyors are provided. Touchscreen controls offer menu-guided operation, 80 product parameter settings, 20 automation channels, and password protection.

Siemens Energy & Automation Inc., Motors & Drives Div.    Alpharetta, GA 30005
Mar 16, 2004 Moby P transmits data and energy on 13.56 MHz ISM radio frequency, suitable for production automation. Mobile data storages require no batteries, can store up to 64 KBytes, and attach directly to product. Transponders hold unique ID numbers centrally and complete production and quality data on distributed basis. Information and diagnostics system simplifies commissioning and fault clearance during operation. A read/write device, SLG, is also included for IQ-Sense sensors.

Siemens Energy & Automation Inc., Motors & Drives Div.    Alpharetta, GA 30005

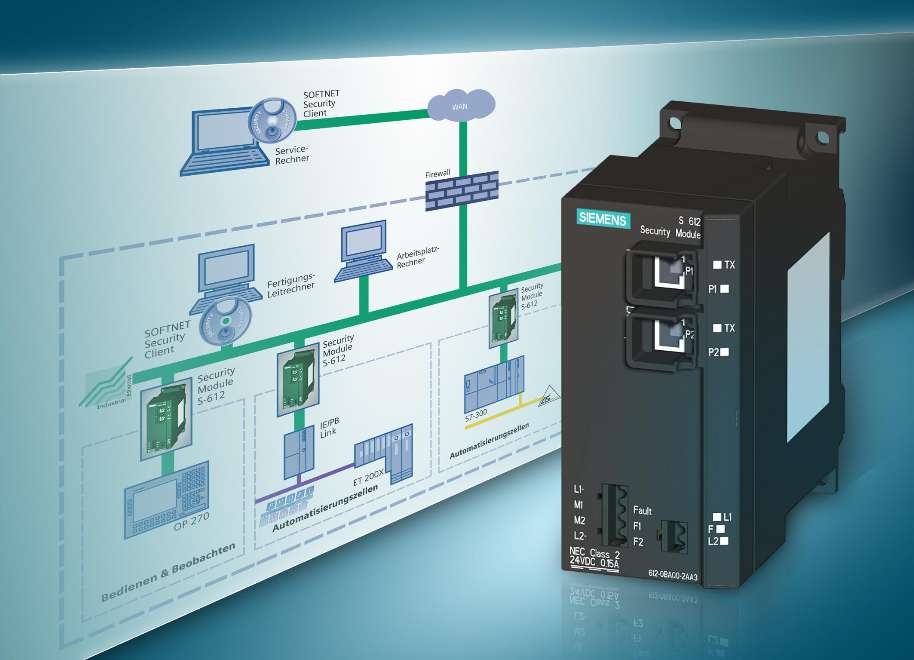

Mar 16, 2004 Security Modules S-612 and S-613 control data traffic and protect plant sections from unauthorized access while establishing secure, encoded Virtual Private Network (VPN) connections. Modules are certified according to ISO/IEC 15408 Common Criteria and are suitable for individual devices or network segments. Standard module protects 32 devices and can establish 64 VPN channels. To prevent spying and manipulation, data is encoded and transmitted through VPN tunnels.

Siemens Energy & Automation Inc., Motors & Drives Div.    Alpharetta, GA 30005
Mar 16, 2004 Model LDS 6 provides continuous in-situ measurement of gas concentrations with reaction time in seconds range. It is equipped with fiber-optic sensors and maintenance-free reference cell for self-calibration. Integral communications interface permits remote scanning of measured values to set spectrometer parameters and carry out diagnostics. Unit is suited for applications involving changing gas compositions, high process temperatures, and varying concentrations of particles.

Hoffman    Anoka, MN 55303 1778
Mar 16, 2004 Series A38 and A38D Free-Standing Enclosures feature cabinet construction on integral 10-gauge steel base, lifting tabs, 3-point latch with padlock provision, and choice of panel or rack mount provisions to accommodate 19 or 23 in. rack equipment. Two-door, general purpose models are available, in addition to 1- and 2-door disconnect models. Enclosures are suited for power distribution, main control, variable frequency drives, and motor control centers.

Siemens Energy & Automation Inc., Motors & Drives Div.    Alpharetta, GA 30005
Mar 16, 2004 Comprised of distributed intelligence, I/O, motor starter, and safety system, Model ET 200S-FC controls speed of asynchronous motors steplessly. Hot-swappable modular unit includes line-commutated regenerative feedback, closed-loop control section, and power section with rated output from 0.75–4 kW. Safe Stop function prevents unintentional starting of drive, while Safe Braking Ramp monitors standstill, and Safe Reduced Speed prevents speed limit from being exceeded.

Bijur Lubricating Corp.    Morrisville, NC 27560
Mar 16, 2004 SureFire Lubricator consists of electric motor-driven gear-pump with outlet connections on both sides, quick-snap reservoir, and built-in strainer. Low level switch provides failsafe operation when lubricant in reservoir is low. Die cast base and sealed motor enclosure protect working components from contamination, while plug-in pin-type terminal block provides fault-free electrical connections. Reservoir sizes include 1.8, 2.7, and 6.0 liter.

Festo Corp.    Hauppauge, NY 11788

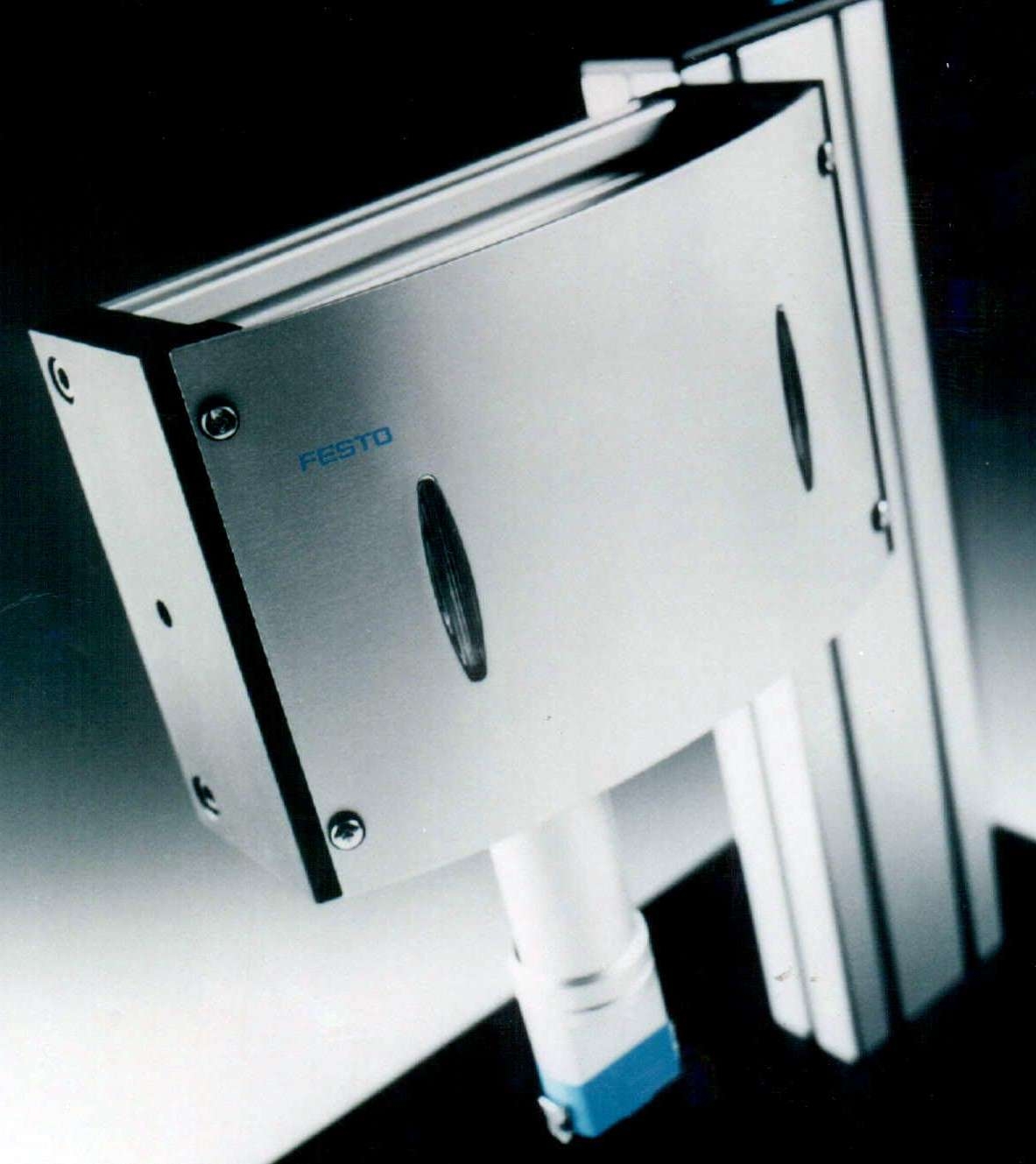

Mar 16, 2004 High Speed Picker (HSP) employs one actuator for 2 motions and enables cycle speeds up to 120 cycles/sec. Suited for handling small work pieces with work piece loads below 100 g, unit offers independently adjustable end positions for horizontal and vertical stroke. It is available in 3 sizes with Y and Z stroke ranges of 52-68 and 15-25, 90-110 and 30-45, and 130-170 and 50-75. Compact design suits pick and place applications in confined spaces.

Siemens Energy & Automation Inc., Motors & Drives Div.    Alpharetta, GA 30005
Mar 16, 2004 Models 1FK7 and 1FT6 synchronous servo motors and 1PH7 asynchronous servo motor are available with integral sensor module. Able to evaluate motor encoder signal and record diagnostics data, module transmits data to Sinamics drive converter system via Drive-Cliq interface. Motor-specific information is saved in sensor module, which incorporates servo motors into Sinamics architecture and permits automatic start-up and control of drives.

Siemens Energy & Automation Inc., Motors & Drives Div.    Alpharetta, GA 30005
Mar 16, 2004 Flexible I/O module S22.5F and safety monitor unify safety and standard technology on AS-interface bus. S22.5F, with IP20 degree protection, has 2 inputs that enable safe link to signals in control cabinet. Safety monitor offers integrated on- and off-delays as well as pulse functions. Momentary shutdowns are saved in buffer memory, logical functions can be linked with each other and cascaded, and safety-related components can be configured virtually.

Siemens Energy & Automation Inc., Motors & Drives Div.    Alpharetta, GA 30005
Mar 16, 2004 Sivacon 8PT switchgear is suited for applications in public institutions for which busways (busbar distribution systems) with type-tested distribution terminals are specified. Busways incorporate standardized components such as flange-type terminals. For fields of application such as on-board ship, mobile offshore units, or in earthquake zones, power distribution system has DNV certification (Det Norske Veritas) and includes all necessary test reports.

Siemens Energy & Automation Inc., Motors & Drives Div.    Alpharetta, GA 30005
Mar 16, 2004 Sirius 3RW40 and 3RW44 enable gentle starting of 3-phase asynchronous motors and include integral bridging contact system and motor protection with adjustable overload tripping times. Sirius 3RW40 (2-phase) suits starting applications without step changes in torque and has output range from 75-250 kW at 400 V. Suited for drives with outputs up to 710 kW at 400 V, Sirius 3RW44 offers torque control, creep-feed function, diagnostic capabilities and graphical interface.

Moore Industries International, Inc.    North Hills, CA 91343

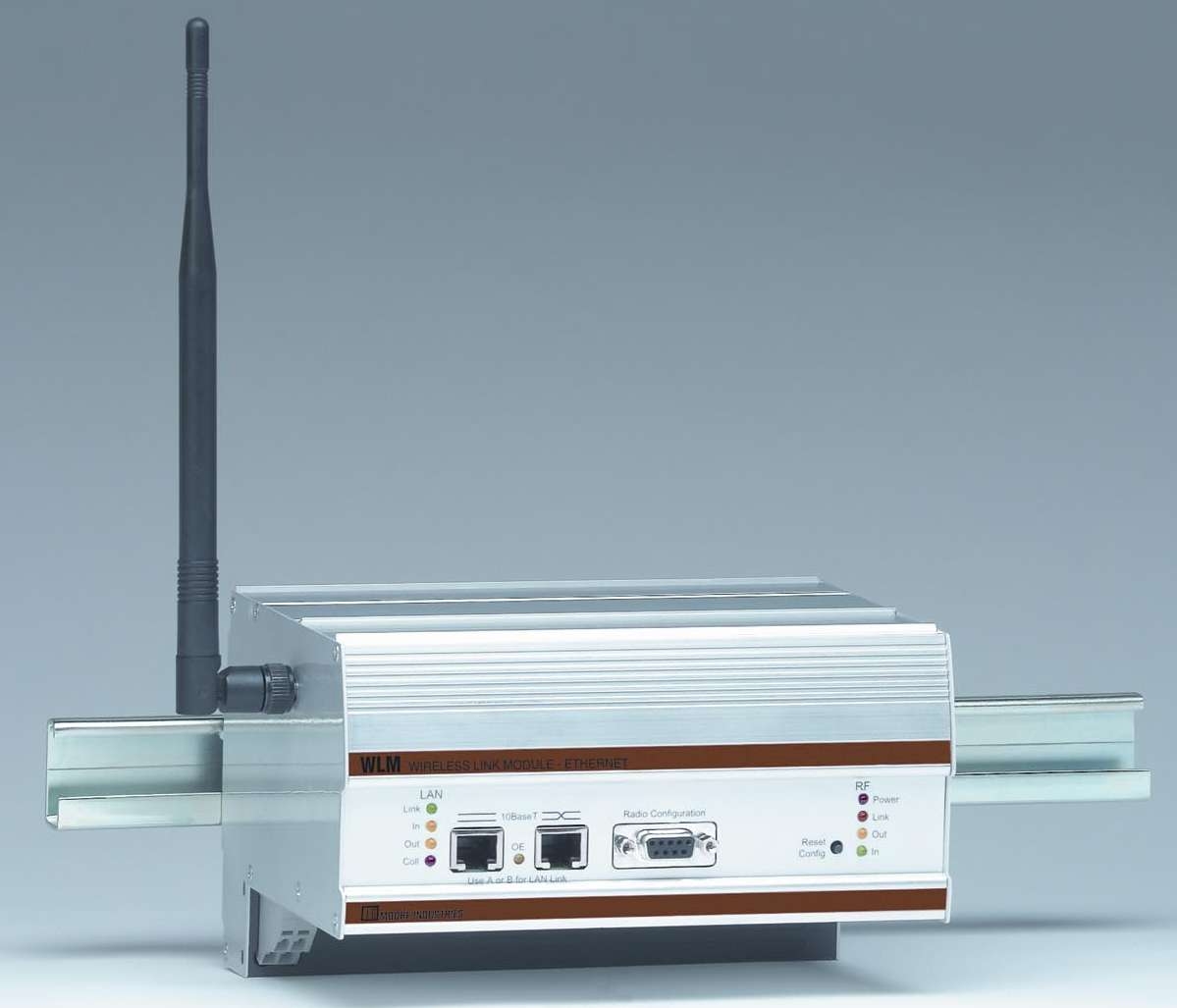

Mar 16, 2004 Wireless Link Module (WLM) provides connectivity between remote field sites. Bi-directional, spread spectrum module employs Intelligent Spectrum Frequency Hopping technology and 32-bit CRC error correction. Available models support Ethernet or serial communications and operate at FCC license-free frequency ranges of 902-928 MHz or 2.4-2.483 GHz. It is suited for use with NET Concentrator® System as well as similar process control and distributed I/O systems.

Acromag, Inc.    Wixom, MI 48393 7037
Mar 16, 2004 BusWorks® 965EN Input Modules interface thermocouple and millivolt signals directly to Ethernet Modbus/TCP 10/100 network. Measuring 1 in. wide, 6-channel, self-contained I/O modules operate independently of any buscoupler or I/O rack. Embedded web pages allow configuration using any standard web browser. Features include 16-bit sigma-delta A/D converters, built-in CJC sensors, LED indication, and internal microcontroller with non-volatile memory.

Siemens Energy & Automation Inc., Motors & Drives Div.    Alpharetta, GA 30005
Mar 16, 2004 Sirius 3RV19 facilitates power supply and distribution for group of circuit-breakers or load feeders up to 5.5 kW. Modular construction enables expansion for loads up to 11 kW when combined with SO-sized circuit breakers with screw type terminals. Basic module comprises 2 slots for circuit breakers, one space-saving in-feed to left or right, and connections for expansion modules. Complete load feeders can be built up using contactor bases.

Siemens Energy & Automation Inc., Motors & Drives Div.    Alpharetta, GA 30005
Mar 16, 2004 Sinamics S150 drive converter features regenerative feedback function with high-speed, closed-loop current control. Menu-driven, graphically supported, plain text display simplifies operation. Optimized inverter functionality supports speed and torque control with/without encoders. Converter is suited to applications in which drives are also used in generator mode, such as centrifuges, lift and crane systems, cross cutters, shears, and conveyor belts.

BT Prime-Mover, Inc.    Muscatine, IA 52761 8800
Mar 16, 2004 With 4,500 lb capacity, SMX45 walkie can be programmed for up to 10 operating modes controlled by PIN entries from keypad on control handle. Low-lift pallet truck includes Turtle Torque function that provides power boost to climb obstructions and anti-roll system that prevents unintended rolling in tight spaces and on inclines. Walkie features Battery Discharge Indicator, service display, and time-out function.
