Nord Gear Corp.    Waunakee, WI 53597
Mar 12, 2012 For functionally complex and dynamic drive applications, SK 540E intelligent control cabinet inverter supports programming of drive-related functions according to IEC 61131. It supports range of drives, can control synchronous motors, and integrates universal encoder interface for energy recovery. Able to perform even sophisticated tasks without external PLC, inverter allows for upgrades to pump drive control with monitoring functions and characteristic curve functions.

Electro Standards Laboratories    Cranston, RI 02921 3403
Mar 12, 2012 Housed in 1U full rack size enclosure that provides EMI/RFI shielding, IP Addressable PathWay® Model 7328 allows connection to any 1 of 8 RJ45 interface devices from 1 Common RJ45 device. RJ45 interface device connected to Common port can be shared among 8 other devices connected to 8 ports labeled A through H. User can lock out front panel push-buttons, control switch position, and monitor switch from remote location via 10/100 Base-T LAN Access Ethernet connection and TELNET commands.

Dynalab Corp.    Rochester, NY 14623
Mar 12, 2012 Offering alternative to plastic waste collection and disposal containers, Bio-bins® are constructed of 96% paper from renewable resources with thin bonded plastic coating to prevent leakage. Stackable units come with built-in closable lid and Bio-matt(TM) absorbent pad to absorb fluids. Available in 2.5, 6, and 30 L sizes, Bio-bins® are suited for wide range of non-sharps biomedical and laboratory waste that require special heat treatment such as autoclaving or incineration before disposal.

Dytran Instruments, Inc.    Chatsworth, CA 91311
Mar 12, 2012 Offering sensitivity of 10 mV/g and 500 g shock limit, Models 3030B4G and 3030B5G feature frequency response of 2 Hz and 5 Hz, respectively. Units are constructed of stainless steel and are hermetically sealed for reliable operation in high humidity and dirty environments. Both incorporate 10-32 axial connector and adhesive mounting capabilities.

MedeAnalytics, Inc.    Emeryville, CA 94608
Mar 12, 2012 With rules engine updated quarterly, Compliance and Revenue Integrity Software helps users keep up with latest compliance issues in all governmental target areas. Best-practice reports address issues arising from Centers for Medicare and Medicaid Services, Office of the Inspector General, and Recovery Audit Program. To manage audit process, users can assign multiple audits and parallel tasks on one claim. Data mining and audit workflow functions help users gain insight into physician practices.

Teradata Corporation    Dayton, OH 45342
Mar 12, 2012 Providing transformational database technology to strengthen BI strategies, Teradata Database v14 offers features for workload management, temporal data capability, security, and application portability. Database is capable of columnar and row analysis, and virtual partitions allocate system resources between groups or business units within company. Also, hybrid storage intelligently discriminates between frequently used and least used data for accelerated processing.

Sauer-Danfoss    Ames, IA 50010
Mar 12, 2012 Designed for performance, durability, safety, and control system integration, KEP3 bi-directional, over-center rocker pedal is used to drive vehicles equipped with hydrostatic transmissions and/or electronically controlled engines. There is 14° angular rotation fore and aft, and included sensor uses Hall-Effect technology and provides 2 types of redundant signals to fit various control strategies. In addition to IP-66 sealed electronics, pedal features 3 million full actuation cycle life.

GAO Embedded Inc.    Toronto 12345  Canada
Mar 12, 2012 Operating at frequency of 13.56 MHz, Model 713002 reads ISO 15693 compliant RFID transponders at distance up to 20 cm, depending on size of antenna. Unit provides baud rate of 19,200 bps and allows for multi-detection. RS232, UART, and RS485 interfaces are available for communications. Requiring 5 Vdc, 80 mA during transmit and 70 mA in standby, kit is designed for integrators to install into other devices such as printers, terminals, and handheld devices with DIP28 pin package.

Beamex, Inc.    Marietta, GA 30067
Mar 12, 2012 Beamex® CMX Calibration Software v2.7 supports Beamex MC6 Advanced Field Calibrator and Communicator as well as Beamex Temperature Dry Blocks. Additional support is provided for internal and external reference sensor (controlled and measured) as well as specifications for when dry blocks are used as heat source only (controlled). In addition to error limit function, features include support for several calibration references per calibration point.

Connect One Semiconductors, Inc.    Phoenix, AZ 85023
Mar 09, 2012 Supporting high-speed, 802.11n-compliant wireless LAN, Nano WiReach(TM) USB brings wireless connectivity to consumer devices not originally intended to support wireless functionality. Host-offload capability enables module to deliver PHY rates up to 150 Mbps. Measuring 3.0 x 1.5 x 8.5 cm, RoHS-compliant device features autonomous operation that transparently supports features to boost performance, including internal diversity switch that selects antenna 1 or 2 for baseband signal processing.

Fluid Components Intl.    San Marcos, CA 92069 5115
Mar 09, 2012 With VeriCal Calibration Verification System, ST100 Series combines advanced measurement capability with in-situ calibration for flare gas applications aboard offshore platforms, land-based oil/gas facilities, and chemical plants. Basic insertion style air/gas meter features thermal flow sensing element that measures flow from 0.25-1,000 SFPS with accuracy of ±0.75% of reading, ±0.5% of full scale. Designed for service up to 850°F, meter is available with integral or remote electronics.

L-Com, Inc.    North Andover, MA 01845
Mar 09, 2012 Able to be mounted on virtually any panel thickness, models ECF504B-UAA (A-A, black), ECF504B-UBA (B-A, black), ECF504-UAA (A-A, beige), and ECF504-UBA (B-A, beige) allow USB cables to be passed through panels and enclosures. Unshielded products use ECF style flange-mount design and also feature 30 µin., gold-plated contacts that promote connection reliability with repeated mating cycles.

TQC BV    Zevenhuizen   Netherlands
Mar 09, 2012 Serving paint and coatings industry, TQC wet scrub washability tester can be used to test various materials, such as hiding power test charts, scrub panels, as well as metal, plastic, or wood panels/parts. Settings are pre-set in machine for ISO and ASTM standards, but all parameters are fully flexible. Cycle speed (1-60 strkes/min), stroke length (2-300 mm), pump volume (0-3 mL/min), number of cycles, and test duration can all be set digitally by operator.

PulseTech Products Corporation    Southlake, TX 76092

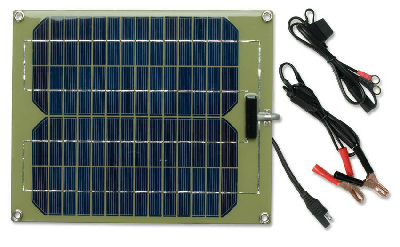

Mar 09, 2012 Combining high frequency Pulse Technology with microprocessor-controlled intelligent charging algorithms, SolarPulse® SP-24-6 charges, maintains, and de-sulfates all types of generators and vehicles with 24 V lead acid battery system, including standard, AGM, and gel types. Waterproof unit features 9 x 11 x 0.125 in. polyurethane encapsulated solar panel mounted on solid aluminum back plate, and uses single-crystalline silicon photovoltaic cells.

George Products Company    Middletown, DE 19709
Mar 09, 2012 Using edge detection and geometric recognition algorithms for automatic, real-time measurement, CoreX2 has 3.40 x 2.80 in. Field of View that accommodates parts up to 3 3/8 in. long x 2 ¾ in. dia. Accuracy is ±0.0002 in., and measurements are taken at rate of 6 times/sec in working with shadow (profile view) of part. As soon as user places part into OASIS, every measurement on part is instantly compared to dimensional tolerances. System then reports pass, warn, or fail status.

Cissoid    Mont Saint Guibert 1435  Belgium
Mar 09, 2012 Supplied in 5 x 5.5 mm SMD ceramic TDFP, CHT-VEGA low dropout, linear, voltage regulator is suited for embedded power supplies that must survive high-temperature, harsh environments or that require extended lifetimes. Product operates from -55 to +225°C and delivers regulated output with up to 500 mA from 5 V ±10% input. Output voltage can be adjusted from 1.2-3.3 V, and total output voltage accuracy under all operating conditions is better than ±5%.

Photron USA, Inc.    San Diego, CA 92126

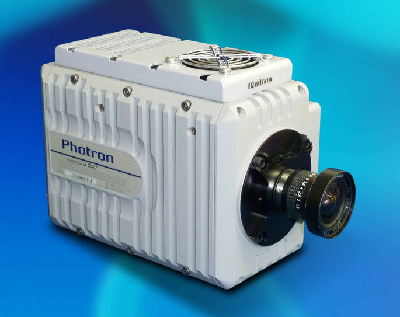

Mar 09, 2012 Utilizing 1,280 x 1,024 pixel CMOS imaging sensor, Fastcam SA7 provides frame rates up to 3,500 fps at full image resolution and optimized image quality with 12-bit ADC. Light sensitivity is 5,000 ISO monochrome and 2,500 color ISO, measured to ISO standard 12232 Ssat specification. Gigabit Ethernet network interface allows operation and control through Photron Fastcam Viewer software.

AXIOMTEK Co., Ltd.    Taipei   Taiwan

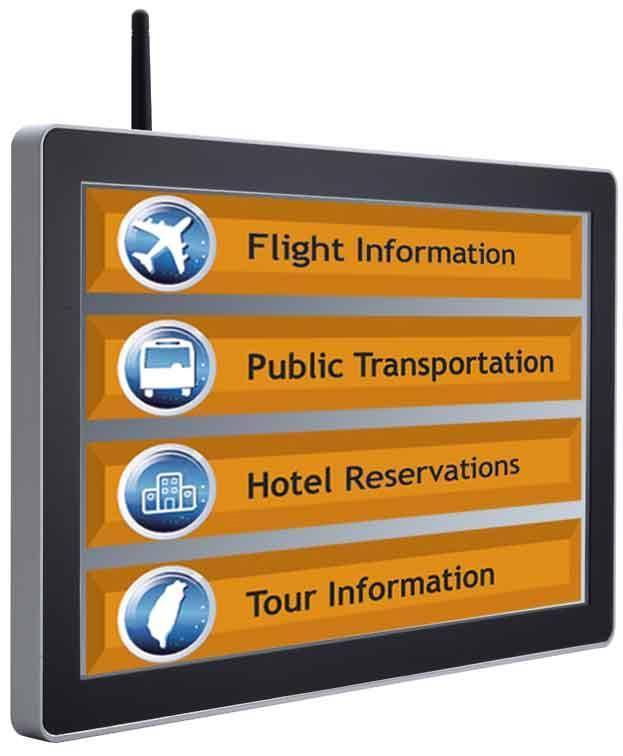

Mar 09, 2012 Constructed with 14 mm thick, IP65-rated, aluminum front bezel, GOT615-801 features resistive type 15.6 in. WXGA (1,366 x 768) true color TFT LCD widescreen and is powered by dual core 1.8 GHz Intel® Atom(TM) processor D525 with Intel ICH8M chipset. Additional features include built-in WLAN antenna, 204-pin DDR3 SODIMM sockets (4 GB max), VESA ARM kit, and diverse I/O: RS-232/422/485, RS-232, 2.5 in. SATA HDD bay, Gigabit Ethernet, USB 2.0, VGA, and audio.

Harrington Hoists, Inc.    Manheim, PA 17545 1754
Mar 09, 2012 Made of die-cast aluminum, ED Infinity Electric Chain Hoists are available in 125, 220, 250, 350, 400, 525, and 1,050 lb capacities. External speed adjustment knobs enable operator to customize high and low hoist speeds, while metal hinged cover protects knobs from damage and prevents speed settings from shifting during operation. Additional features include Weston-style and regenerative load brakes, friction clutch for overwinding protection, and nickel-plated, heat treated load chain.

ARNOLD UMFORMTECHNIK GmbH & Co. KG    D-74670 Forchtenberg-Ernsbach   Germany
Mar 09, 2012 Comprised of mechanical and chemical screw locking technologies, ThreadLoc system offers individually optimized solutions for muffling, sealing, and securing threaded fastener joints. Optimized products range from adhesive (chemically reactive) and binding (non-reactive) retention methods, to Arnold Powerlok secure screws with trilobar threads and LocTech drives for permanent mechanical anchors.
