IBM (Corporate Headquarters)    Armonk, NY 10504-1783

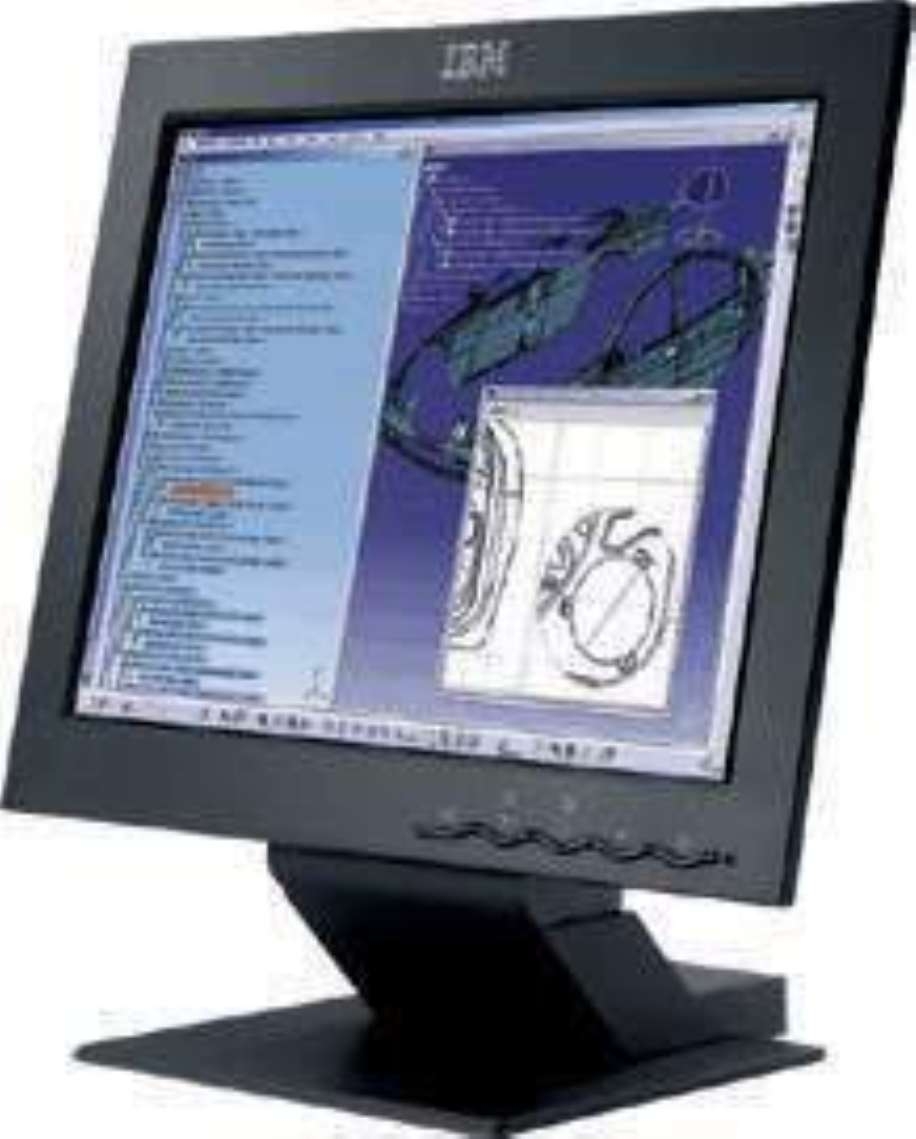

Mar 18, 2004 ENOVIA Portal Solutions v5.13 consists of scalable Web-based, Microsoftâ„¢ Windowsâ„¢ and UNIX® products that enhance collaborative innovation and improve design review productivity during product lifecycle. Software enables users to propagate and share 2D and 3D product data and critical product development information throughout extended enterprise. It enables access ENOVIA data as well as data from other enterprise information systems.

Ipsil, Incorporated    Cambridge, MA 02138

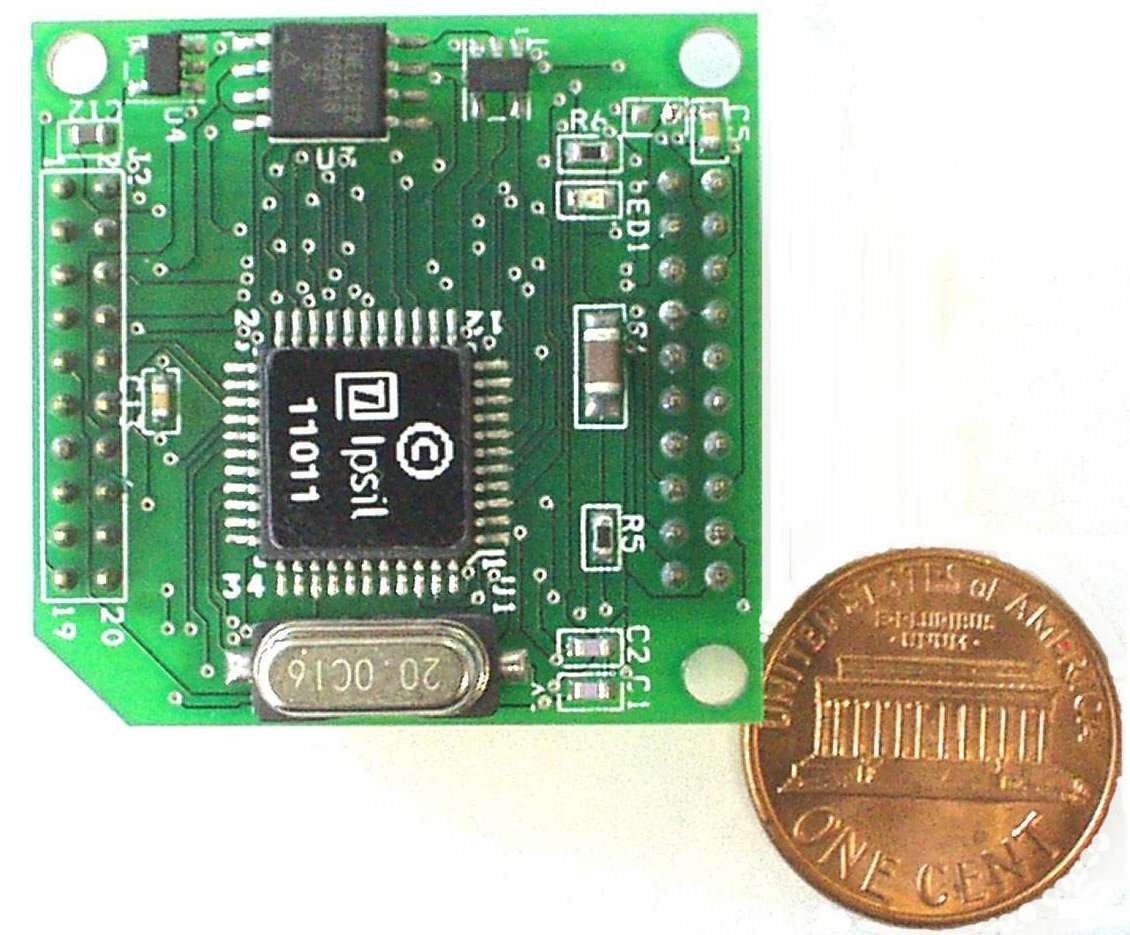

Mar 18, 2004 Model IPµ8930 provides complete solution for web-enabling embedded control, communications, and monitoring applications without need for programming, additional hardware, or RTOS. It combines TCP/IP controller, HTTP-compliant webserver, Modbus TCP node, A/D converter, and I2C into 33.2 x 34.5 mm module. On-board temperature sensor and 8 analog or digital channels can be polled up to 125 times/sec. Serial port and data logging capabilities are included.

Siemens Energy & Automation Inc., Motors & Drives Div.    Alpharetta, GA 30005

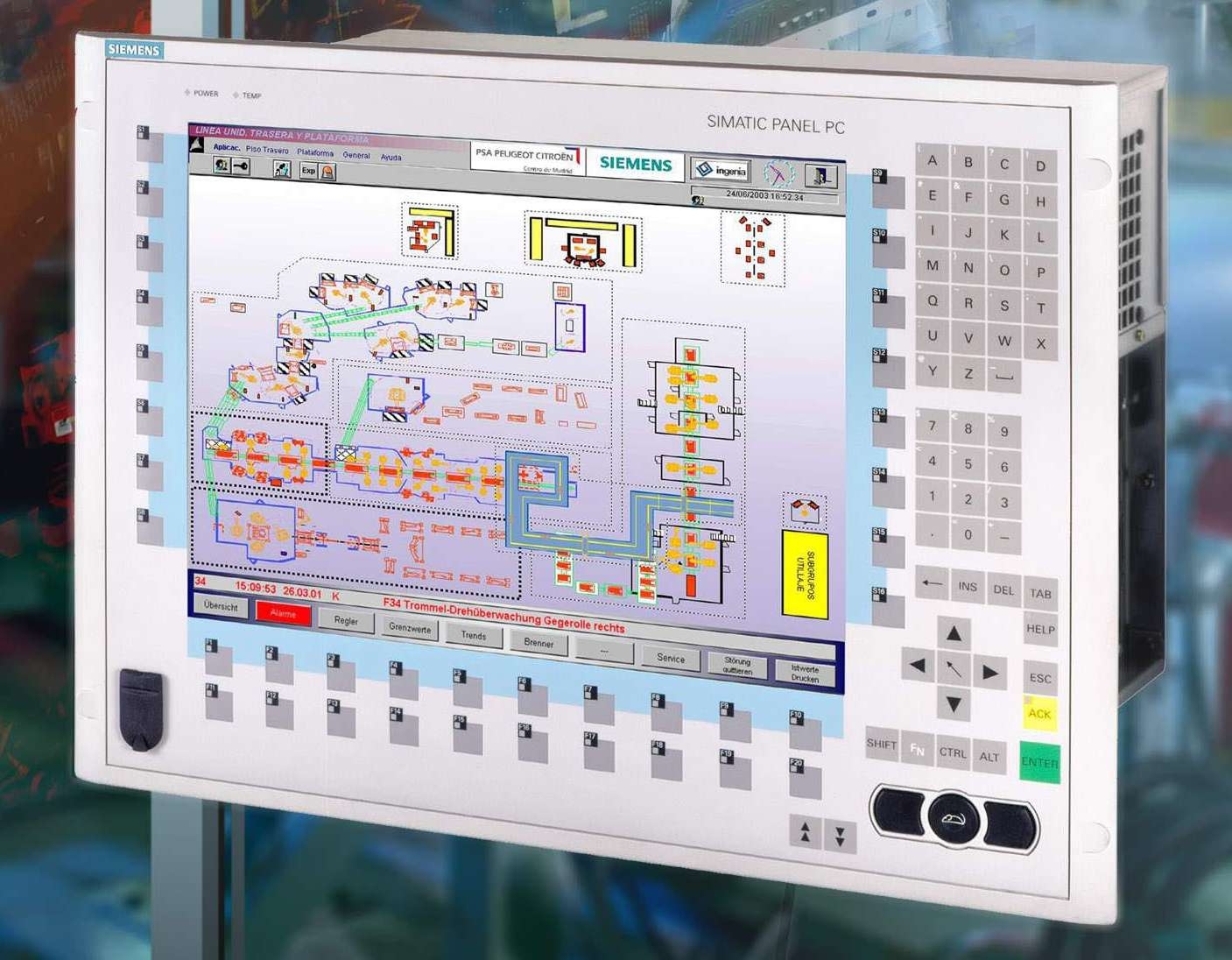

Mar 18, 2004 Panel PC 870 incorporates up to 3 GB RAM, 80 GB hard disk, DVD-ROM/CD-RW drive, 5 PCI/ISA slots, and optional mirror-disk system. DiagMonitor software provides support during diagnosis and monitoring, and interfaces available for Profibus, 10/100 Mbit Ethernet, and high-speed USB 2.0. Device suits machine-level industrial operation in tough environments at temperatures from 5-50°C and with impact loads of 5 g acceleration of freefall.

QSI Corporation    Midland Park, NJ 07432
Mar 18, 2004 WinLIMS software provides data management without need for extensive custom code. Bore-hole sample details, complete with necessary geographical and physical coordinates, can be remotely logged into LIMS database using laptop linked to Web via GPRS, 3G, or satellite phone. WinLIMS can define sieve sets used in laboratory, interface directly to balance, and perform calculations and reporting. Export tools interface directly with CAD packages such as AutoCAD and Genicom.

National Instruments Corp.    Austin, TX 78759-3504

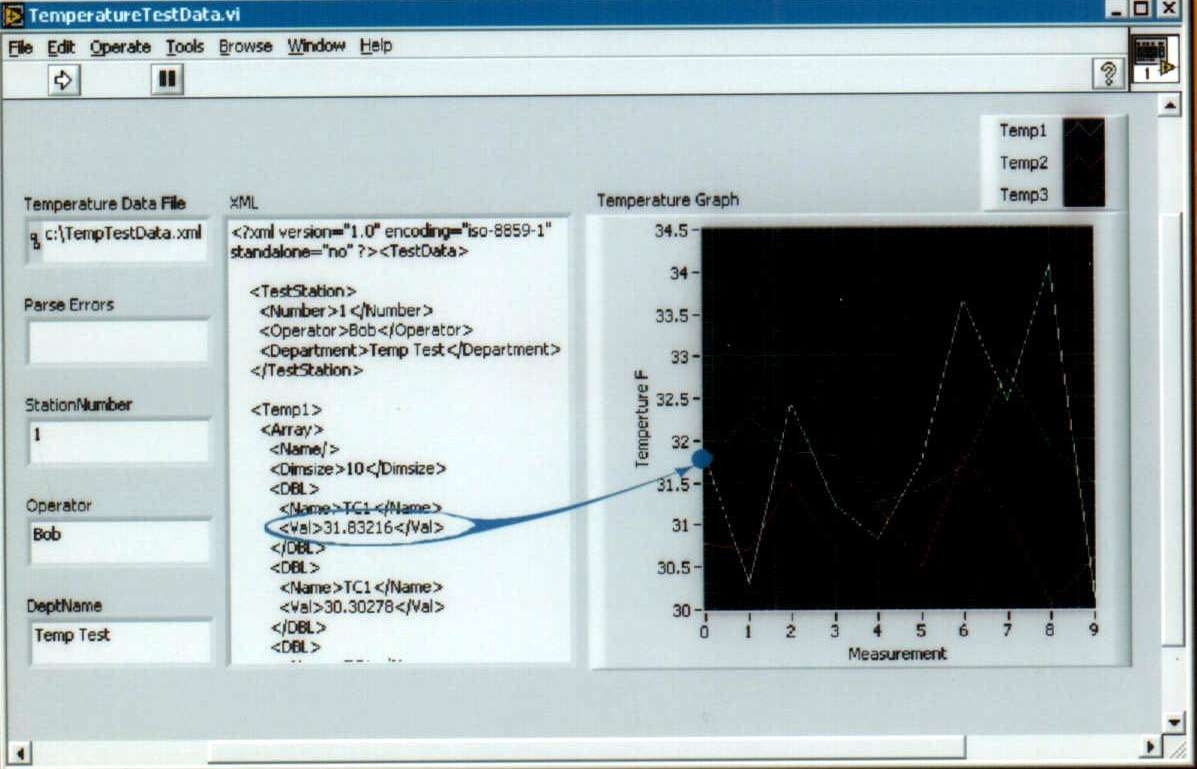

Mar 18, 2004 NI LabVIEW Internet Toolkit v6.0 features cross-platform XML DOM parser that engineers can use to read, write, and parse XML data in LabVIEW graphical development environment. Parser extends data sharing and management capabilities of LabVIEW by incorporating benefits of XML. Toolkit provides CGI programming, libraries for adding FTP transfer and Telnet to VIs, and Web server capabilities that offer independent and shared modes of operation.

TURCK, Inc.    Plymouth, MN 55441
Mar 18, 2004 Kübler by TURCK System consists of linear encoder that allows non-contact measurement of linear position or speed. It senses movement via magnetic scale and sensor head that provides quadrature pulses from which speed, position, and direction of travel can be determined. Available in lengths up to 90 m, scale comes with stainless steel covering for protection against metal shavings and filings. Rated to IP67, system is immune to dust and liquids.

Samtec, Inc.    New Albany, IN 47151 1147

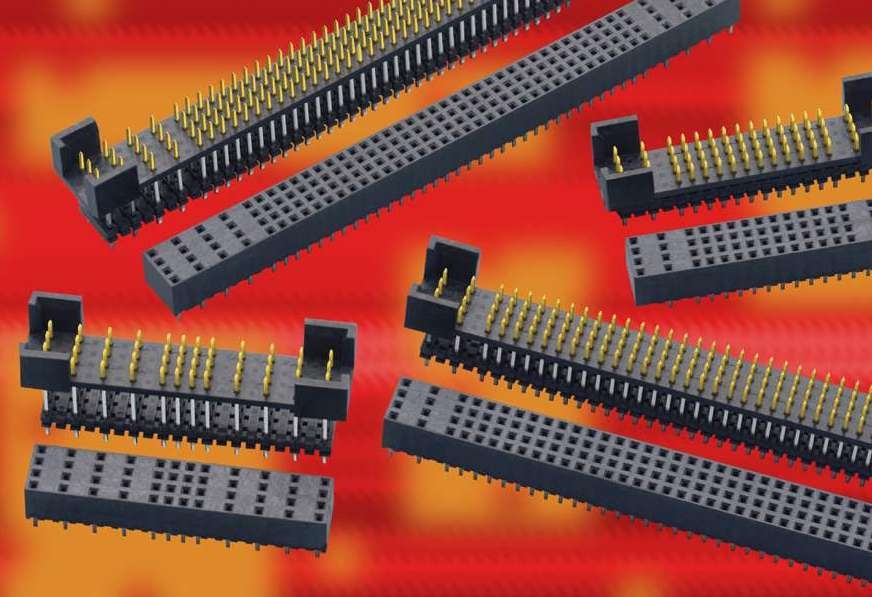

Mar 18, 2004 TPCM/TPCF Series power-to-board interconnect system on .0787 in. pitch can be used for elevated board stacking. Each 4-row interconnect can carry 27 A at 80°C over 4 banks of 4 power pins. Power banks are separated from nearest signal pins by 3.5 mm to maximize power capacity, and end shrouds ensure proper mating. Product includes Tiger Buy tuning fork style phosphor bronze contacts, and board spacing with standard connectors ranges from .394–.787 in.

PCB Piezotronics Inc.    Depew, NY 14043 2495

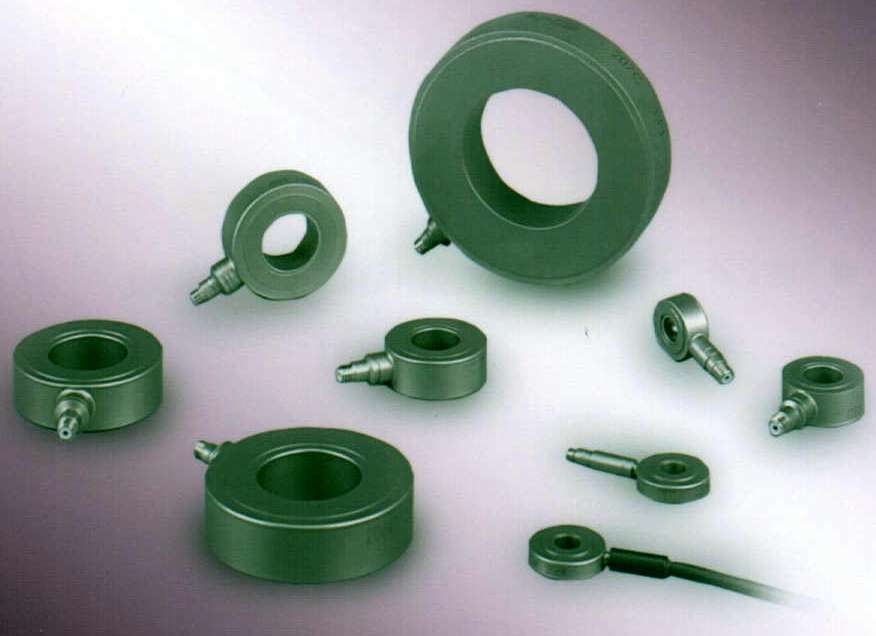

Mar 18, 2004 With hermetically sealed stainless steel construction, ICP® and charge output piezoelectric force rings are suited for rapidly changing dynamic compression and impact tests from 10–100,000 lb. Sensors are designed for measurement of fast, transient forces, and are capable of monitoring low-level dynamic force fluctuations over higher static loads. They offer amplitude linearity of 1% FS and upper frequency limits to 90 kHz.

PCB Piezotronics Inc.    Depew, NY 14043 2495

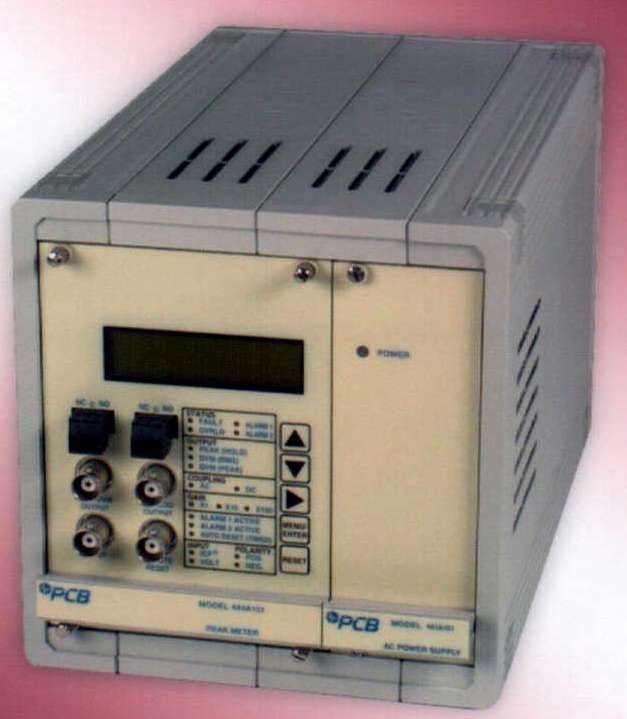

Mar 18, 2004 Model 400B20 measures peak shock, pressure, force, or impact phenomena. Dual mode amplifier features continuous gain, and resetting or zeroing can be done manually or remotely. Peak meter displays peak voltage, with values that correlate directly to peak input. Unit can be used as digital voltmeter as well as for measuring bias of ICP® sensors. Features include 2 alarms, sensor output normalization, and 3 selectable discharge time constants.

PCB Piezotronics Inc.    Depew, NY 14043 2495

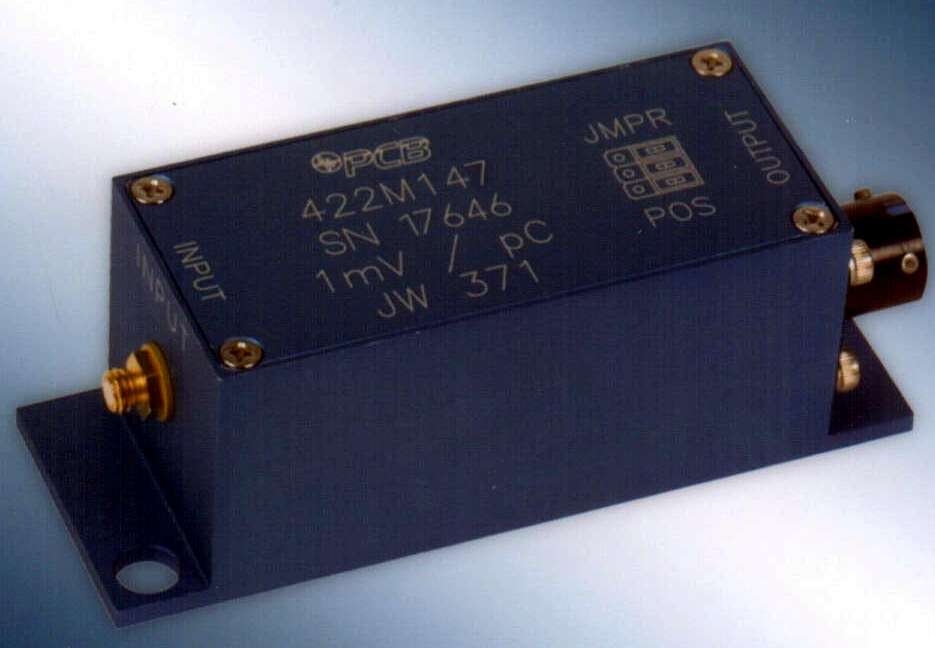

Mar 18, 2004 Dual Sensitivity Model 422M147 converts high-impedance charge sensor signals to low-impedance voltage signals for operation with ICP® sensor signal conditioners or readout devices that have ICP® sensor input. It permits user to jumper select between 2 fixed sensitivities and allows use of coaxial cable at output. Featuring ground-isolated aluminum enclosure, device operates to 250°F and is suited for sensors with resistance as low as 10k ohm.

Mikron Infrared, Inc.    Oakland, NJ 07436

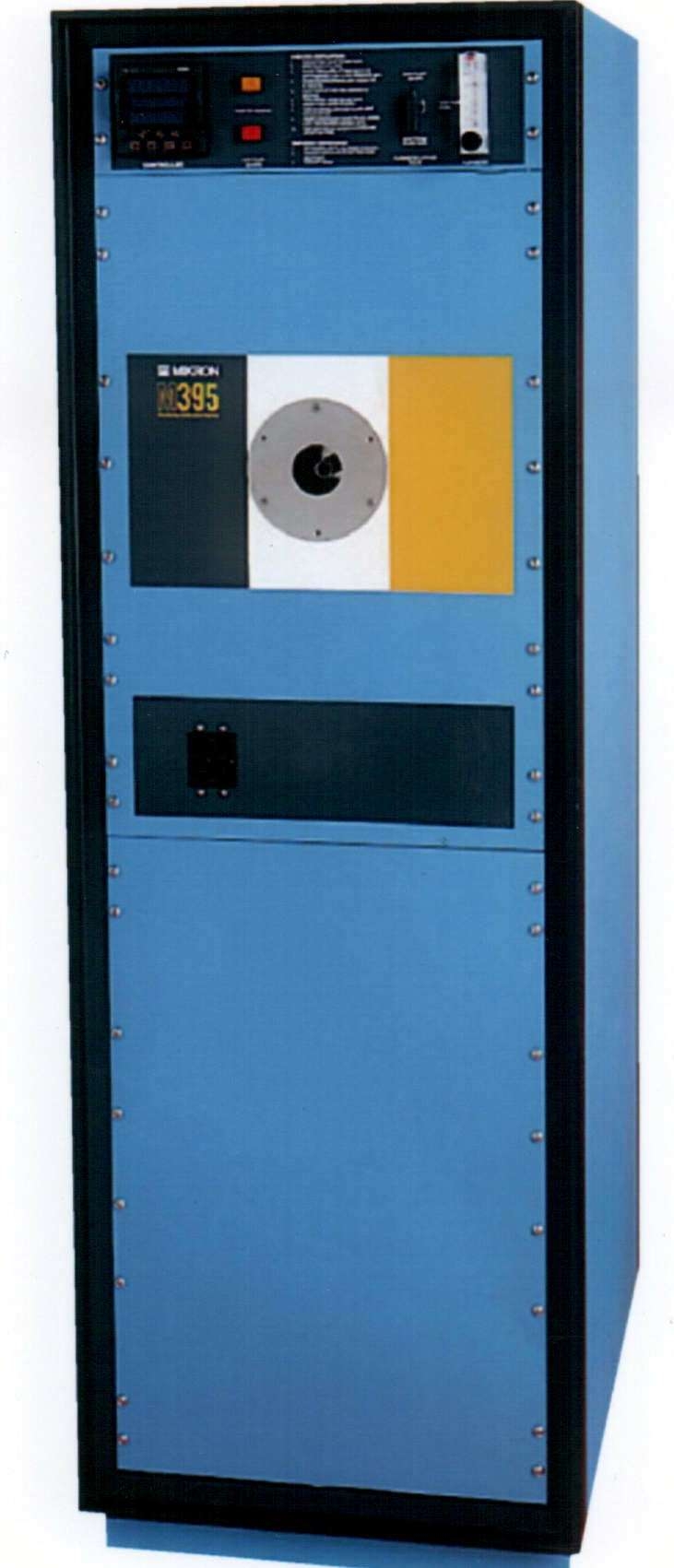

Mar 18, 2004 Blackbody Calibration Source, Model M395, can reach temperature of 2,500°C while also providing for near ambient temperature calibration. It allows calibration of infrared instruments with wavelengths from 500 nm to 20 µm. Highly uniform emitter temperature insures that infrared instruments with different fields of view are equally accurate during calibration. Due to 500°C per minute slew rate, Model M395 can replace number of existing blackbody sources.

Marathon Sensors, Inc.    Cincinnati, OH 45241
Mar 18, 2004 Sentinel-FCP pairs extractive lambda probe with Dual Pro dual-loop process controller. Lambda probe, capable of oxygen sensing from ppm up to 15% oxygen, draws sample from furnace and provides oxygen measure to controller, which calculates furnace atmosphere carbon levels and dewpoint. Unit then automatically adjusts trim gas and furnace temperature. Sentinel-FCP can be located remotely and is not susceptible to vibration and thermal shock.

ATI Industrial Automation    Apex, NC 27639

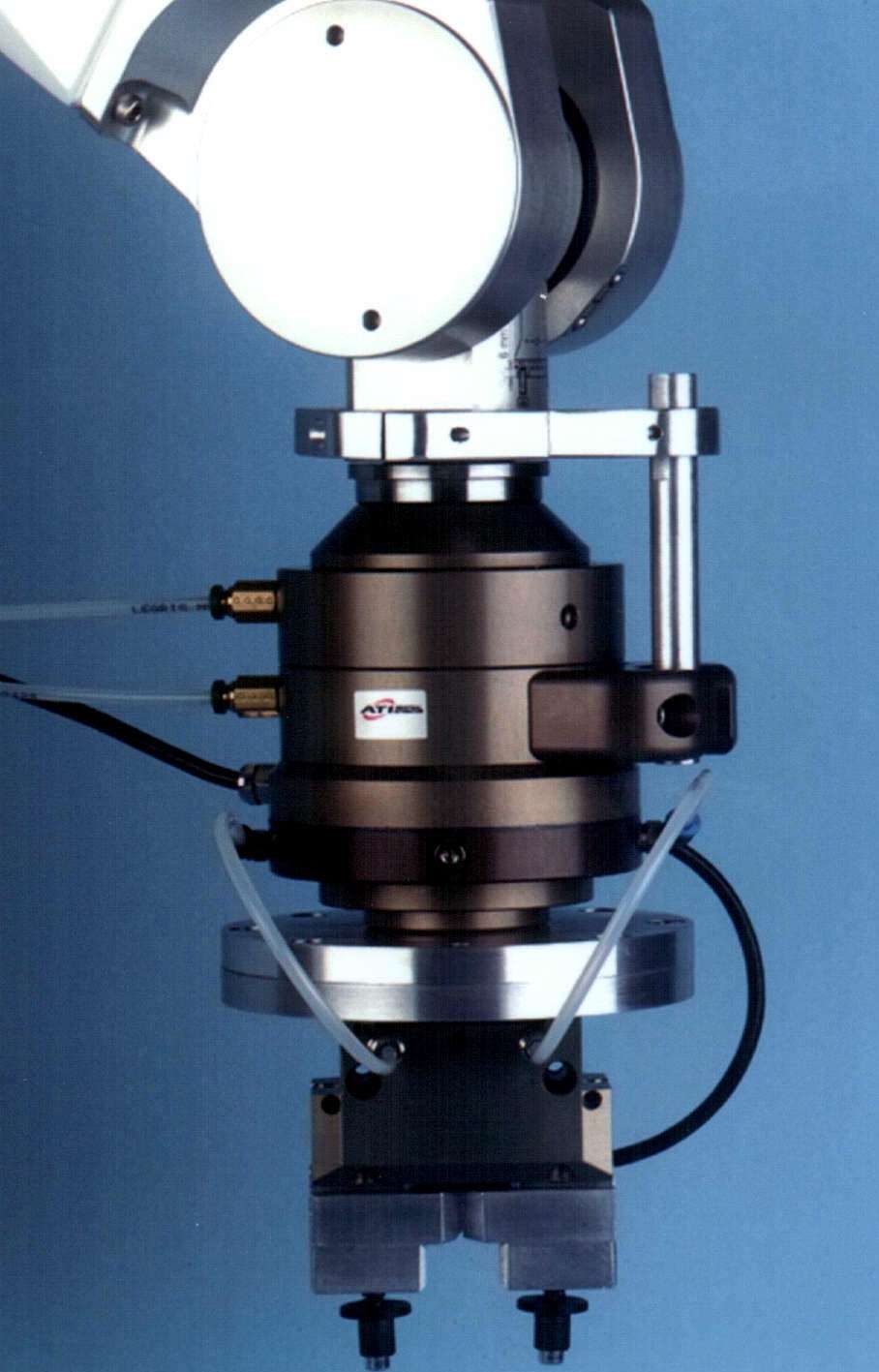

Mar 18, 2004 Robotic Rotary Joints allow unlimited rotation of end-of-arm tooling on industrial robots. Slip-ring design passes electrical and pneumatic signals from robot to rotating end-effector. Made of anodized aluminum alloy, joints handle payloads of 4,050 lb and torques of 6,200 lb-in. Rated IP-65, tools have 2-4 pneumatic feed-through lines at max of 10 bar and 4-10 electrical signals at max of 60 V and 1 A. Units can also be set up for BUS signal transmission.

Kistler Instrument Corp.    Amherst, NY 14228 2119

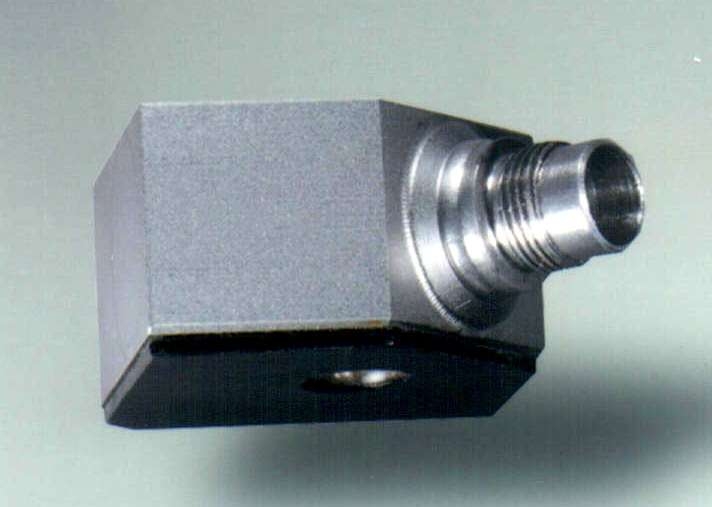

Mar 18, 2004 Utilizing PiezoStar® crystal element, Model 8765A250 exhibits low sensitivity variation over operating temperature of -54 to +165°C. It offers ±250g measurement range, 20mV/g sensitivity, and frequency response from 1–9 kHz with 5% deviation. Accelerometer operates in low-impedance voltage mode with power supply coupler or any IEPE-compatible power supply. Hermetic, ground-isolated enclosure provides center hole mounting for 360° cable orientation.

BinMaster    Lincoln, NE 68507

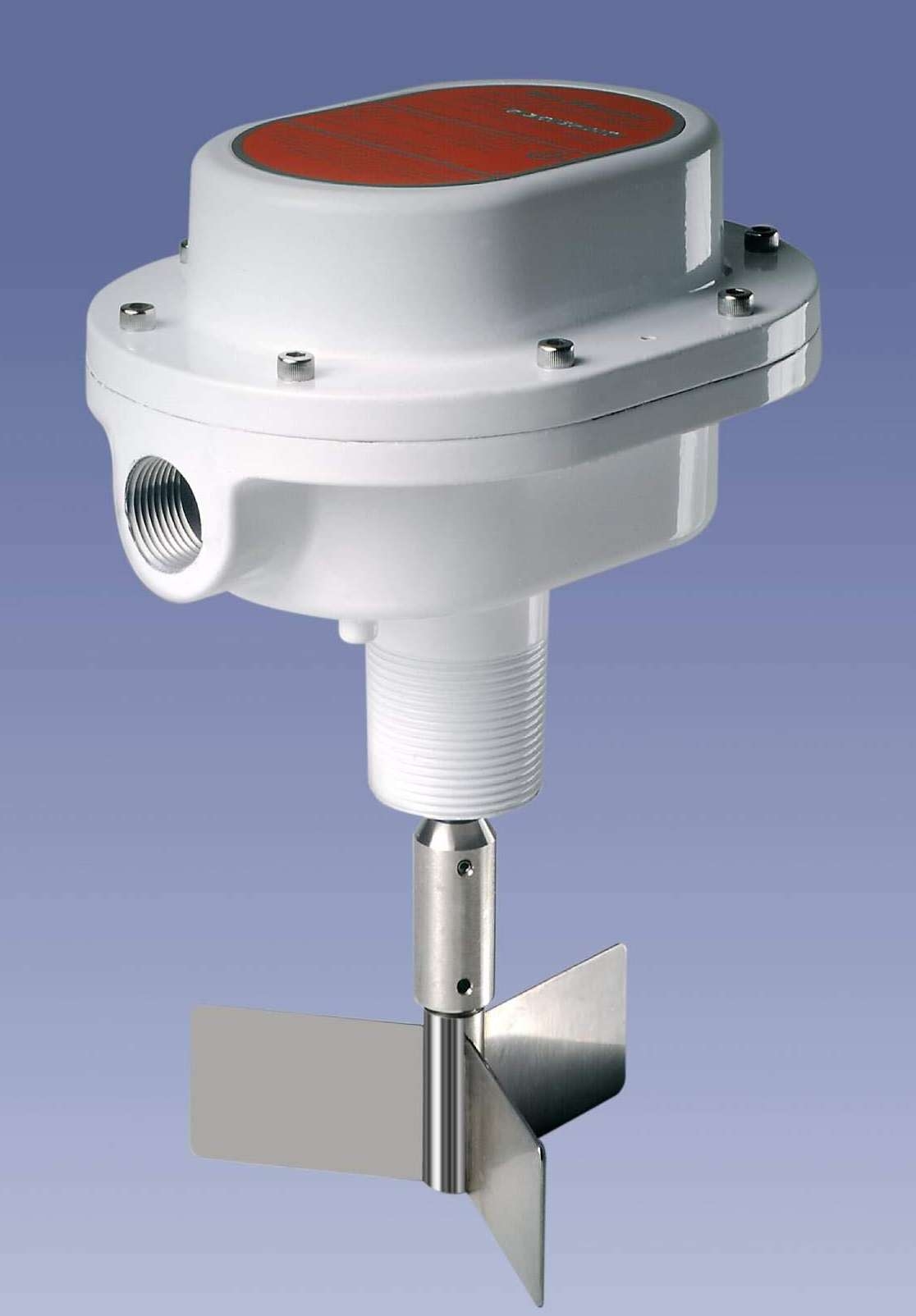

Mar 18, 2004 Explosion-proof, Model GRX-Plus incorporates wire terminal block with 2 SPDT 15 A switches, de-energizing motor, 3 drive shaft bearings, and built in motor slip clutch. It is approved for Class I Groups C and D, Class II Groups E, F and G hazardous locations. Indicator helps prevent bin overflow, empty conditions, clogged chutes, and jammed conveyors.

Graco Inc.    Minneapolis, MN 55440
Mar 18, 2004 Designed for single color, 2-component spray finishing applications, ProMixâ„¢ Easy handles solventborne, waterborne, high solids, acid catalyzed, and moisture-sensitive isocyanate coatings with flow rates as low as 20 cc/min. It also measures and records usage of each component and monitors ratio performance during reporting period. System features intrinsically safe control that allows integration into hazardous environments.

ERICO    Solon, OH 44139-2631
Mar 18, 2004 CADDY® SPEED LINK System helps reduce inventory and storage space. Able to support various suspension applications, system features all-steel construction and employs flexible galvanized steel cable with hook bonded to one end as means of support. Steel locking device ensures stability and allows for adjustment of supported object during and after installation. System allows objects to be hung at various angles, even from sloped ceilings.

Athena Controls, Inc.    Plymouth Meeting, PA 19462 1129

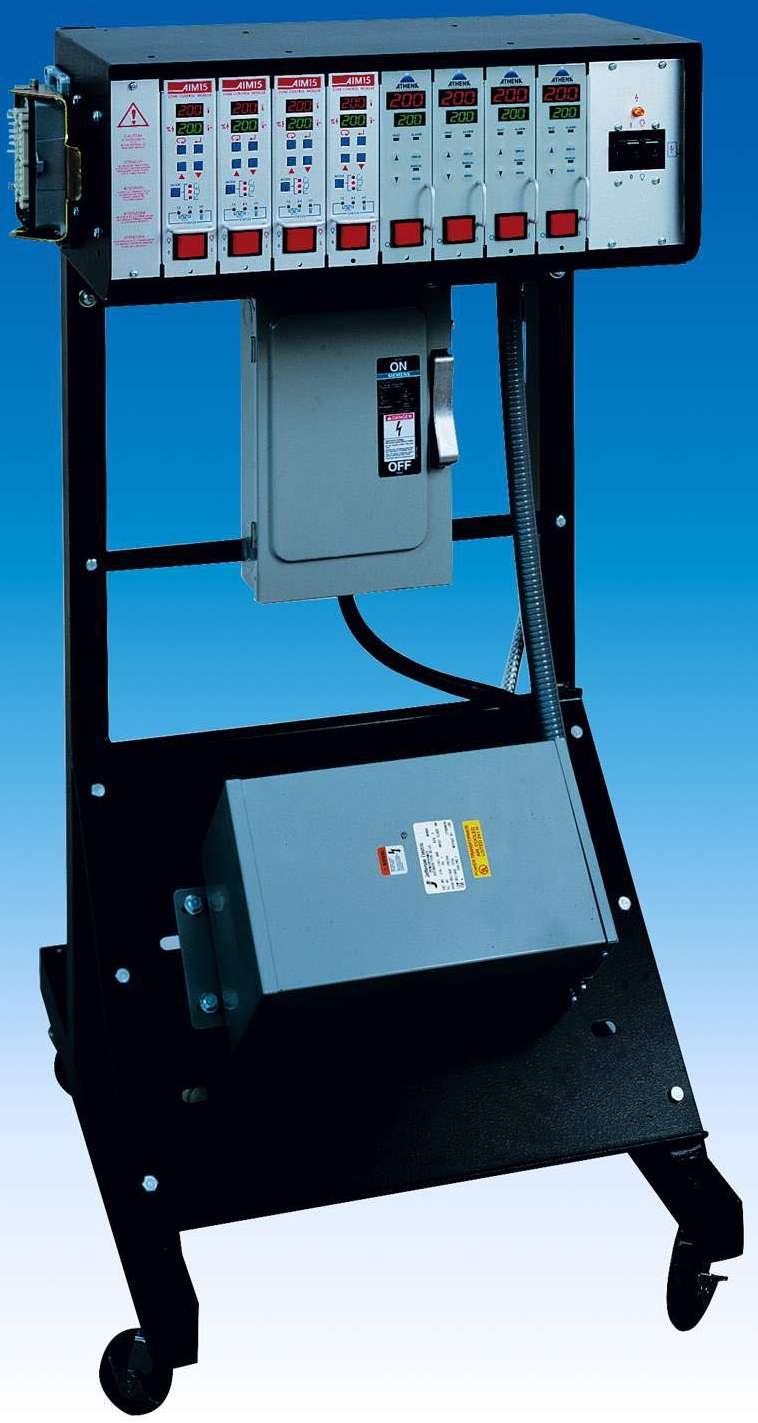

Mar 18, 2004 Series SY Low-Voltage Hot Runner System combines output capacity of 240 Vac and 18-45 Vac with choice of Series RMC or RMB controller modules in single package. Safety interlock prevents insertion of low-voltage Vac control module in 240 Vac mainframe slot, and diagnostics automatically inform user of fault conditions. Available in 4- and 8-zone sizes, system includes mainframe cabinet with fused circuit breaker/disconnect, step-down transformer, and floor stand.

Eastman Kodak Co. (Corporate Headquarters)    Rochester, NY 14650-0001

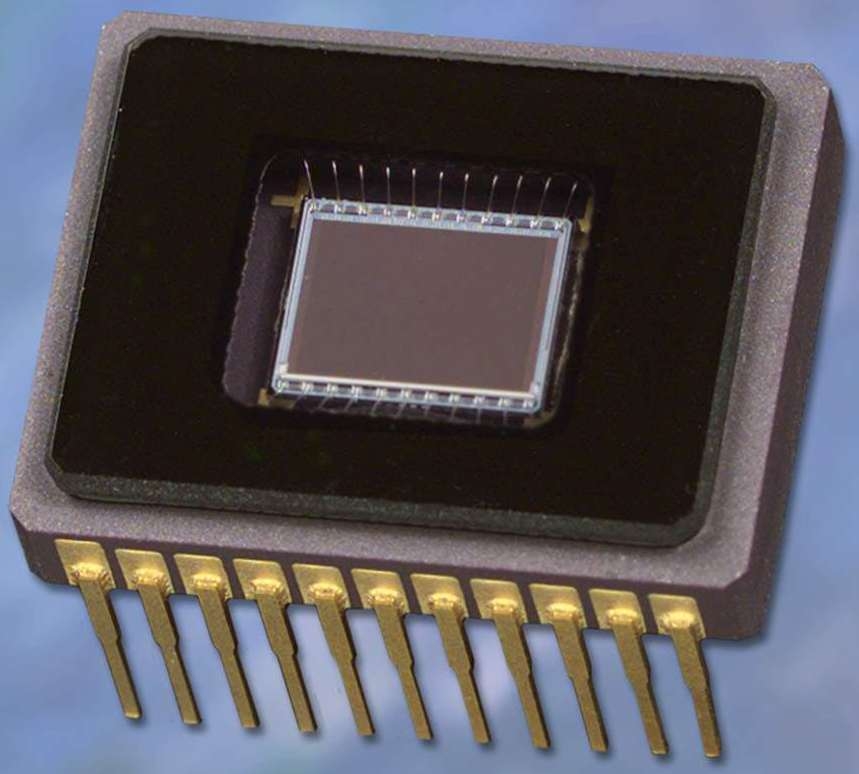

Mar 18, 2004 KODAK KAI-0340M enables machine vision systems manufacturers to design imaging systems that feature readout times up to 210 frames per second (fps). Sensor consists of progressive scan, interline CCD with peak quantum efficiency of 55%, which allows for image capture under various lighting conditions. With resolution of 640 x 480 pixels, sensor is available in both single- or dual-output versions and features electronic shuttering.

Autosplice    San Diego, CA 92121

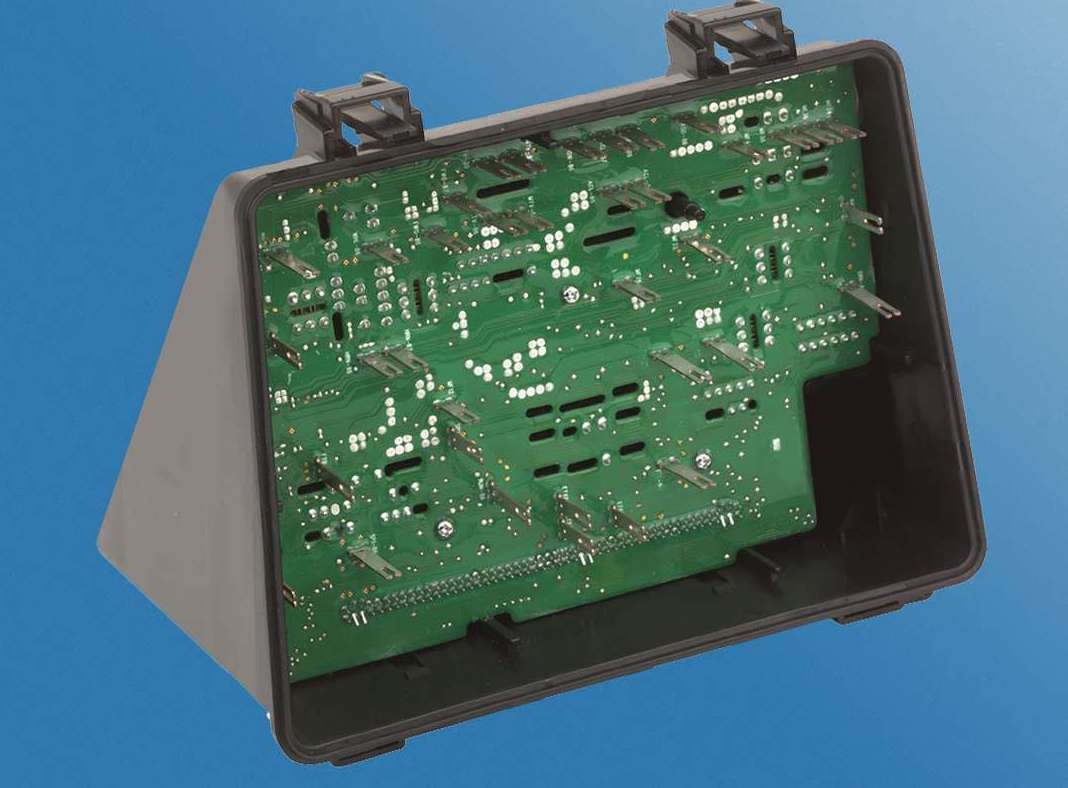

Mar 18, 2004 Smart Junction Box integration services assist automotive manufacturers and suppliers with implementing prototyping and Design Validation. SJB sub assembly board assemblies are provided fully populated and soldered, and ready for customer mounting. By offering suite of dedicated production capabilities and tooling services for conducting process testing and design validation, Autosplice enables automotive suppliers to pre-qualify SJB product designs.
