Allegro MicroSystems Inc.    Worcester, MA 01615

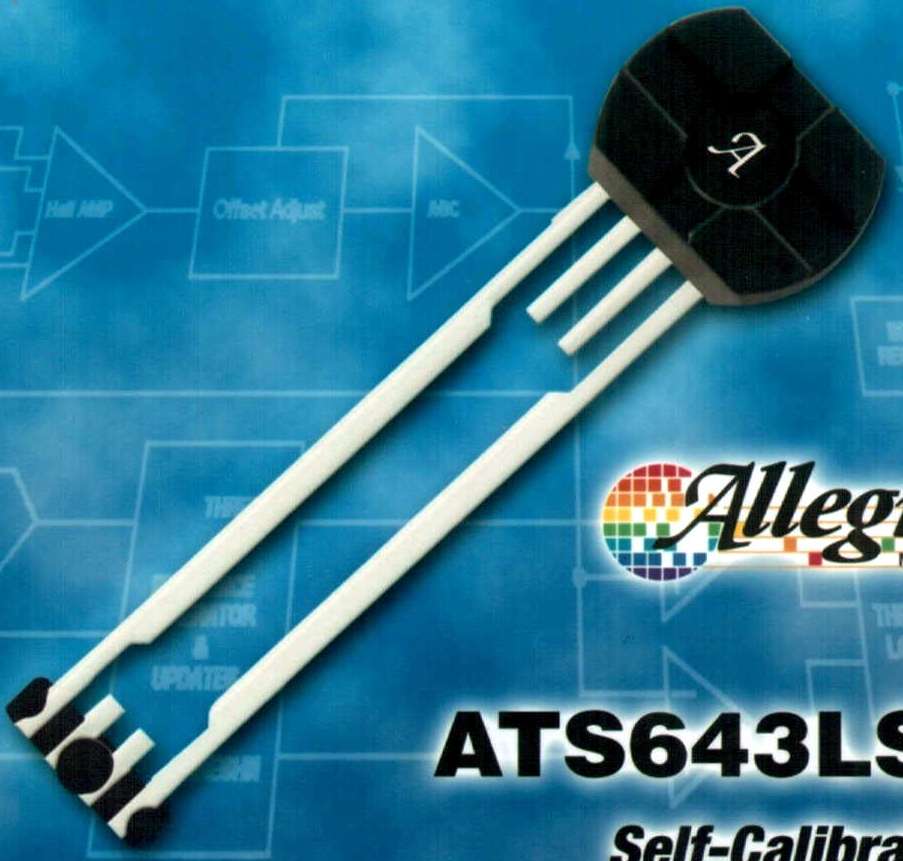

Apr 06, 2004 Supplied in SH package, ATS643LSH employs dual-element Hall-effect sensor and signal-processing circuitry that switches in response to differential magnetic signals. Unit integrates magnet and monolithic silicon IC as well as compensation circuit that eliminates magnet and system offsets immediately at startup. Digital tracking of analog signal is used to achieve true zero-speed operation and set optimal device switchpoints (air-gap independent).

Parker Hannifin Corp., Hose Products Division    Wickliffe, OH 44092 1797

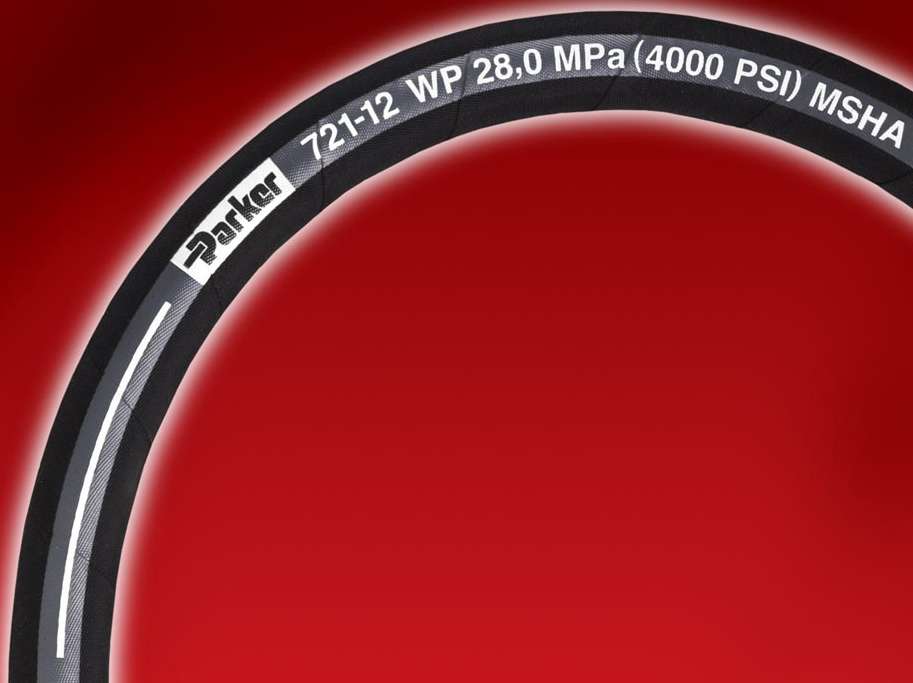

Apr 06, 2004 Providing flexibility for high-pressure applications, 721 hose is constructed of neoprene synthetic rubber inner tube surrounded by 4 spiral layers of steel wire reinforcement. MSHA-accepted black synthetic rubber cover provides oil- and weather-resistance. Hose can be crimped without removing cover due to No-Skive design and handles up to 4,000 psi working pressure in sizes 3/8–1 in. ID; 3,000 psi in 1¼ in. ID; and 2,500 psi in 1½ and 2 in. ID.

Sauer-Danfoss    Ames, IA 50010
Apr 06, 2004 Suited for mobile machinery, PLUS 1(TM) incorporates programming environment, software tools, microcontrollers, I/O modules, graphical terminals, and joysticks. Modular system allows custom configuration and tuning of work and propel functions, such as speed, position, and pressure control. Multiple options can be specified into joystick's configuration, including detents, friction locks, redundant outputs, and switch functions. USB and RS232 connections allow laptop and PDA interfaces.

Mark/Space, Inc.    Los Gatos, CA 95030
Apr 06, 2004 Missing Sync for Tapwave® enables users to synchronize information between Zodiac(TM) console and Mac computer running Mac OS X v102.8 or later via USB or Bluetooth. It leverages audio/video capabilities of Zodiac, allowing user to move music, audio, and digital picture files between iPhoto or iTunes on Mac and handheld expansion card slots. Software supports AvantGo synchronization for quick downloads of news, weather, sports, stock quotes, maps, and movie listings.

Cadre Technologies    Denver, CO 80237
Apr 06, 2004 Cadence Mobile Logistics integrates speech, bar code scanning, browser interface, and text on wireless Pocket PC clients via 802.11b network. It enables warehouse workers to execute operations within Cadence Warehouse Management System including receiving, putaway, picking, replenishment, kitting, and cycle counting. Controller dispatches work, via display and spoken word, based on worker’s skills or assignment. Upon completion, Cadence directs worker to next activity.

Alemite Corporation    Charlotte, NC 28226 3515
Apr 06, 2004 Monel fittings provide corrosion and temperature resistance in severe operating conditions such as military equipment, pulp & paper mills, chemical processing plants, oil processing equipment, and marine applications. Monel fittings provide higher strength and greater resistance than 316 stainless steel when exposed to seawater, brackish water, or high-temperature steam. Operating temperature ranges from sub-zero to 896°F.

Lincoln Electric Company, Inc., The    Cleveland, OH 44117
Apr 06, 2004 Excalibur® all-position electrodes offer moisture-resistant coating, even burn off, clean puddle, and uniform slag follow. Model 7018-A1 MR welds 50% molybdenum low-alloy steels, while Model 8018-C1 MR is suited for welding on equipment and pipe that transport liquid ammonia, propane, and other liquefied gases. Model 8018-C3 MR fabricates or repairs 1.0% nickel steels, and Model 9018M MR is suited for high-strength steels.

Megger    Dallas, TX 75237
Apr 06, 2004 Portable, ac mains-powered, KF-LAB Test Set detects moisture content of insulating oils, primarily within oil-filled transformers and switchgear. Default setting mode is arranged to give correct settings to test moisture content of insulating oils with specific gravity of 0.875. Unit also analyzes other substances with specific gravities between 0.6–1.4. Detection of moisture content helps prevent spontaneous combustion and deterioration of products.

Toppan Printing Co. America    Somerset, NJ 08873
Apr 06, 2004 Inkjet Printer features 2 Fusion UV LH6 microwave-powered, 6 in. UV-curing systems. It prints up to 2,200 sheets/hr with A2 size paper. Printer is suited for on-demand printing in which user needs to customize poster, calendar, or other previously printed piece with specific company name or logo. Ink-drop delivery technique results in print quality equal to offset printing with water resistance.

Prophet 21 Inc.    Yardley, PA 19067
Apr 06, 2004 CommerceCenter v10.0 helps distributors track information gathered in enterprise software solutions. Windows-based, SQL Server software incorporates features such as audit trails, electronic document imaging functionality, and PDA capabilities. Additional features include automated accessory item identification tool, purchase order requirement generation, and ability to link electronic files or URL links to any transaction/maintenance record.

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243
Apr 05, 2004 Model TPS65130 dual-output, dc/dc converter generates positive output voltage up to 15 V and negative output voltage down to -12 V with programmable sequencing. With power conversion efficiency of 89%, driver supports battery-powered equipment such as cellular phones, PDAs, digital cameras, and camcorders. Input voltage range is 2.7–5.5 V. Model TPS60230 Charge Pump manages power supplied to white LED color display backlight applications without need for inductor.

Kardex Remstar LLC    Westbrook, ME 04092
Apr 05, 2004 Shuttle(TM) Vertical Lift Module and Horizontal Carousel System facilitate manufacture of medical devices. Shuttle VLM is comprised of vertically arranged trays in front and rear, inserter/extractor platform, and computerized controls. It utilizes otherwise wasted overhead space by scanning stored item's height to store in least amount of space. Horizontal carousels feature bins that rotate on oval track, delivering stored items to operator on command.

TEGAM, Inc.    Geneva, OH 44041
Apr 05, 2004 Model 3550 measures within frequency range of 42 Hz to 5 MHz with measurement speed of 18 mS and accuracy of 0.10%. It offers 16 ac measurement parameters, 4,500 programmable frequency points, and built-in comparator with 10-bin capability. Additional features include 3 LED displays, RS-232C, and I/O connectors. Meter is suited for traditional component testing, materials characterization, incoming inspection, and high-frequency profiling.

Spinner North America    Norcross, GA 30071
Apr 05, 2004 Made of silver-plated brass, Model 194400 7-16 Male to N Female Adapter operates in DC-to-8 GHz bandwidth with 3rd order intermodulation at -165 dBc and VSWR better than 1.02:1 at DC-2 GHz. It is suited for production applications and for field use.

ZOOK Enterprises, LLC    Chagrin Falls, OH 44022 0419
Apr 05, 2004 RDI Series rupture disk indicators notify plant personnel immediately when rupture disk bursts or relief valve opens. When electrical circuit, embedded within Kapton membrane, ruptures due to overpressurization, circuit is broken, and change in voltage or resistance to current activates monitoring system. Usable with metal or graphite rupture disks, products are available in sizes from 1–24 in. with operating temperature range of -40 to +392°F.

RULMECA Corporation    Wilmington, NC 28405
Apr 05, 2004 Motorized, head-pulley/tail-pulley system features self-lubricating gearbox and enclosed drive design, which eliminates pinch points that can cause personal injury. Pulley diameters range from 8.5–31.5 in. with powers ranging from 0.5–180 hp. Motorized pulleys are hermetically sealed and all internal electro-mechanical components run in continuous oil bath.

Love Controls    Michigan City, IN 46361
Apr 05, 2004 Suited for heating and cooling applications, Series TCS Thermocouple Temperature Switch offers 2 selectable alarms sets, password protection, and internal buzzer to indicate alarm condition or error. Temperature and output status is indicated on red LED display. Series includes fitting clip for panel mounting, gasket, rear terminal cover, and instruction manual.

Norgren    Littleton, CO 80120
Apr 05, 2004 Made from die cast aluminum, Series VHLA features rotating handle and detented center position. Units have max operating pressure of 140 psi combined with temperature range of 40–140°F. Suited for use in compressed air environments, pneumatic valves are available in Cvs of 0.4–3.1 and port sizes of ¼, 3/8, and ½ in. Two- and three-position variants can be specified.

Artesyn Power Conversion Inc.    Framingham, MA 01701
Apr 05, 2004 Based on open-frame, single-board package, 25/20 A isolated eighth-brick dc/dc converters use full wave coupled inductor topology. They feature processor-based primary- and secondary-side control techniques, combined with precision timing of synchronous rectifiers. Protected against input voltage transients up to 100 V for 100 ms, modules accept input voltage from 36-75 Vdc and offer choice of 1.2, 1.5, 1.8, 2.5, and 3.3 V outputs.

E Instruments International LLC    Langhorne, PA 19047
Apr 05, 2004 Portable, multifunctional BTU 1000 Basic Portable Gas Analyzer has magnetic rubber shell for hands-free operation and is capable of analyzing O₂ and CO. Instrument calculates CO₂ and has ambient CO monitor with 1 ppm resolution. Features include draft and differential pressure meter, 7 in. removable flue gas probe, and water trap. Analyzer also has direct function keys, built-in impact printer and 4-line LCD display.
