Aries Electronics, Inc.    Bristol, PA 19007-6810
Apr 08, 2004 Offered with 8 leads, SOIC Adapters are .062 in. thick FR-4 with 1 oz of copper traces on both sides. They are available on .300 in. DIP centers and can be mounted on PCBs with hole diameter of .028 in. Pins are 360 ½ hard brass alloy, and pin plating is 5.08 µm minimum tin/lead 93/7 over 2.54 µm minimum nickel. Adapters provide upgrade from older Aromat HB2E relays to surface-mount TXSS relays while keeping same PCB layout. Max operating temperature is 221°F.

Michigan Custom Machines Inc.    Novi, MI 48375
Apr 08, 2004 Test Machine tests and assembles complete diesel fuel injector in self-contained package. System lets single operator load pallets with individual components that make up injector. As pallet passes through machine, injector is incrementally assembled and tested for different characteristics and marked for identification. Machine automatically tracks pallets with RF tags to allow for random pallet order and accommodates redundant stations.

Count Me In, LLC    Mt. Prospect, IL 60056
Apr 08, 2004 Bundled with JobSwitching Monitor, BioCheckpoint maximizes resources and accounts for employees’ time, projects, and product costs. LightningID fingerprint identification engine integrates authenticated employees’ time/attendance with their assignments, which can be differentiated by project, function, or department. Seamlessly imported data is used to develop management reports. Software integrates with QuickBooks and other financial management programs.

Optimal Engineering Systems, Inc.    Woodland Hills, CA 91364
Apr 07, 2004 Allegro Series consists of stand-alone RS232, joystick, and trackball interfaced motion controllers. Each system integrates power supplies, indexer, micro-stepper drivers, and step motors. Operator may use joystick, trackball, or GUI to move mechanism to different positions, and can receive, save, edit, and download position information. User may also compose motion profile using BASIC like programming language, then download and test in supplied IDE.

Tracewell Systems, Inc.    Westerville, OH 43081-8846

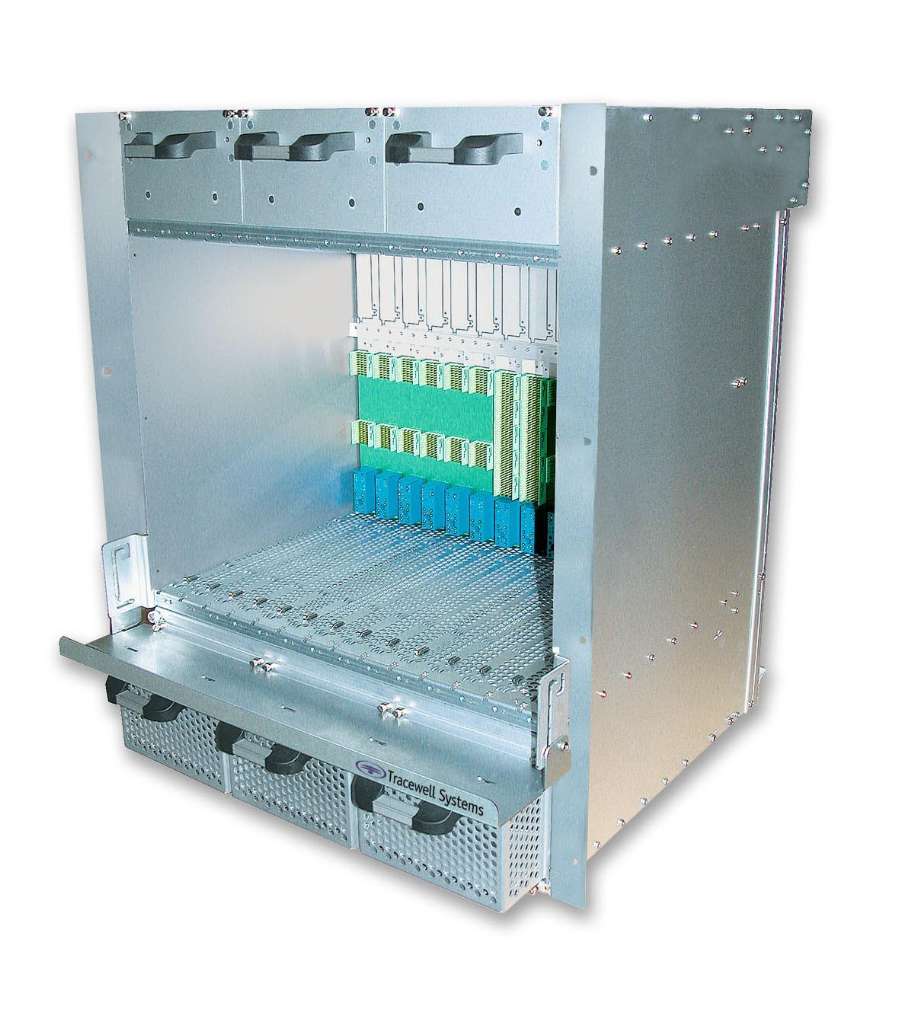

Apr 07, 2004 CO-Starâ„¢ AdvancedTCAâ„¢ Central Office Shelf is 19 in. 13U system that provides 14 slots that are electrically and mechanically compliant with PICMG 3.0 AdvancedTCAâ„¢ specification. Unit meets GR-63, GR-1089 UL/EN 60950 EN55024 for NEBS Level III and uses high flow rate and high pressure cooling. Other features include high-performance shelf management and high-performance backplane for 5 Gbps rates. Both 14-slot dual-dual star and full mesh versions are offered.

Thermadyne Industries, Inc.    St. Louis, MO 63017

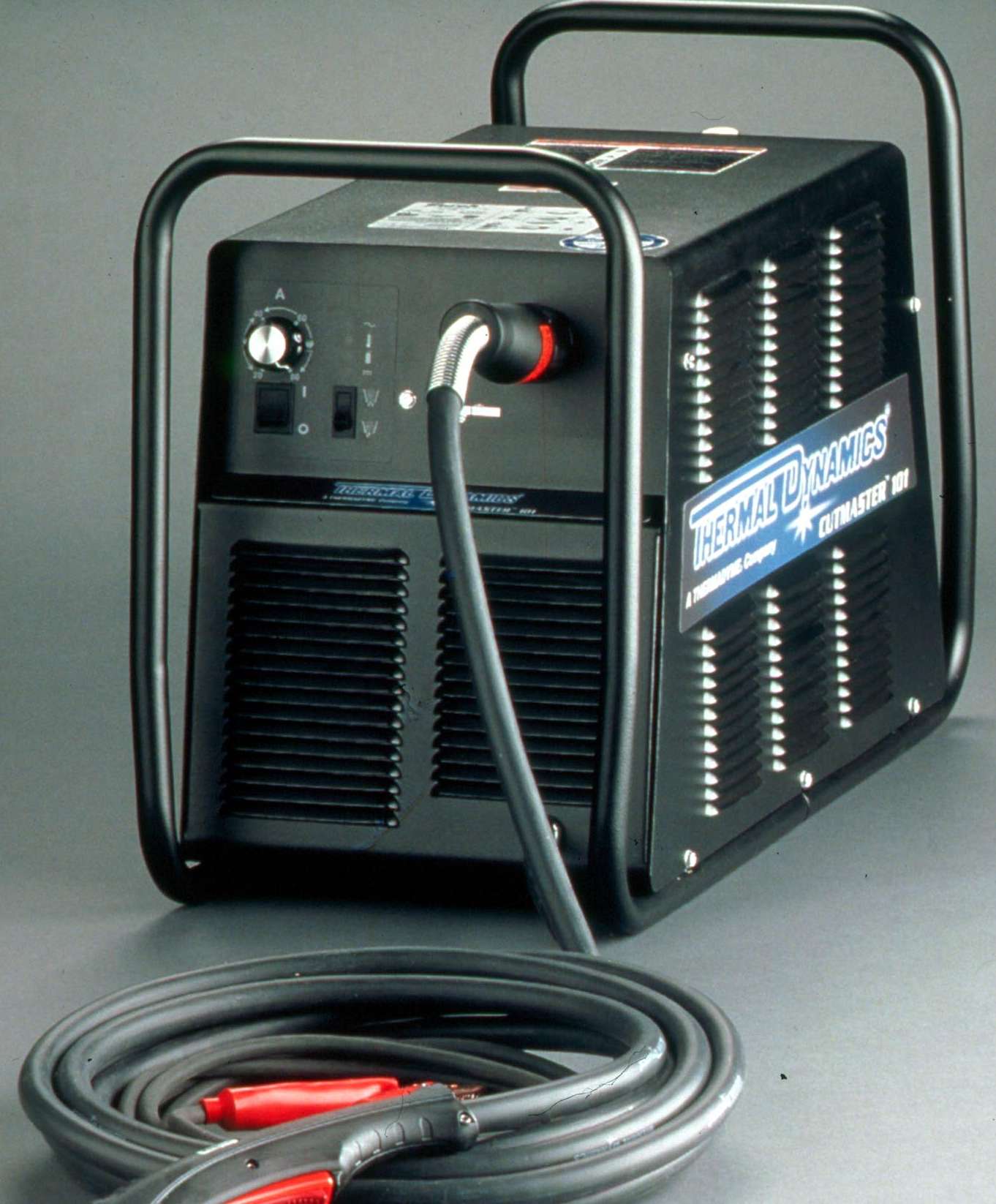

Apr 07, 2004 CUTMASTER(TM) 101 is equipped with 1Torch(TM) plasma torch and ATC(TM) quick disconnect, allowing operator to switch torches between hand and machine torch applications, quickly replace damaged equipment, and add or remove lead extensions to match job requirements. Wraparound roll bars provide protection, and powder coat finish offers scratch resistance. At 80 A of cutting power, CUTMASTER 101 is suited for cutting aluminum, stainless steel, and mild steel.

True Precision Corporation    Indianapolis,, IN 46239

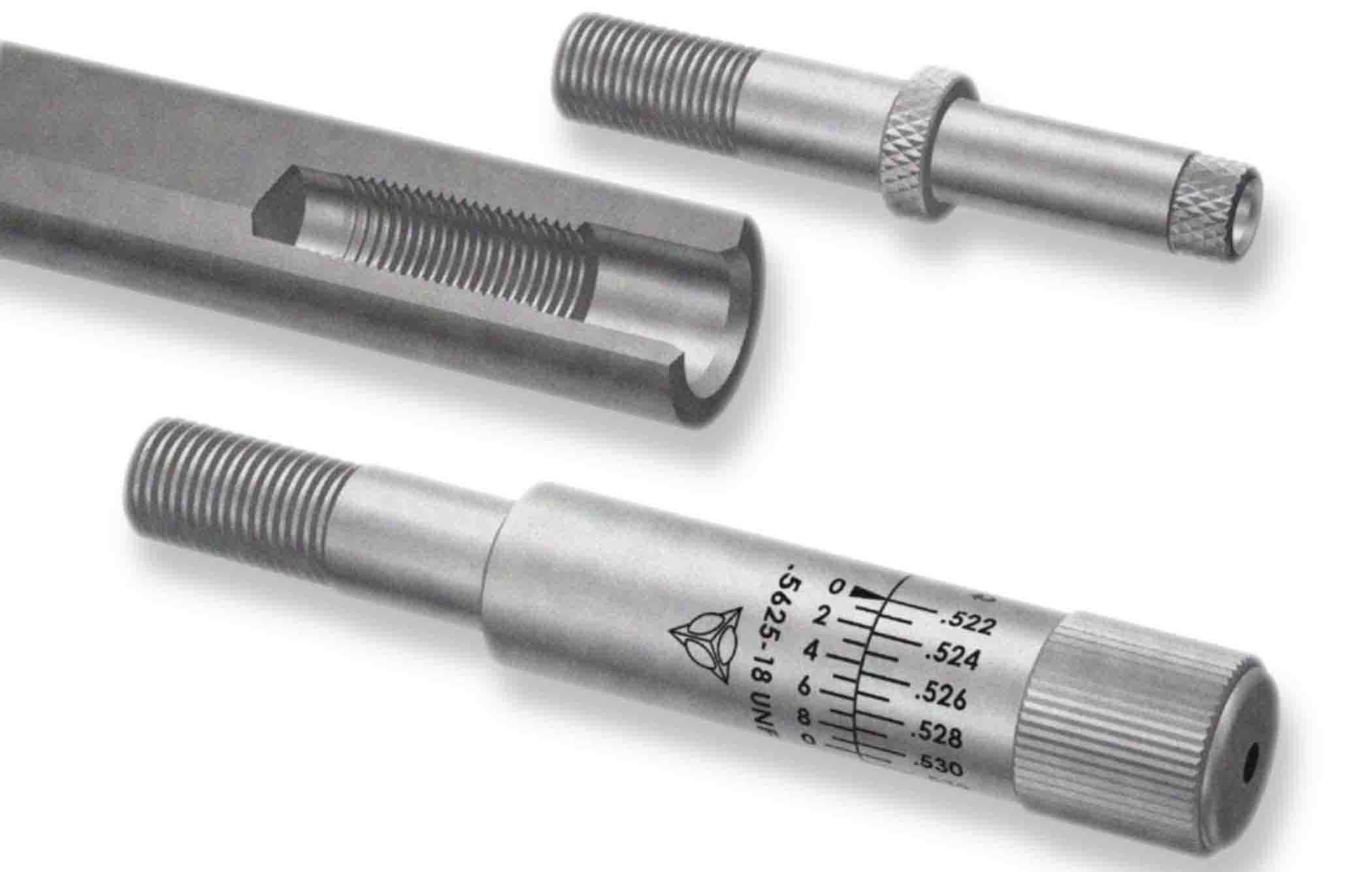

Apr 07, 2004 Able to be used at depths that exceed hole diameter, Multi-Ballâ„¢ products inspect screw threads for size, location, concentricity, or runout. Thread micrometer measures size, taper, and out-of-roundness of threaded holes for most sizes up to 1 in. dia. Location gage determines location/orientation of threaded hole axis using expanding pattern of balls that come into contact with thread flanks and automatically adjusts to hole size.

WinSystems, Inc.    Arlington, TX 76011

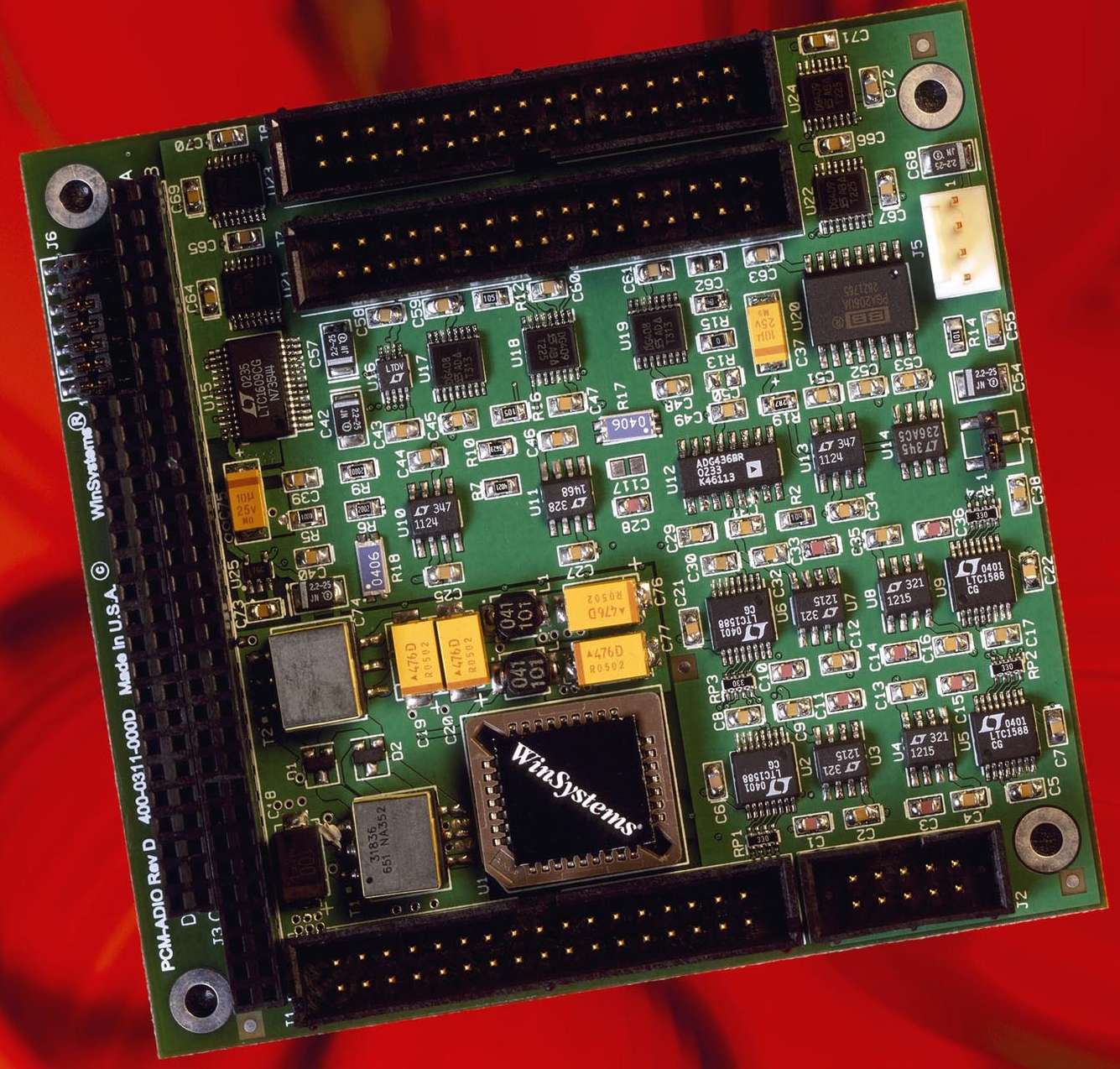

Apr 07, 2004 PCM-ADIO single board, PC/104 data acquisition module combines 32-channel, 16-bit A/D converter; 4-channel, 12-bit D/A converter; 16 lines of digital I/O; and event trigger control. Onboard microprocessor controls input and configurations, conversion rates, FIFO depth, output ranges, calibration, and digital I/O settings without use of jumpers or potentiometers. Automatic conversion rate is programmable from channel to channel.

Scientific Technologies Inc. - Automation Sensors    Logan, UT 84321
Apr 07, 2004 Custom FLX Hazardous Area Magnetic Float Level Sensors feature up to 7 switch points and are engineered for point level detection of liquids in containers. They carry CSA/C-US rating to meet Class 1, Div. 1, Groups C and D standards for use in hazardous locations. Heavy-duty model features shock-resistant metal floats. Each sensor stem contains hermitically sealed reed switch, activated by permanent magnet float as it rises or falls with level of liquid.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245

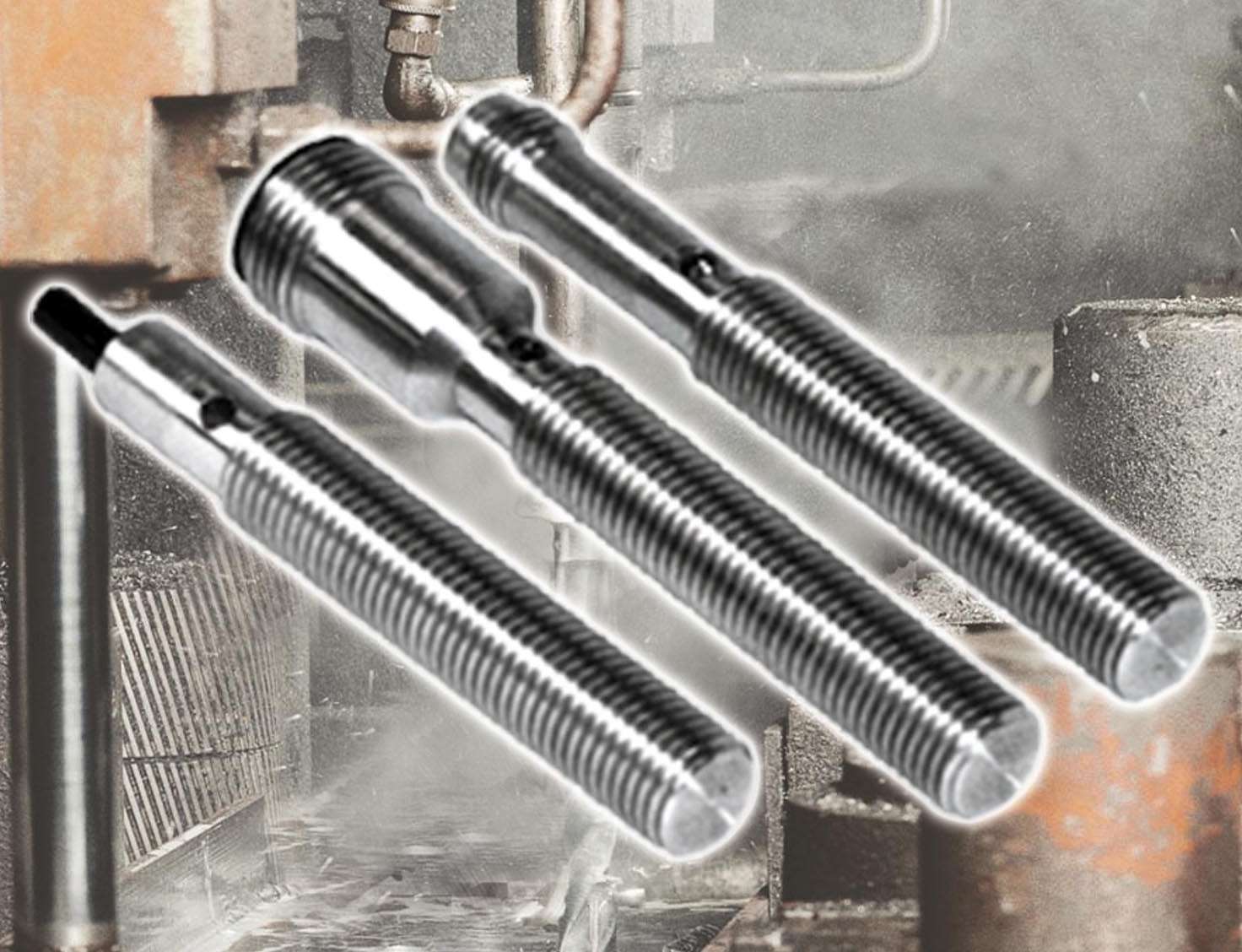

Apr 07, 2004 Pile Driver 8 mm Series Inductive Proximity Sensors are all-metal and fully flush-mountable. They feature stainless steel housing and are available with Black Armor weld-spatter resistant coating and number of cable options. Operating in temperatures from -14 to 158°C, units provide repeatability better than 0.01 mm and hysteresis of 5%. Sensors are suited for applications involving lubricants, cutting fluids, metal shards, and target impacts.

Fluid Power Inc.    Blue Bell, PA 19422
Apr 07, 2004 FPIâ„¢ POWERPAKâ„¢ Vertical Hydraulic Power Units include motor/pump, reservoir, and fluid conditioning accessories. Varying reservoir size, pump size, and motor allows for flexibility. Valves can be added to suit individual applications and functions.

J.W. Miller Magnetics    Gardena, CA 90247-2859
Apr 07, 2004 Series 2300 features iron powder core that helps eliminate undesirable conductive emissions, making units suited for high-current applications. Measuring 1.28 x 0.65 in., inductors have 0.5 in. lead length tinned to within 1/16 in. of body. They offer inductance range of 10-1,000 µH; self-shielding, low core loss; and operating temperature range of -55 to +105°C. Horizontal and vertical configurations are available.

Advance Lifts, Inc.    St. Charles, IL 60174

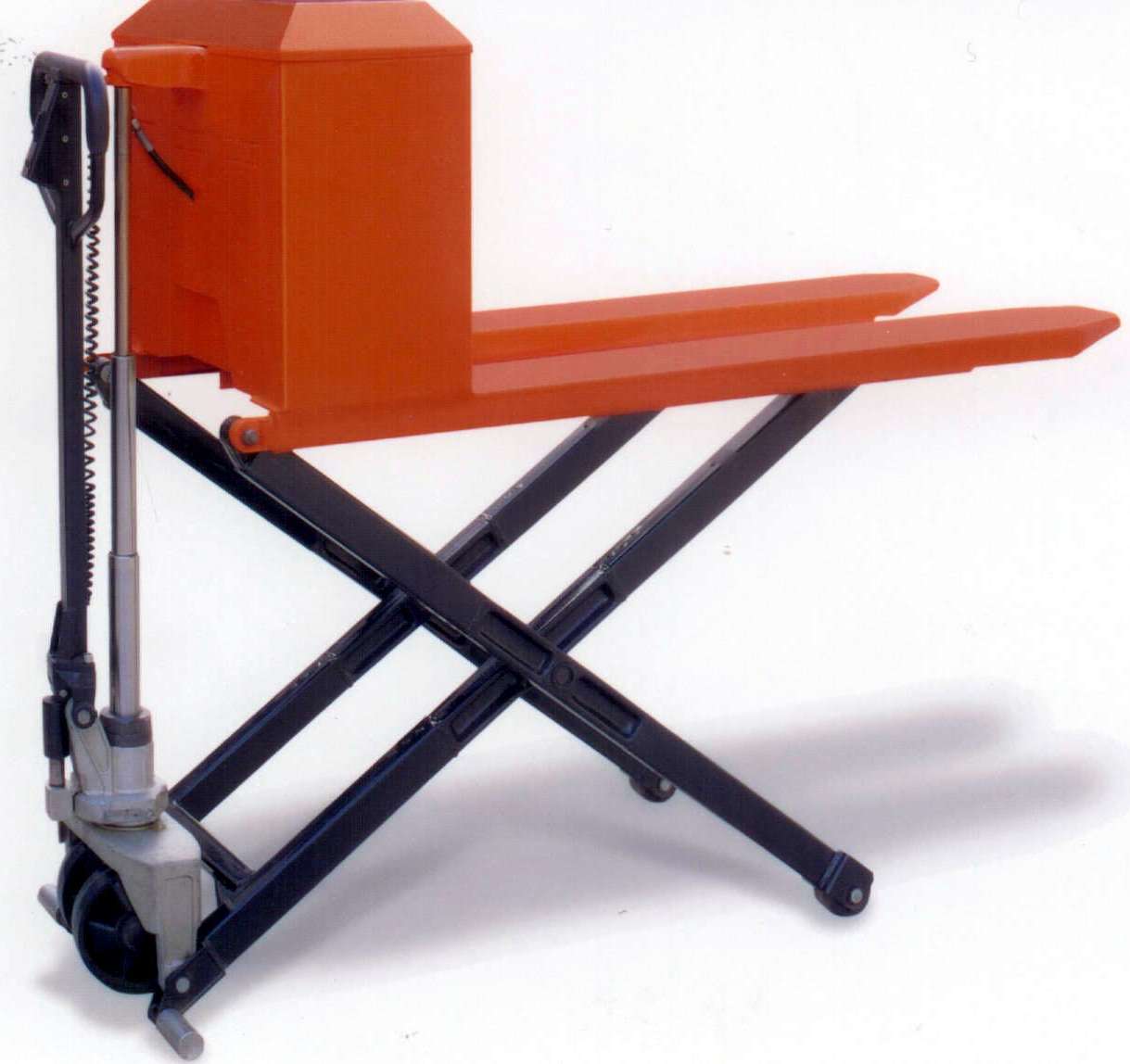

Apr 07, 2004 Advantage model ZEMHRPT4527 high-rise electric pallet truck can move skids and containers from place to place and then raise load to 31½ in. working height to act as workstation for assembly work or stacking applications. It has 2,200 lb capacity, 45 in. forks, and 3 1/3 in. lowered height. Unit operates off 12 Vdc battery for raising and lowering loads and employs 2 hp motor and tiller steering handle.

Bahco North America, Inc. A Sub. Of Snap-On, Inc.    Scranton, PA 18501 2036
Apr 07, 2004 Offering minimized strain on hands and wrists, Robertson® Screwdrivers employ 3-component handles with curved shape that optimizes correct hand position when performing tightening/loosening tasks on Robertson screws. Features include color-coded handles with symbols at bottom to identify tip type, and black-oxide tips that prevent chipping of chrome. Screwdrivers with tip types No. 1 and 2 measure 8 in. long, while No. 3 measures 8¾ in. long.

Conbraco Industries, Inc.    Matthews, NC 28106 0247
Apr 07, 2004 Test kits, made with corrosion-resistant materials, are rated for pressures to 200 psig and temperatures to 150°F. Offered as 3- (Series 40-200-TKU) and 5-valve (40-200-TK5U) kits, products test reduced-pressure principle assemblies, double-check assemblies, spill-resistant vacuum breakers, and pressure-type vacuum breakers. Both series have molded-plastic gauge body, soft-seated needle valves with replaceable seats, and differential-pressure gauge.

Kalamazoo Machine Tool, Inc.    Portage, MI 49002

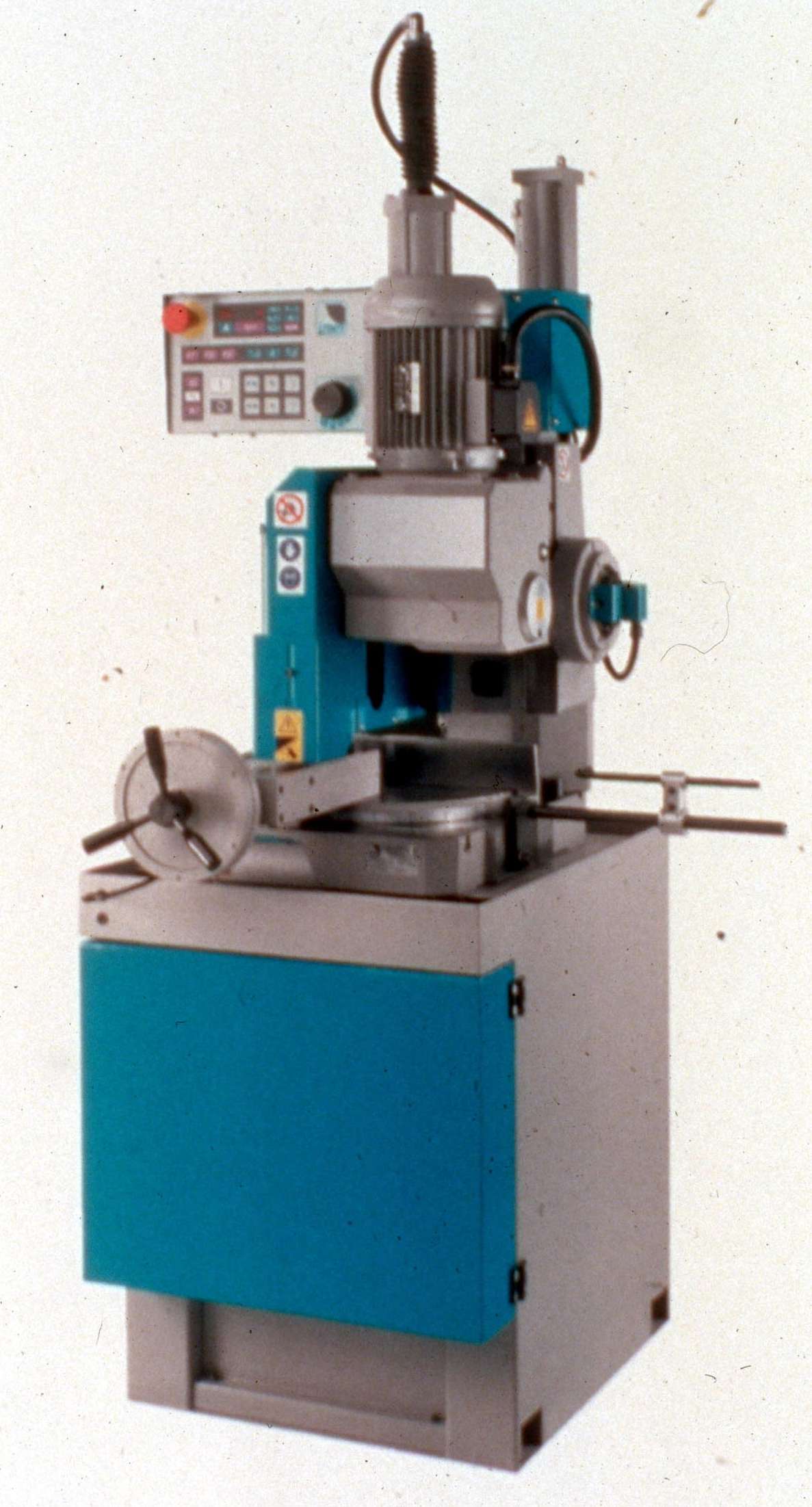

Apr 07, 2004 Model C370SA features infinitely variable blade speed control from 13–76 rpm, and air-over-hydraulic system suited for semi-automatic operation. Rotary blade cleaning brush eliminates plugging and loading that can cause premature blade failure. Machine can be operated in 90° cutoff mode, or swiveled to any angle up to 45° left or 60° right for miter cutting. Saw is equipped with 4 hp motor and accepts blades from 12½ to 14½ in. diameter.

Kalamazoo Machine Tool, Inc.    Portage, MI 49002

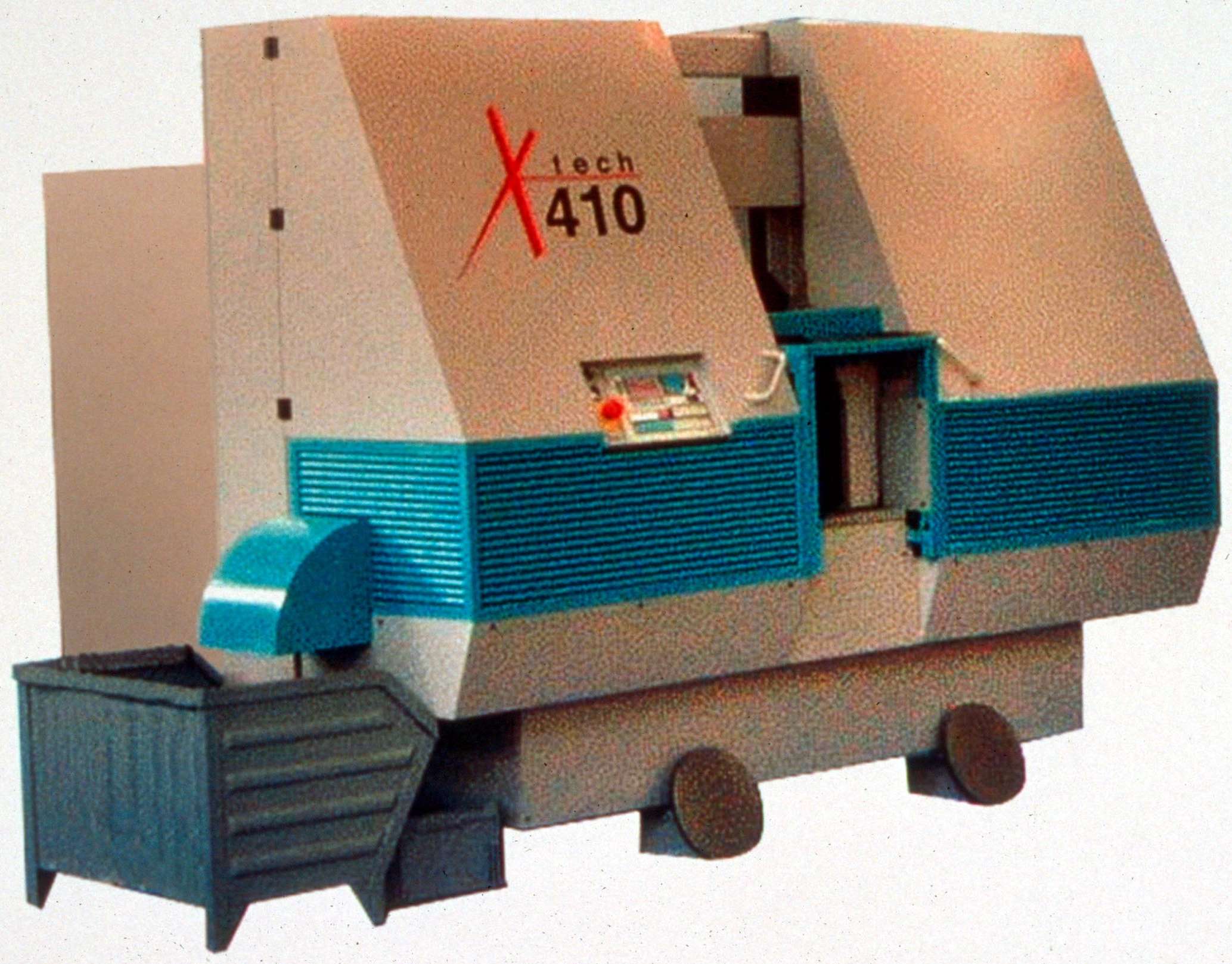

Apr 07, 2004 Built with CNC controls, Model H410 A NC features automatic hydraulic blade tension, blade guide control and guide arm positioning, coolant system, and variable-speed blade, adjustable from 40–420 fpm. Material-saver feature automatically positions stock relative to saw blade, and automatic sawing system enables operator to make optimum cuts by selecting type and size of material loaded into machine. Machine accepts stock up to 16 in. in diameter.

Transducer Techniques    Temecula, CA 92590
Apr 07, 2004 Series SLB offers ranges of 25, 50, 100, 250, 500, 750, and 1,000 lb FS. Loading diameter is slightly convex for accurate load distribution. Sensors are heat treated, 17–4 ph stainless steel, and sensing element incorporates bonded foil strain gages to produce full scale output of 2 mV/V. Accuracies include 0.25% nonlinearity, 0.25% hysteresis, and 0.1% nonrepeatability. NIST traceable units are sealed for protection against industrial environments.

Jones, R.A., & Co., Inc.    Cincinnati, OH 45201
Apr 07, 2004 High-speed, continuous-motion, Stand-Up Pouch King forms, fills, and seals stand-up pouches in sizes up to 8 x 10 x 4 in. at 3,000 linear ipm of packaging material. Machine includes integrated servo systems, electronic line shafting, and SERCOS fiber-optic networks. Control features color touchscreen HMI, system diagnostics, and predictive-maintenance capabilities. Stand-Up Pouch King accommodates variety of packaging materials from OPP to retortable materials.

Acromag, Inc.    Wixom, MI 48393 7037

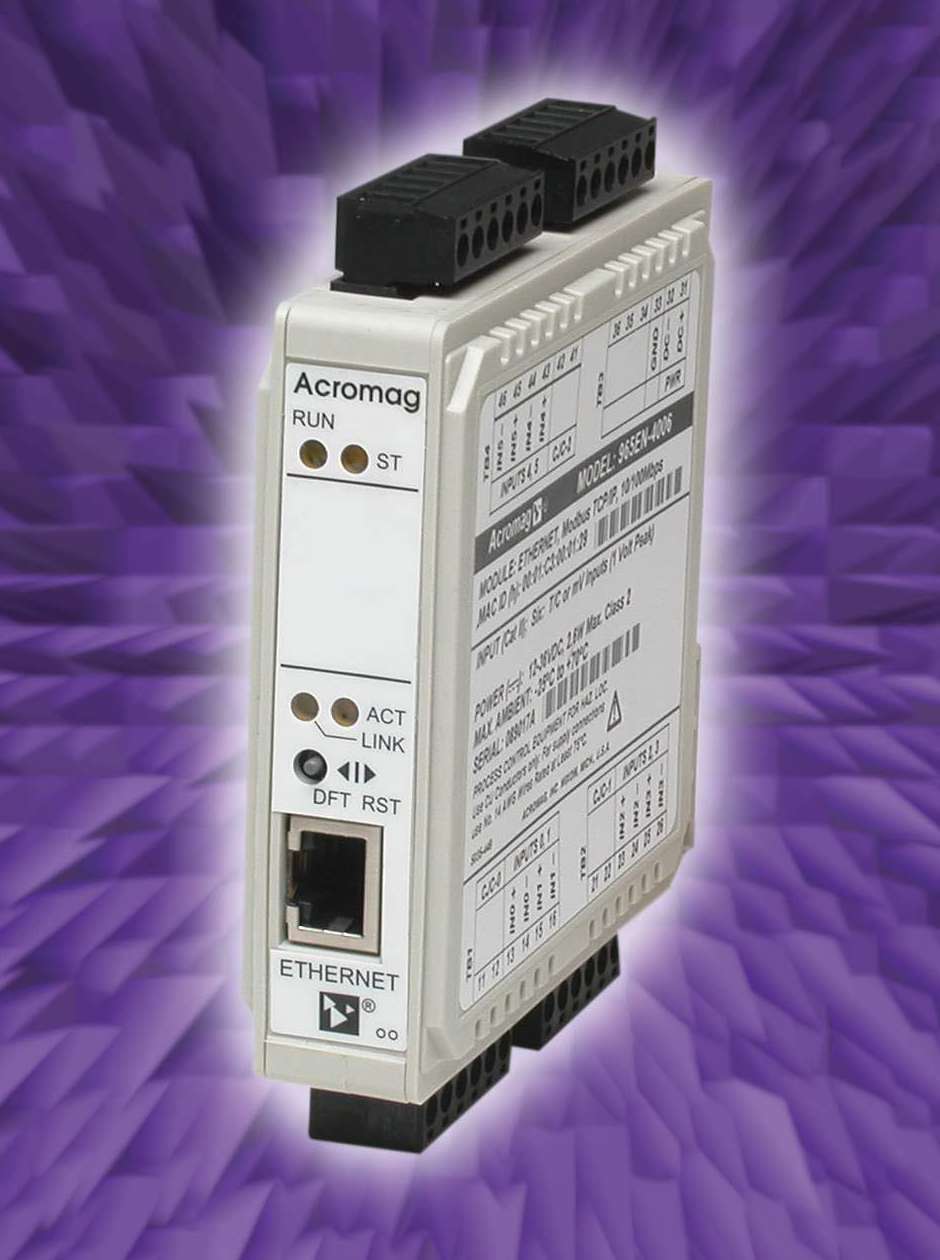

Apr 07, 2004 BusWorks® 966EN Input Modules interface up to 6 RTD or resistance signals directly to Ethernet Modbus/TCP 10/100 network. Each unit accepts universal RTD/resistance inputs with user-selectable ranges for platinum, nickel, or copper RTD sensors and 0-500 ohm signals. Three-way 1,500 Vac isolation between input, network, and power circuits protects against surges and ground loops. Each module supports up to 10 sockets allowing communication with multiple masters.
