IBM (Corporate Headquarters)    Armonk, NY 10504-1783
May 03, 2004 TotalStorage® SAN Switch M14 provides single domain with 128-port Fabric Switch functionality. It includes minimum of two 16-port 2 Gbit/sec M14 switch blades, 32 fiber optic transceivers, 2 control processors, dual power supplies, and fans in 14U rack height. Unit offers forward- and backward-compatibility with all IBM TotalStorage SAN Switch models, 1 and 2 Gbit/sec auto-sensing capability, as well as Advanced Fabric Services and management tools.

Pelican Products, Inc.    Torrance, CA 90505

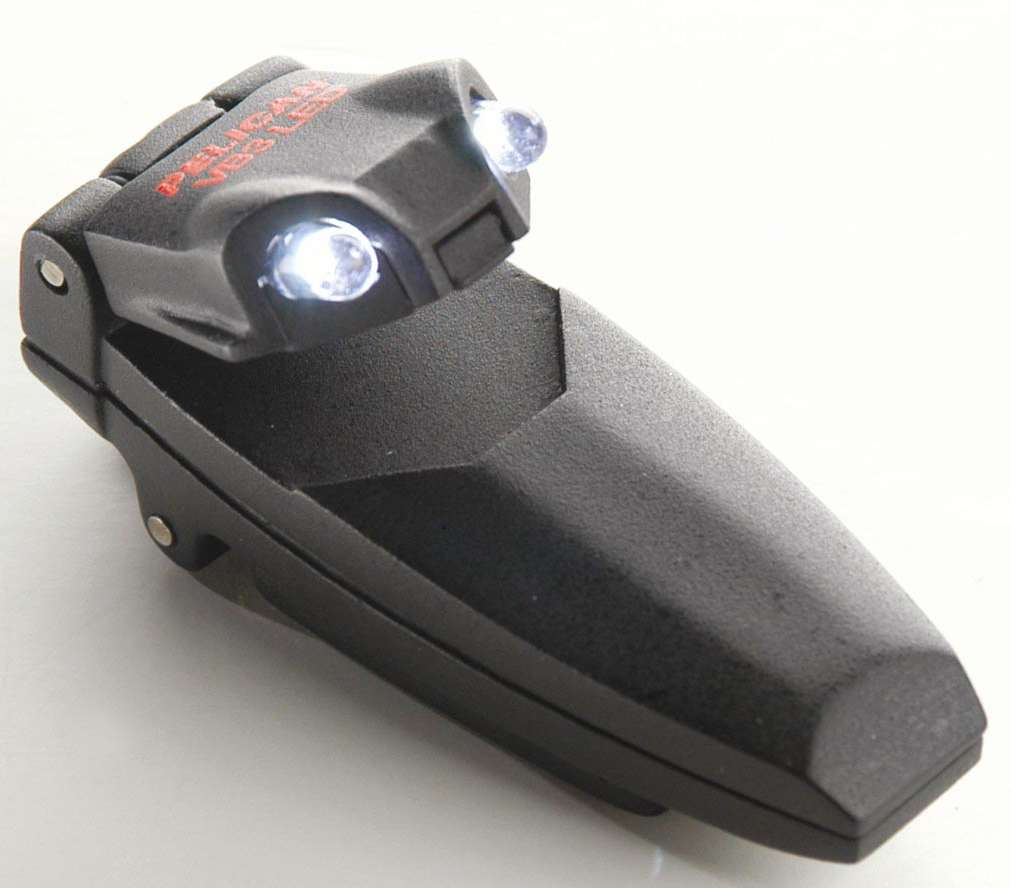

May 03, 2004 Included in VersaBriteâ„¢ family, VB3 LED features 5.5 lumens and is designed for hands-free use in hazardous locations. Swivel head activates light that can pivot to full 180° in order to aim light where most needed. Product has built-in, spring-loaded clip that can be attached to various surfaces up to ½ in. thick. Made of Xylexâ„¢, product is available in black, yellow, orange, translucent red, and translucent blue.

Pelican Products, Inc.    Torrance, CA 90505
May 03, 2004 Big D features pivoting head, which rotates almost 180°allowing it to be set down for low spotlighting or upright for aiming high. Protected by stainless steel lens guard, high-output Xenon lamp is generated through dual mode operation, constant on, or emergency strobe. Waterproof body sits on wide stable platform, which keeps Big D balanced when used while crawling. Flashlight includes adjustable nylon shoulder strap and quick-change battery packs.

Strong Hold Products, Div. of Fabricated Metals LLC    Louisville, KY 40209-0043
May 03, 2004 Suited for storing valuable tools and equipment, 453UJB heavy-duty workbox employs 3-point lock system with use of padlock. Unit features 12-gauge steel; all welded construction; removable, 14-gauge shelves; concealed hinges; and lifting handles with hydraulic support. Other features include raised bottom to facilitate pickup with forklift and pre-punched holes for optional casters. Measuring 60 x 36 x 48 in., product has 800 lb shelf capacity and weighs 602 lb.

FKI Logistex North America    St. Louis, MO 63132

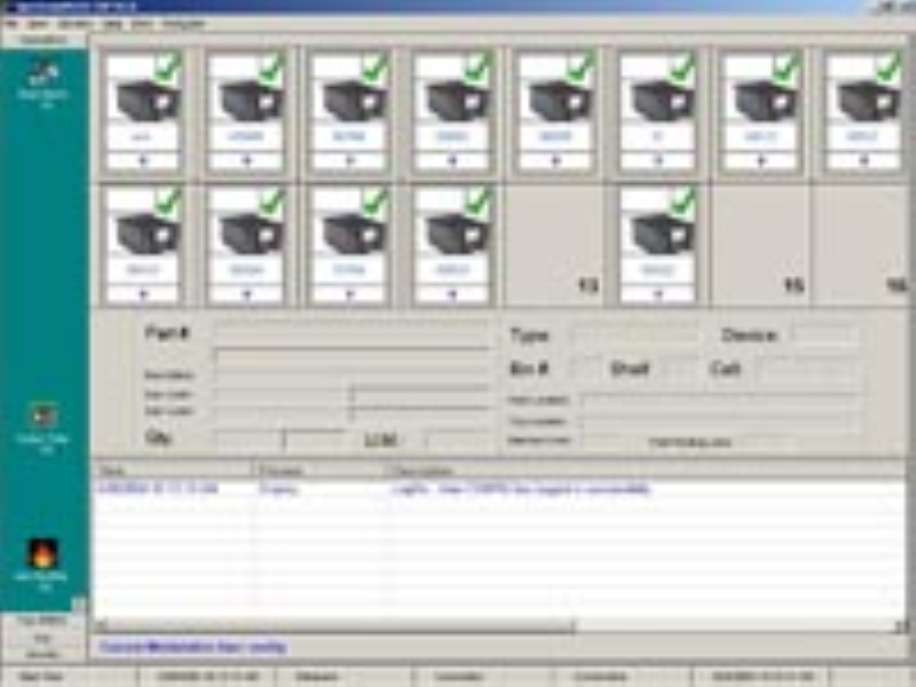

May 03, 2004 SpectrumPlus(TM) provides scalable, Microsoft® Windows®-based warehouse control system that directs warehouse, distribution center, and manufacturing stock, tool, and clean room functions. Working as HMI, software electronically automates paper-based instructions associated with picking, putting, or storage system. With GUI that guides workers through operations, it is adaptable for host-based inventory systems or systems in which software manages inventory.

Royal Machine & Tool Corp.    Berlin, CT 06037
May 03, 2004 Quad Vertical Combination Chucks allow simultaneous holding of up to 8 parts, plus complete machining of part in single operation. Visually continuous spindle use is possible because chucks allows access to 3 sides of work piece, eliminating need for multiple set-ups. Master jaws can be set in either self-centering or compensating mode with use of center bracket for multiple loading of parts.

HV Component Associates Inc.    Farmingdale, NJ 07727 2484

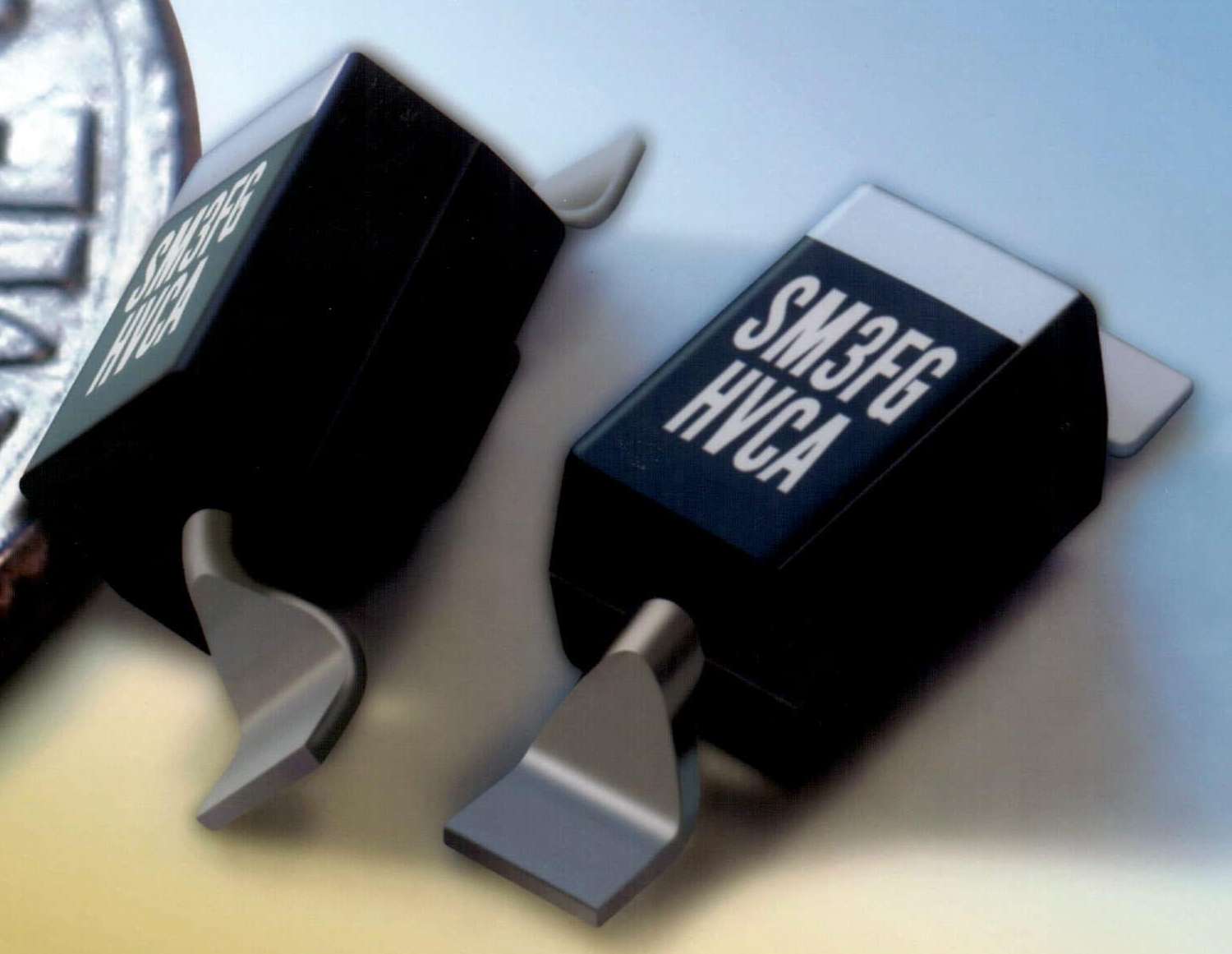

May 03, 2004 Housed in rectangular SMA package, SM3FG diode is fully compatible with pick and place machines and allows traces to be placed further apart on PC board for increased creepage distance. Product meets medical standards for dielectric strength standoff for SMA package and features peak inverse voltage rating of 3,000 V with low forward voltage drop and average forward current of 250 mA. Typical recovery time is 75 nS, and max surge current is 20 A.

Humphrey Products    Kalamazoo, MI 49003

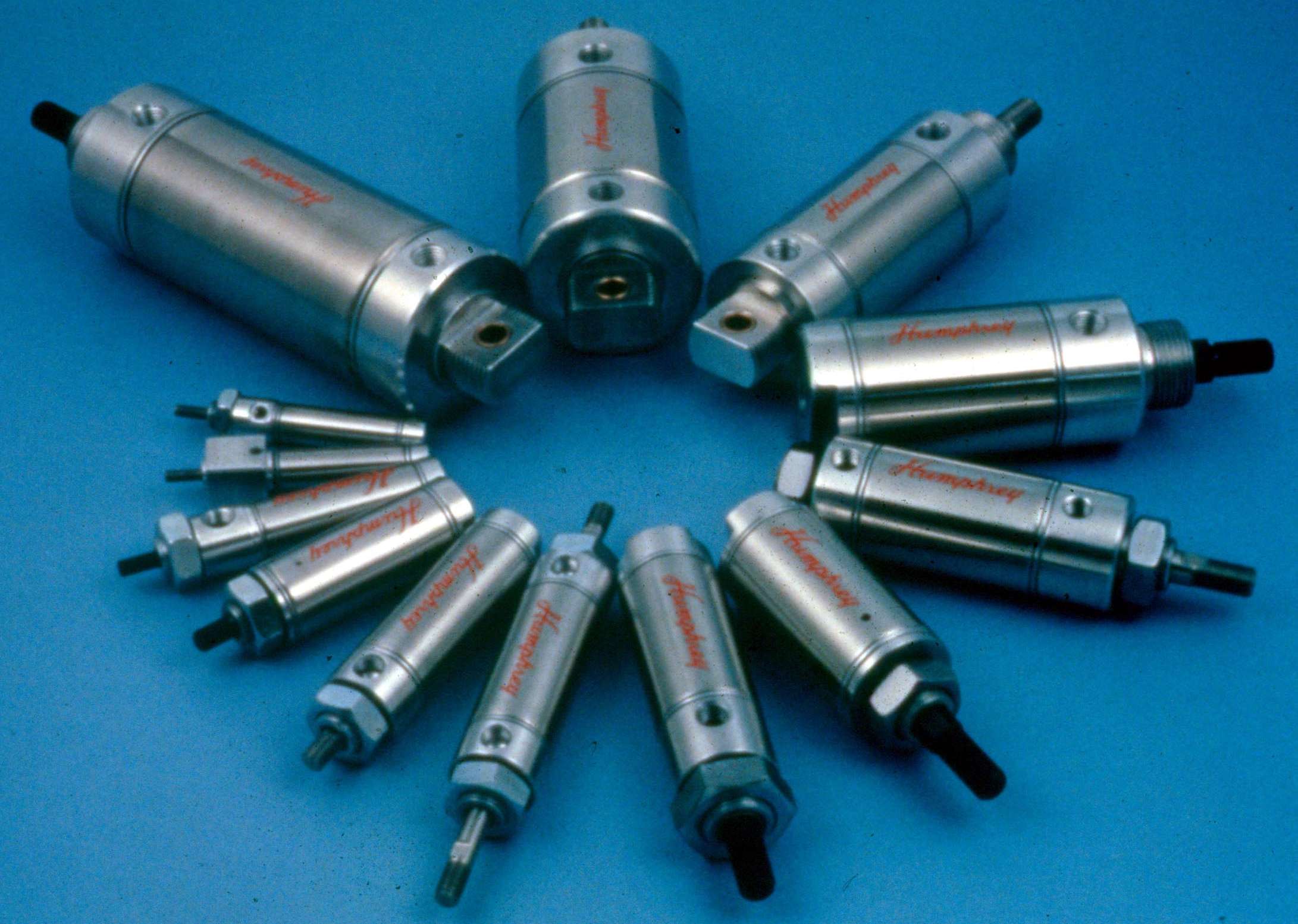

May 03, 2004 Cylinders incorporate reversible piston and internal design that provides smooth, no-drag movement and clean breakaway. V-seal design prevents seal collapse and blow-by, ensuring constant contact with cylinder barrel. Products feature stainless steel barrels and piston rods, oil permeated ball-sized rod bushings, roll-formed threads, and full, unrestricted porting. Available in single and double-acting models, bore sizes range from .50–2.50 in.

Humphrey Products    Kalamazoo, MI 49003
May 03, 2004 Series HORV features block type end cap, which eliminates need for mounting brackets. Lightweight body places no loads on actuator axis or stand, even when using Y-Z axis. Sensor switch track uses cap groove, which allows lead wires for embedded sensor switches to be drawn out from single surface. Featuring stainless steel seal band, cylinders are available with NPT ports and various mounting options, including shock absorber unit and F-tube supports.

Handling Specialty Mfg. Ltd.    Grimbsy, ON L3M4G1  Canada
May 03, 2004 Offering 6,000 lb capacity, Dual Lift System features small lift on top for carrying and positioning gimble and large, mobile personnel lift on bottom for moving gimble from service area to reactor. When lift is in position for removing gimble, wheels lock allowing lower lift to rise into position. Second, smaller lift then rises to locate gimble in x-y plane for mounting to crane. Lower lift is hydraulic while upper lift is mechanical. Platform is 7 x 14 ft and expands to 9 x 14 ft.

K-Tek    Prairieville, LA 70769

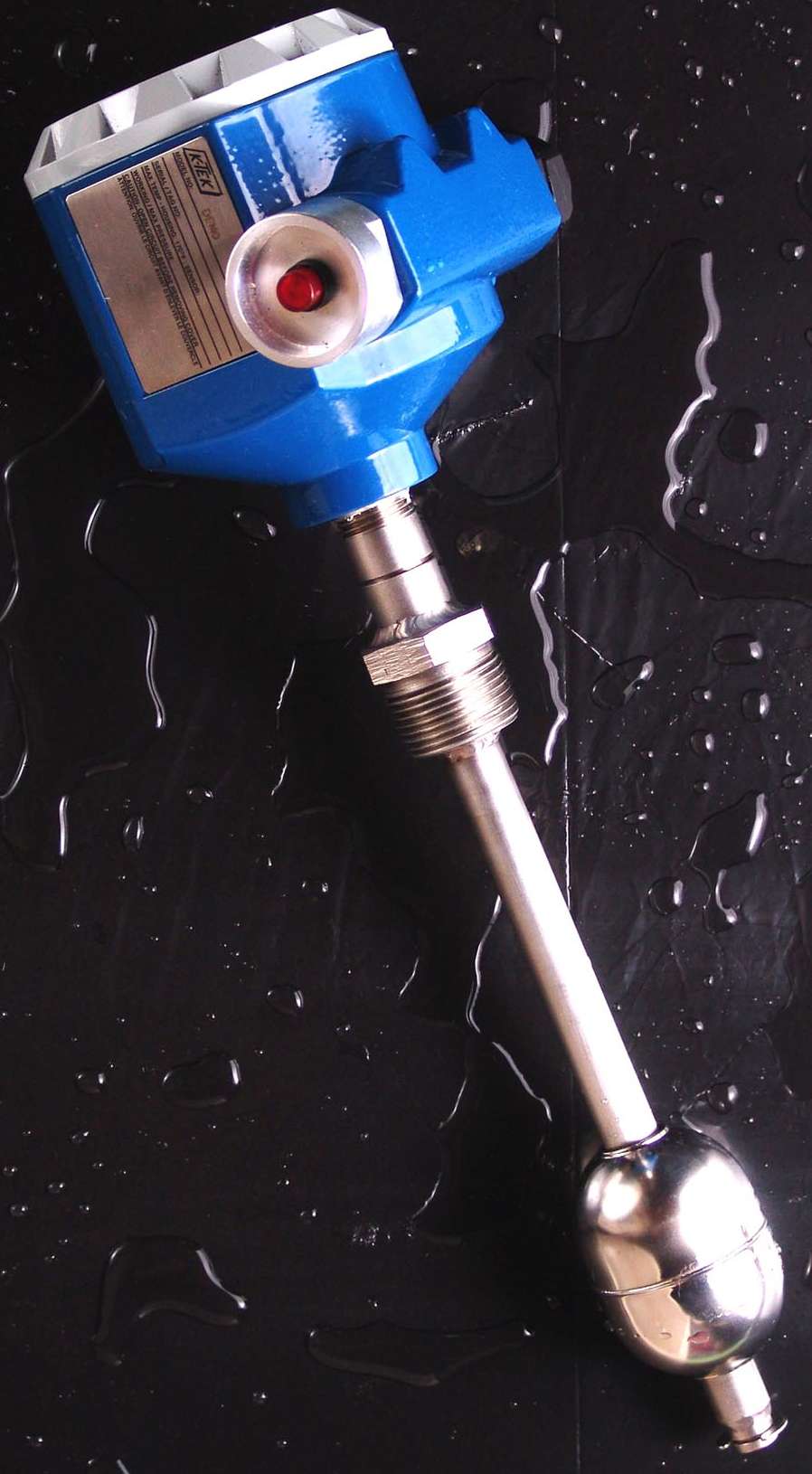

May 03, 2004 Suited for sump level control, alarms, and shutdowns, MS50 features application-specific float designs. It features magnetic coupling and can be equipped with up to 6 SPDT switch points per unit. Latching switch design allows each point to be adjusted and replaced in field. FM Approved and CSA Certified for use in hazardous areas, multiple options are available to handle environments up to 800 psig @ 300°F. Lengths range from 8 in. to 20 ft.

Neopost    Hayward, CA 94544

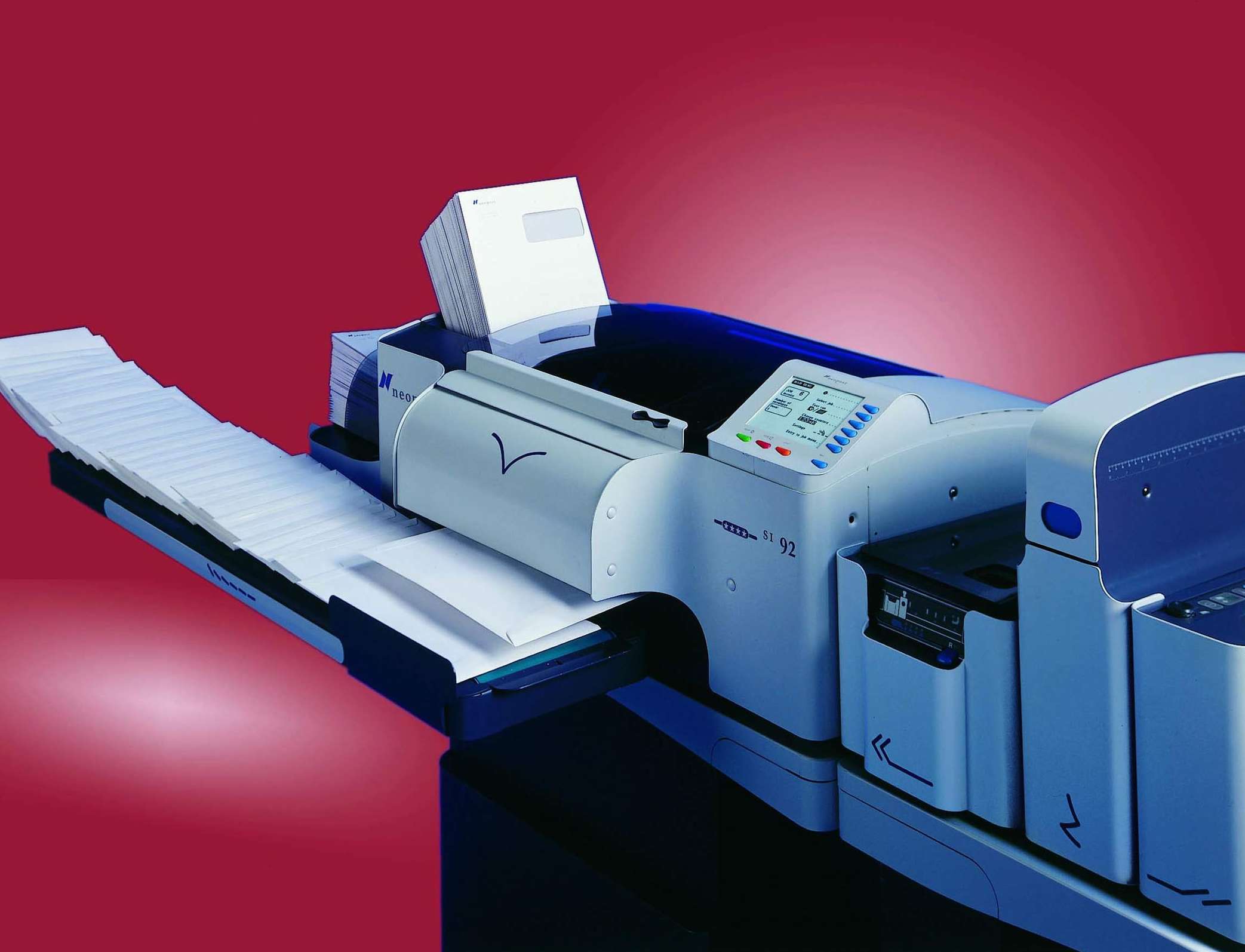

May 03, 2004 PrintMachine print stream management software facilitates mailings of every size and allows users of folder/inserters to electronically create documents such as invoices, statements, and other customer mailings. Windows-based product can merge data, group documents for same recipient, presort for USPS automation discounts, print documents, and apply optical marks that drive intelligent folding/inserting process.

Artesyn Technologies, Inc    Boca Raton, FL 33434
May 03, 2004 Typhoon(TM) SMT15F Point-Of-Load Converters, capable of delivering up to 15 A output current, include 4 models with nominal output voltages of 1.0, 1.2, 1.5, and 1.8 V. Intended for use on boards employing intermediate bus architectures, units offer input voltage of 10.8-13.2 V. Surface-mount, non-isolated modules use synchronous buck regulator topology and switching frequency of 1 MHz to maximize conversion efficiency. Standard footprint is 1.3 x 0.53 in.

JVI Vibratory Equipment    Houston, TX 77240-0564
May 03, 2004 Vibratory Feeder includes chutework and support system in one piece of compact equipment. Inlet bolts to hopper outlet flange, eliminating need for cable supports. Support system is built into framework of feeder and provides safe and stable operation. Integrated chutework options are available for both electromechanical and electromagnetic vibratory feeders.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
May 03, 2004 TotalStorage® Enterprise Automated Tape Library 3494 supports TotalStorage Master Console, which integrates service monitoring to assist in determining if unit is working properly and provide diagnostic support. When used in conjunction with TotalStorage Enterprise Tape Drive 3592 Model J1A, it accepts 300 GB WORM Cartridge, 60 GB WORM Cartridge, Economy short-length 60 GB rewritable cartridge, and 300 GB rewritable cartridge in same library.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
May 03, 2004 Suited for entry-level SAN applications, TotalStorage® SAN Switch H08 features 8 Fiber Channel ports, 4 shortwave fiber optic transceivers, single fixed power supply, rack-mounted PDU jumper cord, and fans in 1U rack height. TotalStorage SAN Switch H16 is intended for mid-range and SMB SAN applications with 16 fiber channel ports, 8 shortwave fiber optic transceivers, dual fixed power supplies, 2 rack-mounted PDU jumper cords, and fans in 1 U rack height.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
May 03, 2004 ImageUltraâ„¢ Builder v2.0, packaged with DeployCenter Library imaging tool from Symantec, lets users combine multiple operating systems and languages into one custom image. Solution reduces need to support multiple images on multiple hardware platforms, and also eliminates need to rebuild images from scratch. Users can create portable object oriented images, including Sysprep portable images.

Elmo Motion Control, Inc.    Westford, MA 01886

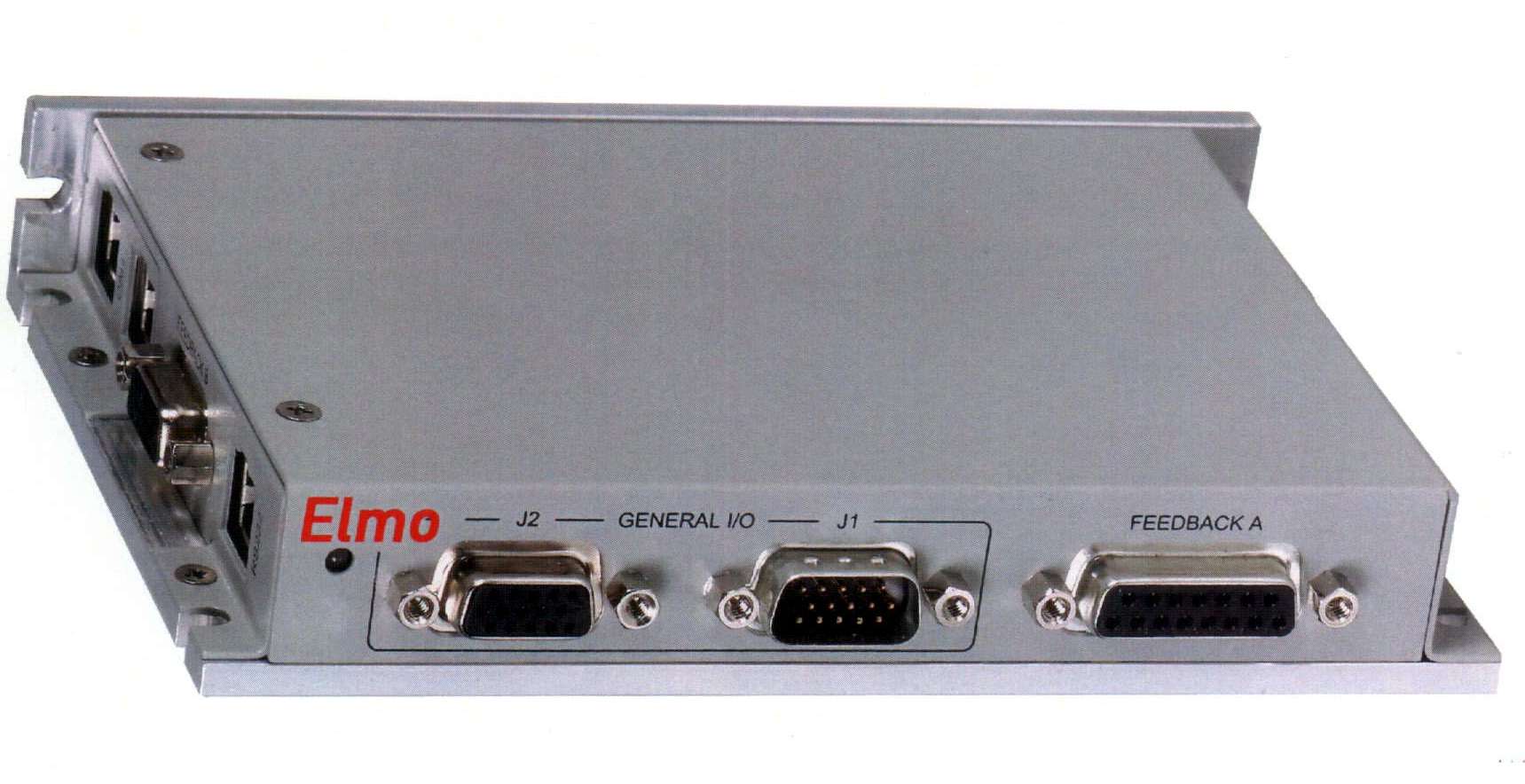

May 03, 2004 Cello Servo Drives can operate in current, velocity, or position modes and function with variety of feedback options. They feature sinusoidal vector control, trapezoidal vector control, trapezoidal 6-step, and DC commutation methods. Two CANopen ports are installed along with one RS-232 serial port for communications. Models range from 2.25-15 A, at 3 nominal input voltage levels of 48, 85, and 180 Vdc. Composer software auto-tunes servo loop gains.

Rohm & Haas Co.    Philadelphia, PA 19106 2399
May 03, 2004 Mor-Melt R-7001E moisture-curing polyurethane reactive hot melt adhesive resists high temperature, moisture, and solvents. Product retains tensile strength in autoclave or sterilization environments and is typically applied at temperatures from 100 to 120°C. Composed of 100% solids, adhesive eliminates puckering, shrinkage, or destruction of delicate substrates. Application methods include roll coating, gravure, screen, slot die, and spray.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
May 03, 2004 Migration Utility for z/OS® v2.1 creates standard COBOL reports from CA-Easytrieve Plus language statements, without CA-Easytrieve Plus installed, and runs in place of CA-Easytrieve Plus run-time interpreter. Applications can then be modified, maintained, and enhanced via standard COBOL programming. Software performs single-step job execution and offers dynamic allocation of print, temporary, sort-work, and virtual files at run time.
