E-Mon Corp.    Langhorne, PA 19047
Apr 15, 2004 RightEnergy allows business users to allocate and bill costs for utility services, including electricity, gas, water, and steam, to actual users. Historical energy use charts enable plants to determine which industrial processes might be shifted to avoid penalties. Product can determine processes that are not energy efficient and evaluate, in real-time, impact of critical load-shedding activities. Energy data collections can be scheduled to occur automatically.

Aladdin Systems, Inc.    Watsonville, CA 95076 4159
Apr 15, 2004 StuffIt Deluxeâ„¢ v8.5 for Windows safely opens any attachment downloaded from Internet with drag-and-drop interface that compresses and decompresses files. FTP capabilities ensure smooth file transfers between users and/or PCs and Internet sites. Disk Index utility allows users to create searchable index of any CD or DVD. Scheduler utility allows tasks to run automatically on regular basis. Product can merge contents of 2 folders and archive or compress from within Windows.

GE Company General Electric Industrial Systems, GE General Eastern Instruments    Wilmington, MA 01887
Apr 14, 2004 DigitalFlowâ„¢ UTX878 loop-powered, clamp-on flowmeter incorporates ultrasonic transducer technology. Low-profile NEMA 4X package has 128 x 64 pixel LCD display for viewing flow rate information, while 6-button external keypad accesses instrument program for verifying meter diagnostics. UTX878 transducer works for pipes ranging from ½â€“8 in. in diameter.

Hilti Inc.    Tulsa, OK 74121

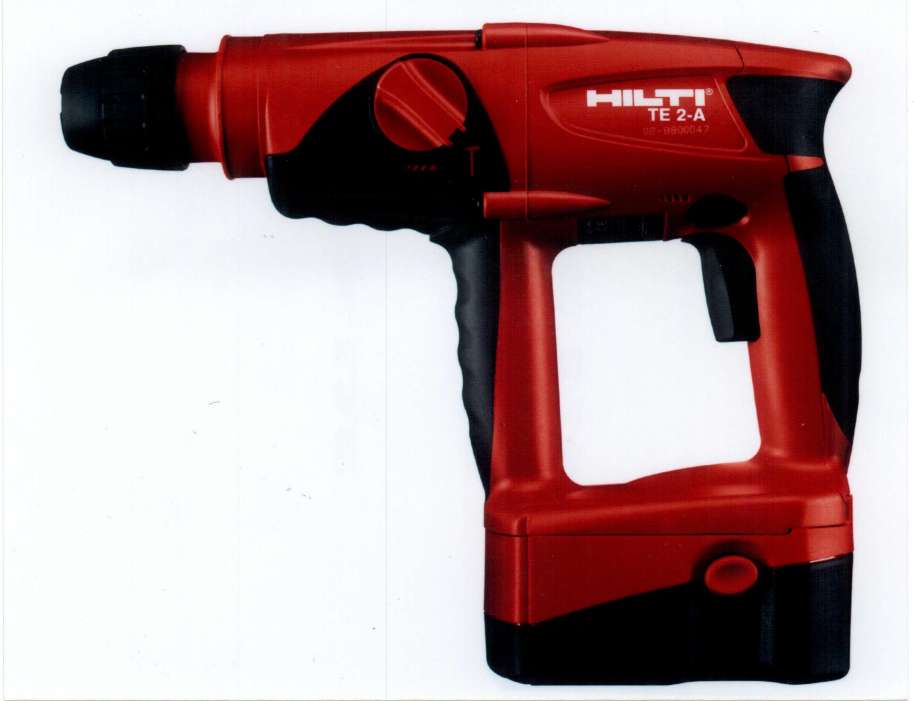

Apr 14, 2004 Cordless TE 2-A, 24 V Electropneumatic Hammer Drill performs rotary drilling, straight drilling, or setting screws when working on concrete, brick, and masonry. TE 2-A drills anchor holes in concrete from 3/16–3/8 in., and also provides capacity for drilling up to 1 in. holes in wood, 3/8 in. in steel, and up to 5/8 in. in concrete. Compact drill weighs 8.36 lb, and is offered with either 3.0 amp-hour NiMH or 2.0 amp-hour NiCd battery.

Linear Technology Corp.    Milpitas, CA 95035
Apr 14, 2004 Housed in SOT-23 package, LTC4412HV diode controller has 2.5-36 V operating range and is suited for use in systems requiring load sharing or automatic switching between DC input power sources. IC regulates gate voltage of external P-channel MOSFET to maintain 20 mV forward voltage drop, and unit provides reverse battery, overcurrent, and MOSFET protection circuitry. Digital control input and open-drain status output pin are provided to interface to microcontroller.

Hurco Machine Tool Products    Indianapolis, IN 46268
Apr 14, 2004 Model TM6 features 6 in. chuck, 12-station tool turret with travels of 7 x 10 in., and 15 hp spindle motor with speeds to 6,000 rpm. Model VMX24S offers X-Y-Z extended travels of 24 x 20 x 24 in. UltiMax® control allows machinist to setup and program on shop floor, create programs, and download CAM generated programs. VM Series machining centers features cast iron frames, fully-enclosed tool storage, 16-station swing arm ATC, and digital motors and drives.

J. W. Winco, Inc.    New Berlin, WI 53151

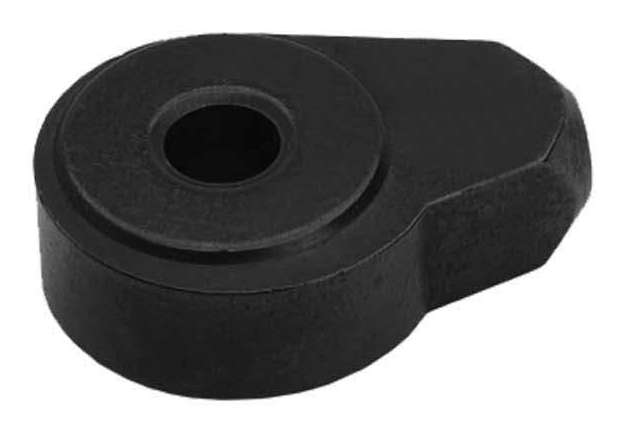

Apr 14, 2004 Case hardened to 0.2-0.4 mm depth, Hubs with eccentric cams are fabricated of steel, powdered metal, and chemically blackened. Products are designed for adjusting and clamping operations, typically with gear lever handle. Clamping force remains constant in every position of movement, allowing eccentric cam to act as self-securing mechanism.

GFI Software USA, Inc.    Cary, NC 27513

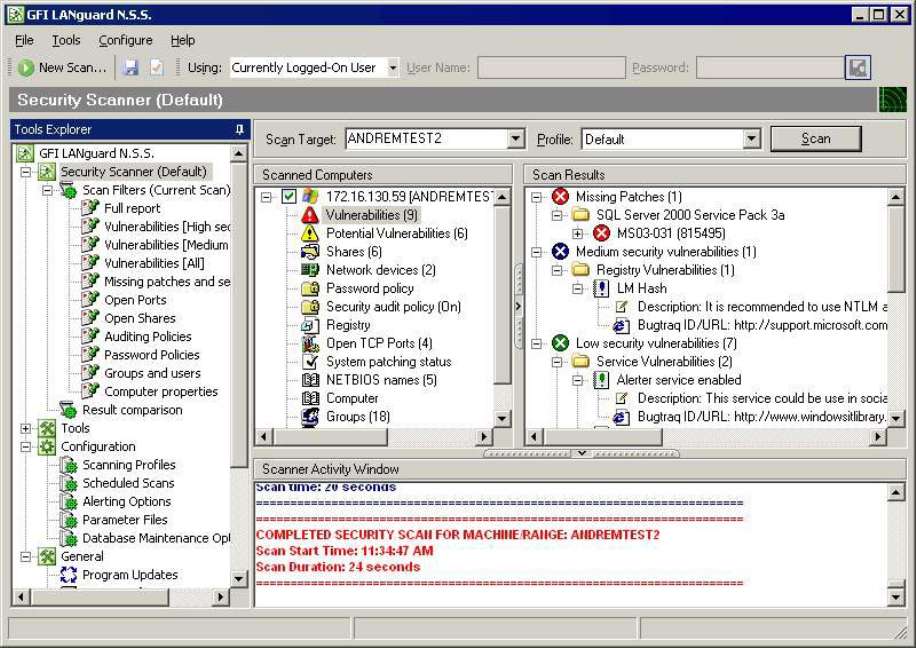

Apr 14, 2004 GFI LANguard Network Security Scanner v5 detects and fixes vulnerabilities in networks. It stores scanned data in Microsoft Access or SQL database and can save scan results to XML. Offering categorized security vulnerabilities, software deploys missing service packs and patches, and allows for creation of custom types of scans and vulnerability tests using scripts/conditions or scan profiles. It also provides patch management and Linux/Unix security scanning.

Phoenix Contact    Harrisburg, PA 17111 0100
Apr 14, 2004 Made from liquid crystal polymer, series CC 2.5 through-hole reflow PCB headers are offered with 5.08 mm pin spacing. Header is available in position sizes 2–24, with/without locking flanges, and utilizes single or 2-piece configurations. Vertical and horizontal PCB mounting versions as well as tape-on-reel packaging are provided for integration with automated pick and place equipment.

Control Company    Friendswood, TX 77546
Apr 14, 2004 Traceable® Laser Beam Tachometer conducts optical, non-contact measurements by locking onto self-adhesive reflective tape on rotating object and counting rotations. Within 2 sec, unit provides answers from 10-99,000 rpm with 5-digit resolution of 0.001, 0.01, 0.1 or 1, depending on displayed revolutions. Accuracy is ±0.04% (plus 2 digits), and Hold button freezes results. LCD digits are ½ in. high, and low battery condition is indicated on display.

Linear Technology Corp.    Milpitas, CA 95035
Apr 14, 2004 Offered in 16-Lead, 3 mm² QFN package, LTC4557 dual SIM (subscriber identity module)/Smart card power supply and level translator provides 1.8 and 3 V SIM power and digital signal level shifting. Unit withstands more than 10 kV ESD on all SIM contact pins and has 0.75 mm profile. It contains internal level translators and LDO regulator. Voltage is selected by baseband controller via one pin per channel, enabling device to deliver up to 50 mA load current.

Electro-Mech Components, Inc.    South El Monte, CA 91733 3689

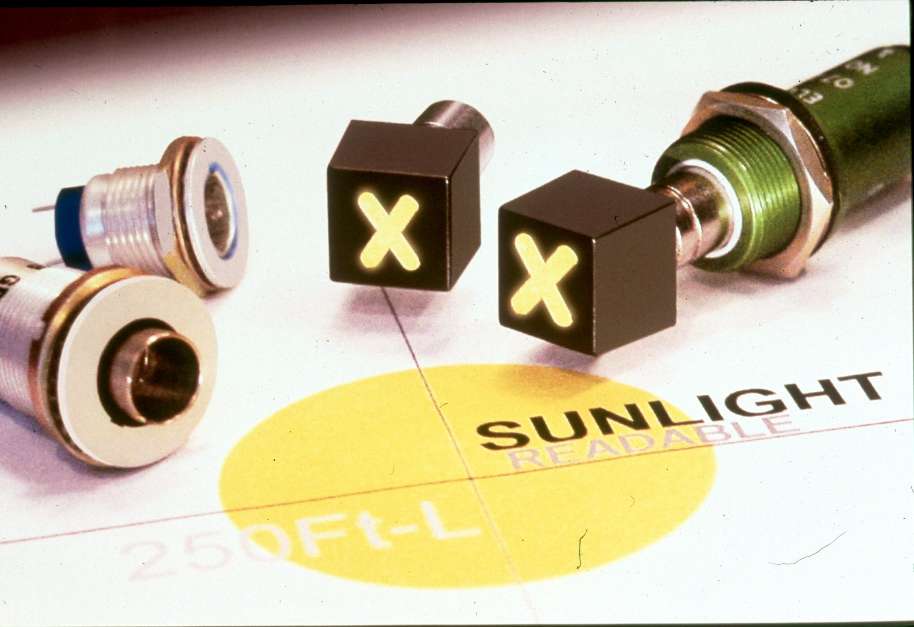

Apr 14, 2004 Interchangeable lens for company's SW44002 series switches can be read in on/off conditions. Sunlight-readable lens measures 0.520 in. sq., 0.465 in. deep to rear lens edge, and can be installed directly onto switches from mounted or rear-mounted installations. Lighting brightness averages 250 ft-l minimum. Chromacity is aviation yellow. Mil-Spec lens suits installation in aircraft and avionics instrumentation for airborne and ground-based instruments.

Continental Fan Mfg. Inc.    Buffalo, NY 14215
Apr 14, 2004 Model AID Tube Axial Fan is offered in diameters from 12–78 in. with capacities up to 100,000 cfm. Utilizing ELTA adjustable pitch axial impeller for precise performance matching, features include airfoil adjustable pitch impeller, AMCA B construction, and fully reversible airflow option. All-aluminum construction is also optional.

Tiger Optics, L.L.C.    Warrington, PA 18976-2426

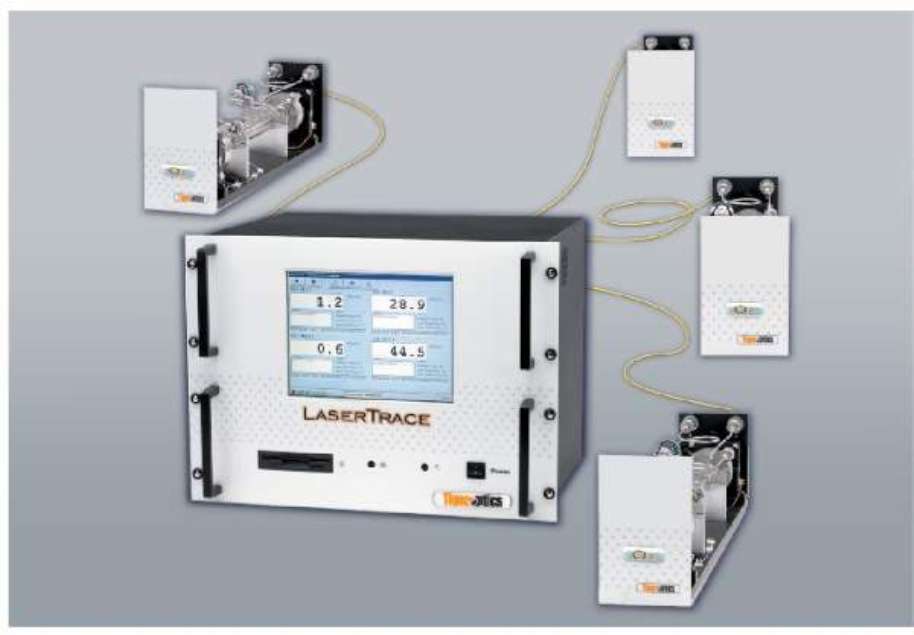

Apr 14, 2004 LaserTrace multi-point, multi-species, multi-gas analyzer incorporates oxygen module based on Cavity Ring-Down Spectroscopy technology. Capable of measuring trace oxygen to 500 parts-per-trillion, LaserTrace also detects species such as H₂O, O₂, CH₄, H₂, CO, NH₃, H₂S, and HF. It features plug-and-play operation, is calibration free, and can measure up to 4 sample gases.

Greyline Instruments, Inc.    Massena, NY 13662

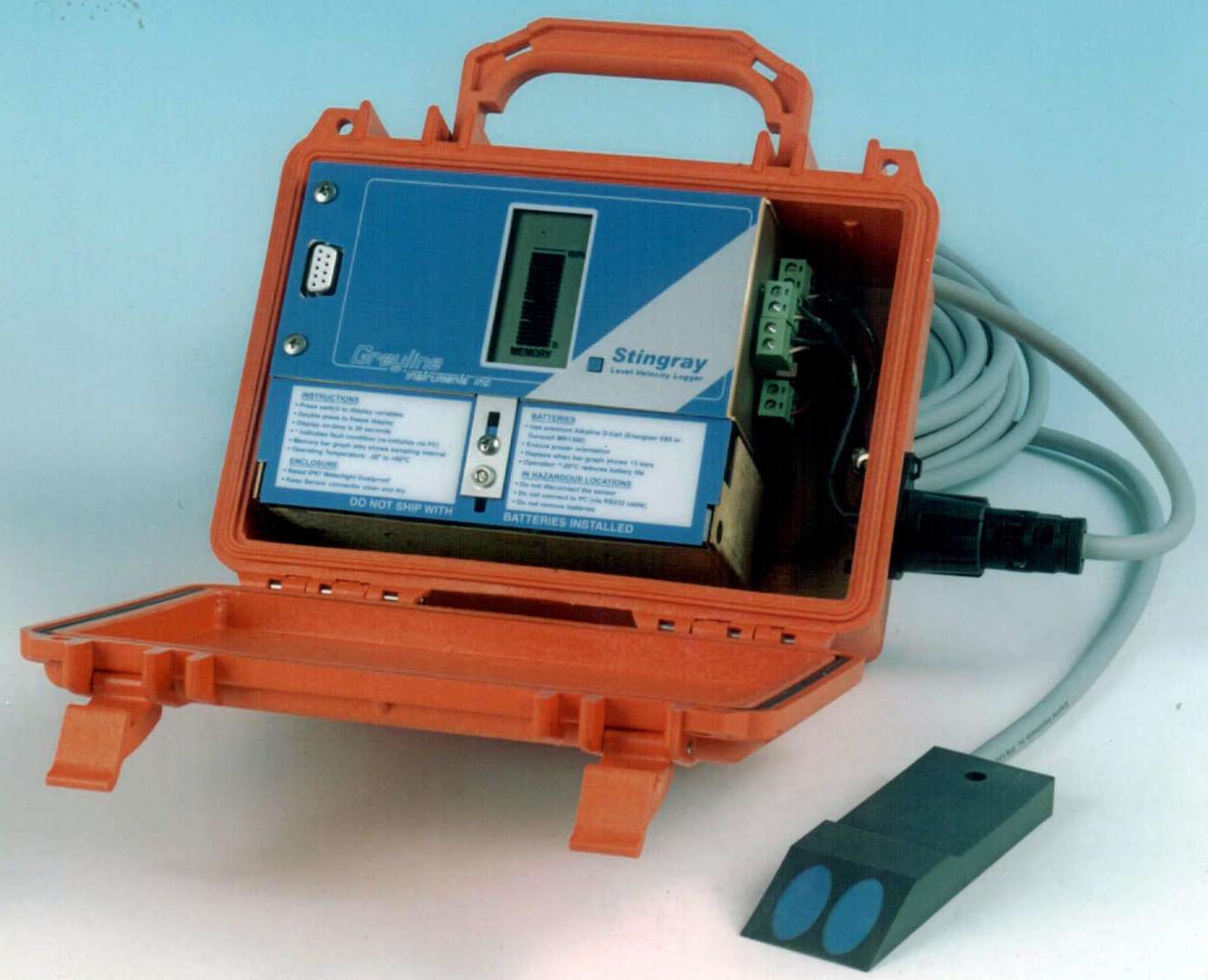

Apr 14, 2004 Stingray portable logger, suited for area-velocity flow surveys in sewers, open pipes, and channels, uses submerged ultrasonic sensor to measure velocity and level. Electronics are housed in watertight IP67 enclosure and rated for operation from 4-140°F. Greyline Logger software retrieves and displays logged data by RS232 or modem connection and also calculates flow for round, rectangular, trapezoid, and egg shaped channels.

Supply Corporation, The    Lake Geneva, WI 53147-0100
Apr 14, 2004 When stretched around top row of cartons, reusable Rolmar Pallet Bands can stabilize whole pallet load. They can be applied by hand, eliminating need for application equipment. For rough handling applications, bands can be applied around several rows for additional stability. Units are ¾ in. wide, 1/16 in. thick, and available in 5 sizes to fit any standard pallet.

Chicago Metallic Corp.    Chicago, IL 60638
Apr 14, 2004 Suited for hygienic applications, EuroCleanâ„¢ and EuroCleanâ„¢ PVF Hygienic Acoustical Ceiling Panels help reduce noise in work environments. EuroClean panels have NRC of 0.85 and light reflectance value of 0.84. Glass fiber product features washable face coating with sealed edges. EuroClean PVF panels, with NRC of 0.80 and light reflectance of 0.84, are made from glass fiber that is completely encapsulated in waterproof PVF. Both work with 15/16 in. grid systems.

Headwall Photonics, Inc.    Fitchburg, MI 01420
Apr 14, 2004 Hyperspec™ VS25 and VS50 concentric imaging spectrographs produce large, distortion-free images for high-resolution, low-noise applications. Hyperspec VS25 operates in 400–1,000 nm spectral region with 2–3 nm resolution. It is suited for homeland security, military reconnaissance, and environmental remote sensing. Offering process monitoring and quality control, Hyperspec VS50 operates from 900–1,700 nm with 10 nm resolution. Both include pre-aligned optics.

Anver Corp. - Anver.Com    Hudson, MA 01749 3214
Apr 14, 2004 Made from electropolished 304 stainless steel, Model VT180 includes white hose cover and adjustable side-support for fiber drums. With interchangeable vacuum heads and quick disconnects, it can adapt to variety of drum sizes weighing up to 500 lb. Equipped with ergonomic handle and adjustable up/down controls, drum handler swivels 360° under vacuum and provides 100% continuous duty cycle. Vacuum pumps are remote and have wash-down coating.

White Hydraulics, Inc.    Hopkinsville, KY 42241 1127
Apr 14, 2004 Series TDS uses variable displacement, axial piston design and offers 3 displacement sizes of 10, 13, and 18 cc/rev. Rated for input speeds from 600–3,600 rpm, pumps provide flows up to 17.1 gpm. They have die-cast aluminum housing, steel wear plate with bronze overlay, steel swash plate, steel pistons, and bronze bushing. Inlet and outlet ports are SAE-8, and suction port is SAE-6. Units are rated for 1,425 psi continuous and 3,500 psi peak.
