Bimba Manufacturing Co.    Monee, IL 60449 0068
Apr 16, 2004 Pneumatic Lift Table consists of stable cylinder that incorporates 4 guide shafts for max rigidity. Designed for limited-space lifting applications where other non-rotating cylinders cannot handle overhung load, product has PTFE-impregnated hard anodized body and is available with stroke lengths in 5 mm increments to 100 mm. Unit is offered in 50, 80, and 125 mm bore sizes, latter of which can produce 1,900 lb of lifting force at 100 psi.

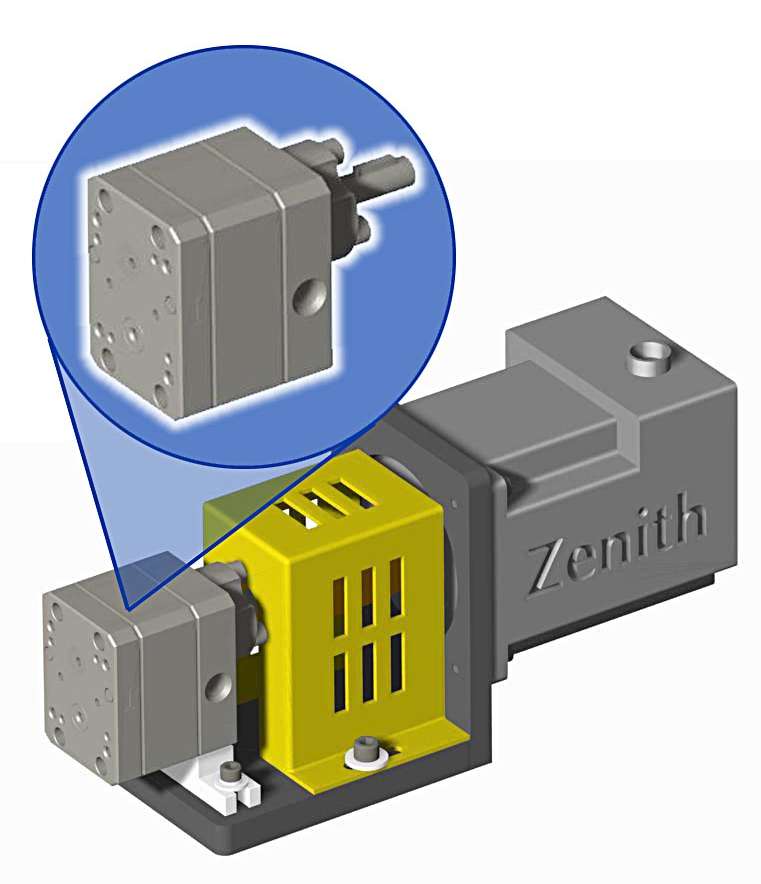

Zenith Pumps Parker Hannifin Corp., Zenith Pumps Div.    Sanford, NC 27330 9551
Apr 16, 2004 Equipped with AGMA Level 14 rotary spur metering gears, Chameleon Pumps deliver continuous, pulseless flow of paints or coatings despite variations in temperature, viscosity, or pressure. Moving parts are through-hardened to Rc-54 or higher for wear resistance. Standard material is 400 Series stainless steel and high-vanadium stainless steel. Diamond-like coatings are optional. Discharge pressures range from 0–1,000 psi.

Amtak Fasteners    East Providence, RI 02914
Apr 16, 2004 Self-piercing Twist-Tackâ„¢ attaches materials such as rubber, plastic, and thin-gauge aluminum to steel tubing, aluminum extrusion, or lightweight metal castings in one step. It punches hole in attachment and forms anchor cone in base metal. Fastening takes place when knurled section engages anchor cone with cutting, twisting, and wedging motion. Fastener achieves hundreds of pounds of withdrawal resistance when applied with compression riveter, single-impact air tool, or bench press.

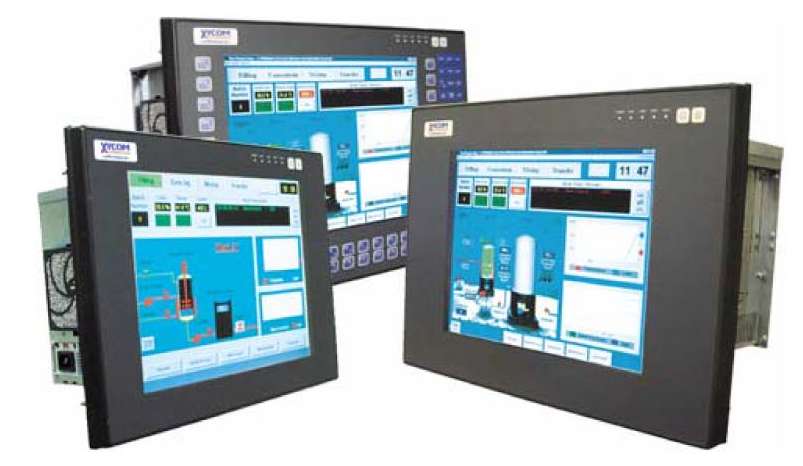

Xycom Automation Inc.    Saline, MI 48176
Apr 16, 2004 Models 3615 and 3715 are all-in-one computers with 15.0 in. XGA flat panel LCD. Powered by Celeron® 850 MHz CPU, products come with 256 MB RAM, 20 GB hard drive, and CD-ROM and floppy drives. They are also available with Intel® Pentium® III 1.0 and 1.26 GHz processors, and DRAM options up to 512 MB. Operator input options include touchscreen and/or keypad with integrated industrial mouse. Products also come standard with 10/100 Base-T Ethernet.

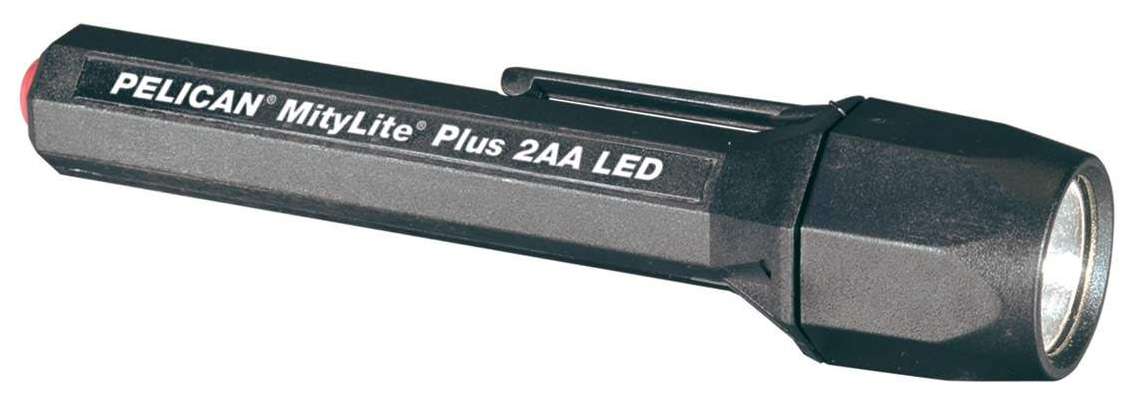

Pelican Products, Inc.    Torrance, CA 90505
Apr 16, 2004 With 10,000 hours of lamp life, MityLiteâ„¢ Plus 2AA LED flashlight radiates clean white beam activated by rear pushbutton switch, which provides momentary and constant on/off operation. Impact-resistant product, packaged on colored hang card, is available in black or yellow.

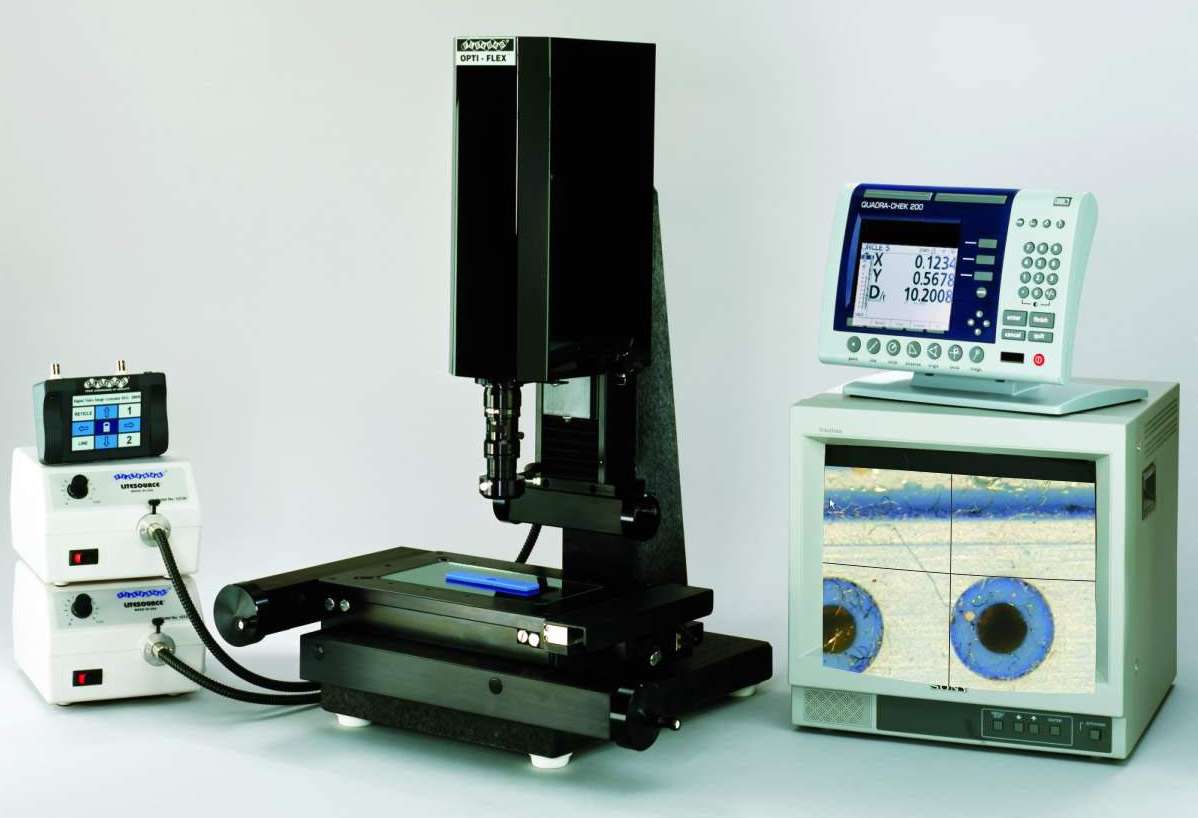

Aven Industries, Inc.    Ann Arbor, MI 48108
Apr 16, 2004 Available in 8 x 4 in. and 12 x 12 in. formats, Optiflex QCZ-2000 Granite Z Series Inspection and Measurement Systems offer color video, zoom optics, and Metronics QC200 Series Geometric Measurement DRO with Geometric Tolerancing. Systems are suited for shop floor or any inspection lab requiring quick operation.

Bud Industries, Inc.    Willoughby, OH 44094
Apr 16, 2004 Extra Deep Cabinets have perforated side panels and rear door. Econoglas front door permits maximum airflow. Cable access ports in top and bottom of cabinets enable overhead cabling or raised data room floors. Internal grounding studs are located in top and bottom of rack. Two pairs of fully adjustable, L-Shaped panel mounting rails, with mounting holes on EIA universal spacing, have provisions for vertical cable management. Cabinets can attach together for construction of equipment bays.

UFP Technologies, Inc.    Georgetown, MA 01833 2107
Apr 16, 2004 Molded fiber trays protect small electronic motors, as well as their components and sub-assemblies, during interplant and intraplant shipment. By gripping certain areas of motor or component while allowing clearance in other areas, fan blades and other delicate parts are protected from potential shipping damage. Various sizes and types of motors can fit into custom designed tray. Trays are made from 100% recycled paper.

ShelfPlus Automated Storage Concepts    Lexington, KY 40505
Apr 16, 2004 CompuCrib combines automated parts storage equipment with CribMaster® software for speed, efficiency, security, and accuracy to MRO parts management. Instant access to needed parts is provided through password security. Video monitoring system records each retrieval transaction including employee number, parts retrieved, time, and date. Specialized features include tracking lot numbers and expiration dates, gage calibration, and managing FOD processes.

Rockwell Automation    Milwaukee, WI 53204
Apr 16, 2004 Allen-Bradley 1203-EN1 module allows company's SCANport(TM)-enabled drives to be controlled, configured, and have data collected over EtherNet/IP. Module sends and receives drive operating and metering data, provides parameter read/write access, and offers features such as Web-page monitoring and e-mail notification. In conjunction with company's DriveExplorer(TM) and DriveTools(TM) SP software, module allows users to configure drive directly over EtherNet/IP.

Meggitt (Maryland), Inc.    Germantown, MD 20876
Apr 16, 2004 Dual output 786T accelerometer helps extend bearing life by simultaneously measuring vibration and temperature, enabling plant manager to schedule preventive maintenance and planned downtime. Combining 786T with R6GQ booted connector allows unit to be used when exposed to dampness and harsh chemicals.

e-motional.com software    Pierrefonds H9H 4K9  Canada
Apr 16, 2004 Transparent Screen Lock PRO v3.0 system access control utility secures workstations/servers with password protection, while letting users view programs running in background. This enables computer systems to be configured so that unauthorized users can see but not touch, while providing controlled access to authorized users. Users must enter valid username and password in order to gain system access, and all attempts to access system can be tracked in log file.

Thomas Products Division    Sheboygan, WI 53081
Apr 16, 2004 With moving parts isolated from material flow, SR Series pumps provide maintenance-free transport of corrosive, abrasive, and sterile solutions. They are available in flow capacities from 0.25 ml/min to 2.9 l/min and feature compact design, dry-running capability, and inherent check valve action at rest. Design variations include 3-roller designs and self-adjusting, spring-loaded 2-roller designs. Stepper motor variations are also available.

Heidenhain Corp.    Schaumburg, IL 60173-5337
Apr 16, 2004 EdDat 2.2 serial interface is capable of outputting absolute position values, as well as requesting or updating information stored in encoder. It offers purely digital transmission to higher-level electronics over 4 lines. Analog signal will not be disturbed by interference on way to subsequent electronics because it is already interpolated in encoder. Automatic measurement of propagation time during switch-on permits clock frequencies of 8 MHz over cable lengths up to 100 m.

Nilfisk Industrial Vacuums    Morgantown, PA 19543
Apr 16, 2004 Powered by compressed air, CFM A17 Explosion Proof (EXP) vacuum safely collects and retains potentially explosive materials in Hazardous Areas Class I, Group D, and Class II, Groups F and G without sparking. Stainless steel and aluminum construction eliminates percussion arcs. Built-in anti-static features include static grounding wire, anti-static wheels mounted on rigid and swiveling castors, and anti-static filter with 21 ft² surface area.

Mobile Hydraulic Equipment Co.    North Kansas City, MO 64116
Apr 16, 2004 Hydrapack2, powered by Yanmar diesel engine, combines hydraulic power pack and electric generator. Rated for continuous duty, product provides simultaneous power for two 10 gpm hydraulic tool circuits or one 10 gpm hydraulic tool circuit and 4,000 W, 30 A electric generator. Unit features two 120 V outlets, one 12 V outlet, and 2 adjustable (0–10 gpm) hydraulic tool circuits @ 2,000 psi. Measuring 39 x 32 x 36 in., it operates at up to 30% slope.

ASI Datamyte    Plymouth, MN 55441
Apr 16, 2004 Applied Stats Software Suite v6.0 is electronic data acquisition and SPC analysis software that aids in Net Weight Analysis with T1 and T2 requirements and international standards analysis. It also aids in precision measurement with MSA 3rd ed GR and R compliance and ability to view CAD drawings of part with hot spots updating as data is acquired. ISO procedure enforcement, 21 CFR Part 11 security with electronic signature, and reporting are also provided.

MSE Technology Applications, Inc.    Butte, MT 59702
Apr 16, 2004 I-Spy32 Serial Communications Analyzer includes software and I-Spy box, which together provide debugging and diagnostic tools that aid in troubleshooting problems with hardware, software, cables, connectors, and logic instructions. System includes GUI interface, 32-bit Microsoft Windows functionality, access to any COM port available to workstation, support for DLL-based Protocol Filters, and enable/disable monitor mode within software.

Omega Engineering, Inc.    Stamford, CT 06907
Apr 16, 2004 Model OMB-DAQBOARD-2004 offers four 16-bit 100 kHz analog outputs ranging from -10 to +10 V. Through use of Bus Mastering DMA, each D/A output can continuously output waveform, which can be read from PC RAM or file on hard disk. Program can asynchronously output value to either D/A for nonwaveform applications if D/A is not already being used in waveform output mode. Additional D/A channels can be added using OMB-DBK2 analog output option card.

Cubic Designs Inc.    New Berlin, WI 53151
Apr 16, 2004 Cubic SafetyRail protects people and equipment from accidents caused by lift trucks and other in-plant vehicles. It can withstand impact of 10,000 lb forklift moving at 5 mph. Columns are high-tensile 5 x 5 x 3/16 in. steel tube with 10 x 10 in. factory welded baseplate. Quik-Connect rail hangers allow addition of railing sections and dismantling of railing for relocation. Single or double rail heights can be mixed and matched to fit application.
