Astec America Inc.    Carlsbad, CA 92008
Mar 02, 2009 Capable of delivering 12 V @ 12 W total power, DA12-M series single-output power adapters feature universal 90-264 Vac inputs in 4 AC plug configurations (US, UK, EU, AU). All are engineered to meet Level V Efficiency standards and fully certified by Energy Star 2.0 as well as CeC. With form factor that enables use of multiple adapters in dual wall outlet configurations, products offers built-in protection against overvoltage, over-temperature, and short-circuit/overload conditions.

Elma Electronic Inc.    Fremont, CA 94538
Feb 24, 2009 Available in both surface mount technology and through-hole styles, non-contact capacitive switches detect changes in capacitance from proximity. Infrared version reduces influence of ambient light via internal compensating circuit, providing less false switching. They can be encased in plastic or glass, and sealed to IP68 for waterproofing. Without need to turn electromechanical contacts, units last minimum of 10 to 6th power cycles, as there is not any wear on components.

Astrodyne Corp.    Mansfield, MA 02048
Feb 19, 2009 With up to 88% efficiency, PMK/PMMK family of high-density, switching AC-DC power supplies are capable of delivering 450 W with active power factor correction (PFC). They provide 5, 12, 24, 36, and 48 V outputs, and come in 2 styles; one with enclosed fan and second version supplied with U-Channel in 5 x 8 x 1.57 in. enclosure. DIN rail-mountable units also feature single line current share, remote sense lines, remote inhibit, output voltage adjust, and 5 V standby mode.

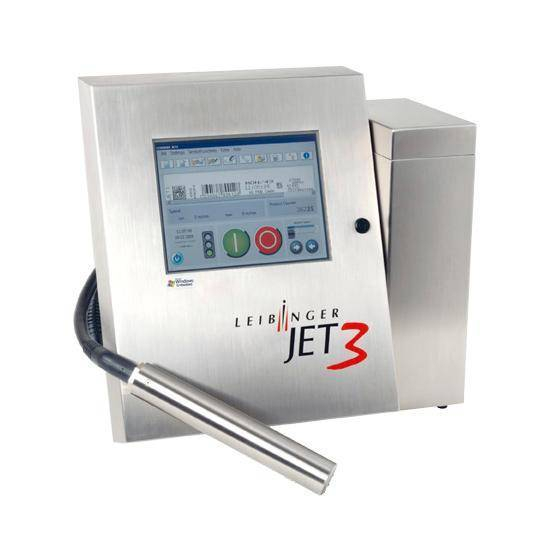

Leibinger USA    East Troy, WI 53120
Feb 06, 2009 Jet 3 small character inkjet printer features automatic nozzle seal that closes airtight and prevents ink from drying in print head, even after long term shut down of unit. Utilizing Windows CE technology and featuring 10.4 in. color TFT touch display, unit offers support for multiple languages and refill system that ensures splash free refilling. Printer can be used for food, pharmaceutical, and medical packaging, as well as to mark cables and electro mechanical components.

STEUTE Meditech, Inc.    Ridgefield, CT 06877
Feb 05, 2009 Constructed of aluminum, CE-compliant Series RF-MED permits operation in any position around perimeter and offers mechanical life rating in excess of 1 million operations. Optional design features include reed contact or microswitch contact closures, custom colors, special markings, customer selected cable, and AP and IP X8 ratings. Designed to meet stringent safety standards, control is suited for x-ray equipment, ultrasonic systems, positioning tables, and dental systems.

STEUTE Meditech, Inc.    Ridgefield, CT 06877
Feb 05, 2009 Designed to control up to 14 electric/pneumatic functions, Foot-Operated Controls meet all relevant Medical Standards and Directives including IEC 60601, European Medical Device Directive 93/42/EEC, and UL and CSA requirements. Optional design features include wireless/cabled operation, custom colors, special markings/icons, analog/digital control functions, compatible connectors, protective brace/foot rest, and up to IP X8 ratings.

Eklin Medical Systems, Inc.    Santa Clara, CA 95054
Jan 29, 2009 RapidStudy(TM) CDx DR system provides users with radiographic image that can be viewed at exam site or review workstation without need for film development. It offers image processing tools for user to enlarge or manipulate images and, based on scintillator technology, is suited for small animal veterinary practices. Product is available as flat-panel or CCD system and can include modality worklist with integration into practice management software, ultrasound, CT, and MRI.

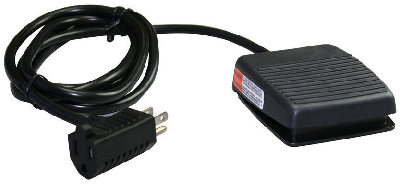

Linemaster Switch Corp.    Woodstock, CT 06281
Jan 21, 2009 Supplied with polymeric plastic or zinc cast cover, Aquiline switches are available in single, twin, triple, and quadruple models featuring SPDT, DPDT, or 2-stage operation. Traction during medical and light-duty application is ensured via non-skid basepad and raised ribs on treadle. Options include waterproof interior switch, rated to IP68; USB; wireless; special labeling or paint finish; and special cordsets to customer specifications.

Tumbler Technologies, Inc.    Santa Clara, CA 95054
Jan 21, 2009 Measuring 7.48 x 3.94 x 1.59 in., PC power supply, TMPC-300-1U comes with on/off switch, low noise ball-bearing fan, and standard output cableset. With 90-264 universal input and active PFC that complies with EN61000-3-2 standards, product is UL, cUL, VDE, CE approved to UL 60601-1, EN 60601-1, and IEC 60601-1 medical standards. Hold up time is 17 millisec minimum at full load, nominal input voltage and power fail signal delay time is 1 millisec minimum. It operates between 0-50°C.

TDK-Lambda Americas Inc.    San Diego, CA 92154
Jan 19, 2009 With 4kVac reinforced input-to-output isolation and output-to-ground isolation of 1,500 Vac, EFE300M Series meets international safety standards of IEC 60601-1 for medical equipment. Units deliver 300 W continuous power with nominal outputs of 12 V/25 A or 24 V/12.5 A. Featuring 3 x 6 in. footprint with less than 1U profile, power supplies include 8-bit microcontroller for full digital control of output, and integrated magnetic transformer to boost efficiency to 90%.

Melexis Inc.    Concord, NH 03301
Jan 12, 2009 Housed in ultra-small TO-46 package, Model MLX90615 combines IR sensor with custom signal conditioning chip, which includes low noise amplifiers, 16-bit ADC, and DSP unit, allowing operating temperature range of -40 to +85°C and extended object temperature range of -40 to +115°C. RoHS-compliant device offers absolute accuracy of ±0.1°C in critical temperature range of 36-39°C. Using 3 V supply voltage, MLX90615 consumes less than 1 mA in normal operation.

Astec America Inc.    Carlsbad, CA 92008
Jan 06, 2009 Models NTS505 and NTS508 AC-DC power supplies deliver 24 and 48 V output, respectively, and power boards fitted with multiple nonisolated DC-DC converters. They feature universal input of 85-264 Vac at 47-440 Hz and offer 85% conversion at full load with nominal 115 Vac input. Controlled via PMBus(TM)-compliant I2C interface, 4 x 7 in. units are available in convection-cooled, 200 W output, and fan-cooled, 500 W output versions. NTS500-M Series is available with medical approvals.

Tumbler Technologies, Inc.    Santa Clara, CA 95054
Jan 05, 2009 Delivering up to 60 W of output power, medical-grade TMP60 series has 85-264 Vac input and comes enclosed in 94V-1 rated polyphenylene-oxide case measuring 2.95 x 5.79 x 1.65 in. Single-output models, featuring factory-preset output from 11-39 V or 46-50 V, have average efficiency of greater than or equal to 85% and standby power consumption of less than 0.5 W. Dual- and triple-output models offer combinations of +3.3, +5, ±12, ±15, and +24 V outputs.

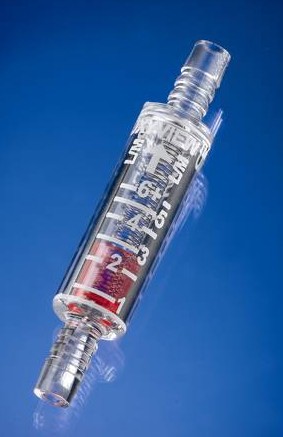

Qosina Corp.    Edgewood, NY 11717 8329
Dec 18, 2008 Oxyview polycarbonate oxygen flow meter (Part #11067), compatible with most oxygen bushings, is calibrated indicator gauge that provides in-line monitoring of oxygen levels from 1 to 6+ liters/min. Ability to connect close to patient in any orientation offers alternative to gravity fed components mounted at oxygen source.

McAllister Software Systems, Inc    Piedmont, MO 63957
Dec 15, 2008 Designed to save time and provide efficiencies within veterinary practice, AVImark 2009 integrates with various laboratory equipment, reference laboratories, digital imaging, and other services. In addition to IDEXX, Abaxis, and AFP Imaging, solution also supports integrations with solutions from Sound Technologies; VDIC, Inc.; Associated Veterinary Purchasing Company, Ltd.; VCA Antech Diagnostics/Zoasis Corp.; and others to enable veterinarians to work with vendors they choose.

TROY Group, Inc.    Costa Mesa, CA 92626
Dec 12, 2008 Designed to print federally mandated security features onto plain laser bond paper, TROY SecureRx Printer enables healthcare providers to comply with CMS security regulations. Unit is based on HP LaserJet P3005 printer and operates at speeds of 35 pages/min. For security, printer includes TROY copy prevention pantograph technology, TROY customizable micro-print font, and TROYmark(TM) variable print watermark, which provides erasure evidence.

C&K Components    Newton, MA 02458
Dec 08, 2008 Available in vertical or right angle PCB-mount styles, MDS Series of surface-mount, micro-miniature, snap-acting detect switches features total travel of 2.9 mm, contact rating of 0.3 A at 6 Vdc, with contact resistance of 200 mW. Products have mechanical and electrical life of 10,000 operations. Applications include ATCA, AMC, medical devices, and consumer electronics.

Tumbler Technologies, Inc.    Santa Clara, CA 95054
Dec 05, 2008 Approved to UL 60601-1, CSA C22.2 No. 601.1, EN 60601-1 medical standards, TM650 series of 650 W AC/DC switching power supplies withstand voltages of 4,000 Vac from input to output, 1,500 Vac from input to ground, and 500 Vac from output to ground. Series includes 20 models of single to triple outputs of 650-700 W continuous power at 50 cfm forced air. Operating at 90-264 Vac universal input, series offers 300,000 hr minimum MTBF at full load at 25°C ambient per MIL-HDBK-217F.

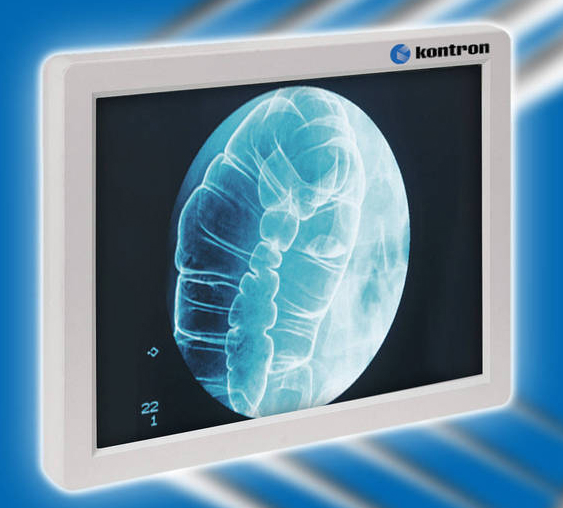

Kontron    Poway, CA 92064
Dec 02, 2008 Designed for medical equipment OEMs, MediClient 104 offers dual Ethernet, dual USB 2.0, and serial RS232 connections. Resistant to disinfectants and detergents, 800 x 600 size TFT touch screen with 230 cd/m² brightness is usable with gloves and stylus pens. Scalable up to Intel Celeron M processor with 1.0 GHz, unit features up to 1,024 MB of RAM and compact flash socket plus optional 2.5 in. HDD for data storage. CE, FCC, cULus certified PC has MTBF of more than 40,000 hr.

Traxtal Inc.    Toronto   Canada
Nov 26, 2008 Cleared by FDA for all imaging modalities, PercuNav computer-assisted, image-guided diagnostic and interventional system consists of Traxtal Tx(TM) mobile system cart, PercuNav 2.0 software, and variety of instruments including flexible needles, biopsy devices, and RFA introducers. Using minute electro-magnetic sensors embedded in tips of instruments, software superimposes precise, real-time location and orientation of instruments on pre-operative and live images of patient.
