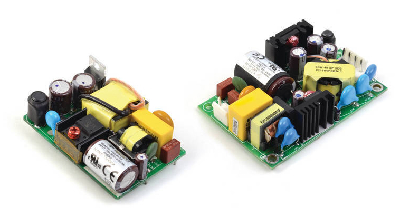

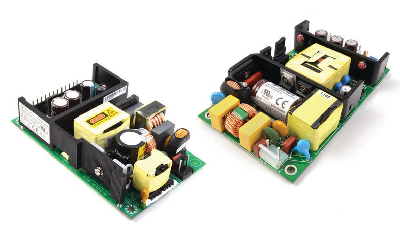

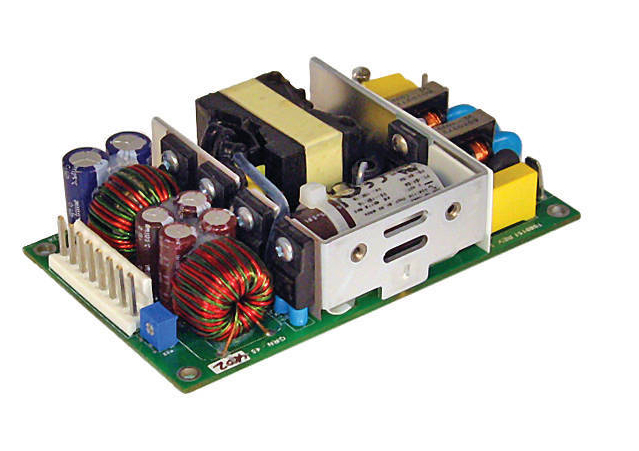

Providing 300 W of regulated power, open-frame CFM300M Series complies with international medical safety regulations and meets radiated and conducted emission requirements. Universal input range is 90–264 Vac, and available single-output voltages include 12, 24, 36, and 48 Vdc. Delivering efficiency up to 94% at 230 Vac, this 3.000 x 5.000 x 1.382 in. series operates from -40 to +80°C ambient with derating above 40°C. No load power consumption is <0.3 W, and leakage current is ≤300 µA. Read More

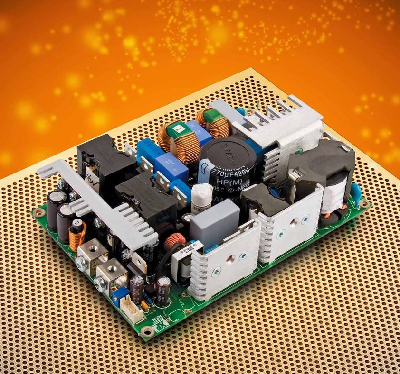

Available in open frame or optional chassis and cover package, 400 Watt NXT-400M Series offers up to 4 regulated DC output voltage combinations from 3.3–28 Vdc with inhibit available on all 4 outputs. Standard features include universal 85–264 Vac input, active power factor correction, over-power and over-voltage protection, power fail warning, remote sense, and 5 V/2 A standby output. Measuring 4 x 7 x 1.5 in., power supplies operate from -20 to +70°C. Read More
Using flat-panel detector, ImageVue™ DR50 enables low-dose radiation image capture in real-time at point of care without sacrificing diagnostic image clarity. Reduction in radiation promotes health and well-being of pets and veterinary professionals, while imaging capabilities enhance visualization of dense anatomy and fine anatomical structures. Capturing digital image in <8 sec, this radiography system can be combined with cloud-based IDEXX Web PACS software for remote access to images. Read More

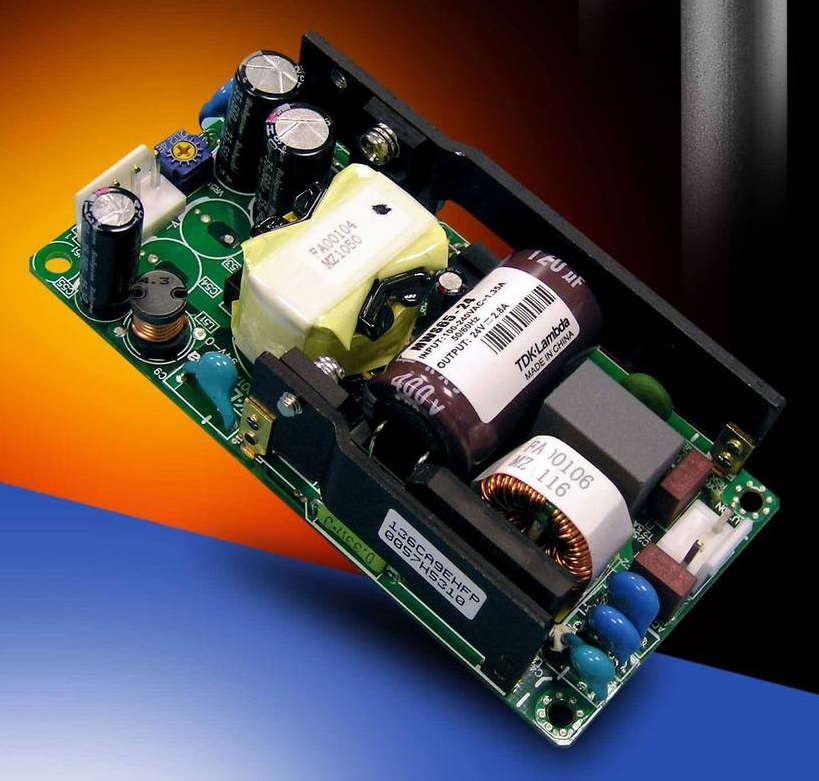

Operating with up to 94% efficiency, TDK-Lambda CUS200M series operates from universal of 85–265 Vac input and can deliver 200 W when convection cooled and up to 250 W with 1.5 m/sec airflow. Nominal outputs, adjustable via potentiometer, include 12, 18, 24, and 48 Vdc, and such features as remote on/off and 5 V standby output are standard on all models. Drawing <0.5 W in standby mode, isolated products deliver full power with ambient temperatures of -20 to +50°C and 50% power at +70°C.
NEW YORK - Delta, a global leader in power and thermal management solutions, is showcasing its latest medical power supply series at the MDM East 2016 show in New York. Products on display include Delta's High Energy Density Medical open frame and enclosed power supplies, medical grade 30W wall mount adapters, and the new MDS-350AD701 power solution model with a 350W power rating. Visitors... Read More
Single-output AC/DC power supplies of 1.32 x 4.94 x 2.19 in. ALM65 series, approved to ITE EN/UL 60950-1 and IEC60601-1 / ANSI/AMMI ES60601-1 3rd edition medical safety standards, feature 250 µA max leakage current and 2 MOPP isolation. Operating from 80–264 Vac input with full power available from 90 Vac, series has fully sealed IP32 enclosure and operates from 0 to + 60°C. Class I or Class II input may be specified, and models with former can be ordered with input lead retention clip.
Featuring resonant, zero-switching topology, PM1100 Series operates from universal 90–264 Vac input and delivers 1,100 W continuous power (1,250 W peak). Single output voltages include 24, 28, 32, 34, 36, 42, and 48 V with 5 V/200 mA standby output; leakage current is <300 µA; and operating altitude is up to 5,000 m. Along with inhibit/PS-off and DC OK signals, features include variable-speed internal fan, overvoltage/overcurrent/thermal protection, and MTBF of 300,000 hr at full load/25°C. Read More
The ThermaPrint 64 has been specifically designed for medical Tyvek printing. Regardless of whether you want to print on Tyvek pouches or Tyvek lids, the ThermaPrint 64 ensures good quality at higher-than-average speeds. Available in multiple formats, printing can be done on Tyvek pouches, fine barcodes and strips. The average print speed is roughly 4-8 inches per second. The Thermaprint 64... Read More
Built specifically for pulmonary clinician, VIDA|vision™ provides insights to optimize care decisions and improve patient outcomes. Lung Bronchoscopy Planning focuses interventional pulmonologists on planning and performing diagnostic biopsy procedures for peripheral nodule. Lung Volume Reduction provides physicians with information to select appropriate therapy for severe emphysema patients, using evidence-based quantitative CT biomarkers to include heterogeneity and fissure integrity. Read More
Compliant to 4th edition medical EMC standards and featuring Class II construction, BF-rated THC35 series deliver up to 35 W continuous output with convection cooling and meets home healthcare environment requirements. Product operates from 90–264 Vac universal input and comes in 5, 12, 15, 18, and 24 V single-output models with touch current measuring 100 µA max @ 264 Vac, 63 Hz. Active efficiency is 87% typ @ 115 Vac and 89% typ @ 230 Vac, and dimensions are 2 x 3 x 1.12 in. Read More
Addressing surgeons' power, function, and ergonomic needs, Signature Portfolio includes electric and pneumatic motors as well as 90+ attachments and cutting accessories. Tactile feel, response, and performance of PiDrive electric drills can also be customized using Stryker ID Touch software on CORE Console power unit, which saves unlimited user profiles to let surgeons retrieve unique style setting for consistent drill feel and performance. Read More
The Jacobs Institute Partners with Stratasys on New Center of Excellence to Advance Medical Applications of 3D PrintingApril 29, 2016
MINNEAPOLIS REHOVOT, Israel - Stratasys Ltd. (Nasdaq:SSYS), the 3D printing and additive manufacturing solutions company, today announced that it is partnering with New York-based Jacobs Institute (JI) to create a new Center of Excellence (COE) with the goal of advancing the use of 3D printing for a variety of medical applications. Vascular testing model used to validate new medical devices... Read More
Featuring 90–264 Vac universal input with active PFC, Model TMPC-550U provides DC voltage outputs and max loads of +3.3 V/20 A, +5 V/20 A, triple +12 V/16 A, -12 V/0.5 A, and +5 Vsb/3 A for standby purposes. Maximum total output power is 550 W, with combined output of +3.3 V and +5 V limited to 120 W. Measuring 140 x 150 x 86 mm, medical-grade power supply comes with standard output cableset, which includes 24-pin ATX motherboard, PCI-E, 4-pin Molex, and SATA power connectors. Read More
Pointe Claire, Quebec - Future Electronics, a global leading distributor of electronic components, recently announced immediate shipping availability of the MSS series medical alarms from Mallory. The MSS series of cUL approved IEC 60601-1-8 medical alarms from Mallory feature a compact 23 x 14mm PC pin mount package size and a 90dB at 10cm sound level. The MSS300R does not have circuitry... Read More

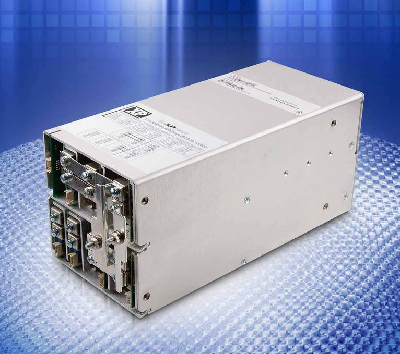

Operating at altitudes up to 5,000 m from universal 90–264 Vac input, enclosed AC/DC switching power supplies of TM1100 series can deliver 1,100 W continuous output power and 1,250 W peak (170–260 Vac input for 10 sec at 35% duty cycle). Active efficiency is 87%, and MTBF (minimum) is 300,000 hr at full load at 25°C ambient. Measuring 9.25 x 5.91 x 2.4 in., these 7 standard single, 24–48 V power supply models offer 0.98 power factor and 5 V standby power output. Read More
Available in encapsulated or open frame format measuring 1.4 x 0.94 x 0.69 in., EME05 Series includes 8 single-output models covering all nominal outputs from 3.3–48 Vdc. Convection-cooled 5 W units offer full power across input range of 90–264 Vac without derating. Providing reinforced insulation with 4,000 Vac I/O isolation and 2 means of patient protection, power supplies are approved to 3rd edition of international medical safety standards EN60601-1:2006 and ANSI/AAMI ES60601-1:2005. Read More
JACKSON, Miss. – Plexus Technology Group, LLC (Plexus TG), a market-leading provider of Anesthesia Information Management Systems (AIMS), is pleased to announce they will be attending the 2016 Healthcare Information and Management Systems Society (HIMSS) Annual Conference and Exhibition, held February 29 - March 4 at the Sands Expo Center in Las Vegas, Nevada. This five-day event includes... Read More

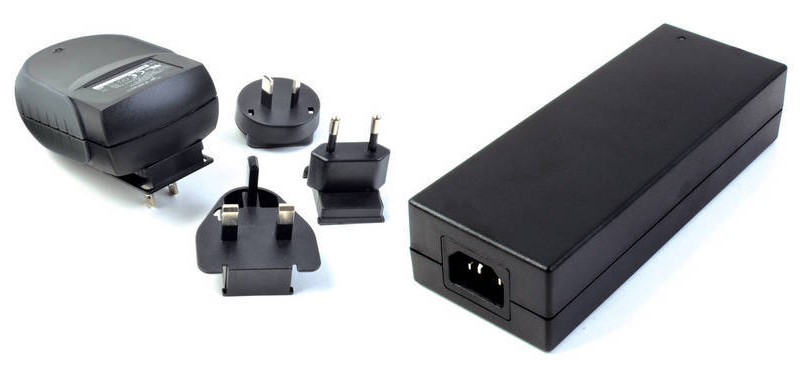

Accepting universal input of 90–264 Vac, PEAD310 and PEAMD310 (medical) Series provide fully regulated, single-output voltages of 12, 15, 19, 24, 36, and 48 Vdc. These Level VI efficient switching power supplies, which offer continuous 250–310 W output power, come in sealed, fanless case that measures 7.8 x 4 x 2 in. IEC60320/C14 inlet is standard, and optional C18 inlet supports worldwide medical use. For ITE, IEC60320/C14 is standard and C8/C6/C18 are options. Read More

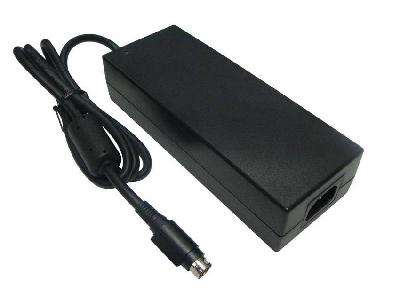

Certified to IEC 60601-1 and 60601-1-11 medical standards, 106 x 60 x 31 mm DTM65-C8 series does not require earth ground connection and meets Level VI DoE efficiency standards. These external units accept 90–264 Vac via IEC60320-C8 cable and output 5, 12, 15, 19, 24, 28, or 48 Vdc via 4-pin Power-DIN connector. Offering 40–65 W output, series exhibits average efficiency of >88% (12 V models or higher) and operates from 0 to +60°C (with derating). Off-load power draw is <0.21 W.

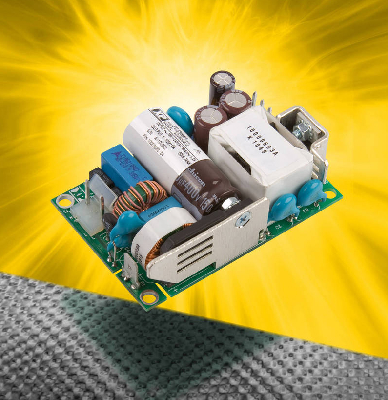

Providing 200 W of power in 3 x 5 in. footprint, PMAM200 Series features 90–264 Vac input and single outputs of 12, 19, and 24 Vdc. Series is BF (Body Floating) direct patient contact rated, with Class I and II inputs, and is certified to UL/cUL/EN60601-1 3rd Edition. Operating from -40 to +70°C, medical power supplies provide >87% efficiency, no-load power consumption of <0.5 W, and MTBF of more than 100,000 hours per MIL-HDBK-217F at full load and 25°C ambient. Read More
