Minco    Minneapolis, MN 55432
Sep 10, 2002 FG3015 keeps oil from wicking along wires where they exit machine housings. Compression seal conforms tightly to cable jacket and keeps oil inside machine to 50 psi. Split grommet allows user to install seal without threading cable or wires through grommet. Body is all stainless steel. Models are available for single cables or up to 6 individual wires, with diameters from 0.05 to 0.23 in. FG3015 is rated to 150°C.

Setco    Cincinnati, OH 45233
Aug 21, 2002 Universal AirShield(TM) features precision machined steel housing and Viton lip seal. It provides tangential air purge system for dynamic and static protection. Constant air flow creates near frictionless seal between bearing cap and spindle shaft to protect front and rear bearings. Seal eliminates spindle failure due to bearing contamination from coolant ingress and condensation, contamination, and chip damage.

Woodex Bearing Co., Inc.    Georgetown, ME 04548 9519
Aug 08, 2002 Engineered to suit individual applications, seals are available either partially or fully-split to speed installation and rebuilding. Seals can retrofit rotating dry powder and bulk solids processing equipment such as mixers, bucket elevators, agitators, dryers, and extruders with shaft diameters from 1/2 to 36 in. Seal materials include specialty and hardened alloys, exotic bearing grade plastics, and specialty elastomers. FDA materials are available.

Minnesota Rubber & QMR Plastics    Minneapolis, MN 55416
May 29, 2002 Cover Assembly consists of integral control lever, actuating spring, and elastomer face seal. Its design materials handle effects of dampening fluid under pressure and withstand varying humidity and temperature changes. Assembly mounts face seal down to pressure control pilot valve with electrical connections made through round opening in cover wall. Assembly is suitable for use in off-highway equipment such as curb formers and skid steerers.

Woodex Bearing Co., Inc.    Georgetown, ME 04548 9519
May 02, 2002 AH Series employs elastomeric drive design to protect shaft from abrasion damage and to accommodate 1/4 in. radial shaft runout. Seals are fitted with flush water inlet and drain ports for in-place cleanouts. They incorporate adjustment mechanism and monitoring provisions, allowing operator to perform preventive maintenance before leakage occurs. Seals are used on ribbon blenders, paddle mixers, reactors, screw conveyors, and bucket elevators.

Parker Hannifin Corp., Seal Group    Irvine, CA 92612 1073
Apr 30, 2002 FF354-65 white perfluorinated elastomer (FFKM) seals offer low durometer of 65. Soft properties allow for installation of o-rings and other seals into groove shapes such as dovetails and radius corner designs. FF354-65 seals resist compression set and offer temperature resistance up to 600 deg F. Chemical-resistant material is suitable for use in semiconductor fabrication, pharmaceutical processing, medical device manufacturing, and maintenance repair applications.

Clean Seal, Inc.    South Bend, IN 46680 2919
Apr 29, 2002 Clean Seal Plus closed cell foam rubber seal can be compressed up to 10 percent of its original profile and will expand back to its original shape and size. Rubber sealant is resistant to water absorption and heat. Product, available in various shapes and sizes, is also offered with 3M heat activated tape.

Brennan Industries, Inc.    Cleveland, OH 44139
Apr 25, 2002 O-ring face-seal fittings, available in 23 configurations and 35 different size combinations, permit operating pressures as high as 6,000 psi. They can be connected to range of tubing grades by silver brazing. Fittings are suitable for sub-zero to high-temperature applications, and are resistant to vibration and shock conditions. They meet or exceed design and performance requirements of SAE J1453.

EagleBurgmann Industries    Houston, TX 77040

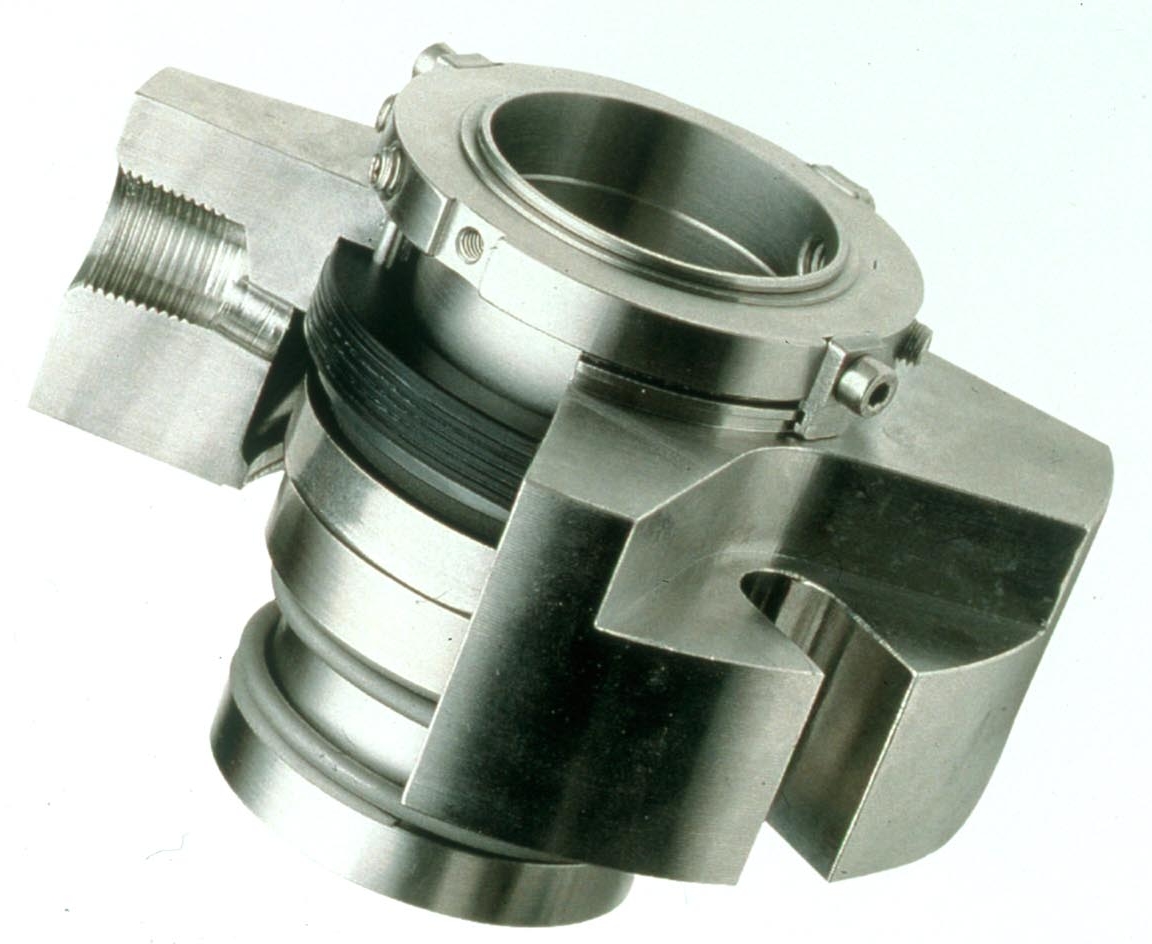

Apr 16, 2002 M7iM seal utilizes 1-piece Super-Sinus spring to provide uniform axial force. Designed for ANSI pumps, seal offers interchangeable parts, self-cleaning open drive collar, and cold-formed material structure. Sizes range from 1.000 to 4.000 in. Model M7iM operates in temperatures from -58 feg F to 430 deg F, and its operating pressure limit is 360 psi. It is capable of operation at shaft speeds up to 66 ft/sec.

Adaconn & Inserta Products, Inc.    Blue Bell, PA 19422

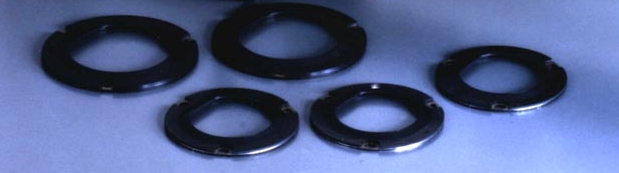

Mar 30, 2002 Code 61 and Code 62 Seal Plates provide proper alignment and squeeze on O-rings when joining 2 surfaces. Outer diameter is grooved to center and improves O-rings' loading. Plates incorporate optional integrity support rings for structural support of 2 inner joined surfaces. These support rings eliminate seal damage.

Parker Hannifin Corp., Seal Group    Irvine, CA 92612 1073
Mar 25, 2002 UltraCOMP(TM) engineered thermoplastics are resistant to creep and fatigue in temperatures up to 500 deg F. Chemical, electrical-, and radiation-resistant seals can operate continuously and be regularly sterilized by steam, as common with medical device seals. Material is available in 4 formulations: virgin, carbon fiber-filled, glass-filled, and carbon/graphite/PTFE-filled. Tube sizes are up to 8 in. OD, with up to 4 in. length and up to 0.5 in. cross section.

NSK    Ann Arbor, MI 48105

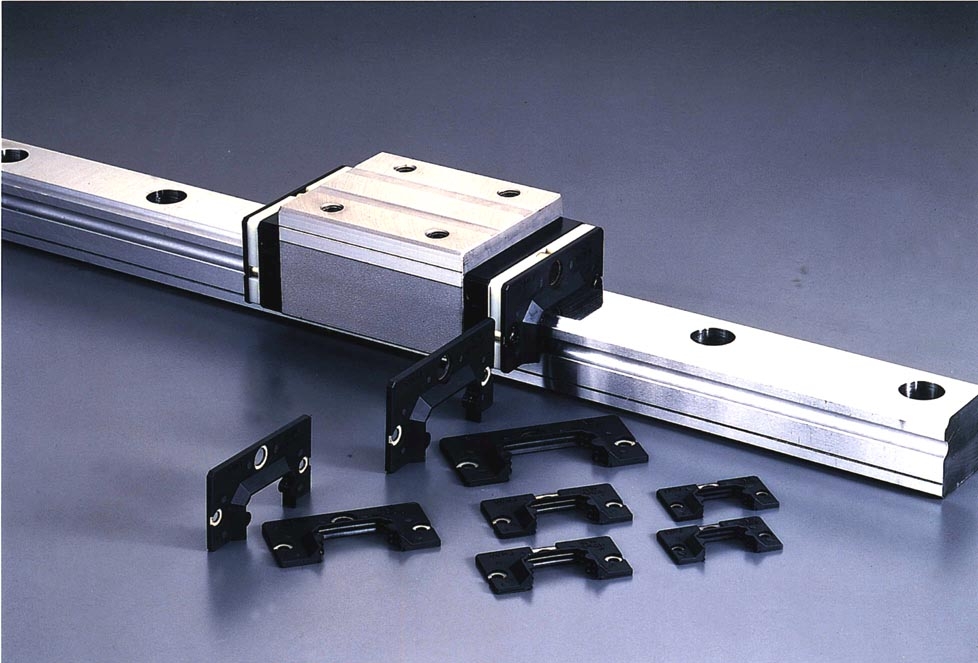

Mar 12, 2002 LH25, LH30, LH35 and LH45 ball slide models have side seal that significantly reduces entry of fine contaminants such as graphite or ceramic powder and particulate matter such as rubber or wood particles into ball slide. Applications include wood working machines, tire-buffing machines, welding lines and laser cutting machines.

EagleBurgmann Industries    Houston, TX 77040
Mar 05, 2002 Ansitex seals, for ANSI rotating equipment, are available with elastomer or metal bellows, and come in both standard-bore and large-bore configurations. MFL metal bellows seal has operating temperature of -40 to +428 deg F and permits operation with high-solids content. Elastomer version has operating temperature of -4 to +284 deg F and is for use in water, beverage and light chemical applications. All are available in sizes from 1.000 to 4.000 in.

DIRAK    Chantilly, VA 20151-1220
Feb 27, 2002 Gasketing and Sealing Line includes UL listed clip-on compression gaskets made of EPDM with NEMA 4 sealing and UV resistance; UL 94 flame retardant clip-on compression profiles with NEMA 4 sealing capability; and EMC conductive coated clip-on EPDM gasket profiles. UL 94 flame retardant neoprene closed-cell sealing tape is available with adhesive backing and internal cross-threading for eliminating stretch. Door seals are available in UL 94 flame retardant PVC.

NSK    Ann Arbor, MI 48105
Jan 25, 2002 High-performance seal on NSK ball screws reduces entry of contamination to less than 1/10 that of standard seals, and increases service life of ball screws by more than 4 times that of standard seals. Seal features lip-type design that matches ball screw's groove profile. Ball screw shaft features raceway design that eliminates grinding reliefs to match seal profile. Seal is used in conjunction with NSK K1(TM) lubrication unit.

Vestil Manufacturing Co.    Angola, IN 46703-0507

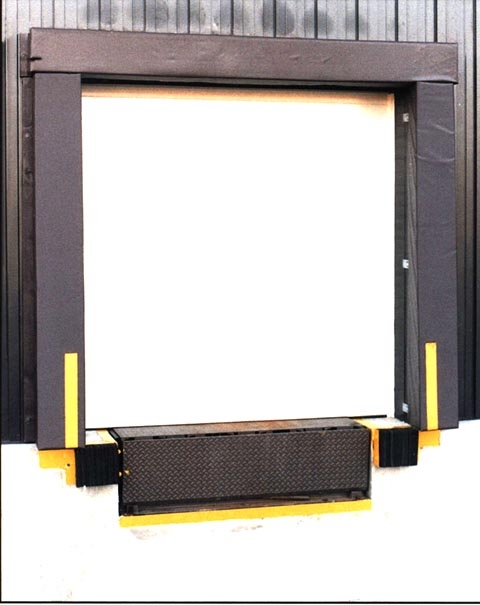

Nov 30, 2001 Available for door openings from 8 x 8 ft to 10 x 10 ft, model D-150-XX dock seals and model D-750-XX dock shelters mount around door opening in dock areas. Seal is available with projections from 10 to 20 in. with 36 oz reinforced black nylon facing. Shelter is available in projections of 18, 24, 30 and 36 in. with 54 oz reinforced black nylon facing. Shelter includes 36 in. drop curtain for servicing large variation in trailer heights.

Rite-Hite Corp.    Milwaukee, WI 53224

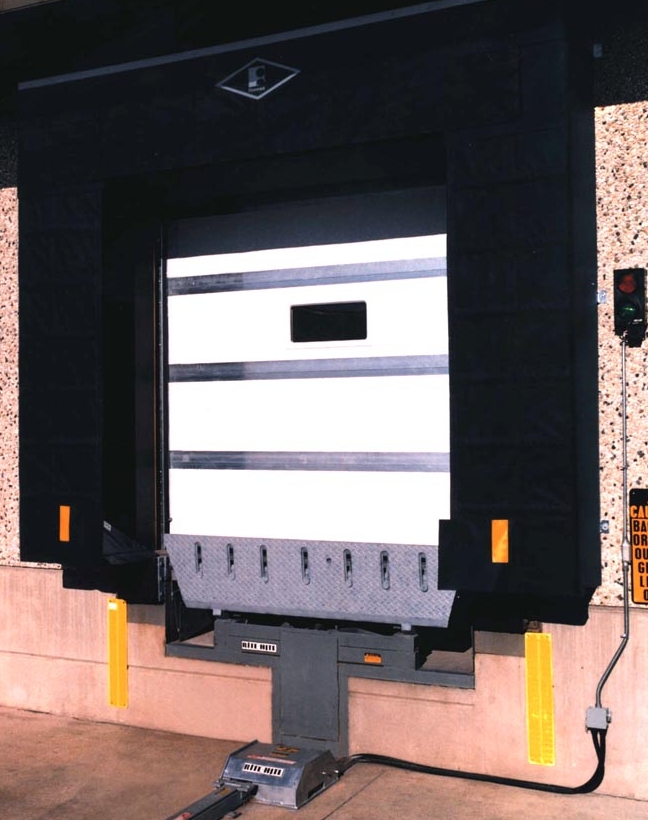

Nov 28, 2001 Frommelt ComboShelter Dock Enclosure is designed to fill gaps around wide variety of trailers that are difficult to seal, including those with liftgates or other rear projections. Impactable unit is available with Durathon oil fabric providing strength to withstand extreme conditions. C4 head curtain reduces pressure in top corners, and reinforced stay pockets minimize curtain damage at high pressure points.

Seal Master Corp.    Kent, OH 44240
Nov 21, 2001 New-Matic fabric reinforced, elastomeric couplers inflate to seal around intake and discharge pipes including those that are bent and worn. Couplers have cast aluminum or stainless steel housing, accommodate pipes from 5 to 6 3/8 in., and require only 10 psi to seal. Applications include storage bins, hopper cars and trailers. Couplers provide effective way to control contaminants while adhering to EPA, OSHA, and other regulatory standards.
