Manual Pumps

Fluid & Gas Flow Equipment

Calibration Pumps include low- and high-pressure models.

October 30, 2013

Designed for table-top use, hand-operated Model PGPH generates pressure up to 2,000 psi in less than 1 min and can also generate vacuum. Pneumatic unit features adjustment control for fine-tuning of pressure, and hand-tightened connectors that eliminate need for tools. Also using air as its pressure medium, hand-operated Model PGL offers pressure range of ±160 iwc with attunement to 0.1 Pa. Isothermal bellows chamber minimizes environmental temperature changes during calibration process. Read More

Fluid & Gas Flow Equipment

Mini Pumps operate electrically and manually.

July 12, 2013

Powered with standard 110 Vac, 1 in. Electric Mini-Pump is capable of spraying fireproofing, cement water proofers, and light body materials. Portable unit is mounted on hand dolly with front locking swivel. Options include remote control, air compressor, air and material lines, and 12 in. texture or fireproofing pole gun. Operated with hand crank, Manual Mini-Pump is capable of 2+ gpm and is used to fill voids in hard to reach places, such as door bucks and other grouting applications. Read More

Material Handling & Storage, Fluid & Gas Flow Equipment

Remote Toe Jack Kit optimizes safety and control.

September 21, 2012

Allowing users to remotely jack and lift in mining applications, RTJ-Series features 10-ton capacity and can be operated in horizontal, angular, or vertical positions. Kit includes hydraulic jack, hydraulic high-flow hand pump, and shielded/polarized hoses. Inverted piston with oversized bearing surfaces withstands harsh conditions, while metal guards protect coupler from accidental damage during transport and positioning, and internal HP Safety Relief prevents overload mishaps. Read More

Fluid & Gas Flow Equipment

Hand Pump precisely dispenses instant adhesives.

January 18, 2012

Weighing less than 10 oz, Loctite® CA Volumetric Hand Pump helps reduce waste in manufacturing processes that involve hand-dispensed cyanoacrylates. There are 6 preset shot sizes and adjustable range of 0.009-0.002 g of adhesive that prevent overdosing and underdosing. Sealed hand pump connection to bottle stops air and moisture from entering system, preventing instant adhesive from solidifying and increasing its working life. Read More

Fluid & Gas Flow Equipment

Hydraulic Hand Pump delivers 15,000 psi of pressure.

April 25, 2011

Along with transparent fluid chamber reservoir for easy viewing of fluid levels, scissor-action HHP 1000 Hydraulic Hand Pump features fine adjustment vernier and pressure release value. Able to produce pressures from 0-15,000 psi, pump options include hydraulic hose with fitting, set of 5 adapters, pump-only carrying case, and carrying case for pump, adapters, and hose. Read More

Fluid & Gas Flow Equipment

Low Pressure Hand Pump is used for calibration tasks.

November 2, 2010

Featuring pressure range of ±5.8 psi, Model LPCP is used to adjust and calibrate pressure transducers, precision pressure gauges, and other pressure instruments. It uses air as media, performing adjustments with stability and resolution up to 0.01 Pa. Quick connectors accelerate instrument connect/disconnect, and heat-insulator between cover and pressure chamber lessens heat effect during micro-pressure calibration. Read More

Fluid & Gas Flow Equipment

Precision Handheld Pumps come in 4 models.

August 28, 2008

Featuring dual O-rings on all pistons for smooth operation with zero leakage, HPP-100 and HPP-VAC are designed for 0-100 psi or 0-028 in Hg vacuum. Model HPP-600 pneumatic pump can generate both vacuum and pressure and covers range from 28 in.Hg vacuum to 600 psi pressure. Compatible with most hydraulic fluids, oils, and water, HPP-10K hydraulic pump can generate pressure from 0-10,000 psi. Units are suited for automotive, chemical, and petroleum industries. Read More

Fluid & Gas Flow Equipment

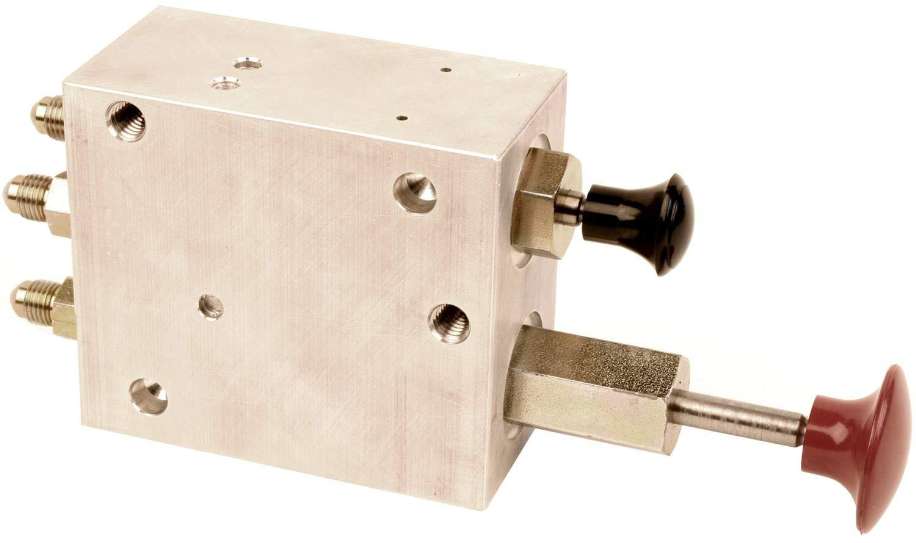

Release Pump is suited for mobile equipment brakes.

May 13, 2004

Usable with any spring applied/hydraulically released braking mechanism, product provides one-piece alternative to assembling components used for brake release. Aluminum body has two 3/8 in.-16 UNC threaded through holes, and is rated for pressures to 4,000 psi. Available with No. 4 SAE ports or -4 JIC fittings, unit includes size- and color-coded valve rod and pump rod. Product delivers output pressure to 500 psi with normal hand pressure. Read More

Chemical Processing & Waste Management, Fluid & Gas Flow Equipment

Hand Pump is designed for single hand operation.

January 16, 2004

Model HP provides dual source of pneumatic pressure and vacuum for verifying calibration of pressure instrumentation. It generates pressures to 30 psi and vacuum to -25 in. Hg. Compact unit, designed for portability, features pressure relief valve and fine adjustment for volume control better than 0.0015 psi. Live volume is thermally insulated from operator, and unit is constructed of nickel plated brass and anodized aluminum. Read More

Fluid & Gas Flow Equipment

Pneumatic Hand Pump generates pressure or vacuum.

January 8, 2004

Model PHP delivers output pressures up to 600 psi or vacuum down to -28.5 in. Hg. It includes fine adjustment valve for precise volume control, adjustable stroke for over-pressure protection, and 39 in. hose with ¼ female NPT quick fit connector. With analog or digital pressure gage mounted on top, pump can provide complete calibration system for pressure transmitters, switches, controllers, or recorders. Read More

Fluid & Gas Flow Equipment

Hydraulic Hand Pump produces pressures up to 10,000 psi.

December 23, 2003

Model HHP uses scissor action for quick priming and pressure generation. Variety of fill liquids can be used including mineral oil, distilled water, or alcohol. Made of sealed stainless steel and tempered glass, pump provides leak-free operation. It includes see-through reservoir with capacity of over 4 oz, adjustable over-pressure protection, fine volume control, and selector switch to move from priming to high-pressure generation. Read More

Fluid & Gas Flow Equipment

Hand Pump provides four-in-one capability.

July 3, 2003

Model PV411A multi-function hand pump offers pressure control, ability to operate with high viscosity fluids, large volume reservoir option, and tamper-proof, field selectable pressure relief valve. Hydraulic pressures can be generated to 10,000 psi as well as pneumatic pressures to 600 psi, vacuum to 28.5 in. Hg, and draft range pressures. Vacuum priming function removes trapped air from within system. Read More

Fluid & Gas Flow Equipment

Hand Pump provides pressure control for remote calibrations.

June 18, 2003

Multifunction Model PV411A delivers fine pressure control, ability to operate with high-viscosity fluids, large-volume reservoir option, and tamper-proof, field-selectable pressure relief valve. Hydraulic pressures can be generated to 10,000 psi, as well as pneumatic pressures to 600 psi, vacuum to 28.5 in. hg, and draft range pressures, all in single pump. Vacuum priming function removes trapped air from within system. Read More

Fluid & Gas Flow Equipment

Pneumatic Hand Pump endures harsh environments.

December 3, 2002

Model TPI-40 provides fine tuning adjustments and adjustable stroke, allowing user to generate, without exceeding, desired pressure or vacuum. Output pressure is 600 psi and output vacuum is 0 to -28.5 in. Hg. Pump is made of nickel-plated brass and clear anodized aluminum. It is suitable for use with electronic calibrators, digital indicators, analog gauges, pressure transmitters, transducers, and relief valves. Read More

Fluid & Gas Flow Equipment

Pump extracts material from 5 gallon pails.

July 12, 2002

Model 560092A manual pail pump extracts bulk viscous materials, such as grease and pastes, from 5 gal straight-walled pails. Hand lever pumps fluid to syringe adapter for cartridge filling. Syringe fills from bottom up causing polyethylene or neoprene piston to raise, preventing air from being trapped in syringe. Once filled, syringe can be used with automatic dispenser. Read More

Fluid & Gas Flow Equipment

Metering Pumps offer manual, electric, or pneumatic actuation.

May 14, 2002

Modular Metering Pumps include sealless diaphragm or sealed-plunger design with wide selection of drive elements. Metering accuracy is ±0.5%, based upon setpoint resolution of .01 mm. Pumps accommodate pressures up to 17,400 psi and flow rates from 0.26 GPH to 13,225 GPH per pump head. Providing 100 set points per 1 mm of stroke length, pumps can be mixed and matched in any combination for continuous, accurate proportioning of different liquid streams. Read More

Fluid & Gas Flow Equipment

Hydraulic Pumps offer hand or foot operation.

May 9, 2002

Models PA91 and PA95 air-over-oil pumps provide portable power for cylinders and hydraulic tools. PA95 provides up to 70 cu in. of flow in low pressure stage and 10 cu in. @ 10,000 psi. All metal construction and reduced motor noise make it suitable for indoor use. Pressure relief valve protects hydraulic circuit from damage, and 3-position treadle provides advance, hold, and retract operation. Read More

Fluid & Gas Flow Equipment

Hand Pump is for use with 15 to 55 gallon drums.

December 4, 2001

Zee Line Hand Pump offers variable flow rates from 9.6 to 15 oz per stroke depending on linkage pin placement and fluid viscosity. It features carbon steel, brass, and plastic construction, and is able to handle rigorous use. Curved discharge spout with garden hose threads allows pump to be used with standard hoses. Applications include manufacturing and plant management settings. Read More
