Manifolds

Fluid & Gas Flow Equipment

Hot Runner Manifold offers no pre-heating, one-step installation.

May 6, 2014

UNIFY™ manifold systems, available for Ultra 1000 hydraulic valve gate nozzles, feature water, hydraulic, and electrical services attached to rigid frame that matches manifold layout exactly, facilitating installation directly into mold. Providing continuous leak-proof operation, ULTRASEAL® technology ensures nozzle alignment to gate without need to heat system during assembly. ULTRASEAL technology prevents leakage at start-up, even if hot runner is not within its operating window. Read More

Fluid & Gas Flow Equipment, Mechanical Components & Assemblies

Custom Valve Components assure tight sealing.

November 15, 2013

Specialized Custom Pressure and Flow Valve Components, including valve bodies, heater blocks, and manifolds, are machined using proprietary tooling to achieve one-directional striations along with all thread milled internal threads. Units feature honed inside diameters down to 0.0005 in. and 8 RMS surface finishes, with no tool marks or scratches. Available in sizes from 0.250–6 in. in diameter, components can be produced from 316 SS, Inconel®, titanium, and other high-temperature alloys. Read More

Fluid & Gas Flow Equipment

Injector Manifold Assembly offers 3 lubrication pressure options.

June 10, 2013

Injector Manifold Assembly package, available for companies using Spra-Rite lubrication system, includes Spra-Rite injector manifold, enclosure interface, pressure regulator, and pressure gauge. Pressurized lubricant is encapsulated within manifold assembly until injection cycle is initiated, and injector manifolds are available using 2, 4, 6, or 8 injectors. Each injector is independently controlled with min spray time of 20 msec, fostering precise control of lubricant volume/placement. Read More

Fluid & Gas Flow Equipment, Mining, Oil Drilling & Refining

Modular Frac Manifold aids shale gas field operators.

May 16, 2013

Designed to allow simultaneous frac operations on multiple well pads, skid-mounted Modular Frac Manifold consists of customized array of actuated valves, blocks, and frac head outlets. Self-contained unit is engineered to safely isolate each well during stimulation. Hand wheel is ergonomically designed at stand level within safety zone to minimize restrictive movements. Double-acting hydraulic actuator ensures proper flow control and shut off even if hydraulic system has been interrupted. Read More

Fluid & Gas Flow Equipment, Sensors, Monitors & Transducers

Gas Valve Manifold increases safety with integrated controller.

February 15, 2013

Available in 4-, 6-, and 8-stick configurations as well as custom designs, semi-automatic Megaturion™ Bulk Valve Manifold Box (VMB) hazardous process gas distribution system features PLC-based GigaGuard™ GSM (gas safety monitor) controller with 4.3 in. color touchscreen. Prompts and alarms help reduce operator error and increase safety, and operators can configure inputs and outputs as well as adjust set points and limits. Local and remote system shutdown capabilities are also included. Read More

Fluid & Gas Flow Equipment

Fluid Distribution Manifold supports diverse connection types.

November 7, 2012

Devised to fit all configurations and adapt to specific demands of each application, NCI 33 brings flexibility and fluidity to temperature control circuits via modularity. Design combines swiveling modules, with sealing maintained during adjustment, and offers variety of connections, from threaded plugs to standard or anti-pollution flat-face, full flow, or shutoff couplings. Multiple connection possibilities are also offered, with 2 types of inlet and outlet (axial or radial). Read More

Fluid & Gas Flow Equipment

Modular Valve Manifolds enable expansion in field.

September 21, 2012

Featuring modular design, VS Series enables expansion of single stations by up to 16 valves using plug-in PCB technology. Three sizes of plug-in sub-base valves are available with flows ranging from Cv = 0.52 up to 4.2. Manifolds come with 2 spool technologies: softseal spool for optimized flow rates, and glandless spool and sleeve, which delivers millions of cycles. Both can be incorporated in same manifold to meet application requirements. Read More

Fluid & Gas Flow Equipment

Hand Valves and Manifolds suit industrial instrumentation.

March 8, 2012

Pressure-rated to 6,000 psig, Carbon Steel Hand Valves and 2-, 3-, and 5-valve Manifolds feature external adjustable gland that allows for full adjustment of stem packing without removal of valve from system. For safety, handles are color-coded to identify valve functions, including test/drain, equalize, and isolate. Series offers solution for natural gas transmission lines, as well as other chemical/petrochemical and power industrial instrumentation applications. Read More

Fluid & Gas Flow Equipment

3-Valve Block Manifold suits broad range of industrial applications.

November 22, 2011

Suited to control oil, water, toxic fluids, chemicals, air, and steam, Series BBV-1 manifold has 2 isolate and one equalizing valves. Body is forged from bar stock 316 stainless steel and designed to withstand repeated open and close operations. Each valve stem is precision machined with hard seats to reduce operating torque, and flanged model mounts to industrial differential pressure transmitter. Model BBV-1F comes with four 7/16-20 UNF mounting bolts and 2 PTFE gaskets. Read More

Fluid & Gas Flow Equipment

High-Density Valve Manifold suits pilot gas applications.

September 14, 2011

Featuring up to 48 valves, VTOC has two 3-/2-way valves on each valve position and valve widths of .393 in. Product suits pilot valve gas box applications in semiconductor industry as well as pilot valve manifolds in processing industry. With valve airflow of 10 normal liters per min, manifold offers number of port patterns. Other options include configurable manifold rails, multi-pin plug connection with sub-D plug or flat ribbon cable, and choices of pneumatic outlets. Read More

Fluid & Gas Flow Equipment

Miniature Custom Parts are made to meet application demands.

July 18, 2011

To accommodate specific application requirements, precision miniature custom machined parts can be made from most any type of material. Cost analysis and reduction exercises are available in addition to assistance in specifying standard or custom manifolds. For engineers, company can provide technical assistance in operating pressure, material recommendations, and port specifications. Available materials include, but are not limited to, Delrin®, PEEK(TM), Nylon, and PVDF. Read More

Test & Measuring Instruments, Fluid & Gas Flow Equipment

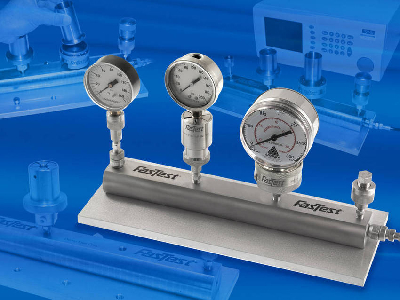

Manifold Pressure Calibration System operates on 4 instruments.

June 13, 2011

Featuring stainless steel construction, FasCal Manifold System supports connections to up to 4 devices simultaneously, accommodating variety of fitting configurations. Any FasCal connector, for both male and female applications, can be mounted on manifold without use of tape or wrenches. Rated up to 10,000 psi, unit measures 15.5 x 6.0 x 2.0 in. with small through diameter for minimal displacement, enabling users to maintain regulated pressure while minimizing calibration gas usage. Read More

Fluid & Gas Flow Equipment

Two-Valve Block Manifold suits industrial applications.

April 27, 2011

Series BBV-0, 2-Valve Block Manifold is manufactured from 316 stainless steel bar stock and is designed to withstand repeated open and close operations. Unit has one isolate and one vent valve, and each valve stem is precision-machined with hard seats to minimize operating torque. Suited for control of oil, water, toxic fluids, chemicals, air, and steam, manifold can be used in refineries, nuclear power stations, and petrochemical processing. Read More

Fluid & Gas Flow Equipment

Pneumatic Valve Manifold System combines 2 flow ranges.

February 16, 2011

Featuring modular design, Series CD01/02-PI can control up to 32 outputs. CD01 valves are characterized by 26 in. width and flow rate up to 1.35 Cv, while CD02 valves are 18 mm wide with flow rate up to 0.65 Cv. System can be actuated via various multi-pin plugs, in either 24 Vdc or 110 Vac, and works with all common field bus protocols. Available with push-in or threaded NPT or ISO-G (BSPP) ports, system provides soft-seal or glandless spool and sleeve valve options. Read More

Fluid & Gas Flow Equipment

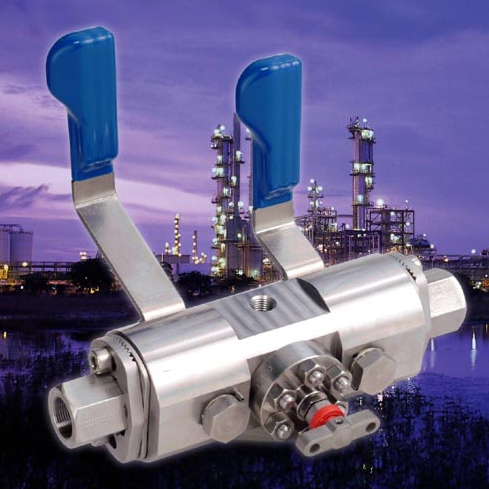

Block and Bleed Manifold features 316 stainless steel body.

October 4, 2010

Able to withstand repeated open and close operations, Model BBV-2 controls oil, water, toxic fluids, chemicals, air, and steam in oil refineries, nuclear power stations, and petrochemical processing. Five-valve system includes 2 isolate valves, 1 equalizing valve, and 2 vent valves. Designed to mount to industrial differential pressure transmitter, flanged models BBV-21F and BBV-22F come with four 7/16-20 UNF mounting bolts and 2 PTFE gaskets. Read More

Fluid & Gas Flow Equipment

Pneumatic Valve Manifold System features uniform interface.

August 16, 2010

With flow rate of 0.4 Cv and valve width of 20 mm, Series HF02-LG can accommodate up to 16 valve positions in one unit. Uniform connection technology facilitates integration of pneumatics in variety of automation concepts, while modular design enables use of multiple plugs and connections for all common field buses. Designed for internal working pressure of 36-145 psi, manifold system operates from 32-122°F. Up to 32 coils can be actuated with 44-pin D-Sub high-density plug. Read More

Fluid & Gas Flow Equipment

Pump Manifolds feature ultra low TOCs.

July 27, 2010

Featuring SIB® Smooth Inner Bore technology, Sani-Link® Ultra Manifolds minimize need for fittings, connections, or assembly, virtually eliminating leak points and potential entrapment areas. Units are available in elbow, cross, tee, and wye styles. Manufactured from silicone, manifolds are biologically safe and impart no taste or odors. Applications include sterile filling, peristaltic pumps, filtration and fermentation, sampling, and drug delivery. Read More

Fluid & Gas Flow Equipment

Miniature Modular Technology optimizes fluid flow in tight areas.

March 11, 2010

Maximizing fluid flow processing in compact spaces, EM-TECHNIK Series 9M Miniature Modular Technology (MMT) is comprised of diaphragm valves, ball/check valves, flow meters, and regulators molded and machined from PVDF. Components can be combined and bolted down to base plate to create replaceable or configured manifolds that enable flexible layout suited for laboratory systems as well as semiconductor and pharmaceutical applications. Max cross-section is 3 mm for all manifold modules. Read More

Fluid & Gas Flow Equipment

VHS Injection Manifold Mount System is customizable.

July 28, 2009

Available with 1-, 2-, 3-, and 4-place standard manifolds, Lee VHS Injection Manifold Mount System allows for precise injection of fluid into flow stream. Any ported VHS micro-dispense valve can be mounted so that outlet port is in close proximity to flow stream, minimizing captive capillary volume and increasing injected volume. To allow for future expansion and design flexibility, boss plugs are available to seal any unused valve ports in manifold. Read More

Fluid & Gas Flow Equipment

Compact Valve offers high flow, Preferred Connectivity.

February 24, 2009

Available with all valves, fittings, and mufflers, Isys Micro manifold is designed using back-to-back valve mounting style with 42 mm wide manifold that holds 4 valves and offers 0.35 Cv flow. It is Fieldbus-ready for centralized/decentralized applications and offers Preferred Connectivity to Rockwell Logix(TM) Architecture. With Isysnet Fieldbus, product can provide full 256 I/O capacity. It handles up to 4 Valve Driver modules, controlling 32 valves each, coupled to one fieldbus node. Read More
