Filter Elements

Chemical Processing & Waste Management, Fluid & Gas Flow Equipment

Boss Mount Strainers provide coarse level filtration.

April 30, 2015

Manufactured from 304L stainless steel and available in 6 thread sizes from 0.750–1.875 in., Boss Mount Strainers feature corrugated screen design which ensures maximum open area for optimal debris holding capacity. Single piece element can withstand differential pressures up to 500 psid without rupture. With standard screen hole sizes of 0.038 and 0.062 in., strainers are suited for lubrication systems and large fuel pumps which require coarse filtration, without risk of pressure drop. Read More

Fluid & Gas Flow Equipment, Chemical Processing & Waste Management

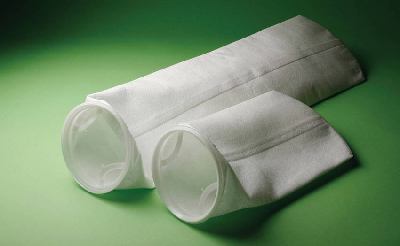

Pleated Filter Bags offer retention rates from 1-50 µm.

March 25, 2015

With pleated construction that maximizes filter area, MAX-LOAD reduces number of changeouts and thereby minimizes associated maintenance and downtime while also increasing operator safety. Polypropylene or polyester extended-life needle felt construction features surface treatment that helps prevent fiber particle migration and contamination of filtrate. Also, SENTINEL® seal ring provides flexible, chemical-resistant seal that ensures bypass-free sealing. Read More

Chemical Processing & Waste Management, Fluid & Gas Flow Equipment

HVAC Filtration Media offers optimized pleating performance.

September 18, 2014

Targeted for residential, commercial, and healthcare HVAC applications, Pleat2Save™ Filtration Media features predominantly synthetic construction, offering durability during demanding process and usage conditions. Product is available in efficiency range from M5 to F9 according to EN779-2012, and MERV 9-16 according to ASHRAE 52.2. Read More

Chemical Processing & Waste Management, Fluid & Gas Flow Equipment, Waste Handling Equipment

Coco Husk-Based Filter fosters sustainable septic solutions.

July 22, 2014

As permanent septic installation that does not require any energy, NSF International-certified Ecoflo® Coco Filter fully protects ecosystems using 100% natural coco husk fragment-based filtering media that biologically treats pollutants and acts as barrier to retain solids. Media must be replaced after usage, and choice of natural organic filtering media used allows for recycling of spent filtering media at end of useful life to produce renewable energy or compost for soil enrichment. Read More

Chemical Processing & Waste Management, Fluid & Gas Flow Equipment

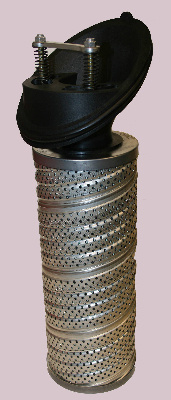

Process Filter Elements simplify use via integral spring.

June 23, 2014

Available in standard format of 2.5 in. OD x 1 in. ID, with lengths from 9.65–39.90 in., SwiftProcess™ filter elements employ microfiber glass media to minimize pressure drop and maximize dirt loading capacity. Integral spring, which replaces spring-and-cup designs, eliminates possibility of cups falling into filter housing. Products work with petroleum-based fluids, water glycols, polyol esters, and phosphate esters (EHC fluids) and offer filtration ratings of Bx = 200 and Bx (c) = 1000. Read More

Textile Industry Products, Fluid & Gas Flow Equipment, Materials & Material Processing

Anti-Static Filter Elements reduce ESD damage in fluids.

May 13, 2014

Available for replacement and custom designed applications, SwiftStaticDischarge™ filter elements employ media which dissipates triboelectric charges generated via flow of fluids through filter media. This ensures minimal charge across both media and fluid over extended periods to mitigate sparking. Areas of use include power generation applications, plastic injection molding machines, mobile hydraulics, pulp and paper, as well as any other application employing low-conductivity oils. Read More

Chemical Processing & Waste Management, Fluid & Gas Flow Equipment

Pleated Filters enable submicron contaminant reduction.

February 14, 2014

With average pore size of 2 microns and mean flow pore of 0.7 microns, USM Filter Cartridges are suitable for fresh, brackish, or salt waters. Proprietary, electrodsorptive media technology is capable of removing submicron pathogens and inorganic contaminants through electro-adhesion and ion exchange. Media consists of coated micro-glass fibers that is produced using wet laid nonwoven manufacturing technology. For strength and pleat support, base media is laminated between layers of spun-bond. Read More

Chemical Processing & Waste Management, Fluid & Gas Flow Equipment, Mechanical Components & Assemblies, Machinery & Machining Tools

Filter Cartridge increases throughput in melt filtration.

September 25, 2013

Suited for screen changers and melt filters, filter cartridge has stable structure that prevents pressure loss and deformation of steel filter fabric (screen medium) caused by mechanical stresses encountered during production startup. Rheological optimization of cartridge design eliminates stagnation zones and makes possible 100% utilization of open filter area. Symmetrical structure of filter cartridge facilitates secure handling and facilitates screen media replacement without cleaning. Read More

Chemical Processing & Waste Management, Fluid & Gas Flow Equipment

Pleated Filter Cartridges provide liquid purification.

August 6, 2013

Manufactured with polypropylene or cellulose media, High Efficiency Cartridges offer nominal micron ratings of 1, 5, 10, and 30 in 10, 16, 20, and 30 in. lengths. All models feature DOE Plastisol PVC end-caps for maximum sealing capability. Designed for use with CFLV and MFLV cartridge adapter kits, filters are suited for waste and water treatment, chemical processing, aquatic and animal life support systems, and marine and off/shore filtration applications. Read More

Fluid & Gas Flow Equipment, Green & Clean, Materials & Material Processing

Porous Metals target alternative energy applications.

February 8, 2013

Available in sub-micron grade media up to media grade 100, Porous Metals can be processed with smooth, scratch-free surfaces that can be used as membrane support, catalyst support, gaseous diffusion layer, or as electrode in cell stacks or cell assemblies. Components are available in 300 and 400 series stainless steel, titanium, niobium, and many other metallurgies in form factors ranging from plates and large diameter discs to finished seamless elements and sheets as thin as .010 in. Read More

Fluid & Gas Flow Equipment, Materials & Material Processing

Pleat Filter Element reduce ESD and associated dangers.

October 23, 2012

AntiStat Pleat (ASP) Elements reduce or eliminate electrostatic discharge (ESD) problems that can occur during filtration of hydraulic and lubrication fluids. Combination of Excellement® media and ASP technology promote filtration efficiency while preventing or reducing ESD. In addition to inhibiting element damage and oil deterioration, ASP Elements decrease sludge and oil sediment as well as extend system component life. Read More

Fluid & Gas Flow Equipment

Inlet Safety Screens comply with NACE MR0175/ISO 15156.

October 23, 2012

Made entirely of MP35N nickel cobalt based alloy, HI-BAR® Safety Screens are suited for harsh duty applications found in oil and gas industries. One-piece design enables screens to withstand pressure differentials up to 7,500 psi without rupture. Available in 6 flange sizes and 8 hole sizes ranging from 0.002–0.020 in. in diameter, screens resist crevice corrosion and stress corrosion cracking, enabling use in chemical and food processing, medical, and marine industries. Read More

Fluid & Gas Flow Equipment

Filter Bags feature 1-800 micron rating.

June 15, 2012

Intended for FLV Series Filter, Filter Bags are available in single length of 7 x 16 in. and double length of 7 x 32 in. with max flow rates of 90 and 180 gpm, respectively. Bags come in polypropylene, polyester, and nylon material options with sewn or welded construction. Offered with PP rings or PP flanges, silicone-free bags include needled felt and monofilament mesh models suited for diversified separation in liquid systems or to protect any process application. Read More

Fluid & Gas Flow Equipment

Filter Media performs sterilizing grade filtration.

January 31, 2012

Available in 316L stainless steel or titanium, Sterilizing Grade Filter Media meets ASTM F838-05 for bacterial retention. Product is autoclavable, biocompatible, impervious to solvents, and compatible with most organic compounds and complex drug chemistries. Engineered for external use or for integration in implantable devices, media is suited for filters that prevent plugging of catheters, drug delivery devices, medical instrumentation, and gas flow restrictor devices. Read More

Chemical Processing & Waste Management, Fluid & Gas Flow Equipment

Membranes and Filter Media are die-cut to user specifications.

January 30, 2012

Designed for separating air, liquids, and particulates, Custom Die-Cut Membranes and Filter Media are manufactured using digital die-less cutting or high-speed die cutting, slitting, multilayer laminating, and special packaging. Products are supplied on rolls or sheets, with or without adhesive backing. Materials include Mupor® PTFE microporous plastic, Typar®, Reemay®, woven/nonwoven filter media, polyethersulfone, hydrophobic and hydrophilic membranes, and cellulose. Read More

Chemical Processing & Waste Management, Fluid & Gas Flow Equipment

Vacuum Pump Filter Media neutralizes toxic chemical vapors.

November 28, 2011

Designed for VisiTrap®, PosiTrap®, and MV MultiTrap® vacuum pump inlet and exhaust traps, MV Chemical Vapor Neutralization Filter Media protects vacuum pumps and environment from process contaminants. Available types include Resisorb® for mercury vapor, Sulfatreat® for hydrogen sulfide vapor, Ammoniasorb® for ammonia vapor, Sodasorb® for acid vapor, and Potassium Permanganate filters for hydrogen peroxide vapor. Each suits 1-5,000 cfm vacuum systems and provides 99.9999% max efficiency. Read More

Fluid & Gas Flow Equipment, Green & Clean, Materials & Material Processing

Catalytic Activated Carbon uses coconut shell-based carbon.

February 11, 2011

AquaCarb 1240CAT uses coconut shell-based carbon processed to offer enhanced performance capabilities in water treatment. Properties of coconut shell base include elevated adsorption with micropore structure for VOCs, minimized ash content, and optimized hardness/abrasion resistance, which all contribute to longer effective carbon life. Product can help improve results in water quality targets for chloramine, hydrogen sulfide (H2S), and hydrogen peroxide (H2O2) removal. Read More

Fluid & Gas Flow Equipment

Hydraulic Filter Media helps reduce pessure drop.

February 3, 2011

Offered in 5, 10, and 20 micron ratings, hydraulic filter media reduces pressure drop without compromising other filter performance metrics. Differential pressure means hydraulic systems do not need to divert energy to push fluid through highly resistant filter. For 10 micron version, resistance measurement is 3.5 mm of water at 5.3 cm/sec flow. Media can be used either to produce product with lower delta pressure or reduce size of filter and maintain equivalent performance. Read More

Material Handling & Storage, Fluid & Gas Flow Equipment, Cleaning Products & Equipment

Reusable Filter Bags work with wet/dry vacuum systems.

November 5, 2010

Compatible with Shop Vac, Ridge Tool, Craftsman, and Kenmore vacuum cleaners, Pre Filter Bags come in standard type for medium-sized dust particles and high-efficiency version for very fine dust particles. Made from non-woven polyester felt, bags have been tested for up to 120 lb without failure and can be continuously emptied and washed for reuse. Bags can also be manufactured to handle and contain hazardous materials. Read More

HVAC, Chemical Processing & Waste Management, Fluid & Gas Flow Equipment

Sterile Air Filter Elements feature PTFE support material.

November 3, 2010

Designed for sterile filtration of compressed air, process air, technical gases, and vent applications, P-SRF Elements feature retention rate of greater than or equal to 99.99998% related to less than or equal to 0.2 micron. Stainless steel construction ensures mechanical stability, thermal resistance up to 392°F, and more than 100 sterilization cycles. Available in 13 sizes, elements meet FDA requirements for food contact and have validated retention of bacteria and viruses. Read More
