Kadant Johnson, Inc.    Three Rivers, MI 49093
Mar 09, 2009 Rated up to 500°F, 200 psig, and 3,500 rpm, RX Rotary Union is suited for high-temperature thermal oil applications. Tapered roller bearings support large radial and thrust loads, while bearing isolation barrier in seal chamber prevents moisture and contamination from entering bearing area. Available in sizes from 3/8 to 6 in. and in single- and dual-flow configurations, union also includes stainless steel springs located outside flow area and integral flange.

Heyco Products    Toms River, NJ 08753
Feb 20, 2009 Designed for permanent assembly between tubing and fittings, Heyco-Flex(TM) III liquid tight fittings and flexible tubing can be used in both wet and dry applications, and resist corrosion, oil, weak acids, and salt water. Non-toxic, and UV resistant units are rated for Type 3R applications. Tubing doesn't require threading for installation which eliminates possibility of cutting tubing and creating leak paths. Suitable applications include in automotive equipment, fiber optics, and robotics.

ModuTank Inc.    Long Island City, NY 11101
Feb 16, 2009 Enabling single-hole penetrations for piping, flanged thru-the-wall Pipe Fittings are available in PVC, stainless steel, and Hastelloy® in sizes for 2-12 in. piping. Wide, thick, gaskets tightly seal fittings under externally adjustable force against tank walls. Units are equally suitable for new and existing steel, and for concrete tanks with or without epoxy or glass coatings, or with membrane liners. Virtually maintenance-free, fittings are removable for repeated installation in other tanks.

Anvil International, Inc.    Portsmouth, NH 03802
Feb 04, 2009 Gruvlok® CTS Copper System allows large-diameter (2-8 in.) copper tubing to be installed without soldering or brazing for new construction or retrofit jobs. Flame-free system eliminates any fire hazard and also eliminates temperature and weather factors as installation concerns. Mating directly to grooved end pipe for rigid and durable locked-in connection, CTS fittings are constructed with minimum copper content of 99.9% and produced with groove/cup ends in various configurations.

Eaton Corporation    Galesburg, MI 49053
Feb 03, 2009 WALRing(TM) 24° profile ring metric flareless tube fittings feature captive 2-edge cutting ring as well as support ring in nut to simplify assembly. Elastomeric seal is placed on tube prior to final assembly and, combined with metal-to-metal seal, maximizes connection strength. Tolerating pressures up to 11,600 psi, fittings exceed DIN 2353 and ISO 8431-1 requirements and fit tube sizes from 6-42 mm. They are suited for use with all common tube materials.

J. W. Winco, Inc.    New Berlin, WI 53151
Jan 28, 2009 Composed of black polyglass-filled nylon, SN 992 series RoHS-compliant tube ends provide means to attach leveling mounts and glides to tubes and pipes that are commonly used to construct frames, conveyor bases, and industrial machinery. Various inch sizes are offered, and additional inch and metric thread sizes are available upon request. Square threaded tube ends are also offered.

NewAge Industries Inc.    Southampton, PA 18966
Jan 06, 2009 Thermobarb® fittings in nylon, polyethylene, PVDF, and polypropylene are compact in design and feature multiple barbes for secure connections. They are offered in sizes from 1/8-1 in. tubing ID, with hose nipples from ½-4 in. tubing ID. Designed for soft-walled tubing, chemically resistant units offer high impact strength and are available in various styles. Single-use version is manufactured from FDA-approved polypropylene and is sterilizable by autoclave or gamma radiation.

Parker Hannifin Corp., Hose Products Division    Wickliffe, OH 44092 1797
Jan 02, 2009 With patent-pending design, Full Flange System enables flange to be attached to hose after fitting has been crimped on and is held in place by stainless steel retaining ring. System lets end users route hoses through tight spaces where assemblies with flange end already attached would not fit. Ranging from ¾-2 in., Code 61 flanges are rated up to 5,000 lb max working pressure, while Code 62 flanges are rated up to 6,000 lb. Both meet SAE J1518 dimensional standards.

Adaptaflex Limited    Coleshill Birmingham B46  United Kingdom
Dec 09, 2008 On Adaptalok ATS, conduit seal and face washer are integrated. Required IP ratings are achieved by push and twist-pull installation and unit is removed via Adaptalok removal tool. It is available in sizes from 13-54 mm in straight, 90° elbow, and 45° elbow formats, with fixed or swivel nylon or metal thread options. Manufactured from Nylon and elastomer materials, fitting is suited for power/data protection in railway engineering, marine, and machine tools industries.

Hollaender Mfg. Co., The    Cincinnati, OH 45215
Nov 13, 2008 Suitable for any indoor or outdoor project, Aluminum Picket Railing System is made possible by Speed-Rail® fitting No. 156-85, a friction-fit picket tee that firmly attaches pickets to top and bottom horizontal rails. Machined from 6063-T6 aluminum alloy, fitting attaches ¾ in. IPS pickets to 1½ in. IPS aluminum pipe. Variety of infill panels are available, including picket, perforated, and wire mesh.

Gates Corporation    Denver, CO 80202
Nov 11, 2008 Available on MegaCrimp® couplings for wire-braid hose and GlobalSpiral® couplings for spiral-wire hose, Full-Torque Nut(TM) couplings have large holding shoulders that evenly distribute stress forces at nut for resistance to over-torquing and cracking. Consistent sealing force promotes leak protection, and nut size is optimized for wrench access. Available in metric sizes only (female fittings), products feature TuffCoat(TM) plating for resistance to rust and corrosion.

Murrplastik    Doylestown, PA 18901
Sep 15, 2008 Designed to snap into panels 1.5-2 mm thick and rated for use between -30 to +90°C, Round KDP/R Cable Entry Plate comes pre-punched with 1 hole for each cable or pneumatic hose to be inserted. Once cable is fed through, slight tug in opposite direction sets strain relief for cable. If cable is removed at later time, hole can be completely sealed off using strain relief indicator. Unit meets both RoHS standards and UL class VO for fire protection.

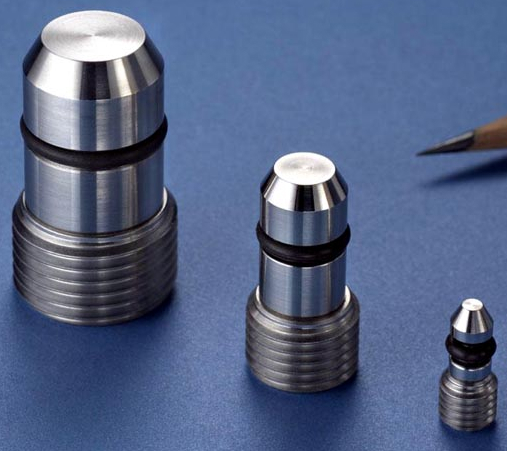

Lee Company, The    Westbrook, CT 06498 0424
Aug 25, 2008 Incorporating O-ring for additional sealing in critical oil tool applications, Dual Sealing AFO (Axial Force Only) Plug is designed to vent air from product when filling it with hydraulic oil or to release trapped high-pressure gas. Removable and reusable product, manufactured from corrosion-resistant 303 and 15-5 SS, features self-aligning floating seal. Plug has 2-piece construction and withstands pressures up to 56,000 psi as well as temperatures to 600°F.

Kadant Johnson, Inc.    Three Rivers, MI 49093
Aug 05, 2008 Featuring integral locking mechanism that secures elbow into position, 45° Syphon Elbow is intended for installation on blind rolls or rolls with hand hole access. All components of elbow are constructed of stainless steel to provide corrosion-resistance. In addition, 45° angle results in less cantilever weight compared to long bent syphon pipe, causing less stress on horizontal syphon pipe thread connection.

NewAge Industries Inc.    Southampton, PA 18966
Aug 01, 2008 Designed for mating with fluoropolymer tubing, Pureloc® fittings are used in clean-application industries such as semiconductor, food and beverage, pharmaceutical, and chemical. Made from virgin-grade, chemically-inert PFA fluoropolymer, they suit pure fluid applications. With see-through construction that assures user of proper fitting installation, units have 4 precision-made parts (nut, gripper, ferrule, and body) that provide leak-proof connections. Fittings come in 1/8 to ¾ in. sizes.

PIRTEK USA    Rockledge, FL 32955
Jul 03, 2008 Offered in 18 models, Japanese Metric Hose Fittings are available with both British Standard Pipe thread as well as Metric Thread forms. Female versions come in straight configurations as well as 45° and 90° elbows, while male fittings feature standard 30° cone. Applications include imported equipment ranging from construction machinery and forklift trucks to plastic injection molding machines.

Heyco Products    Toms River, NJ 08753
Jun 30, 2008 Able to lock firmly into panels and withstand push back force of 35 lb, Louvered Plugs for panel through holes allow passage of air for ventilation while limiting liquid infiltration. They can accommodate mounting hole diameters from .875 to 3.000 in. and panel thicknesses from .125 to .250 in. Available in black color, plugs can be used for ventilation in electronic enclosures, motor housings, and metal or plastic panels.

Hollaender Mfg. Co., The    Cincinnati, OH 45215
Jun 18, 2008 Offered as slip-on pipe fitting system, Rough Tumbled Finish Speed-Rail® is designed for edgy and urban-themed retail stores desiring distressed, industrial-type fixture. Fittings are made of corrosion-resistant aluminum alloy and come in various sizes and configurations. They accommodate 5 pipe sizes from ¾ in. IPS (actual OD of 1.05 in.) to 2 in. IPS (actual OD of 2.375 in.).

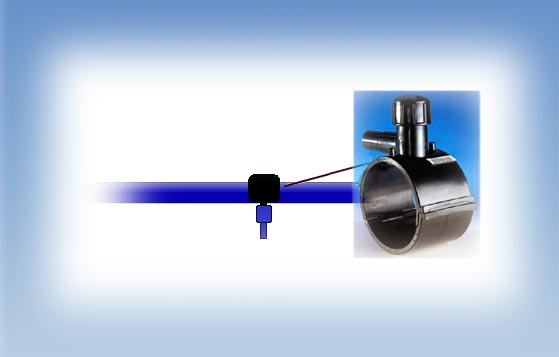

Asahi/America    Malden, MA 02148
Jun 16, 2008 Engineered for continuous operating pressures from 150-230 psi, Air-Pro(TM) Compressed Air Piping System is offered with 150 psi rated tapping saddle available in 11 sizes from 2 x 1 to 6 x 2 in. Tapping saddle allows for installation of system with no drops; drops are installed after system has been hung by using tapping saddle welded in place with electro-fusion process. Saddle can be installed at any location, under any pressure.

Hayward Industrial Products Inc., Hayward Flow Control Systems    Clemmons, NC 27012
Jun 13, 2008 Rated to 150 psi, BFA Series industrial bulkhead fittings are available in PVC, Corzan® CPVC, and PPL with flanges in ½-6 in. sizes and large flanges in ½-1 in. sizes. They come standard with heavy duty, full buttress left hand threads to prevent leaks under pressure, and fittings allow for use with thick or double wall tanks. Along with EPDM or FPM gasket seals, BFA Series features hex body for one person installation.
