Caplugs    Buffalo, NY 14207
May 31, 2007 BPF Ergo button plug offers pliability due to its Santoprene construction. Flexible material fosters easier handling and allows one size plug to fit different sized holes. Applications include plugging sheet metal and various industrial uses.

NewAge Industries Inc.    Southampton, PA 18966
Apr 30, 2007 Available in 1/8-1 in. sizes, Thermobarb® Barbed Fittings offer temperature usage from -40 to 180°F and are designed for use with soft, flexible tubing and reinforced hose, such as PVC, polyurethane, silicone, thermoplastic rubber, Viton®, and Hytrel®. Ranging in size from 1/8-½ in., Newloc® Push-to-Connect Fittings handle full vacuum and temperatures from -10 to 200°F. They work with semi-rigid and rigid tubing materials including nylon, polyethylene, and polypropylene.

Richco, Inc.    Morton Grove, IL 60680
Mar 27, 2007 Designed to plug and seal holes, LTP Series installs with finger pressure and is available in 3 standard sizes. Liquid tight plugs are made of UL 94V0-rated SBR material and comply with RoHS standards.

Diba Industries    Danbury, CT 06810
Mar 22, 2007 Featuring ¼-28 threads, Click-N-Seal(TM) reusable fittings provide objective feedback that required torque for proper seal has been achieved. Installer can feel and hear click that indicates fitting is properly seated, and fitting physically prevents any tightening beyond that point. When paired with Flared Tubing Assemblies, fittings produce continuous, fully swept fluoropolymer fluid path with consistent internal tubing diameter in sample, reagent, wash, and waste lines.

Georg Fischer Piping Systems    Tustin, CA 92780
Mar 12, 2007 Suited for 300 mm semiconductor manufacturing plants and applications in chemical and microelectronics markets, SYGEF® PVDF Exhaust Piping System enables safe conveyance of aggressive exhaust gases and fumes. It includes pipe sizes from 2-½ to 16 in., and various fittings, reducers, fixed flanges, gaskets, seals, and throttle valves. Other features include UV-resistance, operating temperature range from -4 to 284°F, and vacuum rating of 0.218 psi, 6 in. wc.

Bee Valve Inc.    Elyria, OH 44035
Mar 07, 2007 Manufactured from non-toxic materials, grey acetal push-in fittings feature oval collet design that produces secure and practical connection. They can be used with air, gases, vacuum, and liquids in applications such as water purification, food/beverage, and pneumatic systems. All fittings meet US FDA, WRAS, ANSI/NSF-51, 61, and SK Zert requirements.

Industrial Specialties Mfg, Inc.    Englewood, CO 80110
Feb 16, 2007 Fittings with integrated in-line filters for air, vacuum, or liquid service applications enable reduction of system components. Standard products are equipped with 43 micron nylon filtration and nylon bodies, and are available in straight, elbow, tee, or coupling configurations. Optional materials and colors are available.

L.J. Star, Inc.    Twinsburg, OH 44087

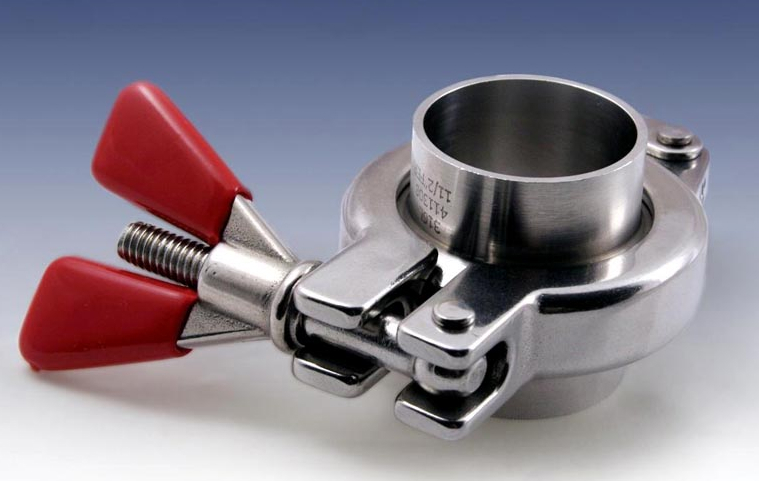

Feb 01, 2007 Used to connect ferrules in sanitary process applications, SH Style Safety Clamp features swing bolt that cannot come off fork of clamp due to vibration and temperature cycling, and cannot unlatch while under pressure or before wing-nut has been sufficiently loosened. Standard in 316 SS, clamp incorporates 2-pin hinge for uniform compression on gasket. It is available for tube OD sizes from 1/2-4 in., and is available with standard or ergonomic wing nuts, or various hex nut options.

High Pressure Equipment Co.    Erie, PA 16505 3522
Jan 04, 2007 Designed for safe plumbing, NPT valves and fittings are made of 316 stainless steel. Pipe connection valves come in 2-way straight and 2-way angle body configurations, in 1/8, ¼, 3/8, ½, ¾, and 1 in. sizes, and are engineered for optimal repeatable quality. Fittings, available as elbows, tees, and crosses, accommodate 10,000 or 15,000 psi and all above-listed NPT tubing connection sizes.

King Innovation    O'Fallon, MO 63366
Dec 08, 2006 Enabling irrigation and landscape contractors to make secure polyethylene pipe connections, SnapTap® features ergonomic hurricane handle for quick rotation and tip that cuts polyethylene pipe for tight seal. Short thread design enables installation without dirt or pebble clogging, while short working height facilitates installation with 80 and 100 lb 1 in. pipe.

Emerson Process Management    Austin, TX 78754
Dec 08, 2006 Daniel® Senior® Model 2000(TM) Orifice Fitting is designed with greaseless isolation valve that provides bubble tight seal, to reduce personnel exposure to pipeline content. Operation up-time is increased and maintenance reduced, by use of plate release mechanism that helps remove stuck plate carrier from metering position. Standard o-rings allow for reusability, while retractable locking pin enhances safety of operation.

NewAge Industries Inc.    Southampton, PA 18966

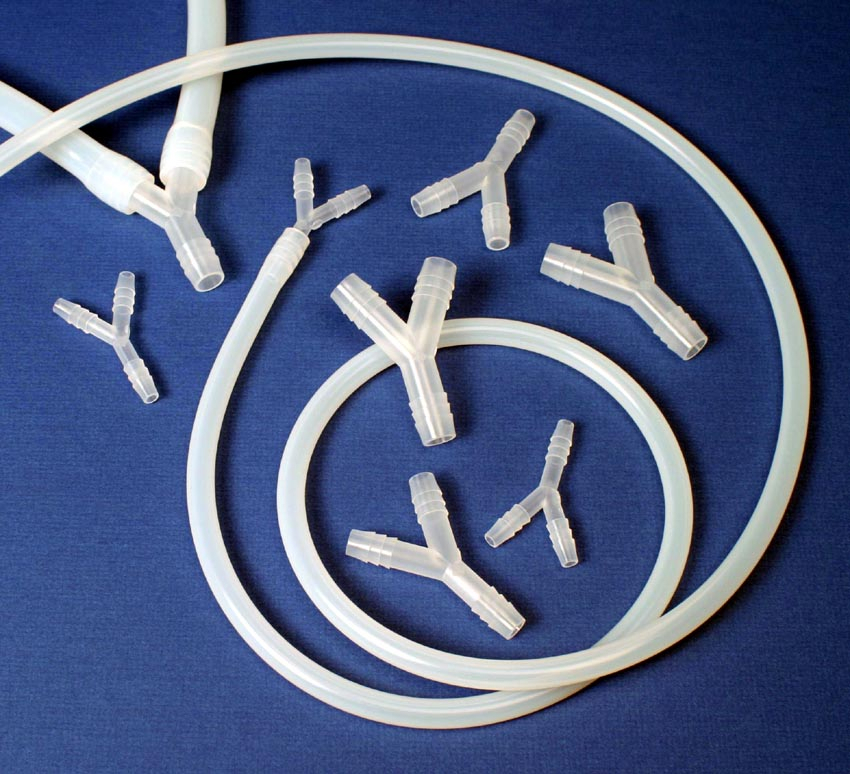

Dec 07, 2006 Available in ¼, 3/8, and ½ in. sizes, Y style Thermobarb FDA PP barbed fitting works with soft, flexible tubing such as silicone or thermoplastic rubber and are suitable for single-use tubing assemblies. Connector features tapered lead barb for tight fit and reduced leakage, and smooth surface allows for unrestricted, uniform flow. It has operating temperature range of 10-220°F, conforms to USP Class VI standards, and is FDA 21 CFR 177.1520 and RoHS compliant.

Beswick Engineering Co., Inc.    Greenland, NH 03840
Dec 06, 2006 Miniature fittings adapt Imperial/English threaded components to metric threaded components. Products include M3 Internal to M5 External; M3 External to M5 External Nipple Fitting or M3 Internal Extension Fitting; and M3 External Universal Nipple Fitting. Also available are 10-32 External to M3 or M5 Internal; 10-32 Internal to M5 Internal or M6 External; and 10-32 or M5 Internal to M3 External Fittings. Additional types are available.

Eaton Corp.    Cleveland, OH 44114
Dec 04, 2006 Utilizing 2-edge cutting ring and soft-seal technology, WALRing System withstands operating pressures up to 11,600 psi with 4:1 burst rating. It is offered in sizes from 6-42 mm and built to ISO 8434-1/DIN 2353 standard. Assembly of WALRing connections is achieved by using WALRing System nut and Viton soft seal in combination with Walterscheid fitting bodies. System is suited for hydraulic systems on in-plant industrial equipment, as well as mobile on- and off-highway equipment.

Beswick Engineering Co., Inc.    Greenland, NH 03840
Dec 01, 2006 Featuring 10-32 thread, straight brass Model MCB-14 and 303 SS Model MCB-14-303 measure 53/64 in. long and are designed with ½ in. hexagonal body. Elbow compression fittings include brass Model MCBL-14 and 303 SS Model MCBL-14-303, which are 59/64 in. long and have installed height of 21/32 in. All provide leak-tight seal for tubing connections. Seal options include Buna-N, Fluorocarbon, EPDM, and Silicone.

Nicholson Steam Trap    Walden, NY 12586 2000
Nov 15, 2006 CoMBo is designed for clean steam equipment condensate drainage in pharmaceutical, bioprocess, electronic, food, beverage, and cosmetic industries. Its -B ultra sensitive bellows maintain less than 6 in. of condensate backup for loads from 1-27 lb/hr for vessels up to 40,000 L. Equipped with ¾-1 ½ in. outlet, condensate measuring elbow thermostatic sanitary steam trap is available with ¾ in. horizontal or vertical inlet, with optional thermowell for resistant thermo probe (RTD).

Brennan Industries, Inc.    Cleveland, OH 44139
Oct 27, 2006 Comprised of nut, back ferrule, front ferrule, and body, fittings produce torque-free seals that reduce hazardous leaks at tubing connections. Ferrules are tightly swaged around tube, and lack of initial strain on tubing ensures no tubing wall damage. Axial movement along tube prevents torque transmission from fitting to tubing. Resistant to temperature change, fittings work with variety of tube materials and withstand impulse and vibration in vacuum and pressure systems.

VICI Valco Instrument Co., Inc.    Houston, TX 77255
Oct 25, 2006 With 2-56 threads, 360 µm High Pressure Fittings permit direct connection of 360 micron OD fused silica, PEEK, stainless, or electroformed nickel tubing without using liners. Lead-free connection that seals at pressures in excess of 20,000 psi can be formed with available manual tool. PEEK nut is supplied with glass-filled PEEK ferrule, while stainless nut uses 316 SS ferrule. Ferrule snaps into nut, but is free to rotate and does not twist tube as nut is tightened.

Brennan Industries, Inc.    Cleveland, OH 44139
Oct 25, 2006 Machined from round stock, one-piece Brennan flange adapters are hot-piercing bent for desired angle. Available in carbon and stainless steel to withstand high pressures, adapters feature swept configurations that allow them to function in limited clearance application situations.

Parker Hannifin Corp., IPD Instrumentation Group    Huntsville, AL 35805
Oct 06, 2006 Phastite tube fittings employ compression assembly principle that utilizes toothed profile to make seal. To assemble joint, user inserts tube, and then uses handheld hydraulic tool to push collar along fitting body until it reaches dead stop. Phastite fittings are available in straight union, union elbow, tee, and union cross fitting shapes in imperial and metric sizes from ¼ to ½ in. or 6 to 12 mm.
