Count On Tools    Gainesville, GA 30501
Jun 01, 2010 Available on entire line of selective soldering machines, Pillarhouse AP-1 Universal Nozzles can consistently apply flux and solder to component leads without disturbing nearby SMT components. Units are made of steel alloy and range in size from 2.5-12 mm. Identification marks enable users to differentiate lead nozzles from lead-free versions.

FasTest, Inc.    Roseville, MN 55113-1317
Jun 01, 2010 Providing quick connections to ¼ to ½ in. male NPT, -4 to -8 AN, and -4 to -8 compression threads, FasCal High Pressure Ball (HPB) series connectors utilize patented pressure-assisted, grip-and-seal technology to create leak-tight connections and eliminate thread damage. Connectors are rated at 5,000 psi, and include safety feature to prevent disconnect under pressure. Stainless steel construction provides corrosion resistance in wide range of environments.

D-M-E Company    Madison Heights, MI 48071-2383
May 28, 2010 Made entirely with engineering grade thermoplastic-glass reinforced polypthalamide, Turbulent Flow Plastic Baffles create turbulence within glycol-based mold coolant, increasing heat transfer and cooling parts evenly and quickly. Baffles can be cut to length with standard shears and are designed to maintain rigidity and other properties at high temperatures over time. Incorporating Turbulent Flow Plastic Baffles into mold's design eliminates stagnant laminar flow.

American Controls, Inc.    Farmington Hills, MI 48336
May 28, 2010 Rated for differential pressures to 350 psi and flows to 20 gpm, Liquiflo Max(TM) Series is constructed with solid 316SS or Titanium body and features helical gears. Heavy-duty shaft and bearing design, solid wrought construction, and oversized heavy-duty bolts promote life expectancy. Available in single or double mechanical seal or mag-drive configurations, pump is also available with integral gear-shaft arrangement made from 17-4 precipitate hardened stainless steel.

Swagelok Company    Solon, OH 44139-3492
May 28, 2010 Providing leak-tight seal for applications up to 15,000 psig, FKB Series includes 2-way Model 8FKB with 0.375 in. orifice and choice of ½ in. gaugeable medium-pressure tube fitting end connections or ½ in. female NPT. Model 6FKB, featuring .209 in. orifice, is available with ¼, 3/8, or ½ in. medium-pressure tube fitting end connections, or female NPT end connections. Rated for temperatures from 0-250°F, all feature 316 stainless steel body and reinforced PEEK seat seals.

Parker Hannifin Corp., Parflex Div.    Ravenna, OH 44266 9137
May 26, 2010 Designed for heating and conveying diesel exhaust fluid through SCR system on commercial vehicles, Parflex SCR hose assemblies have heated fittings that create uniform heating throughout entire assembly. Extruded cover locks-in electrical heating wires and overmold finish protects connections from water/dust ingress. Available in 6 mm ID sizes, Parflex SCR Suction/Throttle hose has thermoplastic core and jacket, while Pressure Line hose has polyamide core tube to handle higher temperatures.

EXAIR Corporation    Cincinnati, OH 45249-1621
May 25, 2010 Featuring engineered thermoplastic construction, PEEK Super Air Nozzles(TM) offer resistance to chemicals, fatigue, and temperatures to 320°F. Model 1110 Nano, with M6 x 0.75 inlet, consumes 8.3 scfm and delivers 8.1 oz of blowing force, while Model 1102-PEEK has 1/8 NPT inlet, consumes 10 scfm, and produces 9 oz of blowing force. Featuring ¼ NPT inlet, Model 1100 consumes 14 scfm and produces 13 oz of blowing force. Sound level is under 76 dBA at 80 psig, which meets OSHA noise requirements.

Dwyer Instruments, Inc.    Michigan City, IN 46361
May 24, 2010 Combining aeration and vibration, Model FD helps solve difficult bulk solid flow applications. Design creates vibration as air flow between pads boot and bin wall. Unit features silicon 50 SH (A) Elastosil disk, 304 stainless steel shaft, and EPDM sealing washer. Suitable for all types of dry products, Model FD operates from 29-87 psi air supply in temperatures from -40 to 340°F.

Flow Ezy Filters    Ann Arbor, MI 48106
May 20, 2010 Suitable for plant or field, Portable Filter and Oil Transfer System offers 110 or 115 Vac operation and pump/motor combinations ranging from 1.5 gpm pump/1 hp electric motor to 20 gpm pump/1.5 hp electric motor. Drain connector on suction side can be provided with flush face, ISO A, ISO B, wand, or threaded end connections in ½, ¾, or 1 in. NPT. Available with 3, 6, 12, or 25 micron filters, system is suited for fluid conditioning, removal of water from oil, and fluid transfer from drums.

American Casting & Manufacturing Corp.    Plainview, NY 11803
May 20, 2010 Offered in various sizes, Cup Seals can be made from copper, steel, or brass. Preprinted and numbered styles are available, and each seal comes as 2-piece, self-locking unit. One-hole models are used as tamper-evident housing on screw or bolt heads, while 2-hole models are used for wire seals. Holes are available in 3/8, ¾, or 1 in. dia, and design facilitates application/installation.

Flow Ezy Filters    Ann Arbor, MI 48106
May 20, 2010 Housed in anodized aluminum with stainless steel media and 60 sq in. filtration area, Model 16ILA features pressure rating of 250 psi and flow rate up to 18 gpm. Filtration sizes include 595, 238, 149, 74, 63, 40, 25, and 10 micron. End caps are soldered on, making them compatible with virtually any fluid. Available with 5/8 or ¾ in. tube connections, filter is suitable for NASCAR, open wheel, marine, drag racing, sprint car, stock car, and custom racing markets.

Thomas Products Division    Sheboygan, WI 53081
May 19, 2010 Featuring WOB-L® Piston design, Model 2250 is constructed with magnesium components that limit pump weight to 2.5 lb. For stepless control of air flow according to application need, 24 V brushless DC motor supports variable-speed operation from 1,000-3,000 rpm. Optional closed loop controller allows motor speed to be maintained at pre-set, constant RPM regardless of load or voltage fluctuations, while oil-less piston and cylinder design ensures uncontaminated air flow up to 0.6 cfm.

Smith & Loveless, Inc.    Lenexa, KS 66215 1234
May 18, 2010 SONIC START® STREAMLINE(TM) Prime Sensing System for PISTA® turbo grit pumps minimizes water and debris that reaches vacuum tubing, and reduces grit pump pressure off of vacuum tubing and tubing fittings. Outdoor model features probe, dome assembly, and insulated/heated STREAMLINE(TM) Jacket which protects system from temperatures down to -300°F. Featuring explosion-proof probe and SONIC solenoid valve, indoor model meets Class I, Division I, Group D requirements.

Dresser Inc.    Addison, TX 75001

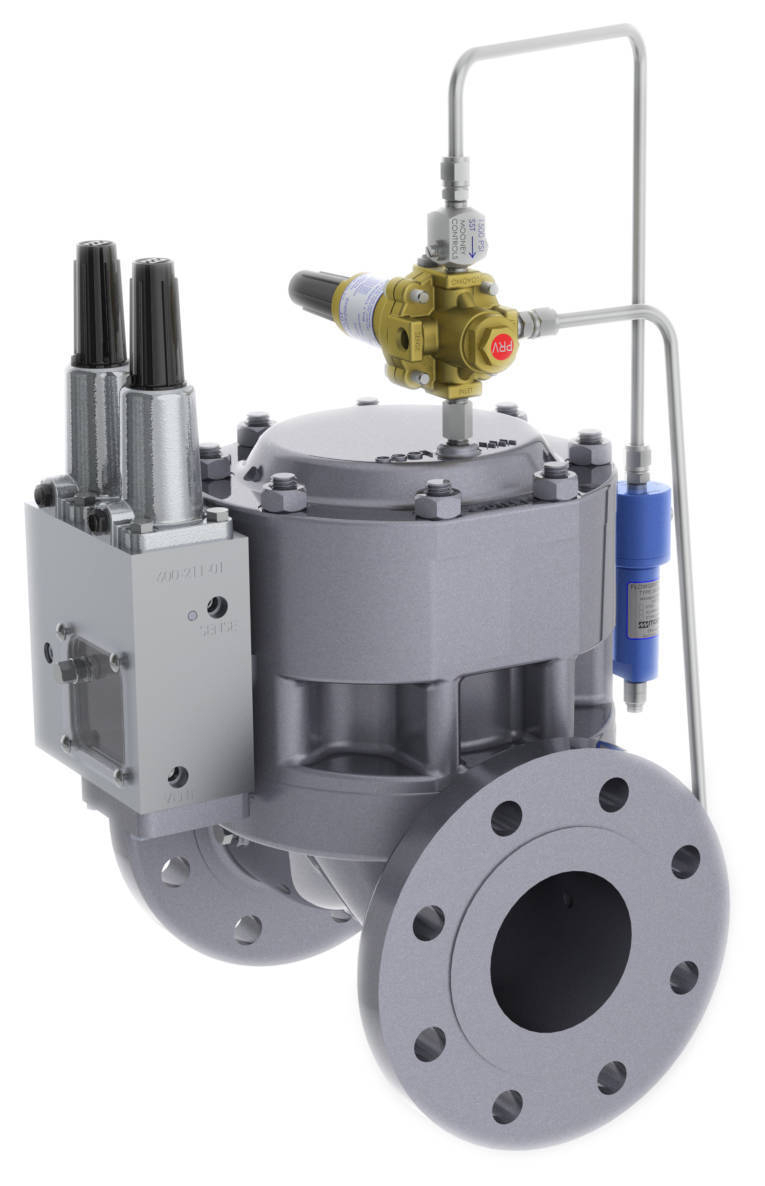

May 18, 2010 Designed to provide accurate over and/or under downstream pressure protection, pneumatically actuated Slam Shut(TM) Valve comes in 1 in. linear plug design and 2, 3, and 4 in. rotary design sizes. Valve design guarantees snap acting release of latch only when designated set points are exceeded, eliminating accidental shutoffs from vibration or other conditions. Rotary design versions can be integrated into Flowgrid® Regulator or can stand alone.

Coxreels    Tempe, AZ 85283-4323
May 17, 2010 Made of flexible PVC, bend restrictors are available on low pressure hose reels with ¼, 3/8, and ½ in. of PVC, rubber, and nitrile hose handling 300 psi of working pressure. Units limit degree of bending without affecting integrity of hose assembly while also preventing hose-end from kinking, excessive wearing, and tearing. Suitable applications include air, water, oil, fuel, and other fluid transfer applications.

CAT PUMPS    Minneapolis, MN 55449
May 17, 2010 Suitable for variety of liquids including fresh water, sea water, and clean oils, Models 7375 and 7376 feature pressure ranges of 100-1,000 psi and 500-2,000 psi, respectively. Units set system pressure, by-pass unused liquid without interrupting system operation, and protect pump from exceeding set system pressure. Lowering minimum required by-pass flow to 5%, conical piston/seat design assures consistent pressure for multiple pump, gun, or nozzle installation.

UltraTech International, Inc.    Mentor, OH 44060
May 17, 2010 Installed in catch basin and held in place by drain's grate, Ultra-Drain Guard Oil & Sediment Plus® allows filters pollutants, hydrocarbons, and oil from water stream/storm water. Filter fabric is non-woven polypropylene, needle-punched, geotextile material, and unit is also equipped with filter strips makde of X-TEX®, which is made from recycled synthetic fibers and helps maximize amount of oil and hydrocarbons that can be removed.

Airtec Products Corp    Fall River, MA 02720
May 13, 2010 Intended for mini-split air conditioners, Purple Series keeps condensate contained inside transparent, flexible vinyl tubing to isolate it from pumping mechanism. Pumps can run wet or dry, eliminating need for filters, and degree of suction enables remote mounting of up to 40 ft from evaporator. Products suit applications requiring quietness (47 dB max) of remote operation or compromised environments such as foodservice or industrial areas. Mechanical and Universal kits are available.

Brennan Industries, Inc.    Cleveland, OH 44139
May 13, 2010 Machined from round stock, flange adapters are hot-piercing bent for desired angle and do not have braze and weld points. Swept configurations enable performance in limited clearance applications and connection sizes range from ½-4 in. Operating in pressures as high as 6,000 psi, SS O-ring face seal fittings are designed to eliminate leaks in hydraulic systems on industrial/commercial equipment. They are available in 23 configurations and in 35 size combinations.

SIS-Tech    Houston, TX 77034
May 13, 2010 DIAMOND-SIS High Integrity Protective System is standalone logic solver certified for use in applications up to SIL 3. System takes inputs from multiple sensors that detect abnormal conditions, processes them, and sends necessary outputs to elements such as block valves or pumps. Each vessel/pipeline is independently protected against overpressure, so single HIPS failure cannot cause simultaneous overpressure of multiple vessels/lines. Unit operates over -30 to +75°C temperature range.
