TURCK, Inc.    Plymouth, MN 55441
Jul 23, 2010 Compatible with all existing M12 products, M12 true torque connectors can be hand-tightened to predefined torque to avoid over-tightening. Users are alerted to achievement of proper torque when nut rotates freely, indicated by clear haptic and audible signal. This helps maintain integrity of mechanics and o-ring connection. Featuring 3, 4 or 5 poles, both male and female versions are available in straight or right-angle configurations. No tools are required for connection.

NewAge Industries Inc.    Southampton, PA 18966
Jul 23, 2010 Hot Bond® joins lengths of reinforced and unreinforced tubing of similar material using heat, resulting in orderly arrangement. This ribbon of tubing can be used in new and existing equipment in various industries. In addition to eliminating multiple routing of lines, product facilitates line traceability, conserves space, and promotes professional appearance. Four types include Permanent, Strippable, Skip (alternating), and Electric (electro-pneumatic connections).

Algae-X International    Fort Myers, FL 33905
Jul 23, 2010 Equipped with FBO filter assemblies to dry fuel and remove contaminants, STS 6000-30GPM combines programmable automation with fuel optimization and maintenance to extend shelf life and integrity of stored fuel. Interchangeable elements with different media are available in 1, 5, 10, and 25 micron varieties. For safe operation, remote monitoring, and integration with BMS, system comes with UL-508A Smart Filtration Controller with certified diagnostics, alarms, and indicators.

Kin-Tek Laboratories    LaMarque, TX 77568 4202

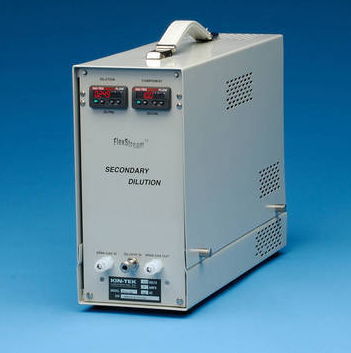

Jul 22, 2010 In FlexStream(TM) SD module, variable portion of primary gas mixture from 1 or more FlexStream(TM) permeation modules is split off and re-diluted with matrix gas to create lower concentration mixtures. FlexStream(TM) automatically adjusts split and dilution flows to create desired output. Combining adjustment range of FlexStream(TM) base permeation unit with that of SD gives total concentration adjustment range of 10,000:1 so that concentrations from 1 ppb to 10 ppm can be created using single tube.

Bio-Chem Fluidics    Boonton, NJ 07005
Jul 22, 2010 Available in 2-way normally open, 2-way normally closed, 3-way, and dual tube configurations, 075, 100 and 150 Series Pinch Valves feature molded body with smooth contours that guide tubing into pinch points and eliminate snags. Units are capable of continuous operation and can remain in fully charged state indefinitely without damage to valve or tubing. Constructed from chemically resistant materials, valves resist corrosion caused by cleaning solutions.

The Dolomite Centre Ltd    Royston SG8 5TW  United Kingdom
Jul 21, 2010 Suited for initial exploration of droplet microfluidics, Pressure-based Droplet Starter System provides all pumps, connectors, and chips necessary for immediate production of monodispersed droplets from 20-150 µm dia with tolerance of ±1%. Modular system operates over 0-10 bar pressure range and is chemically resistant. While providing pulseless and stable liquid flow, system features lockable pressure chamber and 3-way chamber lid that allow simultaneous pumping of up to 3 liquids.

Emerson Process Management    Austin, TX 78754
Jul 21, 2010 Available in sizes NPS 14-24 and ASME Class 150 and 300, Fisher® Control-Disk(TM) valve delivers optimal throttling performance for applications that involve fast processes and varying pressure drops. Control range promotes adherence to setpoint, regardless of process disturbances, and soft and metal seals are available. Able to work with existing piping, valve is designed for installation between ASME Class 150 or Class 300 raised-face flanges with flangeless or single-flange bodies.

DuctSox    Dubuque, IA 52002
Jul 21, 2010 Intended for HVAC applications in chemically harsh environments, ChemSox(TM) air dispersion system is constructed from recyclable, inert HDPE fabric with PVC-coated webbing. It comes in round, pliable lengths of semi-translucent fabric that use zippers to join sections together; sections come in lengths to 50 ft and diameters from 6-56 in. High-Throw design delivers air throws of up to 75 ft and uniform linear array of orifices for even air distribution.

MKS    Andover, MA 01810 2449
Jul 21, 2010 Available in angle, inline, and internal-only configurations, High Cycle Valve features stainless steel bellows that prevent outgassing, virtual leaks, and particle entrapment. High flow port sizes include NW25, NW40, and NW50, while TIG fusion welded vacuum grade body ensures less contamination build-up. For leak tight operation, elastomer seals are available in Viton® for typical operating conditions, or Kalrez® or Chemraz® for high temperature conditions and chemical resistance.

ALMATEC Maschinenbau GmbH    Kamp-Lintfort   Germany

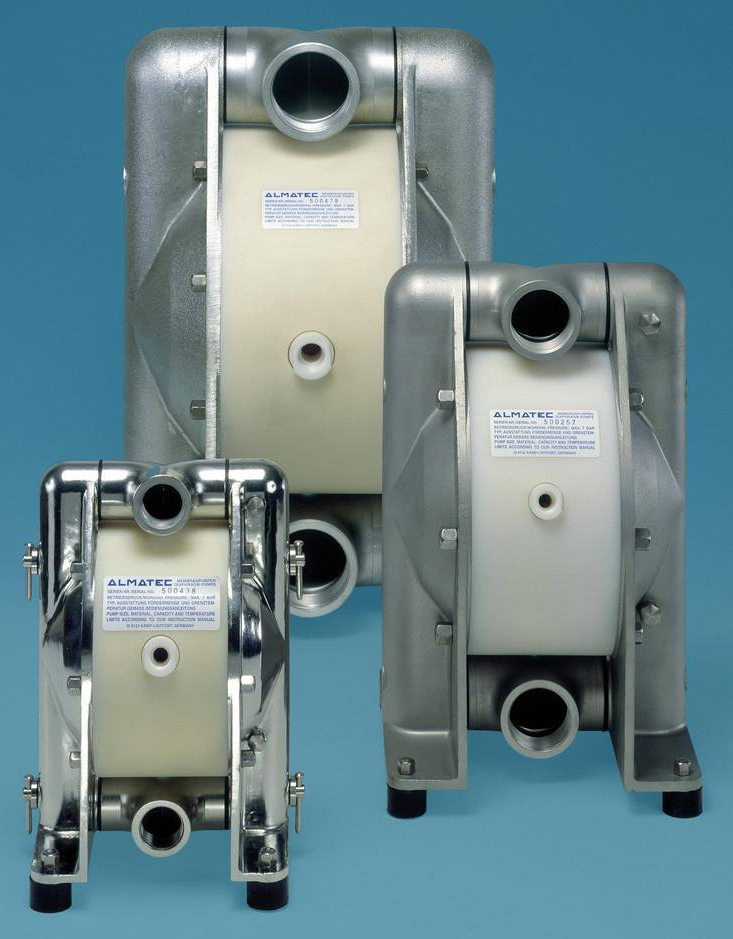

Jul 19, 2010 Constructed with stainless-steel, precision-cast housing, diaphragms of EPDM and PTFE, and ball valves of EPDM and PTFE, CHEMICOR Series feature product chambers with soft contours for smooth flow channels and no dead spaces. Optional features - pulsation damper, back-flushing system, barrier chamber system, diaphragm monitor, stroke counting, extended special ports - allow for customization to specific needs of facilities. Available volume sizes include 20, 40, and 100 gpm.

Thomas Products Division    Sheboygan, WI 53081

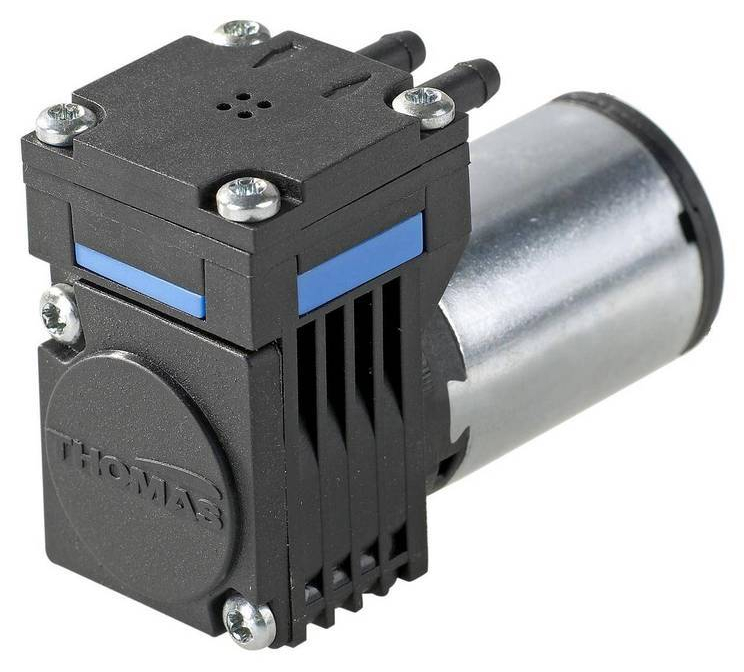

Jul 19, 2010 Available in 12 and 24 Vdc models, 1210 Series pump measures 2.0 x 0.9 x 1.4 in. and utilizes REFLEX valve design for bubble-free liquid flow. Product operates with minimal noise factor and can handle mixture of air and liquid. Weighing 2.4 oz, pump supports max flow of 180 ml/min, with max pressure of 80 m H2O and max vacuum of 6 m H2O. Suitable areas of use include fuel cell, inkjet, and diagnostic applications.

KNF Neuberger, Inc.    Trenton, NJ 08691-1810

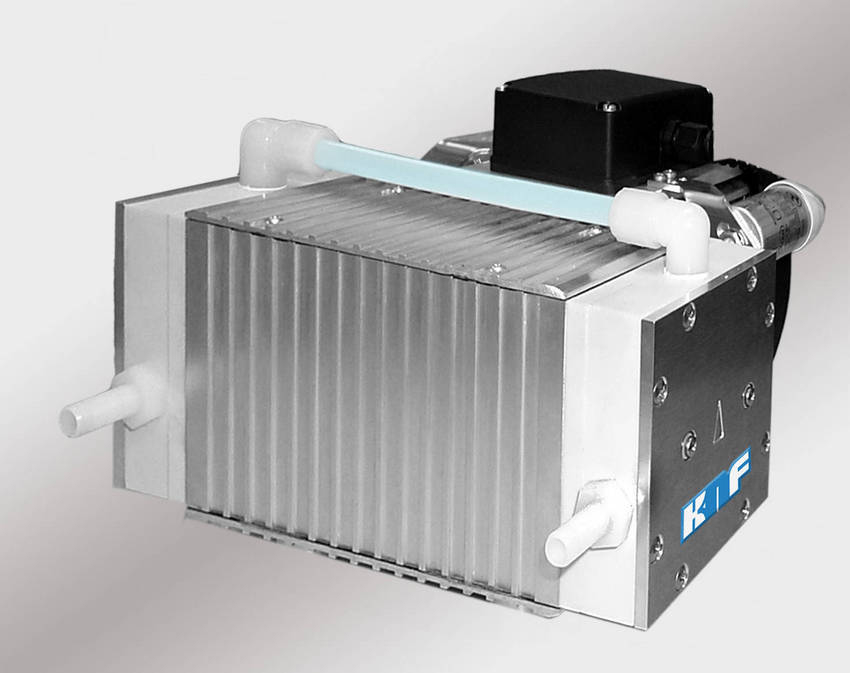

Jul 16, 2010 Modular designed KNF N860 Series diaphragm vacuum pumps for sample, transfer, or air and gas evacuation achieve enhanced gas tightness with leak rates at 6 x 10-3 mbar L/s, deep vacuum potential of 2 mBar, and flows as high as 110 L/min. Multi-port valves aid pumps to tolerate condensation without damage, and perform oil-free transfer with uncontaminated flow. Available in both single- or doubled-headed options, customizable units suit process, laboratory, or OEM applications.

CLASSIC TUBE    Lancaster, NY 14088
Jul 15, 2010 Featuring corrosion-resistant, 5-layer design using 304 stainless braided wire, Teflon® hose, and Kevlar® braid, D.O.T.-approved STOPFLEX® Brake Line Kits virtually eliminate volumetric brake line expansion, preventing spongy feel when applying brakes and providing firm, responsive pedal. Kits feature factory-style brackets for installation and can be used for both street and racing applications.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Jul 14, 2010 Available in brass or 316 stainless steel with choice of fractional tube fitting or female NPT connections, Series MSV provides ¼-turn directional control of fluids in instrumentation and process systems. Blowout proof ball and stem provide safety in event of over-pressure, while micro-finished ball and PTFE seats ensure optimal seal. Valves handle pressures up to 1,500 psi over temperature range of -40 to 350°F.

Edwards High Vacuum Int'l    Crawley East Susse RH10 9LW  United Kingdom

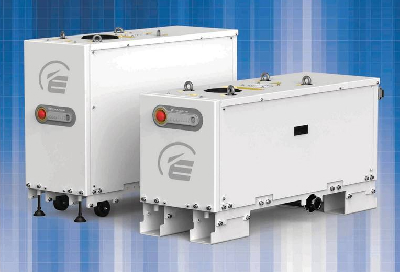

Jul 13, 2010 Featuring optimized thermal control and dust handling capability, GXS Dry Pump supports pumping requirements for silicon ingot manufacturing and laminator applications in solar industry. Tapered variable pitch screw profile allows for tight clearances without need for rotor coatings and enables compression variations along rotor axis. Measuring 0.4 x 1.1 x 0.8 m, pump produces less than 64 db(A) noise and users inert, non-oxidizing oil to lubricate gears and bearings.

Assmann Corp. of America    Garrett, IN 46738 1844
Jul 13, 2010 Intended for tanks of 2,500 gal and larger, molded-in Full Drain Outlet (FDO) assembly enables draining of tank without mechanically installed nozzles. It is available in 3 and 4 in. sizes as well as 316 Stainless Steel, Titanium, and Hastelloy construction materials and can be used where heavy solids or salts may accumulate in bottom of tank. Replaceable polyethylene flange adapter and multiple expansion joint options are also available.

Edwards High Vacuum Int'l    Crawley East Susse RH10 9LW  United Kingdom
Jul 13, 2010 Measuring 450 x 230 x 280 mm and weighing 59 kg, Model iXL120 consumes average energy (power at 700 T exhaust pressure) of only 550 W and offers peak pumping speed of 110 m³/hr. It incorporates oil lubricated precision bearings and timing gears, which reduce vibration during pump operation and when pump is mounted on process tool. Unit includes zero nitrogen purge option for processes without corrosive gases, and nitrogen purge option for areas with risk of corrosive gas carryover.

EagleBurgmann Industries    Houston, TX 77040
Jul 12, 2010 Applied in 8 µm thickness on silicon carbide seal face to combat dry-running problems, DiamondFaces® microcrystalline coating exhibits virtually no wearing and results in reduced sliding-face friction. Combining SiC seal faces with DiamondFaces® coating allows dry-running periods up to several hours without any excessive heat build-up. Synthetically manufactured, ultrapure diamond with chemical and thermal resistance can be deposited on mechanical seal in coatings up to 14 microns.

MKS    Andover, MA 01810 2449
Jul 09, 2010 Available in angle and inline configurations, Corrosion and Ozone Resistant Vacuum Valves utilize patented technology that completely seals off valve bellows, keeping reactive and corrosive gases from contacting and collecting on bellows surface when valve is open. Units come with air solenoid for electro-pneumatic control of valve and limit switch assembly for remote indication in open or closed position. In event of power loss, poppet valves will automatically close.

Wilden Pump & Engineering Co.    Grand Terrace, CA 92313
Jul 09, 2010 Available in stainless steel and ductile iron bolted construction, H800 pump is designed to transfer viscous, solid-laden slurries by utilizing 3:1 pressure ratio of inlet air supply to discharge fluid. It offers max flow rate of 95 gpm, with max inlet air pressure of 85 psig, and includes ringed air valve piston with DIN or ANSI compatible flanges. Unit suits filtration, chemical sludge transfer, food processing, paint and resin, pressure spraying, and well injection applications.
