Thermadyne Industries, Inc.    St. Louis, MO 63017

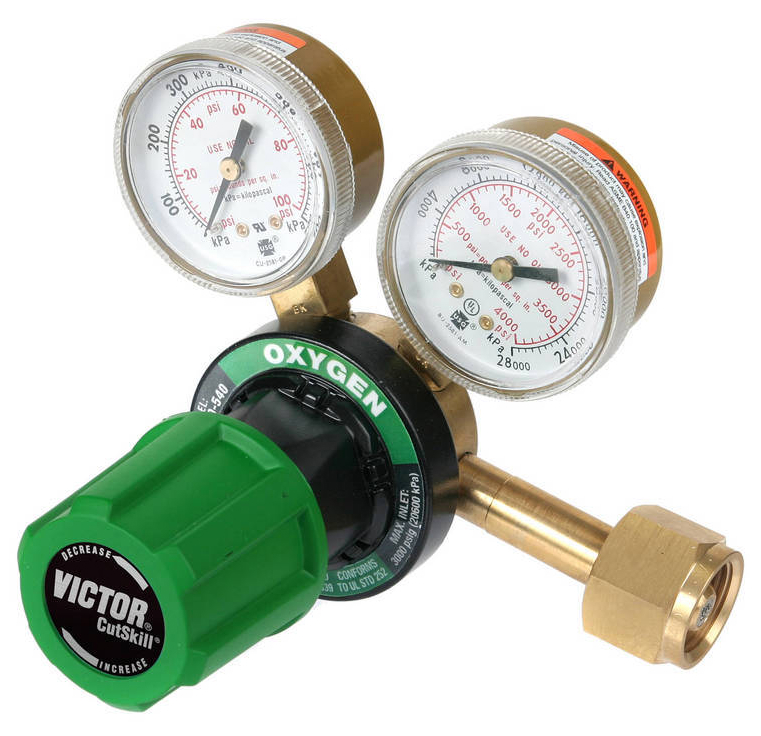

Mar 04, 2011 Victor® CutSkill® series 250 (Medium Duty) and 350 (Heavy/Medium Duty) regulators and outfits feature ergonomic, adjustable, color-coded knobs that identify gas type; fabric reinforced neoprene diaphragm; and zinc-aluminum housing cap. In addition to single-stage design and forged brass body, D-series CutSkill regulators, with 3,000 psig max inlet rating, have stem type seat mechanism, powder coated bonnet, and 2 in. dual scale gauges.

Keller Products, Inc.    Lexington, MA 02420-0001
Mar 04, 2011 Developed for dye penetrant application, TKO-1 0-DP pump/skimmer pulls penetrant from surface of tank through floating inlet device using air-operated pump, separates penetrant from rinse water via proprietary permanent separator element, and returns water continuously to rinse tank. System installs in shop of dye penetrant user and reduces waste from dye penetrant area by 75% while also eliminating odor generation and biofouling of rinse water.

Lee Products Ltd    Buckinghamshire SL9 9QE  United Kingdom
Mar 03, 2011 Available in either plug-in or face mount models, High Density Interface Solenoid Valve offers choice of configurations, including 2-way Normally Closed and 2-way Normally Open. Unit features operating pressure range of 0-50 psid and flow capacity of 19 slpm at 50 psid with Cv of 0.022. Operating from 40-120°F, valve has PPA, PBT, 316 SS, 430F SS, FKM, and epoxy wetted materials.

Flexaust Co., Inc., The    Warsaw, IN 46581

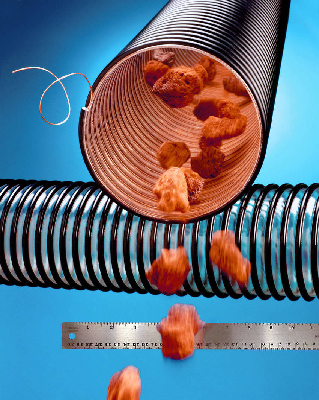

Mar 03, 2011 Constructed from polyurethane with embedded copper grounding wire, FlexStat® is reinforced with rigid external ABS helix and provides 10⁸-10¹⁰ W/sq surface resistivity to prevent static buildup. Hose has smooth interior for unrestricted flow and external wear strip for drag resistance. Available in 25 and 50 ft lengths with wall thickness from 0.040-0.060 in., product is suitable for powders, light bulk pneumatic conveying, dust collection, and paint spray extraction.

Harvard Apparatus, Inc.    Holliston, MA 01746 1371

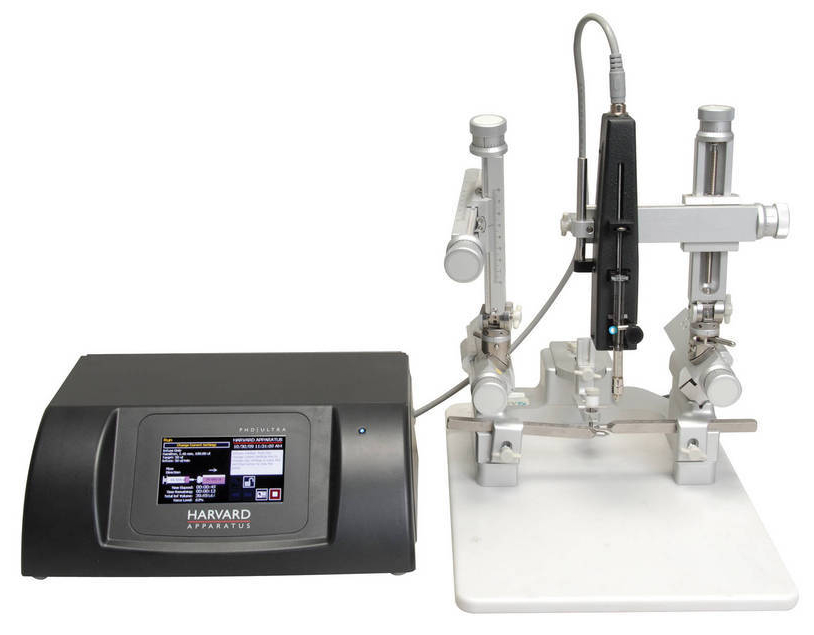

Mar 01, 2011 Featuring foot pedal activation, PHD ULTRA(TM) Nanomite enables precision injections of cells and drugs that must be delivered to specific spatial locations. LCD touchscreen and icon-based interface lets users create and run methods without PC. Any operator can retrieve and run pre-defined delivery methods, enhancing repeatability and reducing user error. Designed for fast bolus infusions, system can also deliver from low nanoliter up to tens of mL/min injections.

Sauer-Danfoss    Ames, IA 50010

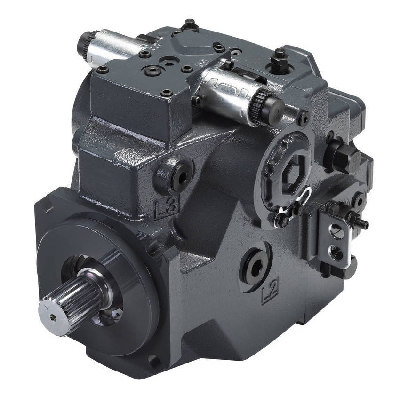

Mar 01, 2011 Offered in 60 cm³/68 cm³ and 89 cm³/100 cm³ frame sizes, H1 Series helps compensate for reduced power levels of Tier IV/Stage IV emissions-compliant engines. Units offer range of electric-only control options, including Electrical Displacement Control for load-independent speed control, Forward/Neutral/Reverse for on/off work function control, and Non-Feedback Proportional Electrical Control for load dependant control systems. Pressure limiter, control cut-off, and control over-ride are optional.

Clark Solutions    Hudson, MA 01749
Feb 28, 2011 Available with choice of stepper motor control boards, Boxer Series 3500 is rated for flow rates to 5 lpm for gases and 2 lpm for liquids. Dual head models can be plumbed in parallel for max flow or in series for max vacuum or pressure performance. Featuring self-priming, maintenance-free design, Boxer Series 3500 requires no lubrication and is suitable for environmental sampling instruments, portable and fixed gas analyzers, and dispensing applications.

Clark Solutions    Hudson, MA 01749
Feb 28, 2011 Measuring 95 x 75.5 mm, CA and MA Series positive displacement pumps provide flow rates up to 77 GPH and are NSF listed for potable water. Elements of construction include brass pump housings, AISI 303 stainless steel rotors, pumping chamber and vanes of graphite carbon, and built-in relief valve. With max operating temperature of 158°F, pumps come standard with 3/8 in. NPT threaded inlet and outlet ports; other connections are available.

William W. Meyer & Sons, Inc.    Libertyville, IL 60048
Feb 28, 2011 Constructed of cast iron or stainless steel, Universal Duty Valve features max pressure differential of 7 psig and max temperature of 350°F. Unit has 8-vane open end rotor, full flow throat design, and outboard sealed bearings that never need lubrication. Available in round or square flange designs, valve is suitable for baghouse, cyclone, and pneumatic conveying applications.

Bridgeport Fittings, Inc.    Stratford, CT 06497

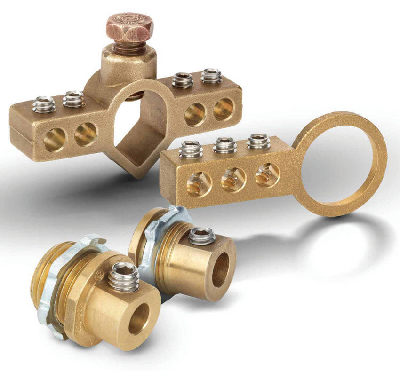

Feb 25, 2011 Constructed with precision-machined brass bodies, steel locknuts, and stainless steel screws, Mighty-Bond(TM) MC Series Connectors and MCC Series Couplings are used to bond grounding electrode conductor to enclosure or raceway. Both ½ in. and ¾ in. trade sizes perform in accordance with NEC article 250.8 and are cULus Listed for grounding per UL467. Units are also tamper-resistant when termination screws are mounted inside box.

Binder-USA, LP    Camarillo, CA 93012

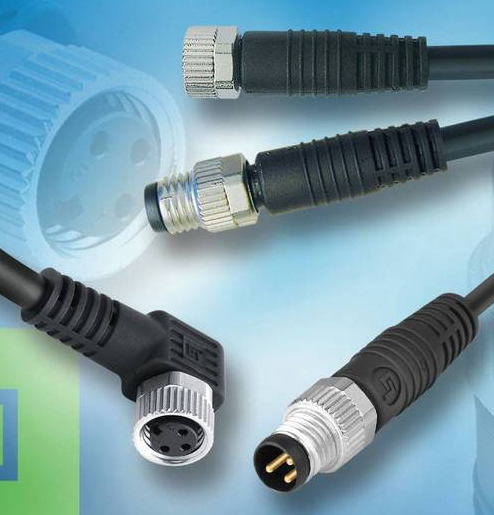

Feb 25, 2011 Featuring knurled and hex locking nut, M8 overmolded connectors can be tightened with torque wrench to ensure proper mating of connecting system. Products have 3, 4, or 6 gold-plated contacts and handle up to 60 V and up to 4 A per contact. When mated properly, connectors are sealed to IP67 rating. Male and female cordsets are available in 2 and 5 m lengths, and mating receptacles and field-attachable cable connectors are offered for complete connecting system.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Feb 25, 2011 Featuring 6 user-selectable pressure units and 3-color LED display, Series MDPC provides pressure ranges from -100 to 100 kPa or -100 to 1,000 kPa with NPN, PNP, analog voltage, or current output control modes. Parameter copy function enables parameters to be copied to other MDPC pressure controllers, while key lock mode prevents unnecessary changes to parameters. Controller is suited for high-tech electronics, food packaging, and automatic assembly applications.

Tideflex Technologies    Carnegie, PA 15106
Feb 24, 2011 Suited for use in outfalls, stormwater, and CSO/SSO applications, CheckMate® valve has all-rubber unibody design that eliminates backflow from oceans, rivers, and interceptors. Elastomer fabric-reinforced design lends to maintenance-free performance, while unibody construction eliminates catch points. Available in 4-72 in. sizes, valve is built to suit site and flow needs and can open to near full pipe diameter to maximize flow capacity of outfall.

MICO, Inc.    North Mankato, MN 56002

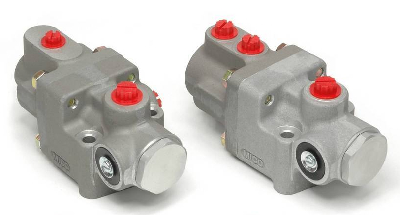

Feb 23, 2011 Suited for on- and off-highway applications, Hydraulic-Over-Air Relay Valves accommodate max air pressure of 150 psi and max hydraulic pressure of 2,000 psi. Single input design provides 1 hydraulic pilot port to control modulated air braking pressure, while dual input features 2 independent ports, either of which can accept pilot pressure. Functionally similar to single design, tandem input provides redundancy by utilizing 2 independent pilot pressure ports.

Samson Controls    Baytown, TX 77520
Feb 18, 2011 Valve booster is adjustable and lead-sealed, as well as pressure-balanced to provide stable output even under fluctuating pressure conditions. Signal pressure is transmitted with defined hysteresis, without loss, and emits minimal noise. Only functional parts come into contact with instrument air, but exhaust air port also can feature protection from weather or other environmental factors. Product is targeted for use with valves that have large pneumatic actuators.

Emerson Process Management    Pleasanton, CA 94566
Feb 18, 2011 Available for Type FL pressure reducing regulators, Tartarini(TM) Type SRII and SRS silencer options ensure efficient noise abatement for high pressure drops and high gas velocities. Silencers are offered for 1, 2, 3, 4, 6, and 8 in. (DN 25, 50, 80, 100, 150, and 200) sizes to accommodate broad application range and can achieve noise reduction up to 20 dB(A). As source treatment, silencers utilize multiple orifices of special size, shape, and spacing that reduce noise-producing interactions.

Middlesex Gases & Technologies Inc    Everett, MA 02149
Feb 18, 2011 Replacing high-pressure cylinders and portable liquid containers with low-pressure storage tank, MicroBulk Delivery eliminates handling and changeouts. On-site filling technology requires 20 minutes or less, with zero losses under normal conditions. With delivery system's Smart flow meter and printouts, reports of delivery are available immediately. Usage is monitored and deliveries are scheduled automatically for uninterrupted supply of gas.

J. W. Winco, Inc.    New Berlin, WI 53151

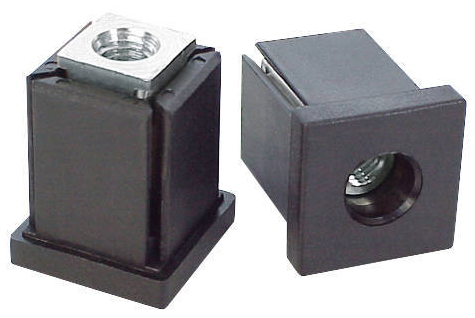

Feb 17, 2011 Series AN 350 Tube Expander Fittings are comprised of metric-sized, RoHS-compliant fittings made of black reinforced polyamide plastic with nickel-plated brass bushings. Designed for 25 mm OD x 1.5 mm wall thickness square tubing, products are available with M8 x 1.25 or M10 x 2.5 threads. Typical applications include bracing conveyor walls to mount chain return components.

ITT Interconnect Solutions    Santa Ana, CA 92705

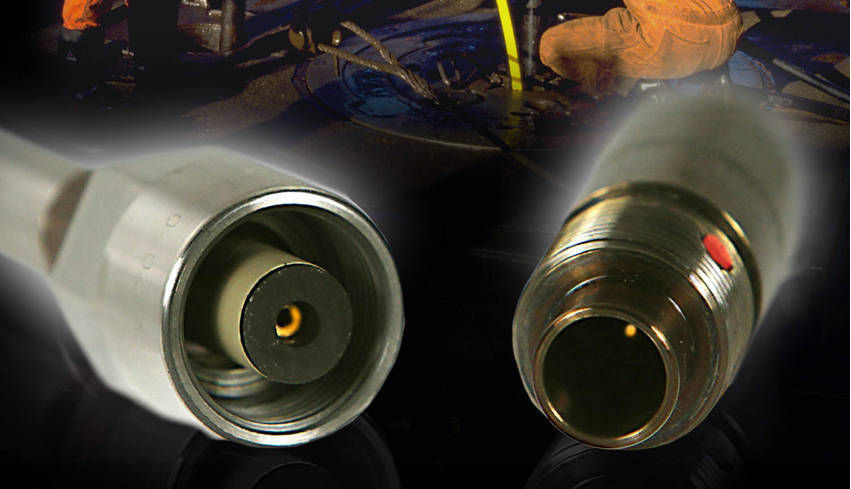

Feb 17, 2011 Protecting gauges and important data from damage due to failure of metal clad cable sheathing in exploration and production projects, scalable Permanent Downhole Gauge connector withstands pressure to 10,000 psi and operating temperatures to 200°C. Metal-to-metal, connector-to-cable seal is field-attachable as well as verifiable on-site before operational deployment into well. Design also includes elastomer back-up seal and is re-usable for future projects.

Gates Corporation    Denver, CO 80202

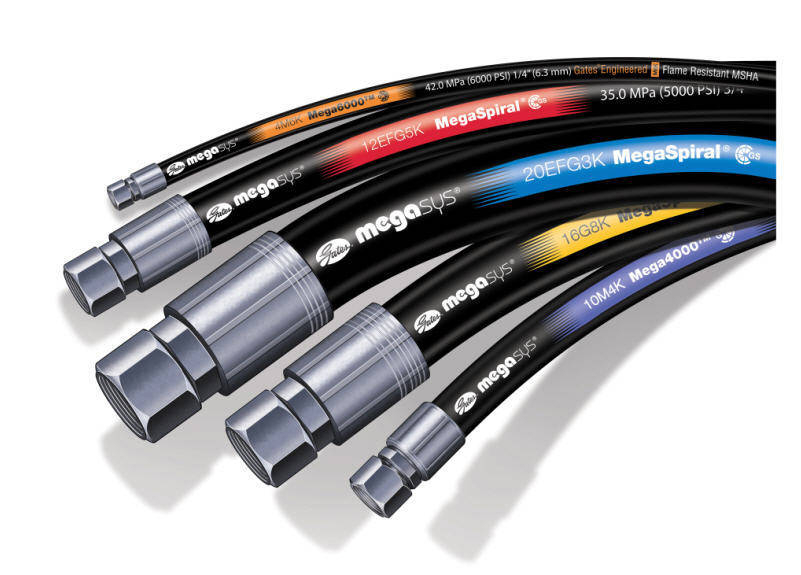

Feb 17, 2011 Intended for hydraulic systems, MegaSys® products include constant pressure spiral-wire and wire-braid hoses that can be bent up to one-third SAE specification. MegaCrimp® and GlobalSpiral(TM) couplings ensure leak-free connections with MegaSys hoses rated for max working pressures to 8,000 psi. Hose flexibility enables routing in tight spaces to facilitate installation, while MegaTuff® or XtraTuff(TM) hose covers provide abrasion resistance.
