Clark Solutions    Hudson, MA 01749
May 20, 2011 Available in 12 or 24 Vdc models, Boxer Series 10K delivers flow rates to 0.8 lpm for liquids and 4 lpm for gases. Dual head configuration provides pulsation-free flow, and all models have integrated pulsation and vibration dampers for smooth transfer. Featuring corrosion-resistant design, pumps are available with parallel heads for max flow or series head configuration for max vacuum and pressure. Wetted materials include PPS, neoprene, silicone, or nitrile.

Piab AB      Sweden
May 20, 2011 Based on COAX® technology, piCLASSIC Vacuum Pumps offer 3 options to meet specific applications. With final vacuum efficiency of 95% at deep vacuum levels, Xi option is suitable for non-porous applications. Si option, supporting large flows at low and medium vacuum levels, is recommended for applications where leakage is significant factor. Pi option, with low feed pressure of 45 psi, is suitable for factories with low or fluctuating air pressure.

Avery Dennison    Pasadena, CA 91103
May 19, 2011 Applied at high speeds to flexible or rigid containers of ground or whole bean coffee, Flexis(TM) Air One-way Coffee Valve thoroughly degasses coffee, offers leak resistance, bonds securely, and can be pre-applied to packaging materials before filling. Valve uses multi-layer structure for flexibility, and can be applied using automatic label application systems.

Avery Dennison    Pasadena, CA 91103
May 19, 2011 Featuring 2-part design, Flexis(TM) Oxygen Valves give retailers control over when packaged meat will bloom for placement in display cases. Packages can be oxygenated one at a time, allowing retailers flexibility to pick for display case any number of packages that arrived in shipment. Since valves require only that packaged meat be shipped in cartons, both mother bag and oxygen scavenger are eliminated. Underlying permeable layer of valves can be printed with logos and promotional messaging.

Eaton Corporation    Raleigh, NC 27615
May 18, 2011 Suited for transit buses, motor coaches, trains, and large overhead cranes, Aeroquip EverCool(TM) A/C Hose is available in sizes 12, 16, 20, and 24 with max operating pressure of 500 psi and minimum bend radius of 2.5, 3.0, 4.0, and 5.0 in., respectively. Hose features EPDM cover, butyl tube with barrier layer, one wire, and synthetic braid reinforcement. Screw-together fitting uses elastomer on hose nipple for leak assurance at hose/fitting connection.

Jet Edge    St. Michael, MN 55376
May 16, 2011 Supporting orifices up to .025 in., 150 hp Jet Edge iP60-150 produces up to 3 gpm ultra high pressure water for water jet cutting and surface preparation applications. Unit features dual intensifier systems, kidney loop hydraulic cooling and filtration system, anti-corrosive interior coated hydraulic reservoir, and touchscreen controls. Motor drive assembly is mounted on isolation system to minimize noise and vibration. With no threaded components, tie rod design is less prone to cracking.

Chemineer, Inc., A Unit of Robbins & Myers, Inc.    Dayton, OH 45401
May 16, 2011 Available in 2, 2.5, 3, and 3.5 in., sizes, ChemSeal(TM) Series comes in both single and double cartridge configurations, and can be removed from agitator as complete assembly for repair on workbench before re-installation. Units feature bi-directional rotation capabilities and reverse pressure capability, which keeps seal faces closed when tank pressure exceeds seal pressure. Available in variety of materials, seals withstand temperatures to 356°F and pressures to 300 psi.

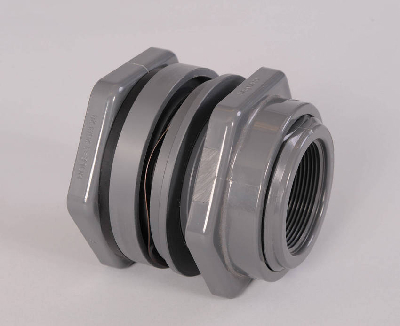

Hayward Industrial Products Inc., Hayward Flow Control Systems    Clemmons, NC 27012
May 13, 2011 Featuring PVC upper and lower body construction with 17-7PH stainless steel wave spring, CCP Series Tank-Tite(TM) Compression Fittings provide constant load on gasket of bulkhead fitting to overcome and compensate for tank wall expansion/contraction due to changes in temperature and/or pressure within tank. Fittings also simultaneously impart constant load on bulkhead fitting nut, which minimizes possibility of nut loosening due to vibration within system.

Hayward Industrial Products Inc., Hayward Flow Control Systems    Clemmons, NC 27012
May 12, 2011 Rated to 150 psi, BFAS Series Tank Adapters offer safe pipe connections to thermoplastic and metal storage tanks. Fitting design, which features short pattern barrel in PVC, CPVC, or PP and standard sized flange, also includes left hand threads to prevent fitting from unscrewing. Able to be installed by one person, products have hex body and FPM or EPDM gasket seal and come in sizes from ½-3 in. with either Socket x Thread or Thread x Thread end connections.

Staubli Co.    Duncan, SC 29334
May 12, 2011 Designed to handle working pressures up to 22,500 psi and temperatures from -22 to 350°F, HMO Couplings feature floating mount design, with built-in double-stage guiding system, allowing them to fully align before engaging seal area. Floating design allows for max axial misalignment of .026° and max radial misalignment of .046 in., without additional guidance. Available in ¼, 3/8, ½, and 1 in. sizes, couplings are suited for flying leads, stab plates, control modules, or fluid injection.

BETE Limited    East Sussex East Su BN8 4HZ  United Kingdom
May 10, 2011 Available in nickel plated brass and 303 or 316 stainless steel for 1/8 and ¼ in. pipe sizes, Model XA ER provides full cone round spray pattern for liquids with viscosity of 100+ cp. Unit operates with external mix and is liquid pressure fed, so flow rate is not dependent on air pressure. In addition to ozonating water, nozzle is suited for gas cooling and injecting viscous liquids into gas streams containing powder particles.

Lechler, Inc.    St. Charles, IL 60174
May 10, 2011 Available in flat and round versions, WHISPERBLAST® Air Nozzles are suited for drying off parts, blowing dirt or dust off equipment, or blowing rejected items from conveyor. Standard round version supports hand-held applications, while standard flat version, available in aluminum, stainless steel, or zinc, can be installed on machine or used with others on header to create air curtain. For tight places, Mini-WHISPERBLAST and MiniBlast are available.

United Conveyor Corp.    Waukegan, IL 60085
May 09, 2011 Model 40DH Heated Blade Knife Gate Valve is suited for on/off isolation service in pneumatic conveying systems located downstream of dry scrubbers and dry sorbent injection systems. Heated blade technology reduces build-up and hardening of high calcium ash and sorbents, and valve's spring-loaded packing design maintains seal pressure during operation to prevent leakage. Rated for operating pressure of 40 psi, it is available in sizes ranging from 4-14 in.

Dwyer Instruments, Inc.    Michigan City, IN 46361
May 05, 2011 Featuring heavy-duty construction with full port design and female NPT end connection, Series 3BV3H has ball and stem of 316 Stainless Steel as well as 4-seat design suited for high cycle applications. Pneumatic and electric actuators can be mounted using ISO 5211 mounting pad, and available line size from ½-2 in. optimizes flow rates while minimizing pressure loss. Respectively, pressure and temperature limits are 1,000 psi and 450°F.

Hunter Fan Co.    Memphis, TN 38114
May 05, 2011 Offering alternative to UV or UV-C air purifiers, Total Air Sanitizer adds electric current to HEPA air filter that kills bacteria, viruses, molds, and fungi while capturing and removing dust, pollen, pet dander, and other allergens from air during any season. System captures more than 99.9% of airborne particles, and, in some rooms, may provide noticeable improvement in air quality in as little as 1 hour of use.

Parker Hannifin Corp.    Oxford, MI 48371
May 05, 2011 To keep refrigerated air dryers operating at full capacity, Finite series removes up to 99.995% of oil, water, and solids from compressed air and other gases. This protects complex internal components of dryer by removing compressor oil carryover. Element threads into top of housing, facilitating replacement even in space-constrained environments. Design also eliminates need to disconnect drain connections before removing bowl to access spent element.

Interface Devices, Inc.    Milford, CT 06460
May 04, 2011 Suited for use with most hydraulic pumps, D03 Series valves maintain pressure for long time periods without replenishing pressure supply. Poppet-style 3- and 4-way directional control valves are solenoid-actuated and operate in applications with pressures up to 5,000 psi where pressure and flow are intermittent. Nominal flow rate is 3.0 gpm and operating temperature range is -65 to +225°F. Measuring 1.93 in. wide, they allow for mounting multiple units on 2.0 in. centers.

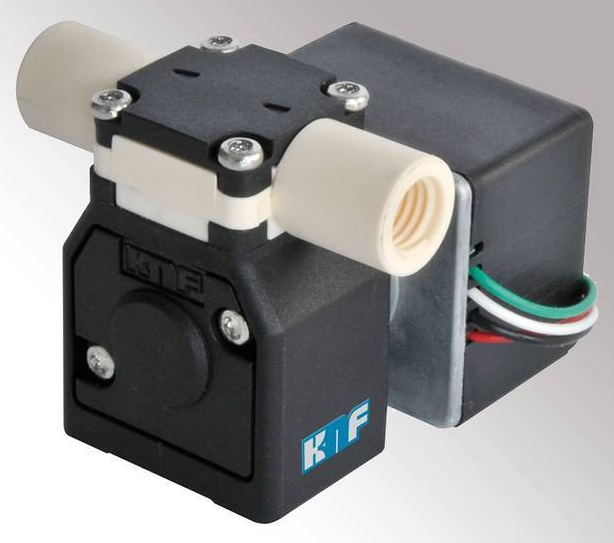

KNF Neuberger, Inc.    Trenton, NJ 08691-1810
May 04, 2011 Used for dosing or transferring liquids or liquid-gas mixtures, 1.5 x 1.5 x 1.25 in. Type NF1.5 achieves flow rates to 60 mL/min, self-prime to 9 in. Hg suction, and operate against pressures up to 87 psi both intermittently or continuously. Continuous 145 psig pressure rating is also available upon request. Able to mount in any position, dry-running pump can be powered brush-commutated iron/ironless core DC motor or brushless DC motor and is resistant to chemicals.

Dwyer Instruments, Inc.    Michigan City, IN 46361
May 04, 2011 Compatible with liquids and gases, Series 3BV3SH 3-Way Stainless Steel Ball Valve is available in line sizes from ½-3 in. with sanitary clamp ends that facilitate removal. ISO 5211 mounting pad is provided for automation when attached with electric or pneumatic actuator. Featuring full port design that provides consistent flow characteristics, valve is suited for use in pharmaceutical, food and beverage, and chemical processing systems.

Lee Products Ltd    Buckinghamshire SL9 9QE  United Kingdom
May 03, 2011 Available in 5 sizes from .125-.500 in. diameter with MP35N poppet and seat, High-Pressure Check Valves are constructed from corrosion-resistant materials that are compliant with NACE MR0175/ISO 15156 standards. Units are designed for checked direction pressures up to 15,000 psid, and are available in free flow forward and free flow reverse directions, with cracking pressures of 5±3 and 1+0.5 psid. Free flow Lohm rates range from 400 down to 15 Lohms.
