Vertiflo Pump Company, Inc    Cincinnati, OH 45249

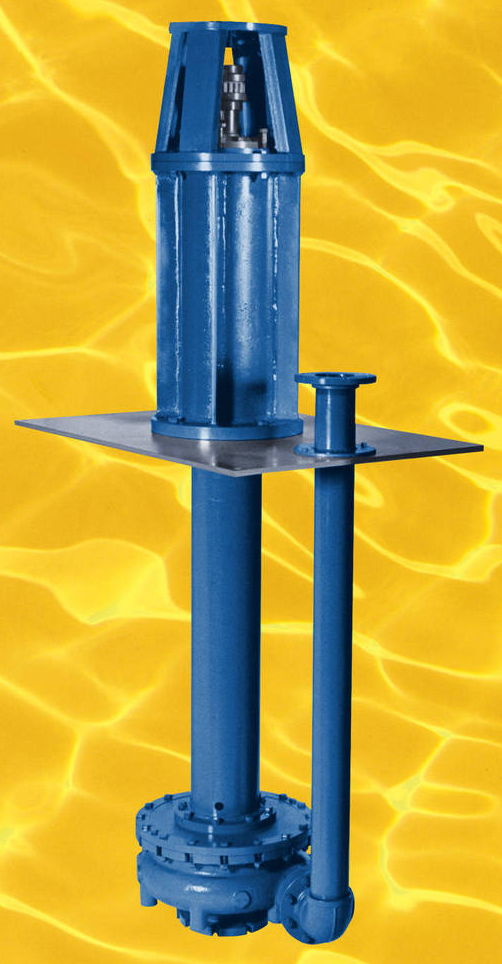

Jul 12, 2011 Suited for difficult industrial service in water, corrosive chemicals, and hazardous liquids, Series 1100 is available in lengths to 6 ft with heads to 170 ft, flows to 1,600 gpm, and temperatures to 400°F. Unit features semi-open impeller with external adjustment, shafts to 5 in. diameter, and standard NEMA C face motor. Available construction materials include cast iron, 316 stainless steel, Alloy 20 and 27% chrome iron.

Bete Fog Nozzle Inc.    Greenfield, MA 01302
Jul 11, 2011 Combining slow moving rotation and high-impact spray pattern, HydroWhirl Poseidon(TM) is suited for tanks up to 22 ft in diameter found in food, beverage, chemical, and pharmaceutical industries. Bearing-less design provides nearly constant rotation speed over operating pressure range. Constructed of PTFE with clip-on or threaded connections, FDA-approved Clean-In-Place nozzle withstands corrosive environments and harsh cleaning fluids.

Boge American, Inc.    Powder Springs, GA 30127
Jul 08, 2011 With standard pressure dew point of 37°F, RA Series offers efficient method of drying compressed air. Aluminum heat exchanger features vertical profile that allows force of gravity to result in maximum droplet separation and self-cleaning. Varioflow hot gas bypass valve, which utilizes gas charged capsule that operates independently of power or electronic support, provides user with 100% stable dew point, no maintenance, and zero freeze-ups.

KNF Neuberger, Inc.    Trenton, NJ 08691-1810

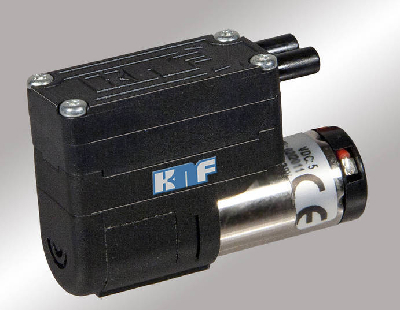

Jul 08, 2011 Measuring 13.2 x 26 x 39 mm, Model KNF NMS010 is designed to transfer, evacuate, or compress gases for portable monitors, medical, and other gas-sampling instrument applications. Unit delivers flow rates up to 0.75 lpm, vacuum up to 12 in. Hg, and pressures to 7.5 psig. Oval-shaped diaphragm utilizes space over motor to maximize size of pumping chamber. Oil-less operation enables uncontaminated flow of pumped medium and contributes to safe and virtually maintenance-free pump operation.

VAT, Inc.    Woburn, MA 01801
Jul 08, 2011 Designed for vacuum production tools with slit heights smaller than 80 mm, FlapVAT is available with stainless steel or aluminum body and gate as well as in horizontal or vertical orientation. Valve technology is based on common flapper valve that enables swift exchange of gate o-ring, and integrated actuator allows for differential pressure opening wherever this is required. Valve is available from slit openings 30 x 500 mm up to 80 x 3,000 mm, with flange to flange dimension of 160 mm.

Eaton Corp.    Cleveland, OH 44114
Jul 07, 2011 Offered in ¼, ½, ¾, and 1.0 in. sizes, TH-Series feature ball-locking mechanism and are rated for working pressures to 6,500 psi. Available versions include RoHS-compliant zinc-plated steel and 316 stainless steel with stainless steel springs, balls, and retaining rings and standard Buna-N or optional Fluorocarbon seals. Intended for mobile and industrial applications, couplings meet dimensional requirements of MIL-C-51234 and suit diverse range of hydraulic tools and accessories.

Liberty Pumps    Bergen, NY 14416

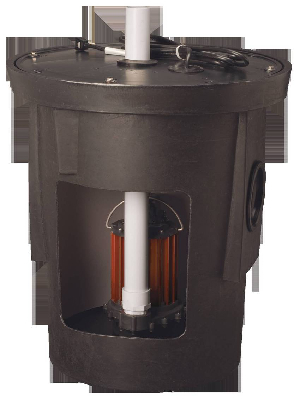

Jul 07, 2011 Intended for residential applications, SPAC-Series consists of 18 x 22 in. polyethylene sump pit with fully installed sump pump and 1½ in. schedule 40 PVC discharge. Molded raised platform in bottom of pit minimizes potential for debris to enter pump. System is available in 1/3 and ½ hp models.

Emerson Process Management    Pleasanton, CA 94566
Jul 06, 2011 Baumann(TM) 85000 enables low flow rate, low pressure control of sterile liquids used in biotechnical and pharmaceutical industries. Major components include tube shell body that accommodates ¾ in. pharmaceutical grade tubing; linear spring-and-diaphragm actuator; and Fisher® FIELDVUE(TM) digital valve controller. Latter provides diagnostics that monitor operating health of valve assembly, providing immediate feedback to plant host system if maintenance is required.

Federal-Mogul Corp.    Southfield, MI 48034
Jul 05, 2011 Supporting 12 and 24 V applications, Brushless Diesel Fuel Pumps feature electrically driven design that minimizes load placed on engine, optimizing fuel economy while minimizing emissions. With electronic commutation to drive DC motor, non-contact technology offers optimal durability, even when mounted directly on engine. Pumps are typically used in medium- and heavy-duty on-highway sector as well as construction, stationary, marine, and agricultural sectors.

Forsta Filters, Inc.    Los Angeles, CA 90028
Jul 05, 2011 Providing corrosion resistance in brackish, brine, and seawater filtration applications, FRP Series features wetted components constructed from plastic and high alloy materials. Filters are available with on-line or in-line flange configuration and are rated to 150 psi. Supporting working pressures from 35-150 psi and flow rate from 15-20,000 gpm, filters use coarse screens for straining large debris and fine screens for purifying water to designated 5-4,000 micron rating.

Fluid Metering, Inc. (FMI)    Syosset, NY 11791
Jul 05, 2011 With 2D barcodes, OEM Pumps enable error-free data input and retrieval of critical pump parameters for applications requiring traceability for regulatory compliance, such as critical medical, diagnostic, analytical, and pharmaceutical applications. Labels contain information which uniquely identifies each pump, including serial number, part number, manufacturing date, and calibration data. Customer-defined parameters may also be included or substituted as well.

ITA, Inc.    Berlin, MD 21811
Jul 01, 2011 Offered in 6 models with tank capacities from 135-1,150 L, Coral DynaClear PLUS occupies minimal floor space. Design lessens consumption of filter fabric and uses hydrostatic pressure to effectively filter both water soluble and neat oil coolant. Pendulum scraper separates sludge from filter fabric and sludge is collected in tank while used filter fabric is rewound for disposal.

PIRTEK USA    Rockledge, FL 32955
Jun 30, 2011 Designed to minimize engine and component wear, Bypass Filter Unit does not replace existing filter but is added into existing lubricating or hydraulic system, allowing oil to flow through dense filter cartridge at 2-3 quarts/min. At this speed, it is possible to remove particles down to 1 micron and remove over 99% of all water. Featuring single canister design, filter unit has no internal moving parts and requires no electrical hook up.

Red Valve Company Inc    Carnegie PA 15106
Jun 28, 2011 Series DX, designed for heavy slurry applications in power and mining industries, provides drop tight shut-off in both directions. When valve opens, reinforced elastomer sleeves seal against each other and provide 100% full port opening. This minimizes turbulence as well as resulting wear, while seats isolate and protect all metal parts of valve from coming in contact with process. When valve is closed, sleeves provide drop tight seal.

Harvard Apparatus, Inc.    Holliston, MA 01746 1371
Jun 24, 2011 Providing smooth flow from 0.54 pL/min to 11.70 mL/min with 35 lb of adjustable force, Pump 11 Pico Plus Elite is suited for microfluidics, drug/nutritional delivery, microdialysis, HPLC, cellular injections, and mass spectrometry. Programmable, dual syringe, infusion/withdrawal pump includes color touch screen LCD and variety of connectivity options, including footswitch input, USB serial port, RS-485 ports for daisy chaining, and digital I/O.

Continental Disc Corporation    Liberty, MO 64068
Jun 24, 2011 Designed for European pharmaceutical, food and beverage, and biotech industries, SANITRX® LPX features instantaneous full-open relief area for protecting equipment, vessels, systems, and people from overpressure conditions. This stainless steel differential pressure relief device meets ASME BPE and USP Class VI criteria and has rated burst pressure of 0.3 min to 0.5 max barg @ 20°C. Solid metal construction provides cleanability for CIP/SIP applications.

Swagelok Company    Solon, OH 44139-3492
Jun 22, 2011 Installed on tank's inlet and outlet, respectively, RHPS Series Models TBRS and TBVS maintain tank's blanketing gas at constant pressure. Spring-loaded, pressure reducing TBRS accommodates inlet pressures from 1.5-230 psig and can regulate outlet pressures down to 0.07-7.3 psig, while spring-loaded back pressure TBVS senses pressure from 0.07-7.3 psig. Available in ½-2 in. sizes with operating temperature of -4 to 280°F, both feature 316L SS body, PTFE diaphragms, and fluorocarbon seals.

Saint-Gobain Performance Plastics, Corporate Headquarters    Wayne, NJ 07470
Jun 21, 2011 Produced from C-Flex® resin, C-Flex® ULTRA exceeds industry requirements for flexible, clear, weldable, and sealable pump tubing for fluid processing applications. Product features smooth outer surface that does not gum up pump heads, minimizing downtime for cleaning. Available in 10 standard sizes, tubing is BPA-free, phthalate-free, and animal derived component-free as well as non-pyrogenic and non-cytotoxic. It also offers resistance to concentrated acids and alkalis.

Maag Pump Systems Textron Inc.    Charlotte, NC 28273
Jun 17, 2011 Able to handle high viscosity fluids, Therminox®-V 28/28 laboratory gear pump has inlet geometry that allows removal of viscous fluids such as pre-polymers up to 4 million mPa/sec under vacuum. Corrosion-resistant pump tolerates process temperatures of 150°C, as well as viscosity of up to 1.7 million mPa/sec at NPSH of 5.5 mbar, inlet pressure of 5.2 bar, and outlet pressure of 10.2 bar. Product's seal is constructed as locking, spring-loaded, and adjustable gland packing.

Bionomic Industries Inc.    Mahwah, NJ 07430
Jun 16, 2011 Replacing manometer liquid seal legs on scrubber and vessel sumps, ScrubSeal(TM) Valves act as check valves to allow drainage of scrubber sump liquid through overflow line while maintaining required vessel vacuum during normal non-flow conditions. Products can be installed in vertical or horizontal pipes from ¾-4 in. to meet overflow rates from fractional to 500+ gpm. Valve body choices include corrosion-resistant PP or CPVC, depending upon size, with EPDM internal elements.
