Deltrol Controls, Div. of Deltrol Corp.    Milwaukee, WI 53215
Apr 08, 2002 DSVP40 Series handles water pressures from 3 to 145 psi with internal flow regulation. Plastic bodied units offer inlet screen and chloramine resistant components. 3 models are available covering single and dual output versions. Inlet connections consist of either external 3/4 in. hose thread or internal 3/8 NPT brass fitting. Outlets utilize barb connection or 7/16-20 UNF thread. Other features include AC (120 or 240) or DC (24) coils.

Mass-Vac, Inc.    North Billerica, MA 01862 0359
Apr 08, 2002 MV Midi-Mist Oil Mist Eliminators remove oil droplets from exhaust stream of mechanical vacuum pumps. They offer all-stainless steel construction, and use replaceable microfiberglass coalescing filter elements. Available in 4 and 8 in. dia sizes, they have inlet ports up to 2 in. dia and drain plug. MV Midi-Mist Oil Mist Eliminators provide 99.999% efficiency, and are designed for pump speeds from 0 to 50 CFM (exhausted to room or roof).

Valco Instrument Co., Inc.    Houston, TX 77255
Apr 08, 2002 MW Type Multiposition Valves offer various flow configurations, port and fitting sizes, and actuation options. Rotor can be inspected or replaced without removing valve from actuator. Valves are available with 4 to 16 positions. Standard valve body material is stainless steel, however, valves may be ordered in Hastelloy C-22 or Nitronic 50.

Clippard Instrument Laboratory, Inc.    Cincinnati, OH 45239
Apr 08, 2002 Combination venturi vacuum generator and fully ported 3-way valve are contained in single modular plug-in body. Unit can be used as stand-alone device or as part of larger pneumatic circuit. Valve utilizes micro gap construction for very short stroke of balanced spool. Vacuum may be used for pick, place, and hold applications, or liquid drawback circuits.

Adaconn & Inserta Products, Inc.    Blue Bell, PA 19422
Mar 30, 2002 Code 61 and Code 62 Seal Plates provide proper alignment and squeeze on O-rings when joining 2 surfaces. Outer diameter is grooved to center and improves O-rings' loading. Plates incorporate optional integrity support rings for structural support of 2 inner joined surfaces. These support rings eliminate seal damage.

American Lewa, Inc.    Holliston, MA 01746 1455
Mar 28, 2002 LEWAtriplex(TM) Monoblock Metering Pumps feature leak-free, sealless diaphragm with positive displacement and low pump head volume. Capable of handling liquid CO2 at up to 10,000 psi, pumps use multi-layer PTFE- or metal diaphragm, 1 crankshaft machined to 120 deg, roller bearings on both ends for full support, and shock-resistant sleeve bearings on connecting rods. Triple-throw crankshaft drives all 3 pump heads and is fully immersed in oil.

National-Spencer, Inc.    Wichita, KS 67201 0057
Mar 26, 2002 Model 160 Zee Line pump is suitable for use with most non-corrosive fluids, brake fluids, and power-steering fluid in automotive service shops and industrial manufacturing settings. Pump includes 3 different cap sizes, allowing it to fasten directly to most small containers up to 2 1/2 gal. Three inch extension is included for taller, deeper cans.

Norma Products, Inc.    Wixom, MI 48393
Mar 26, 2002 NORMACLAMP(R) FBSC constant-tension clamp compensates for changes in hose diameter due to fluctuations in temperature. One-piece design seals and automatically re-tightens when hose diameters increase or decrease. Integrated retaining mechanism holds clamp open during assembly. Chrome-free, corrosion-resistant coating is suitable for gluing. Clamp is available in various diameters with 12 and 15 mm bandwidths.

Mars Tech    New City, NY 10956
Mar 26, 2002 Alfa Laval Alfie 400 disc-bowl centrifuge filters and recycles coolants and other water-based industrial fluids. 2 GPM module with high-speed, 7500 RPM, centrifuge offers feed and discharge pumps, inlet strainer, inlet and outlet hoses with quick disconnects, floating suction device, and collection tank for tramp oil and electrical control. It operates on single-phase 110V power.

PELA Products    Greensboro, NC 27409
Mar 26, 2002 Manually-operated Oil Extractor vacuum pump sucks out oil and other fluids. Tube is inserted into drum, extractor is pumped 4 to 15 times to create vacuum, and oil flows out automatically. See-through container is calibrated to allow easy measurement of oil removed. Built-in float switch stops extraction as soon as capacity is reached. Pour spout facilitates emptying.

Parker Hannifin Corp., Seal Group    Irvine, CA 92612 1073
Mar 25, 2002 UltraCOMP(TM) engineered thermoplastics are resistant to creep and fatigue in temperatures up to 500 deg F. Chemical, electrical-, and radiation-resistant seals can operate continuously and be regularly sterilized by steam, as common with medical device seals. Material is available in 4 formulations: virgin, carbon fiber-filled, glass-filled, and carbon/graphite/PTFE-filled. Tube sizes are up to 8 in. OD, with up to 4 in. length and up to 0.5 in. cross section.

Flo-tech, Div. of Racine Federated Inc.    Racine, WI 53404

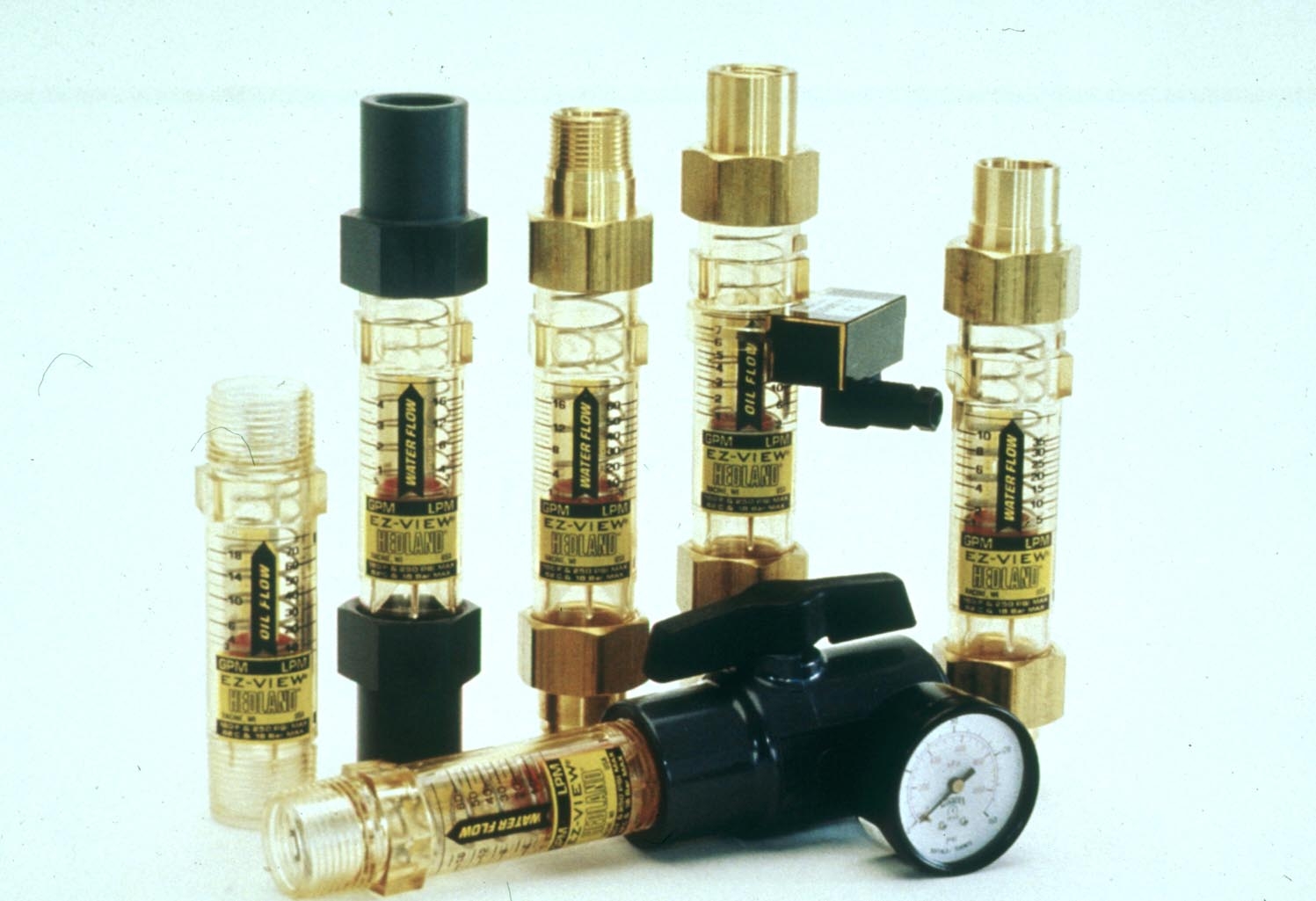

Mar 22, 2002 EZ-View direct-reading flowmeters can be installed in any position from vertical to horizontal, without flow straighteners or special plumbing requirements. Flowmeters are available in 1/2, 3/4 and 1 in. NPT, or 3/4 and 1 in. sweat fittings. Meters offer flow ranges from 0.5 to 28 gpm depending on model. Also available is Flow-Alert Signal, which automatically triggers alarm control circuit if flow exceeds or drops below preset limits.

Andrews Glass Co.    Vineland, NJ 08360-5504

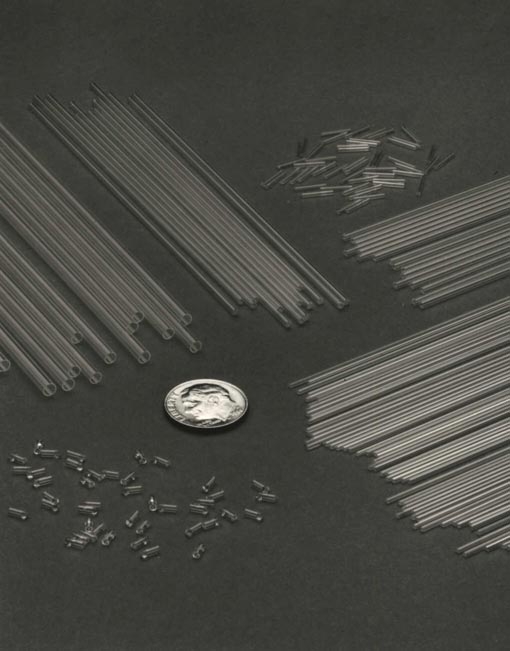

Mar 21, 2002 Round, capillary tubing, with or without microfilament, comes in multi-bore tube configurations from 2 to 7 bores. Sizes range from 0.30 to 3.00 mm OD, in thin, standard, or heavy wall, with tolerances of +/- 10% of ID. Tighter tolerances can be provided. Custom sizes and noncircular bores can be produced to specifications. Capillaries are packed in clear plastic vials for safe shipping, handling, and storage.

ITT Goulds Pumps    Seneca Falls, NY 13148
Mar 21, 2002 Tefzel(R)-lined 3298 Series, with non-conductive containment shell, eliminates eddy current losses. Safeglide(R) bearings provide dry run protection. Pump is available in 15 sizes with performance range to 1200 GPM capacity, 530 ft head, 225 psig working pressure, and 250°F operating temperature. Pumps are also available in frame mounted, close-coupled, self-priming, and vertical in-line configurations.

Allied-Callaway Equipment Co., Inc.    Kansas City, MO 64106-1031
Mar 15, 2002 Glidepath(TM) system of assembly line feeders, indexers, and accumulators are suitable for automated introduction of components for industrial assembly processes. Systems include fall-away stop coupled to Sure Start nudger, which pushes conveyed unit on downstroke of stop without additional controls, thus eliminating additional operator intervention.

Anver Corp. - Anver.Com    Hudson, MA 01749 3214

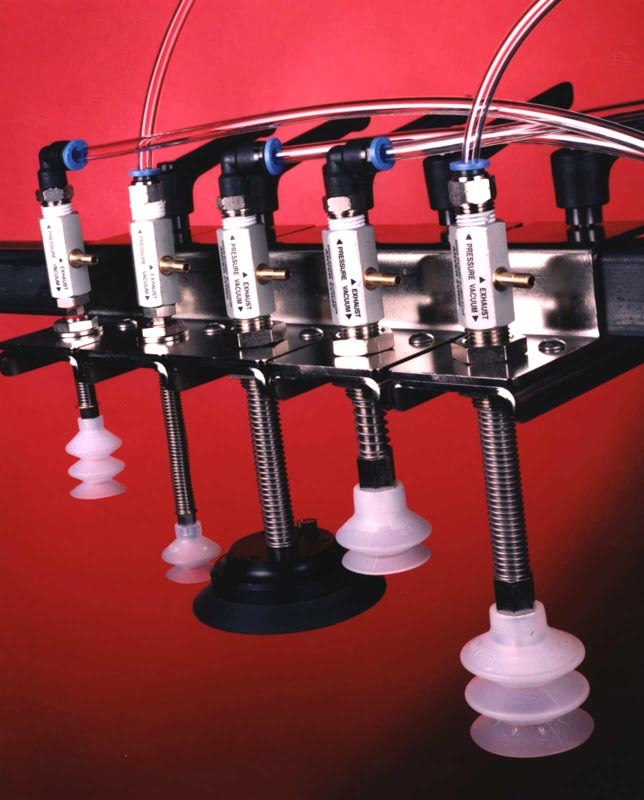

Mar 14, 2002 VR Series miniature venturi vacuum pumps create vacuum directly at load, and can be used individually or mounted to compressed air manifold systems. They run on 80 psi compressed air to create 24 in. Hg vacuum at cup with 0.42 to 1.27 SCFM air flow. Able to transform vacuum cup into complete lifting system, they can be used with manifolds to pick-up several items or 1 larger load. Units offer instant pick-up and 1 ms release time.

Hi-Tech Duravent    Georgetown, MA 01833
Mar 14, 2002 Clear, all-plastic UFD-AP hose and ducting has smooth interior to prevent material entrapment, bright, safety-yellow, plastic helix, and is flexible for making tight turns for material transfer. Puncture-resistant hose operates from -65 to 200 deg F. Sizes range from 1 1/2 to 8 in. ID, with 25 or 50 ft lengths. Applications include transferring stones, rocks, pellets, and scrap, and collecting dust, leaves, and wood chips.

Circle Seal Controls, Inc.    Corona, CA 92880

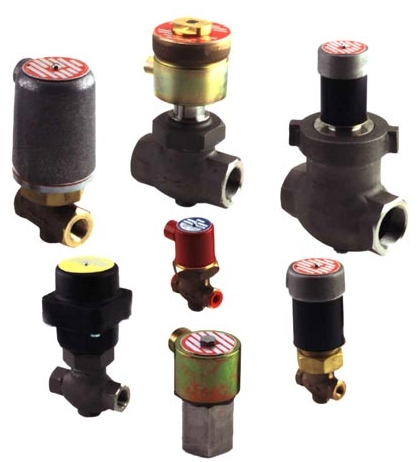

Mar 14, 2002 Atkomatic full-ported solenoid valves are available in 2-way, 2-position, normally closed and normally open; direct lift; semi-direct lift; and pilot piston operated. They are offered in 1/8 to 3 in. with connections for gases and liquids up to viscosity of 200 SUS. Ac and dc voltages are available, and most units come with Class H coils. Applications include chemical control, steam control, CO2 control, fuel shut-off, and water injection systems.

Kaeser Compressors, Inc.    Fredericksburg, VA 22404
Mar 14, 2002 Refrigerated Dryers, with capacities from 1000 to 3000 scfm, have working pressures of 200 psig (max). Smooth surface, tube-in-tube, copper heat exchangers resist fouling, and provide heat transfer. All units use R-404a refrigerant, and contain no CFC's. Filtered separator equipped with Filter Monitor is standard on all models. Units also include Demand Manager(TM) microprocessor control system, and electronic demand drain.

Bex Engineering Limited    Mississauga, ON L4W2S3  Canada

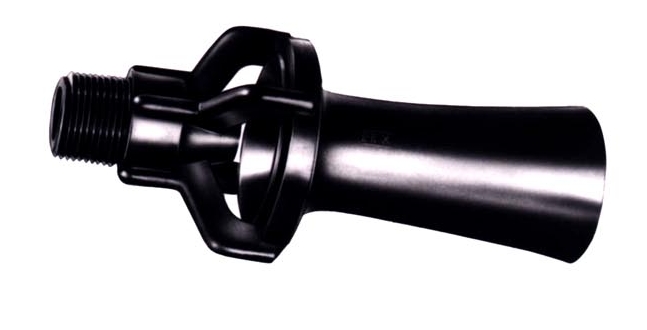

Mar 14, 2002 T00MP Eductor has 1/4 in. male NPT inlet, is 3.125 in. long, and requires 4.5 GPM at 20 PSI to circulate 22+ GPM. It is suitable for tank mixing in narrow plating tanks, shallow cooling tower tanks, and other space-restricted vessels. Molded in glass-reinforced polypropylene, BEX MP (molded plastic) eductors resist plugging and buildup of scale; won't corrode in acidic solutions; and add no metal, silicone, or other contaminates to solution chemistry.
