Clippard Instrument Laboratory, Inc.    Cincinnati, OH 45239

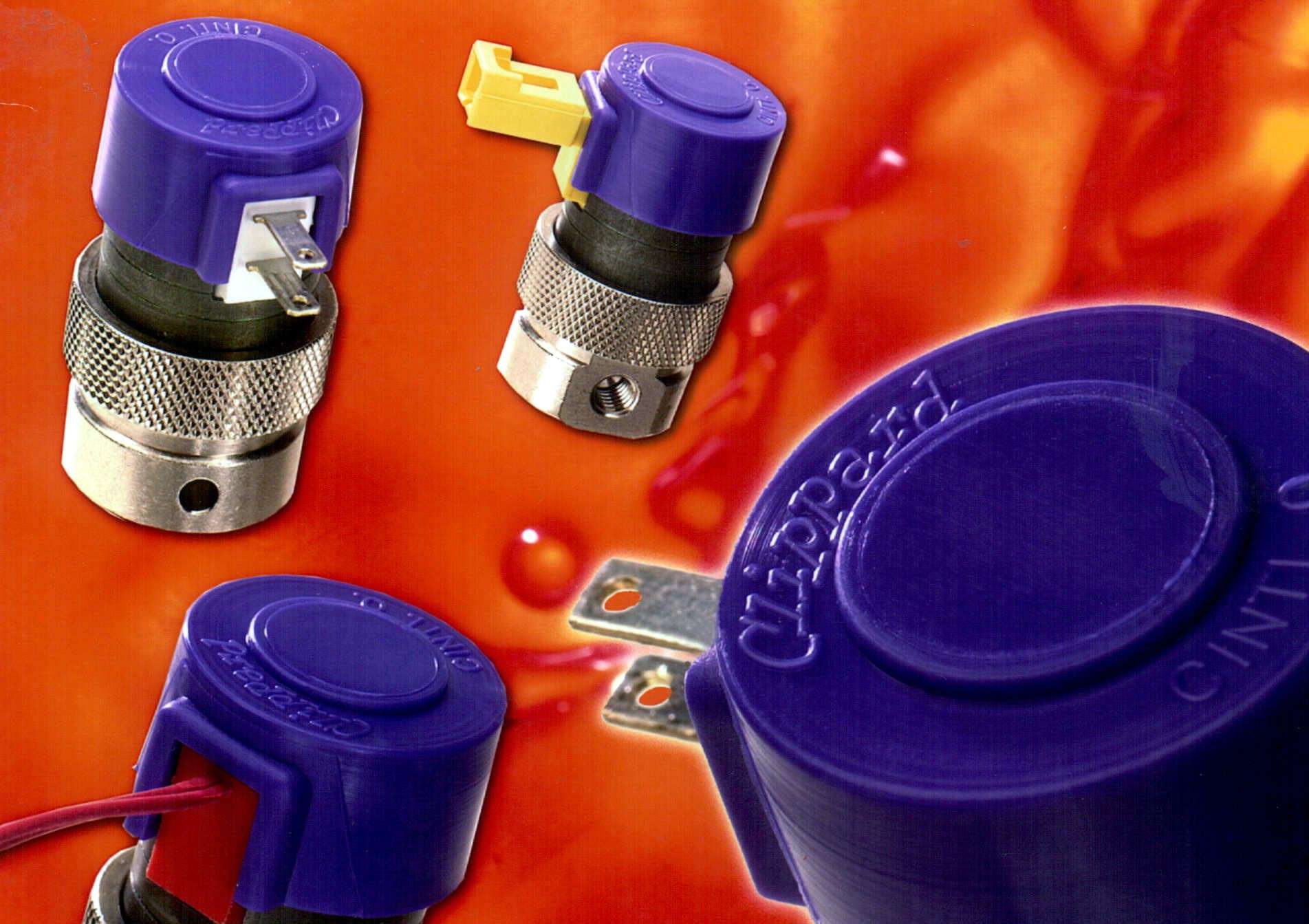

Jun 12, 2003 EVP Proportional Valve series provides control of air or gas flow and varies output flow based on current input to solenoid. Valve series may be controlled using DC current, open- or closed-loop control, and pulse width modulation (PWM) to cover various applications.

GPM Pumps Inc.    Macon, GA 31210

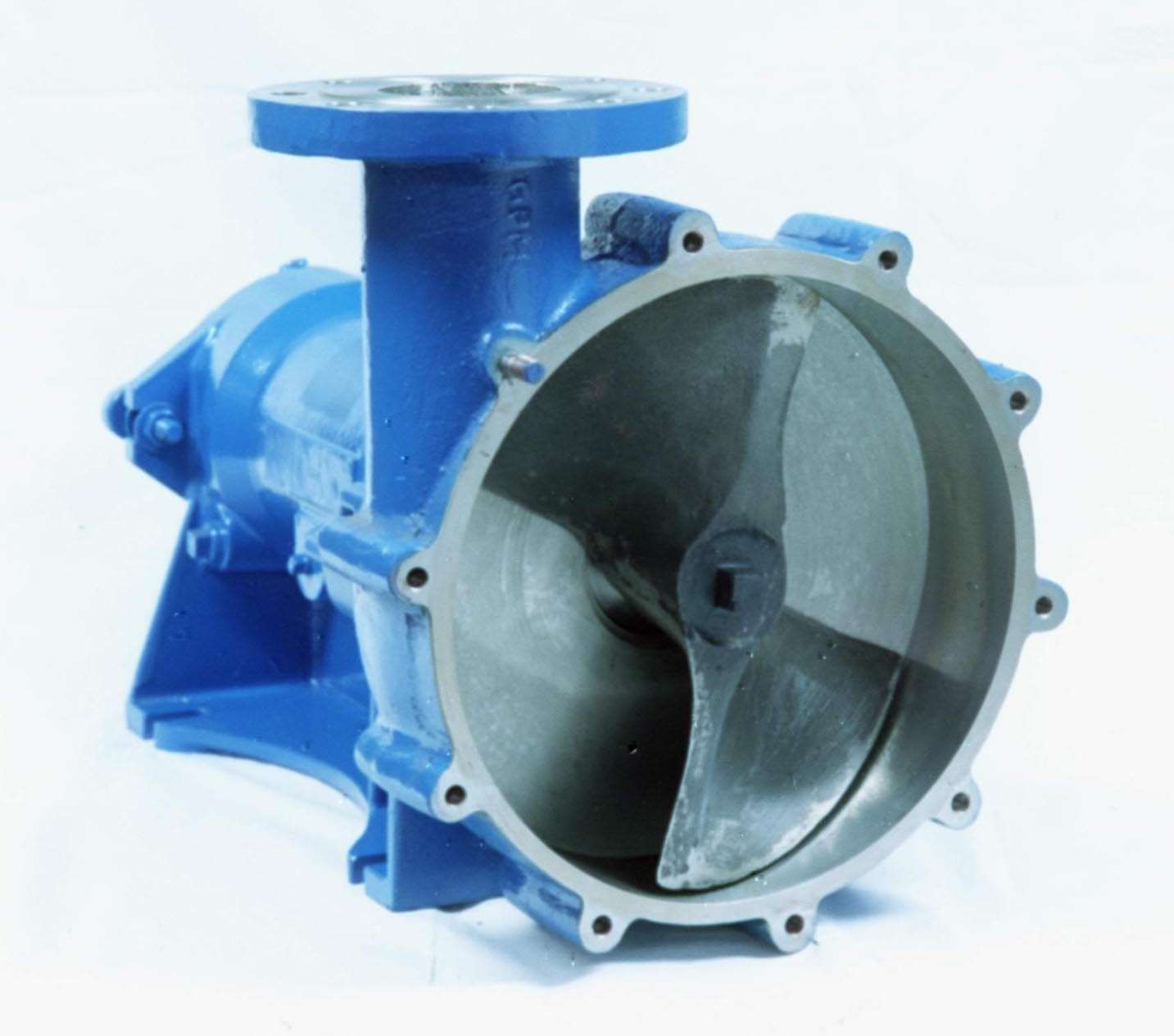

Jun 11, 2003 Series LS pump utilizes 1-piece, bow-tie impeller, which cleanly sweeps pump chamber, scooping product through pump rather than beating it. Capacities range up to 1,000 gpm with discharge heads up to 195 ft. Casing and suction cover are cast type CD4MCu with machined ASA150 flanged ports. To resist abrasive wear, impellers are 28% chrome-iron and are threaded-on for easy installation and removal. Removable shaft seal can be replaced without replacing entire shaft.

SMC Corporation Of America    Indianapolis, IN 46226

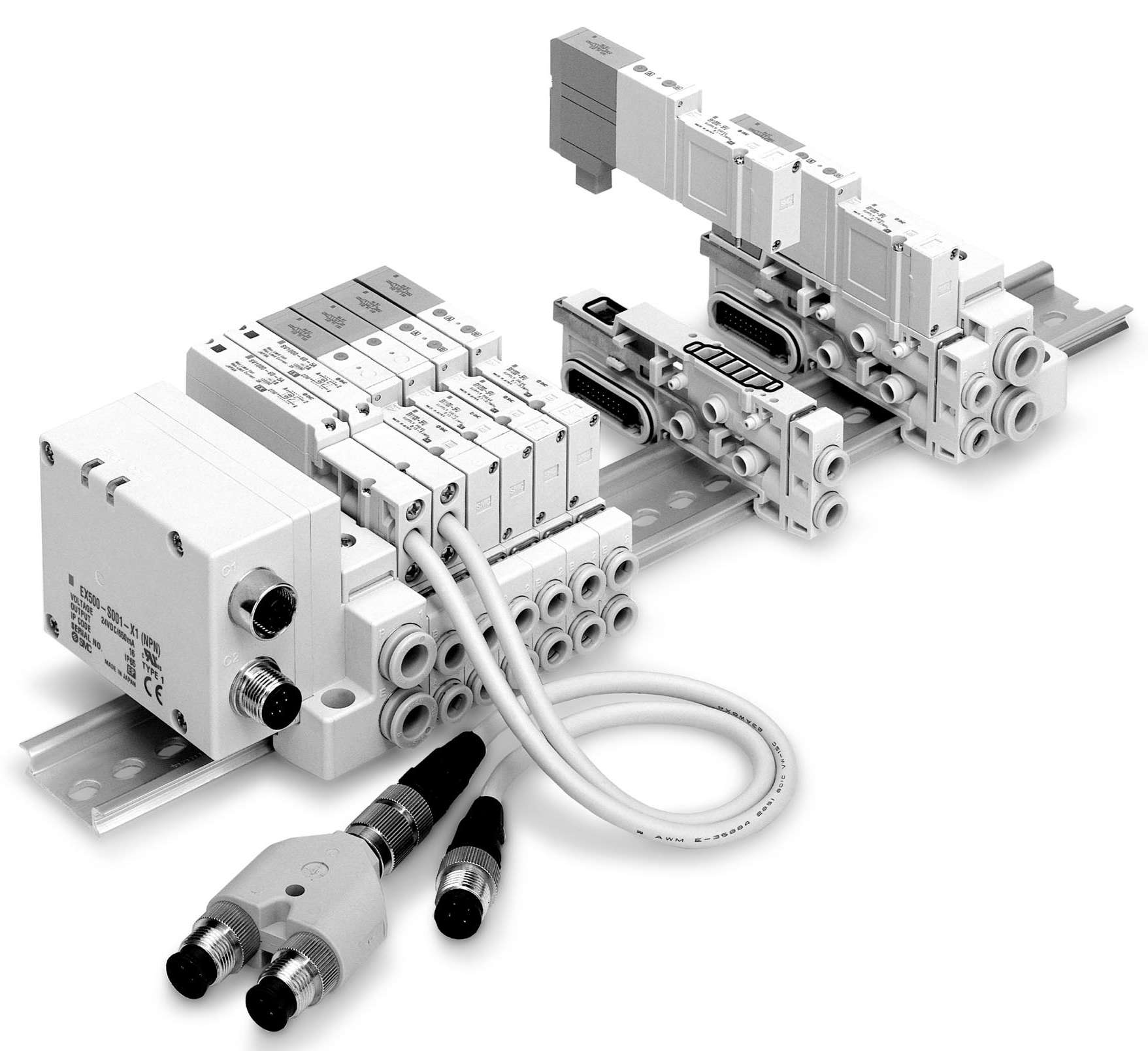

Jun 11, 2003 Series SV employs modular design that allows modification of manifold stations by snapping them together. Rated IP65, CE compliant valves are offered in serial interface and parallel wiring configuration. With life expectancy of 50 million cycles, product is offered in 4 sizes with flow capacities from 0.23–1.6 Cv. Dual 3 port valves in Series SV1000 and SV2000 allow individual control of A and B ports.

Glanon International, Inc.    Deer Park, NY 11729
Jun 11, 2003 Portable Hydraulic Oil Filtration System connects to injection molding machine oil reservoir through 2 lines and can be equipped with quick connect/disconnect fittings. Flow rates range from 3–24 gpm and filter through 3 filtration stages. Using cycle of passes through system, 98% of all contaminants are removed, extending hydraulic oil life 8–10 times or more.

Gore, W. L., & Associates, Inc., Industrial Filtration Technologies    Elkton, MD 21921

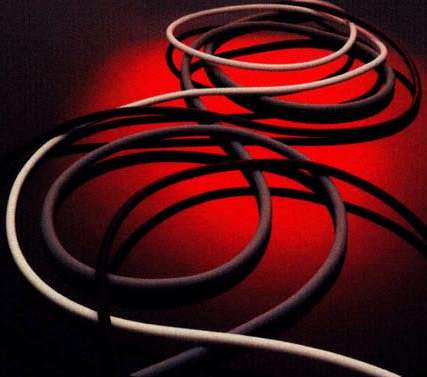

Jun 10, 2003 SIL-KORE™, for fiber-optic buffering and light-guide tubing in endoscopes and other medical devices, is highly flexible, autoclavable, and cold soakable. Fluoropolymer-silicone composite tubing is 30–50% lighter than conventional silicone and is compatible with most sterilization modalities. It comes in sizes from 0.5–14 mm. Silky smooth surface feel provides comfort for patients.

Atlas Copco Compressors Inc.    Holyoke, MA 01040 2768
Jun 10, 2003 Heatless, twin tower CD65-280 dryers operate up to 232 psig with pressure dewpoints of -40 or -100°F. They feature stainless steel inlet and check valves, fork lift slots and lifting eyes, and reversible inlet and outlet port connections. Simple control method uses switches and gauges for monitoring. Advanced control method, MKIV Elektronikon, comes with purge savings feature using PDP sensors, and allows adjustment of dewpoint and other settings/controls.

King Innovation    O'Fallon, MO 63366
Jun 10, 2003 SnapTap® Saddles reduce installation times for swing joints, automatic drains, and sprinkler heads by eliminating need for tools, hardware, and glue. Saddles cut through polyethylene pipe with patented cutting tip. They are constructed of impact-resistant materials and have ergonomically designed Hurricane Handle. Units are available in 1 x 1/2 in. or 1 x 3/4 in. FNPT styles, as well as 1 x 1/2 in. with 90° elbow. All sizes fit 80 and 100 lb. PE pipe.

Mass-Vac, Inc.    North Billerica, MA 01862 0359

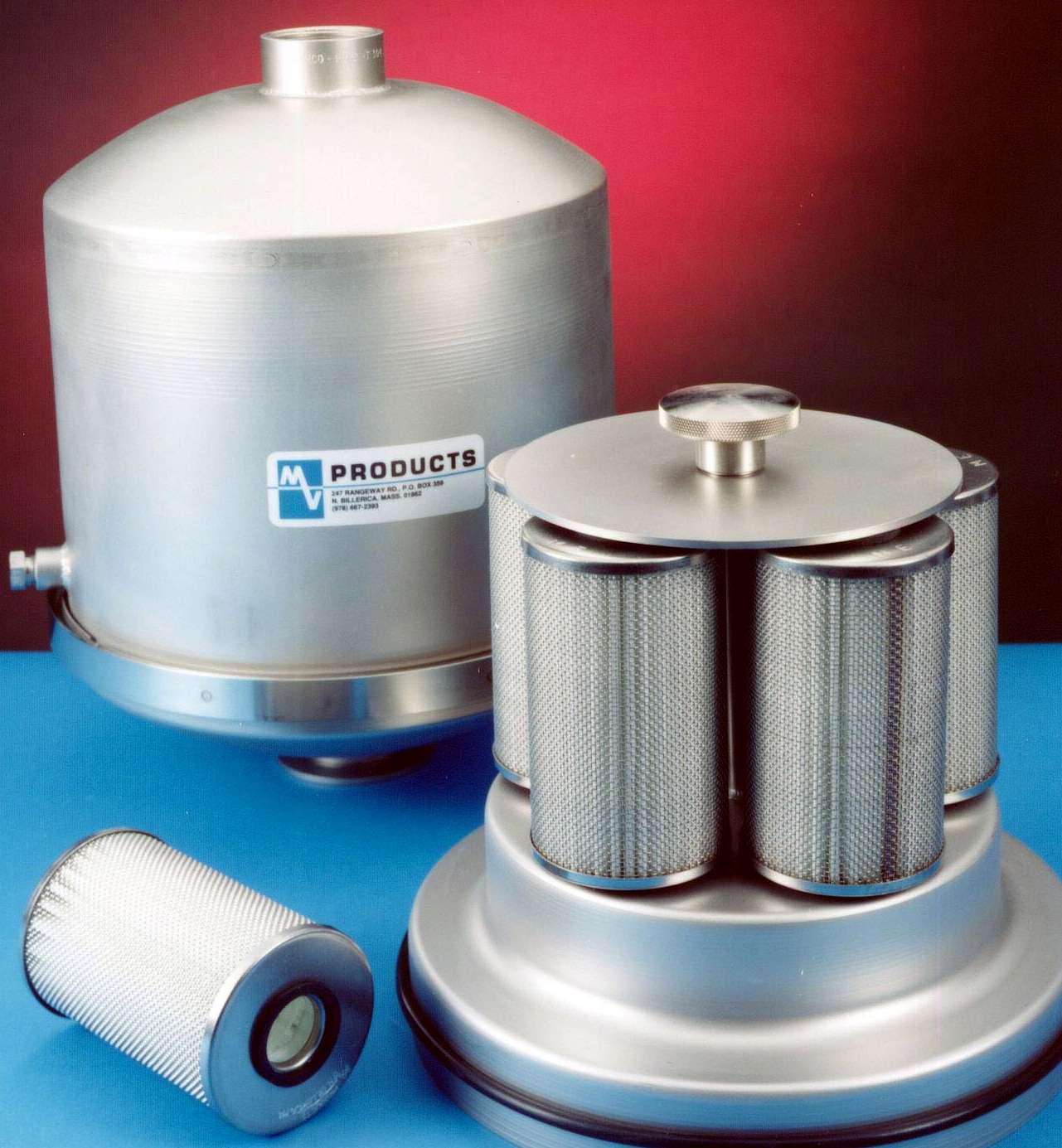

Jun 09, 2003 MV Maxi-Mistâ„¢ Oil Mist Eliminator high-capacity exhaust trap has parallel bank of five pleated microfiberglass coalescing filter elements with 0.1 µ pore size and 99.9999% efficiency. Product eliminates oil mist from industrial vacuum pumps used in casting, coating, chemicals, metal injection molding, etc. Trap is stainless steel with 10 in. dia. and 13.5 in. height, with 50 mm NW flange on the pump side and 1.5 in. NPT fitting at exhaust.

Upchurch Scientific, Inc.    Oak Harbor, WA 98277

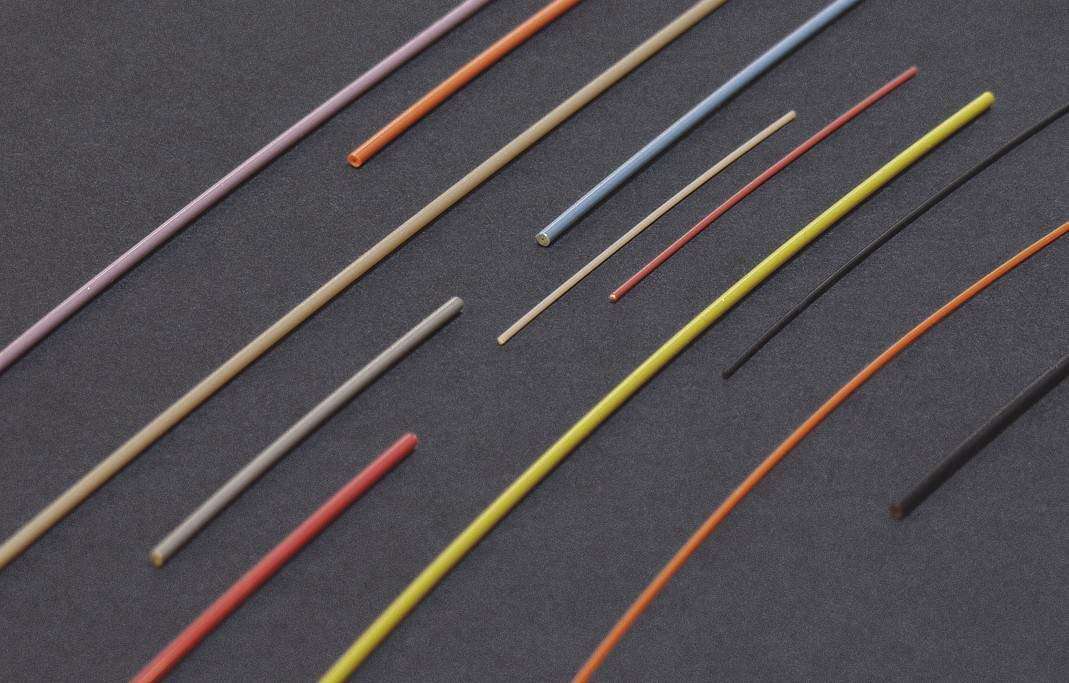

Jun 09, 2003 PEEKsilâ„¢ fused silica tubing offers chemical compatibility and low absorption characteristics of fused silica plus mechanical strength and sealing properties of PEEKâ„¢. Combination yields pressure ratings up to 15,000 psi, making tubing suitable alternative to stainless steel or PEEK tubing in many analytical systems. Sizes include 1/32 and 1/16 in. OD.

Spence Engineering Co., Inc.    Walden, NY 12586-0230

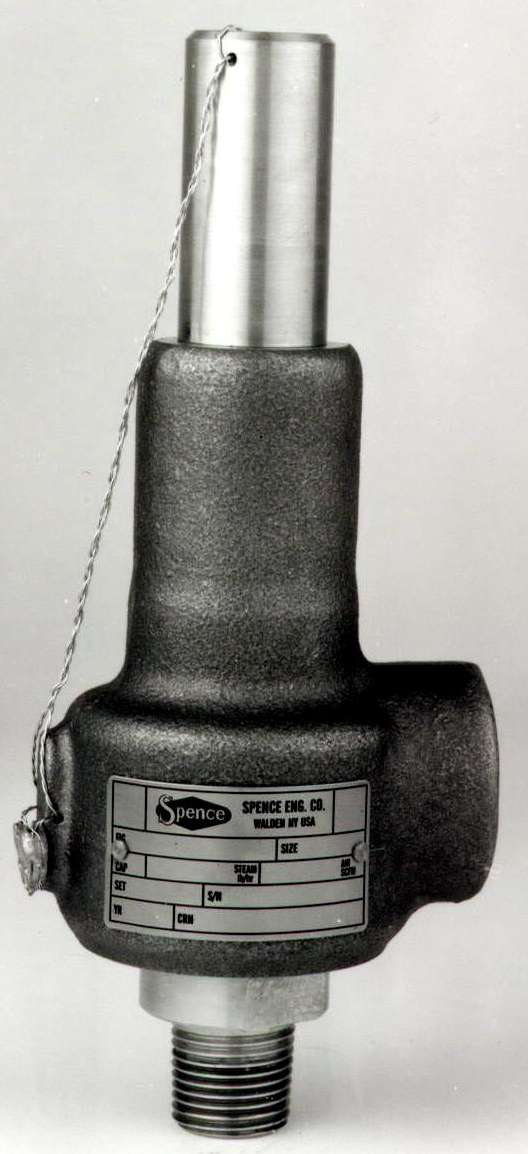

Jun 09, 2003 Figure 860 meets ASME Section VIII for liquid, steam, air, and gas services and is PED compliant. Fixed ring design is constructed of 316 stainless steel (including internals) for corrosion resistance, and soft seat option provides tight shutoff for applications when operating pressure is close to set pressure of valve. Product, available in pressures to 900 psig and temperatures to 422°F, is also suited for cryogenic applications down to -400°F.

Sprague Products, A Div. Of Curtiss-Wright Flow Control Corp.    Brecksville, OH 44141
Jun 09, 2003 Series SM-3 air-operated mini pumps feature air motor with standard, remote, single cycle, and manual operation. They develop high output pressures by applying principle of differential areas. Large area air piston drives small area fluid piston, that in turn pumps liquids at high pressures. Pumps feature standard mechanical separation, aluminum fluid end for oil service, and stainless steel for water and corrosive service applications.

Moyno Inc.    Springfield, OH 45501 0960

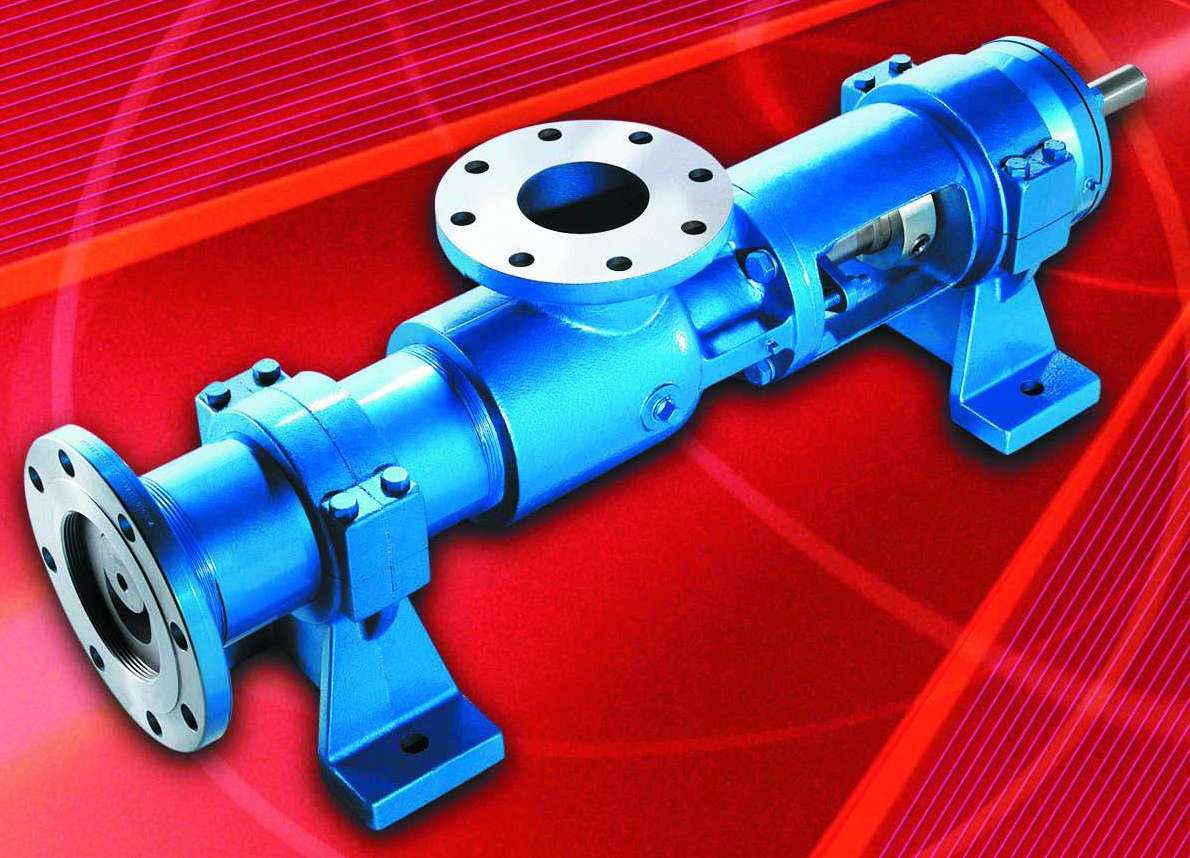

Jun 06, 2003 Suited for highly viscous, abrasive, and corrosive applications as well as thin, water-like liquids, PowerFlow pump utilizes hardened tool steel or hardened 17-4 PH stainless steel pumping elements. Metal stator enables unit to handle fluids with temperatures up to 500°F. Product provides differential pressure up to 1,500 psi and flow rates to 400 gpm. Proprietary single mechanical seal has positively driven dynamic face and anti-rotation pin on stationary face.

Colder Products Co.    St. Paul, MN 55114

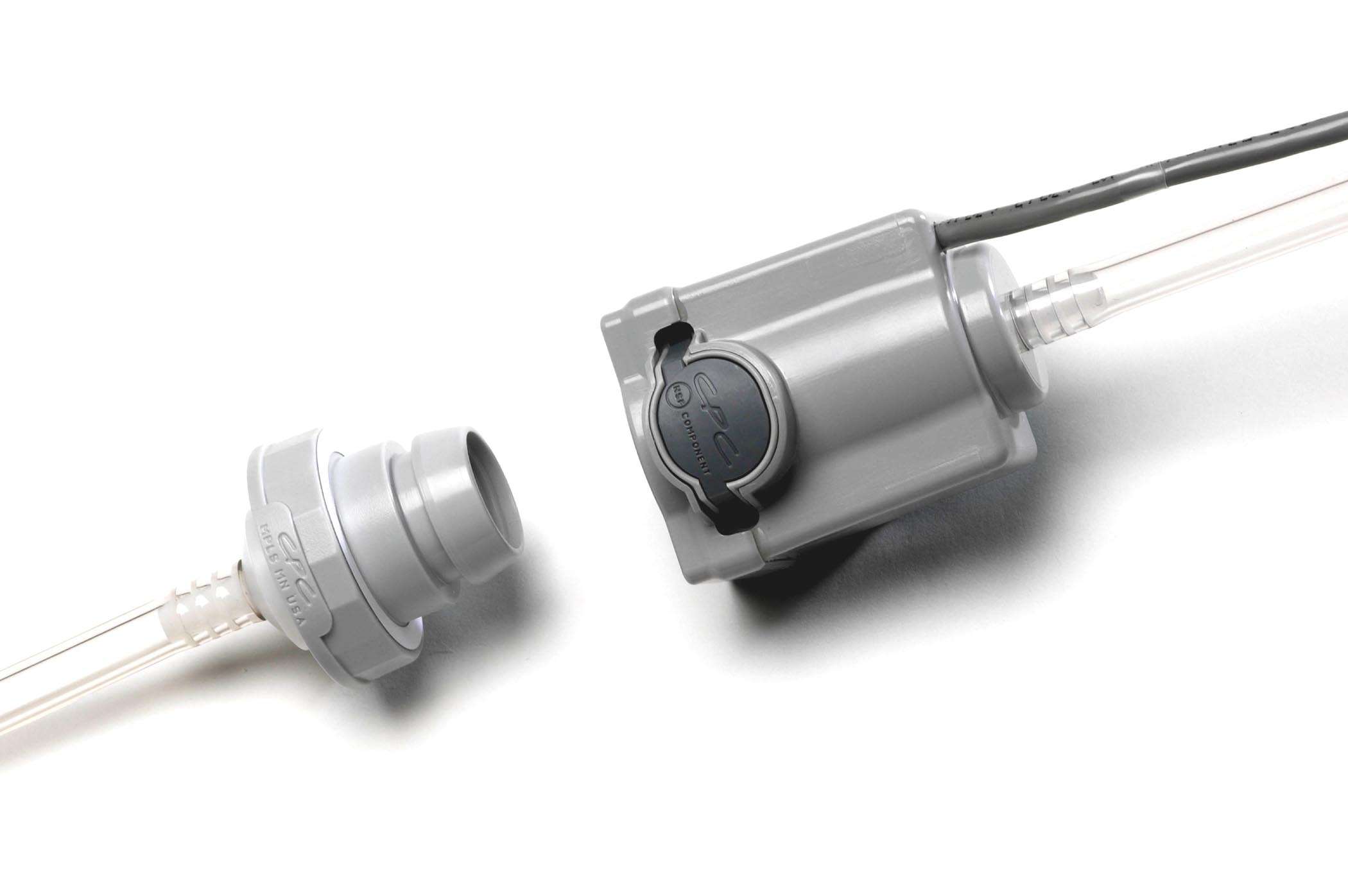

Jun 06, 2003 Smart Couplingâ„¢ Technology provides critical data used to achieve control of fluid connections. Insert portion contains RF tag that is programmed with unique product data, such as stocking history, package size, data code, and product characteristics. Body portion reads tag and communicates with devices such as computers and PLCs using standard data interfaces. Couplings include thumb latch for one-handed disconnection, and range in size from ¼â€“½ in.

Pipeline Inspection Company Ltd    Houston, TX 77055
Jun 05, 2003 Pig Tracking System consists of transmitter, tracking sensors, and standard batteries. Pipeline inspection transmitters handle 2–72 in. pipe diameters. User installs transmitters inside pig, launches pig, and waits for signal from either pig tracking sensors or optional wand. Transmitters are pressure and temperature resistant and water tight. Self-contained sensors are non-intrusive and can be strapped to pipe. Calibration is not required.

NewAge Industries Inc.    Southampton, PA 18966

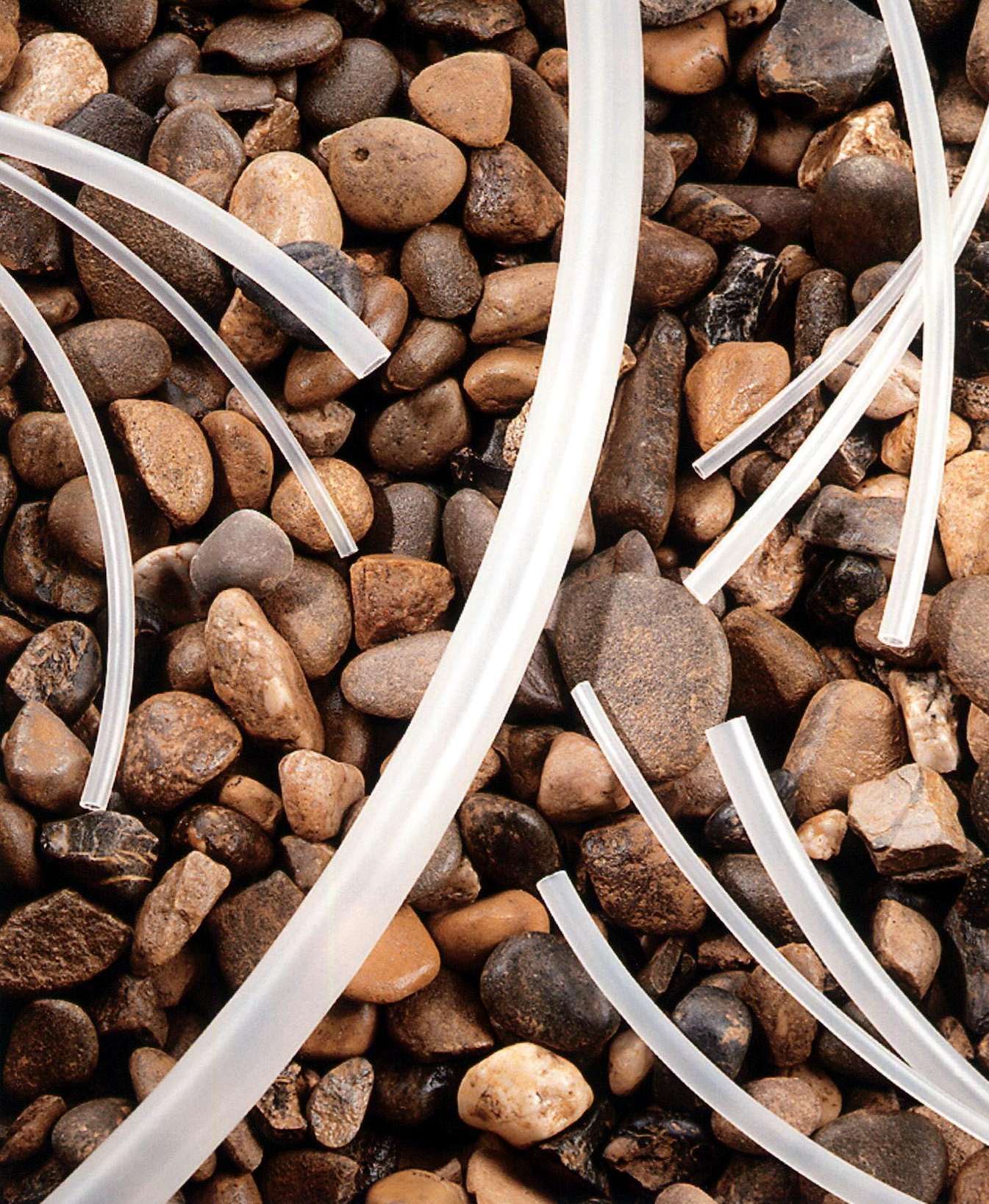

Jun 05, 2003 Prolite® Tubing offers chemical resistance, low moisture absorption, high dielectric strength, resistance to corrosion, and low surface friction. Sizes range from 1/8 to 1 in. ID and include push-to-connect fittings. Lightweight Prolite offers alternative to fluoropolymer tubing and is suitable for food and beverage processing, chemical lines, pharmaceutical processing, semiconductor manufacturing, electronic equipment and appliances, and general fluid and air transfer.

Emerson Process Management, Intellution Division    St. Louis, MO 63136 8506
Jun 05, 2003 Fisher® Design TBX valve handles cycling power-plant environments to provide combined pressure-temperature control within process applications. Flow-up configuration provides operating stability and ease of maintenance. Low-noise Whisper Trim® technology within trim configuration accommodates rapid changes in temperature. Manifold of variable-geometry Type AF nozzles produces fine spray mist over entire operating range.

TE Connectivity Ltd.    Berwyn, PA 19312
Jun 04, 2003 FL2500 heat-shrinkable tubing is flame-retardant, adhesive-lined polyolefin tube that seals and insulates electrical splices and in-line electrical components. Product is for harsh environments and is flame-retardant. As tube is heated to 135°C, polyolefin tube shrinks and adhesive lining melts. Tubing comes in 4 diameter sizes from 7.62 to 17.79 mm and shrinks at 4:1 ratio. Product comes in 4 cut lengths of 27, 50, 65, and 1,220 mm.

Colder Products Co.    St. Paul, MN 55114
Jun 04, 2003 NS4 Series Coupling, offered with non-spill shut-off valve, produces one audible click that confirms secure connection. Measuring ¼ in., product utilizes design with thumb latch which permits secure, single-handed operation. Connection withstands operating pressures from vacuum to 120 psig and temperatures from 32 to 120°F. Coupling features terminations of 3/8 in. OD PTF compression; 1/8, ¼, and 3/8 in. ID hose barb; and ¼ in. male NPT thread and ¼ in. male BSPT thread.

Colder Products Co.    St. Paul, MN 55114

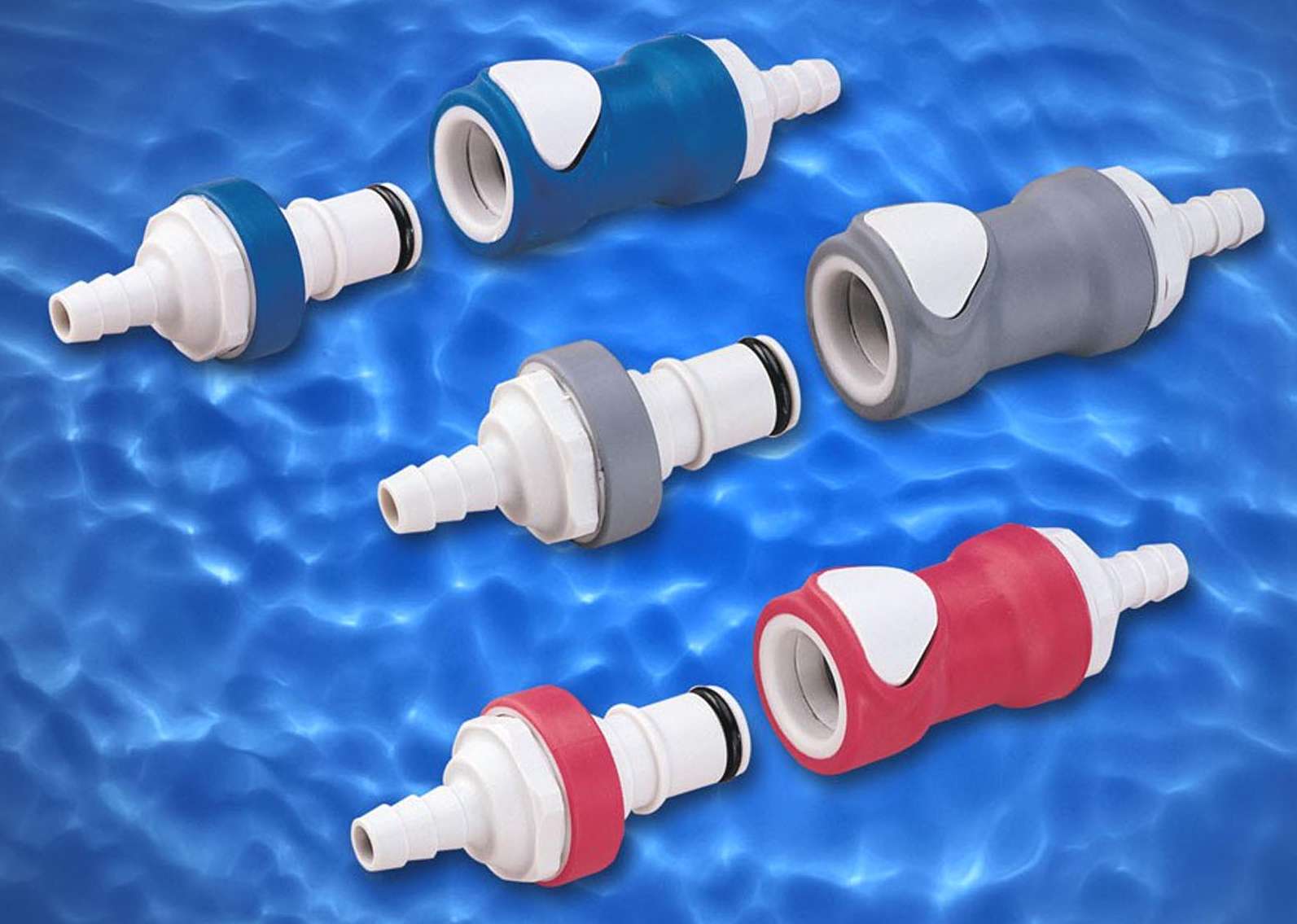

Jun 04, 2003 Series NSH non-spill, quick disconnect couplings feature all-plastic flow path for high-flow chemical handling and fluid media applications. Pressure balanced design enables fluid lines to be instantly disconnected under pressure. Thumb latch allows secure, single-handed operation, while audible click confirms secure connection is made. Integral termination fittings eliminate potential leak path. Connection withstands pressures from vacuum to 120 psig and temperatures from 32–120°F.

Aeris Corporation    Kalamazoo, MI 49001
Jun 04, 2003 Control Box provides precise pressure regulation to each air caster while floating large loads on thin film of air. It includes 4 or 6 self relieving pressure regulators with gauges, on/off inlet ball valve, main air supply pressure gauge, transport handle, and quick disconnect outlets. Box allows main plant air supply to be distributed to each individual air caster, compensating for off-centered loads. Casters transport loads from 200 lb up to thousands of tons.
