Sealant Equipment & Engineering, Inc.    Plymouth, MI 48170-0965
Aug 25, 2003 Micro-Kiss™ 2200–555 valves dispense single-component adhesives, sealants, or lubricants. They are available with threaded material and air inlet to operate as single unit, or with manifolded material and air inlets for dispensing multiple beads at same time. Double-air-operated valves include hardened internal components and divorced air and fluid design. No-Drip™ shut-off and flow rate control ensures accurate, drip-free dispensing.

Norgren    Littleton, CO 80120
Aug 22, 2003 Herion Series 97100 soft-seal spool valve provides directional control of rotary and linear NAMUR mount actuators. Featuring mechanical return spring for safe switching, valve comes with reversible seal, allowing for 3/2 or 5/2 control. Pushbutton manual override with locking capability is standard. Exhaust air feedback lets spring housings of single acting actuators breathe clean instrument exhaust air.

Wanner Engineering, Inc.    Minneapolis, MN 55403

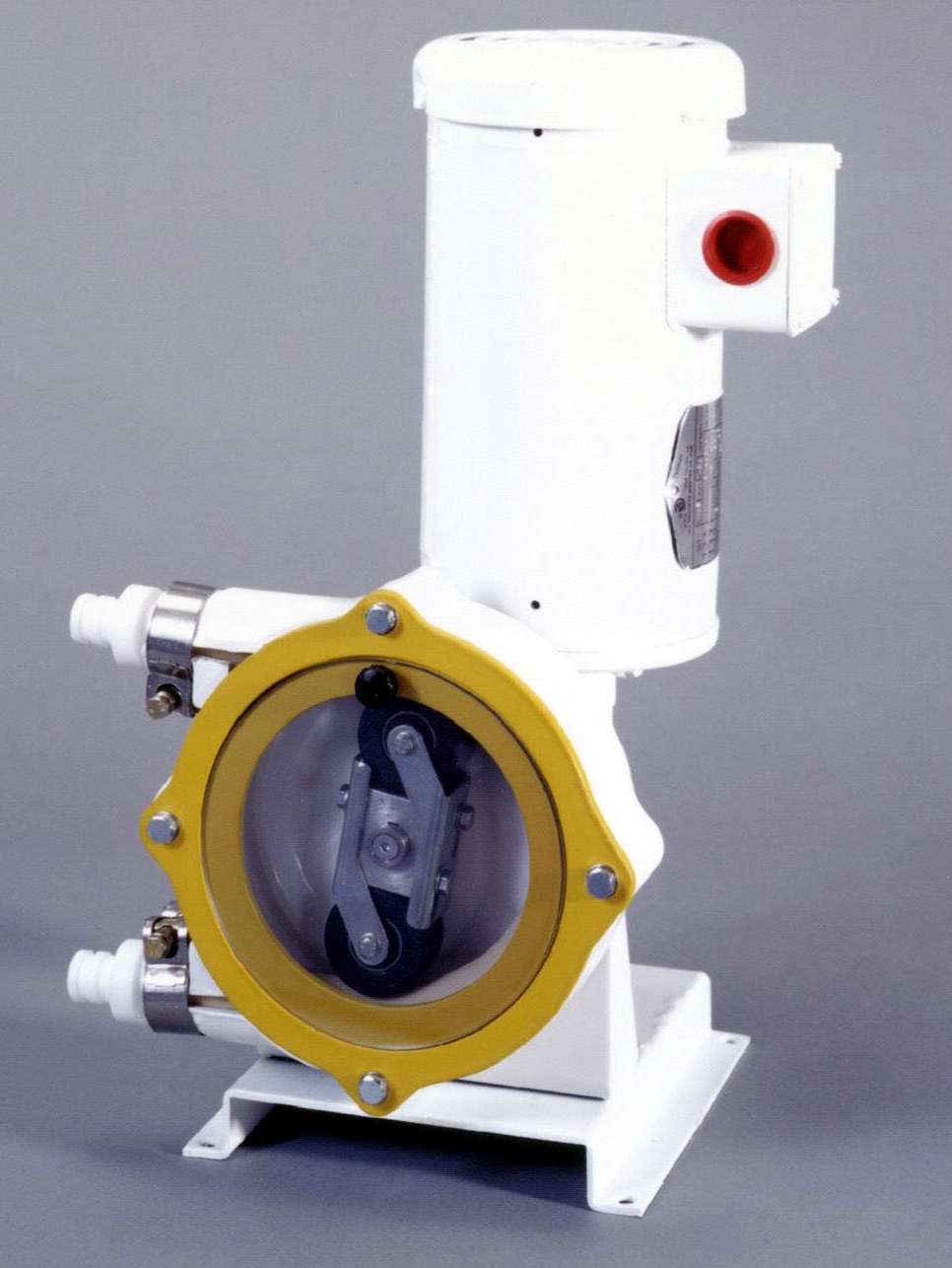

Aug 22, 2003 Vector Series sanitary grade pumps feature FDA approved Varprene or PharMed® hoses. They provide flow up to 18.5 gpm, max pressure to 30 psi, and can handle fluid temperatures up to 160°F. Self-priming pumps do not have cups, packings, or seals. There is no lubrication-filled cavity to contaminate product. Heavy-duty roller bearings provide smooth operation and can run dry without damage. Inlet/outlet connections are stainless steel sanitary tri-clamps.

Tridak Div., Indicon Inc.    Brookfield, CT 06804 1122
Aug 22, 2003 Model 455 pneumatically operated, normally closed, pinch-type valve features single wetted element made of Teflon. Element is disposable and can be supplied in other materials such as Urethane, PVC, and Silicon. Valve provides micrometer control over material flow, and precise adjustable control over tube closure. It includes quick-change tube assembly and variety of nozzle adapters.

Norgren    Littleton, CO 80120

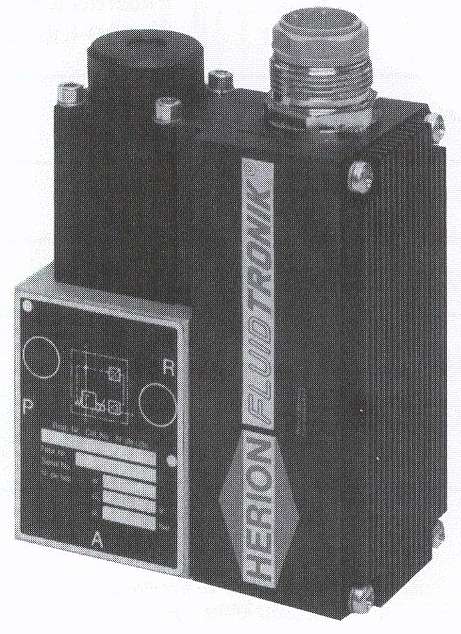

Aug 21, 2003 Proportional pressure control valve allows infinitely variable adjustment of pneumatic pressure. Integrated amplifier and pressure transducer control valve outlet pressure in response to electrical command input signal. Actual outlet pressure is continuously sensed by built-in pressure transducer and fed back to amplifier. Valve is offered in NPT 1/4 and G 1/4 port sizes with output pressure ranges of 0–115 psi.

Dixon Valve & Coupling Co.    Chestertown, MD 21620 1135
Aug 21, 2003 Made of 316L stainless steel, ½ and ¾ in. micro fittings and valves are available with 3 styles of clamps and various ferrule configurations. Adapters may be used with hose, weld, clamp, or pipe type connections. Elbows are offered in 45° and 90° as radius or with extended tangents. Ball valves offered include 2-way, fully encapsulated, non-encapsulated, carbon reinforced Teflon®, and 3-way versions with various flow patterns.

Parker Hannifin Corp., Tube Fittings Div.    Columbus, OH 43228
Aug 20, 2003 Triple-Lok 2 incorporates precision-engineered O-ring groove that provides maximum sealing performance without weakening or compromising fitting nose. Groove prevents O-ring overfill and pinching and accepts standard O-rings in most sizes. Soft-seal, stainless steel, 37° flare fitting is available in ¼-2 in. standard sizes, and is adaptable to metric tubing by changing the sleeve.

Oseco    Broken Arrow, OK 74012 1449
Aug 19, 2003 Series MVRB Metal Vent Reverse Buckling rupture panels can avert catastrophic explosions caused by overpressures in dust collectors, conveyor systems, and dryers. Smooth surface prevents product buildup and contamination, while non-fragmenting design increases process safety in event of panel rupture. Round panels range from 12–36 in. dia and come in SS, nickel, inconel, or monel. They feature 90% operating ratio and perform consistently in applications up to 700°F.

Alfa Laval Flow, Inc.    Pleasant Prairie, WI 53158 0909
Aug 18, 2003 Toftejorg equipment includes rotating spray heads and rotating jet heads that are suited for cleaning tanks from 500 gal to silos with 500,000 gal capacities. Rotary spray heads clean tanks by spraying fan of cleaning media against tank walls, while rotary jet heads spray jets of cleaning media. Cleaning fluids from both products reach every square inch of tank walls, removing any residual material. Equipment is suited for food, beverage, chemical, and marine industries.

Norgren    Littleton, CO 80120
Aug 18, 2003 The 80% Shut-Off Switches meet UL requirements for Refrigerant Recovery Equipment and are specified to meet dimensions of recovery tank manufacturer. They offer pressure rating to 400 psig and are standard for 30 and 50 lb DOT refrigerant tanks. UL endurance tests have been performed at 120/60, 240/60, 24/60, 5 Vdc, 12 Vdc and 24 Vdc.

Norgren    Littleton, CO 80120
Aug 18, 2003 Excelon® FRLs feature built-in lubricator flow sensor, which provides nearly constant oil/air ratio over wide range of airflows. Complete 360° visibility of sight feed dome simplifies installation and adjustment. Featuring quick-release bayonet bowl, regulator-balanced valve minimizes effect of variation in inlet pressure on outlet pressure.

Leslie Controls, Inc.    Tampa, FL 33637
Aug 14, 2003 Suitable for use with liquids, gases, steam, and slurries, K-Max offers stable, bi-directional flow and includes steel-case, fire-resistant diaphragm actuator. Valve also includes enclosed actuator linkage with gasketed steel cover. Available in 1–8 in. sizes, valve has ANSI 150-300-600 ratings in Carbon Steel, 316 Stainless, Alloy 20, Hastelloy C, and Titanium. Full size trim and 3 reductions are available.

TE Connectivity Ltd.    Berwyn, PA 19312
Aug 14, 2003 Model DV-5 automatic water control valve utilizes reinforced, natural rubber diaphragm, which eliminates rust accumulation and allows user to externally reset valve. Internal and external, corrosion-resistant Rilsan coating makes valve suited for seawater and brackish water supplies. It can be used for vertical and horizontal applications in deluge, preaction, and special-type fire protection systems. Valve comes in 4 and 6 in. sizes.

Beswick Engineering Co., Inc.    Greenland, NH 03840
Aug 14, 2003 Ultra-miniature Model PRD-1-N-1 features max width of 1 1/32 in. and max height of 1 in. It controls output pressures from 0–30 psig. Maximum rated inlet supply pressure is 300 psig. Both inlet and outlet ports are tapped 10-32 UNF. O-ring seals and diaphragm are Buna-N. Non-relieving, brass regulator is lightweight, can be mounted inline, and is suited for gas and pneumatic pressure regulation applications.

Smith & Loveless, Inc.    Lenexa, KS 66215 1234
Aug 13, 2003 With 155 ft head, DUO-DUCT® underground pump station includes pressure transducer that is in fluid communication with integral base beam suctions and static/dynamic pump control. Pressure switches, in response to incompressible fluid, relay control logic to control panel. Integral base beam suctions serve as conduits to wet well, provide structural support, and prevent piping strains. Options include 4 or 6 in. pumps, 7 or 8 ft shell diameter, and solid state controls.

Stoddard Silencers, Inc.    Grayslake, IL 60030
Aug 13, 2003 Model PSE Package Standard Enclosure provides as much as 15–10 dbA attenuation and exceeds OSHA noise regulation requirements for silencers. It includes cooling fan, air inlet with inlet screen and sound baffling, and fire retardant, acoustical polyurethane foam sound absorption material. Aluminum enclosure is corrosion-resistant and can be installed inside or outside plant. Two hinged doors on each side provide full access.

Dresser Instrument Headquarters, Ashcroft Pressure & Temperature Instrument Operation    Stratford, CT 06614 5145
Aug 12, 2003 Ashcroft® Type 311/312 midi-seal offers sufficient displacement to drive variety of pressure instruments, including switches, transducers, and digital gauges. Continuous-duty seal is all-welded to eliminate possible leakage of process media. It is offered with many process connections including 1 in. male NPT and flushing connection. Seal works with 3½ and 4½ in. Bourdon tube gauges for pressure ranges of vacuum through 1,000 psi and 100–1,000 psi, respectively.

Moyno Inc.    Springfield, OH 45501 0960

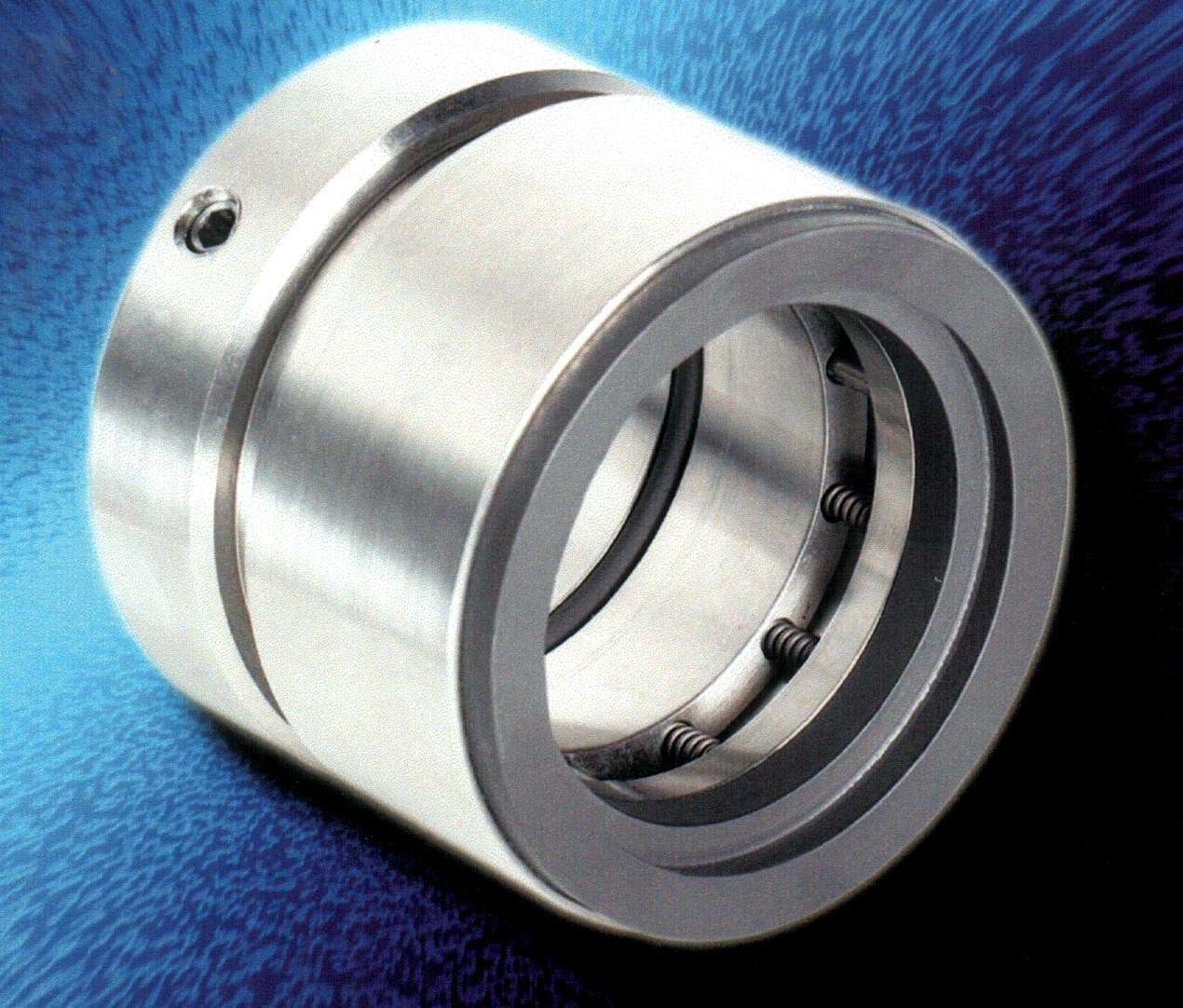

Aug 12, 2003 Power Sealâ„¢, used on PowerFlow pump systems, withstands operating conditions with temperatures up to 350°F and pressures to 200 psi. Made of 316 stainless steel, seal features Viton O-rings and hard silicon carbide faces. Thick cross section provides effective handling of high starting torques encountered with solids-laden slurries. Beveled profile of housing allows for free draining and higher fluid circulation.

Walchem Corp.    Holliston, MA 01746 1460

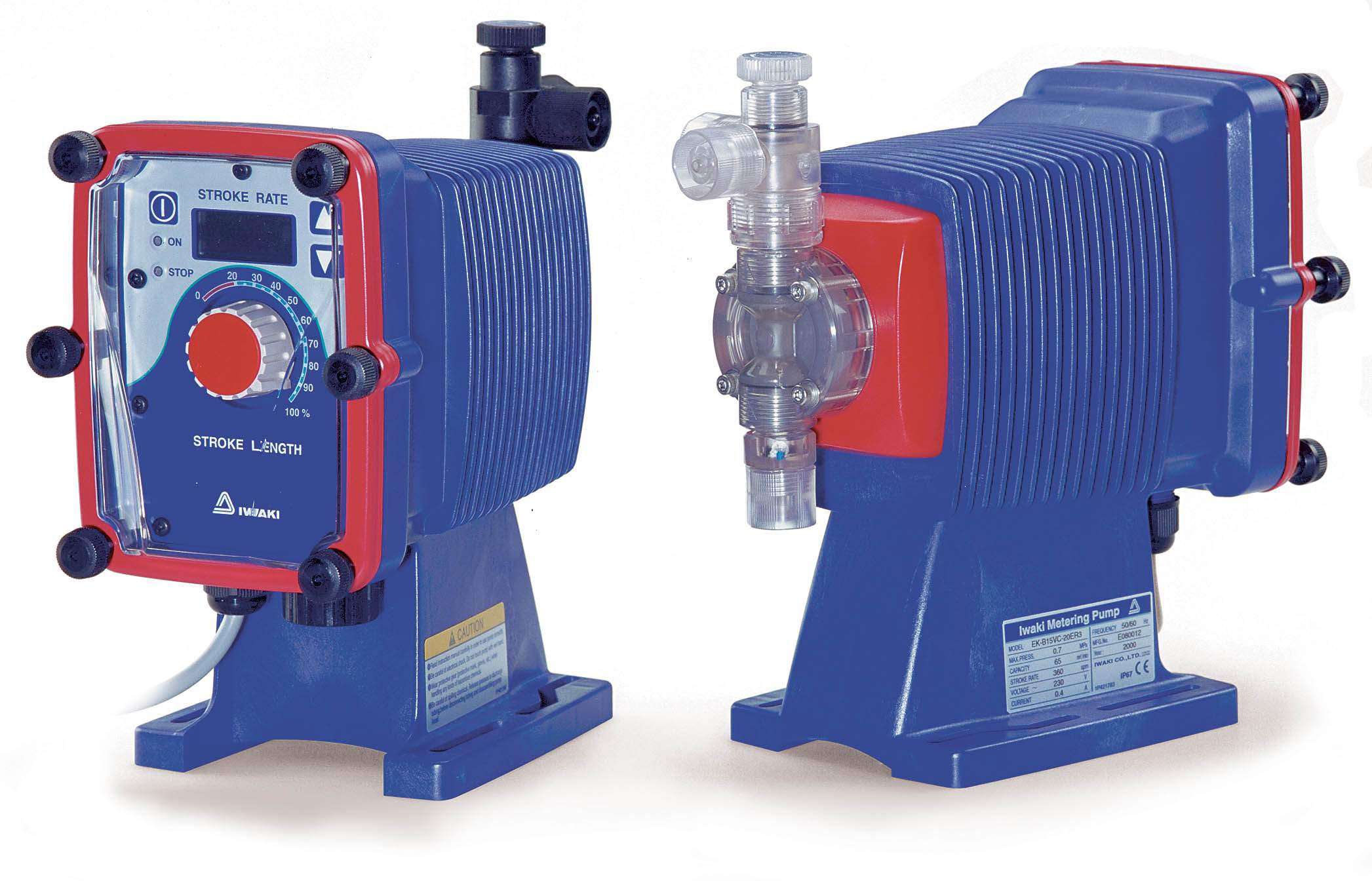

Aug 11, 2003 Series EK waterproof, solenoid-driven, diaphragm metering pumps are rated IP67 with capacities to 6.7 gph and max pressure of 150 psi. At 360 strokes/min, they provide 1,800:1 turndown ratio. Stop function and external control function provide proportional control. Membrane switches and stroke control are mounted opposite liquid end, under protective cover. Display utilizes high temperature LCD for protection from sunlight in outdoor applications.

Frommelt Safety Products    Dubuque, IA 52002 2654

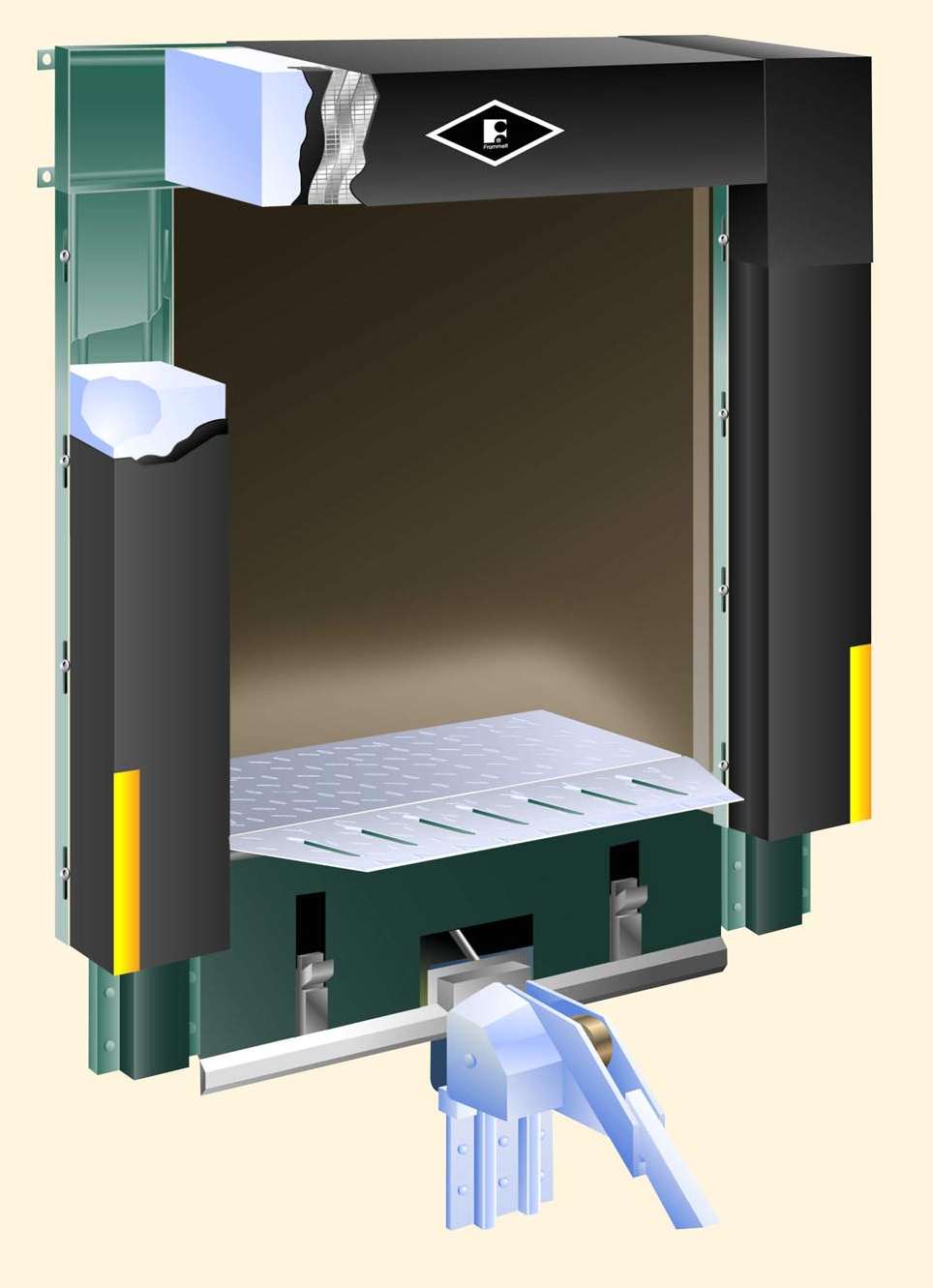

Aug 11, 2003 By employing heat-dissipating FIREFIGHTERâ„¢ dock seal technology, foam dock seals and ELIMINATORâ„¢ shelters are equipped with both head pads and head curtains. INSULATORâ„¢ seals also include side pads. FIREFIGHTER technology prevents dock seals from burning from heat of trailer marker lights.
