Fairchild Semiconductor Corp.    South Portland, ME 04106
Apr 05, 2005 Manufactured in 20-pin TSSOP package, FMS6403 Pb-free integrated video filter is selectable for SD, PS, or HD standards. It offers tri-level sync and bypass mode that permits passing of 1080p and HDTV signals. Featuring true 2:1 Mux inputs for YPbPr or RGB inputs and triple sixth order filters with selectable 30, 15, or 8 MHz cutoff frequencies, device accommodates worldwide video formats and can also be used as anti-aliasing or reconstruction filter.

ifm efector, Inc.    Exton, PA 19341
Apr 04, 2005 Used to continuously monitor compressed air systems, efector Metris divides plant into zones based on number of fittings and potential leakage points in any area. Sensor can be mounted in supply pipe to monitor one machine or in plant zone to monitor several machines, sensing compressed air levels when equipment is on or off. Micro DC, PNP sensor models SD6001 and SD8001 have respective measuring ranges of 0-44 and 0-132 scfm.

Harvard Apparatus, Inc.    Holliston, MA 01746 1371
Mar 31, 2005 Infusion Only Syringe Pump, PHD 22/2000, is supplied standard with 2-syringe rack that holds syringes of various sizes; multi-syringe racks are also available for when it is necessary to pump more than 2 fluids. With accuracy to 0.35%, pump produces up to 50 lb of linear force through flow rate range of 0.0001 µl/hr to 220.8 ml/min. It can also be upgraded to become Infuse/Withdraw pump or Programmable Pump depending on application requirements.

A-T Controls, Inc.    Cincinnati, OH 45242
Mar 31, 2005 Constructed of 316 stainless steel, TRIAC Series 33, 43, and 53 are suited for mixing, diverting, and multi-directional flow control. Design permits in-line maintenance and features 5-seat, full-port construction to provide equal seat loading and positive sealing at any port. Balls offer L-, T-, I-, TT-Double T-, and LL-Double L-Port configurations. Valves come in 3-, 4-, and 5-way models in ¼-4 in. sizes and can be configured for ~150 flow pattern combinations.

John Crane Group / Mechanical Seals    Morton Grove, IL 60053

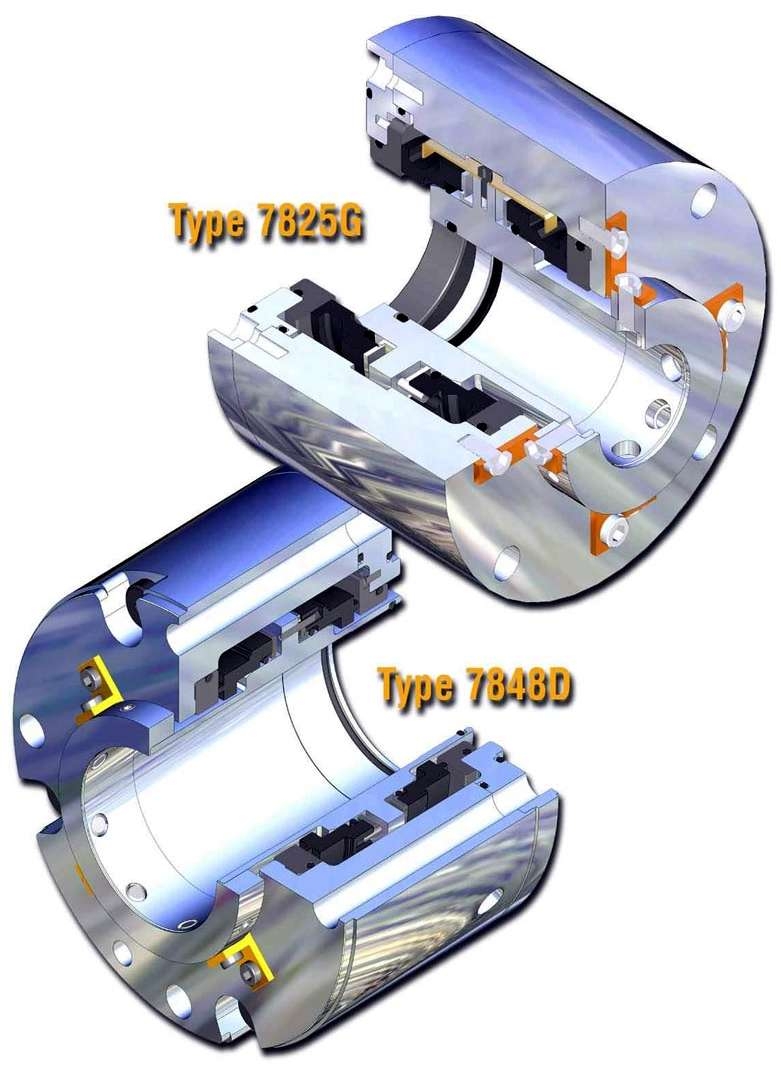

Mar 30, 2005 With modular cartridge design, gas-lubricated 7800 Series supports contacting dry, contacting wet, non-contacting, or combination of non- and dry contacting seal technology without change of adaptive hardware. Type 7828G non-contacting, gas lubricated double seal uses dry nitrogen as barrier gas and spiral groove technology to separate primary seal faces. Hybrid 7828GD offers combination of non-contacting seal faces in-board and dry contacting faces out-board.

SKF Motion Technologies    Lansdale, PA 19446

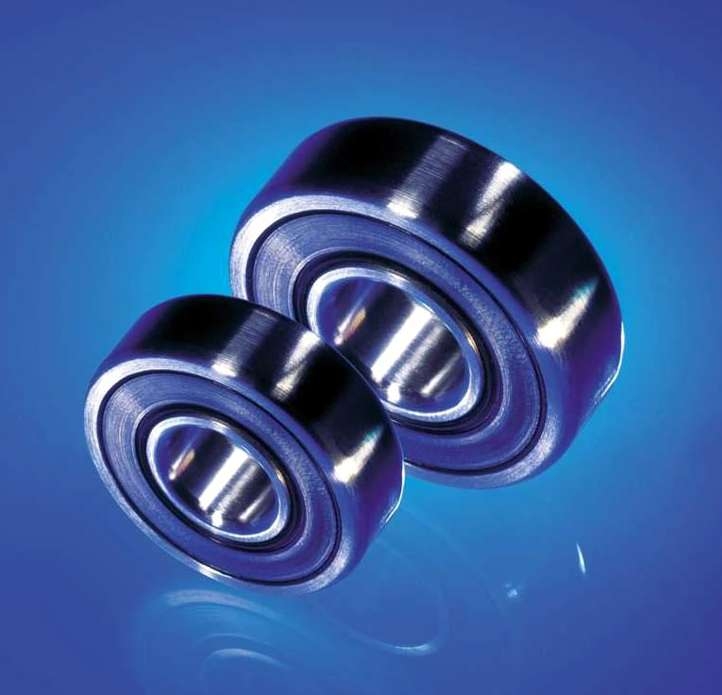

Mar 30, 2005 Types RSL and RSH nitrile rubber seals protect against contaminants, such as mineral oil-based lubricants, fuels, oils and greases, dust, and water. Optimized sealing is provided by combination of seal lip and additional labyrinth formed by gap between tapered rubber part and inner ring shoulder. Use of sheet steel reinforces rubber material, keeping seal stiff. Seals are available for bearings with bore diameters from 6-25 mm and with max OD of 52 mm.

Ruthman Pump & Engineering    Williamstown, KY 41097

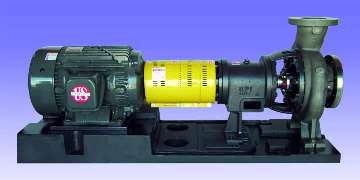

Mar 30, 2005 Gusher Pump Series 7071 is suited for automotive, chemical plants, wastewater, filtration systems, and municipal and recreation parks. Machined to precision flatness, cast iron base can be grouted with preformed drip channel. It is available in various sizes for all models in 7071 Series. Ridged fabricated formed steel base is also available.

Sealant Equipment & Engineering, Inc.    Plymouth, MI 48170-0965
Mar 29, 2005 Positive-displacement Series 2600-003 dispenses repeatable shots of low- to high-viscosity adhesives, sealants, and lubricants. Featuring pneumatic, double-acting design, unit may be mounted to fixed or movable tooling and activated by automation, hand, or footswitch actuator. It includes hardened internal components and wear-resistant seals. Shot volumes are manually adjustable from 0.015-2.0 cc. Stainless steel model is available for corrosive materials.

Leonard Valve Co.    Cranston, RI 02910
Mar 29, 2005 Models TM-420, TM-520, TM-820, TM-920, TM-1520A, and TM-2020A adjust to varying flow requirements for tempered water in industrial facilities. They feature DURA-trol® solid bimetal elements, integral supply checkstops, wall supports, cast lever handles, and locked temperature regulators. Products are offered from ¾ in. inlet with 1 in. outlet and flow rates from 1.0–35 gpm to 2 in. inlet with 2 in. outlet and flow rates from 1.0–190 gpm.

Edwards Vacuum Technology    Wilmington, MA 01887
Mar 29, 2005 Based on double-ended screw technology, IDX1000 utilizes double-ended design that eliminates axial forces. It has no lubricants under vacuum, resulting in elimination of process contamination within oil or final product. Variable pitch geometry provides staged compression along length of screw, and bearing and gearbox lubrication system uses cooled, filtered oil. With 950 m³/hr. capacity, product offers dust handling capabilities.

Plast-O-Matic Valves Inc.    Cedar Grove, NJ 07009
Mar 29, 2005 With no wetted metals or external fasteners, ½ in. Series BSR is designed for high-purity or corrosive environments. Backpressure can be as high as inlet pressure without affecting performance. Diaphragm style valves use compressed air for operation and will close in event of pressure loss. Valve bodies are unpigmented polypropylene or grade 1, type 1 PVC. Internal metal springs are isolated from process liquid by Viton or EPDM redundant seals.

J. W. Winco, Inc.    New Berlin, WI 53151
Mar 28, 2005 Available in various sizes, Metric Size Oil Seals feature steel cores with outer diameters in nitrile-butadiene-rubber or fluorocarbon-rubber (Viton). Type A version has sealing lip with garter spring, while type AS version has additional dust lip. Additional types are available.

Bivar, Inc.    Irvine, CA 92618 2593
Mar 28, 2005 Offered in 571+ different styles and sizes, line of snap-in and vertical, standard-mount card guides accommodate 1/16, 3/32, or 1/8 in. PCBs and are manufactured in compliance with WEEE and RoHS Pb-free materials and processes. Offered in 31 styles, VERT-O-GIDEâ„¢ offers 2-channel vertical guide for 1/16 in. PCBs. Line also includes CARD-O-PULLâ„¢ PCB ejectors, inserter/extractors, PCB handles and CUT-OUT-COVERâ„¢ connector cutout covers.

GE Energy    Atlanta, GA 30339
Mar 28, 2005 Stress corrosion cracking screening process, SCCScreenâ„¢, offers oil and gas pipeline operators means of complying with US Office of Pipeline Safety advisory to evaluate SCC-susceptible lines. Adopting select aspects of in-line inspection and direct assessment, 3-phase process uses Ultrascan crack detection tool for liquid pipelines and combination Magnascan and Transcan runs analyzed with proprietary criteria for gas pipelines.

Novaflex Group, The    Richmond Hill L4B 1B7  Canada
Mar 25, 2005 Yellow Jack hose, rated for full vacuum, features interlock construction for combination of flexibility and kink- and crush-resistance. Smooth interior is constructed from EVA/Polyethylene co-polymer, and heavy-duty external wear rib provides protection against abrasion. Molecular bonding process used in construction eliminates possibility of delamination of separate layers. Available 1½â€“4 in. dia, hose has temperature rating from -40 to +140°F.

Advantapure, Div. Of NewAge Industries    Southampton, PA 18966
Mar 24, 2005 Both APSM and APSW hoses are made from low volatile grade, platinum-cured silicone with multi-ply, mandrel-wrapped fabric provided for reinforcement. APSW also contains steel reinforcing wire for added pressure and vacuum capabilities plus kink and crush resistance. Cleanroom manufactured hoses are available in sizes from ½-4 in. ID and meet USP Class VI, FDA CFR 177.2600, ISO 10993, NSF 51, European Pharmacopoeia 3.1.9, and 3A standards.

Dynamic Sealing Technologies, Inc.    Andover, MN 55304
Mar 22, 2005 Custom rotary union/electrical slip ring assembly carries Class 1, group C explosion-proof certification for hazardous locations. Rated to 1,000 psi, rotary union features all-stainless steel construction for use in washdown environment. It incorporates DynaSeal Teflon® seals; three ¾ in. NPT flow passages that feed into common passage in housing; and 16, ¼ in. NPT connections to feed individual stations on equipment.

Hayward Industrial Products Inc., Hayward Filtration    Elizabeth, NJ 07207
Mar 18, 2005 With housing cover sealed directly and positively onto installed filter bag, TOPLINEâ„¢ Series prevents unfiltered process media from bypassing bag. Filters feature smooth, bead-blasted finish, 2-weld design, and adjustable mounting legs. Two TOPLINE models fit filter bag sizes 01 or 02. Housings are available in carbon steel or type 316 stainless steel for corrosion resistance. Side inlet, flow-through-top design results in minimum headroom of unfiltered liquid.

All-Flo Pump Co.    Mentor, OH 44060
Mar 17, 2005 Designed for ½ in. bolted plastic, air-operated diaphragm pumps, Max-Pass Valve System pumps solids up to 3/8 in. in size and produces 27% increase over dry suction lift of ball valve. It allows for installation of pump in standard orientation, upside-down, or on pump's side.

Moyno Inc. Unit Of Robbins & Myers, Inc.    Springfield, OH 45501 0960
Mar 16, 2005 Moyno® Metering Pump is available in bare shaft, close-coupled, and motorized configurations, each delivering smooth metered flow, free from pulsations and variations to prevent material waste or mixture imbalance. All handle variety of fluids from clean, clear liquids to shear sensitive and viscous fluids as well as abrasive, corrosive materials. Applications include chemical processing, pulp and paper, petrochemical, food, and wastewater treatment.
