Humphrey Products    Kalamazoo, MI 49003
Oct 28, 2005 Series 310 and 410 valves are comprised of 1/8 in. ported, 3- and 4-way, direct-acting solenoid valves suited for pneumatic applications. Mounted in-line or on subbase, products have short-stroke balanced poppet design that requires no lubrication and tolerates impurities in air system to ensure positive sealing. Series 310 has 0.12 Cv, 410 Series has 0.14 Cv, and both are rated for air and inert gas from vacuum @ 28 in. Hg to 125 psig.

J. W. Winco, Inc.    New Berlin, WI 53151
Oct 28, 2005 Suited for hydraulic power packs, oil breather plugs are made of orange polyamide technopolymer plastic with oil label. Threaded body is black technopolymer plastic, and air filter is polyester polyurethane foam mesh. Resistant to solvents, oils, grease, and other chemical agents, plugs are offered with NPT pipe threads as standard or metric and BSPP threads upon request. Products are rated at continuous operating temperature of up to 250ºF.

Parker Hannifin Corp., Brass Products Div.    Otsego, MI 49078 1472
Oct 28, 2005 Global Connect Series features grab ring construction and come in inch and metric sizes. Shape fittings have engineered composite bodies and nickel-plated threads, while straight fittings are all nickel-plated. Products are available in unions, elbows, connectors, tees, and branch tee swivels. Thread types include SAE, metric, BSPT, and BSPP. All fittings handle working pressures to 150 psi and temperatures from 0° to 140°F.

Bridgeport Fittings, Inc.    Stratford, CT 06497
Oct 28, 2005 Steel-Red Color EMT Connectors and Couplings eliminate need to paint or otherwise color fittings. Units match EMT raceways for clean looking installations. Color does not affect grounding capability as required by NEC and UL.

Bee Valve Inc.    Elyria, OH 44035
Oct 26, 2005 Made of 316 stainless steel, Ball Valves are available from 3/8-3 in. full port construction for application in water, oil, and gas transmission and handling. They feature polished stainless steel balls, Teflon® seats and seals, and locking handle for safety.

seepex, Inc.    Enon, OH 45323
Oct 26, 2005 With universal joints rated to 360 psig, Progressive Cavity Pumps can be used on applications with high suction heads, low NPSHA applications with reverse rotation, or in vertical pumps where joints are exposed to rated discharge pressure of pumps. Hydraulically balanced joints are reinforced against implosion from high pressures, positively sealed with elastomer cover and 2 holding bands, and lubricated with high-temperature grease.

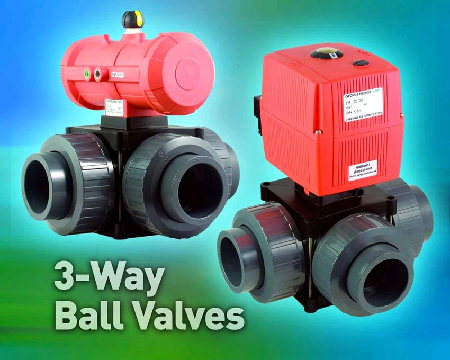

Georg Fischer Piping Systems    Tustin, CA 92780
Oct 26, 2005 Electrically actuated Series 175/176/177/178 and pneumatically actuated Series 275/276/277/278 are available in PVC, CPVC, PP, and SYGEF®-PVDF in sizes from ½-2 in. with EPDM and FPM seals. Utilizing PP-GV 30 actuators for chemical resistance, valves are suited for diverting and mixing liquids in food and chemical processing piping systems. L-port version provides independent connection of inlets with outlets, while T-port version provides straight through flow.

Grindex AB    Haninge SE-136 25  Sweden
Oct 25, 2005 Designed for continuous operation, Tubo pumps handle pH values from 5-8 and have central discharge suited for use in 8 and 12 in. tubes. Tubo 8 is suited for drainage works in 8 in. filter tubes and other narrow spaces. It has max flow of 307 gpm and pressure head of 177 ft. Also available, Tubo 12 can be used in spaces down to 12 in. and delivers flow up to 903 gpm and pressure head of 262 ft. Built-in air valve enables dry running capabilities without overheating.

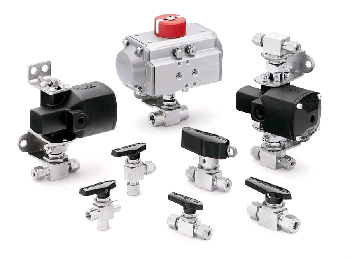

Swagelok Company    Solon, OH 44139-3492
Oct 25, 2005 Featuring single-piece, encapsulated packing design and live-loaded packing system, Series 40G offers working pressures to 3,000 psig and temperatures from -65 to 300°F. Modified PTFE packing does not require system pressure to seal, minimizes potential leak points, and allows bi-directional flow. Valves are available in 2-way straight or angle pattern for on-off service, or 3-way models for switching service with end connections in sizes from 1/16-3/8 in. and 3-8 mm.

Abresist Corp.    Urbana, IN 46990-0038
Oct 21, 2005 KALFLEX Flexible Wear Protection Pipe System connects structural components that move due to vibration, thermal expansion, or intended movement. KALMETALL hard cast iron segments are used in components to withstand impact wear and sliding abrasion, while ALRESIST alumina oxide ceramic segments with Moh's hardness of 9, are used for components exposed to extreme abrasive wear. Elbows are available in sizes from .79-5.91 in. ID and up to 100.08 in. in length.

Enerpac (Industrial Tools)    Milwaukee, WI 53201 3241
Oct 19, 2005 Offered in 4 flow ranges, as well as single and 2-stage models, Series ZE is equipped with TEFC electric motor rated at 7.5, 3.0, 1.5, or 1 hp. Multiple valve and reservoir configurations provide application specific models to match demanding industrial applications. Optional LCD display provides diagnostic and readout capabilities. Accessories include heat exchanger, roll bars, pressure transducer, and level and temperature switches.

SMC Corporation Of America    Indianapolis, IN 46226
Oct 19, 2005 With Cv of 4.4, 5-port Series VQ5000 comes with single or double solenoids in both metal and rubber seal construction. Manifold-mounted, plug-in units can be replaced without disassembling manifold. Valves assist rapid actuator movement by offering response time of 17 ms or less and have life expectancy of 100 million cycles or more. IP65 protection is provided for terminal block box, lead wire, and serial communication type electrical connection.

SMC Corporation Of America    Indianapolis, IN 46226
Oct 19, 2005 Built with stainless steel heat exchanger, Series IDFB*E uses environmentally friendly R134a/R407C refrigerant to provide pressure dew point of 37ºF, and is UL listed up to sizes covering 160 scfm flows. Units include staggered inlet/outlet ports and have 3.8 in. push-in condensate drain port. Applications are found in packaging, printing, machine tool, medical, and semiconductor industries.

Flowserve Corporation    Irving, TX 75039
Oct 18, 2005 Available with split-phase capacitor ac-reversing motor or dc motor, L75 series is suited for remote control actuation of quarter-turn valves and other rotary devices, including on/off and modulating rotary valve applications. Multifunction capability permits use throughout process for on/off, throttling, variable-cycle, as well as analog or digital control. Offered in 8 sizes, series produces torque to 3,000 lb-in. and drives valve through sealed, permanently lubricated gear train.

MICAD Marine Systems    Huntington Beach, CA 92649
Oct 14, 2005 Micad Modular Manifold provides universal application for transferring fluids in and out of engines and tanks as well as through pumps. Intended for use by marine mechanics or those needing configurable fluids transfer device, product features infinite expandability. It is equipped with 2.5 x 3.5 in. dia port units and 1 x 3.5 in. dia end units. Connections are ½, ¾, and 1 in. NPT.

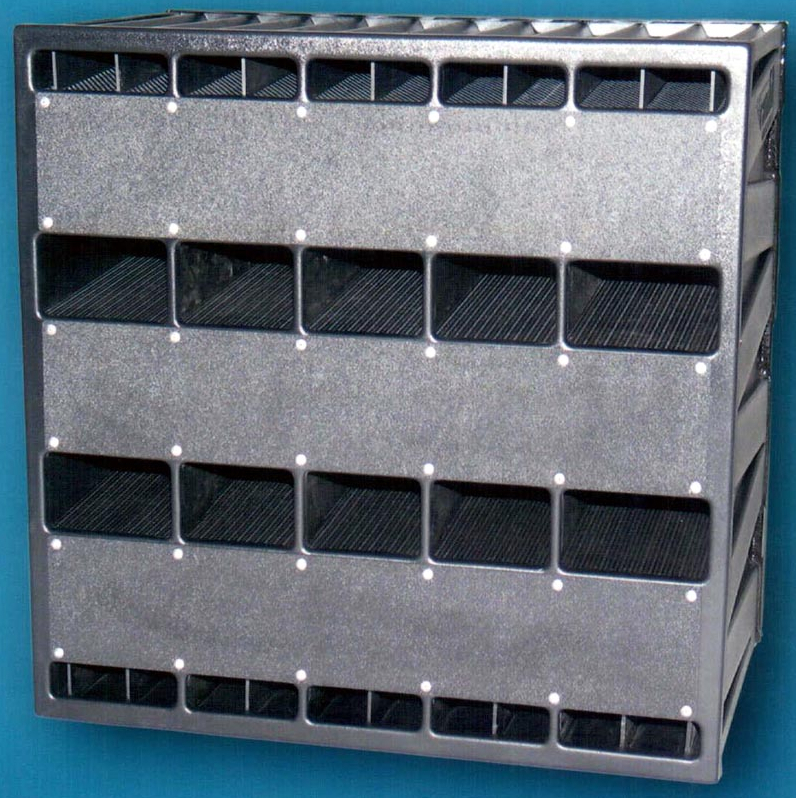

Camfil Farr    Riverdale, NJ 07457
Oct 14, 2005 Suited for use in air handling containment systems, HEGA (High-Efficiency Gas Adsorber) filters feature high-impact plastic frames and V-bed design that channels air through multiple beds of adsorbent to reduce resistance to airflow. Products, available with sorbent media in 1 or 2 in. bed depths, are offered in fluid-seal or gasket-seal configurations. Fully incinerable filters may be changed using bag-in/bag-out procedure to protect service personnel.

Ark-Plas Products, Inc.    Flippin, AR 72634
Oct 13, 2005 Black Kynar® (PVDF) One-Way Stopcock Luer valve is available in 5 configurations, featuring male and female Luer with locking swivel and slip connections. Meeting clean room and sanitary requirements for food processing and potable water, product is designed for use in applications requiring one way flow and easy on or off capabilities. Flow is changed by rotating unidirectional handle 90°, and conical tapers are molded to ISO standards.

Alemite LLC    Fort Mill, SC 29715
Oct 12, 2005 Without requiring air or electricity for operation, manual pumps safely transfer variety of fluids. Red pumps are designed for use with petroleum-based liquids, blue pumps work with general-purpose fluids, and green pumps handle aggressive chemicals. Remote dispenser allows user to dispense fluids up to 10 ft from pump. Depending on type of operation, air adapter allows for conversion of each pump from manual to pneumatic.

Bosch Rexroth Corp., Corporate Headquarters    Hoffman Estates, IL 60192-3707
Oct 11, 2005 Variable-displacement, axial piston pump, Model A7VK is designed for high-pressure pumping of polyol and isocyanate used in making polyurethane. Capable of outlet pressure up to 3,625 psi, pump features double shaft seal and flushing chamber that helps identify any inboard seal leakage. Pump displacement can be adjusted manually from 0-28.1 cm³ using integrated display in handwheel. Once adjusted, displacement can be locked to prevent accidental changes.

ControlAir Inc.    Amherst, NH 03031 2315
Oct 10, 2005 Offered in aluminum or 316 SS, Type 6000 provides 1-to-1 signal-to-output relay, that when used with positioner/actuator, increases stroking speed of control valves. Integral bypass valve provides system stability while allowing normal positioner airflow and normal valve actuation with small input changes. Max signal pressure of 150 psig to volume booster provides output pressure up to 150 psig with flow capacity of 115 scfm. Temperature limits are -40 to 160°F.
