Sauer-Danfoss    Ames, IA 50010
Nov 21, 2006 Providing displacements of 25, 30, and 35 cc, Direct Displacement Control Pumps feature internal Neutral Return Mechanism, which is protected and always lubricated. Units are designed for closed-loop machine operations and are suited for wide area mowers, sweepers, mini excavators, walk-behind skid steer loaders, small tractors, and other machines used in areas where high noise levels are an issue.

Advanced Specialty Gas Equipment    Middlesex, NJ 08846

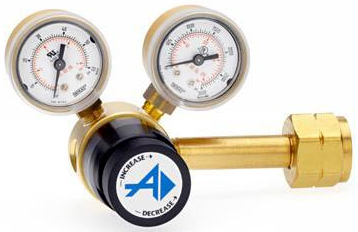

Nov 20, 2006 Cleaned for high-precision chromatographic service, miniature single- and 2-stage bar stock body, metal diaphragm regulators are designed for use with EPA protocol calibration gases, low-level VOC, and GC-ECD analyses. Cleaning process reduces contamination potential, and all-metal diaphragms will not absorb or emit contaminates into gas stream. High-purity regulators feature internal volume capacity that facilitates use and lends to economically efficient purging.

Orival, Inc.    Englewood, NJ 07631

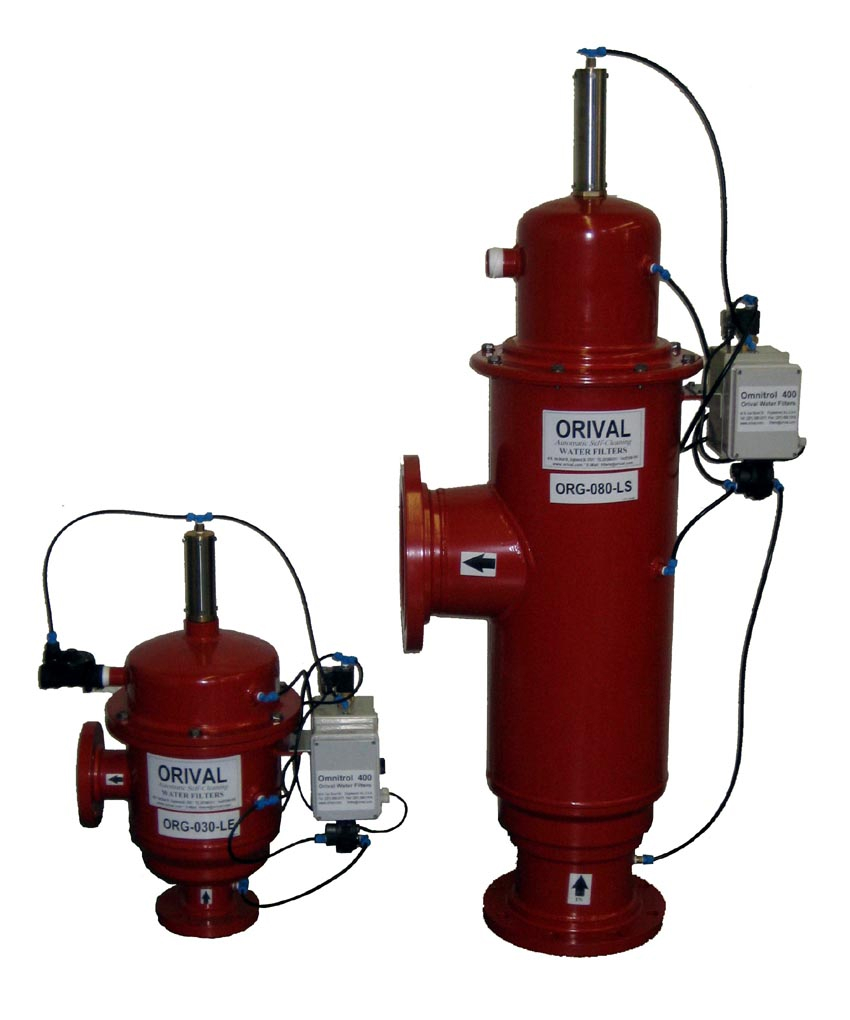

Nov 17, 2006 Available in 6 and 8 in. models, new ORG Series automatic self-cleaning filters require as little as 2 gal of water during 5-12 sec cleaning cycle, which does not interrupt flow of clean filtered water downstream. Vertically designed, filters suit removal of organic and inorganic solids from cooling, process, reclamined, intake, wash, and wastewater, as well as irrigation and descaling. Available interchangeable screens range from 5-3,000 microns.

Valeron Strength Films, An ITW Company    Houston, TX 77041
Nov 17, 2006 Combining padding protection of cohesive foam with tear resistance of Valeron® Strength Film, packaging materials lend puncture resistance to package exteriors while minimizing interior abrasion. URBAN WRAP(TM) has white, abrasion-resistant outer surface that sticks only to itself to self-seal and protect package. RURAL WRAP(TM) offers look and feel of Kraft paper but promotes resistance to abrasion and slip. METRO WRAP(TM) has silver, reflective surface to protect against temperature extremes.

Spartan Scientific Inc.    Boardman, OH 44512

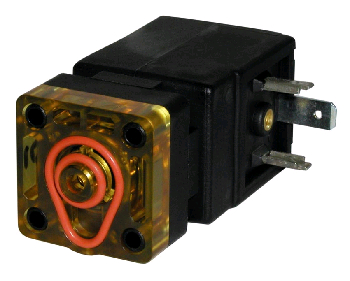

Nov 16, 2006 Featuring low volume valve cavity and rolling diaphragm, 2-way, 2-position Model 4BKR will not allow chemicals to gather or dead spots to form which might hinder flow. Quick connect interface allows valve to be mounted in gang style on manifold block. Available with orifice sizes of 2.4-5.0 mm, valve has Cv ranges from .245-.63 in normally open and normally closed functions. Encapsulated coil, stainless tube and plunger assembly provide maintenance-free life.

Temex Electronics Inc.    Phoenix, AZ 85027

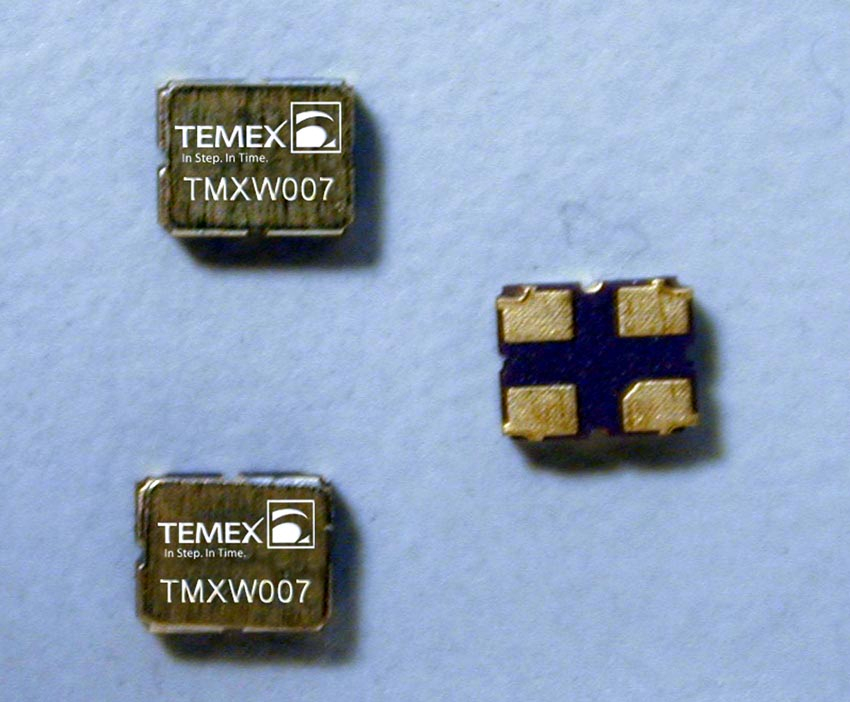

Nov 16, 2006 Suited for GPS receivers utilized in marine navigation, automotive, and recreational applications, Model TMX W007 has absolute attenuation of 40 dB min at 1,710 MHz. It features filter center frequency of 1,575.42 MHz with bandwidth of 2.4 MHz over temperature range of -40 to 185°F. RoHS compliant product is available in lead-free SMD package measuring 0.1 x 0.08 x 0.03 in.

Nicholson Steam Trap    Walden, NY 12586 2000

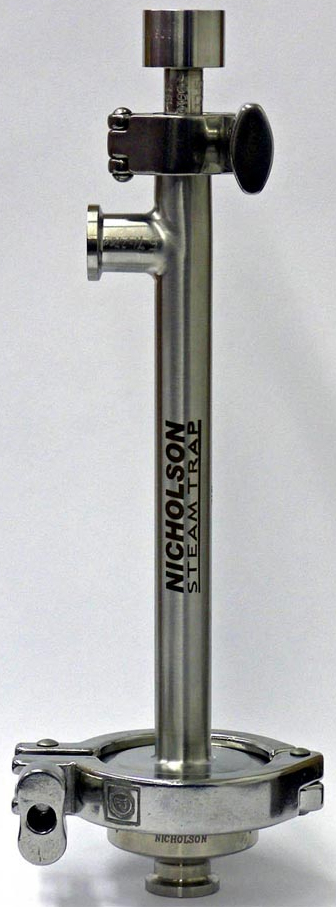

Nov 15, 2006 CoMBo is designed for clean steam equipment condensate drainage in pharmaceutical, bioprocess, electronic, food, beverage, and cosmetic industries. Its -B ultra sensitive bellows maintain less than 6 in. of condensate backup for loads from 1-27 lb/hr for vessels up to 40,000 L. Equipped with ¾-1 ½ in. outlet, condensate measuring elbow thermostatic sanitary steam trap is available with ¾ in. horizontal or vertical inlet, with optional thermowell for resistant thermo probe (RTD).

J. W. Winco, Inc.    New Berlin, WI 53151
Nov 14, 2006 Accommodating ½ in. round or 7/16 in. square tubing, Cross Blocks for Square and Round Tubes feature stainless steel socket cap screws and hex nuts. Used for mounting perpendicular and horizontal rods, blocks are made of black glass filled nylon plastic that is resistant to oil, solvents, and corrosion, and has maximum heat resistance of 110°C. Cross blocks suit conveyors, packaging equipment, pharmaceutical, automation, and material handling industries.

Jaeco Fluid Systems, Inc.    Exton, PA 19341

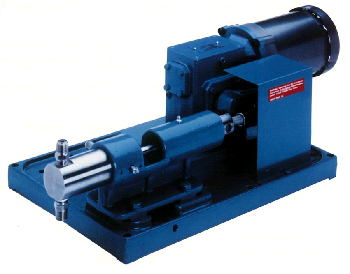

Nov 13, 2006 Available in simplex and duplex models, Hi-Flo(TM) packed plunger, positive displacement pumps offer capacities from 20-682 gph at pressures up to 7,200 psi with accuracy of ±0.5% at steady state. Single ball check valve on both suction and discharge side of pump provide accurate metering. Duplex pump pistons are normally 180° out of phase, but can be synchronized so that 2 fluids can be pumped simultaneously. Stroke rate is automated using variable-speed drive.

Orange Research, Inc.    Milford, CT 06460

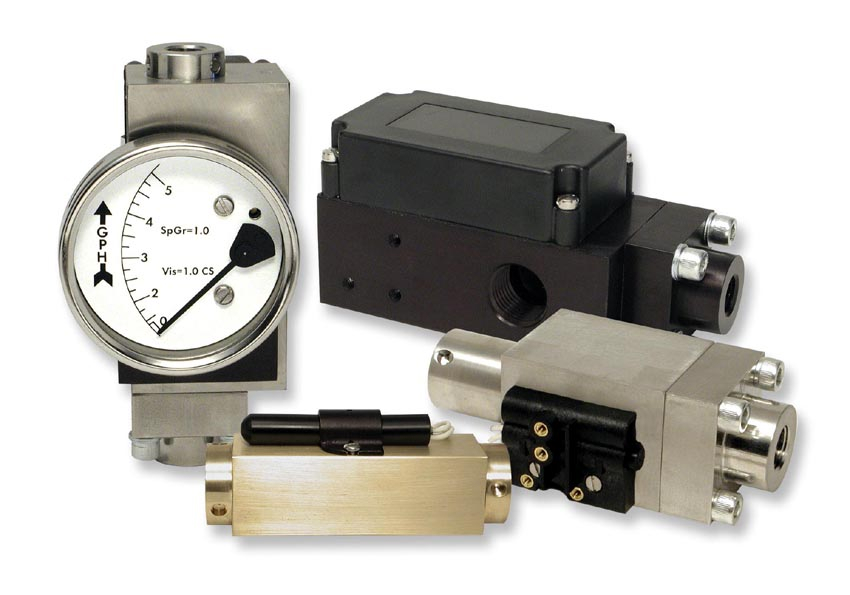

Nov 13, 2006 Liquid and air/gas flow switches handle pressures from 1,500-5,000 psig in hydraulic and pneumatic applications. Offered in fixed-orifice models for low-flow applications from 0-2 to 0-40 gph (liquid)/1.5-5 scfm (gas) and variable-orifice models for high-flow applications from 0-1 to 0-30 gpm/1.5-10 to 1-100 scfm, they incorporate hermetically sealed reed switches to control processes. Switches can be installed horizontally or vertically, and are offered with optional dial.

NewAge Industries Inc.    Southampton, PA 18966

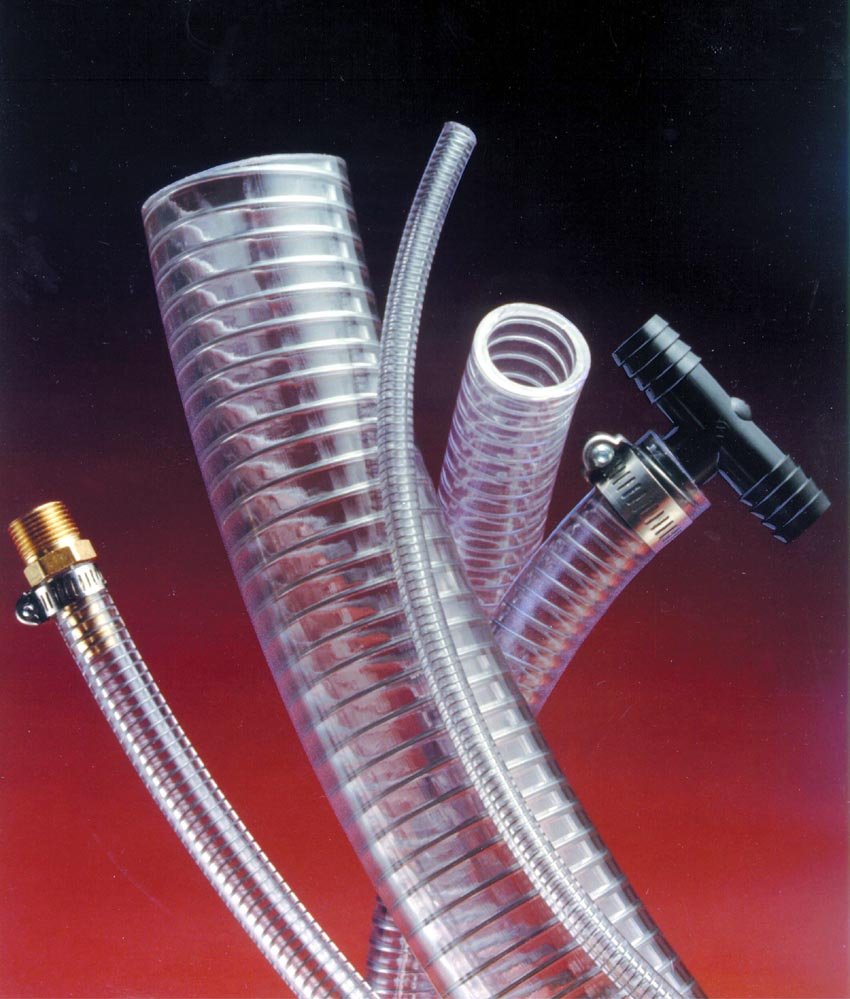

Nov 13, 2006 Made of clear PVC with steel wire reinforcement that allows hose to resist kinking, crushing, and collapse even at full vacuum (29.9 in./Hg), Vardex® hose is suitable for either fluid or air transfer in pressure and vacuum applications. Spiral steel supporting wire is encased within tubing and never contacts inside or outside of hose. Available in 9 sizes ranging from ¼ to 2 in. ID, hose offers rubber-like flexibility and is resistant to corrosion and abrasion.

Oilgear Co., The    Milwaukee, WI 53219 2340

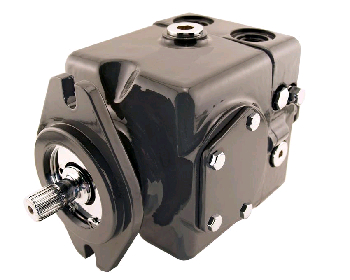

Nov 13, 2006 Available in 3 frame sizes and 10 displacements, open-loop Series PVWJ operates up to 3,000 rpm with max pressure of 5,800 psi, and theoretical max displacements from 0.66-7.94 in.³/rev. Pumps utilize pressure-lubricated swashblock design and feature hardened cylinder surface running on hardened valve plate for contamination resistance. With 6 control types, pumps permit field interchangeability without disconnecting from drive or system piping.

Des-Case Corp.    White House, TN 37188
Nov 10, 2006 Mounting directly on top of drum, portable FlowGuard(TM) Drum Topper acts as off-line filter for critical equipment by removing dirt and moisture from new drum oil. Incorporated pump features various flow capacities to filter hydraulic and gear lubricants. Topper includes heavy-duty aluminum frame, 2 filters providing 2-stage filtration, differential filter gauges, and steel wire-reinforced, clear PVC hoses for visual confirmation of flow.

Thermadyne Industries, Inc.    St. Louis, MO 63017
Nov 10, 2006 Cutskill 250 Series combines all components in toolbox for protection and organization. Torch handles include VanGuard safety features such as built-in flashback arrestors and reverse flow check valves. Regulators have forged brass housing cap and fine threaded adjusting T bar for smooth operation. Cutting attachment includes stainless steel cutting oxygen lever, spiral mixer that blends all fuel gases with preheat oxygen, silver brazed tubes at torch head, and beveled seat design.

Larox Flowsys Oy    Lappeenranta 53101  Finland
Nov 10, 2006 Model LPP-D metering pump features low-friction roller design that compresses hose only once per revolution. Built with hose leak and revolution detectors, pump is offered in ½, ¾, and 1 in. sizes with respective flow rates of up to 2.6, 4.4, and 8.8 gpm. Product exhibits low glycerin-lubricant consumption and runs at pressures to 110 psi at max speed of 100 rpm. Applications include transfer of mediums such as lime slurry, alum, and food flavorings.

Halex Development & Distributing, LLC    Madbury, NH 03823
Nov 09, 2006 Designed to enhance performance of existing oil filter, Halex Coil is constructed of rare-earth neodymium magnet, which draws particles that are too small for filter to catch, resulting in cleaner oil. Unit attaches to outside of filter and performs without changing flow-rate or intruding on internal systems. Unit traps 40-90% of iron that would otherwise pass through existing filter medium, and by bonding and piggybacking, it traps 20-60% of nonferrous contaminates.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Nov 09, 2006 Suited for OEM applications in medical field, Series OMA indicates and manually controls oxygen flow from oxygen generators. Clear acrylic body enables visual inspection. Precision valve and knob adjustment can be manually turned until desired oxygen flow level is reached, while ball float rises and falls to accurately indicate fluctuations in oxygen flow. Meter offers 4 ranges between 0.1-1.5 l/min and 0-10 l/min. All have ±4% FS accuracy or better.

Dwyer Instruments, Inc.    Michigan City, IN 46361

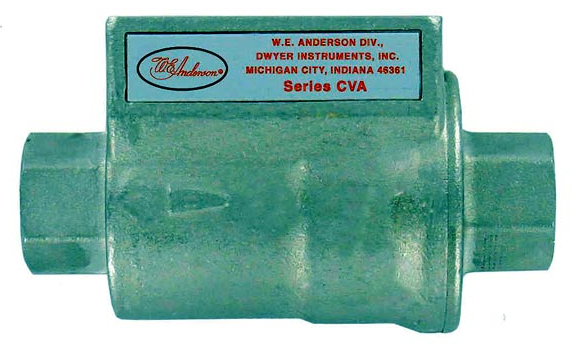

Nov 08, 2006 Combining pneumatic actuator and on-off control valve, Series CVA Compact Valve and Actuators eliminate packing glands, actuators, and mounting kits. Stroke is linear and parallel to flow, reducing required force to close or open valve, and internal waterway design allows optimum flow characteristics. Pneumatic actuated valve is available in double acting with 2 supply ports (1/8 in. NPT), spring return normally closed, and normally open models.

Strahman Valves, Inc.    Bethlehem, PA 18020

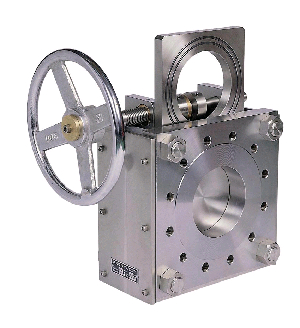

Nov 08, 2006 Available in 1-24 in. sizes and pressure ratings to ANSI Class 600, Line Blinds benefit users by not requiring movement of adjacent piping when blind's position is changed from open to closed. Units are available in various materials of construction as well as with flanged ends, BWE, and special ends to meet customer requirements. Line Blinds are suited for process pipelines in oil, gas, petroleum, chemical, maritime, and tank farms applications.

AAF International    Louisville, KY 40223 6169
Nov 08, 2006 Designed for continuous operation in harsh industrial environments, DuraShield Cartridge Filter features polyester reinforced media with fluorocarbon meltblown outer surface layer. Synthetic fibers used throughout will not disintegrate, and can withstand rigors of repeated pulse cleaning cycles. Pleat stabilization, utilizing glue-bead spacing, ensures uniform distance between pleats, while corrosion-resistant galvanized steel screens hold pleated media rigidly in place.
