Lee Company, The    Westbrook, CT 06498 0424
Oct 30, 2008 Featuring captive capillary volume of 0.5 µL, Injection Manifold Mount System enables precise injection of fluid into flow stream. Any ported VHS micro-dispense solenoid valve can be mounted so that outlet port is in close proximity to flow stream, ensuring minimal captive capillary volume and increased injected volume repeatability. Available in 1, 2, 3, and 4-place standard configurations, system suits laboratory, biomedical, and chemistry applications.

Parker Hannifin Corp., Precision Fluidics Div.    Hollis, NH 03049
Oct 30, 2008 Model TenX® Le electro-magnetic poppet valve provides up to 22 Lpm of flow through 0.060 in. orifice. Operating at up to 30 psi, 10 mm 2/3-way normally closed, normally open or 3-way distributor valve has response time of 5 msec full cycle, and is rated for 20 million cycles without any performance degradation. Incorporating PWM circuit technology, product consumes low power and generates minimal heat.Suited for use with portable medical and analytical devices,

Hayward Industrial Products Inc., Hayward Flow Control Systems    Clemmons, NC 27012
Oct 29, 2008 Designed to replace metal valves in industrial piping systems, BYB Series lever-operated valves feature one-piece; 2-8 in.; PVC, CPVC, PPL, or PVDF plastic body with CPVC, PPL, or PVDF discs. They are offered with choice of FPM, Nitrile, or EPDM full face liners and have Type 410 SS stem completely isolated from process stream. Also available, 14-24 in. sizes add high-torque gear box. Options include gear boxes on 2-8 in. sizes and electric/pneumatic actuation.

Iwaki Walchem Corp.    Holliston, MA 01746
Oct 29, 2008 Available in hose barb and threaded connections, Models RD-12 and RD-12Z provide external flow adjustment feature via 1-5 Vdc third wire input. Classified as safety voltage (50 V or under), they allow users to comply with CSA, UL, CE, and GS standards. With sound levels as low as 40 dB, pumps are suited for OEM applications, including small chiller/circulator systems, as well as for electronics cooling, servers, power supplies, fuel cell recirculation, and laboratory equipment.

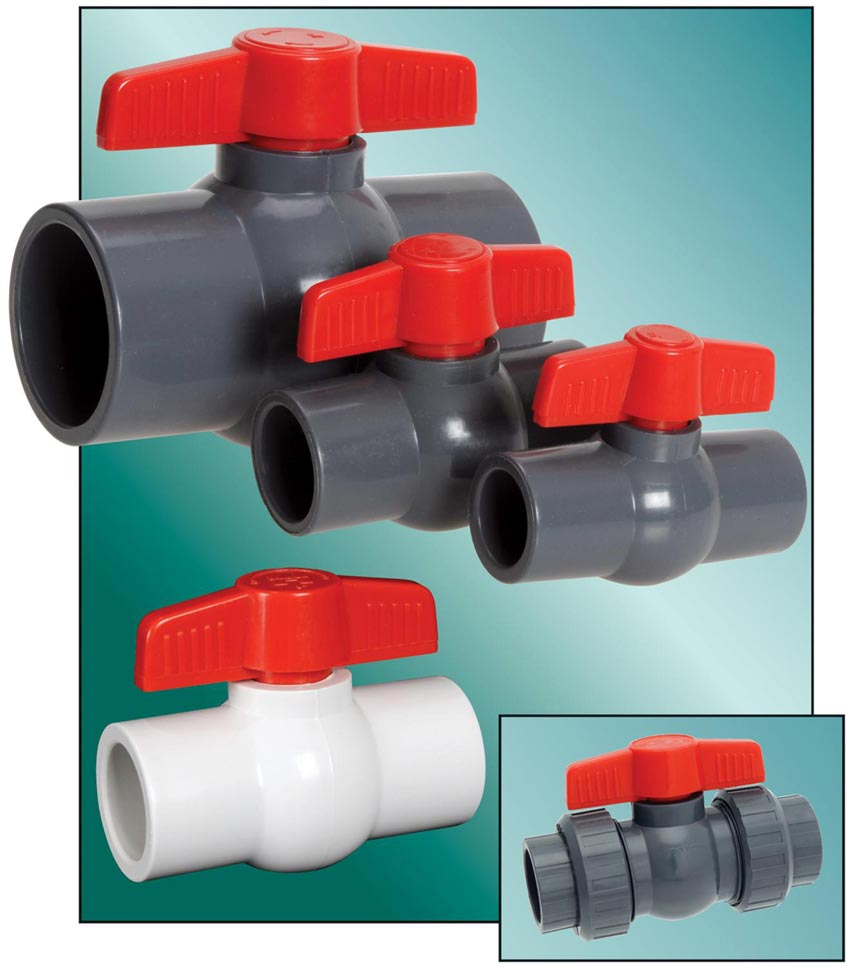

Hayward Industrial Products Inc., Hayward Filtration    Elizabeth, NJ 07207
Oct 27, 2008 Featuring rugged, all-plastic design, and 150 psi pressure rating, QVC and QTA Series of industrial compact ball valves are designed for OEM applications. Model QVC Series comes in ½-4 in. sizes in gray or white PVC. Including socket and threaded True Union end connections, QTA Series valves are available in ½-2 in. sizes in gray or white PVC.

Eaton Hydraulics    Eden Prairie, MN 55344
Oct 23, 2008 Available in sizes 6-12, GH100 ESP(TM) Hose consists of hydrogenated nitrile rubber tube, wrapped with aramid/poly braid reinforcement with polyester abrasion-resistant cover. Product is qualified for underhood use with B2-B20 up to 150°C and B100 up to 125°C, as well as for transmission oil cooler applications using synthetic lubricants at peak temperatures up to 175°C. Applications include diesel engines, trucks, buses, agricultural vehicles, and off-highway applications.

Anderson, W. E., Div., Dwyer Instruments, Inc.    Grandview, MO 64030
Oct 23, 2008 Requiring no external power sources, Series 38R feature die-cast aluminum housing with fully enclosed bellow assembly and internal over-range protection. Valves, offered in ½-6 in. connection sizes and 1/8-6 in. port sizes, are available with bodies in single-seated, direct or reverse-acting; double-seated, direct or reverse-acting; and 3-way designs with 4 choices of body material. Actuators are available with or without indicating dials or in Fail-Safe versions.

Crane Resistoflex Co. A Div. Of Crane Co.    Marion, NC 28752
Oct 22, 2008 Available in sizes from 0.5-2 in. diameter, STRATUS(TM) Hybrid Hose features natural smooth bore Teflon® PTFE liner, which is flared through platinum-cured stainless steel wire and fabric-reinforced silicone shell. Liner enables hose to endure intense cleaning temperatures and corrosive properties of detergents and solvents. Ensuring zero entrapment potential, hose eliminates contamination in pharmaceutical and biopharmaceutical processing, utilities, and cleaning applications.

Lesker, Kurt J., Co.    Clairton, PA 15025
Oct 21, 2008 Taking less than 0.3 seconds to close, Protection Vacuum Gate Valve protects in-process products in event of vacuum pump failure. Bellows-sealed, pneumatically actuated, SS valve system monitors up to 4 pumps with local or remote control and LCD status display. Internal mechanism has low particle generation design and is shielded in open and closed positions against particulate accumulation, extending life under adverse conditions.

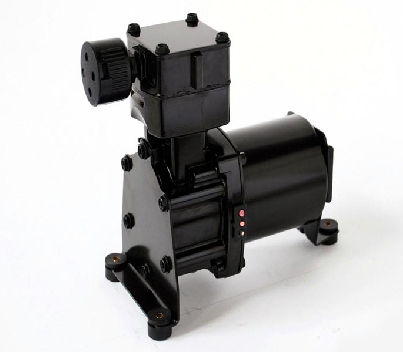

Thomas Products Division    Sheboygan, WI 53081
Oct 20, 2008 Weighing 5.1 lb, 309 Series WOB-L DC Pump and Compressor is manufactured with corrosion-resistant materials on inside and corrosion-resistant treatment on external components. Unit features oil-less operation, die-cast aluminum components, steel mounting brackets and isolators, all wetted aluminum parts, and stainless steel inlet valve. Providing up to 26.75 in. Hg and 160 psi of maximum intermittent pressure, 309 Series meets radiated emission requirements and is RoHS compliant.

Asahi/America    Malden, MA 02148
Oct 17, 2008 Equipped with factory mounted Plasgear(TM) all plastic enclosure gear-operator, Pool Pro Butterfly Valve features corrosion resistant PVC-constructed body, and self-gasketing seat design that eliminates need for mating flange gaskets. Unit comes with ISO mounting pad, allowing for field-mounting of accessory options, including stem extensions and electric or pneumatic actuation. Designed for pool service industry, valve is offered in sizes ranging from 1½-12 in.

VAT, Inc.    Woburn, MA 01801
Oct 16, 2008 Available in aluminum and sizes from 4 x 54 in. to 12 x 100 in., Series 06 XL-VAT Transfer Valve is designed for large substrate production systems for flat panel display, solar, glass coating, and other applications. Modular design facilitates maintenance, and o-ring sealed gate can be accessed for service via removable top cover in body. Along with adjustable gate sealing force, series features pneumatic control unit and can be operated up to 1 bar DP on gate in either direction.

Hayward Industrial Products Inc., Hayward Flow Control Systems    Clemmons, NC 27012
Oct 16, 2008 Suited for heavy-duty chemical, water, and wastewater applications, QVC and QTA Series feature socket or threaded pipe connectors, Santoprene (TPV) seats, full porting, and 150 psi pressure rating. QVC Series is offered in ½-4 in. sizes in gray or white PVC, while QTA Series comes in ½-2 in. sizes in gray or white PVC and includes socket and threaded True Union end connections. Both series, designed to fit into space-restricted areas, offer quarter-turn operation.

Universal Air Filter Co.    Sauget, IL 62206
Oct 16, 2008 Featuring flame-retardant coating that expands and closes honeycomb cells, PyroCide Vent Panel stops flames from spreading and eliminates air flow to propagate fire. It has more than 95% open area for minimum resistance to air flow within electronics cooling chassis. Suited for telecom and datacom equipment designed to meet Telcordia NEBS standards, RoHS compliant product has ASTM E-84 Class A rating and can be used in ETSI cabinets.

Glentronics Inc.    Lincolnshire, IL 60069
Oct 14, 2008 Comprised of ½ hp BWT050 and ¾ hp BWT075, respectively capable of pumping up to 2,770 and 3,630 gph, Green Line series of Basement Watchdog sump pumps has Dual Float Switch featuring 2 floats mounted in protective cage. Should one float fail to operate, second float automatically activates pump. Standard Dual Float Controller, also included, activates pump when water lifts float switch. Once float returns to original position, pump runs for 10 sec to completely empty sump pit.

FlowCon Americas LLC    Charlotte, NC 28269
Oct 08, 2008 Offering 51 distinct flow rate settings per valve size and control range, Total Authority Valve(TM) is 99.8% accurate in system wide application. It features double union end connection with wide selection of end fittings, or double flange connection for ease of installation. Tamper-proof valve is externally adjustable allowing to change desired maximum flow rate while system is operating. Pressure and temperature measurement plugs are also available.

Inpro/Seal Co.    Rock Island, IL 61204 7331
Oct 08, 2008 Designed to work with shaft diameters from 1-36 in., Water Mizer Shaft Seal accepts severe radial and angular shaft runout up to ½ in. Shaft floats on water barrier directly on shaft, which provides unlimited movement without placing any stress or strain on product. Without moving parts, seal attains zero contact, zero wear, and zero frictional drag. Some typical applications include screw conveyors, mixers, rotary valves, dust collectors, coolers, and transfer pumps.

EXAIR Corporation    Cincinnati, OH 45249-1621
Oct 08, 2008 Suited for blowing heavy materials or for rugged industrial applications where air nozzle can not be mounted close to surface to be blown off, dried, or cooled, 1¼ NPT Super Air Nozzle(TM) delivers 9.4 lb of blowing force when mounted 12 in. away from target. Compressed air is ejected through series of holes located in recessed grooves on nozzle surface, and aerodynamic design directs the air to single point of convergence. Air consumption is 188 scfm at 80 psig.

CoorsTek    Golden, CO 80403
Oct 07, 2008 Featuring spring-energized sealing technology, MetaPlast® II products withstand high-vibration environments such as those found on aircraft akin to F-35/JSF and various Unmanned Combat Airborne Vehicles (UCAVs). Seals employ fatigue-resistant spring with optimized spring travel characteristics that promote performance in critical-duty applications. Design also compensates for side-load conditions and will not take permanent set.

Norgren    Littleton, CO 80120
Oct 07, 2008 Model VS45 features plug-in subbase manifold that is fully modular and is offered in 3/8, ½, and ¾ in. port sizes. Unit offers pressure capabilities of vacuum up to 232 psi and flow up to 4.20 Cv. Suited for heavy industry applications, valves include both softseal and glandless spool technologies.
