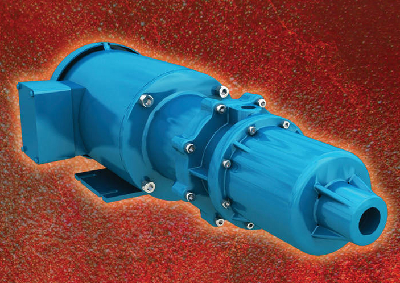

Moyno Inc. Unit Of Robbins & Myers, Inc.    Springfield, OH 45501 0960
Dec 03, 2009 Available in 4 models with flow rates from 0.1-900 gph, Moyno® Mag Drive 500 Series handles toxic, aggressive, caustic, flammable, and explosive fluids. Units provide pulsation-free, low shear pumping action with no vapor locking when handling gaseous, volatile liquids. Featuring skid-mounted design, turnkey systems have composite housings and internals and Nitrile or EPDM stator materials with optional FPM stators and titanium rotors.

Imperial Systems, Inc.    Jackson Center, PA 16133
Dec 03, 2009 Suited for use with dust collectors, welded seam replacement filter bags are heat sealed, reducing risk of fine particles leaking through needle holes. Welded seam filter bags also eliminate possibility of damage to filter bag from abrasive dust, which can tear apart sewing thread at seam.

Clippard Instrument Laboratory, Inc.    Cincinnati, OH 45239
Dec 02, 2009 Designed to deliver concentrated flow of air or liquid to designated location, Air Jets are available with wide range of nozzles, bases, and mounting hardware. Ball nozzle accepts variety of tubing configurations that can be aimed and locked into position. Available in brass and stainless steel, Air Jets feature pressure range up to 200 psig and operating temperature of 32-180°F. Applications include blowoff, cleaning, drying, part ejecting, and cooling.

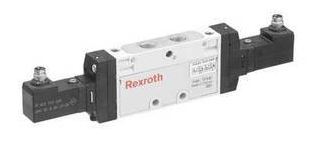

Bosch Rexroth Corporation    Hoffman Estates, IL 60192-3707
Dec 01, 2009 Model TC08 valves measure 16.8 mm wide and offer flow of 600 L/min and TC15 units measure 21 mm wide and provide 1,100 L/min flow. Double 3/2-way functions enable full nominal flow on all valves, even during simultaneous operation, and minimize energy consumption and cycle times. Electrical connections are enabled by DIN 15217 and M8x1 plug connectors. Valves suit wide range of applications/tasks in automation.

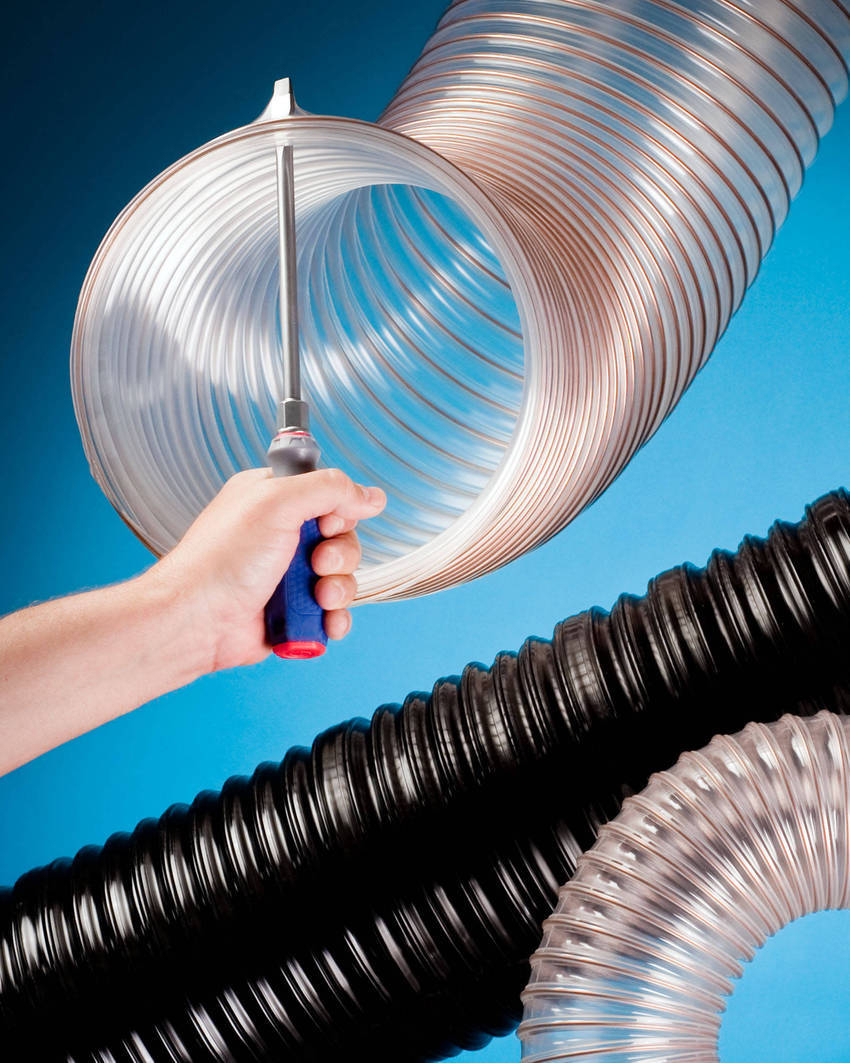

Flexaust Co., Inc., The    Warsaw, IN 46581
Nov 30, 2009 Available in 2-24 in. and 60-300 mm ID sizes, Flexaust Flx-Thane® MD polyurethane hose has 0.030 in. thick wall and comes in FDA-acceptable clear and black colors. Suitable for light bulk material transfer and fume evacuation applications, rugged hose features smooth interior, 4:1 compressibility, resists most chemicals, and remains flexible at temperatures from -65 to 225°F. It is offered in standard 25 and 50 ft lengths; factory installed 2 in. soft cuffs are optional.

PneuMagnetic, LLC    Quakertown, PA 18951
Nov 27, 2009 Available for use with Parker Skinner 7000 series valves, PneuMagnetic Actuator converts direct acting solenoid valves to pneumatic operation by replacing Parker Skinner actuator coil. Actuator is especially suited for explosionproof and intrinsically safe installations, since electric hazard can be entirely removed from hazardous area and replaced with air line.

Sensocon, Inc.    Lakeland, FL 33801
Nov 25, 2009 Used to measure positive, negative, and differential pressure (DP) as well as air velocity/flow, Series A6 includes 2 SPDT relays and programming menu that enables full configuration of variables. Programming is done via OLED display, which also shows users-defined variables during normal operation, and Opti-Link(TM) communications are also supported for IR programming. Optional 4-20 mA output can be digitally scaled to meet unique application requirements, and standard accuracy is 1%.

Anver Corp. - Anver.Com    Hudson, MA 01749
Nov 24, 2009 Mitey-AirVac(TM) Miniature Vacuum Stations include venturi, internal check valve which maintains vacuum in case of power loss, switches, and gauge. Featuring symmetrical mounting hole locations, they have an aluminum case, weigh 2 lb, and pull 26 in. Hg vacuum with 1.27 scfm air consumption. MTY-1 measures 3.31 x 3.66 x 4.11 in. and MTY-2 is 3.31 x 6.41 x 4.11 in. with flow rates from 0.74-4.4 scfm. Vacuum Stations use standard ¼ in. push-connect fittings.

Hollingsworth & Vose Co.    East Walpole, MA 02032
Nov 24, 2009 Available in weights from 78-95 lb/3,000 ft², Capaceon(TM) Filter Media for automotive applications is treated with solvent-based phenolic resins, which provide smolder and water resistance in panel air filter designs and will not require post-pleating curing process. Treated with modified acrylic resin system that is pre-cured during manufacturing process, Capaceon(TM) Filter Media for heavy duty air use achieves high level of engine protection from contaminants in harsh environments.

Top Line Process Equipment Co.    Bradford, PA 16701
Nov 24, 2009 Top Line TE Series electric actuators are available in 24 Vac, 24 Vdc, and 115 Vac single-phase voltages. Featuring NEMA 4, 4X, and IP67 polyester powder-coated aluminum housing, they integrate 2 limit switches for operation and 2 auxiliary dry contact switches. Anticondensation space heater minimizes downtime. Units also include visual position indicator and captive cover bolts, while external manual override protects devices during power failure.

Parker Hannifin Corp.    Oxford, MI 48371
Nov 20, 2009 Rated for continuous operation at pressures to 6,090 psi, 95 cc/rev VP1-095 suits mobile applications where power and precise control of multiple functions is required. IT can be mounted directly to truck PTO and supplies hydraulic system with precise amount of oil required to improve performance and control. Variable flow capability (up to 52 gpm) reduces heat generation, possibly eliminating need for oil cooler, while 11-piston design minimizes noise and pulsation levels.

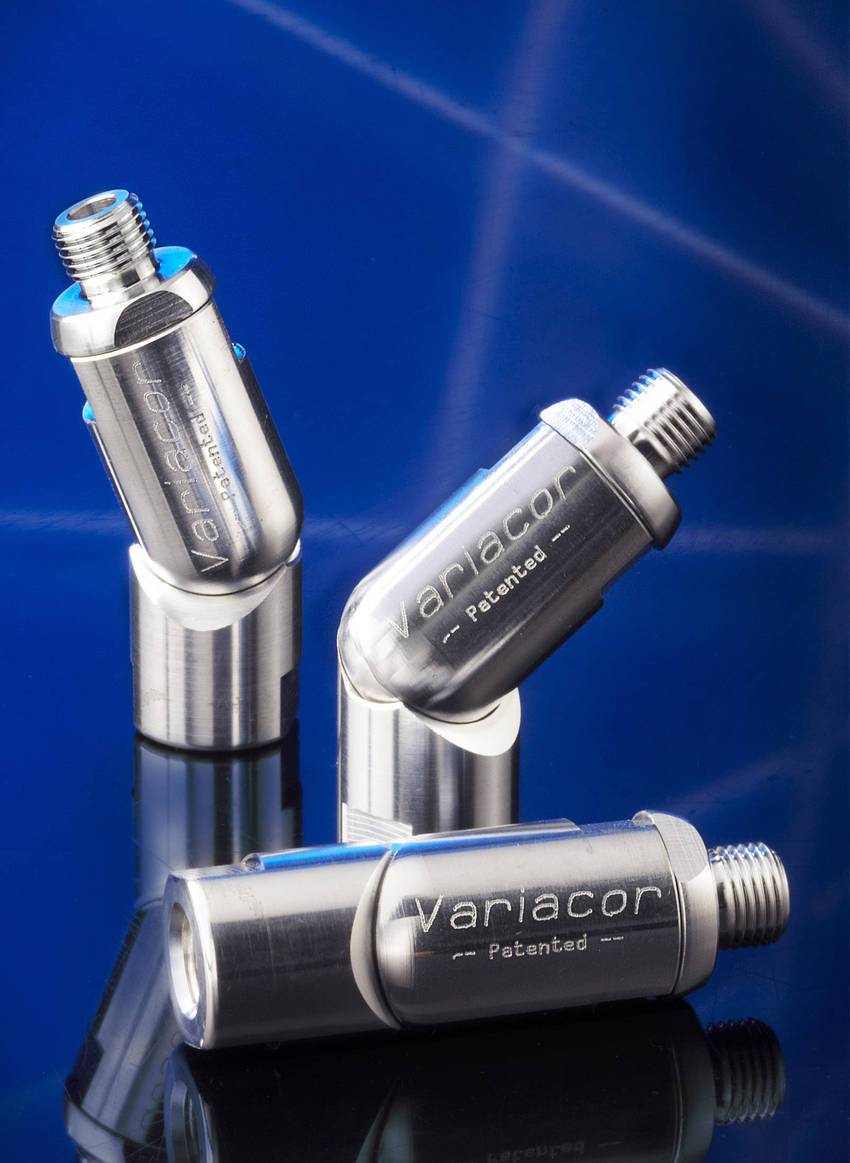

BETE Limited    East Sussex East Su BN8 4HZ  United Kingdom
Nov 20, 2009 Suited for connecting 2 runs of rigid pipe or flexible hose, or end fitting, such as nozzle or gun, Variacor® coupling for hydraulic hose applications provides free rotation through 360° for both sides of fitting while pneumatic option ensures free rotation of 360° for one side of fitting and 90° for other. Product changes angle of flow direction, axially between 180° and 90°, with full 360° swivel at either, or both ends. Adjustments are manual, instant, and can be free or lockable.

Kimberly-Clark Corp.    Dallas, TX 75261
Nov 20, 2009 Based on bi-component, nonwoven technology, Kimberly-Clark Filter Media suits HVAC filters delivering MERV 11-15 performance. Design optimizes initial and sustained particle capture efficiencies, which helps increase IAQ and keep HVAC components clean. Able to be used in various filter types, 100% synthetic media is thermally bonded to prevent fiber shedding during manufacture or use. Mix of fiber diameters in gradient density structure promotes particle capture efficiency.

Yamada America, Inc.    Arlington Heights, IL 60005
Nov 20, 2009 Based on NDP Series, pump features flap valve design that allows for passage of up to 2 in. solids. Vented diaphragm chambers alleviate problems associated with trapped air/gas, while top suction/bottom discharge design prevents solids from settling in pump. In addition to non-lubricated air-valve, features include bolted construction, outside-accessible air valve, and modular pilot-valve design. Also, short stroke technology provides extended diaphragm life.

CAT PUMPS    Minneapolis, MN 55449
Nov 20, 2009 Available in .13, .25, and .50 gpm configurations with pressures up to 1,000 psi to accommodate variety of nozzles, Model 1CX can be fitted with ¼ or ½ hp single phase motor. Pump features 4-position head mounting, industrial stacked valves, forged brass manifold, and ceramic plungers. Compact brass pressure regulator offers precision pressure setting and over pressure protection. Typical applications include evaporative cooling, insect control, dust suppression, and greenhouse misting.

Metallized Carbon Corp.    Ossining, NY 10562
Nov 19, 2009 Manufactured to specifications using carbon-graphite materials, Metcar Mechanical Seal Primary Rings and Seal Faces come in antimony impregnated grades, which offer self-lubricating properties and are suited for running in volatile hydrocarbons. Nickel chrome impregnated grades are suitable for high pressure, liquid lubricated, lift off seals. Offering dimensional tolerances as close as 0.0005 in., seal rings can be lapped and polished to 1 Helium light band flatness.

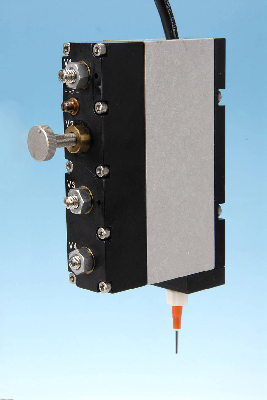

Tridak    Torrington, CT 06790
Nov 19, 2009 Designed for fluid dispensing, Model 340PS is suited for shot volumes from 0.004-0.180 mL, while Model 340PSL offers larger shot capability up to 1.200 mL. Both incorporate disposable fluid path from reservoir to dispense tip. Sequenced piston actuation dispenses consistent shot-to-shot volume regardless of material viscosity or viscosity fluctuation. Offered with polyurethane, flexible polyethylene, or Teflon® tubing, valves feature over-stroke adjustment to prevent premature tubing wear.

Aspex Corp.    Delmont, PA 15626
Nov 13, 2009 Suited for scanning electron microscopes and laboratory equipment requiring clean vacuum system, oil-free Hush Pump(TM) offers vibration dampening while alleviating routine maintenance and contamination. Scroll pump also eliminates potential leakage as well as smells and fumes from typical oil pumps. Providing 60 lpm capacity, Hush Pump is suited for mass spectrometers, vacuum degassing, freeze drying, cryogenics, vacuum distillations, and vacuum ovens.

McCaren Designs, Inc.    St.Paul, MN 55114
Nov 13, 2009 Offered as sustainable building solution, Greenwalls are engineered for maximum biofilteration of indoor air and thermal regulation. Additional benefits include noise absorption, lowered heat gain, improved IAQ, and reduced occupant stress. While also adding to indoor ambiance, product assists in securing LEED credit when used in combination with other sustainable building elements. Other features include stormwater control, drip irrigation, and waterproof membrane.

Clark-Reliance Corp., The    Strongsville, OH 44136
Nov 11, 2009 Featuring select serial filtration technology, Gas Sentinel Filter Elements help eliminate troublesome solids and liquid carryover. Units feature proprietary pleat pack and extended surface area, providing optimal dirt-holding capability for capture of black powder, iron oxides, salts, oil, and liquid contaminants found in natural gas. Replacing conventional graded density elements, Gas Sentinel elements optimize solids handling while maintaining low differential pressure.
