Bolts

Fasteners & Hardware

Lifting Eye Bolts come in metric sizes and stainless steel.

July 7, 2014

Available in metric sizes, DIN 580-NI Stainless Steel Lifting Eye Bolts come in choice of two materials: forged A2 stainless steel (American Standard 304 series) and forged A4 stainless steel (American Standard 316 series). Contact face is machined for both types, and available thread sizes range from M8–M24. Accommodating vertical loads from 1,400–18,000 N, these RoHS-compliant eye bolts feature eye diameters from 20–50 mm. Read More

Material Handling & Storage, Fasteners & Hardware

Steel Setting Bolts incorporate retaining magnet.

December 20, 2013

Available in metric sizes, series GN 251.6 Steel Setting Bolts with Retaining Magnet feature setting bolt body and hex nut that are constructed of steel with zinc plated, blue passivated finish. Retaining magnet is comprised of neodymium, iron, and boron NdFeB (ND type). These RoHS-compliant, shielded magnetic assemblies come in thread diameters from M6–M16, with thread lengths from 12–80 mm, and nominal retaining magnet pulling forces range from 25–145 N. Read More

Fasteners & Hardware

Spinning Clinch Bolts enable captivated screw to spin freely.

June 3, 2013

Available in thread sizes from No. 4–40 through No. 6–32 and M3–M4, PEM® spinning clinch bolts install into aluminum or steel sheets as thin as .040 in. One-piece captive screw solutions provide controlled clinching action during installation that permanently captivates screw while letting it spin freely. Products include Type SCB™ fasteners with unthreaded neck for axial float, Type SCBJ™ hardware integrating jacking feature, and Type SCBR™ versions with self-retracting feature. Read More

Fasteners & Hardware

Metric Spring Bolts come with or without pull knob.

May 29, 2013

Available with or without internal thread in plunger pin, GN 313 Spring Bolts can be operated manually via Push/Pull Knob, or mechanically in types without knob, where plunger pin will protrude only as long as it is in operation mode. Threaded body of plunger is steel with black oxide finish and plunger pin is 303 stainless steel, chemically nickel-plated. In addition, RoHS-compliant bolts have matte black plastic knob and steel lock nut with black oxide finish. Read More

Fasteners & Hardware

Shutter Slide Bolt features anti-rattle spring.

February 19, 2013

Made of heavy cast iron with multi-step WeatherWright™ coating system for extended life, Farm House Shutter Bolt uses bolt and catch halves to secure shutters in closed position. Unit features enclosed bolt and anti-rattle spring for quiet operation. Mounted on inside of shutters, bolt is operated through window opening. Read More

Plant Furnishings & Accessories, Fasteners & Hardware

Door Top Bolt secures inactive half of double doors.

February 12, 2013

Made from cast iron in Art Deco pattern with geometric shapes, Door Top Bolt secures inactive half of double door pair using spring-loaded bolt and 24 in. pull-chain release, which can be shortened if needed. Unit is surface mounted and comes with mounting screws, eliminating mortising of door. Fit and finish are modern with smooth operation and powder coating for lasting service. Read More

Fasteners & Hardware

Bundling Clip addresses pipe yard and off shore applications.

July 27, 2012

Featuring galvanized and painted U-bolt with rolled threads, CM Bundling Clip is useful when lifting, storing, or moving steel tubing, pipes, or precast concrete. Clip eliminates shear points and damage to wire rope, and prevents choker from going slack and load spreading after being unhooked. Available for use with ¾, 7/8, 1, and 1 1/8 in. wire rope chokers, bundling clip meets B30.26 plus traceability and is reusable after inspection. Read More

Fasteners & Hardware

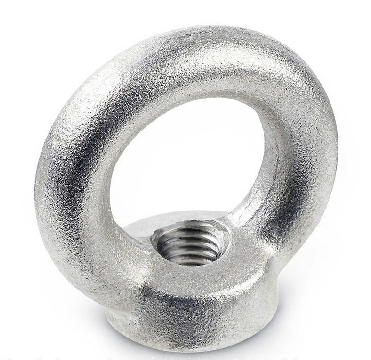

Stainless Steel Lifting Eyes feature one-piece design.

May 17, 2012

Available in 6 metric sizes with tapped threads from M8 to M24, DIN 582-NI Series is manufactured with machined contact face to allow for firm contact with mating surfaces. Units feature max loads from 1,350-17,600 N for one bolt and 950-12,600 N for 2 bolts jointly. Made of stainless steel, RoHS-compliant lifting eyes are suited for use in food, medical, or other clean room applications. Steel and stud type versions are also available. Read More

Fasteners & Hardware

Stainless Steel Shackle Pins suit heavy lifting applications.

November 11, 2011

Manufactured from stainless steel for corrosion resistance in harsh environments, Shackle Pins are available with shank diameters ranging from ¼-5/8 in., handling loads from 2,000-7,000 lb. Shackles can pivot when unobstructed to move 90° on both sides of vertical to correspond with application dynamics. To promote safety in use, full visibility of contrasting color groove indicates pin status as fully locked. Red button serves as caution in activation. Read More

Safety & Security Equipment, Fluid & Gas Flow Equipment, Fasteners & Hardware

High-Security Bolt Lock is C-TPAT - ISO/PAS 17712 compliant.

April 19, 2011

Made of plastic-coated steel, Model PBLT-2-H is classified as high-security container seal that meets U.S. Custom and Border container seal requirements. Keyless, single-use bolt provides tamper evidence and tool-free application. Typically, 5/16 in. diameter shaft is inserted through hasp of locking mechanism affixed to door or access point. Locking cap is then hand-applied, positively clicking in place to lock bolt. Seal must be removed with bolt cutter. Read More

Fasteners & Hardware

Titanium Bolts and Screws suit aerospace applications.

January 17, 2011

Manufactured from titanium alloy TI-6AL-4V, externally threaded NAS and MS Fasteners are suited for applications onboard commercial and military aircraft ranging from actuators to seat track assemblies. Parts can be manufactured to achieve 160 ksi tensile strength and 95 ksi shear strength. Available uncoated or with aluminum or cadmium plate, fasteners feature thread sizes from -04 to -8 and diameters from .093-.500. Head types include 12 point, hex, flush, flat fillister, and pan. Read More

Fasteners & Hardware

Swivel Eyebolts are offered in 4 sizes.

October 15, 2010

StarPoint swivel eyebolts include VRS-M22; VRS-1/4 in. 20 UNC; VRS-5/16 in. 18UNC; and VRS-7/16 in. 14UNC models. Units adjust to direction of pull which allows full engagement of bolt and insures safe lift. Forged from high-tensile steel, they are also 100% electromagnetically crack tested. Smaller sizes allow more versatility for lifting smaller loads. Read More

Fasteners & Hardware

Spinning Clinch Bolts have self-retracting feature.

September 29, 2010

Intended for metal panels as thin as .040 in., PEM® Type SCBR(TM) spinning clinch bolts incorporate self-retracting feature that enables integrated captive screw to remain retracted when disengaged. Controlled clinching action permanently captivates retractable screw-and-spring combination in metal sheet during fastener installation and lets screw spin freely, accelerating attachment of mating hardware. Various lengths and thread sizes are available. Read More

Fasteners & Hardware

Heavy-Duty Elevator Bolt is built for strength, reliability.

May 13, 2010

Intended for use in heavy-duty applications, Reference (Ref) 70 style bolt can be employed on pulleys over 20 in. in diameter and exhibits most strength when coupled with oval washer that serves to increase effective size of bolt head and holding power. Product is available in zinc-plated steel and 18 sizes from ¼-20 x ½ in. to 3/8-16 x 2 ½ in. Read More

Fasteners & Hardware

Nylon Nuts, Screws, and Bolts suit outdoor applications.

May 10, 2010

Made of Nylon 6.6, Nuts, Screws, and Bolts are resistant to oils, rust, corrosion, abrasion, and chemicals. Nylon also provides vibration resistance, as well as electrical insulation due to its dielectric constant. Screws and bolts are offered in several head types including binder, round, flat head, fillister, hex, socket, countersunk, and pan head. All threads are imperial with slotted and Phillips availability. Read More

Fasteners & Hardware

Swivel Lifting Eye Bolts are offered in metric sizes.

April 30, 2010

RoHS compliant series GN 581 eye bolts feature forged and annealed steel ring with special bright pink powder coated finish that changes color to indicate exposure to high temperatures. Threaded socket head bolt is of European standard 10.9 grade steel, and hex key cover plate is zinc plated steel. Mounted in bearing, eye bolts can be rotated and offer high load carrying capacity. Ring can be positioned in direction of load and special cap screw cannot be removed from ring. Read More

Fasteners & Hardware

Spinning Clinch Bolts suit thin metal panels.

November 1, 2007

PEM® spinning clinch bolts for thin metal panels install securely using controlled clinching action to captivate screw while allowing it to spin freely in sheet, which enables quicker attachment of mating hardware by eliminating need for loose fasteners. Bolts include Type SCB(TM) fasteners featuring unthreaded neck for axial float and Type SCBJ(TM) hardware with jacking feature. They come in various lengths and thread sizes from 4-40 through 6-32 and M3 through M4. Read More

Fasteners & Hardware

Expansion Bolts offer secure connection to structural tube.

December 16, 2004

BoxBolt expansion bolts feature expansion anchor to provide safe connections to square, rectangular, circular, and other types of structural steel tube sections where access is restricted to one side. Offered in mild or stainless steel, units come in 5 bolt diameters from 5/16-¾ in. and screw lengths from 2-6 in. Each bolt diameter has 3 overlapping clamping range lengths. Smallest BoxBolt has clamping range of 1/8-7/8 in., and largest has clamping range of 2 3/8-4 in. Read More

Fasteners & Hardware

Battery Bolts connect/disconnect without tools.

June 3, 2004

Constructed of solid brass, Tool-less battery bolts facilitate installation and removal of side terminal battery connections without requiring use of tools. Products are available in 4 styles: short- or long-cable side terminal tri-knob bolt, with or without wing nut for accessories. Bolts are also suited for direct connections of accessories and other equipment. Read More

Fasteners & Hardware

Shoulder Bolts have cylinder head.

March 29, 2004

Cylinder Head Shoulder Bolts, fabricated of steel with black oxide finish, have tensile strength of 500 N/mm². Case hardened with depth of .2-.4 mm, products' shoulder is machined and ground, allowing cylinder head shoulder bolts to be used as precision locating and fastening components. Read More
