Probe Connectors

Electronic Components & Devices, Sensors Monitors & Transducers

Type K Thermocouple Amplifier Module offers fast response.

September 8, 2016

Single-channel TCA-MS-K-1, converts low output voltage signal from Type K thermocouple probe to single, independent, linearized, 0–5 Vdc output voltage suited for interfacing to such instrumentation equipment as dataloggers, temperature indicators, chart recorders, and controllers. Along with 1 msec dynamic response, features include onboard CJC, IP51 housing (2.5 x 2.5 x 0.9 in.),... Read More

Electrical Equipment & Systems, Electronic Components & Devices, Sensors Monitors & Transducers

Thermocouple: Type J and K Terminal Block

July 26, 2013

Our new "pluggable" Thermocouple Terminal Block is DIN Rail mounted for type J and K Thermocouples.  The Pluggable feature is a mini female connector embedded in the top of the Block allowing for measurement of the process temp AT the terminal block!!!! Think of how easy it will be to troubleshoot and calibrate!!  Read More

Electronic Components & Devices

M12 Thermocouple Connectors suit oil and gas industries.

May 22, 2013

Featuring male pins and female sockets made of thermocouple material, M12-FM Series is suited for heat treating ovens, engines, and automation machines. Male and female connectors, with straight or right angled connection styles, provide wide selection of connection options. IP67-rated units can be attached to existing sensor or extension cables with No. 18-24 AWG conductors and 0.16–0.24 in.... Read More

Electronic Components & Devices

Thermocouple Connectors offer quick connect wire terminations.

March 7, 2013

Featuring integral cap, strain relief, and cable clamp, OSTW-CC series comprises round pin, standard size, 2-pole TC connectors. Products connect TC wire or temperature sensor instrumentation with temperature controller or process control HMI automation panel. Available with ANSI or IEC color codes, products also feature contact washers and accept stranded, solid, TWSH, overbraid, or RSC coil... Read More

Electronic Components & Devices, Test & Measuring Instruments

Wireless Thermocouple Connector records over 65,000 data points.

January 25, 2012

Available in standard J, K, T, E, R, S, B, C, or N thermocouple calibrations, MWTC-D Series transmits and/or records process and ambient temperature data back to mating wireless receiver up to 300 ft away. All readings are displayed on user's PC in real-time using provided software. Recording can begin at power up or at pre-set time and date. Featuring miniature portable design, MWTC-D Series is... Read More

Electronic Components & Devices, Test & Measuring Instruments

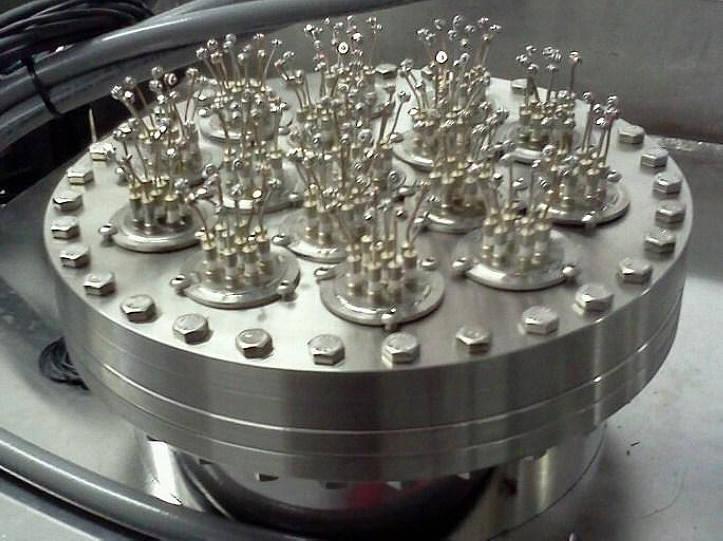

Thermocouple Port has high-density design.

January 17, 2012

Providing for up to 80 thermocouple pairs - 16 x 5-pair subassemblies - over 10 in. dia footprint, High Density, High Count, Thermocouple Port for 1x10-10 Torr is suited for Altitude Test and Space Simulation users. Single-sensor fault is resolved by changing out one affected feedthrough subassembly, and blanked (leak tested) feedthrough subassembly positions A/R for future upgrade/refurbishing... Read More

Communication Systems & Equipment, Electronic Components & Devices, Sensors Monitors & Transducers

RTD-to-Wireless Connector/Converter UWRTD

April 27, 2011

Omega's new UWRTD transmits process temperature, ambient temperature, signal strength and battery status in real time, wirelessly to your computer or the internet. You can interface up to 12 different wireless connectors with one receiver. Low power operation and sleep mode allows for long battery life. The CE compliant UWRTD is compatible with the UWTC-REC family of wireless receivers, which can... Read More

Electronic Components & Devices

Universal Thermocouple Connector enables PC viewing/recording.

February 2, 2011

Through USB port, UTC-USB displays temperature readings acquired via signals from 9 thermocouple types - J, K, T, E, R, S, B, C, and N - on PC. Included software lets users select thermocouple type and units and subsequently utilize PC as meter, data logger, or chart recorder. Able to accept standard and miniature connectors, product also features built-in cold junction compensation and... Read More

Electrical Equipment & Systems, Electronic Components & Devices, Mounting & Attaching Products

CeramTec North America Sealing Technology

January 14, 2011

CeramTec North America Corporation (CTNA) pioneered the science of ceramic-to-metal sealing 60 years ago and today still remains the world leader in ceramic-to-metal sealing technology. With the addition of glass-ceramic sealing, CeramTec has added high-density hermetically sealed components (Micro D, and Circular Connectors) to the line up. CeramTec's Ceramaseal® products include... Read More

Electronic Components & Devices

PCB Thermocouple Connectors are designed for CE compliance.

January 7, 2009

Suited for bringing thermocouple probes to PCBs, PCC-OST and PCC-SMP Series attach directly to circuit board and are offered in 2 sizes to mate with standard or miniature connectors. Products are offered with J, K, T, E, and U calibrations, while N calibration is available in mini-SMP style connector. Able to be mounted horizontally or vertically, products come with mounting clip and are... Read More

Electronic Components & Devices

Terminal Blocks come in thermocouple types K, J, E, T, and R.

July 18, 2008

XBTK Series Thermocouple Terminal Blocks feature modular design that allows for use of different terminal block types together or individually, providing flexibility. Screw-type terminal block connectors have maintenance-free connections and offer large surface area for marking. Suited for chemical and automotive industries for engine testing and process control applications, RoHS compliant units... Read More

Electronic Components & Devices

DIN Rail Terminal Blocks are UL recognized and CSA certified.

June 19, 2008

Featuring corrosion-resistant clamping mechanism, OMTBV7-W terminals allow reliable connections in demanding industrial conditions. Thermocouple terminal blocks (-WTC) come in Type K, J, T, and E, while sensor blocks come in 2 different styles, 3-level blocks with feed-through connections for sensor power, ground, and output (-WTF), and 3-level blocks with feed-through connection for output... Read More

Electronic Components & Devices, Sensors Monitors & Transducers

Connector/Converter couples thermocouple to wireless.

August 21, 2007

Wireless Thermocouple Connector Series (UWTC Series) features stand-alone, battery-powered thermocouple connectors that transmit linearized, cold junction-compensated measurements back to USB-powered receiver connected to PC. Each wireless connector unit can be programmed in-field to work as type J/K/T/E/R/S/B/N/C calibration connector. When activated, connector transmits data continuously at... Read More

Electronic Components & Devices

Thermocouple Input Module has high-density architecture.

September 19, 2006

Model SNAP-AITM-8 accepts up to 8 channels of input for applications requiring temperature monitoring, DAQ, and control. In addition to analog-to-digital conversion from type B, C, D, G, E, J, K, N, R, S, and T thermocouples, product can accept mV readings from -75 to +75, -50 to +50, and -25 to +25. It allows direct instrument readings from Wheatstone bridges, strain gauges, as well as other... Read More

Electrical Equipment & Systems, Electronic Components & Devices

Thermocouple Connector facilitates wire termination.

June 25, 2004

With rated voltage of 500 V, Insulation Displacement Connector provides permanent, reliable connection suited for use under extreme conditions. Quick connection system enables users to connect wires in seconds, and no special tools are required for installation. Insulation displacement connections with 20-14 AWG wire sizes are performed with screwdriver, and piercing pocket or connection point... Read More
