Tru-Connector Corporation    Peabody, MA 01960 5099
Oct 31, 2003 Suited for military and commercial applications, LC Series connectors feature female with closed-slot center contact and male version with rounded center pin. They are available as straight thru or right angle plugs and female receptacles, and as between series adapters. Rated for 50 ohm impedance, DC to 1 GHz, and 5,000 V, they are constructed with brass body, beryllium-copper female contact, brass male contact, and choice of insulator materials.

Nemal Electronics International, Inc.    North Miami, FL 33161
Oct 21, 2003 Terminated using industry-standard crimping tools, NE8000 Series connectors have knurled body design and contact captivation to insure proper contact placement. Brass-bodied connectors are nickel-plated, have gold-plated contacts, and Teflon insulation. Characteristics include 75 ohm impedance, 5,000 megohm insulation resistance, and return loss from -25 db to 2 GHz. Contact retention is 6 lb min, and engagement force is 2.5 lb max.

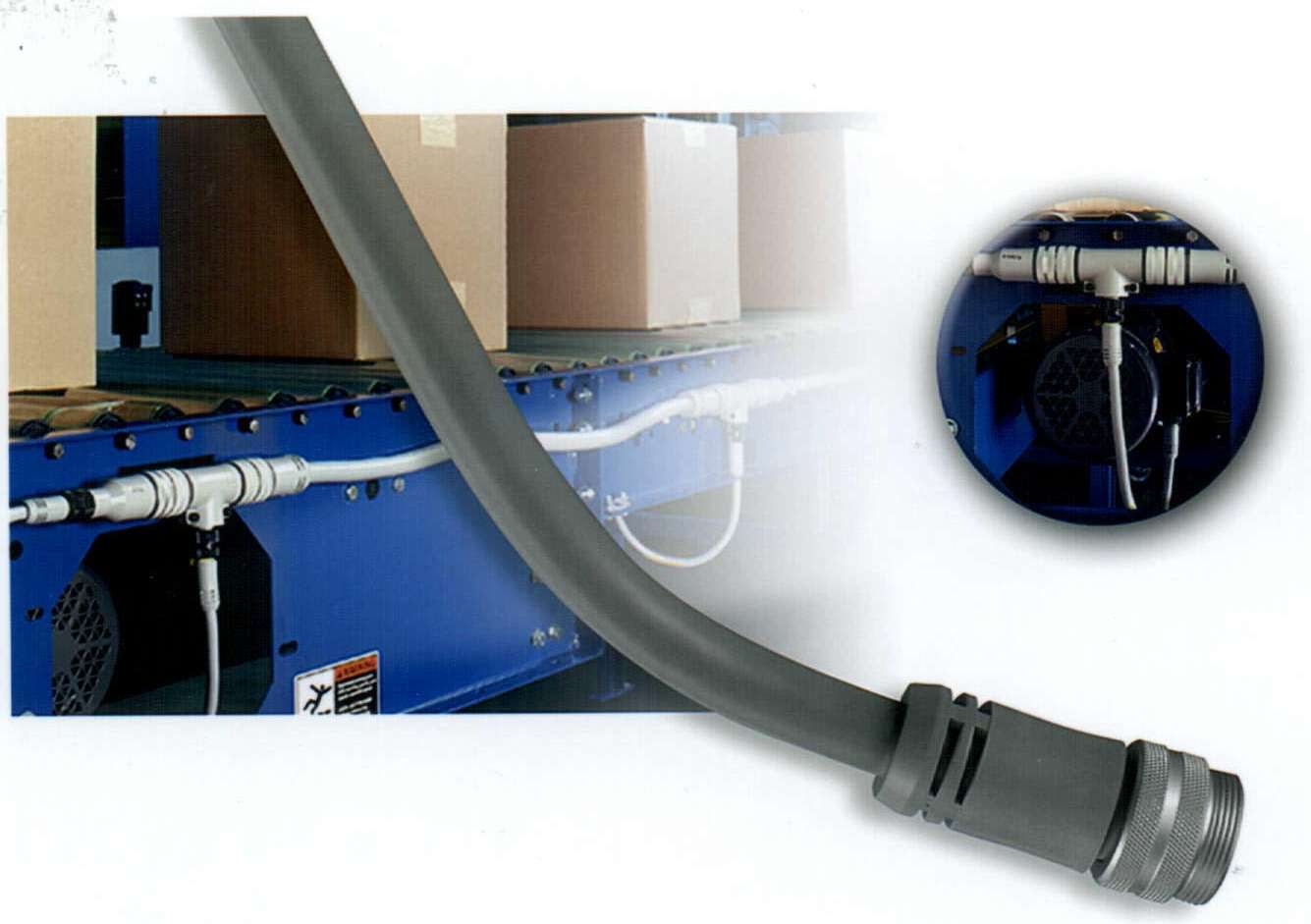

Woodhead L.P., Woodhead Electrical    Northbrook, IL 60062
Oct 10, 2003 Brad Power Connection Systems are modular, scaleable, and code-compliant quick-connect wiring solutions. They meet UL direct support requirements and include trunk/feeder cordsets, drop/branch cordsets, receptacles, tees, and reducing adapters. Pre-wired connectors, suited for harsh environments, feature over-molded connector head with industrial ratings of NEMA 6P and IP67. No threading, pipe bending, or wire pulling is required for installation.

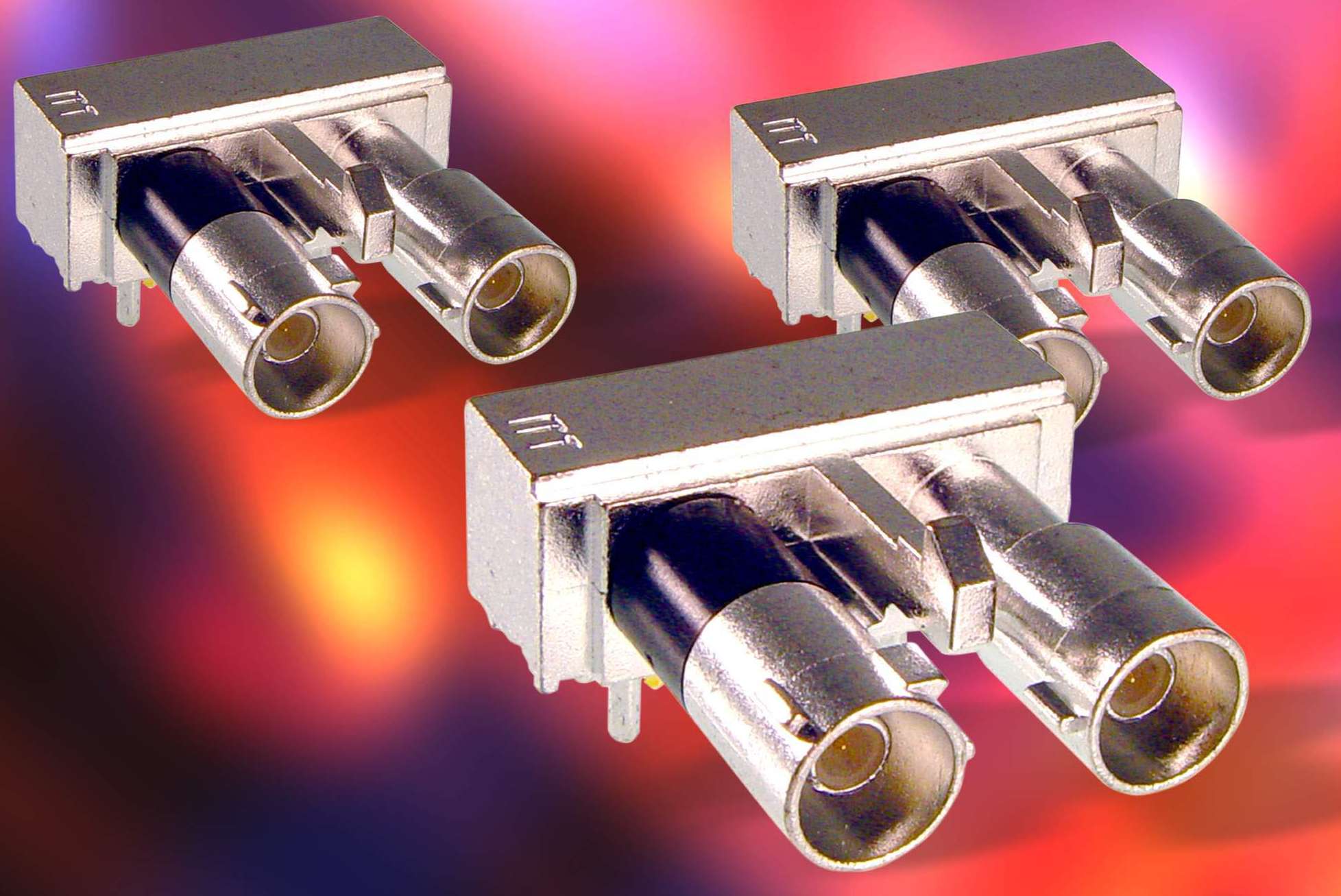

ITT Industries, Cannon    Santa Ana, CA 92705
Oct 06, 2003 Featuring all-metal construction, FAKRA RF connectors are available in 1-, 2- and 3-way versions. Single-piece, die-cast connectors have center of gravity that allows PCB mounting. Rated at 0–4 GHz, devices are color-coded in accordance with FAKRA standard. Available versions include Code A, black (DAB); Code B, natural (DAB with power); Code C, blue (GPS); and Code D, violet (cell phone). Additional offerings include insertion loss performance of 0.35 dB.

TURCK, Inc.    Plymouth, MN 55441
Sep 24, 2003 Quick-disconnect, picofast M8 Insulation Avoidance Connectors include 3- and 4-pin units that handle 22–26 AWG conductors and are rated for 4.0 A at 60 Vac/75 Vdc. Male or female configurations are available with cage clamp strain relief that provides IP 68 seal. Connectors require no soldering and can be installed almost anywhere. Contact holders are color coded to match standard conductor colors.

Tru-Connector Corporation    Peabody, MA 01960 5099
Sep 24, 2003 SR-Series Clamp Attachment fits onto back end of RF coaxial connectors to reinforce cable assemblies subjected to excessive twisting and flexing. Product features rolling clamp nut design that provides axial and rotational support and prevents distortion of cable caused by over-tightening. Suited for cables from ¼â€“¾ in. OD, product is fully compatible with RG214, RG393, and RG217 connectors and is constructed from nickel- or silver-plated brass.

Sullins Electronics Corp.    San Marcos, CA 92079-0189
Sep 24, 2003 Made of high-density dielectric material, bi-level series right angle edgecard connectors withstand temperatures from -65 to +150°C. They feature primary and secondary engagement contact areas with secondary area recessed in card slot. Connectors' 0.050 in. contact centerline spacing results in 4 rows at 0.100 in. spacing. Connectors components accommodate PCB thickness of 0.062 in. and are available with 4–90 contact positions.

Samtec, Inc.    New Albany, IN 47151 1147
Sep 24, 2003 Q2â„¢ shielded connector system incorporates shield plates along sides of connector and terminates them to PCB via selected signal pins. Available in single ended and differential pair versions, system has signal pins on .025 in. pitch and is available with 52, 104, 156, and 208 total pins per connector set. Connectors are polarized to ensure proper mating. In addition to vertical mating, edge-mount, power combo, and non-shielded versions are available.

Positronic Industries, Inc.    Springfield, MO 65801 8247
Sep 23, 2003 Developed to support live insertion and extraction requirements of cards used in computing platforms, VP Series connectors provide dedicated power interface between plug-in boards and backplanes. VPX power connectors, developed for VITA 41 VXS (VME Switched Serial), are uniquely sized for compatibility with IEEE 1101.2 conduction cooled boards and PMC cards per IEEE 1386. Six power contacts and 3 levels of sequential mating are offered.

RF Industries    San Diego, CA 92126 4202
Sep 18, 2003 Unidapt® RFA-4024-WIFI adapter kit contains N, BNC, MMCX, Reverse-Polarity TNC, SMA, and Reverse-Polarity SMA types, all in male and female versions, plus 6 universal centers. By screwing any 2 interface adapters in kit to universal center, user can produce scores of different adapters in seconds. All adapters feature machined brass, silver-plated bodies; gold-plated contacts; and Teflon insulation.

Kycon Inc.    San Jose, CA 95125
Sep 18, 2003 Model KMFS-SMT-130 features low-profile design that lowers height of connector above surface of printed circuit board, allowing board to be mounted in thinner chassis or closer to other components. Space saving is over 50% compared to both through-hole-mount and surface-mount technologies. Available with gold contact plating, connector is suited for set-top boxes, PDAs, computer laptop and desktop systems, as well as peripherals such as printers, scanners, and CD burners.

Cinch Connector Div., Labinal Components & Systems Inc.    Lombard, IL 60148 3230
Sep 09, 2003 Offered in SMA, SMB, MCX, MMCX, DIN 1.0/2.3, BNC, TNC, N, and F interface styles, RF connectors are available with standard 50 ohm and optional 75 ohm impedance. All styles are offered in PCB- and cable-mount versions and various design configurations: cable-crimp, cable-clamp, bulkhead, flange-mount, straight, and right-angle. With performance capabilities out to 18 GHz, products suit higher-speed, low-loss, video/voice/data transmission applications.

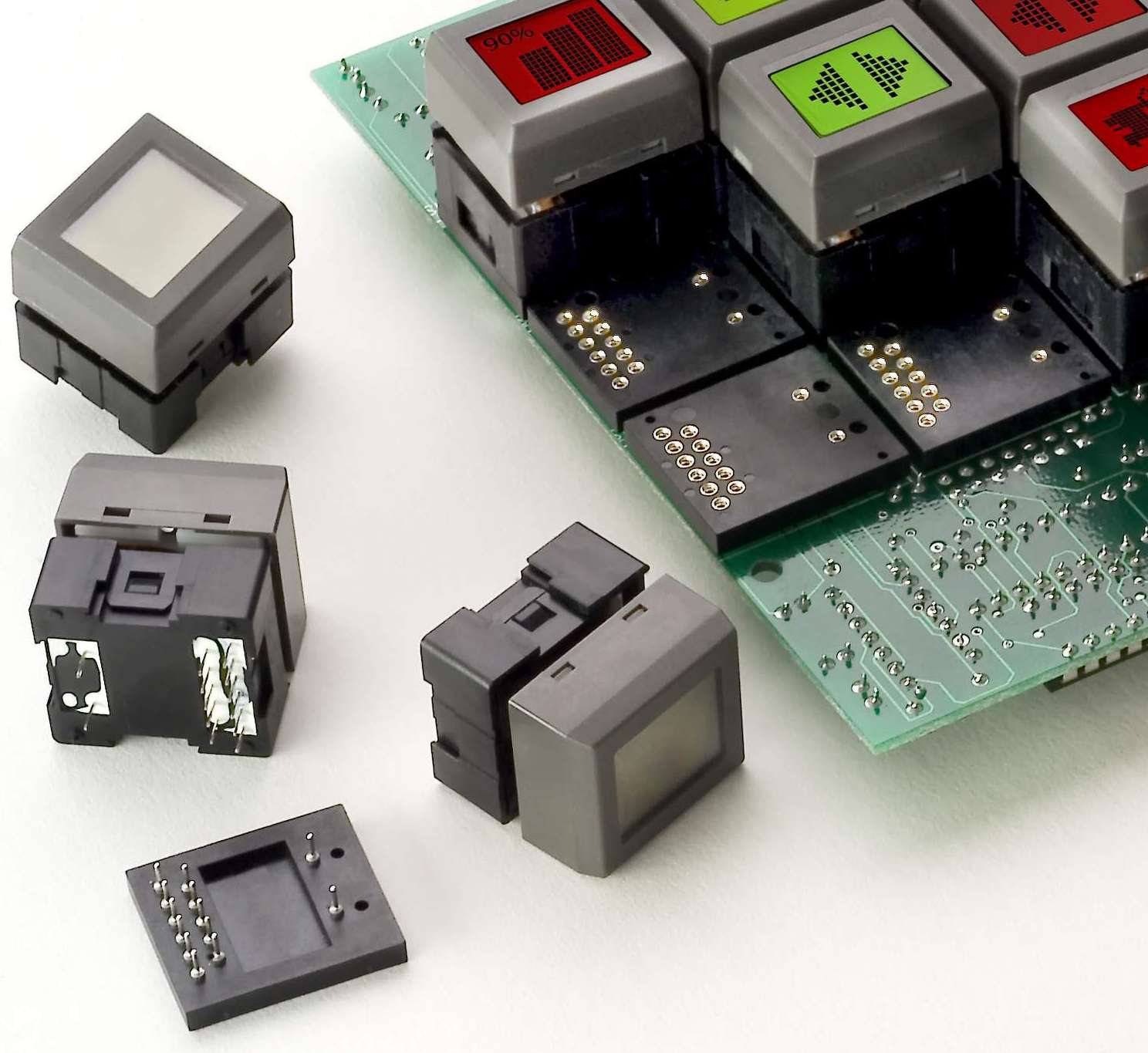

NKK Switches    Scottsdale, AZ 85260-3420
Sep 08, 2003 Low-profile socket facilitates high-density, side-by-side panel or PCB mounting of IS Series SMARTSWITCH(TM) LCD pushbuttons. SMARTSWITCH(TM) pushbuttons feature high-visibility LCD that can be programmed to display graphics and alphanumeric characters. They can also display animation sequences that prompt operators through series of error-free actuations. Backlighting can be programmed to flash, indicating need for immediate action.

HARTING, Inc. Of North America    Elgin, IL 60123 5538
Sep 03, 2003 Han® D-Sub adapter module accommodates most 9-way D-Sub connectors with solder, crimp, or insulation displacement terminations. It is also suited for 15-way high density D-Sub products. When used in single module housing, IP 65 protection rating is achieved for making connections in mechanically and electrically hazardous industrial environment. Shielding is connected independently from housing, ensuring high screen attenuation.

Revotech Industries International    Los Angeles, CA 90071
Aug 19, 2003 UltraJAX Connectors each provide up to 20 pins. Contact assemblies are housed in top and bottom of female connector. Existing, single-sided RJ11 and RJ45 connectors insert into connector in multiple directions supporting multiple functionality. UltraJAX double-sided male connectors utilize both sets of contacts, doubling capacity and functionality of single unit. Connectors are suited for networking and telephone equipment.

TE Connectivity Ltd.    Berwyn, PA 19312
Jul 29, 2003 PC/104 small-form-factor connectors implement standard ISA bus (104 positions) with 2 dual rows of 0.1 in. pitch contacts. PC/104-Plus connectors offer 120, 2 mm pitch contacts in 4 rows. With 0.6 in. fixed stack height, both UL 94V-0 rated thermoplastic connectors are available with optional integral board spacers. Contacts are phosphor bronze and select gold plated on mating end and tin-lead on PCB tail.

Tru-Connector Corporation    Peabody, MA 01960 5099
Jul 29, 2003 Suited for use with flexible coaxial cables with ODs from 0.5–1.2 in., power connectors feature silver-plated, beryllium-copper inner conductors with Teflon® dielectrics and nickel- or silver-plated bodies. Supplied as straight and right-angle plugs, receptacles, and jacks, products operate at frequencies from dc to 3,000 MHz. Characteristics include peak power rating of 132 kW, average power rating of 35 kW @ 13.56 MHz, and 11 kV dc voltage rating.

Precision Measurements ( Measuretech Inc )    Sun Valley, CA 91352
Jul 17, 2003 Metal-jacketed Microwave Cables use high purity silicon dioxide, which resists temperatures in excess of 900°C. They can be operated in excess of 20 GHz and provide low insertion loss and VSWR. Cables indicate insignificant change in insertion loss and very small change in phase as function of temperature. They are completely hermetic and suitable for hostile environments such as aircraft, radar, decoys, and electronic measure systems.

Walls & Forms Inc.    Dallas, TX 75374
Jul 16, 2003 Aluminum panel connectors provide solutions to freestanding wall applications where metal wall standards are required for product display. Structural profiles feature formed channels that nest traditional metal standards, and Corner Posts and 3-Way Posts accept ¾ in. plus predrilled countersunk holes. Connectors are available in 96 in. lengths in satin anodized aluminum finish. Products may be used with woods, plastics, and composite materials.

RF Industries    San Diego, CA 92126 4202
Jul 09, 2003 Suited for use in high-frequency and microwave applications where small size is required, SMA, 2-hole, panel-mount connectors are fabricated to MIL-STD-348A, Section 310 with nickel or gold plated brass bodies, Teflon insulation, and gold plated contacts. Model RSA-3261 SMA jack and RSA-3221 SMA plug have solder cups, while RSA-3262, RSA-3268, and RSSA-3269 have solder posts with flush and extended dielectric terminations.
