FCI Electronics    Etters, PA 17319 9769
Nov 12, 2004 Single-row Clincher 2.54 mm pitch connectors offer polarization keys to assure proper connector orientation to corresponding shrouded headers, and active latching options to protect against accidental un-mating from shock or vibration. Applications include membrane switches, industrial equipment and instrumentation, automotive electronics, and displays.

FCI Electronics    Etters, PA 17319 9769
Nov 09, 2004 Used on test cards for validation of PCI Expressâ„¢ platforms and add-in cards, connectors support implementation of serial PCI Expressâ„¢ architecture in desktop PCs and servers. Products also facilitate connections between coplanar circuit boards. Series offers 1, 4, 8, or 16 serial PCI Express lanes, each comprised of differential transmit and receive signal pairs that support 2.5 Gbps data rate. Card slot accepts 0.062 in. thick add-in card.

Harting KGaA      Germany

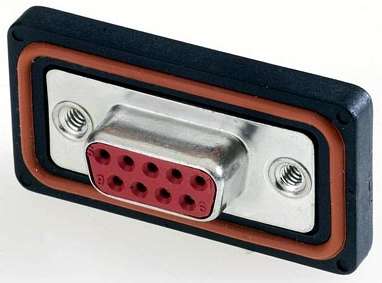

Nov 08, 2004 Available in versions with 9-50 poles, D-subminiature connector is suited for PCB and cable mount applications in equipment situated in harsh environments, indoor and outdoor, where connectors need to withstand ingress of moisture, dust, and other fluids. Connectors and hoods are provided for cable applications, while connectors with or without rear frame for water resistant panel mounting are available for PCB applications.

Pomona Electronics    Pomona, CA 91766 3835
Nov 03, 2004 Built to military specifications, Spring-Loaded Binding Posts help minimize amount of time required by electronics test and service technicians to conduct test by enabling them to quickly connect wiring by pushing cap down, inserting wire into open jaws, and releasing.

Aviel Electronics    Las Vegas, NV 89118
Oct 19, 2004 Custom-designed and fabricated connectors, built to handle unique sealing requirements, can incorporate following sealing methods: O rings, epoxy seals, and glass-to-metal seals. Seals withstand air pressures of 100+ psi of pressure and helium leak rates greater than 1 x 10-8 c³/sec of helium tracer gas. Connectors can be supplied in body configurations from bulkhead, screw-in, flange mount, and press-in designs in SMA, TNC, N, SC, and HN sizes.

Camden Electronics Ltd    St.Albans Hertfords AL3 6PQ  United Kingdom
Oct 12, 2004 Available with 2 or 3 poles, Models CTB04VY and CTB04VZ feature ¼ in. and 3/8 in. pitch and 450 or 750 V rating, respectively. Units interlock, allowing terminal blocks to be built to any length. Insulating body is molded in green UL94VO flame-retardant PA68. Connectors feature 32 A nominal current, combination head M3 cable screw, and zinc-plated copper rising clamp with nickel/tin-plated zinc-copper contacts. Both sizes accept 10–30 AWG section cable.

ITT Industries    Newton, MA 02458
Oct 08, 2004 Waterproof to IP67, CAT6 and CAT 5E RJ45 Ethernet Connectors are IDC terminated, with 360° CEM shielding, and rear metallized cap. Available in several lengths, pre-terminated patch cords feature PVC or polyurethane cabling to resist oil and other damaging liquids. Snap-in rear covers provide tight fixing and guidance while maintaining ground and shielding continuity. Steel or stainless steel boxes deliver IP66 protection and enable connectors to be mounted anywhere.

Phoenix Contact    Harrisburg, PA 17111 0100
Sep 30, 2004 Quick Locking SPEEDCON Connection System requires only ½ turn to make secure, watertight, and vibration-proof connection between cordsets and devices. Connectors fulfill same requirements for electrical and mechanical properties as classic M12 plug connector systems. Product range includes IP65 and IP67 cordsets, sensor-actuated boxes, and field wireable, panel-mount connectors. SPEEDCON technology is also integrated in Fieldline modular I/O system.

Sabritec    Irvine, CA 92614
Sep 16, 2004 Series RF Coaxial MDCX Connectors feature multipin connectors that offer VSWR of 1.25:1 up to 20 GHz. Each MDCX contact has maximum overall diameter of 0.125 in. fitted into low profile metal housing. Insert arrangements are available in 4, 6, 8, and 10 way coaxial assemblies with mixed signal and power contacts offered in hybrid layouts. Connectors suit test and measurement, burn-in, and high power applications.

ITT Industries    Newton, MA 02458

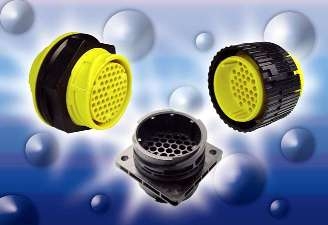

Sep 10, 2004 Series APD DIN72585 Connectors feature lightweight composite bodies with IP69K-sealed connectors and bayonet coupling that ensures tight, vibration-resistant connection. With insulation resistance of 10 Mohm, 37- and 51-way connectors are voltage-proof to 1,000 Vac and rated for max of 12 A at 85°C. Optional secondary locking system on 51-way version provides added security. Applications include automotive, transportation, and industrial environments.

Times Microwave Systems    Wallingford, CT 06492 5039
Aug 16, 2004 Suited for LMR-240 low-loss coaxial cable, QMA EZ non-solder connectors provide snap-on version of SMA interface. They are available in straight and right angle versions, designated EZ-240-QMAM (3190-1533) and EZ-240-QM-RA (3190-1539), respectively. LMR® cables are flexible, non-kinking, low-loss RF transmission line cables that are suitable for use as antenna feeders, system jumpers, and interconnects.

Samtec, Inc.    New Albany, IN 47151 1147
Aug 12, 2004 Micro-rugged, Q2â„¢ Series QMSS/QFSS has signal pins on .025 in. pitch and .433 in. mated height. System is available with up to 160 I/Os per connector set in single-ended configuration and up to 64 pairs in differential pair configuration. It is hot-pluggable with shields and ground plane mating first, followed by signal pins. System offers various options such as positive alignment features, edge-mount designs, and EMI shielding.

RF Industries    San Diego, CA 92126 4202

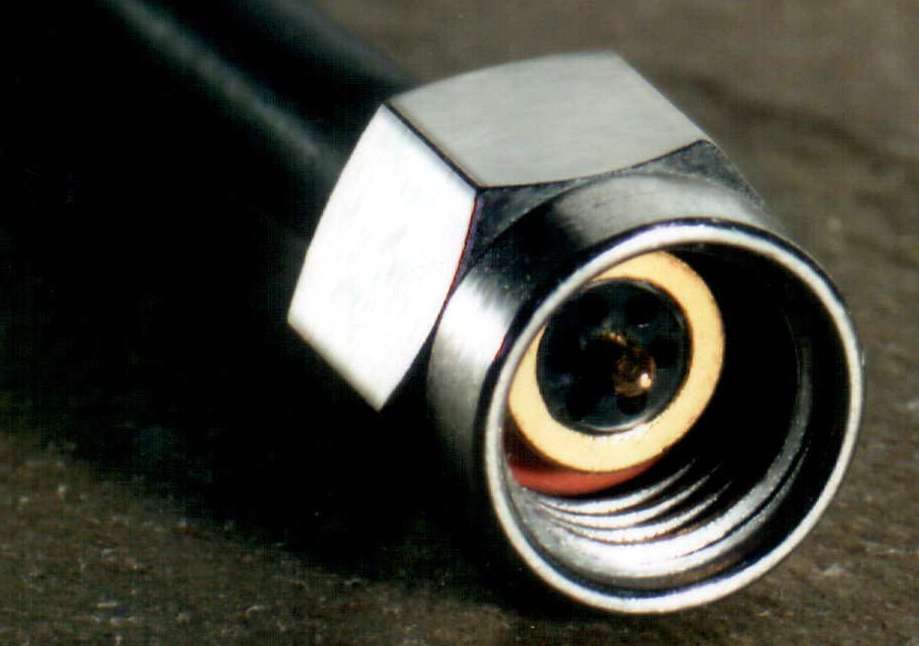

Aug 10, 2004 Model RF29M-SR1 is a 50 ohm, 2.92 mm connector that conforms to IEEE 287 standard and is usable to 46 GHz. It is mechanically compatible with SMA and 3.5 mm connectors and has shortened male pin, ensuring non-destructive mating process. Designed for .085 in. semi-rigid cable assemblies, connector features gold-plated body and pin with molded dielectric bead and stainless steel coupling nut.

RF Connector Operations    Danbury, CT 06810

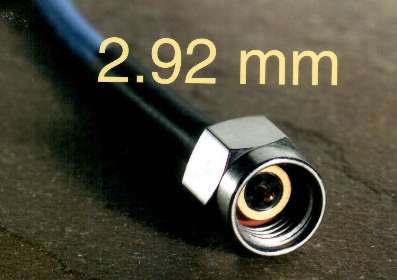

Aug 10, 2004 Model RF29M-SR1 consists of 50 ohm, 2.92 mm precision connector that can be used up to 46 GHz. It conforms to IEEE 287 standard, is mechanically compatible with SMA and 3.5 mm connectors, and features shortened male pin that ensures non-destructive mating process. Designed for .085 in., semi-rigid and high-performance flexible cable assemblies, product has gold-plated body and pin with molded dielectric bead and stainless-steel coupling nut.

AVX Corp.    Myrtle Beach, SC 29578
Aug 03, 2004 Designed for mobile applications, 9155 Series connectors feature contact beam static height of 2.45 mm. Initial product is available in 3 contact positions and spaced on 2.5 mm centers. Once fully deflected, compressed height reduces to 1.3 mm above board. All gold-plated contacts, stamped and rated to 3 A, have beryllium copper base material and stable contact beam design. Integral end stop aids in radial or slide-in battery engagement.

Cinch Connector Div., Labinal Components & Systems Inc.    Lombard, IL 60148
Jul 20, 2004 Series BBFâ„¢ Broadband Frequency Connectors utilize 3-beam, high-force contact to create gas-tight electrical connection with low return loss and VSWR of 1.2 at 1.5 GHz. Available in right-angle board configurations and female-to-female adapters, F-style products mate with wide range of cable connectors at operating temperatures from -40 to +105°C. Ribbed posts grip pcb and keep connector from rocking during wave solder operation. Connectors suit high-bandwidth voice/video/data applications.

Woodhead Industries, Inc.    Northbrook, IL 60062
Jul 12, 2004 Non-Metallic Pin and Sleeve Expo Connectors, built for exposition center environments, feature impact-resistant design that facilitates assembly. Dual-purpose devices have non-conductive exterior, recessed pins and contacts, and brass alloy pins and sockets. Available for 45 and 60 A applications, locking devices provide code-compliant power distribution solution from ceiling drops, wall mounts, and floor boxes to portable panel-boards.

Anderson Power Products    Sterling, MA 01564
Jul 02, 2004 Press-Fit contacts, for PowerMod products, incorporate Flat Rock feature that eliminates need for special tooling to press connectors into board. Contacts are available for straight-through male and female connectors. Based on compliant termination, they are designed for 2 ranges of pcb thickness of .092–.177 in. and .177–.255 in. Nonstandard sizes are also offered. Connectors are UL listed to 23 A per circuit for board-to-board applications.

Athena Controls, Inc.    Plymouth Meeting, PA 19462 1129
Jun 25, 2004 With rated voltage of 500 V, Insulation Displacement Connector provides permanent, reliable connection suited for use under extreme conditions. Quick connection system enables users to connect wires in seconds, and no special tools are required for installation. Insulation displacement connections with 20–14 AWG wire sizes are performed with screwdriver, and piercing pocket or connection point allows for visual confirmation that all conductors are correctly connected.

Siemon Co., The    Watertown, CT 06795-0400
Jun 22, 2004 Capable of 10 G transmission, BladePatch features RH45 plug with latching design that eliminates need to depress external latch; it is activated by boot in push-pull fashion. Plug locks into position when it is pushed into outlet or patch panel, and unlatches for removal when boot is pulled back. Used with high-density blade servers in data centers and server farms, product provides slimmer boot design that allows tight side-stackability.
