Aries Electronics, Inc.    Bristol, PA 19007-6810
Oct 12, 2005 Correct-A-Chip(TM) Adapters permit use of SOIC D package, 150 mil body chips to be used on boards designed for SOIC DW package, 300 mil body chips and vice-versa. Constructed of .062 in. FR-4 board manufactured to IPC-600E Class 2 standards, units are available in pin counts from 8-24 pins. Glass-filled FR-4 material is UL94V-0 rated with 1 oz of copper traces. Male pins are brass with 200 µin. tin over nickel plating.

ERNI Electronics, Inc.    Midlothian, VA 23112
Oct 12, 2005 Offered in 3- and 4-pin female and 4-pin male versions, M8 Connectors can be used to build flexible I/O connection on circuit boards. When connectors are plugged in, protection rating meets IP67 in accordance with IEC 61076-2-101 standard. Insulator is high-temperature-resistant plastic and suitable for soldering with all SMT soldering procedures. Users can choose SMT, press-fit, or through-hole reflow termination.

ERNI Electronics, Inc.    Midlothian, VA 23112
Oct 04, 2005 Offered in 10 housing sizes, IEC 60603-13 compliant Series LPV employs IDC technology, ensuring gas-tight and corrosion-resistant contact. Integrated polarizing key prevents incorrect mating and damaged contacts, while strain relief clamps make it possible to lead cables out at 90 or 180° to plug connector. Female connectors are used with 1.27 mm ribbon cables, and male connectors are available with press-fit, wave-soldering, and through-hole-reflow termination.

ERNI Electronics, Inc.    Midlothian, VA 23112

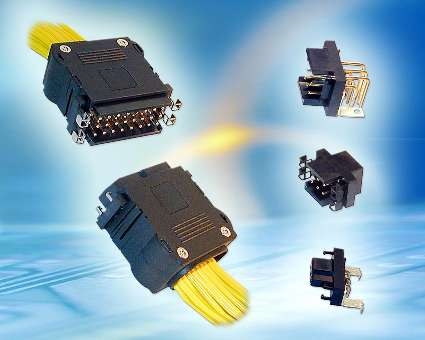

Sep 29, 2005 Available in 6.3 mm format with 9, 15, 25, or 37 positions, vertical press-fit D-sub connectors are plated in mating area to meet IEC 807-3/DIN 41652 requirements and tin-plated in termination area. Metal mounting bracket relieves strain from plug insertion, removal, and cable handling. Versions are available with inset nuts, locking bolts, or clearance through holes, and locking hardware accessories are integrated and protected against rotation.

3M Company / Electronic Products Division    Austin, TX 78769
Sep 28, 2005 Using ribbon contact system with 0.8 mm contact pitch, polarized, board-mount Shrunk Delta Ribbon Connectors are constructed of high-temperature plastic with 30 micron gold contacts and stamped metal EMI/ESD interface. Installed jack socket supports corresponding assembly thumbscrew interface. Utilizing 28 AWG cable and wiring configurations that meet legacy Camera Link specifications, Cable Assemblies consist of over-mold shells with thumbscrew locking system.

FCI Electronics    Etters, PA 17319 9769

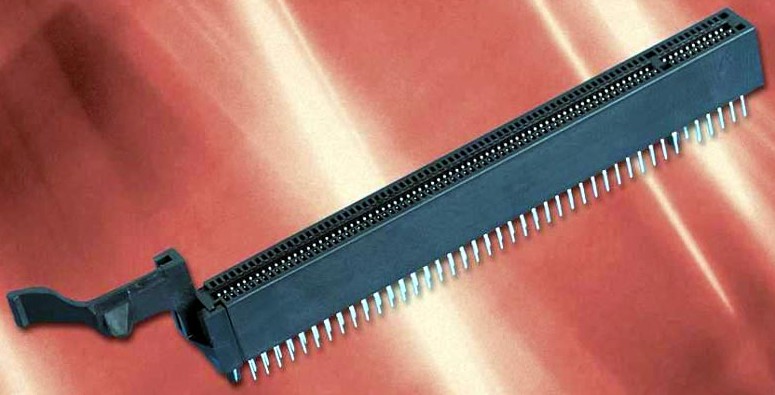

Sep 20, 2005 RoHS-complaint 10046742 series of x16 vertical PCI Express(TM) card edge connectors includes retention arm that extends away from end of connector body. Molded post snaps into notch on bottom of add-in card and engages with hockey stick-shaped hook. Latching post locking mechanism restrains graphics card in vertical direction. Removal of graphics card requires pushing arm away from graphics card until molded post disengages from notch on bottom of card.

Harting KGaA      Germany
Sep 07, 2005 Han DD series high pin count, industrial multi-pole inserts feature creepage and clearance distances that comply with IEC 61984 to provide user with optimal safety while in use. Manufactured from polycarbonate to UL94 V0, products are suitable for use in pollution category 3 environments at up to 250 V and 10 A. Versions are available with 24, 42, 72, or 108 contact cavities.

Norstat, Inc.    Rockaway, NJ 07866
Sep 07, 2005 Available in 6 connector types, DIN 43650 Connectors and Molded Cable Assemblies come with or without LED and surge suppression. All feature impact-resistant, plastic housings with Molded Assemblies offering cable strain relief and protection against environment. Pre-wired units offer cable lengths up to 10 m and are available with M-12 connectors. Unwired connectors carry IP 65 protection rating, while molded assemblies carry protection rating of IP 67.

Anderson Power Products    Sterling, MA 01564
Aug 22, 2005 Offered in 3–30 circuits with max current of 30 A, PowerMod® Connectors are compatible with lead-free re-flow soldering. Manufactured from high-temperature plastic polyphenylene sulfide, units feature melt temperature of 285°C and are available in straight PCB, right angle PCB, panel, or cable mountings.

Bomar Interconnect Products    Ledgewood, NJ 07852

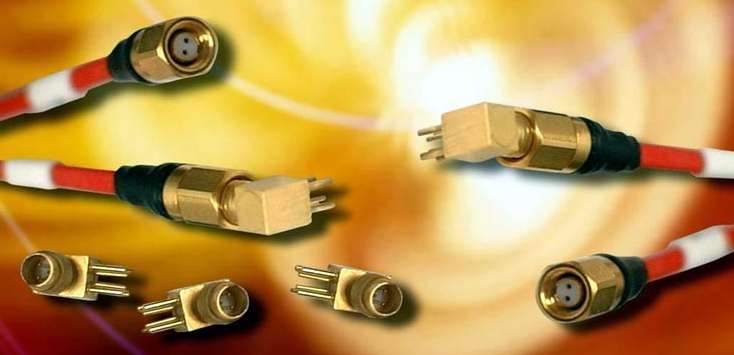

Aug 05, 2005 Eliminatorâ„¢ Series SMB right-angle interface allows direct connection to PCB without additional cables or connectors. Available in 50 and 75 Ω impedance, unit provides broadband performance with reflection from dc through 4 GHz. It is made from precision-machined brass with TFE insulators and gold-plated contacts. Connector features insulation resistance of 1,000 mΩ min, dielectric withstand voltage of 1,000 Vrms, and temperature range of -65 to +165°C.

Molex Inc.    Lisle, IL 60532-1682

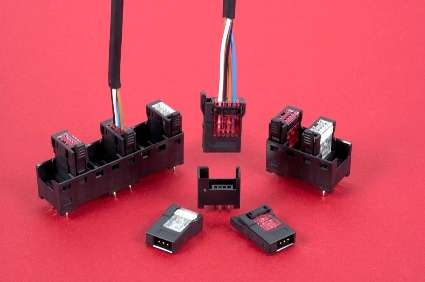

Aug 03, 2005 Rated at 32 V and 1.5 A max, EZ-Conn™ System includes insulation displacement cable plugs and modular PCB receptacle connectors in circuit sizes from 3–32. Field operators need only insert insulated wire and terminate using standard pliers. Vertical through-hole PCB version is available in modular units of 3 or 4 circuits in single, 4-row, and 8-row styles. SMT version is available in 4-circuits, allowing for right-angle mounting.

AVX Corp.    Myrtle Beach, SC 29578

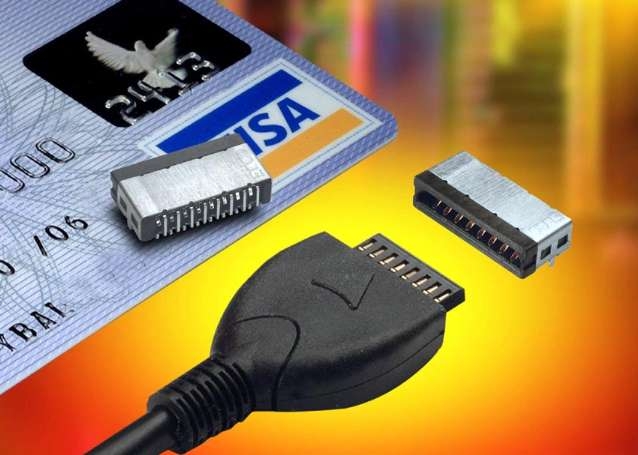

Jul 28, 2005 Series 9257 design features fixed SMT socket mounted on PCB and housed in portable equipment such as handheld devices, industrial modules, cell phones, and medical electronics. Connector plug offers cable termination with options of single- and double-sided contacts and single- or dual-row plug connections. No latching is required due to click design of contacts. Socket connector houses 16 contacts in 2 rows on 1.25 mm pitch with 1 A/contact rating for 5,000 mating cycles.

Gore, W. L., & Associates, Inc., Electronic Products Div.    Elkton, MD 21922-0160
Jul 27, 2005 GOREâ„¢ 100 Series Connectors provide high-density blindmate microwave interconnect system offering performance through 100 GHz. They accommodate radial and axial misalignment with negligible VSWR change. Along with socket-to-socket bullet that weighs less than 0.02 g, products offer electrical performance and mechanical footprint that enable designers to create thinner, lighter, and smaller TR modules, PCBs, and power dividers.

FCI Electronics    Etters, PA 17319 9769
Jul 11, 2005 ExpressCard™ host connectors and slot systems support implementation of ExpressCard technology in mobile and desktop PCs. Top-mount universal slot systems with card push ejection are offered with slot standoffs from 0.0–2.2 mm. Supporting USB 2.0 and PCI Express™ serial interfaces, 26-position connector system is validated at PCI Express data rates of 2.5 and 5.0 Gbps. RoHS-compliant host connectors 10030584 and 10056265 have single-row, in-line configuration for SMT solder tails.

Amphenol Corp., Amphenol Aerospace    Sidney, NY 13838
Jul 06, 2005 Suited for MRI applications, multi-pin Amphe-Lite Series features corrosion-resistant composite housings with IP67 rating when mated. Non-magnetic contacts are available for power, signal, and coax applications ranging from single Twinax contact up to 128 size 22D contacts for crimping 22–28 AWG. Standard crimp contacts can be terminated to discrete wires, and PC tail contacts are available for termination to PCBs or flex circuitry.

Samtec, Inc.    New Albany, IN 47151 1147
Jul 06, 2005 Suited for high-speed applications, 15- and 25-position plugs in DHSC Series are supplied with micro coax Data Rate cable. This 2.1 dk, 38 AWG cable has 300 mA current rating with 4.5 nsec/m propagation delay. Each wire is individually shrouded, and full cable is shrouded again and encased in metal backshell. Discrete wire D-Subs (DSXD Series) and flat IDC cable D-Subs (DCXD Series) include sockets and plugs available with 9, 15, 25, or 37 positions.

Sabritec    Irvine, CA 92614

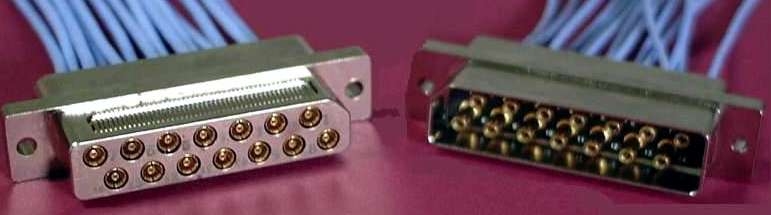

Jul 01, 2005 Multiway Triax D-Subminiature series grounds outer shield of triax contact directly to shell of connector. Multi-finger ground spring, fixed around triax shell, provides multi-point contact engagement for EMI shielding. Size 10 triax interface transmits data at 100 ohm differential pair impedance. Able to mate up to 14 contacts in one connector interface, design has polarizing shell to prevent mismating and scoop-proof concentric triax interface for mating repeatability.

FCI Electronics    Etters, PA 17319 9769

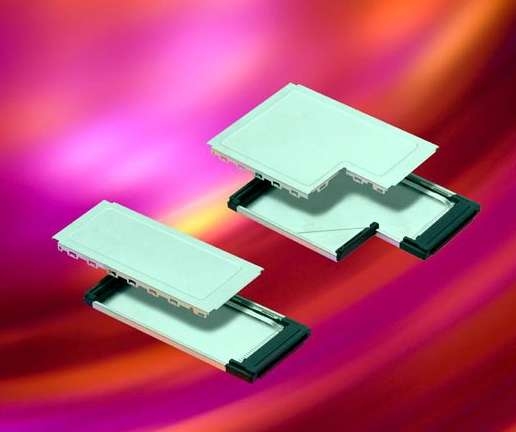

Jun 27, 2005 Module Connector Model 100307570 utilizes beam-on-blade contact interface that is rated for up to 10,000 durability cycles. Power and ground contacts in 26-position unit provide first-mate and last-disconnect in relation to signal contacts. RoHS-compliant connector also features single-row, in-line configuration for surface-mount soldertails to facilitate soldering and inspection. Module components are provided for ExpressCard/34 and ExpressCard/54 module form factors.

Nemal Electronics International, Inc.    North Miami, FL 33161
Jun 22, 2005 Featuring machined body, mil spec black plating, and weatherproof insert, 37-pin DT12 Connector is suited for both indoor and hostile outdoor environments. Positive lock insert system prevents conductor breakage during interconnection. Cable and panel mount versions are available with either crimp or solder contacts and variety of strain relief options. Applications include termination of 12-pair audio molt cable, 14 coax video molt, or up to 37-conductor control cable.

Sabritec    Irvine, CA 92614
Jun 02, 2005 Offered in true differential twinax packages with NDL, SMA, and Micro-D Size constraints, Micro Twinax series miniaturized connectors support 100 Base-T Ethernet and 1 Gbps min Fibe Channel operation. Products can be driven via matched impedance differential pair interconnections for board to board data transfer. All connectors are available in straight or right angle versions.
