Samtec, Inc.    New Albany, IN 47151 1147
May 12, 2006 Maximizing bandwidth per square inch of board area, DPAM/DPAF Series offers up to 168 usable signal pairs, which are on staggered grid to minimize number of grounds and to facilitate signal routing on boards. DP Array(TM) connector sets are available with 10 and 17 mm mated heights, and solder terminations are offered with tin-lead and lead-free tin alloy for RoHS compliance and lead-free reflow soldering.

Murata Electronics North America, Inc.    Smyrna, GA 30080
May 11, 2006 Manufactured in 2.0 x 2.0 mm package with 0.6 mm height and 1.2 mm max mating height, miniature HSC series board connector and cable assembly allows engineers flexibility throughout design process and alleviates concerns with point to point microwave connections. RoHS-compliant unit has dc to 6 GHz operating frequency and comes in various cable configurations and lengths. Test probes are available to interface with cable or connector to confirm signal integrity.

Norstat Inc.    Mansfield, OH 44903
May 10, 2006 DIN 43650 connectors and Molded Cable Assemblies are available in 6 connector types, with or without LED and surge suppression. All connectors feature impact-resistant, plastic housings, while molded assemblies offer cable strain relief properties and protection against environment and elements. Pre-wired units offer cable lengths from ½-10 m and are available with M-12 Connectors. Unwired connectors are protected to IP 65, while molded assemblies are protected to IP 67.

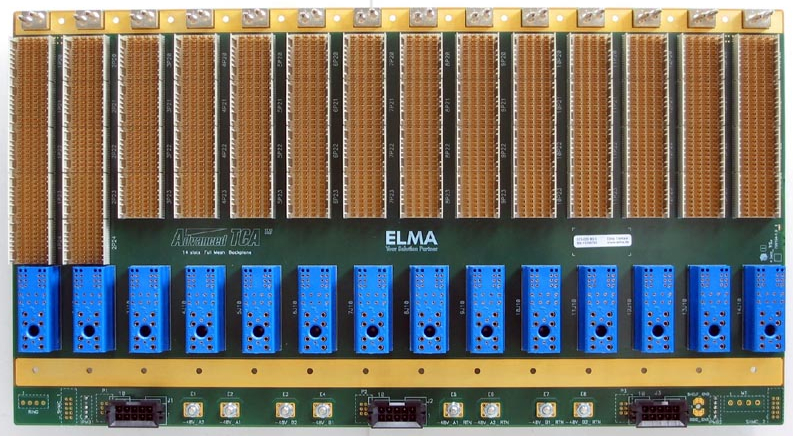

Elma Bustronic    Fremont, CA 94538
May 09, 2006 Compliant to PICMG 3.0 specification, 14-slot ATCA features 18-layer stripline design with pluggable fan tray, shelf manager, and power entry connectors. Dual Star or Mesh configurations can be utilized within same backplane, and unit has theoretical performance of 1 TB/sec. Able to accommodate 8U x 280 mm boards on 1.2 mm pitch, product features Gigabyte/Terabyte per second bandwidth across each shelf, 150-200 W per board, and 3 kW per chassis power.

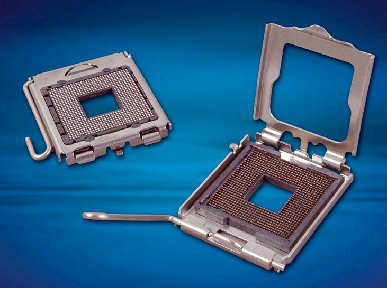

FCI    Etters, PA 17319
Apr 21, 2006 Lead-free, 775-position Model LGA775 enables use of microprocessors that support PCI Express signaling in desktop PCs. Utilizing BGA technology for motherboard attachment and LGA interface to microprocessor, socket performs with less than 4 nH inductance and less than 1 pF capacitance pin-to-pin. Pickup cover facilitates placement using pick-and-place equipment, while BGA termination allows socket assembly to self-center on PCB pads as well as self-level in z-axis direction.

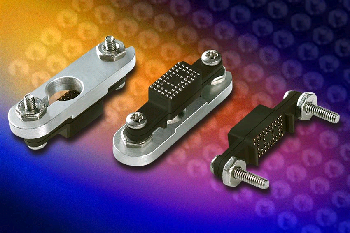

Aries Electronics, Inc.    Bristol, PA 19007-6810
Apr 13, 2006 Suited for applications using BGA, LGA, CSP, and other devices on 0.50 mm or larger pitch, PinBall(TM) Socket can be soldered side-by-side, directly to existing footprint of PC board. Clearances range from 0.5-2.0 mm, depending on pitch. Constructed of FR-4 material, socket features 63/37 tin-lead solderballs on PCB mating side and male spring probe on device mating side, which offers contact force of 12-15 g/contact. Users have choice of aluminum cover or aluminum heatsink.

RADIALL Inc    STRATFORD, CT 06615
Apr 07, 2006 Suited for telecom, RF power amps, and other applications up to 80 W, surface/edge-mounted two-in-one interconnect device replaces existing standard RF switches by integrating switch function into connector receptacle. Product comes in right or left versions for QMA, QN, TNC, N, and SMA interfaces. TNC RF Power Switching Connectors offer 50 ohms impedance, -47 to -40 dB typ isolation, and 0.1-0.2 dB max insertion loss over DC-3 GHz frequency range.

ITT Industries Cannon    Watertown MA 02172
Mar 31, 2006 Featuring Canon CoF technology, filter connector provides standard filtering capabilities including individual isolated pin filtering of high-frequency noise, built-in ground plane barriers in the connector inserts, and filtering at face of system boxes. In MIL-DTL-38999 configurations, it meets MIL-STD and MIL-DTL Series III standard for thermal shock, random vibration, humidity, and high altitude. Light weight CoF connector suits military, aerospace, and industrial applications.

ITT Industries, Cannon    Santa Ana, CA 92705-5612
Mar 31, 2006 With minimum rated life of 10,000 mate/unmate cycles and no loss in performance, DLP Series Zero Insertion Force Connectors can be mated/unmated in less than 2 sec. Because contact in receptacle connector mates directly to PCB on plug half, signal paths are minimized. Connectors use 34-way high-density contact modules and are available in 136, 204, 272, and 408 configurations. Rated current is 0.5 A and contact resistance is 30 mOhm.

Amphenol Corp., Amphenol Aerospace    Sidney, NY 13838
Mar 28, 2006 Amphe-PPM series of push-pull aluminum shell connectors enable quick mating and unmating of signal and power interconnects in medical electromechanical instrumentation and process control applications. Non-sealed connectors are offered in 12 or 16 mm housings with 2-12 contacts 1.0-2.5 mm in dia, and rear accessory can be either rubber boot or cable clamp. Sealed connectors are available in 10, 12, 16 and 18 mm housings with 2-14 contacts 0.8-2.5 mm in dia.

FCI Electronics    Etters, PA 17319 9769
Mar 23, 2006 Surface mount MicroTCA card edge connectors provide dual-row, 170-position card-edge interface on 0.75 mm pitch for plugging standard AdvancedMC(TM) card directly to MicroTCA backplane. Lead-free, RoHS compliant connectors support differential signaling at data rates of 12.5 Gbps per lane. Metal retention clips at connector ends offer mechanical strength after soldering.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055
Mar 14, 2006 Available in both RJ-11 and RJ-45 types, jack-style Model IMRJ provides means of interfacing between various types of equipment that use Ethernet/RJ type connections and individual wiring. It features modular DIN rail base with clearly ink-marked terminal blocks. Special sizes, circuits, and custom labels are available.

ERNI Electronics, Inc.    Midlothian, VA 23112
Mar 14, 2006 Manufactured according to DIN 41612/IEC 60603-2, DIN connectors with THR (Thru Hole Reflow) termination can be soldered using lead-free wave or reflow soldering. DIN-variants are available with black housing and pick-and-place pad in tape-and-reel packaging, permitting fully automatic processing with SMT placement machines, enabling boards to be soldered in single operation. THR version is offered in C, C/2, C/3, CD, R, R/2, R/3, and RD types.

Molex Inc.    Lisle, IL 60532-1682
Mar 13, 2006 Mini-HMC(TM) Connectors feature crescent-shaped metal hood with single action lock. One-touch spring lock enables lever to be smoothly engaged and locked firmly into place. Rectangular I/O connector system carries 7 A, making it suitable for signal and power applications. Measuring .118 in., housings come in modular units of 10 circuits, with max of 40 circuits per side, and can be inserted and removed without tools. Gold-plated terminals are available in 18-28 wire gauges.

Anderson Power Products    Sterling, MA 01564
Feb 28, 2006 Horizontal and Vertical Mini-Powerclaws feature quick disconnect, hot-pluggable design, allowing system maintenance without need to power down system or unfasten ring type terminals. Both can be used with Powerpole 75 A and SB50 A connector, and when used as single pole contacts, do not require external housings. Powerpole and SB guide housing is available for Vertical contact to prevent user from reversing polarity.

Siemon Co., The    Watertown, CT 06795
Feb 09, 2006 Capable of being inserted and removed without need for external latch, 10G 6A F/UTP BladePatch RJ45 patchcord is designed for high-density blade servers in data centers or server farms. Cross-pair metallic isolator and 360° crimp maintain pair geometry and eliminate deformation. Resistant to corrosion, extreme temperatures, and airborne contaminants, it is compatible with T568A and T568B wiring schemes which allows it to accommodate all Ethernet applications.

Samtec, Inc.    New Albany, IN 47151 1147
Feb 02, 2006 PES/PET Series Power Edge(TM) high power-to-board interconnects on .250 in. pitch have up to 8 blade style contacts. Polarized through-hole connectors can be used with either .062 or .125 in. thick boards. Right-angle versions have screw-down features. RoHS compliant and suitable for lead-free processing, units are available for parallel board spacings of 19 mm and for perpendicular and planar board interface applications.

Components Corp.    Denville, NJ 07834
Jan 31, 2006 Engineered to safely interconnect traces on densely populated PC boards, RoHS-compliant SJ Series jumpers are offered in standard EIA case sizes 0805 and 1206. Constructed of #C110 copper flat wire and 100% matte tin over nickel underplate, they have current rating of 2 A and operating temperature range of -55 to +125°C. Resistant to moisture and other contaminants, parts are provided on 8 mm wide, 4 mm pitch, conductive polycarbonate tape that meets ANSI/EIA-481 standards.

ERNI Electronics, Inc.    Midlothian, VA 23112
Jan 27, 2006 Right-angle, Type C ERmet THR Connectors offer 55 signal contacts on 25 mm modules and are suited for fully automatic, surface mount placement of plug-in cards. Units are available with or without metal shield, but are not equipped with pre-alignment pins. High-temperature resistant thermoplastic insulating body allows manufacturers to use connectors in all SMT soldering processes. Units are configured for RoHS-compliant production and offer capacity of 1.5 A at 20°C.

Samtec, Inc.    New Albany, IN 47151 1147
Jan 27, 2006 Ganged RF cable plugs are available for terminating 2, 4, 6, or 8 wires simultaneously with choice of standard 26 AWG coax cable or high performance 26 AWG coax cable with 1.4 dielectric constant. Standard assemblies can be specified with wire lengths from 6 in. to 1 m. Ganged RF board-to-board jacks and plugs are available for terminating 2, 4, 6, or 8 connectors simultaneously. Standard board spacing is 4.5 mm. Captive screw receptacles are available on jacks.
