Card Edge Connectors meet PCI Express 2.0 specifications.
Meritec Div., Associated Enterprises
Painesville, OH 44077
Oct 22, 2007
Available in X1, X4, X8, and X16 configurations, Straddle Mount PCI Express Connectors offer additional solutions for co-planar applications between printed circuit boards. Rugged design is manufactured using insert molding process ensuring proper pin alignment and accurate contact registration. Low profile allows for dense packaging options. Each serial lane is comprised of differential transmit and receive signals with data rates running at 5.0 Gbps.

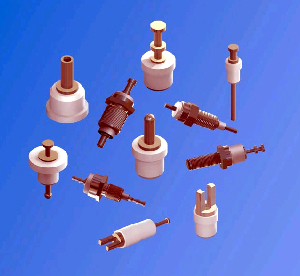

PTFE Terminals are insulated for high temperature.
Keystone Electronics Corp.
Astoria, NY 11105
Oct 11, 2007
Engineered for high-density packaging on .062 and .093 PC boards, press-in type PTFE Terminals are resistant to shock and vibration, and operate within temperature range of -85 to +400°F. Terminals and pins are manufactured in variety of configurations for top and bottom mount, plus feed-through mounting on chassis, PCBs, and panels. Insulator bushings are high grade White PTFE with tin-plated brass electrodes.

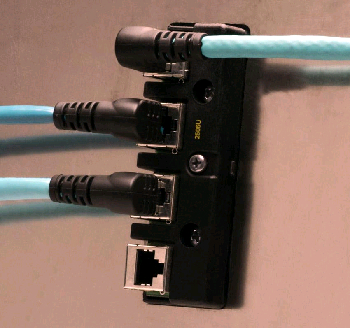

RJ45 Connector Cordset features overmolded design.
Plymouth, MN 55441
Oct 11, 2007
Overmolded with polyurethane, Right Angle RJ45 Connectors are available with internal or external tabs. Cables come with or without shielding in 4 or 8-wire configurations and with stranded conductors. Complimenting Ethernet cabinet adapter, cordset is suited for connections in tight spaces and Ethernet panel builders.
RJ45 Connector features fully overmolded design.
Plymouth, MN 55441
Sep 25, 2007
Overmolded with polyurethane, right angle RJ45 Connector is available with internal or external tabs. Cables are available with or without shielding in 4- or 8-wire configurations and stranded conductors. Complimenting Ethernet cabinet adapter, cordset is suited for connections in tight spaces and Ethernet panel builders.
Compact Connector combines power and signal contacts.
Sep 21, 2007
Supplied in size Han® 10 B compact housing, Han® K 4/4 combines 4 power contacts for 63 A and separate PE contact for wire gauges up to 22 mm² with 4 signal contacts for 16 A. Cable termination is achieved without any special tools, allowing connectors to be terminated in field, making them applicable for various applications. Compact design and finger safety of female and male sides make this product suited as alternative to round CEE plugs.
PCIe Switches are supplied in QFN packages.
Integrated Device Technology, Inc.
Santa Clara, CA 95054
Sep 10, 2007
Featuring 2-4 downstream x1 connections, 5 PCI Express® (PCIe®) switches are optimized to address I/O connectivity challenges faced by systems requiring low-lane and low-port counts in embedded medical, automotive, PC and consumer applications. Devices range from 3-lane, 3-port switch to 8-lane, 5-port switch, all leveraging IDT's high-speed switching while using PCI Express standard to allow seamless interconnect of processing, storage, and networking system elements.
RF Connector handles high-power applications.
Bomar Interconnect Products
Ledgewood, NJ 07852
Sep 07, 2007
Accommodating medium to miniature-sized RG coaxial cables including RG-8, RG-58, RG-141, and RG-225, male Type N connector ensures performance characteristics throughout 0-18 GHz. Weatherproof, medium-sized RF connector is suited for base stations, cellular antennas, RF and microwave components, SATcom, broadcast, PCS (personal communications services), test and measurement equipment, microwave radio, and radar. It provides low reflection factor with VSWR of 1.30.
Industrial Grade Connectors target Ethernet applications.
Franklin Park, IL 60131
Sep 04, 2007
Providing transmission rates of up to 40 Gb, STX connectors resist dust, moisture, and chemicals as well as mechanical and electromechanical loads. Gigabit-capable devices meet standardized IEC 61076-3-106 specification and are in full compliance with IP 67 requirements for environmental protection.
Push-Wire Terminal ensures luminaire ballast safety.
Germantown, WI 53022
Aug 31, 2007
Designed to meet NEC 410.73(G), CEC 30-308(4), and CSA/UL Standard 2459 for Insulated Multi-Pole Splicing Wire Connectors, 2-pole LUMI-NUTS(TM) 873 Series can daisy-chain power from one ballast to another, eliminating additional connectors. Integral locking latch prevents accidental disconnection of mating halves, while touchproof design eliminates need to disconnect power. Unit features color-coded molding and on-unit markings that reduce risk of wiring errors.
Flat Pin Staked Flex Jumpers comply with RoHS standard.
Aries Electronics, Inc.
Bristol, PA 19007-6810
Aug 30, 2007
Equipped with flame retardant cable, Series 171-173 combine thin, flexible, solid copper conductors embedded between layers of flexible, flame retardant insulation, with polyimide covering and acrylic adhesive. Rated at 300 V and 3 A, cables offer minimum dielectric strength of 2,500 V/mil at standard temperatures and 4,000 V/mil at high temperatures. Jumpers have UL 94V-0 glass-filled Stanyl 4/6 nylon housing that accepts lead from 0.024-0.030 in.
FPC ZIF Connectors suit small consumer electronics.
Etters, PA 17319
Aug 28, 2007
Featuring 0.3 mm pitch, Model YLL-D provides 0.3 mm spacing, 13-45 down-side contact positions, and max height of 1.0 mm, while Model YLL-U provides 0.3 mm spacing, 13-45 upper-side contact positions, and max height of 1.05 mm. Both have surface mount leads, and front flip-type actuator for error-free cable insertion. Gold plating is used in contact area to prevent whiskering issues. Applications include mobile phones, digital still and video cameras, and displays.
Connectors accept 0.031-0.125 in. thick daughtercards.
Sullins Electronics Corp.
San Marcos, CA 92079-0189
Aug 24, 2007
Supplied with contact centers of 0.100, 0.125, and 0.156 in., Edgecard Connectors interconnect non-standard thickness boards often employed in custom and next-generation applications. Featuring single contact current rating of 3 A, devices' mated signal contact bulk resistance is 30 mW max. Units have insulator heights of 0.431 or 0.610 in. and are provided with choice of dip solder, eyelet, right angle, card extender, and wire wrap terminations.

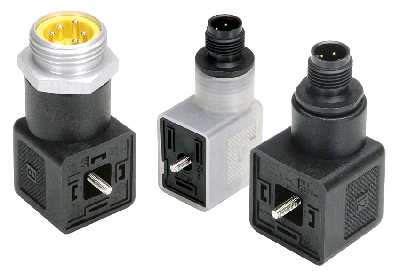

Modular Connectors provide rapid installation.
Youngstown, OH 44514
Aug 23, 2007
Made to conform to industry standard configurations, FAC Series interfaces female ISO, MINI, and Sub-Micro connections to male 7/8 in. MINI and 12 mm Micro circular connectors. Units are protected to IP65 and NEMA 4 standards and have temperature rating of -25 to +85°C. Available in variety of pre-wired circuit configurations, devices connect with multi-port electronic interconnection systems and fieldbus systems. Options include indication LED and surge suppression.
Connector/Converter couples thermocouple to wireless.
Omega Engineering, Inc.
Stamford, CT 06907
Aug 21, 2007
Wireless Thermocouple Connector Series (UWTC Series) features stand-alone, battery-powered thermocouple connectors that transmit linearized, cold junction-compensated measurements back to USB-powered receiver connected to PC. Each wireless connector unit can be programmed in-field to work as type J/K/T/E/R/S/B/N/C calibration connector. When activated, connector transmits data continuously at user-selectable time intervals. Up to 12 wireless connectors can be used with one receiver.
Modular Jacks suit fast and gigabit Ethernet applications.
ERNI Electronics, Inc.
Midlothian, VA 23112
Aug 17, 2007
Available in angled single-port versions, low-profile modular jack components feature integrated magnetic filters and LED status indicators. Compact network connectors, designed for heavy-duty applications, are resistant to electromagnetic faults and designated for use in RJ45 applications compliant with 10/100 or 10/100/1000 Base-T Ethernet. RoHS-compliant, 8-core design with capacitors and resistors meets all gigabit Ethernet requirements in switches or hub products.
Patch Cords suit RJ45 network equipment interfaces.
Siemon Co., The
Watertown, CT 06795
Aug 17, 2007
Featuring standards-recognized TERA interface on one end and RJ45-style MC plug on other, 10 Gbps capable hybrid TERA to RJ patch cords allow users to install high-performance category 7A/class FA copper cabling infrastructure. Units are compatible with both T568A and T568B wiring schemes, and meet FCC68.500 and IEC 60603-7 specifications. Utilizing category 7A stranded cable, patch cords meet/exceed all 10GBASE-T standard requirements including all alien crosstalk parameters.
Edgecard Connectors have staggered, dip solder contacts.
Sullins Electronics Corp.
San Marcos, CA 92079-0189
Aug 06, 2007
Suited for power supply applications, bi-level connectors feature 6-100 contact positions, 0.050 in. contact center spacing, and backwards compatibility with 0.100 in. center spacing devices. Staggered contact configuration promotes design flexibility for high-density PCB designs. Able to accommodate interconnection of 0.062 in. ±0.008 in. daughtercards, parts are provided with beryllium-copper pins and PPS/PA9T insulators to meet requirements for operating over -65 to +150°C range.
PCB Connectors suit high voltage applications.
Harrisburg, PA 17111 0100
Aug 01, 2007
Suited for wire-to-board applications, GMSTB(A) 2.5 HC(V) consists of high-voltage header and plug with screw connection. It features 7.62 mm pitch and voltage ratings of 1,000 V IEC, 600 V UL. Integrated double-steel covering springs provide contact safety even at high power, severe temperature fluctuations, and in high-vibration environments. Available with 1-12 positions, MKDS 5 HV fixed PCB terminal block enables discrete wiring termination with rising cage screw clamp on 6.35 mm spacing.
RF Connectors come in high-speed and high-density models.
New Albany, IN 47151 1147
Jul 26, 2007
Featuring 1 or 2 RF connectors per end, high-speed QMS/QFS Q2(TM) Series provides up to 156 single-ended or 48 signal pairs per connector on 0.635 mm pitch with internal ground plane. ESRF/ETRF Series features high-density connectors on 2 mm pitch with up to 80 signal/ground pins and 6 RF connectors as standard. Units can be combined with MMCX-scale or other RF connectors to provide optimal board-to-board flexibility and functionality.
Cable Tie Holder is RoHS-compliant.
Morton Grove, IL 60680
Jul 20, 2007
FTH-30 series cable tie holder snaps in place for installation in panel and holds bundle with pre-assembled cable tie. When tail end of cable tie is inserted, tie holder locks it in place. It can also be used as standard tie holder, using ties that are not pre-assembled.
