Connectors ensure reliable high-speed data transfer.
Garner, NC 27529
Sep 04, 2012
Manufactured using industrial-grade materials and machined contacts, M12x1 X-code connectors target industrial data communications applications in harsh environments. Products meet IEC 61076-2-109 standards and are designed for transmission technology to CAT6A and 500 MHz/10 gigabit speeds. Available in 1, 2, 5, and 10 m cable lengths, connectors have 4 shielded pairs within M12 connector frame. Additional female socket option with PC tails for panel mounting is available.
Precision Coaxial Termination covers frequency from DC-67 GHz.
Sunnyvale, CA 94089
Aug 31, 2012
Featuring passivated stainless steel body with center contact made of gold-plated and heat-treated beryllium-copper material, Model T5M offers max VSWR of 1.2 from DC-40 GHz and 1.43 from 40-67 GHz. Termination has 2.4 mm male connector and measures 0.84 x 0.36 in. in diameter. Unit is useful when terminating unused ports, on isolated ports of hybrids and combiners, and to protect devices from signal reflections.
Breakable Conductor Screen ensures payment terminal security.
Johnson Electric Grp.
Brownsville, TX 78521
Aug 23, 2012
Designed to protect printed circuit board, smart card connector, and keypads, Parlex Secure-Flex(TM) helps prevent intrusion and tampering within payment terminals. Product employs breakable conductor technology, which disables payment terminal if intrusion is attempted. In addition to protecting against peeling, drilling, and piercing intrusion, Secure-Flex also allows option to deploy random security circuit patterns as additional barrier to potential intruders.

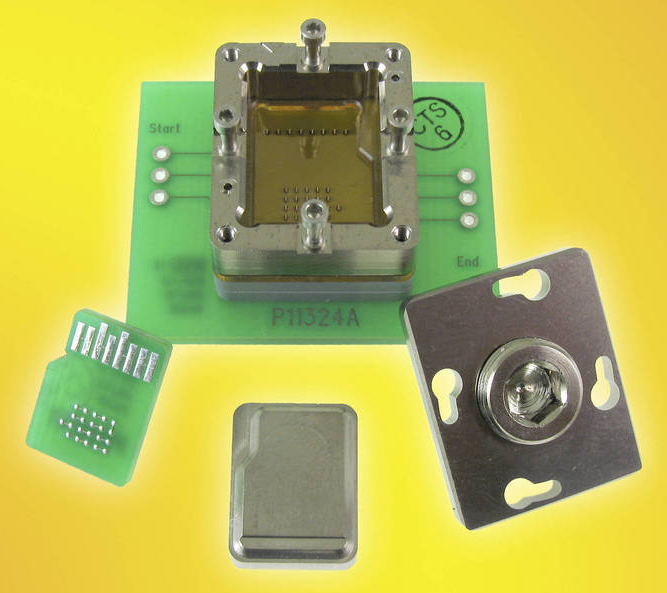

MicroSD Socket operates from -55 to +180°C.
Ironwood Electronics, Inc.
St. Paul, MN 55121
Aug 21, 2012
Addressing high-performance requirements for Speed Class Rating, SBT-MicroSD-01 has stamped spring pin contactor with 19 g actuation force per pin and cycle life of 500,000 insertions. Self inductance of contactor is 0.93 nH, insertion loss is less than 1 dB at 21.9 GHz, and contact resistance is less than 16 mOhms. At 30°C temperature rise, current capacity of each contactor is 4 A. Specific configuration of package to be tested is 15 x 11 x 1.0 mm microSD form factor.

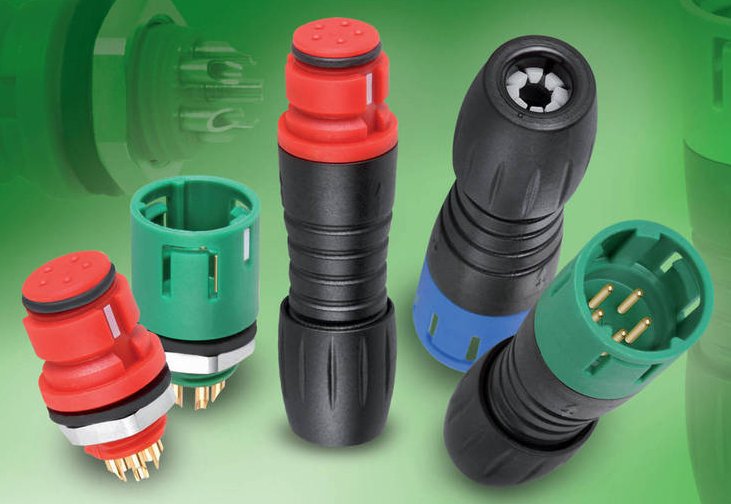

Subminiature Snap-in Connectors have color-coded design.
Camarillo, CA 93012
Aug 20, 2012
Comprised of snap-in connectors, Series 620 includes color-coded (red, blue, and green) plugs and receptacles that help prevent accidental mis-mating in instances where several connectors are installed on same equipment. Male and female connectors, with 11.5 mm OD, are offered as cable- or panel-mounted versions, with 3, 4, 5, or 8 gold-plated solder contacts. When fully mated, connection has IP67 rating against ingress of liquids or dust.
Ethernet Connectors come with pre-fitted patch cables.
Aug 16, 2012
Designed for 1/10 Gb Ethernet, har-port RJ45 service interfaces match transmission category Cat 6/class EA, are complete with pre-fitted patch cables, and eliminate socket concerns for users. Interfaces are available with cable lengths from 0.2-5 m, and accessories include protective covers and name plates. Product range covers har-port service interfaces for RJ45 and USB, each as coupler versions or versions with fitted cables.
SIM Connector suits multi-card and thin mobile devices.
TE Connectivity Ltd.
Berwyn, PA 19312
Aug 08, 2012
Along with 1.4 mm profile, push-push SIM connector features mechanism that facilitates ejection of SIM card. Dual slanted contact design provides stable connection while also helping avoid contact jams from hooking housing components underneath. While card detect switch enables hot swap, card slot is compatible with all SIM cards, and half-moon shape opening strengthens EMI protection. Extra open space at front of housing helps prevent finger cuts when inserting/extracting card.
End Launch SMA Connectors ensure contact stability.
Moorpark, CA 93021
Jul 26, 2012
With optimized electrical performance from DC to 18 GHz, Edge Mount SMA and RP-SMA Connectors are suited for semiconductor evaluation and demo boards as well as high-frequency space-limited applications. Units feature gold-plated bodies, precision machined from brass. Male contacts are machined from brass, while female contacts are Beryllium Copper. All contacts are plated with gold over high-phosphorous nickel, ensuring durability of 500 mating cycles minimum.
Extreme Temperature QFN Socket matches needs of 0.5 mm devices.
Ironwood Electronics, Inc.
St. Paul, MN 55121
Jul 25, 2012
Model SBT-QFN-4016 socket features contactor, designed with outside spring and flat stamped plungers, offering 31 g actuation force/pin and cycle life of 500,000 insertions. Contactor has current capacity of 4 A and self-inductance of 0.88 nH, insertion loss of less than 1 dB at 15.7 GHz, and capacitance of 0.097 pF. Measuring 10 x 10 mm, socket mounts to PCB with no soldering and includes IC guide for QFN edge alignment. Operating temperature range is -55 to +180°C.
Electronics Connectors offer hybrid contacts.
Warminster, PA 18974
Jul 24, 2012
Featuring shock-resistant design, MICRO-D-MIX(TM) DMM Series is available in low frequency or mixed-layout configuration. Classic DMM Series, suitable for harness applications or PCB, features 2-3 rows with 10-90 low frequency contacts. My DMM Series is available with 1-4 rows, 2-120 low frequency contacts, and 1-30 high power/high frequency contacts. Designed and tested to withstand extreme conditions, connectors cover performance requirements in compliance with MIL-DTL-83513G.
High Density RF Connectors suit broadcast video applications.
New Albany, IN 47151 1147
Jul 23, 2012
Based on quarter-turn BNC coupling design, HDBNC RF connectors maximize panel density while maintaining 75W performance of BNC interface. Bayonet-style coupling system ensures reliable mating in applications with ganged cabling, and closed entry center contact system allows optimal signal transmission without contact damage. Suitable for systems up to 3 GHz, with extended performance up to 6 GHz, connectors are available in vertical, right angle, and edge mount models for PCBs.
Low PIM Coaxial Cable Jumpers support RF communications.
Irvine, CA 92614
Jul 20, 2012
Available in ― in. flexible and superflexible versions, Corrugated Coaxial Cable Jumpers can be ordered in standard and custom lengths with 7/16 DIN and Type N connectors to meet requirements. Assemblies have injection molded boot on each connector, which provides added strain relief and weather sealing. Providing years of optimal PIM and VSWR performance, assemblies are suited for tower top jumpers, shelter/cabinet jumpers, antenna feed lines, and 2-way land mobile radio installations.
Miniature TAC Connectors suit soldier-worn applications.
Stamford, CT 06904
Jul 17, 2012
Available in 6, 7, and 10-pin configurations, Miniature TAC Connectors exceed MIL-DTL-55116 current requirement of 0.5 A. Plugs, or cable connectors, have rigid contacts and jacks, while panel-mount connectors have spring-loaded contacts with self-cleaning feature. Cable connectors are either manufactured with cable overmold features or come with wire strain relief. Waterproof both mated and un-mated, connectors are suited for radio systems and ruggedized communications systems.
Rugged IP67-Rated Connectors perform under harsh conditions.
Danbury, CT 06810
Jul 16, 2012
Developed to withstand corrosion from natural elements and manmade chemicals, ARC Series is fully submersible and impenetrable to fluids in mated and unmated conditions, even when subjected to extreme changes in temperature and humidity. Units are available in TNC and Type N cable interfaces with Standard and Reverse Polarity options. To fit outdoor installation requirements, cable jacks and plugs come in Straight, Right Angle, and Bulkhead configurations.
DIN Crimp Female Connector has compact, robust design.
Jul 09, 2012
Available for DIN 41612 3C and 3R types, cable connector has space-saving design that accommodates needs of smaller PCBs or sub-assemblies. There are 3 possible outlet ports that can be opened up by breaking through external walls as required, and locking levers are pre-injection molded; subsequent assembly is not necessary. Along with crimp contacts, product is available with straight and right-angled male connectors that snap into shell housing as mating plugs.

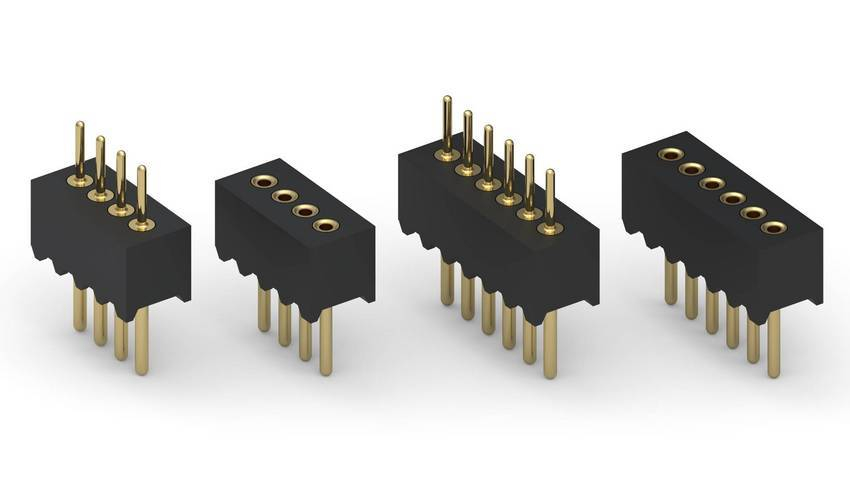

PCB Header and Socket Strips accommodate through-hole soldering.
Mill-Max Mfg. Corp.
Oyster Bay, NY 11771
Jul 02, 2012
Supporting multiple insertions and extractions, single-row 860-10-0XX-10-002000 header, with .015 in. solder tail dia, and 861-13-0XX-10-002000 socket, with .014 in. tail dia, help minimize PCB hole size to accommodate routing circuitry. Header and socket, with 1 mm pitch, provide mated height of .200 in. Socket receptacle has contact clip with .008 to .013 in. dia pin acceptance range and current rating of 2 A. Available in 2-50 positions, both units are RoHS compliant.
Connectivity Products provide complete power distribution system.
Minneapolis, MN 55441
Jul 02, 2012
Designed to replace hardwiring methods, powerfast(TM) connectivity products provide modular wiring solution. Cordsets, receptacles, reducers, reducer tees, field wireables, rotary disconnect switches, and power lock devices enable configuration of custom power distribution system. Components are UL approved; available in A-Size (7/8 in.), D-Size (1 3/8 in.), M16, M23, and M40; and rated for up to 40 A of power. Components offer flexible design, modifications, and expandability options.
Gigabit Ethernet Connectors feature shielded design.
Belden CDT Inc.
St. Louis, MO 63105
Jun 27, 2012
Supporting data rates up to 10 Gbps, Lumberg Automation Gigabit Ethernet Connectors have special shielding that covers individual wire pairs, ensuring reliable data transmission even in presence of strong electromagnetic fields. Units support M12 or RJ45 connection technology and are available in both field-attachable and premolded versions. With IP67 rating and operating temperature of -30 to +90°C, connectors are suited for harsh industrial environments.
Large Conductor Connectors carry 30 A/300 V rating.
Germantown, WI 53022
Jun 15, 2012
Extending functionality of TOPJOBŪS 2006, 2010, and 2016 Series Terminal Blocks, TOPJOBŪS Connectors insert directly into jumper slots to connect sub-assemblies and test circuits. Units accommodate 20-10 AWG conductors, and provide power tap or supply options for testing, suitable for panel and motor OEMs. Used as pre-assembled test plug harness, TOPJOBŪS connectors expedite QA testing prior to shipment. Modular units can be snapped together, creating custom connector strips.
M12 Panel Mount Connectors feature screw terminations.
Camarillo, CA 93012
Jun 14, 2012
Suited for signal/power applications requiring solderless assembly, Series 713 and 763 have screw terminations that enable wires to be attached in field without special tooling or soldering. Connectors are offered with 4, 5, and 8 gold-plated contacts in male and female versions, and screw terminations accept 16 AWG max wire gauge and transmit currents up to 8 A. To determine direction of angled cable outlet of mating connector, 4- and 5-pin connectors can be positioned in 4 x 90° steps.
