ITT Interconnect Solutions    Santa Ana, CA 92705
Jan 09, 2009 Featuring contact pitch spacing of 0.050 in., 100-position micro mini MDM PCB connector is suited for use in avionics, oil field exploration, electronic instrument packages, and satellite systems. Housed in aluminum shell with W/LCP dielectric, connector features twist pin contact system along with crimped gold plated contacts, ensuring high signal integrity. Multiple plating options and jack post hardware are also available.

AutomationDirect.com    Cumming, GA 30040-9905
Jan 07, 2009 Designed for optimal conservation of space, ZIPLink connection system reduces time to wire DirectLOGIC and CLICK PLC I/O modules to terminal blocks via 2-step process that takes 5 sec. Selection of connection cables for discrete and analog modules is available in 3 pre-wired lengths. Feedthrough, fused, interposing relay, sensor, and transient voltage suppression connector modules offer flexible options for field wiring termination.

3M Co., Electronic Products Div.    Austin, TX 78726
Jan 07, 2009 Series 95X Board-to-Board Stacking Connectors and Box Headers offer 10 µin. gold solutions for high-volume applications with less-stringent requirements for number of mating cycles, no exposure to temperature extremes or hostile atmosphere, and relatively short service life. Qualified in accordance with European requirements for IEC Performance Class 3 items, 2 mm products meet requirements of EU and China RoHS legislations and are compatible with lead-free processing up to 260°C.

Omega Engineering, Inc.    Stamford, CT 06907
Jan 07, 2009 Suited for bringing thermocouple probes to PCBs, PCC-OST and PCC-SMP Series attach directly to circuit board and are offered in 2 sizes to mate with standard or miniature connectors. Products are offered with J, K, T, E, and U calibrations, while N calibration is available in mini-SMP style connector. Able to be mounted horizontally or vertically, products come with mounting clip and are available with optional retainer clip for TO-92 style transistor.

TE Connectivity Ltd.    Berwyn, PA 19312
Jan 07, 2009 Intermateable with I-PEX Co., Ltd. CABLINE®-VS products, 0.5 mm LCD Coaxial Embedded Display Interface Connectors replace existing LVDS 6/8 bit single/dual channel signal transmission. Units accommodate consistent digital data transmission through 1, 2, or 4 DisplayPort lanes at reduced bit rate of 1.62 Gbps or high bit rate of 2.7 Gbps through each lane. They offer high density for notebook PC applications, minimizing space and accommodating future pin out for LED backlight technology.

3M Co., Electronic Products Div.    Austin, TX 78726
Jan 06, 2009 Compliant with NEC Code requirements, 3M Cold Shrink Silicone Rubber Short Terminations QT-III 762X-T-95 Series enables accelerated installation in limited-space enclosures. These 8.5 in. terminations provide reliable performance and can help installation projects stay on schedule by reducing need for wiring design modifications. Meeting/exceeding IEEE 48 standards, products offer conductor range for 95 BIL-rated, 2-8 kV applications.

ITT Interconnect Solutions    Santa Ana, CA 92705
Jan 05, 2009 Pressure rated up to 5 psi, MIKQ IP68 Series of high density connectors are designed for use in tactical communication and control systems, imaging systems, and television camera equipment. They feature contact system that adheres to unique sealant material while maintaining 0.050 contact spacing. Housed in brass metal shell, 37-pin connectors have twist pin contact system with standard crimp contact wire terminations, crimped gold plated contacts, and push-pull coupling mechanism.

TE Connectivity Ltd.    Berwyn, PA 19312
Jan 05, 2009 Offering low-insertion force, Generation Y terminal system features 2.2 mm contact pitch and 0.64 mm/2.8 mm hybrid connectors. Manufactured using phosphor bronze material, it features 1-piece side-lock housing for independent secondary locking of female terminal and male cap with movable TPA. Terminal passes electrical/mechanical requirements of USCAR-2 Performance Standard, and demonstrates interface stability during USCAR-20 Field Correlated Life Tests, for 85 and 125°C temperature classes.

Binder-USA, LP    Camarillo, CA 93012
Dec 31, 2008 Suited for cable diameters from 8-10 mm, Series 423 M16 connectors are available with 7-24 gold-plated contacts. They are fully mating-compatible with other M16 connectors, including front and rear mounted panel receptacles. Internal shielding ring provides shielding against electromagnetic interference, and when connectors are properly mated, mated pair is IP67-rated, protecting connection from liquids and debris.

Amphenol Industrial Operations    Sidney, NY 13838

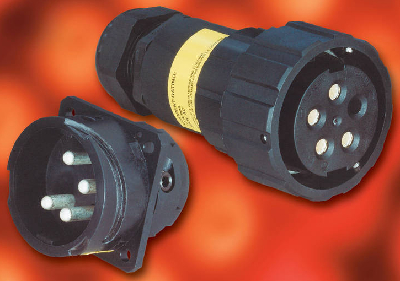

Dec 19, 2008 Field-installable without specific tools, Amphe-GTR series utilizes high amperage (120 A continuous max) and minimal insertion force of RADSOK contact technology. Connectors feature molded composite plug shell, coupling nut, receptacle, and hardware as well as reverse bayonet coupling for quick pairing/unpairing via quarter-turn coupling device. Available formats include 3-, 4-, and 5-pin variations; compression wire termination for 4/6 or 8/10 AWG; and silver-plated contacts.

Harwin, Inc.    New Albany, IN 47151
Dec 18, 2008 Available in cable-to-cable or cable-to-board options, Datamate J-Tek Reverse Fix Connectors allow designers to consider PCB access and component selection to match. Four-finger beryllium copper contact clip ensures integrity, while jack-screw fixing provides additional security. Units offer fixing variant reversed from usual orientation, making them suited for environments with high vibration, shock, and temperature extremes.

Harwin, Inc.    New Albany, IN 47151
Dec 17, 2008 With extended rear wall, Datamate male and female crimp jackscrew connectors enable customer to terminate cables themselves as alternative to over-molding. Deeper connector shell means customers can fill terminated connectors with potting material, which also resists ingress of dust and moisture. Designed to conform to BS 9525-F00033 requirements, connectors feature 4-finger beryllium copper contacts to ensure integrity of connection without loss of data.

Amphenol Connex    Moorpark, CA 93021
Dec 11, 2008 Supplied standard with gold flash body plating as part No. 112740 or optionally with nickel plating as part No. 112740-10, BNC end launch bulkhead receptacle has low-profile design that conserves panel real estate. It is precision-machined from brass and features PTFE insulator supporting temperatures up to 260°C. Suited for broadcast and audio/video applications, connector achieves return loss of better than -35 dB at 3 GHz. Recommended PCB thickness is 0.062 in.

Corning Cable Systems    Keller, TX 76248
Dec 11, 2008 Offered as fully-shielded Cat.6A copper module, FutureCom(TM) S500 comes in die-cast housing for high-end data center and LAN applications. Features such as 0° and 90° cable entries, 3-piece design, and wire management system facilitate installation in space-limited areas. In addition to modular footprint, alternative keystone footprint provides installation compatibility with range of hardware options from outlets to panels.

Cinch Connectors    Vinita, OK 74301
Dec 04, 2008 Supporting data transmissions rates of 12.5 Gbps/channel, AMC compression-style connector features one-piece stamped contact for carrier board to mezzanine card connection. Compression technology enables simplified trace routing and reduced stub-effects and reflections, while solderless attachment allows for easy removal and rework. Designed to provide low insertion force, captured individual contacts support wide board planarities and multiple card insertions.

Amphenol Socapex    74300 Thyez   France
Dec 02, 2008 Designed for zone 2 and Class I Division 2 explosive environments, ATEX Ethernet connectors incorporate RJStop® system for turning standard Ethernet cable into connection with IP68 ingress protection against shock, dust, and fluid. Products offer II3G ExnAIIT6X ATEX protection with temperature ranges from -40 to +60°C for RJ45/RJ11 versions and -40 to +70°C for USB versions. Offered in metal cases, connectors feature power capacity of 20 W at max working voltage of 60 Vrms.

ITT Interconnect Solutions    Santa Ana, CA 92705
Dec 02, 2008 Able to withstand harsh and wet-area environments, APD 19-way features secondary locking mechanism and 19 contacts, expandable to 27 by utilizing smaller contact sizes. Conversely, for applications requiring larger load capacity, pin count can be reduced by employing higher power contacts up to 50 mm² and 0 AWG wire. This circular, 19-position APD (Automotive Product DIN) connector has plastic circular housing with visual and audible feedback for confirmed correct mating.

ITT Interconnect Solutions    Santa Ana, CA 92705

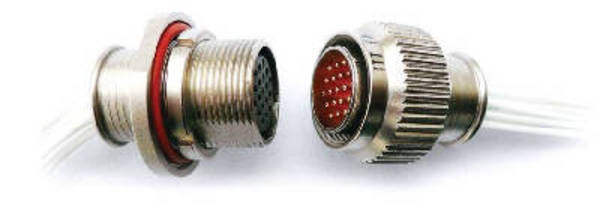

Nov 28, 2008 Suited for industrial, military, and aerospace applications, Trinity MKJ Series features size 23 pin and socket contacts with equivalent electrical performance of size 22 contacts, minimizing contact spacing to 0.193 mm. LCP inserts can hold 3-85 size 23 rear-release beryllium copper crimp contacts accommodating No. 22-28 AWG wire, while rear fluorosilicone wire seal grommet provides environmental seal. Threaded, breakaway, and bayonet style coupling mechanisms are available.

Binder-USA, LP    Camarillo, CA 93012

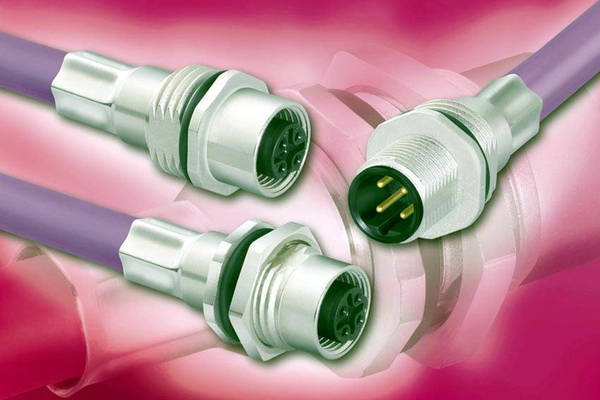

Nov 28, 2008 Pre-assembled for Profibus and Ethernet users, M12 shielded panel-mounted male or female connectors feature Profibus receptacle attached to shielded cable with twisted pair of AWG 22 wires. Receptacles are available in front- or rear-mount design for mounting to control cabinets, while connectors are offered in B-coded version with 0.5 m long cable, and feature 2 gold-plated contacts crimped to twisted pair of wires. Rated current is 4 A at maximum operating voltage of 250 V.

ITT Interconnect Solutions    Santa Ana, CA 92705

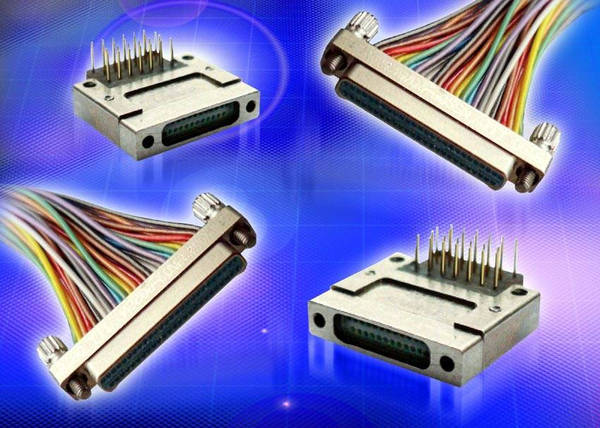

Nov 24, 2008 Featuring 0.635 mm pitch contact spacing, NDD Series, high density, low profile connectors suit applications in avionics, defense electronics, and industrial control systems. They are capable of withstanding vibration up to 20 G and shock up to 100 G, and feature 48 hr salt spray corrosion resistance. With operating temperature range between -55°C to +125°C, contact rating for nano miniature connectors is 1 A, with a maximum contact resistance rating of 71 mV drop.
