Stackpole Electronics Inc.    Raleigh, NC 27604
Jun 04, 2013 Consisting of 2 or 4 isolated 0201 equivalent resistors in single rectangular shaped chip with no scallops or holes, RAF Series offers size and weight reduction over discrete chip resistors. RoHS-compliant devices feature max working voltage of 12.5 V and are available in 5% tolerance with 200 ppm TCR over resistance range of 10 to 1 M Ω. With RAF Series, users can downsize circuit design without having to design in discrete 0201 chip resistors.

E-Switch Inc.    Brooklyn Park, MN 55428 1514
Jun 03, 2013 Available with SPDT or DPDT circuit options and momentary or latching options, ULP Series is available with square sculptured, square flat, rectangular flat, panel mount, or large sculptured caps. Units feature contact rating of 0.5 mA, 25 Vdc for silver and 0.4 VA max at 28 Vac/Vdc for gold. Insulation resistance is 100 MΩ min at 500 Vdc and dielectric strength is 2,000 Vac. Operating from -20 to 70°C, switches are suited for consumer electronics, medical devices, instrumentation, and kiosks.

Stackpole Electronics Inc.    Raleigh, NC 27604

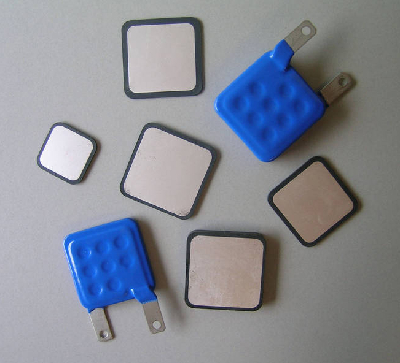

May 31, 2013 Available in sizes from 23–60 mm, ZOV Series includes single, double, triple, and quadruple disc versions with energy handling up to 4,100 Joules and working voltages up to 680 Vrms and 895 Vdc. Square varistors can be supplied with epoxy coating and rigid terminals, with rigid terminals and no coating, and with bare metallized disc. In general, devices are used in SPD protection modules for Type 1 and Type 1+2 surge protection applications.

IMI Sensors, Div. of PCB Piezotronics    Depew, NY 14043-2495
May 22, 2013 Model EX686B USB programmable electronic vibration switch is certified by INMETRO for use in hazardous areas such as petroleum refineries, utility gas plants, and oil drilling operations. To provide continuous machinery protection, unit senses vibration and triggers alarm or shuts down machine if vibration exceeds given threshold level. Faults such as imbalance, misalignment, looseness, worn bearings, cracked gears, or lack of lubrication can trigger fault.

Danfoss Inc. Air-Conditioning & Refrigeration Div.    Baltimore, MD 21220-2863
May 21, 2013 Meeting demands of hydraulic applications in off-road equipment, MEP switch delivers control needed to improve safety, extend equipment lifecycles, and reduce maintenance. Single switch output version features customized hysteresis, is time constant, and offers protection against short circuits, incorrect wiring, and overloading. Dual-output version includes both switch and analog outputs. PNP and NPN switching outputs available, and pulse-snubber is available.

Altera Corporation    San Jose, CA 95134
May 14, 2013 SDK for OpenCL and supported third-party production boards enables software programmers to access high-performance capabilities of programmable logic devices. Designed to foster increased system performance in highly data-parallel computing applications featured in financial, military, broadcast, and medical markets (among others), SDK lets programmers take OpenCL code and exploit massively parallel architecture of FPGA.

Elma Electronic Inc.    Fremont, CA 94538
May 10, 2013 Suitable for use in presence of dust and/or vibration, X4 Series features 5-bit gray code output with 12 or 24 positions as well as parallel analog and PWM outputs. Unit is available in indexing angles of 30° or 15° with selectable switching torque from 1.5–20 N cm. Featuring IP68 rating with optional sealing, switch operates from -30 to +85°C. Stainless steel shaft and zinc housing make it suitable for high humidity and salt atmosphere environments.

Mounting Systems    West Sacramento, CA 95605
May 07, 2013 Consisting of pre-packaged versions of Sigma II open terrain photovoltaic substructure, Sigma II GO Kits feature inclination angle of 25° and are ready to be installed on ballast blocks or concrete piers. Units accept all 60-cell crystalline modules and are intended primarily for installations up to 50 KW. Supplied with Professional Engineer certification, Sigma II GO Kits are available in either low load, for up to 90 mph wind/0 psf snow, or high load for up to 120 mph wind/30 psf snow.

Philips Semiconductors Div., Royal Philips Electronics    Sunnyvale, CA 94088
May 03, 2013 LUXEON CoB (Chip-on-Board) LED array provides up to 6,000 lumens and reaches efficacies of up to 120 lm/W for bright white 80 CRI lights. Unit is specified to operate at 85°C and uses metal-core PCB. Suitable for downlights, spotlights, and directional lamps, array is offered in 4 versions with light-emitting surfaces of 9, 13, or 15 mm.

AVX Corp.    Myrtle Beach, SC 29578
Apr 30, 2013 Available in 0201–2220 SMT case sizes as well as with radial and axial leads, TransGuard® Series has 3.3–85 Vdc working voltage range. AEC-Q200-qualified TransGuard® Automotive Series, offered in 0402–2220 SMT case sizes as well as with radial leads, has 5.6–85 Vdc working voltage range, multi-strike capability, and 1 nS response to ESD strikes. Both series are based on zinc-oxide varistor technology and feature high-energy, monolithic multilayer construction.

GlacialTech Inc.    Taipei   Taiwan
Apr 25, 2013 Enabling laptops to operate at nominal temperature for increased life expectancy and performance, V-Shield Series VF integrates 180 x 180 x 20 mm fan that operates at 550 ±100 rpm and <20 dBA to produce heat-dissipating 50 cfm air flow. Size of cooling vent further fosters heat dissipation, and ergonomic groove promotes grip. Compatible with all laptops up to 17 in., this plastic, 295 x 370 x 45 mm, 800 g cooling pad also offers USB 2.0 port for connection to compatible devices.

Tabula, Inc    Santa Clara, CA 95054
Apr 03, 2013 When combined with ABAX2P1 3PLD, packet processing solutions deliver capabilities such as processing of four 100G streams on one chip, search engine capable of supporting 100G packet traffic, and 12x10G-to-100G bridge. Suite solves problems posed by transition from 10 to 40G and 100G, specifically routing of high-performance buses, on-chip RAM throughput, and timing closure for ultra-high-performance functions required by said systems.

Altera Corporation    San Jose, CA 95134
Mar 25, 2013 Integrating transceivers with data rates up to 5 Gbps, 28 nm Cyclone® V GT FPGA features 2 hardened PCIe IP blocks, embedded, that enable developers to increase system performance and system functionality. PCIe 2.0-compliant hard IP blocks, which consists of PHY/MAC, data link, and transaction layers, can be configured to function as end point or root port and support up to x4 lanes. Multifunction support feature allows up to 8 PCIe end points to be combined into single end point.

Littelfuse, Inc.    Des Plaines, IL 60016
Mar 15, 2013 Providing high energy absorption capability and resistance to temperature cycling, LV UltraMOV™ Series protects low voltage DC applications against peak surges, including lightning strike interference, system switching transients, and abnormal fast transients from power source. RoHS-compliant units are lead-free, halogen-free, and available with optional phenolic coating. Operating up to 125°C, varistors are suited for LED lighting drivers, mobile phone chargers, and security systems.

AVX Corp.    Raleigh, NC 27604
Mar 08, 2013 Based on zinc-oxide technology, Automotive Sub pF AG Series features capacitance value of 0.8 pF with tolerance of ±20%. AEC-Q200-Qualified units have working voltage range up to 16 V and offer multi-strike capability, protecting sensitive circuits from over voltage. Housed in low-profile 0402 package, RoHS-compliant varistors are suited for antennas, RF circuits, and optics as well as HDMI, Firewire, Thunderbolt, GPS, camera link, sensors, and touchscreen interfaces.

Xilinx, Inc.    San Jose, CA 95124 3400
Feb 19, 2013 Equipped with All Programmable Artix-7 200T device, Artix™-7 FPGA AC701 Evaluation Kit has IP and reference design tools needed to accelerate design cycle. Artix-7 FPGA, featuring analog mixed signal, DDR3, DSP resources, parallel and serial I/O, provides optimal performance for low-end remote radio head, mobile backhaul, software defined radio, and motor control applications. Kit also includes device locked license for Xilinx's Vivado™ Design Suite, Design Edition.

Quantum Materials Corp.    Novato, CA 94949
Feb 19, 2013 Developed to meet worldwide concerns regarding nanoparticle biocompatibility and sustainability, NHM-TPQD Tetrapod Quantum Dots are non-heavy metal, cadmium-free, and non-REE. Dots will spur development of products and applications in next-generation displays, sensors, biomedical research, diagnostics and drug delivery, security and conductive inks, solid-state lighting, and photovoltaic solar cells.

Electro Standards Laboratories    Cranston, RI 02921 3403
Feb 12, 2013 Designed to connect directly to CellMite ProD Data Acquisition and Control Boards, CellMite ProD Model 4350 CPLD Interface Board is based on Altera EPM3512QC208-10 CPLD Complex Programmable Logic Device, which has 10,000 usable gates, 512 macrocells, 32 logic array blocks, and 172 user I/O pins. Operating from 0–70°C, board provides 15 single-ended PWM input signals, 16 differential PWM output signals, 4 differential brake output signals, and differential inverter enable output signal.

Microsemi    Irvine, CA 92614
Feb 06, 2013 Available on Emcraft Systems 34 x 59 mm mezzanine form factor system-on-module, which connects to SOM-BSB-EXT baseboard, SmartFusion®2 Starter Kit includes FlashPro4 programming and supports Ethernet, USB, SPI, I2C, and UART interfaces. USB-powered system has breadboard area for GPIO or FPGA I/O connection, 64 MB LPDDR, 16 MB SPI flash, and 2 user-controlled LEDs connected to GPIO on SOM. By using included USB WiFi adapter, kit supports RaLink 5370 USB wireless radios.

Stackpole Electronics Inc.    Raleigh, NC 27604
Jan 14, 2013 Offering 4 resistive elements in package measuring 1.6 x 3.2 mm, RAVN Series features resistance values from 100 Ω to 33 KΩ in 0.1% tolerance. Units can also achieve 10 ppm TCR for limited resistance value range. Providing environmental and electrical stability, resistor arrays are suited for test instrumentation, gauges, meters, and scopes as well as precision controls, robotics, and high-speed data communication.
