Parker Fluid Control Division    New Britain, CT 06051
Aug 04, 2003 Skinner(TM) 7000 Series and Gold Ring(TM) valves are available with encapsulated coils that are totally enclosed to protect electrical components and provide chemical resistance. Valves have bobbin design that prevents media from leaking in and helps coil withstand water pressure in wash-down applications. Valves are suited for applications in food service, commercial equipment and machinery, and medical equipment industries.

J.W. Miller Magnetics    Gardena, CA 90247-2859
Aug 04, 2003 Series 2100HT, 2200HT, and 2300HT Toroid Power Inductors offer operating temperature range of -55 to +200°C. Self-shielding design emits very low level of magnetic interference. Inductance range is 1.2–1,000 µH with 38 A maximum rated current. Horizontal or vertical mounting styles are available. Units are suited for high-density, tight-board layouts in DC/DC converters, differential mode chokes, EMI filters, and energy storage.

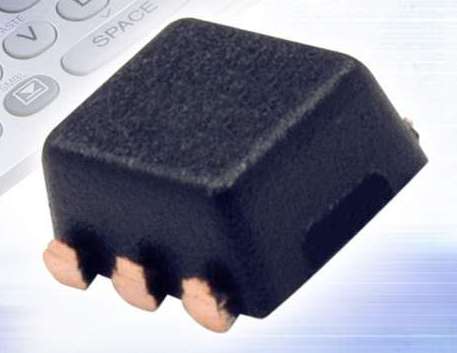

Fairchild Semiconductor Corp.    South Portland, ME 04106
Aug 04, 2003 Model FDJ129P P-channel MOSFET features PowerTrench® technology in compact SC75 Flip Leaded Molded Package. Power dissipation is 1.8 W and max steady-state current rating is 4.2 A. Unit reduces system power drain by providing low-loss switching, with max pulsed current of 16 A. FLMP packaging eliminates wire-bonds to provide extremely low electrical resistance. It also provides low thermal resistance path between PCB and MOSFET die.

Micrometrics    Londonberry, NH 03053
Aug 04, 2003 Series MLP 7100 consists of application-specific PIN devices that are fabricated to have low loss of <0.1 dB and fast recovery time of <5.0 ns, over frequency range of 100 MHz to 22 GHz. Intrinsic region design gives engineers ability to choose from various I-region thicknesses and capacitance levels. Units come in chip form, glass, ceramic, and surface mount. They are suited for use in waveguide, coax, microstrip, or stripline.

Ortronics, Inc.    New London, CT 06320
Aug 01, 2003 ClarityB. Jak-Paks, available in Clarity6 Category 6 or Clarity5E Category 5e, provide compact, flexible, multi-user solution that can be structurally mounted or used in temporary environments. Products offer field-termination option for delivering Clarity performance to workstation, MUTOA, or consolidation point. They are supplied with Clarity6 or Clarity5E modular/110 easy-lace connections for performance of Clarity connectivity with 6-port, field-installable cable termination.

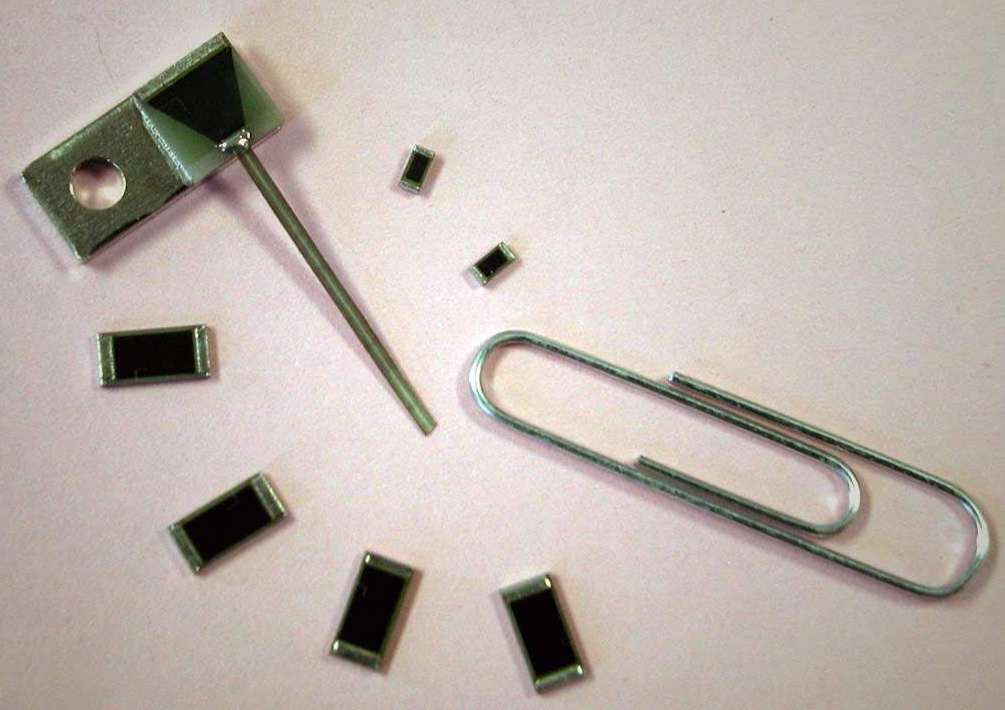

International Mfg. Services, Inc.    Portsmouth, RI 02871 2435
Jul 31, 2003 Thermally conductive thick-film chip resistors and attenuators, characterized at 10, 20, and 40 GHz frequency bands, mount face down on circuit board or hybrid substrate. Resistor element is within same plane as rest of circuit to minimize capacitive effects of wraparound termination. Aluminum-nitride power-chip terminations offer 50 ohm performance into millimeter frequency bands. Metal terminations are available in platinum, silver, and gold.

Linear Technology Corp.    Milpitas, CA 95035
Jul 31, 2003 Single, dual, and quad rail-to-rail input and output models (LT1803, LT1804, and LT1805, respectively) offer 85 MHz gain-bandwidth product and 100 V/µs slew rate. Voltage feedback op amps draw 3 mA supply current and offer minimum open loop gain of 86 dB and CMRR of over 78 dB. Products operate from supplies from 2.3-12.6 V. Model LT1803 is offered in 5-pin SOT23 and 8-pin SOIC packages, LT1804 comes in 8-pin SOIC and 3 x 3 DFN packages, and LT1805 comes in 14-pin SOIC package.

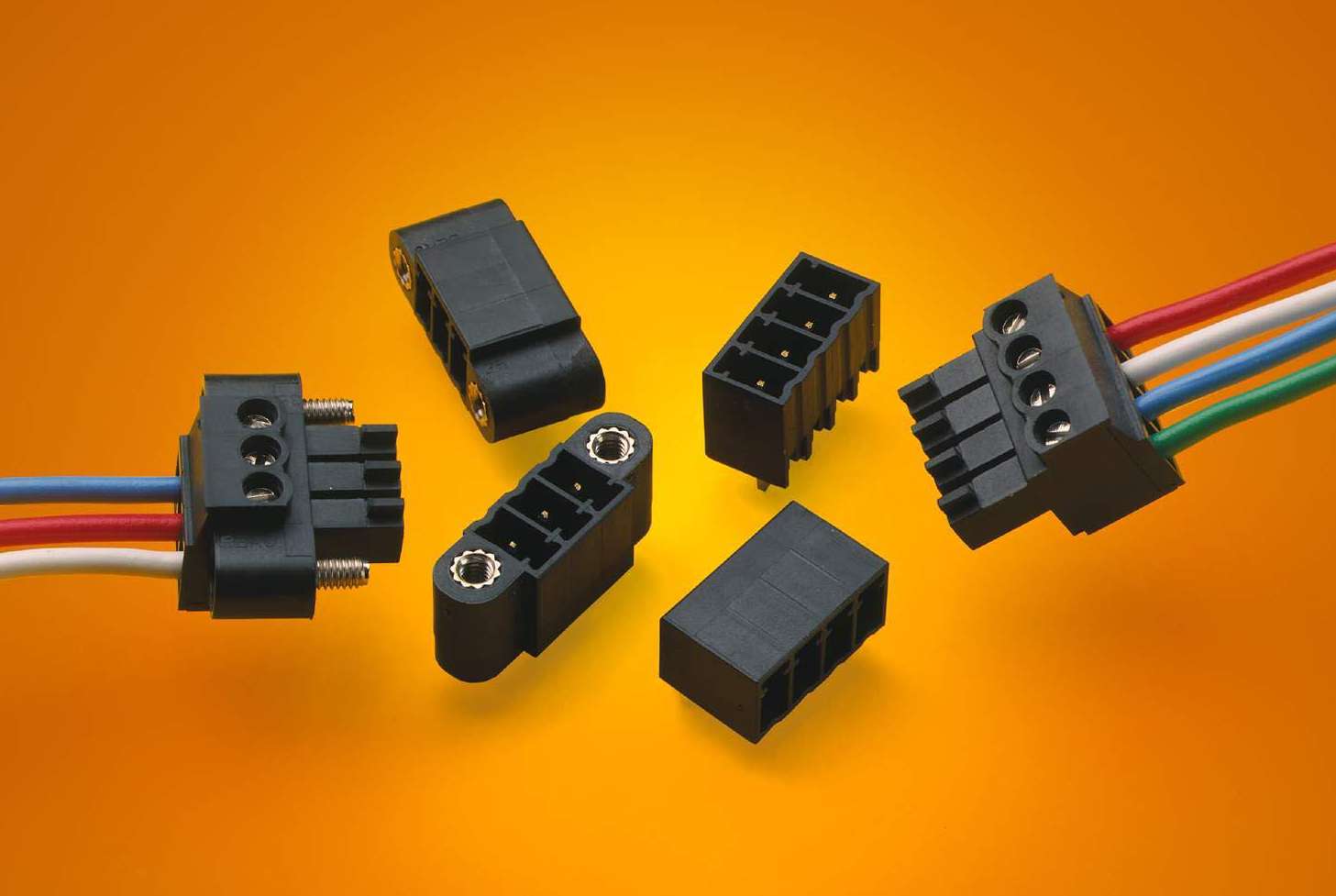

Molex Inc.    Lisle, IL 60532-1682
Jul 30, 2003 Series 35, 3.5 mm Pluggable Beau® Eurostyle® Terminal Blocks are available in circuit sizes from 2–20 circuits, and can handle up to 10 A at 300 V. Headers are surface mount compatible, and blocks are available in both vertical and right angle configurations. Polarization and key coding prevent mis-mating. Rising cage clamp termination provides secure and reliable connection without strand damage or intermittence. Terminal blocks are UL recognized.

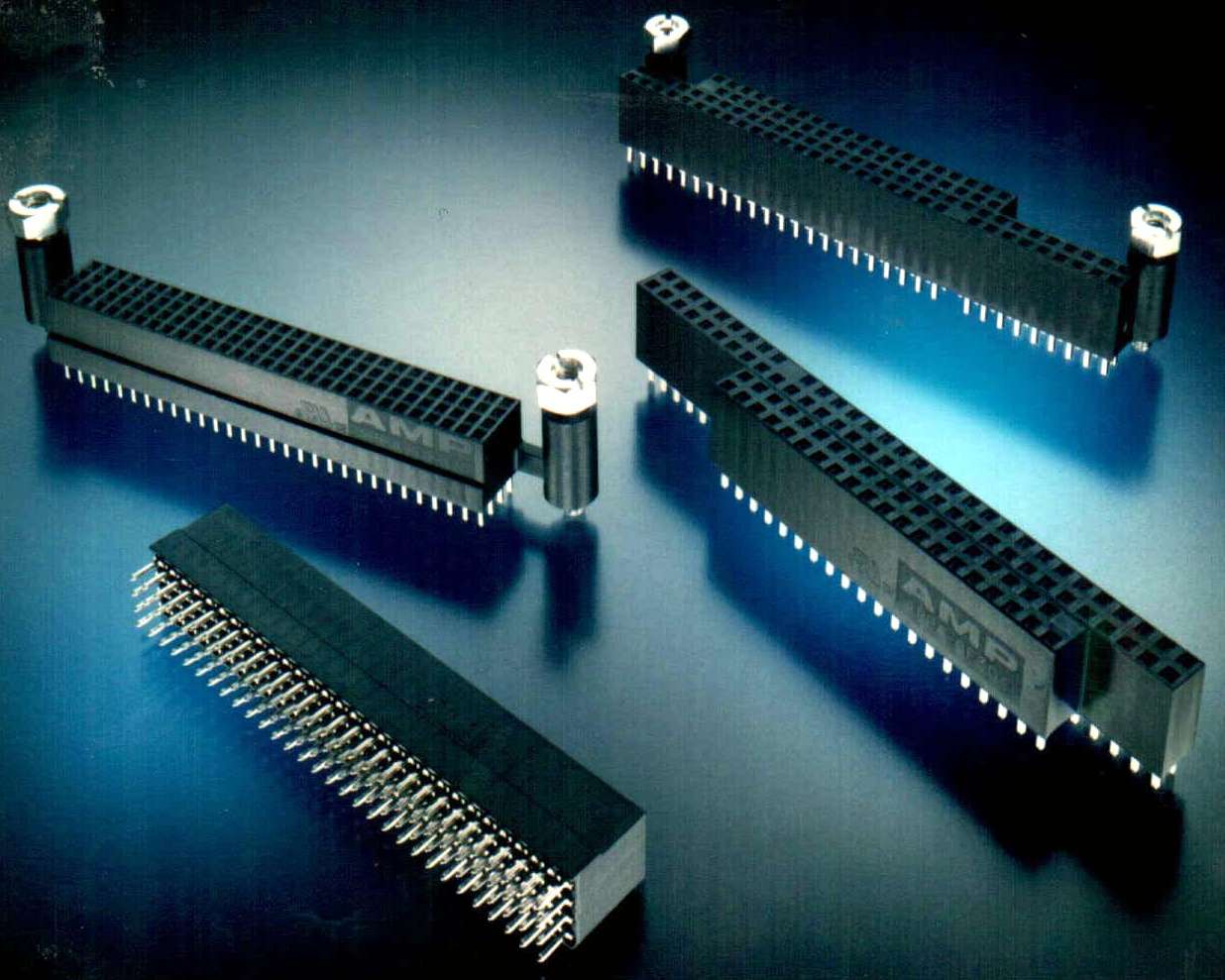

TE Connectivity Ltd.    Berwyn, PA 19312
Jul 29, 2003 PC/104 small-form-factor connectors implement standard ISA bus (104 positions) with 2 dual rows of 0.1 in. pitch contacts. PC/104-Plus connectors offer 120, 2 mm pitch contacts in 4 rows. With 0.6 in. fixed stack height, both UL 94V-0 rated thermoplastic connectors are available with optional integral board spacers. Contacts are phosphor bronze and select gold plated on mating end and tin-lead on PCB tail.

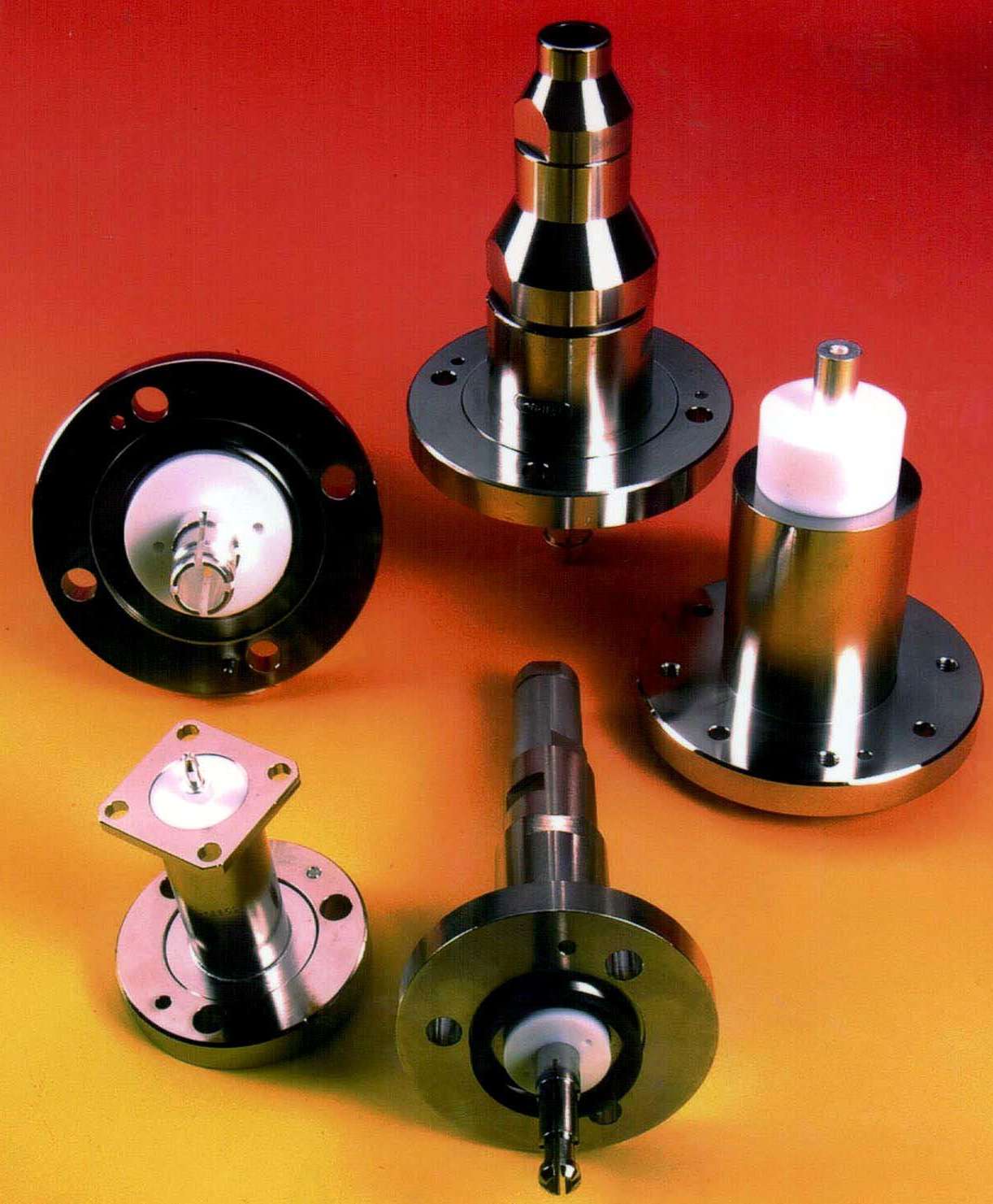

Tru-Connector Corporation    Peabody, MA 01960 5099
Jul 29, 2003 Suited for use with flexible coaxial cables with ODs from 0.5–1.2 in., power connectors feature silver-plated, beryllium-copper inner conductors with Teflon® dielectrics and nickel- or silver-plated bodies. Supplied as straight and right-angle plugs, receptacles, and jacks, products operate at frequencies from dc to 3,000 MHz. Characteristics include peak power rating of 132 kW, average power rating of 35 kW @ 13.56 MHz, and 11 kV dc voltage rating.

Lumex Inc.    Carol Stream, IL 60188
Jul 29, 2003 PolyLED(TM) Lamps are solid-state light sources that deliver light collimation of leaded discrete LEDs in integrated package with built-in metallized reflectors and molded protruding lenses. Models have 3-24 LED chips per unit with light outputs from 300-5,000 mCD. Devices emulate chips-on board dot matrix displays, and are suited for use as pixels or light source, in both indoor and outdoor message signs, status panel indicators, and warning lights.

Xicor, Inc.    Milpitas, CA 95035
Jul 28, 2003 Manufactured using proprietary FGAâ„¢ technology, X60008CIS8-50 and X60008DIS8-50 store reference voltage as precisely controlled charge on floating gate device. This allows them to deliver straight-line temperature coefficients as tight as 5 ppm/°C and long term stability of 10 ppm/1000 hrs while consuming 500 nA of supply current. Available in 8-lead SOICs, products offer noise voltage rated at 30 µVp-p from 0.1 to 10Hz and 10 mA sink/source current.

Durel Corp.    Chandler, AZ 85224 6155
Jul 28, 2003 Model D388 IC combines the functionality of electroluminescent lamp (EL) driver with high-brightness light emitting diodes (HBLED) driver. Single-chip, dual driver operates with DC input voltage range of 2.5–7.0 V and incorporates various control functions. EL and LED driver outputs are independently addressable. Unit is capable of up to 200 Vpp output to EL lamps and drives up to 4 blue/white HBLEDs and 1 EL lamp, simultaneously.

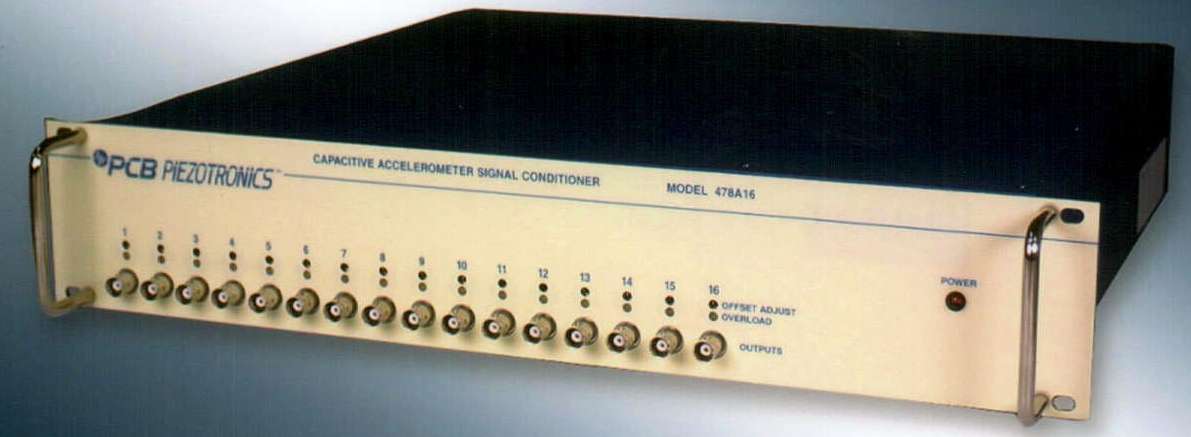

PCB Piezotronics Inc.    Depew, NY 14043 2495
Jul 25, 2003 Models 478A16 and 478A17 offer operation of 16 simultaneous channels in one 19 in., rack-mountable chassis. Building block architecture permits addition of features such as gain, filtering, output channel switching, keypad adjustment and control, DC voltage operation, RS-232, and IEEE-488 computer interface. Available in 100–240 Vac power, products support daisy linking of multiple chassis and include DC offset null adjustment and overload indicators.

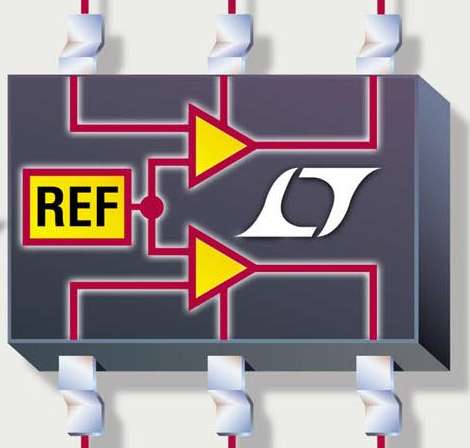

Linear Technology Corp.    Milpitas, CA 95035
Jul 25, 2003 With integrated 400 mV reference available in 6-lead ThinSOT(TM), LT6700 is suited for monitoring supply voltages in portable devices. It employs 40 mA outputs, operates over 1.4-18 V supply range, and draws 6.5 µA. Unit offers 2 external comparator inputs with other 2 inputs connected internally to on-chip reference. Versions include: LT6700-1, with one inverting input and one noninverting input; LT6700-2, with 2 inverting inputs; and LT6700-3, with 2 noninverting inputs.

Cree, Inc.    Durham, NC 27703
Jul 25, 2003 RazerThin(TM) LEDs are offered in 460 and 470 nm blue versions with typical brightness of 7 mW and forward voltage of 2.9 V when operated at 5 mA. Silicon carbide substrate provides ESD-resistant, vertical chip structure requiring single wire bond that permits less complex LED assembly. Potential applications include blue and white keypad backlighting, as well as digital camera flash for mobile appliances.

Nanomotion    Ronkonkoma, NY 11779

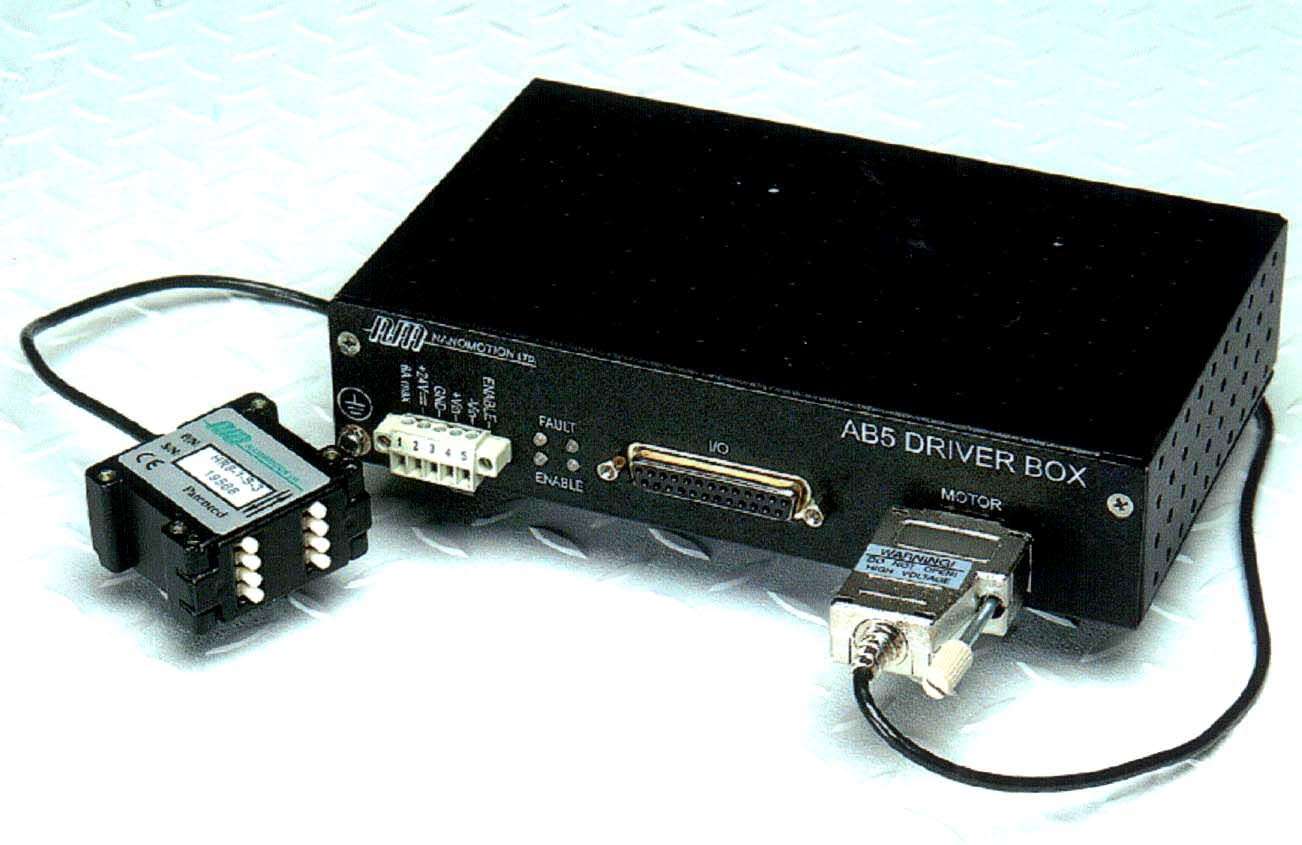

Jul 24, 2003 Model AB5 linearizes voltage to velocity profile at amplifier level, and completely eliminates need for custom servo algorithms. It allows user to turn motor static holding force on or off, providing benefit of manually moving linear or rotary mechanism, as teach mode, and then applying static holding force when desired. Applications include semiconductor, fiber optic, electronics, bio-medical/pharmaceutical, automotive, and general assembly.

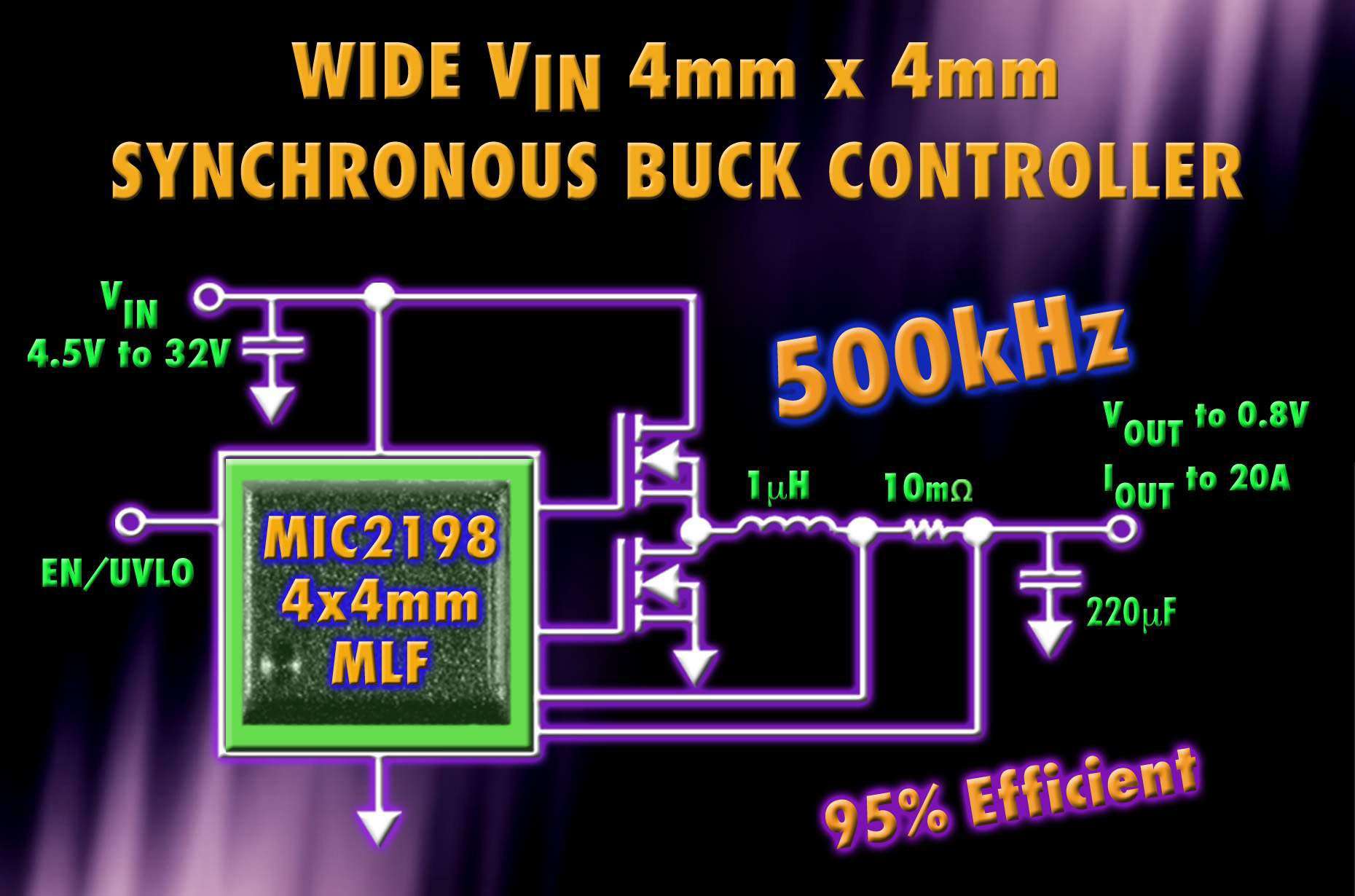

Micrel Semiconductor Inc.    San Jose, CA 95131
Jul 23, 2003 Models MIC2198/9, offering current capability of 20 A, can power CPUs, DSPs, and FPGAs with up to 95% efficiency. Input voltage range is 4.5–32 V, making them suitable for 5, 12, and 24 V power bus systems. Model MIC2198 operates at 500 kHz, while Model MIC2199 operates at 300 kHz. Both units are housed in 4 x 4 mm MLFTM 12-lead package, and provide PWM current mode control, cycle-by-cycle current limiting, and frequency foldback short circuit protection.

Gowanda Electronics Corp.    Gowanda, NY 14070

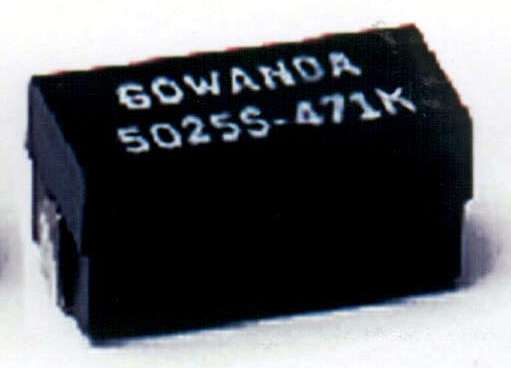

Jul 23, 2003 Suited for use in RF applications, SMRF 5025S surface mount inductors have semiconductor grade molding material and high temperature solder on internal connection. Electromagnetic shielding is accomplished by placing one sleeve of magnetic material directly over coil winding; process provides shielding with less than 2% coupling. Characteristics include inductance from .10–10,000 µH and incremental current ratings from 3,900–54 mA DC.

Alligator Technologies    Costa Mesa, CA 92627
Jul 23, 2003 Low-pass filter module AAF-2Fe provides 2 channels of noise reduction and anti-alias filtering that is tunable to bandwidths from 0.1-200 kHz. Compatible with 8, 12, and 16-bit A/D modules and boards, product incorporates features such as differential instrumentation gain, factory set to specification from 1x-10000x; true minimal 1.5 Vm or better DC offset; and +10 V input and output range. Output impedance is less than 0.001 ohms, and common mode rejection is 90-110 dB.
