Crystek Corp.    Fort Myers, FL 33913
Sep 24, 2003 Crystals and Oscillators operate at frequency of 49.152 MHz to meet Texas Instrument's specifications for use with TSB41BA3 Chipset, which is geared toward Long Haul or Long Range applications. A 98.304 MHz, 1.8 V oscillator with critical start-up feature is available for TSB81BA3 Chipset designed for 1394b FireWire® 800. All products are offered in 5 x 7 mm SMD package specified for 0 to 70, -40 to +85, and -55 to +125°C operating temperature.

Sullins Electronics Corp.    San Marcos, CA 92079-0189

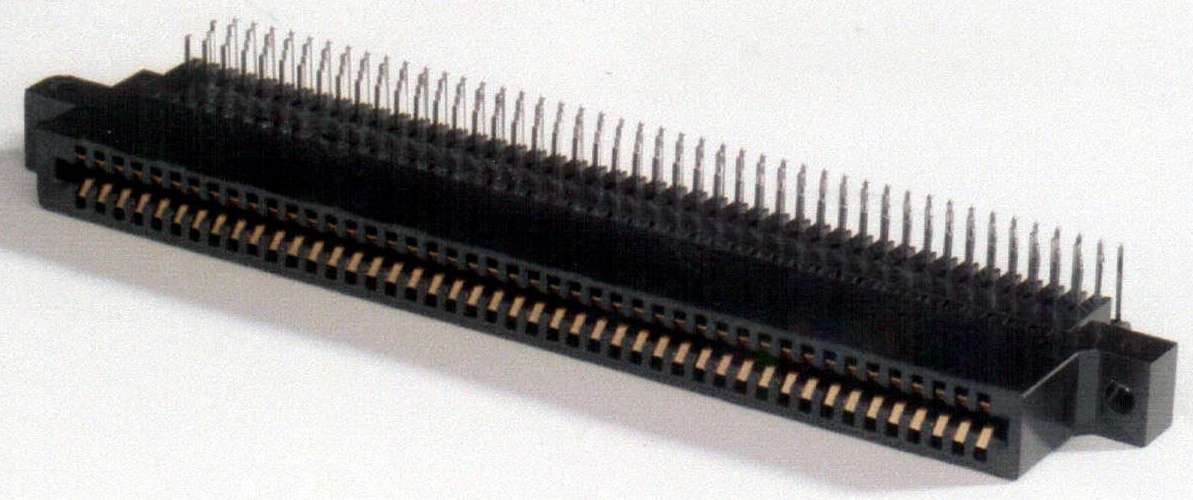

Sep 24, 2003 Made of high-density dielectric material, bi-level series right angle edgecard connectors withstand temperatures from -65 to +150°C. They feature primary and secondary engagement contact areas with secondary area recessed in card slot. Connectors' 0.050 in. contact centerline spacing results in 4 rows at 0.100 in. spacing. Connectors components accommodate PCB thickness of 0.062 in. and are available with 4–90 contact positions.

Samtec, Inc.    New Albany, IN 47151 1147
Sep 24, 2003 Q2â„¢ shielded connector system incorporates shield plates along sides of connector and terminates them to PCB via selected signal pins. Available in single ended and differential pair versions, system has signal pins on .025 in. pitch and is available with 52, 104, 156, and 208 total pins per connector set. Connectors are polarized to ensure proper mating. In addition to vertical mating, edge-mount, power combo, and non-shielded versions are available.

Cree, Inc.    Durham, NC 27703
Sep 24, 2003 XThin(TM) solid-state LED emitters combine Group III nitride materials with silicon carbide substrate. Vertically structured LED chips measure approximately 115 microns high and incorporate epi-down design for maximized light extraction efficiency and white light conversion. Applications include next generation mobile appliances' LCD backlights and digital camera flash.

International Mfg. Services, Inc.    Portsmouth, RI 02871 2435
Sep 23, 2003 Thick film chip resistors, available in sizes from .030 x .020 in. to .250 x.120 in., have gold, platinum silver, and platinum silver with 62/36/2 solder coating terminations. Termination attachment methods include wire bonding, soldering, and epoxy bonding. Products are suited for instrumentation and calibration applications as well as high voltage regulation, power switching, RF and microwave circuits, and power supplies.

Positronic Industries, Inc.    Springfield, MO 65801 8247

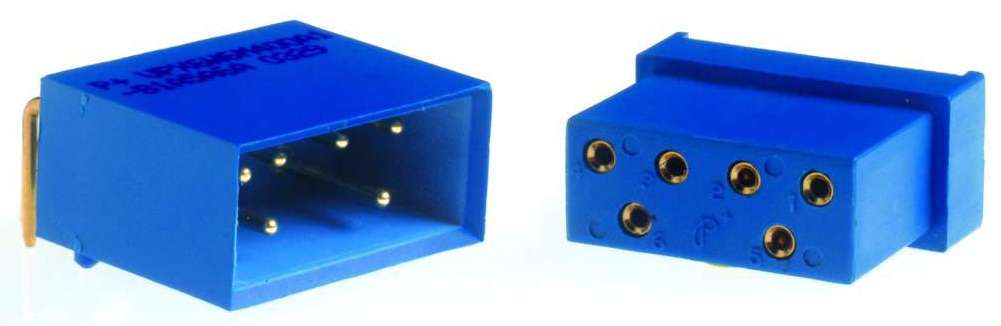

Sep 23, 2003 Developed to support live insertion and extraction requirements of cards used in computing platforms, VP Series connectors provide dedicated power interface between plug-in boards and backplanes. VPX power connectors, developed for VITA 41 VXS (VME Switched Serial), are uniquely sized for compatibility with IEEE 1101.2 conduction cooled boards and PMC cards per IEEE 1386. Six power contacts and 3 levels of sequential mating are offered.

Ultrasonic Power Corp.    Freeport, IL 61032
Sep 22, 2003 Model 5300 incorporates one interrupt button that stops output when pressed, and red LED display with ½ in. numbers. After time is initially set from 0-99 min, single button starts timer, and time is displayed throughout countdown. Product is available in 250, 500, 750, and 1000 W versions with output frequencies from 25, 40, 68, and 170 kHz.

Sipex Corp.    Miliptas, CA 95035-1701
Sep 22, 2003 Model SP6205 provides up to 500 mA with 300 mV dropout, while Model SP6203 provides 300 mA with 180 mV dropout. Supply current is 45 µA, which reduces to 10 nA in shutdown, extending battery life in portable applications. Both units generate 12 µVRMS of output noise with tiny 10 nF bypass capacitors. Packaged in SOT-23, devices operate from 2.7–6 V input supply. Fixed output voltages include 2.5, 2.7, 2.8, 2.85, 3.0, and 3.3 V.

GE Industrial Systems    Fort Wayne, IN 46802
Sep 22, 2003 TransforMoreâ„¢ Tranformer Line is used in low voltage commercial, industrial, and residential distribution, and in applications for feeding main power to distribution equipment. Safety features such as alarm, 3-phase disconnect, and dry contacts are provided for remote monitoring.

GE Company, GE Industrial Systems    Plainville, CT 06062
Sep 22, 2003 TransforMoreâ„¢ 300 kVA dry type transformer includes safety features such as alarm, 3-phase disconnect, and dry contacts for remote monitoring. Unit's size and weight aid in installation. Product is suited for low-voltage commercial, industrial, and residential distribution as well as applications for feeding main power to distribution equipment.

RF Industries    San Diego, CA 92126 4202

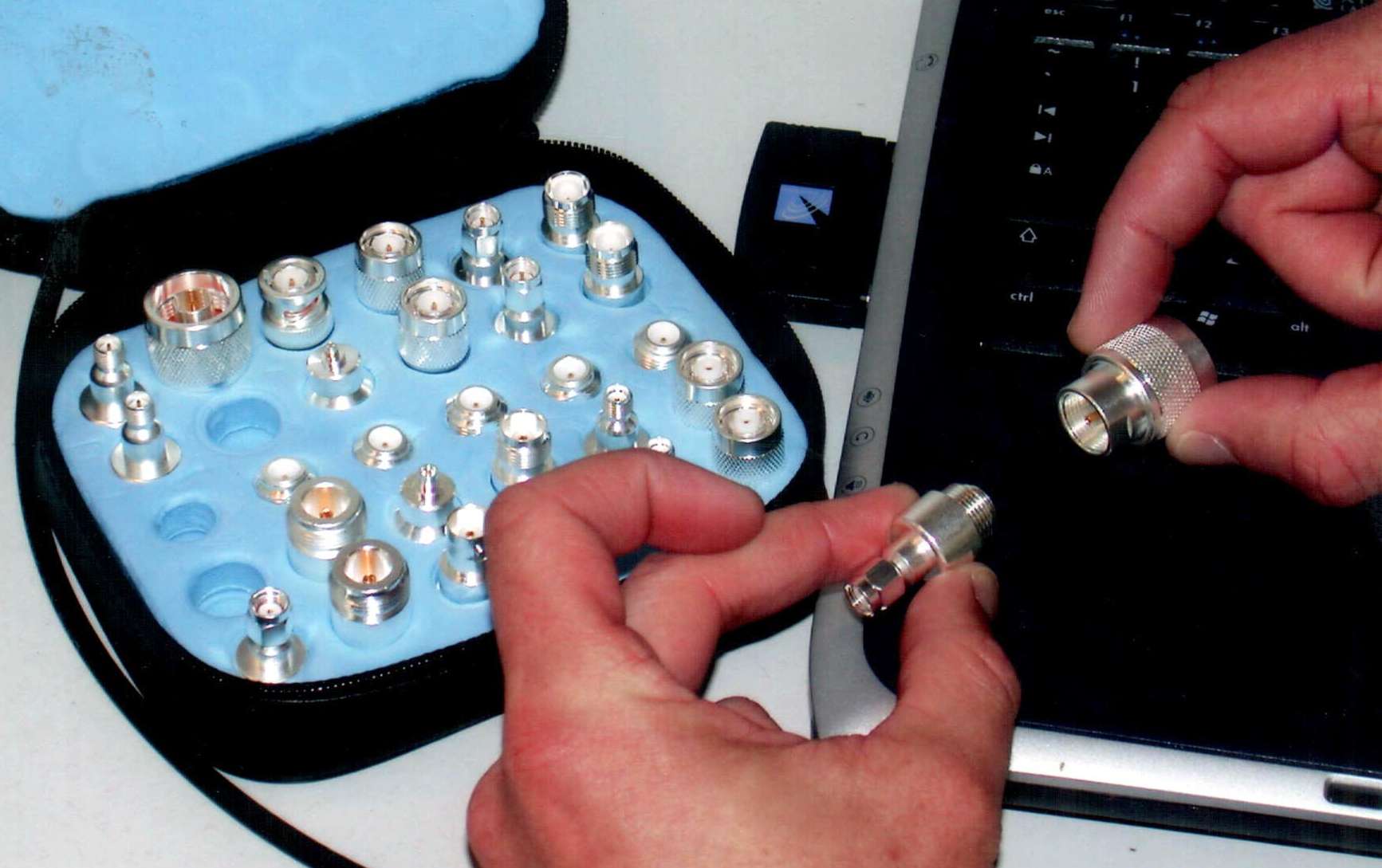

Sep 18, 2003 Unidapt® RFA-4024-WIFI adapter kit contains N, BNC, MMCX, Reverse-Polarity TNC, SMA, and Reverse-Polarity SMA types, all in male and female versions, plus 6 universal centers. By screwing any 2 interface adapters in kit to universal center, user can produce scores of different adapters in seconds. All adapters feature machined brass, silver-plated bodies; gold-plated contacts; and Teflon insulation.

Fairchild Semiconductor Corp.    South Portland, ME 04106

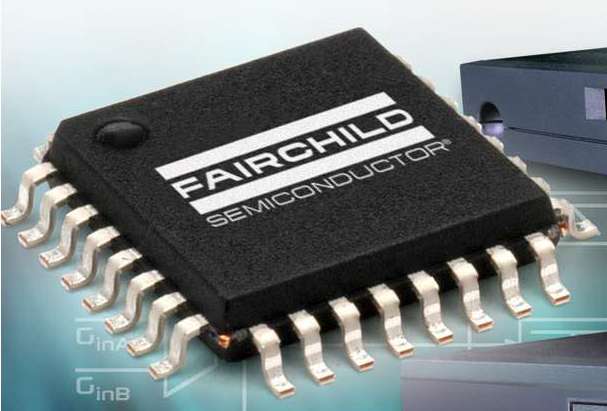

Sep 18, 2003 Model FMS6417 is a 5-channel video reconstruction filter that includes selectable RGB high definition and standard definition filters with Y, C, composite, and modulator outputs. Integrated product combines video line drivers, sound notch, and multiple video input/output standards on one chip. Offered in 32-Pin LQFP package, monolithic device can be used for anti-aliasing or reconstructive filtering for RGB, component, S-video, and composite video signals.

Kycon Inc.    San Jose, CA 95125

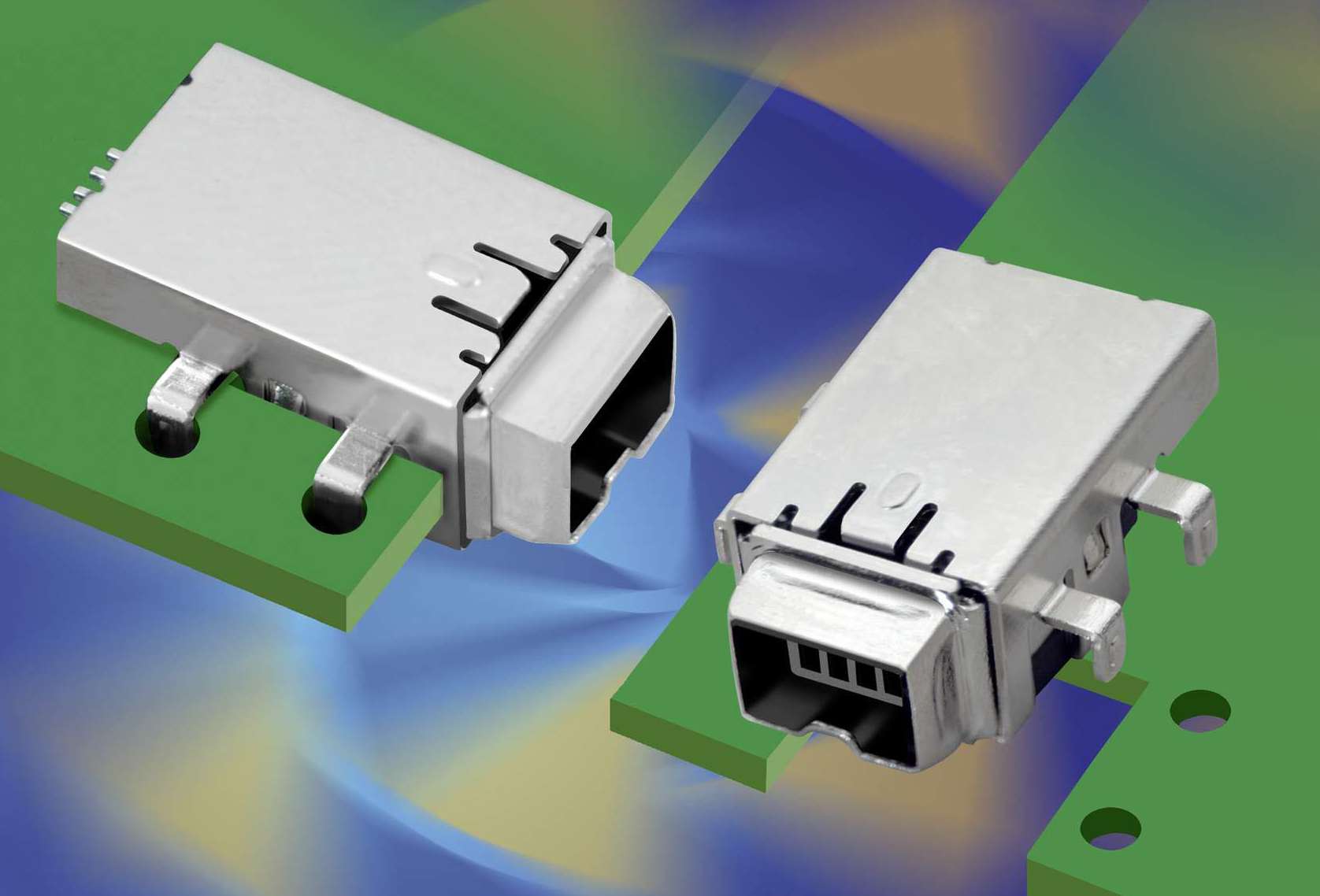

Sep 18, 2003 Model KMFS-SMT-130 features low-profile design that lowers height of connector above surface of printed circuit board, allowing board to be mounted in thinner chassis or closer to other components. Space saving is over 50% compared to both through-hole-mount and surface-mount technologies. Available with gold contact plating, connector is suited for set-top boxes, PDAs, computer laptop and desktop systems, as well as peripherals such as printers, scanners, and CD burners.

Stanley Co., Inc.    Irvine, CA 92606-5029

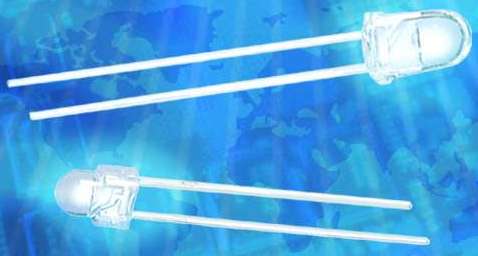

Sep 17, 2003 Designed for indoor and outdoor operation, UW3804X and UW5805S through-hole LEDs offer luminous intensity of up to 2000 mcd. Products have InGaN die, water-clear lens, and up to 50° viewing angle. Suited for variable operating environments, LEDs operate at temperatures from –40 to +85°C. Other specifications include: 107 mW power dissipation, 25 mA forward current, 60 mA peak forward current, and 5 V reverse voltage.

Electronic Concepts, Inc.    Eatontown, NJ 07724
Sep 17, 2003 Offered in 0.195 x 0.195 x 0.095 mm package, Minifilm® Monolithic Polymer Film Capactior can be specified as surface mount configuration or with radial leads. Construction ensures negligible capacitance shift under extended exposure to humidity and temperature cycling. Performance characteristics include capacitance tolerance of 5%, 10%, and 20%; ability to withstand solder reflow to 230°C; dielectric strength of 150% of rated voltage; and voltage rating of 20 Vdc.

LEDtronics, Inc.    Torrance, CA 90505

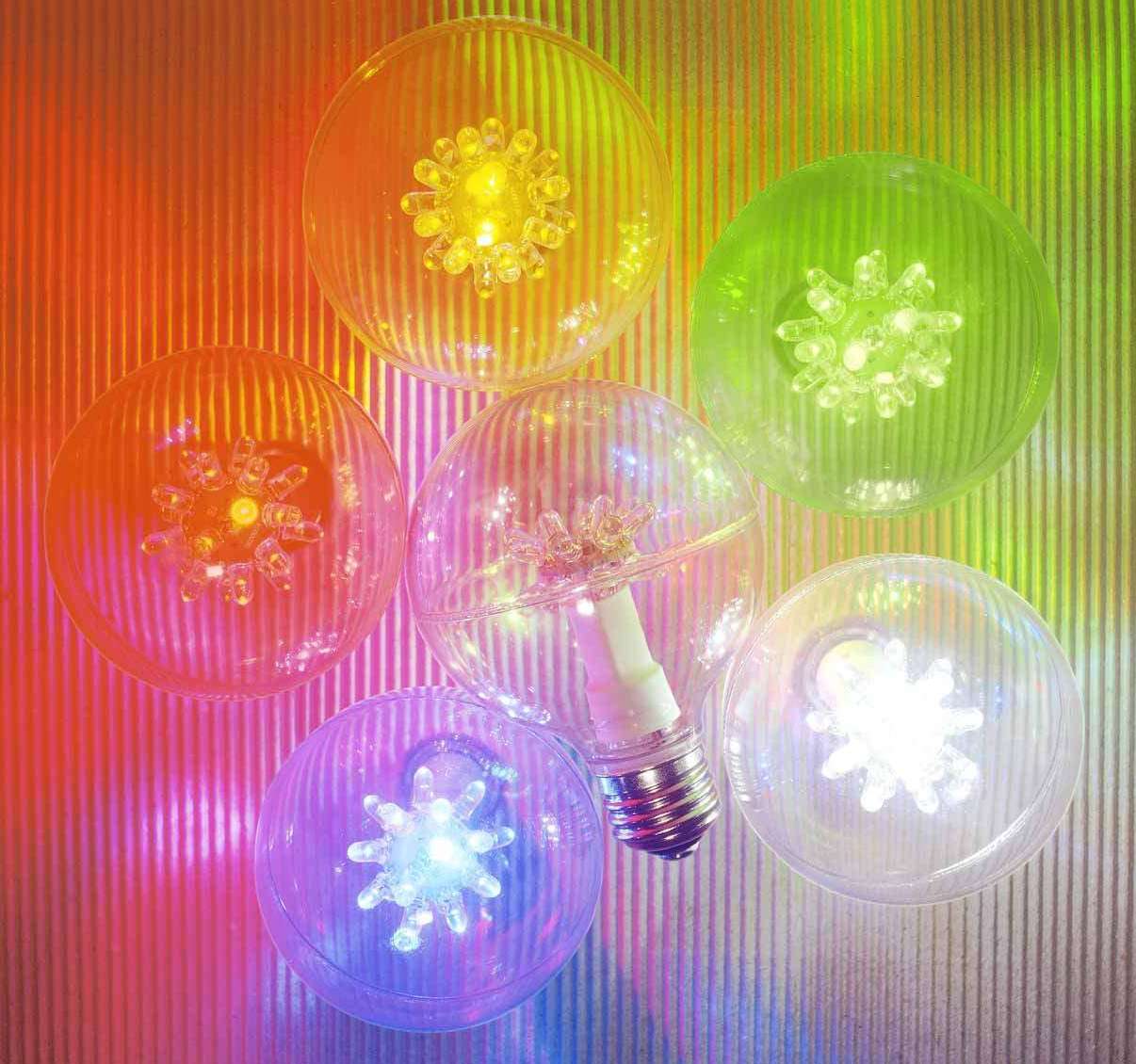

Sep 16, 2003 With 25 mm Edison-screw bases and light maximizing designs, G25-Style DécorLED products combine Indium Gallium Aluminum Phosphide and Silicon Carbide/Gallium Nitride LED technologies. Offered with power draws of 1.0-1.7 W and in 6 sunlight-visible colors, 18 solid-state LEDs are configured to disperse light in 270° wide angle or 30° acute angle. Individual LEDs incorporate optical-grade epoxy and molded polycarbonate with UV- and shatter-resistant globes.

Datatronics    Romoland, CA 92585 8916

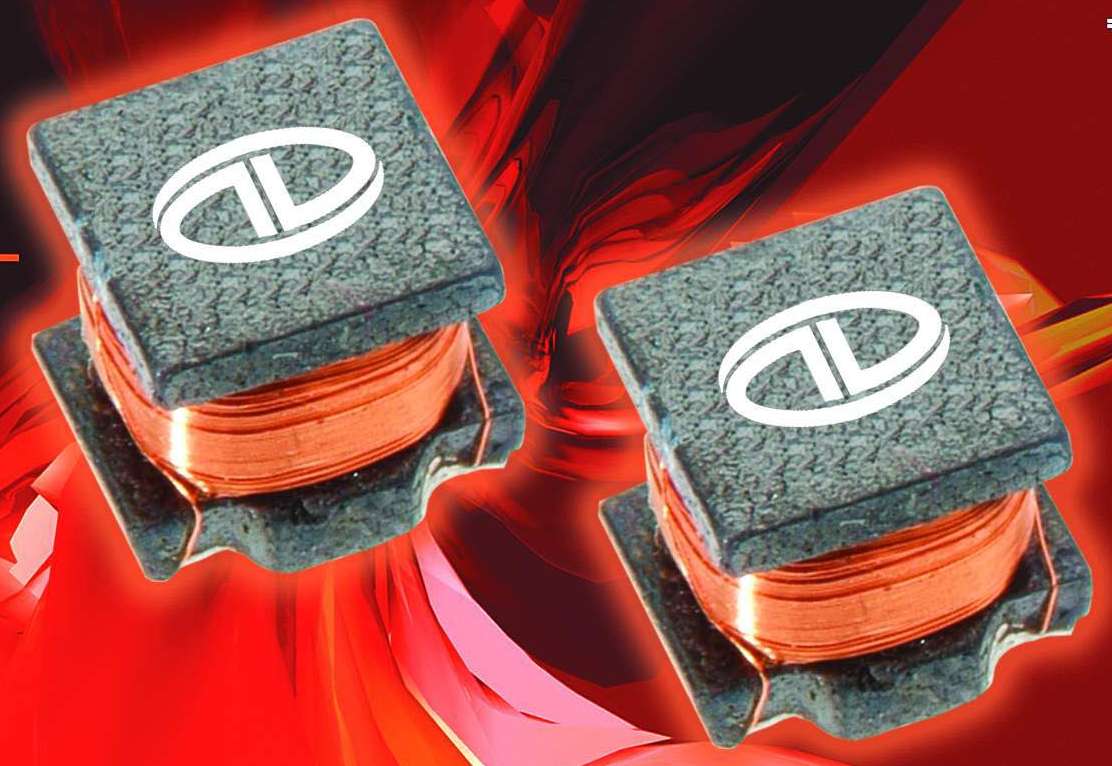

Sep 16, 2003 With low-seated profile of 0.079 in. above circuit board, Miniature DR353 Inductor Series offers inductance range of 0.10–560 µH with DCR from 0.25–28 ohms max over current ratings from 0.700–0.040 A. Product comes in packages as small as 0.100 x 0.126 x 0.079 in. and is compatible with extreme temperature environments from –40 to +130°C. Designed with a flat top surface, all materials meet UL 94V-0 requirements.

Vishay Intertechnology, Inc.    Malvern, PA 19355 0988
Sep 16, 2003 Series MBR 150 V high-barrier-height, dual rectifier devices provide max average forward rectified current of 10 A in TO-220 package. They offer typical forward voltage drop as low as 0.65 V, typical leakage current as low as 0.15 mA at 125°C, and max operating junction temperature of 175°C. Reverse surge capability of 25 kV ESD and inductive reverse avalanche energy ratings up to 20 mJ enhance reliability.

Altera Corp.    San Jose, CA 95134-1941
Sep 16, 2003 Field Programmable Gate Array, Cycloneâ„¢ Model EP1C4, offers up to 301 I/O pins and 4,000 logic elements. Built on 0.13 micron, all-layer copper process, unit includes embedded RAM blocks and is intended to facilitate use of FPGA technology by designers developing volume-driven applications in communications, industrial, consumer, computing, and automotive markets. It is specified for -40 to +100ºC temperature range.

Cygnal Integrated Products, Inc.    Austin, TX 78746-6564
Sep 16, 2003 Offered with on-chip debug circuitry, C8051F120 microcontroller family features 100 MIPS (peak) 8051 CPU; 2-cycle, 16 x 16 Multiply-Accumulate unit; and 12-bit ADC and DACs. Suited for mixed-signal embedded control applications that require signal processing, series includes 128 Kbyte Flash memory, 8448 bytes RAM, and is packaged in 100- and 64-pin TQFP. On-chip peripherals include 2% internal oscillator, temperature sensor, voltage reference, and 2 UARTs.
