Bicron Electronics Co.    Canaan, CT 06018

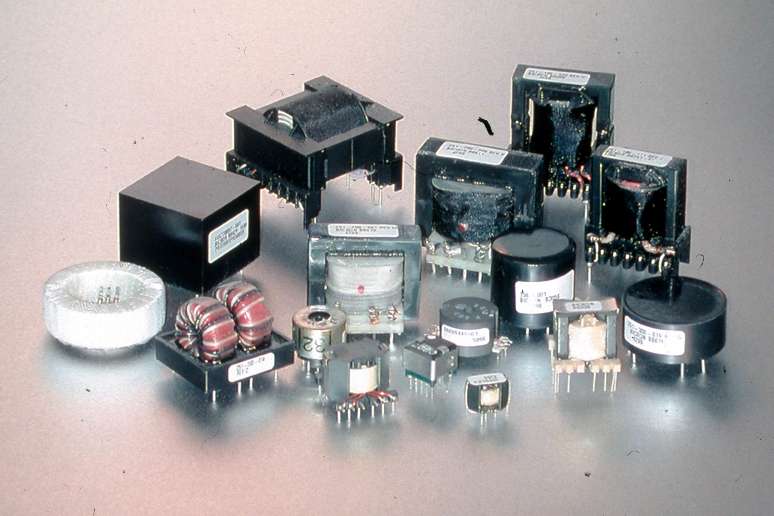

Mar 23, 2004 High Isolation Voltage Transformers are engineered for BIL ratings up to 60 kV and for corona inception/extinction voltages up to 20,000 Vrms at 60 Hz. They are AC HiPot tested at voltages to 40,000 Vrms at 60 Hz up to 1 minute. Specifications eliminate chance of product insulation system defects that could lead to catastrophic failure. Units are suited for medical, industrial control, and high efficiency power supply applications.

Micrel Semiconductor Inc.    San Jose, CA 95131

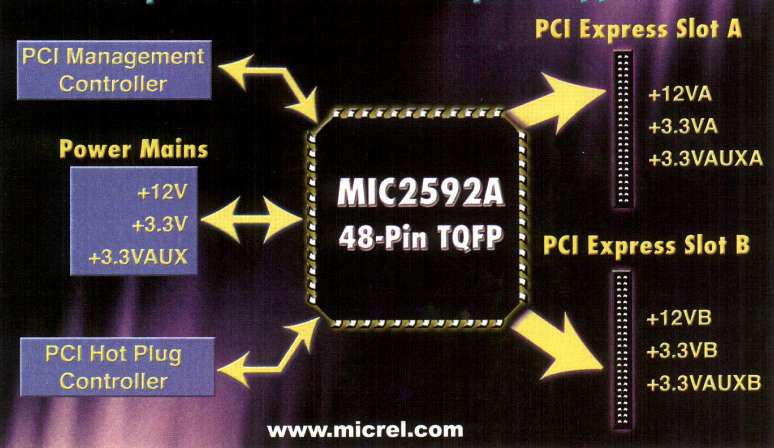

Mar 23, 2004 Model MIC2592A is a 3-rail by dual-slot power controller with SMBus interface, integrating all circuitry for controlling external MOSFETs for +12 and +3.3 V rails. For +3.3 V_AUX rails, unit integrates control circuitry, current sense, and power MOSFETs. For all 3 rails, controller offers adjustable overcurrent timeout, electronic circuit-breaker fault protection, input undervoltage lockout, output voltage monitoring, and output voltage slew rate control.

Sipex Corp.    Miliptas, CA 95035-1701
Mar 23, 2004 Providing 5 V fixed output voltage, Model SPX2975 delivers up to 400 mA of continuous output current and comes in thermally enhanced TO-263 surface-mount package. Part offers low noise output of 40 µVRMS and dropout of 250 mV for 300 mA output current. Operating from 5.5–42 V with extended temperature range of -40 to +150°C, regulator includes integrated power-on, under-voltage reset, programmable safety timer, and reverse-battery protection.

Sipex Corp.    Miliptas, CA 95035-1701
Mar 23, 2004 Model SP8062 provides 10 selectable gain settings spanning 43 dB range. It includes 4 high-speed data detection channels, 4 tracking channels, and 2 differential summing channels. Available in 16-pin, clear OPLGA packaging measuring 5.0 x 4.0 mm, unit features 130 MHz RF bandwidth, 20 ns saturation recovery, 400 V/µs slew rate, and differential outputs with 2.7 V output swing.

Linear Technology Corp.    Milpitas, CA 95035
Mar 23, 2004 Housed in 5-Pin SOT-23 (ThinSOT(TM)) package, LTC2054 and LTC2054HV zero-drift amplifiers require 175 µA max supply current over industrial temperature range of -40 to +85°C. Characteristics include 0.5 µV input offset voltage, 30 nV/°C offset drift, 600 fA bias current, and 2 pA offset current. Operational from 2.7-6/11 V, products feature rail-to-rail output voltage swing, 0.5 V/µs slew rate (typ), and 500 kHz gain bandwidth (typ).

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243
Mar 22, 2004 Manufactured in 130 nm CMOS technology, TLK3118 provides bi-directional, point-to-point data transmission for backplane and front plane connections. Discrete device is capable of error-free transmission over 80 in. of standard backplane trace. Flexible, redundant XAUI serial transceiver provides complete XGXS (10 Gigabit extended sublayer) function and performs parallel-to-serial conversion, serial-to-parallel conversion, and clock extraction functions for physical layer interface.

ETCO Incorporated    Warwick, RI 02888 1501

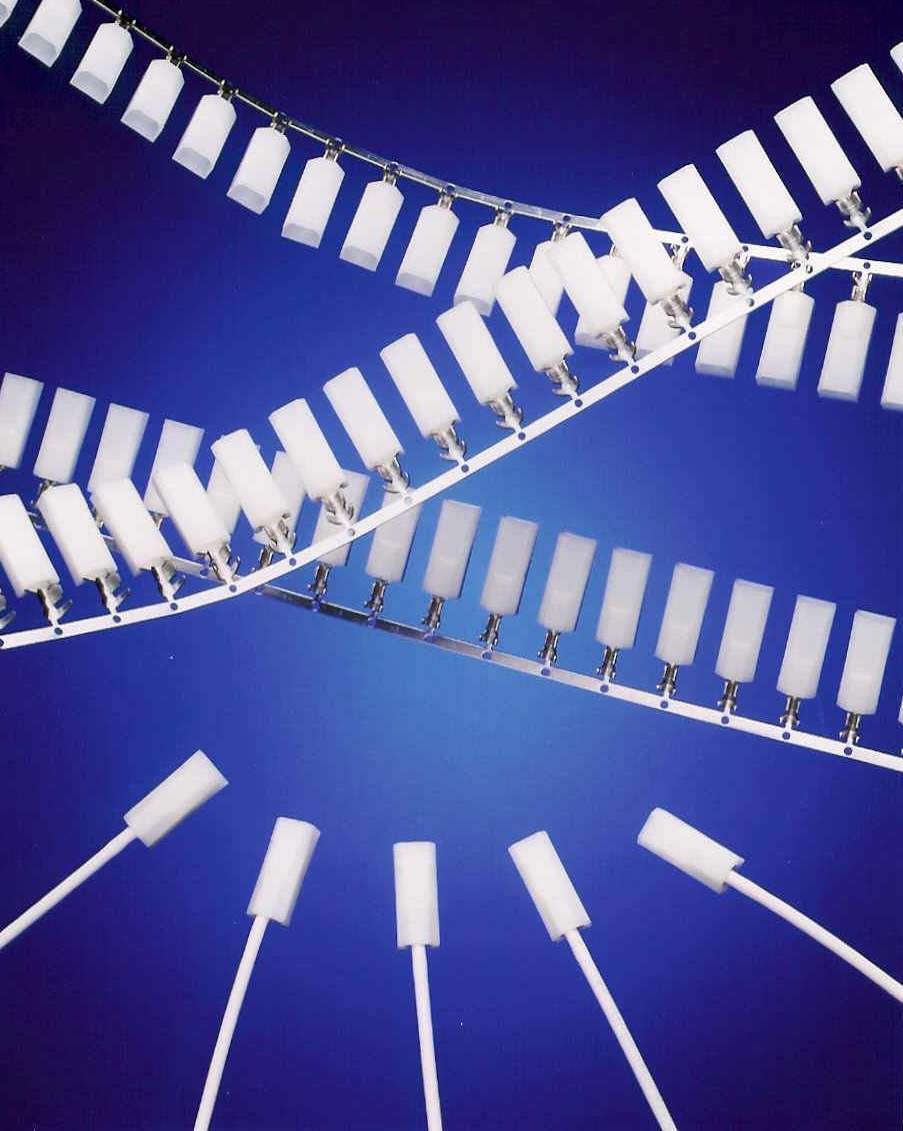

Mar 22, 2004 Applied by automated wire processing equipment, Fully Insulated Male Tabs feature F-crimp wire attachment that encapsulates wire without crushing it. Nylon insulator eliminates need for shrink tubing or hand blocking. Suited for high-vibration applications, tabs are offered in brass and tin-plated brass in 3 sizes to accept wire ranges from 20–10 ga. Mating part dimensions are .032 x .250 in.

Delta Tau Data Systems    Chatsworth, CA 91311

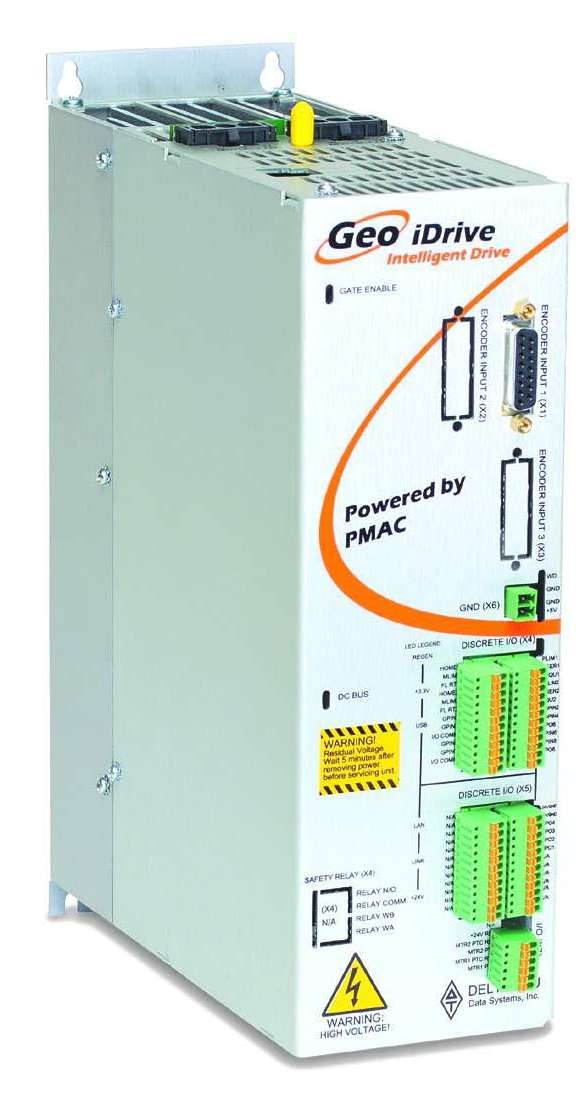

Mar 22, 2004 Geo iDrive 1- and 2-axis universal servo motor 3-phase amplifiers provide single solution for motor amplifier and motion controller. They incorporate USB and Ethernet connectivity, third encoder input, and user-definable I/O. Products combine PMAC2 programmable, multi-axis controller with variety of amplifier models in compact package. Motion controller includes Motorola DSP 56k Digital Signal Processor and offers linear and circular interpolation.

Opto Diode Corp.    Newbury Park, CA 91320

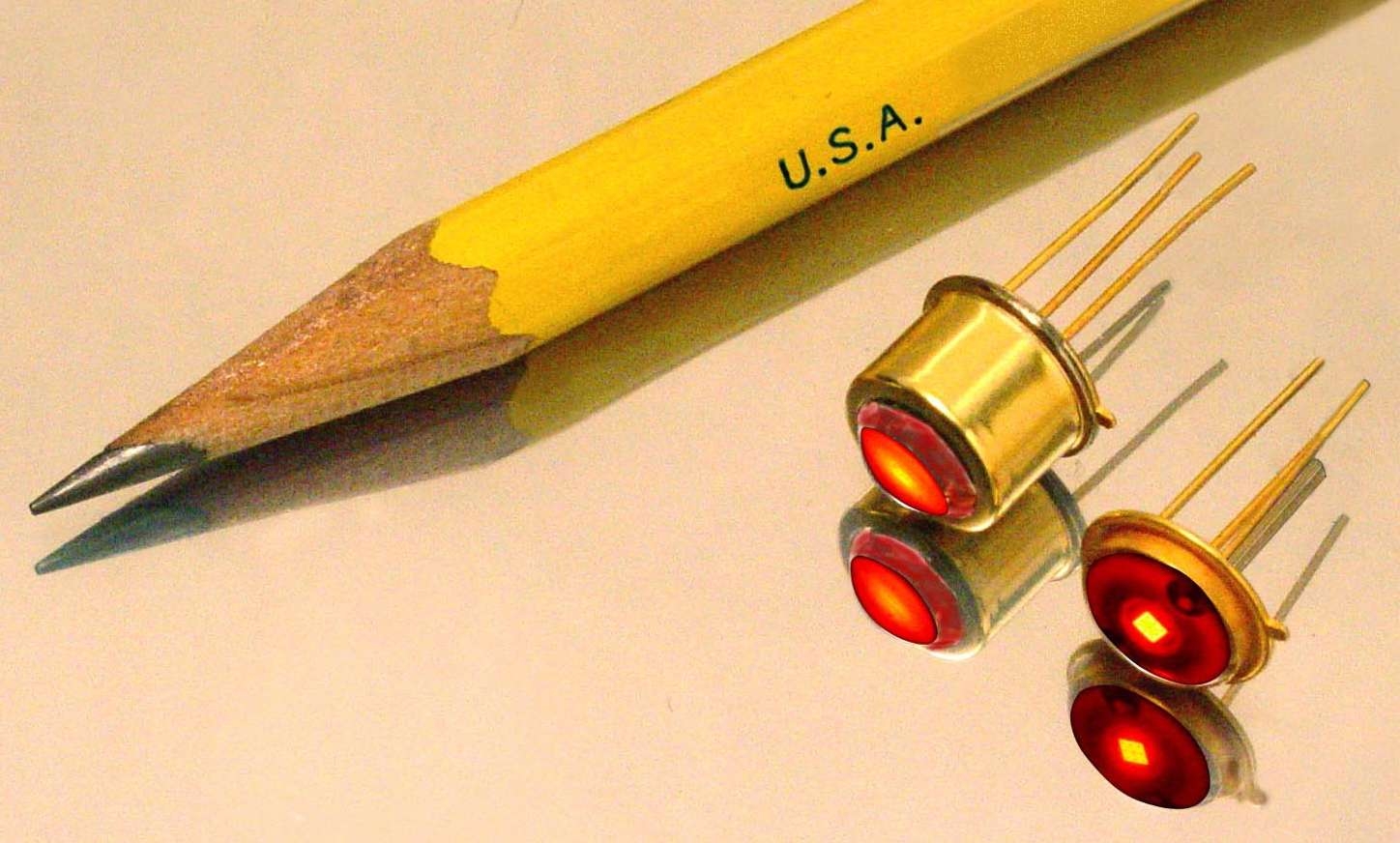

Mar 19, 2004 Designed for medical and architectural lighting applications, narrow-beam OD-620L and wide-angle OD-620 LED illuminators have peak emission rated at 620 nm. Typical power output is 50 mW, and max continuous forward current is 300 mA. Single-chip substrate design in TO-39 metal package allows operating range of –40 to +100°C.

National Instruments Corp.    Austin, TX 78759-3504

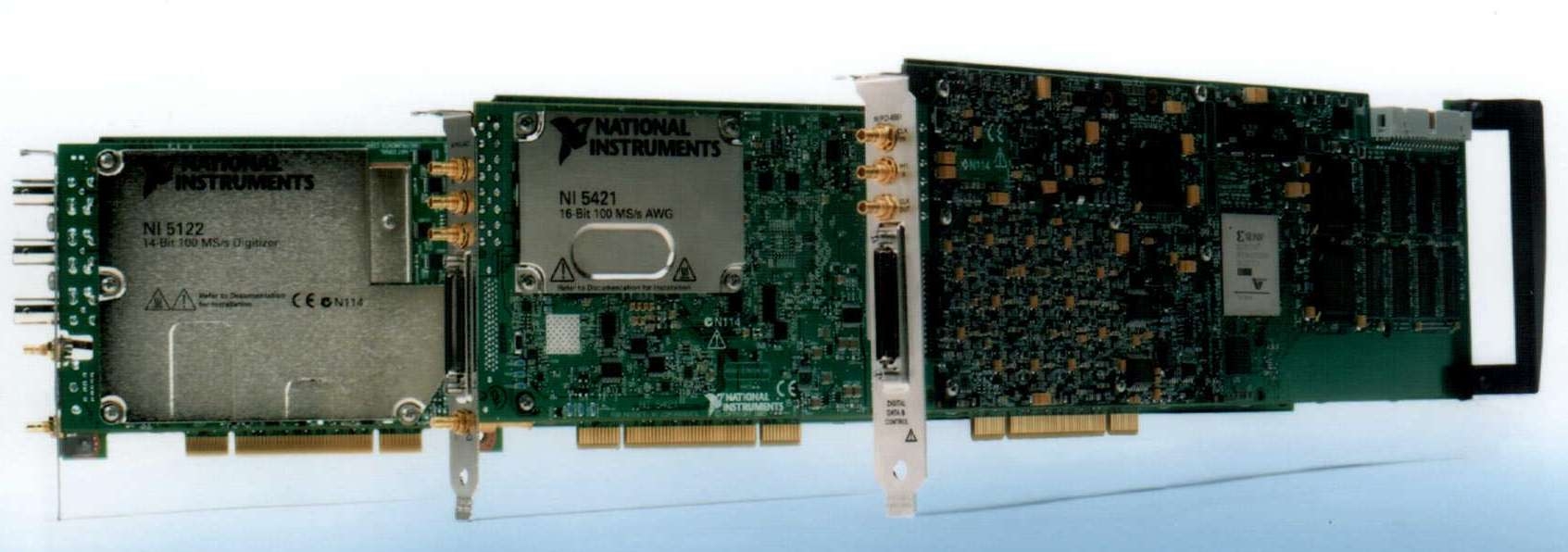

Mar 17, 2004 Modular, PCI-based, 100 MS/s instruments extend functionality of PXI mixed-signal suite for use with desktop PCs. They include NI PCI-6552/6551 100/50 MHz digital waveform generator/analyzers; NI PCI-5421 16-bit arbitrary waveform generator; and NI PCI-5122 14-bit digitizer. Units are built on SMC architecture, which delivers timing and synchronization engine, data transfer cores and deep, flexible memory up to 512 MB.

National Instruments Corp.    Austin, TX 78759-3504

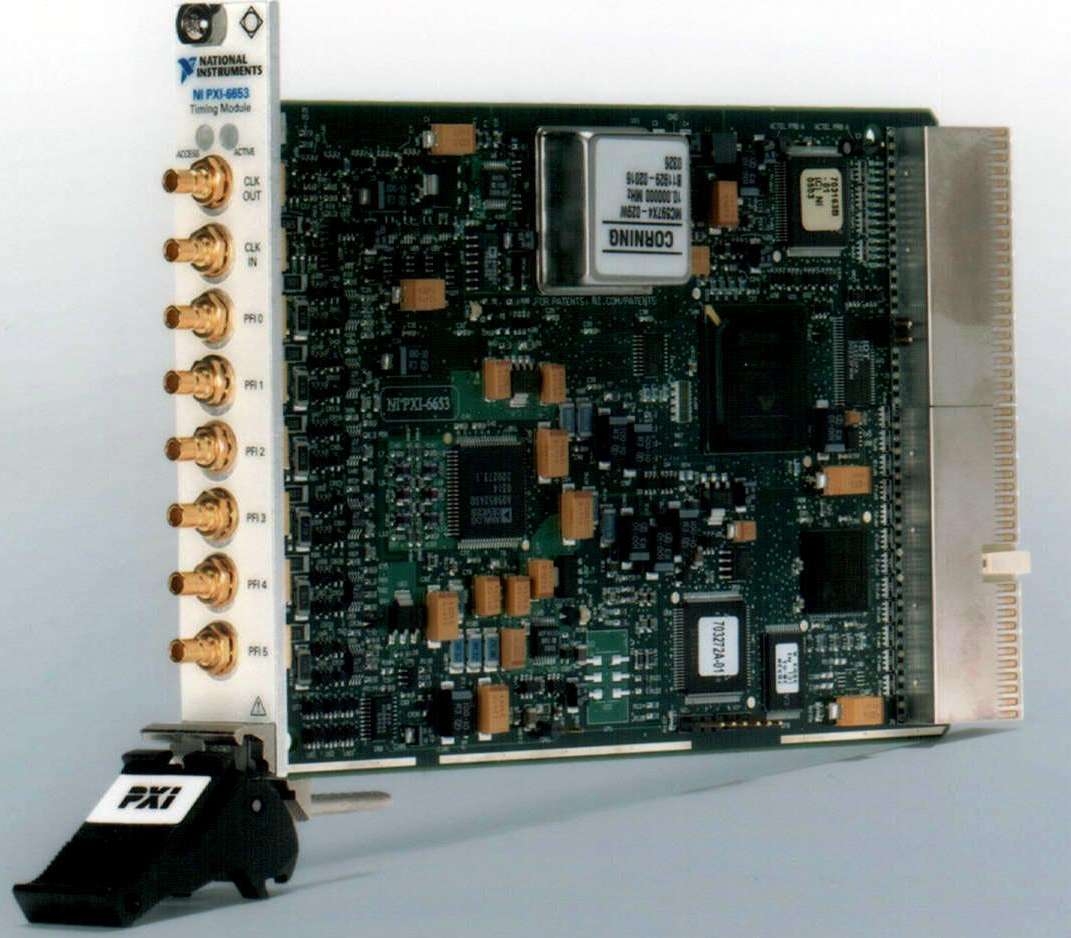

Mar 17, 2004 Model PXI-6653 timing and synchronization module offers clock generation and signal routing for multichassis synchronization of high-channel-count systems. Board can be used to build systems with up to 40,000 channels and improve single-chassis system timing. Providing tight synchronization between modules in one PXI chassis, product features onboard routing of clock, PXI trigger, and star trigger signals and generates precise clocks with 711 nHz resolution.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Mar 17, 2004 TSDF12830YS and TSDF32830YS Dual-MOS Monolithic Integrated Circuit devices combine 2 MOSMIC amplifiers, one optimized for VHF applications and the other for UHF applications, and integrated switch in SOT363 plastic package. First MOSMIC stage features fully internal, self-biasing network-on-chip for optimal cross-modulation performance and low noise. Second MOSMIC stage features partly integrated bias for easy Gate 1 switch-off with PNP switching transistors inside PLL integrated circuits.

Fairchild Semiconductor Corp.    South Portland, ME 04106

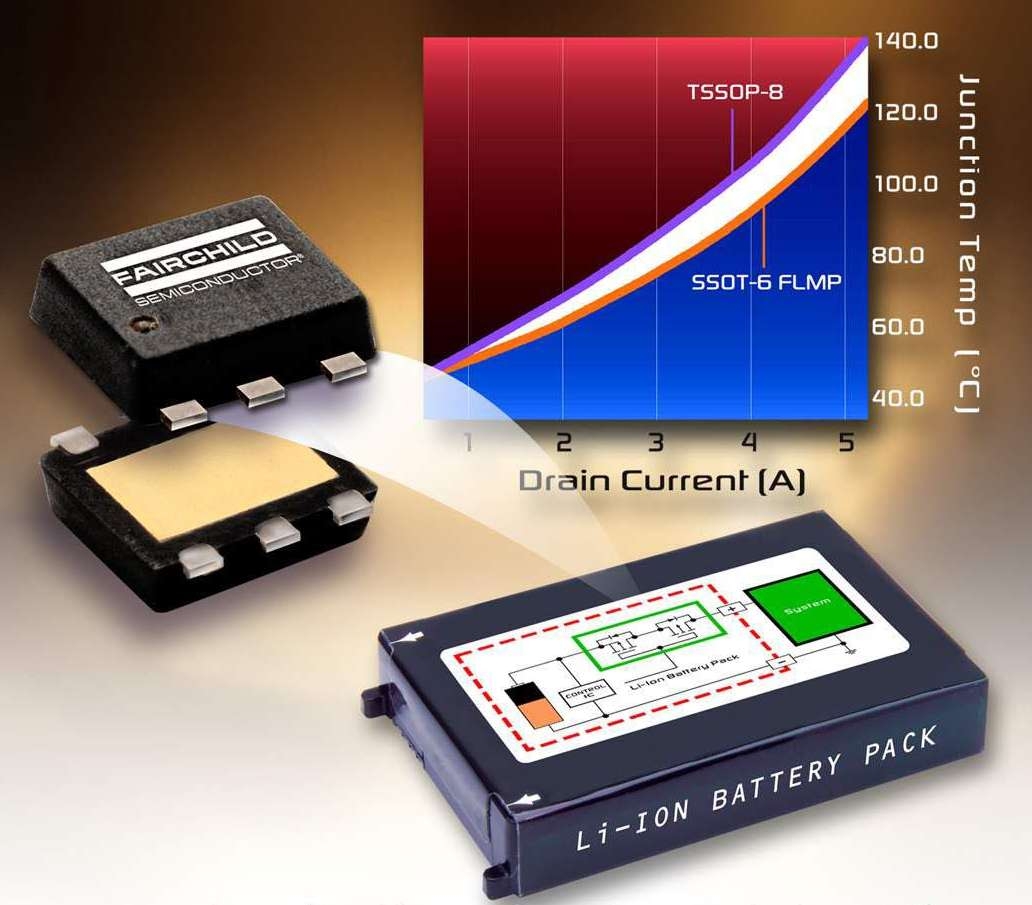

Mar 17, 2004 Model FDC6000NZ dual N-Channel MOSFET power switch has 0.8 mm maximum height and 9.0 mm² maximum area and provides electrical and thermal performance critical to Li-ion battery pack protection. Power dissipation of 1.6 W is achieved with maximum steady state current of 7.3 A. It limits switching losses and provides low-voltage drop solution for mobile phones, PDAs, digital cameras, palmtop computers, and GPS receivers.

Sipex Corp.    Miliptas, CA 95035-1701
Mar 16, 2004 Model SP6201 provides output voltages down to 1.5 V fixed, and adjustable output from 1.25–5 V with less than 320 mV dropout at 200 mA. It consumes 28 µA quiescent current and 10 nA current conumption in shutdown, extending battery life. Operating over input voltage from 2.5–6 V, unit is suited for portable applications such as cell phones, PDAs, pagers, and digital still cameras. It includes current limit and thermal shutdown, and comes in SOT-23 and DFN packages.

Linear Technology Corp.    Milpitas, CA 95035
Mar 15, 2004 Model LT3024 low dropout, micropower regulator offers both 500 and 100 mA outputs. It operates from input voltage of 1.8-20 V, delivering dual outputs at voltages as low as 1.22 V. With 0.01 µF bypass capacitor, output noise is 20 µVRMS over 10 Hz to 100 kHz bandwidth. Suited for battery-powered systems, low 30 µA quiescent current per channel helps regulator maximize battery run time. Unit comes in thermally-enhanced TSSOP-16E package or 12-lead 4 x 3mm DFN.

EM Microelectronic-US    Colorado Springs, CO 80918
Mar 15, 2004 Frequency independent from 865 MHz to 2.5 GHz, EM4223 consists of 128-bit read-only UHF RFID IC that is compliant with international standard ISO18000-6A as well as EPC 64-bit and 96-bit code structure. It offers anticollision protocol, which performs without saturation effect, and can read tags at distances above 15 m when using optimized transponder antenna. Tags can enter and/or leave field without corrupting anticollision protocol.

Sipex Corp.    Miliptas, CA 95035-1701
Mar 15, 2004 Model SP26LV431 quad-channel, differential line driver and Model SP26LV432 quad-channel receiver are EIA/TIA-422-B compliant and provide footprint that is pin-out compatible with industry standard 26C31 and 26C32. Operating on 3.0–3.6 V, devices are suited for point-to-point or multi-drop transmission lines with up to 10 receivers/segment over links up to 4,000 ft. Receiver features open-receiver failsafe protection and 200 mV sensitivity over ±7.0 V common mode range.

HARTING, Inc. Of North America    Elgin, IL 60123 5538
Mar 12, 2004 RJ® Industrial Push Pull provides standard interface for Industrial Ethernet communication and PROFInet applications. It requires as little space as one M12 jack, which facilitates a high packaging density of ports in miniaturized devices. Connector may be terminated without any special tools to industrial cables with diameters up to AWG 22, while smart push pull design allows locking and unlocking with one hand.

Prem Magnetics Inc.    McHenry, IL 60050

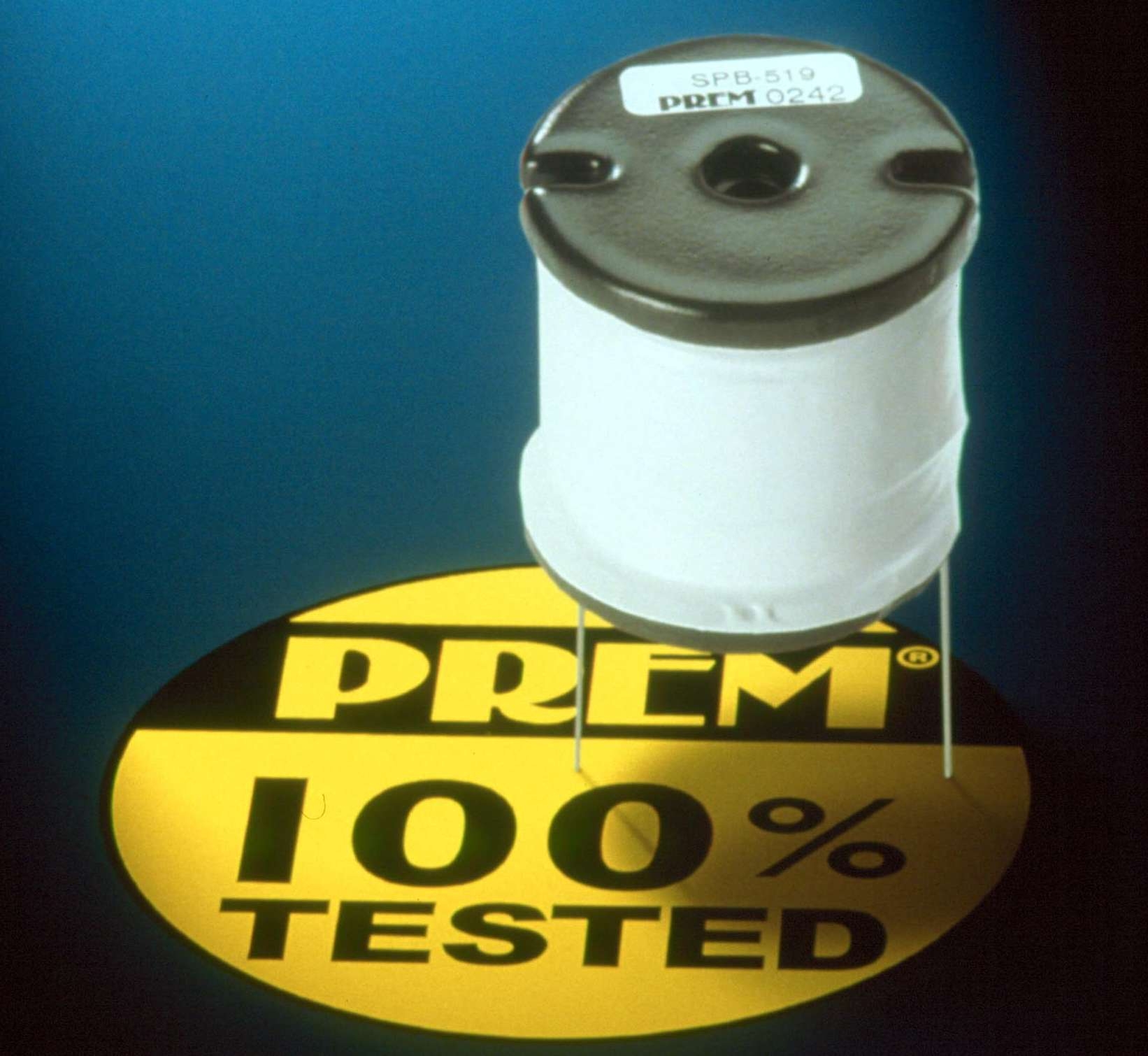

Mar 12, 2004 Series SPB-500 Ferrite Drum Core Inductors utilize ferrite material that is stable from 0 to full-rated current. It consists of 26 parts, each having inductance values from 180.0 µHy at 15.0 A to 2200 µHy at 1.35 A dc. Mounting hole through center of core accepts No. 6 non-metallic screw to secure part to printed circuit board. Two leads extend radically from bottom of core and are 180° apart from each other. Typical dimensions are 1.415 x 1.440 in.

Spinner North America    Norcross, GA 30071

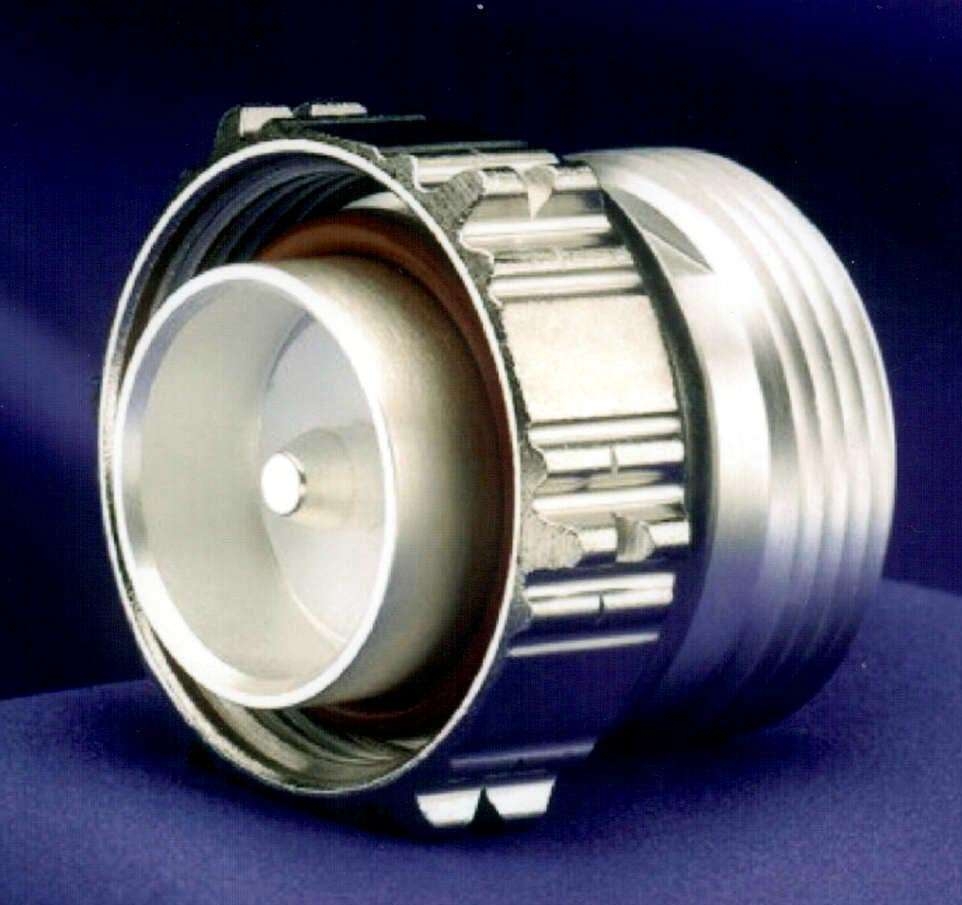

Mar 12, 2004 Made of silver-plated brass, Model 756404 7-16 Connector Saver Adapter operates in DC to 8 GHz bandwidth with intermodulation better than -165 dbc and max VSWR of 1.06. Adapter is suited for high caliber laboratory test solutions as well as multiple production and field applications.
