Bud Industries, Inc.    Willoughby, OH 44094

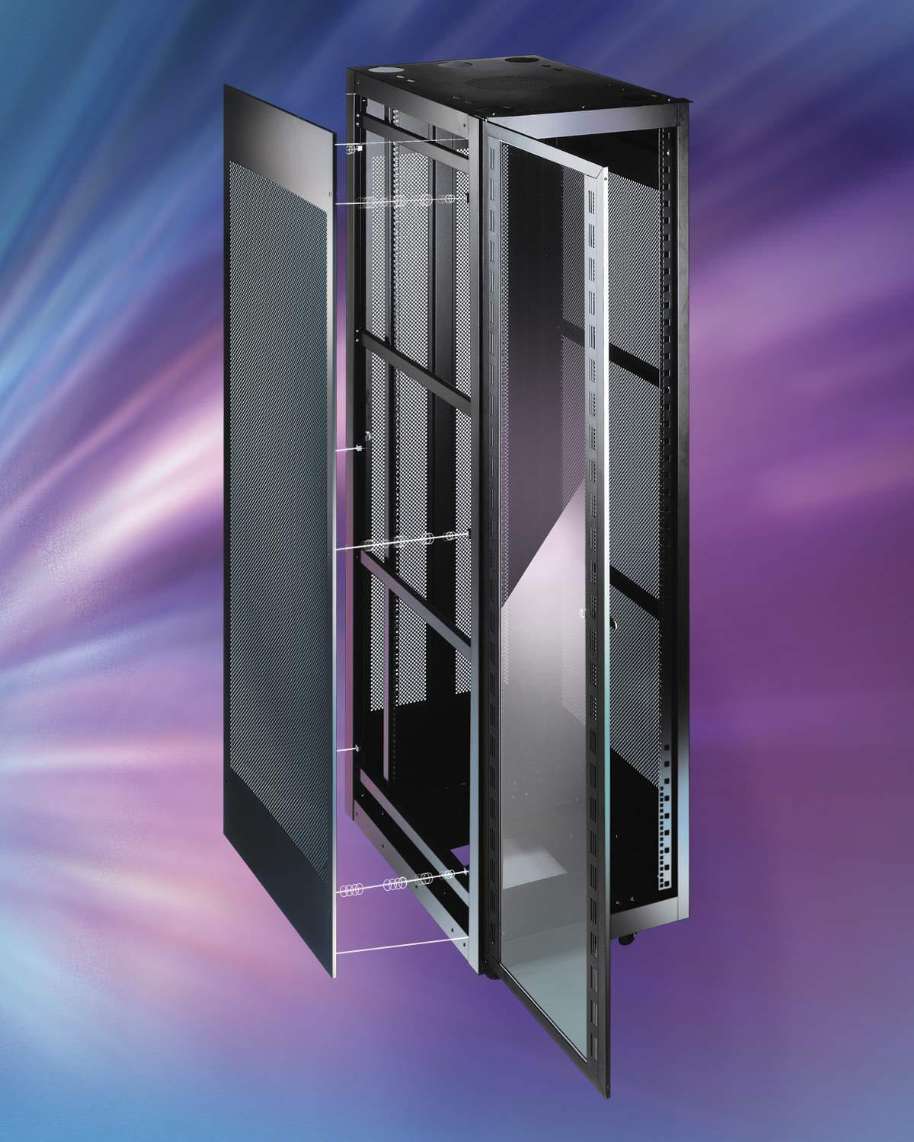

Apr 16, 2004 Extra Deep Cabinets have perforated side panels and rear door. Econoglas front door permits maximum airflow. Cable access ports in top and bottom of cabinets enable overhead cabling or raised data room floors. Internal grounding studs are located in top and bottom of rack. Two pairs of fully adjustable, L-Shaped panel mounting rails, with mounting holes on EIA universal spacing, have provisions for vertical cable management. Cabinets can attach together for construction of equipment bays.

Autosplice    San Diego, CA 92121

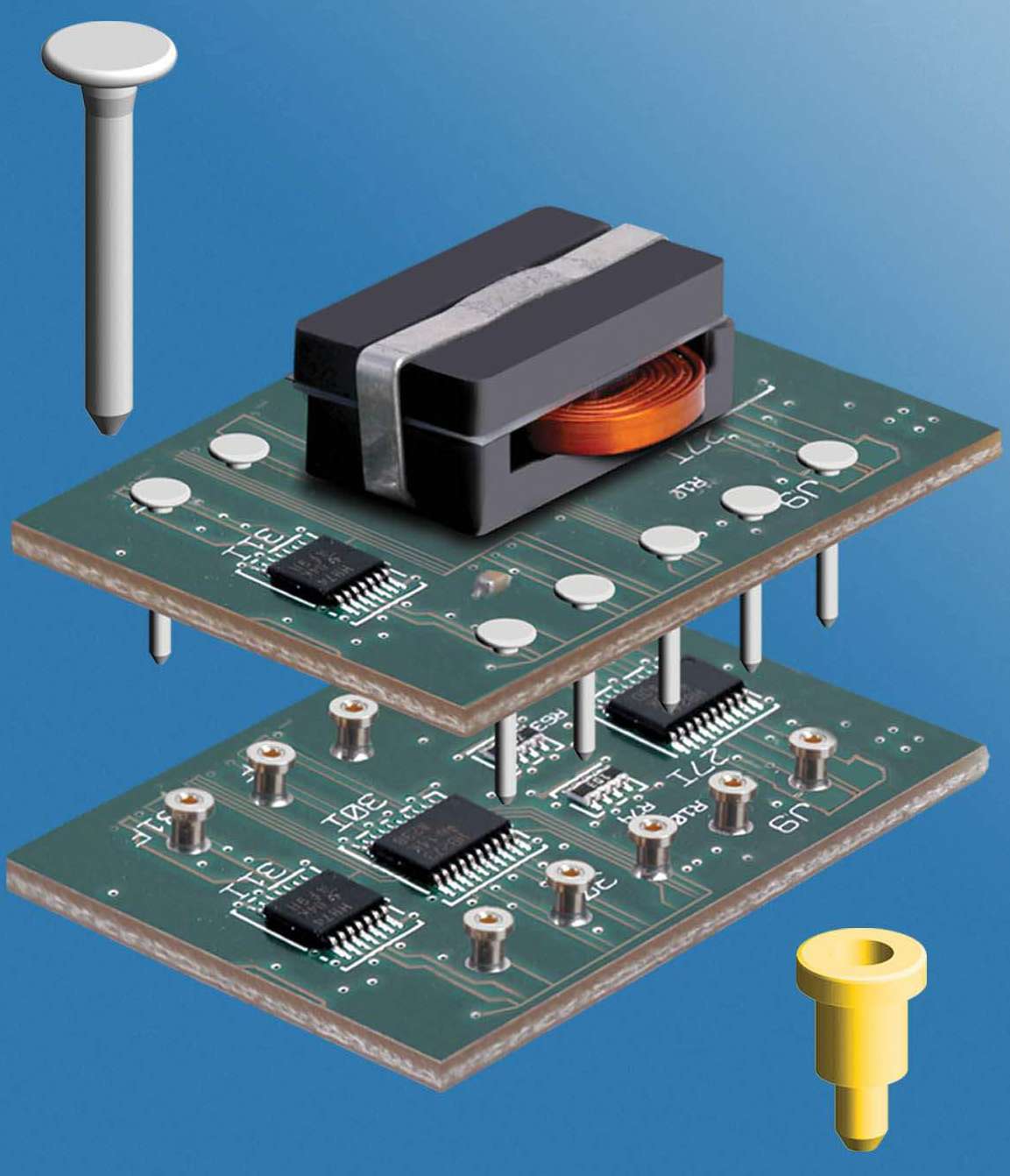

Apr 15, 2004 Non-intrusive, pin-and-socket interconnect system eliminates need for specialized handling or equipment. Pin and socket components are packaged in standard EIA tape-and-reel formats for direct pick-up and placement by automated equipment. Flat-headed pins are placed pin-first into plated-through-holes, and tapered shank near head assures proper alignment as pinhead comes flush with PCB's surface. Socket components align themselves as they are inserted into plated-through-holes.

WAGO Corp.    Germantown, WI 53022

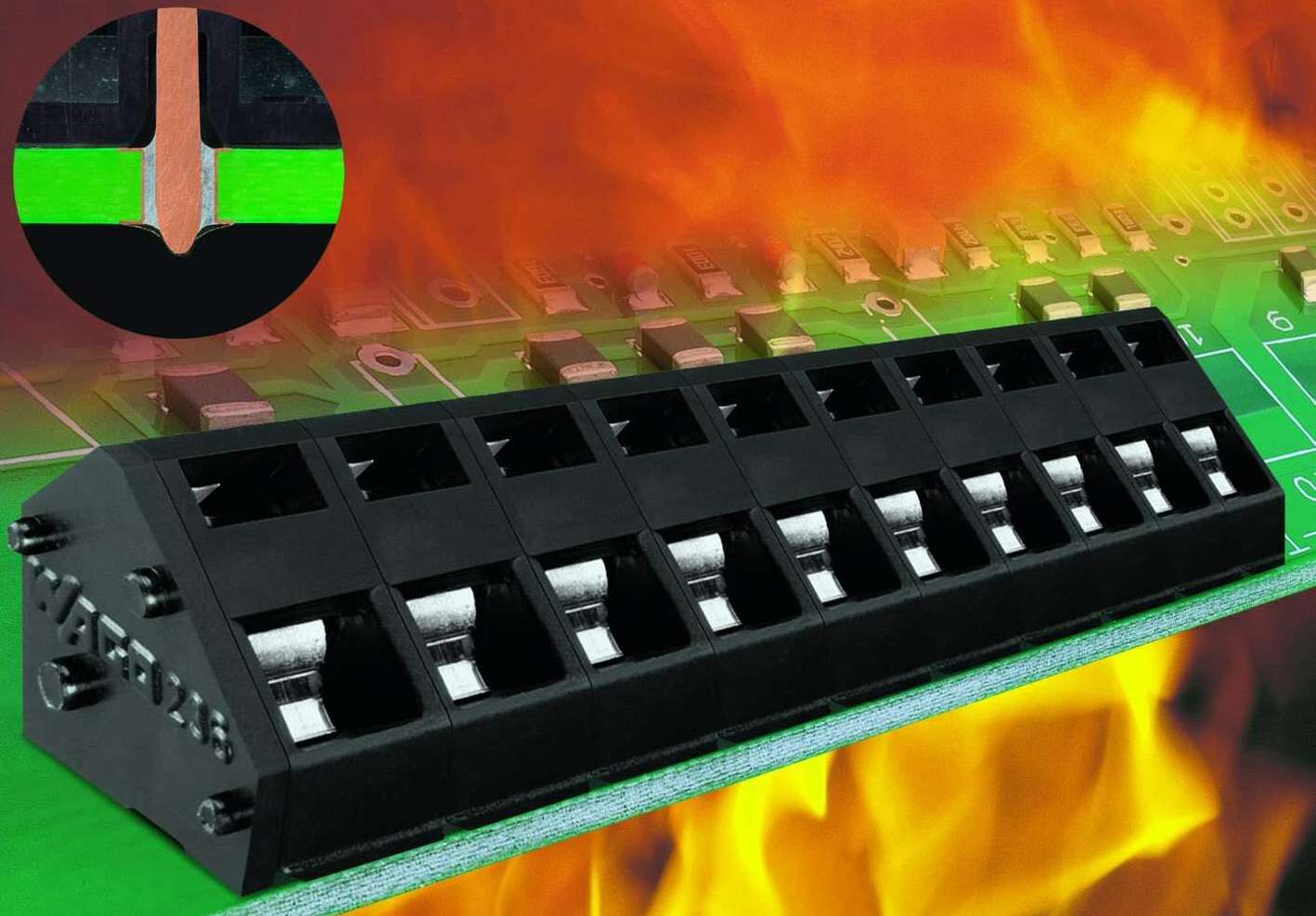

Apr 15, 2004 Design elements incorporated into 236 Series include optimization of solder pin length to adapt to reflow process, use of high temperature-resistant plastic for insulating housing, and utilization of CAGE CLAMP® spring pressure connection technology. Offered in 2-6 pole configurations with 0.197 in. pin spacing, series handles conductors from AWG12-28. Standard packaging or pick and place configurations are also available.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143

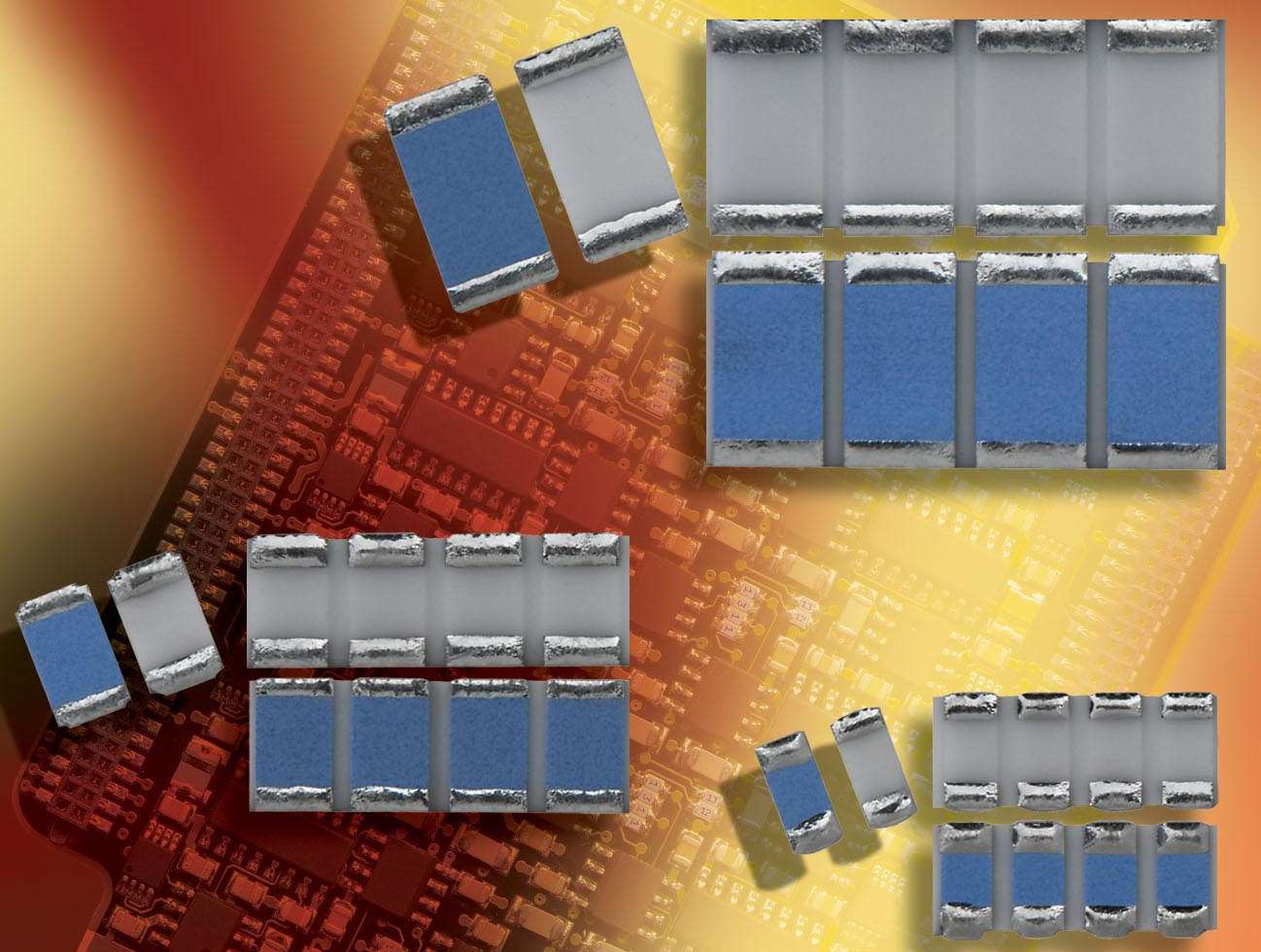

Apr 15, 2004 For applications requiring precision sets of resistor elements, PRA 100, PRA 135, and PRA 182 provide tight TCR of 10 ppm/°C, TCR tracking of 1 ppm/°C, and ratio tolerance as tight as 0.01%. Models offer resistance range from 100 ohm to 200 Kohm to 100 ohm to 1 Mohm. Passivated nichrome resistive layer, contacts between resistive and conductive layers, and proprietary patterning and laser trimming technique eliminate need for digital drift compensation.

Linear Technology Corp.    Milpitas, CA 95035
Apr 14, 2004 Housed in SOT-23 package, LTC4412HV diode controller has 2.5-36 V operating range and is suited for use in systems requiring load sharing or automatic switching between DC input power sources. IC regulates gate voltage of external P-channel MOSFET to maintain 20 mV forward voltage drop, and unit provides reverse battery, overcurrent, and MOSFET protection circuitry. Digital control input and open-drain status output pin are provided to interface to microcontroller.

Phoenix Contact    Harrisburg, PA 17111 0100

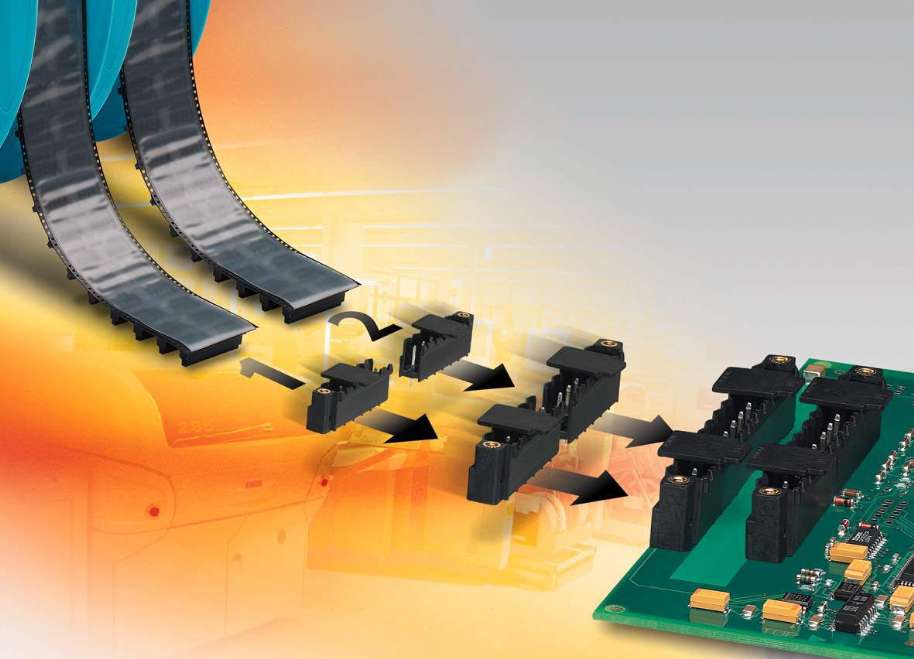

Apr 14, 2004 Made from liquid crystal polymer, series CC 2.5 through-hole reflow PCB headers are offered with 5.08 mm pin spacing. Header is available in position sizes 2–24, with/without locking flanges, and utilizes single or 2-piece configurations. Vertical and horizontal PCB mounting versions as well as tape-on-reel packaging are provided for integration with automated pick and place equipment.

Schurter, Inc.    Petaluma, CA 94975-0158

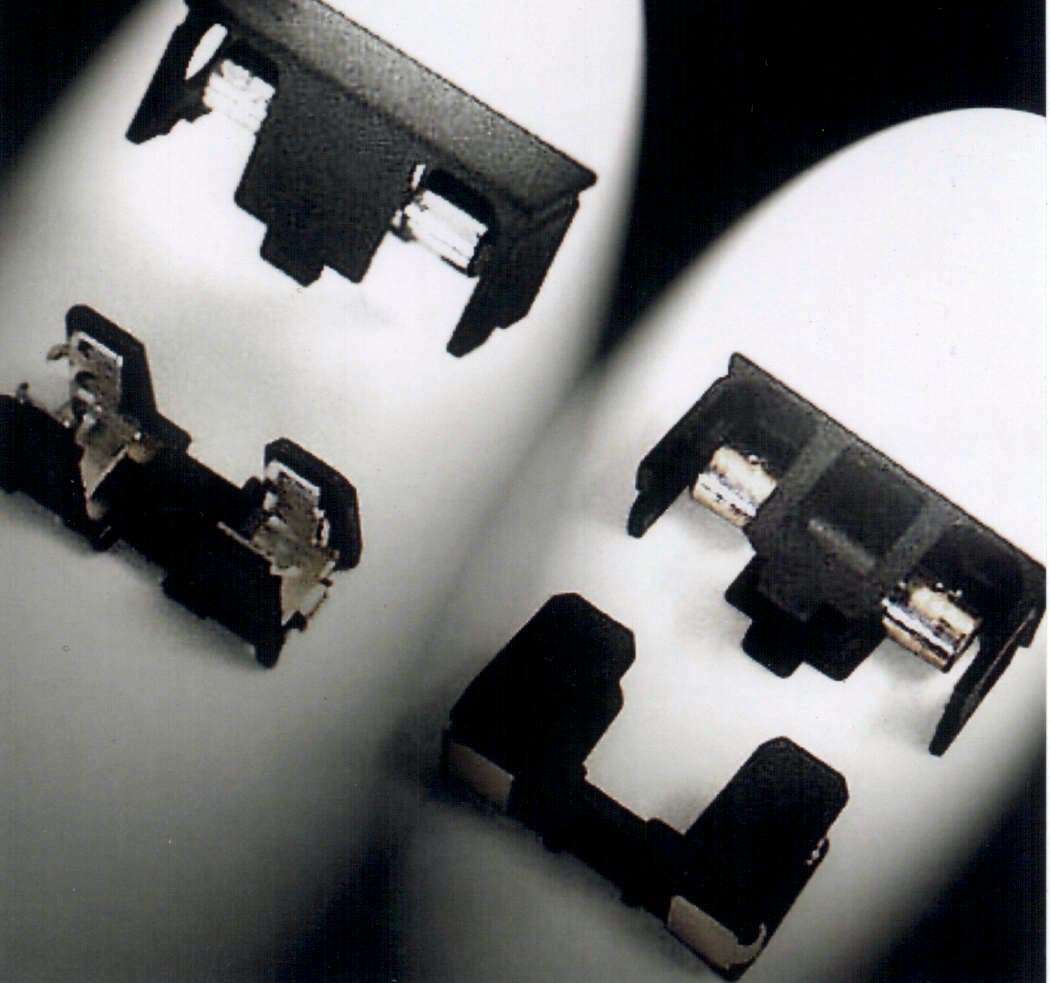

Apr 13, 2004 Approved to max of 10 A/250 V, Series OGN comes pre-loaded with 5 x 20 mm fuse and fitted cover. Cover grabs hold of fuse, removing it when cover is lifted, simplifying replacement. Rated power acceptance at ambient air temperature is 4 W with or without reflow cover, or 2.5 W with transparent cover. Thermoplastic material of socket is rated UL 94V-0 and withstands high soldering temperatures. Mounting variations include surface-mount or through-hole.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143

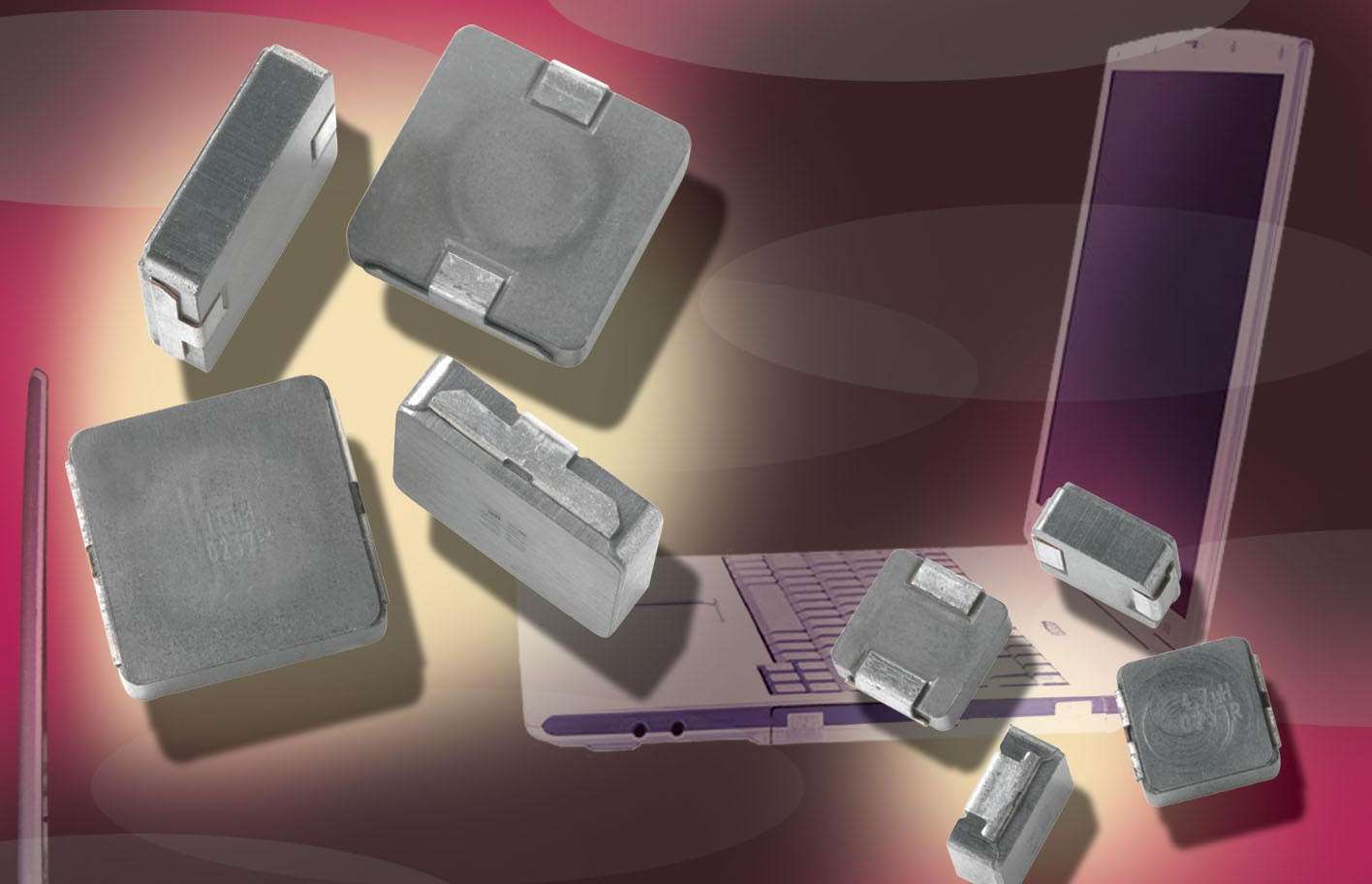

Apr 13, 2004 With 3.0 mm profile, Models IHLP-2525CZ-06 and IHLP-2525CZ-07 are specified for saturation currents from 7.0–60 A and for typical DCR values from 1.4–97.7 mOhm. Featuring 3.5 mm profile, Models IHLP-5050CE-06 and IHLP-5050CE-07 are specified for saturation currents from 14–51 A and for DCR range of 1.85–30.86 mOhm. Packaged in 100% lead-free, shielded housing, units operate over frequency range up to 5 MHz with operating temperature of -55 to +125°C.

LEDtronics, Inc.    Torrance, CA 90505

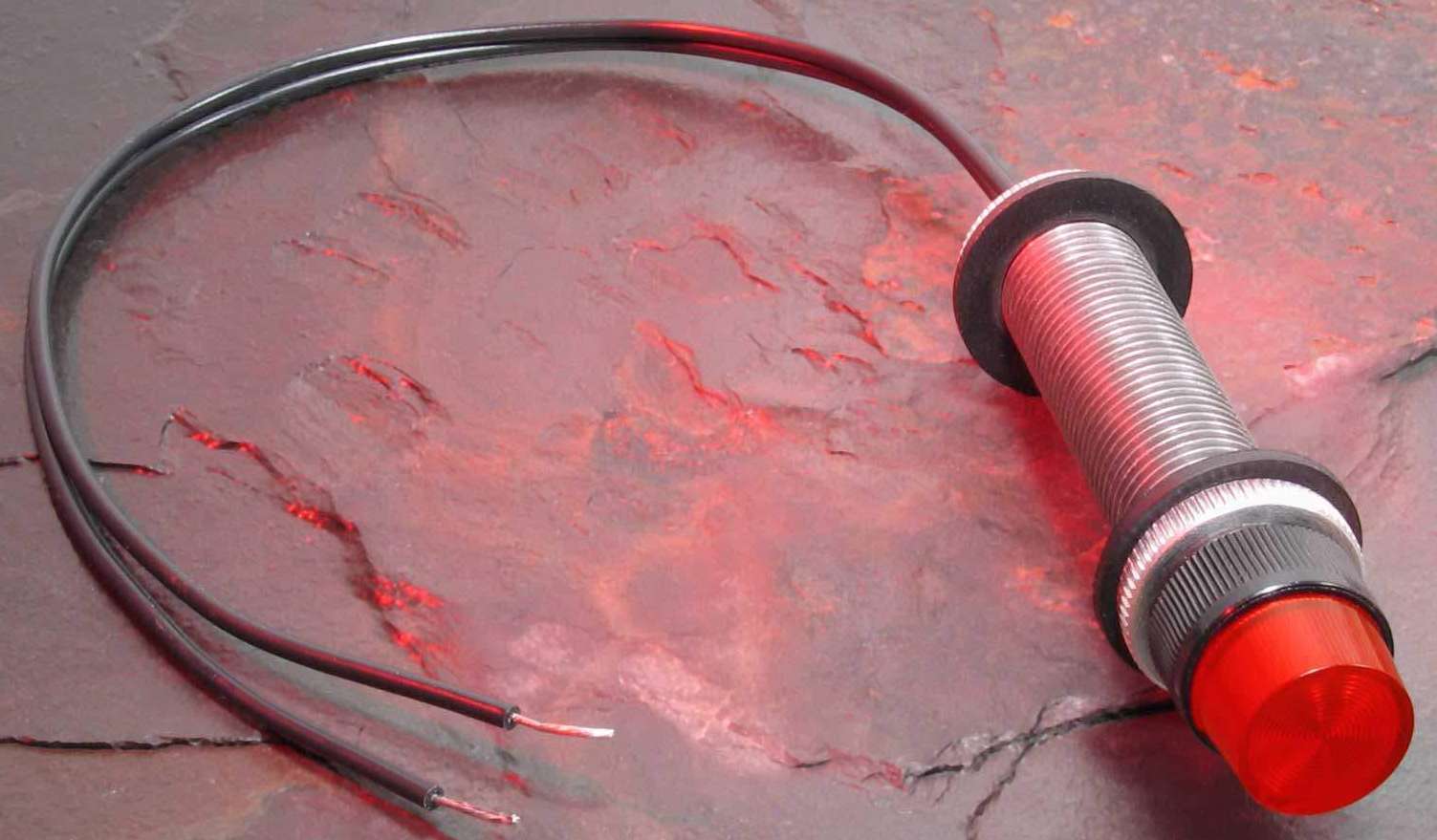

Apr 12, 2004 Built with solid-state construction, panel mount PNL-1145 Series lamps feature fixed LED, removable lens, and threaded metal shaft. Adjustable nuts and washers enable lamps to be front- or rear-mounted in panels up to 2.2 in. thick, and 12 in. leads help expedite integration into electrical system. Products, available in 24, 48, 125, and 250 Vdc ratings, are offered in Aqua Green, Warm White, Super Blue, Ultra Yellow, and Ultra Red.

Phoenix Contact    Harrisburg, PA 17111 0100

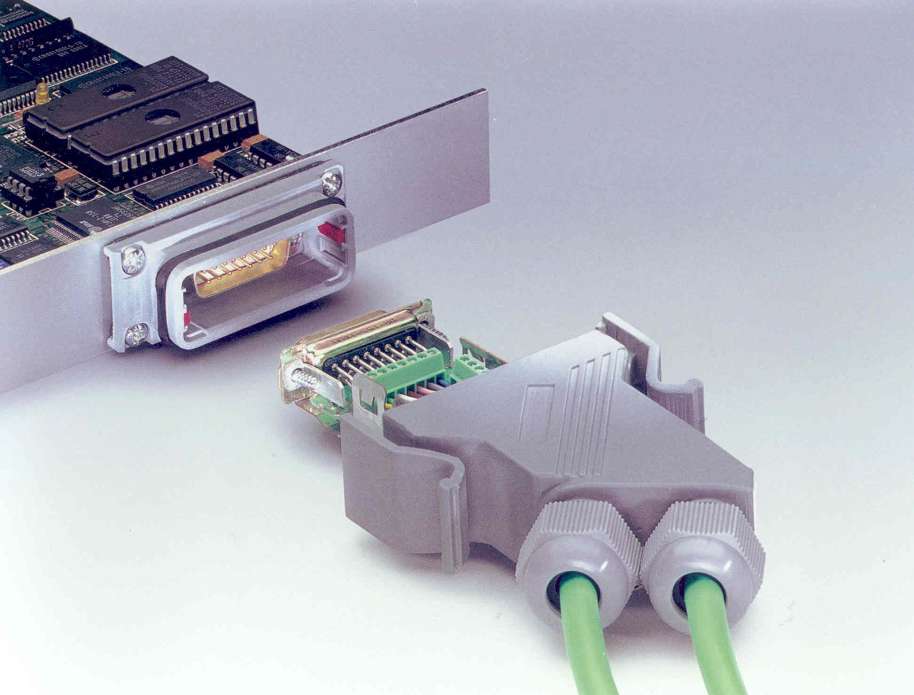

Apr 12, 2004 Variosub D-Subminiature plug connector system meets requirements for IP67 protection. It comes with polyamide housing, mounting frame, and D-Sub contact inserts which are available in 9, 15, and 25-pin positions. Male and female contact inserts connect via direct solder to printed circuit board, screw terminals, crimp contacts, or flat ribbon cable. EMC shielding can be integrated into housing for protection against interference.

Gems Sensors Inc.    Plainville, CT 06062

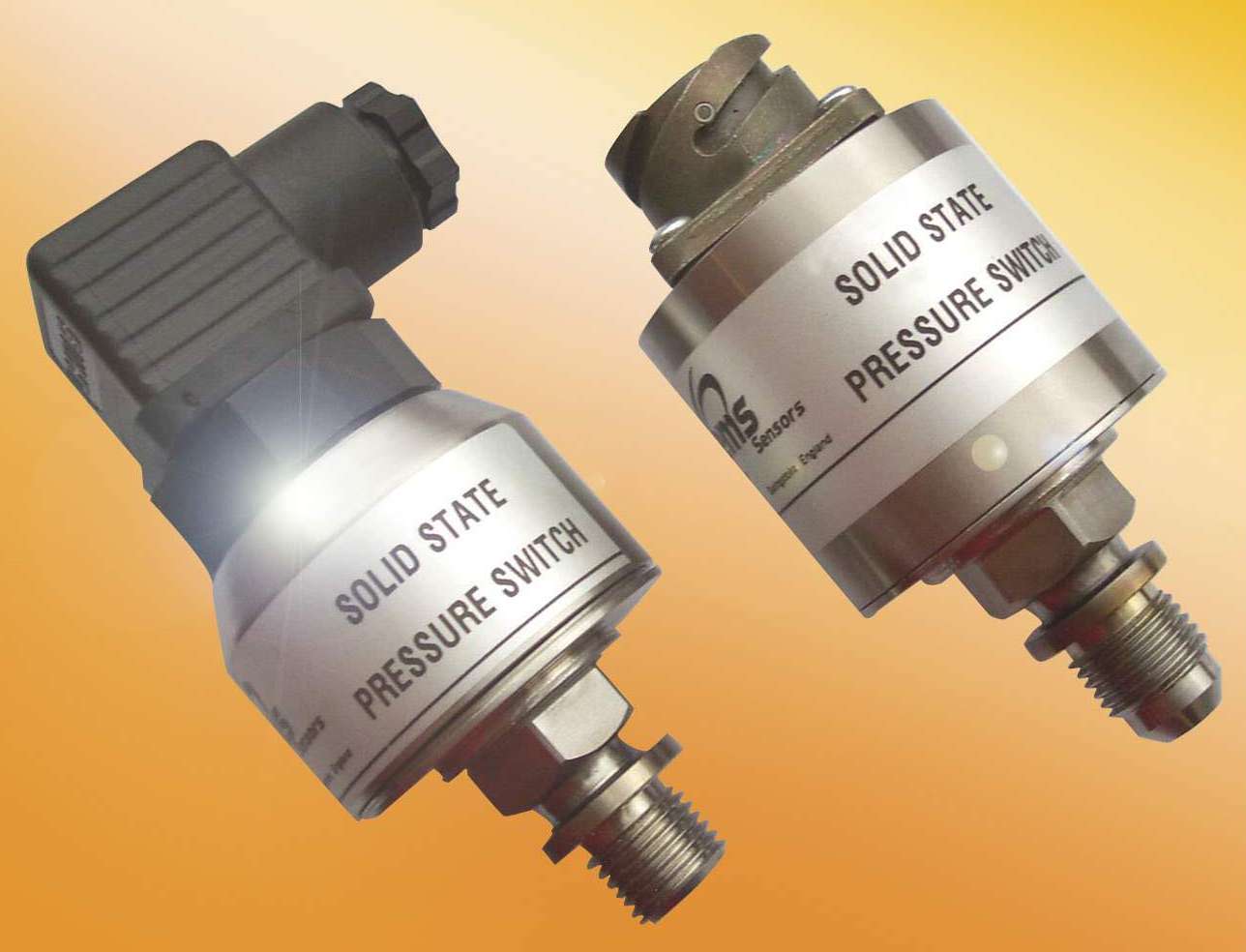

Apr 09, 2004 Series PS98 features polysilicon strain gauge teamed with custom ASIC to provide thermal-compensated pressure sensing, which actuates solid-state relay or transistor switch. Pressure sensing electronics range from 0–6,000 psi. Repeatability is within 0.25% of full set point range. Switch actuation and de-actuation set points are customer-specified and set at factory. Units require 24 Vdc and operate from -40 to 260°F.

Datatran Labs, Inc.    Sussex, NJ 07461 0384

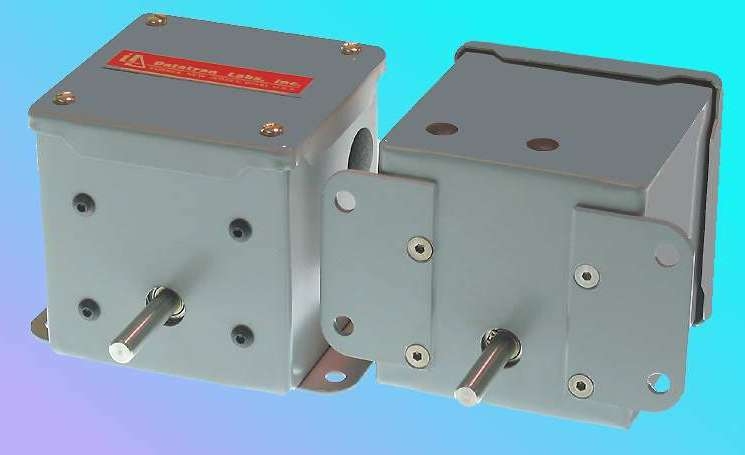

Apr 09, 2004 Heavy-duty, geared potentiometer provides dancer roll position feedback signals. Able to handle up to 80 lb of radial load, stainless steel input shaft is supported by double-sealed and prelubricated ball bearings. Unit does not contain internal stops and is mounted in steel box with screw-on cover. Rated for 1 W, it provides better than 1% linearity with infinite resolution and offers over 700 gear ratios from .06–25 turns of input shaft.

Data Display Products    El Segundo, CA 90245 4630
Apr 08, 2004 Suited for stack lights and signal towers, Series SL2 Lamps replace incandescent bulbs. Available in red, yellow, green, blue, and white, lamps provide indication of machine status from anywhere on factory or office floor. Small 15 mm diameter fresnel lens and selection of base styles allows installation in 30, 50, and 70 mm stack lights. Offered in 12 Vac/dc, 24 Vac/dc and 120 Vac, lamp circuit is immune to false indication caused by leakage current.

Aries Electronics, Inc.    Bristol, PA 19007-6810

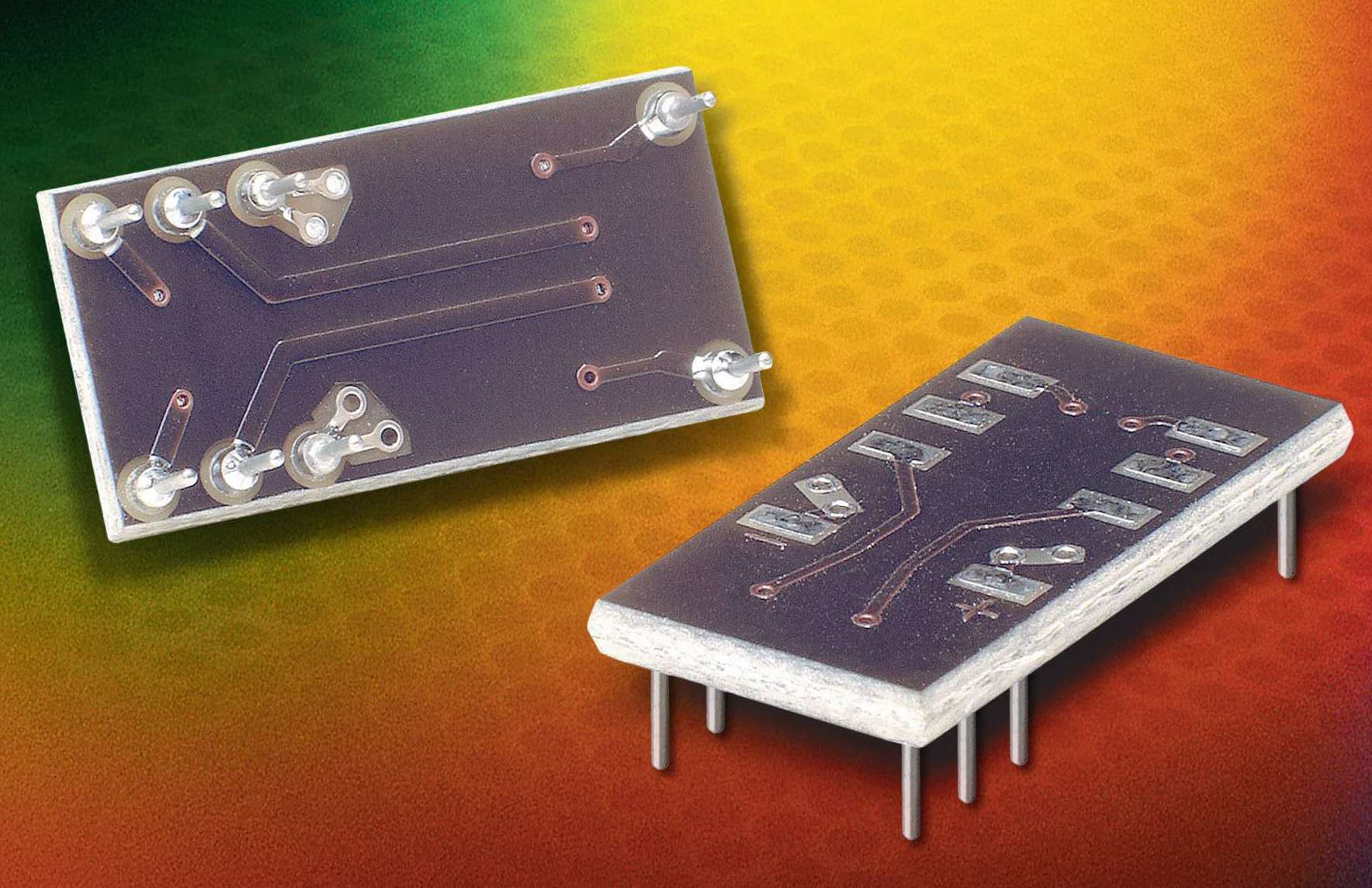

Apr 08, 2004 Offered with 8 leads, SOIC Adapters are .062 in. thick FR-4 with 1 oz of copper traces on both sides. They are available on .300 in. DIP centers and can be mounted on PCBs with hole diameter of .028 in. Pins are 360 ½ hard brass alloy, and pin plating is 5.08 µm minimum tin/lead 93/7 over 2.54 µm minimum nickel. Adapters provide upgrade from older Aromat HB2E relays to surface-mount TXSS relays while keeping same PCB layout. Max operating temperature is 221°F.

J.W. Miller Magnetics    Gardena, CA 90247-2859

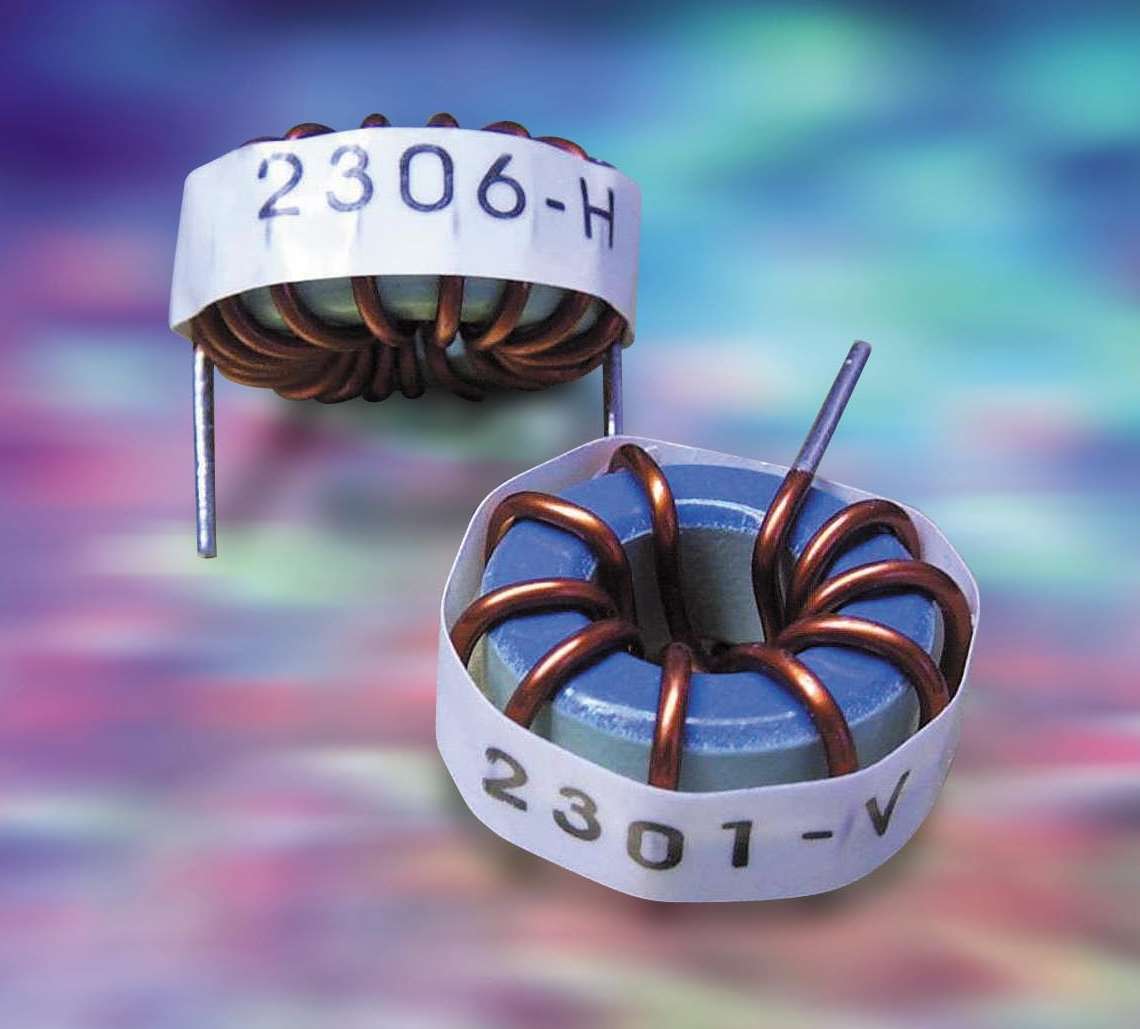

Apr 07, 2004 Series 2300 features iron powder core that helps eliminate undesirable conductive emissions, making units suited for high-current applications. Measuring 1.28 x 0.65 in., inductors have 0.5 in. lead length tinned to within 1/16 in. of body. They offer inductance range of 10-1,000 µH; self-shielding, low core loss; and operating temperature range of -55 to +105°C. Horizontal and vertical configurations are available.

Phoenix Contact    Harrisburg, PA 17111 0100

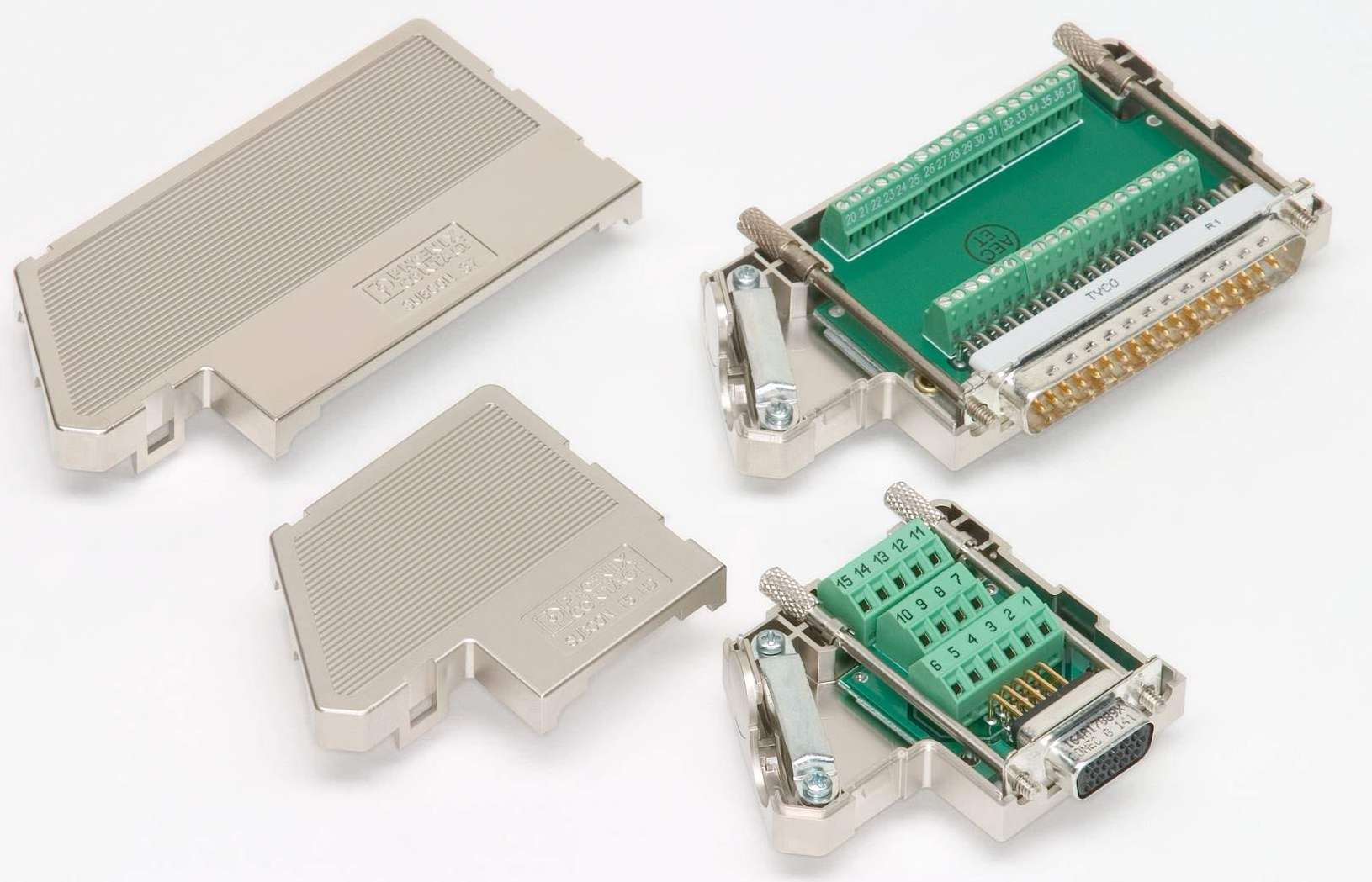

Apr 07, 2004 Offered in EMI/RFI-shielded housings, solder- and crimp-free SUBCON D-Sub connectors are available in high-density 37- and 15-position versions. Cabling is connected to screw-clamp terminal blocks, and terminations are made using screwdriver. Integral strain relief ensures reliable connection to the terminals. Connectors feature option of one or 2 cable entries, and male and female versions are available with integral jackscrews.

Fujitsu Components America, Inc.    Sunnyvale, CA 94089
Apr 07, 2004 Copper microGiGaCN™ Connector includes vertical board-mount I/O socket. Optimized for differential signal transmission of 3.125 Gbps and above over standard FR-4 material, FCN-260D socket is available in 4x and 12x versions with latches for InfiniBand applications. Supporting pcb thicknesses from 0.062–0.110 in., socket has 0.75 mm signal-to-ground contact pitch, 1.5 mm signal-to-signal contact pitch, and 0.5 mm SMT lead pitch. Connector is rated at 30 Vdc, 0.5 A and 1.0 A.

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243
Apr 06, 2004 Series OPA734 and OPA735 are 12 V amplifiers that use auto-zeroing techniques to provide 5 µV offset voltage and near zero drift. They feature 750 µA quiescent current, 200 pA bias current, 1.6 MHz bandwidth, and rail-to-rail output swing within 50 mV of rails. Series OPA734 includes shutdown mode, allowing device to be switched from normal operation to standby current that is less than 9 µA. Both series operate on single or bipolar supplies from 2.7–12 V.

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243

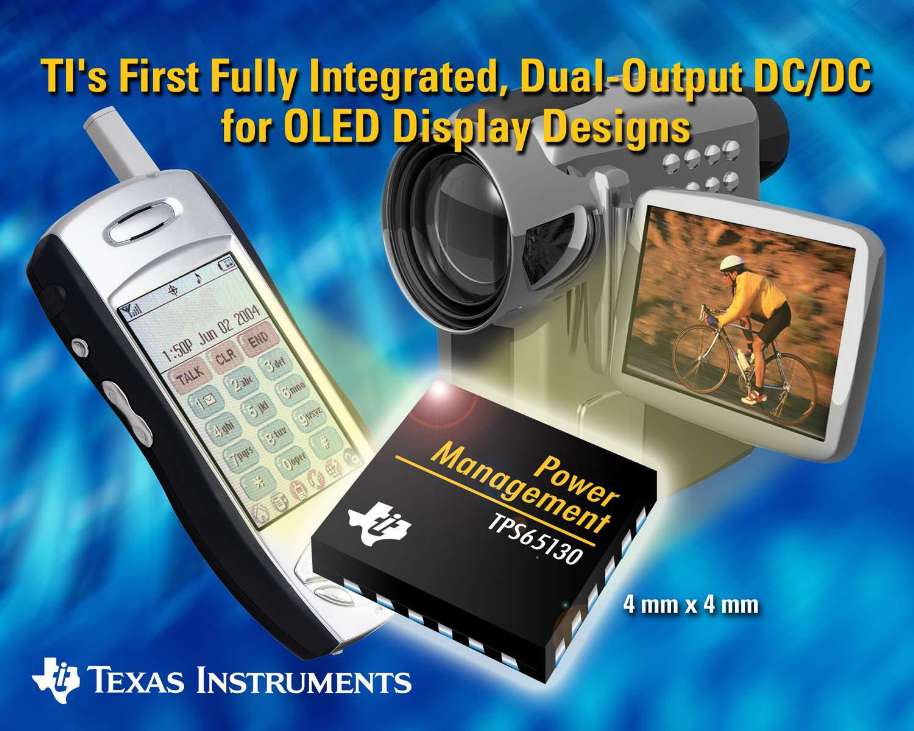

Apr 05, 2004 Model TPS65130 dual-output, dc/dc converter generates positive output voltage up to 15 V and negative output voltage down to -12 V with programmable sequencing. With power conversion efficiency of 89%, driver supports battery-powered equipment such as cellular phones, PDAs, digital cameras, and camcorders. Input voltage range is 2.7–5.5 V. Model TPS60230 Charge Pump manages power supplied to white LED color display backlight applications without need for inductor.

National Instruments Corp.    Austin, TX 78759-3504

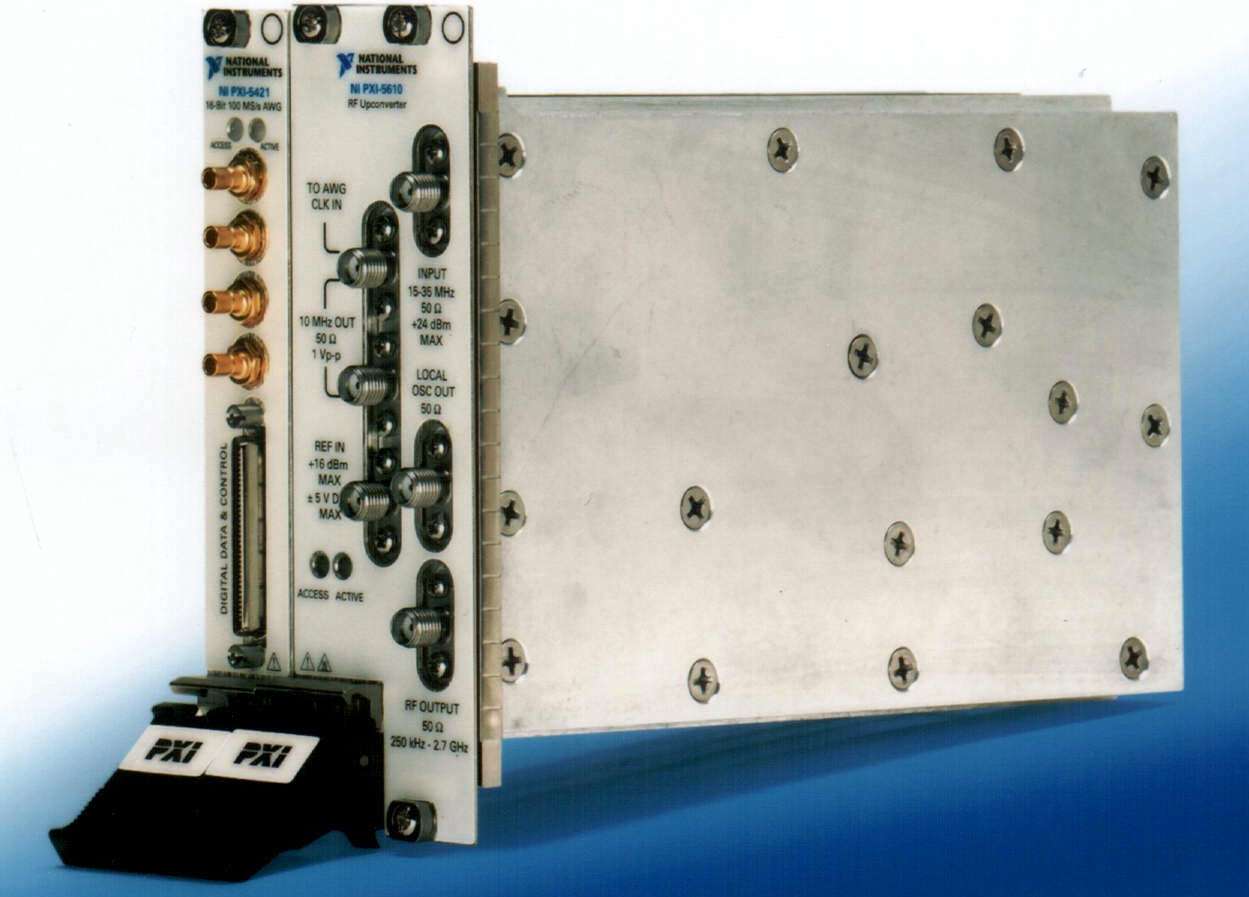

Apr 05, 2004 Model PXI-5670 RF Vector Signal Generator provides 22 MHz real-time bandwidth and true, 16-bit resolution arbitrary waveform generation at 100 MS/s. It can produce analog and custom digital modulation as well as standard digital modulation formats such as ASK, FSK, MSK, PSK, and QAM. Deep memory up to 256 MB offers extended playback time for complex modulated signals, addressing need for simulation of signal transmission in real-world conditions.
