Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Apr 23, 2004 Offered in 1.2 x 0.8 x 0.6 mm SOD-523 package, BAS40-02V, BAS70-02V, BAS581-02V, and BAT54-02V Schottky diodes provide compact solutions for general rectification applications in mobile communications and computing systems. Models BAS70-02V and BAS581-02V have diode capacitance of 2 pF with leakage currents of 100 nA and 0.5 µA, respectively. Models BAS40-02V and BAT54-02V offer respective capacitance values of 5 and 12 pF and leakage currents of 100 nA and 2 µA.

Octiv    Berkeley, CA 94710
Apr 23, 2004 Volume Logic for Windows and Mac incorporates 5-band dynamics processor that examines and adjusts audio levels in real-time. Anything playing in iTunes, MP3s, Internet radio, or CDs, is digitally remastered for consistent volume level and spectral balance. Files are not scanned or modified. Product also supports Griffin PowerMate, which consists of black, aluminum knob that plugs directly into USB port, letting users adjust volume or mute sound.

Linear Technology Corp.    Milpitas, CA 95035
Apr 23, 2004 Housed in 20-lead, thermally enhanced TSSOP package, LTC3416 synchronous buck regulator uses constant frequency, current mode architecture. It offers voltage tracking for supply sequencing and delivers up to 4 A continuous output current at voltages down to 0.8 V. It operates from 2.25-5.5 V input voltage and has programmable switching frequency from 300 kHz to 4 MHz. Utilizing internal switches with RDS(ON) of 0.067 ohms, product delivers efficiencies to 95%.

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243
Apr 23, 2004 Suited for high-speed photodiode applications, Model OPA380 features 50 pA bias current, 6.4 mA quiescent current, and 2.7–5.5 V supply range. Unit's 90 MHz gain bandwidth enables transimpedance bandwidth of greater than 1 MHz in most configurations. As a result of 25 µV max offset voltage and 0.1 µV/C offset drift, dynamic range of 5 decades can be achieved. Applications include optical power monitoring, security scanners, and medical diagnostics.

Phoenix Contact    Harrisburg, PA 17111 0100

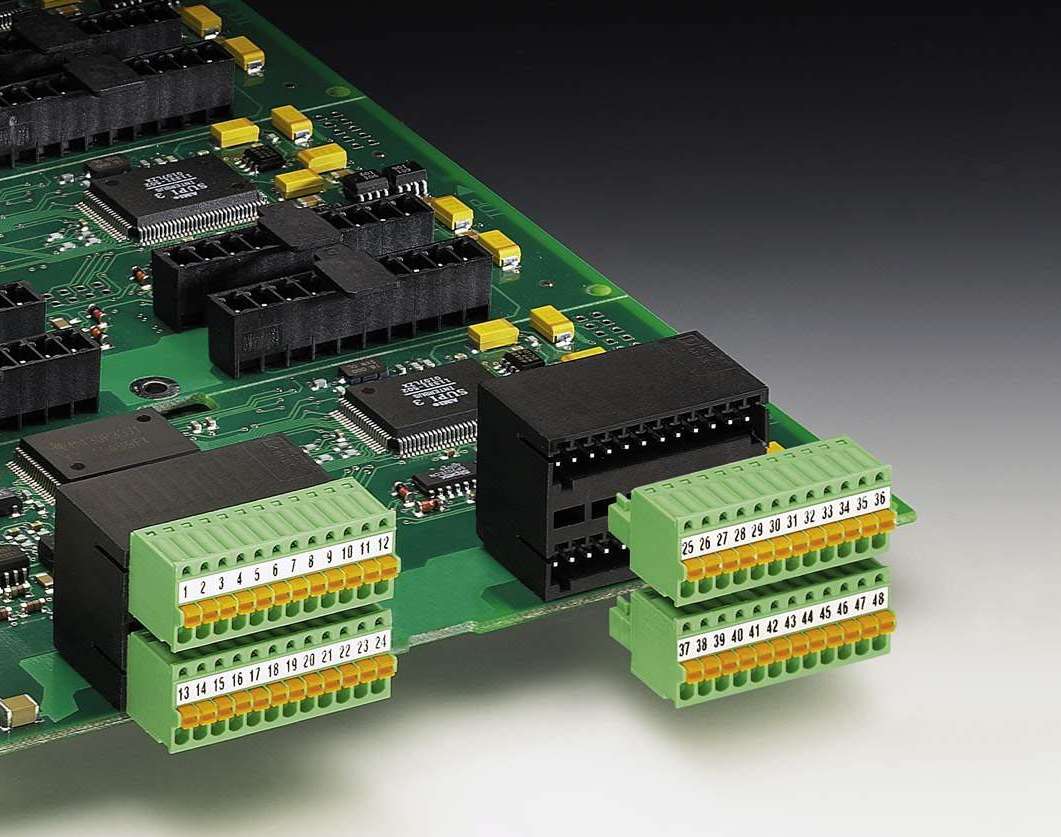

Apr 22, 2004 Series MCD 0.5...-HT is available with 2.5 mm pin spacing, while Series MCD 1.5...-THT has 3.81 mm pin spacing. Low-profile Series MCDN 1.5...-THT consists of high-density headers on 3.5 mm spacing. Each series of double-level, high-temperature headers is available in horizontal or vertical configurations with screw flanges or plastic locking latches as options. Terminal blocks allow parts to be integrated into surface mount production processes.

Arques Technology    Austin, TX 78728
Apr 22, 2004 Model AQ9156 features 1.5X charge-pump circuit that uses 2 ceramic bucket capacitors and 2 filter capacitors for VIN and VOUT. Unit drives up to 6 parallel white LEDs, with typical operating input voltage from 3.0–6.0 V. It offers selectable switching frequency of 8, 32, 262, or 650 kHz. LED brightness can be adjusted via applying PWM signal on either ENA pin or CLK2 pin. Internal over-temperature and over-current management provides short circuit protection.

Fox Electronics    Fort Myers, FL 33905 5022
Apr 22, 2004 Voltage-Controlled, Temperature-Compensated, Crystal Oscillator, Model FOX783 features standard frequency stability of 2.5 ppm over operating temperature of -40 to 185°F. Frequency tolerance is ±5.0 ppm, with tighter tolerances to ±1.0 ppm available upon request. Pullability is ±7.0 ppm at 1.65 V ±1.0 V, and input current is 50 mA. Unit is suited for telecommunications, base station, avionics, satellite, and military applications.

Micronas GmbH    Frieburg D-79108  Germany
Apr 21, 2004 Targeting flat panel TVs and home audio applications, Series 44/46xyK Multistandard Sound Processors and MAD 4868A stand-alone audio delay IC both delay audio information until it is synchronous with lip movement. Delay time can be programmed up to 80 ms for mono or 40 ms for stereo with MSP 44/46xyK chips. MAD 4868A offers configurable delay time between 680–85 ms. It features 32-bit high-resolution mode, and supports sampling rates from 5–192 kHz.

Linear Technology Corp.    Milpitas, CA 95035
Apr 21, 2004 Housed in 3 x 3 x 0.75 mm DFN package, LTC4068 standalone, linear, single-cell Li-Ion Lithium Polymer battery charger allows users to program charge cycle termination with system load concurrently applied to battery. Via one resistor, charge termination current can be accurately set to value of less than, more than, or equal to C/10. Thermal regulation scheme maximizes charger rate without risk of overheating. Unit charges directly from USB port.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Apr 20, 2004 With 270 k/W thermal resistance rating, Series TLMx320x provides luminous intensity from 50–1,250 mcd when LEDs are driven with forward current of 50 mA. Non-diffused lens simplifies backlighting displays and coupling to light pipes. Using AllnGaP technology, all devices feature 60° angle of half intensity. Offered in super red, red, orange, yellow, pure green, and yellow green, LEDs are suited for dashboard lighting, traffic signals and signs, and billboards.

Anderson Power Products    Sterling, MA 01564
Apr 20, 2004 Power Mod™ Connectors offer 3–30 circuits for straight PCB, right angle PCB, panel, or cable mountings. Mechanical polarized UL94V-O housings ensure proper circuit mating. Units have up to 4 sequential pin mating options for mate-first/break-last and make-last/break-first circuits. Available in 13 sizes, connectors feature stainless steel positive retention latches and optional back shells for safety. They are UL recognized and CSA certified.

PCB Piezotronics Inc.    Depew, NY 14043 2495

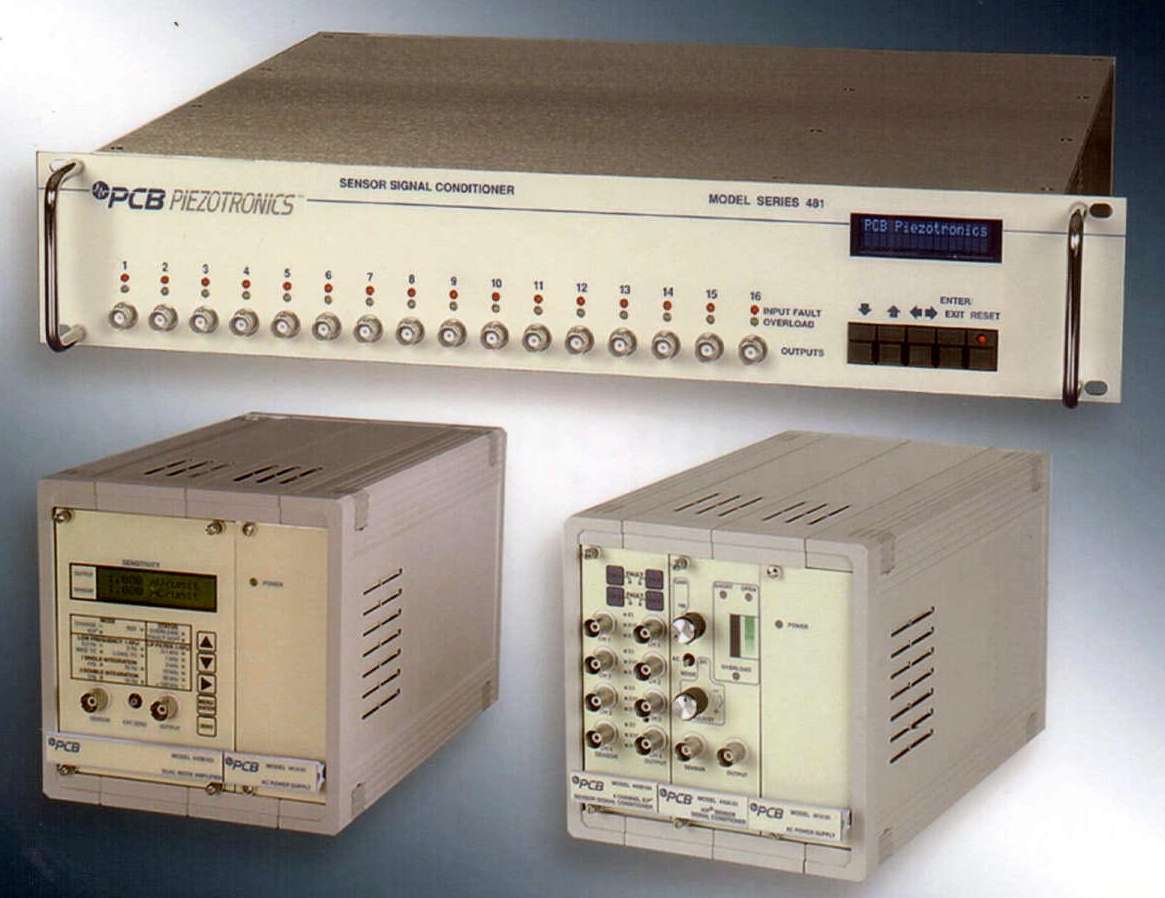

Apr 20, 2004 Rack mountable TEDS (Transducer Electronic Data Sheet) multi-channel and dual-mode signal conditioners are available for use with ICP® and charge output vibration, pressure, and force sensors. In-Line Charge Converters are available with TEDS capabilities, which enable the devices to store and recall TEDS data for attached sensor. In-Line TEDS Adaptor features interface chip that allows information relative to attached sensor to be stored.

Larson Davis Inc.    Provo, UT 84601

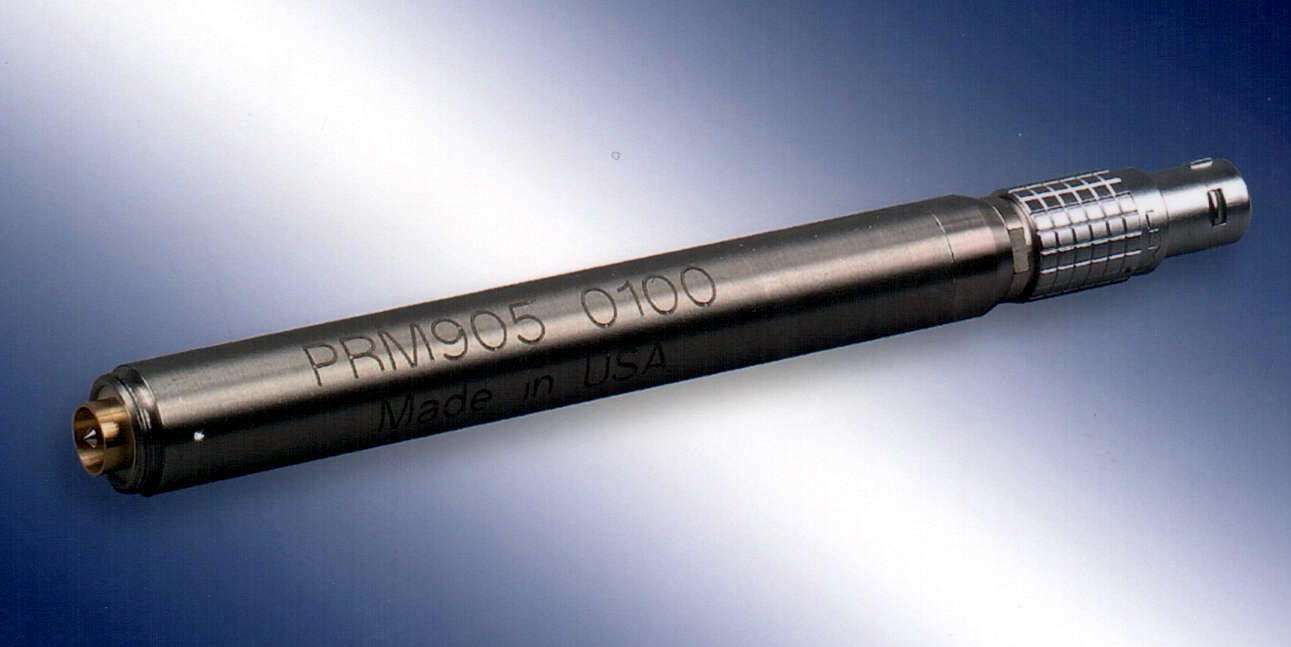

Apr 20, 2004 Featuring 7-pin LEMO connector, ½ in. Model PRM905 can be used with both prepolarized and externally polarized microphones. It is characterized by wide frequency range and low noise floor. Low output impedance and high output current permit it to drive very long microphone extension cables. Unit is suited for acoustic engineers using analyzers which support Smart Transducer Interface IEEE P1451.4 with TEDS (Transducer Electronic Data Sheet).

Electro Optical Components    Santa Rosa, CA 95403

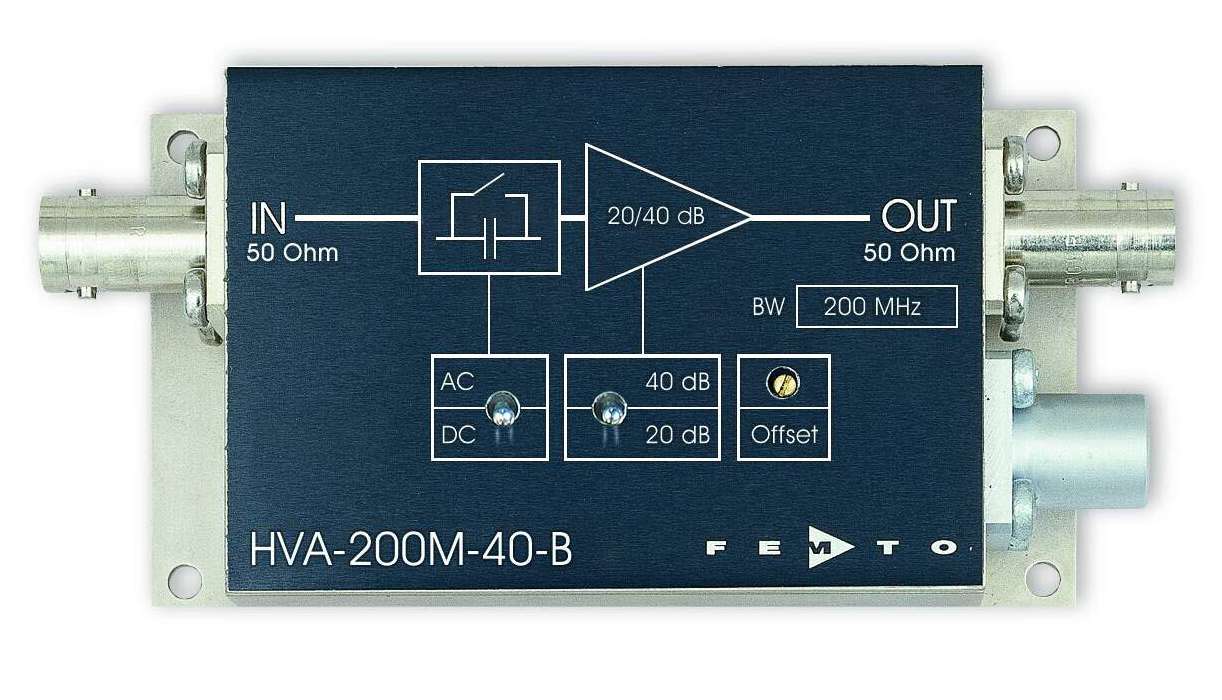

Apr 20, 2004 Series HVA Amplifier Modules feature gain ranges from 20–60 dB and low input noise of 0.9 nV/SQR(Hz) minimum. Four models in series have 2 gain settings. Small size of EMI shielded package allows use close to signal source, eliminating noise pick-up from long signal cables. Amplifiers are available with 50 ohm bipolar input for low impedance sources or 1 M ohm FET input for high impedance sources. Offset can be adjusted with integrated trimpot.

Magtrol, Inc.    Buffalo, NY 14224-1322
Apr 19, 2004 Dedicated to load measuring applications using load cells or transducers, MVD 100 board can supply one full-bridge sensor and offers 3 adjustable set points. It provides 1–3 V, 0–10 V, or 4–20 mA analog output plus RS-232 serial output. Setup and calibration of conditioner is performed via 3 pushbuttons inside unit, and all configuration values can be recalled on internal LCD display. IP65 aluminum housing is suited for harsh environments.

Bud Industries, Inc.    Willoughby, OH 44094
Apr 16, 2004 Extra Deep Cabinets have perforated side panels and rear door. Econoglas front door permits maximum airflow. Cable access ports in top and bottom of cabinets enable overhead cabling or raised data room floors. Internal grounding studs are located in top and bottom of rack. Two pairs of fully adjustable, L-Shaped panel mounting rails, with mounting holes on EIA universal spacing, have provisions for vertical cable management. Cabinets can attach together for construction of equipment bays.

Autosplice    San Diego, CA 92121
Apr 15, 2004 Non-intrusive, pin-and-socket interconnect system eliminates need for specialized handling or equipment. Pin and socket components are packaged in standard EIA tape-and-reel formats for direct pick-up and placement by automated equipment. Flat-headed pins are placed pin-first into plated-through-holes, and tapered shank near head assures proper alignment as pinhead comes flush with PCB's surface. Socket components align themselves as they are inserted into plated-through-holes.

WAGO Corp.    Germantown, WI 53022
Apr 15, 2004 Design elements incorporated into 236 Series include optimization of solder pin length to adapt to reflow process, use of high temperature-resistant plastic for insulating housing, and utilization of CAGE CLAMP® spring pressure connection technology. Offered in 2-6 pole configurations with 0.197 in. pin spacing, series handles conductors from AWG12-28. Standard packaging or pick and place configurations are also available.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Apr 15, 2004 For applications requiring precision sets of resistor elements, PRA 100, PRA 135, and PRA 182 provide tight TCR of 10 ppm/°C, TCR tracking of 1 ppm/°C, and ratio tolerance as tight as 0.01%. Models offer resistance range from 100 ohm to 200 Kohm to 100 ohm to 1 Mohm. Passivated nichrome resistive layer, contacts between resistive and conductive layers, and proprietary patterning and laser trimming technique eliminate need for digital drift compensation.

Linear Technology Corp.    Milpitas, CA 95035
Apr 14, 2004 Housed in SOT-23 package, LTC4412HV diode controller has 2.5-36 V operating range and is suited for use in systems requiring load sharing or automatic switching between DC input power sources. IC regulates gate voltage of external P-channel MOSFET to maintain 20 mV forward voltage drop, and unit provides reverse battery, overcurrent, and MOSFET protection circuitry. Digital control input and open-drain status output pin are provided to interface to microcontroller.
