Woodhead Industries, Inc.    Northbrook, IL 60062

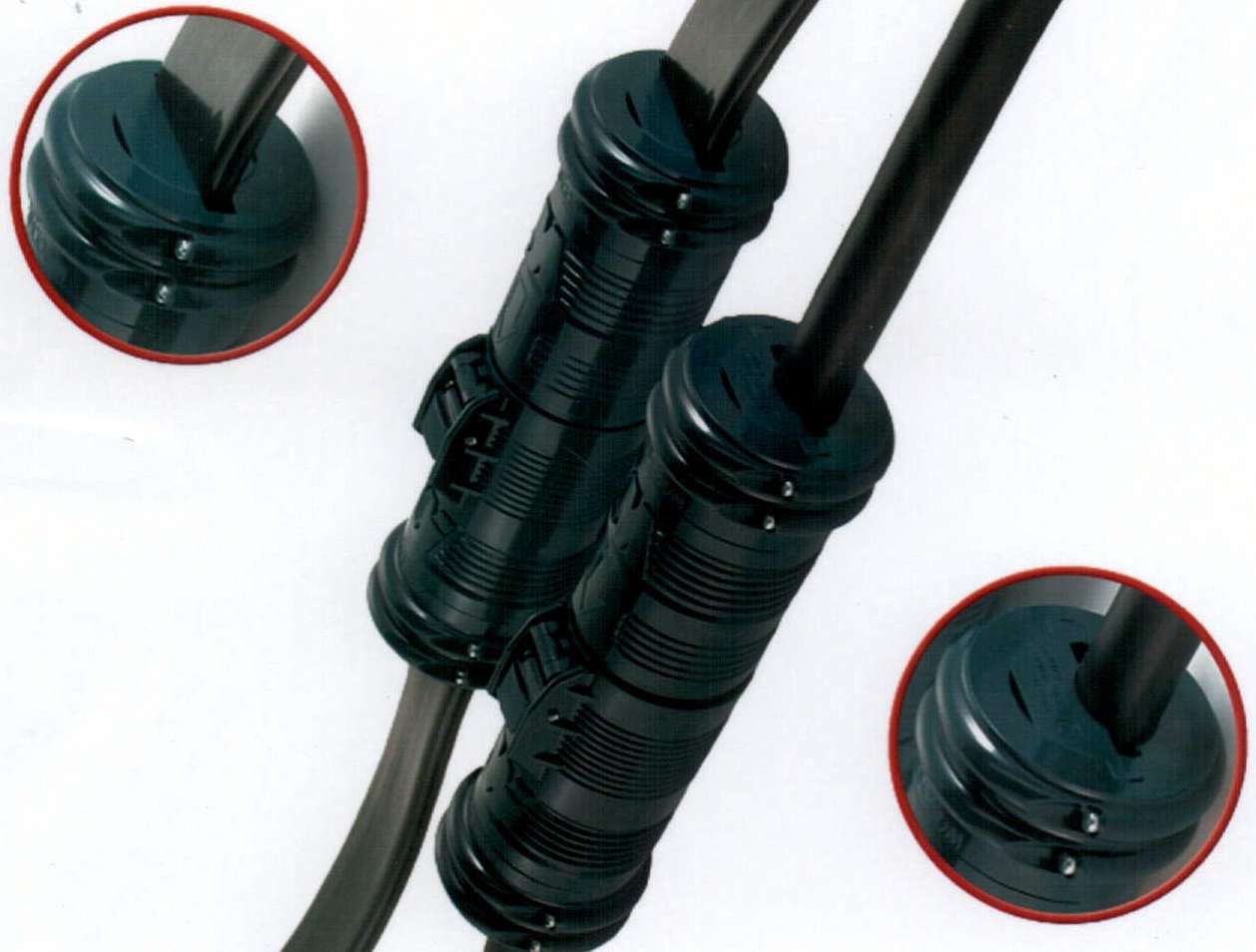

Jul 12, 2004 Non-Metallic Pin and Sleeve Expo Connectors, built for exposition center environments, feature impact-resistant design that facilitates assembly. Dual-purpose devices have non-conductive exterior, recessed pins and contacts, and brass alloy pins and sockets. Available for 45 and 60 A applications, locking devices provide code-compliant power distribution solution from ceiling drops, wall mounts, and floor boxes to portable panel-boards.

Bud Industries, Inc.    Willoughby, OH 44094
Jul 12, 2004 Die-cast aluminum Econobox mounts on wall or panel without removing cover and exposing internal components to environment. Permanently fastened mounting bracket is 0.09 in. thick and accepts up to #10 mounting screws. Available in 15 sizes from 2.00 x 2.00 x 1.25 in. up to 7.50 x 7.50 x 2.62 in., box provides EMC protection and includes flanged cover, fastened to bosses in body with screws.

IC INTRACOM    Oldsmar, FL 34653

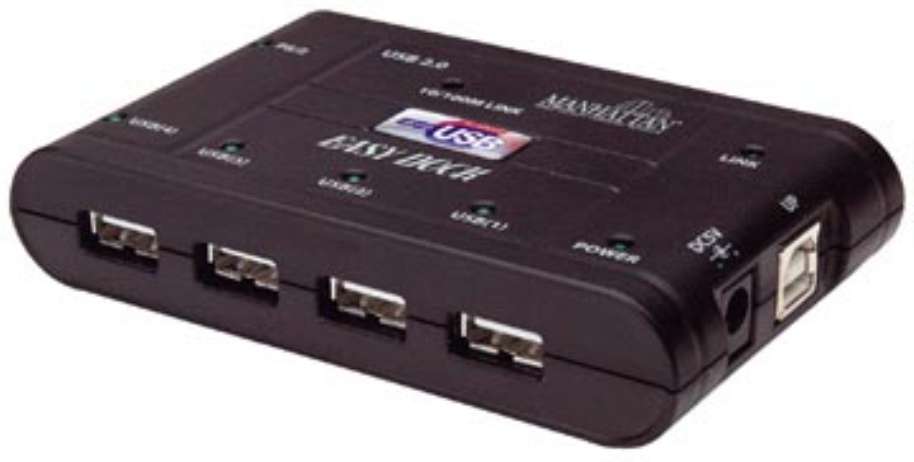

Jul 08, 2004 Manhattan Easy Docâ„¢ Multi-Port Docking Station connects keyboards, mice, printers, scanners, network devices, and other USB peripherals using single piece of equipment. It features 4-port USB 2.0 hub, 2 PS/2 ports, RS232 port, and USB 2.0 LAN port that supports 10/100 Mbps transfer rate. LED indicator lights display link, power, and Ethernet status. Unit operates with Windows 98, Windows 98 SE, Windows Millennium, Windows 2000, and Windows XP computers.

OMNIKEY    Walluf 65396  Germany

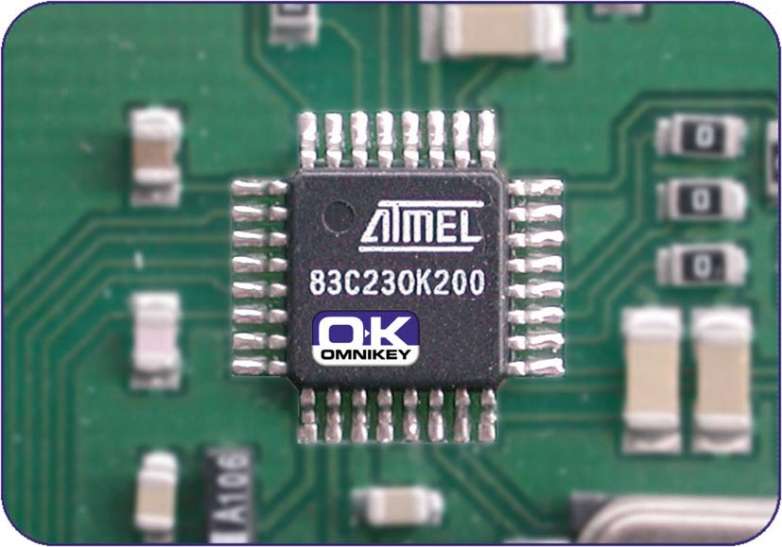

Jul 08, 2004 CardMan® Smart@Link v2.0 supports serial and USB 2.0 interfaces and facilitates integration in embedded solutions with TTL or V.24 serial ports. It is pre-certified to WHQL, EMV Level 1 and USB CCID specifications and can be interfaced to hardware ports that control OEM-specific features. With interfaces to smart card and host system, product supports any smart card on any computer within any application.

Vicor Corp.    Andover, MA 01810 5424
Jul 08, 2004 Providing attenuation from 150 kHz to 30 MHz, Model QPI-4 delivers over 40 dB common-mode and more than 70 dB differential-mode noise attenuation at 500 kHz. It meets specifications for international 36–76 Vdc telecom bus, including 100 V, 100 ms surge requirement. Rated at 7 A, unit supports single or multiple dc-dc converters requiring up to 336 W of input power at 48 V input. Surface mount LGA package is rated for -40° to +100°C with 99% efficiency.

PTI - Piezo Technology, Inc.    Orlando, FL 32804 2780
Jul 08, 2004 Utilizing AT-cut or SC-cut resonator technology, Series XO5080 is available for frequencies between 10-125 MHz. Frequency stability is ±.07 ppm for AT version and ±0.02 ppm for SC version, over operating temperature of 0 to 70°C. Series features single +5 V supply and is housed in 1.03 x 1.16 x 0.53 in. true SMT reflow package. Sine and HCMOS logic outputs are available.

Marktech Optoelectronics    Latham, NY 12110

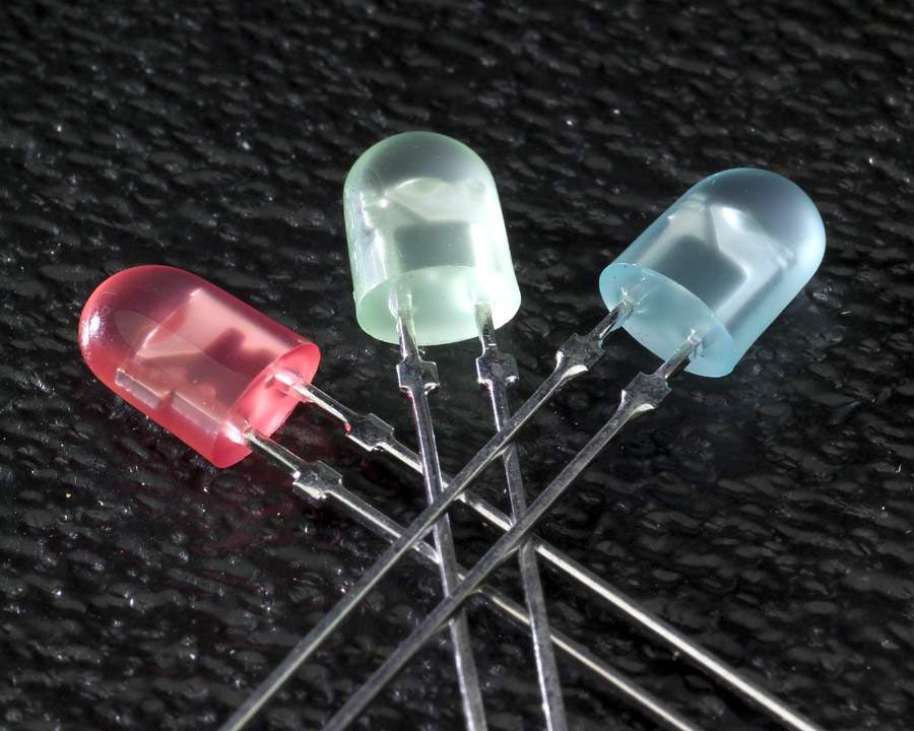

Jul 07, 2004 Screen Master(TM) 574/SM series LEDs feature elliptical package and 110º x 50º viewing angle. LED's are matched to provide smooth, balanced appearance in high performance displays and full color video applications, eliminating patchiness due to differences in radiation patterns. They incorporate AlGaInP and InGaN/SiC transparent substrate die technologies. Elliptical package has tinted diffused lens with stand-offs and is available in red, red-orange, green, and blue.

My-tronic GmbH    Morbach 54497  Germany
Jul 07, 2004 Utilizing various LED types, intelligent, controllable LED light sources are multi-function RGB LED products. Single color LED light sources can be round LED boards (LED spots) without housing, LED spots in weather- and water-proof housing, LED spots for under-water use, LED spots for indoor use, LED stripes, and LED light tubes. RGB LEDs come in same shapes and allow users to control colors, brightness, and light effects.

Midwest Motion Products    Watertown, MN 55388

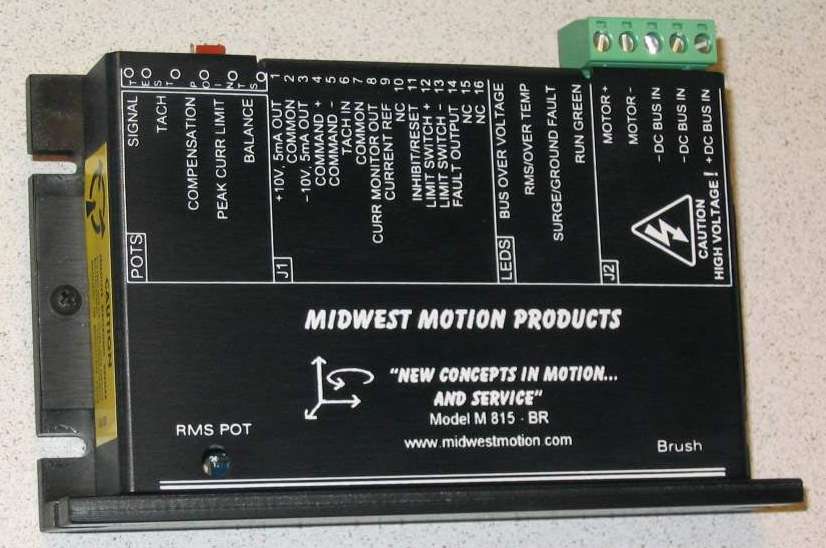

Jul 07, 2004 Accepting DC input voltages from 20-80 Vdc, unregulated, Model MMP-M815-BR consists of PWM servo amplifier with 8 A continuous output current and 15 A peak for 1 sec. Its E-FOB circuit allows user to employ DC motor with optical encoder in closed-loop velocity servo system. Measuring 5.4 x 1.0 x 3.2 in., unit offers adjustable peak and continuous current limiting, scaleable input command signal, tachometer scaling, and built-in diagnostics.

LEDtronics, Inc.    Torrance, CA 90505

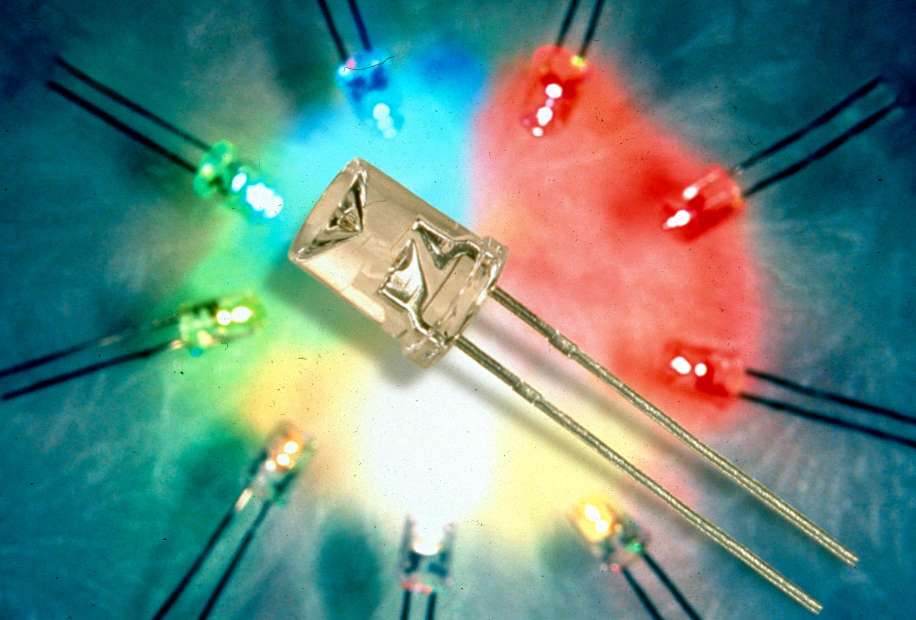

Jul 06, 2004 Concave Cylindrical 5 mm Discrete LEDs emit light that is as bright at edges as it is in center. Concave lenses spread out collimated beam of light, producing illumination that is visible in direct sunlight. Provided with sturdy leads for wire wrap applications, products are available in 6 colors. Each employs solid-state design that renders product impervious to electrical and mechanical shock, vibration, frequent switching, and environmental extremes.

Anderson Power Products    Sterling, MA 01564
Jul 02, 2004 Press-Fit contacts, for PowerMod products, incorporate Flat Rock feature that eliminates need for special tooling to press connectors into board. Contacts are available for straight-through male and female connectors. Based on compliant termination, they are designed for 2 ranges of pcb thickness of .092–.177 in. and .177–.255 in. Nonstandard sizes are also offered. Connectors are UL listed to 23 A per circuit for board-to-board applications.

Fairchild Semiconductor Corp.    South Portland, ME 04106
Jul 02, 2004 CMOS-based, 8-bit Series FXL4245 provides low-noise buffered interface with up to 24 mA drive current between any 1.1–3.6 V logic state. Both models accommodate bi-directional voltage translation over variety of logic voltage levels, including 1.2, 1.5, 1.8, 2.5, and 3.3 V. Configurable voltage supplies for input and output allow translation from low to high or high to low. Featuring MLP packaging, units withstand lead-free PC board attachment processes up to 250°C.

Advanced Power Technology    Bend, OR 97702
Jul 02, 2004 Available in 600 and 800 V models, COOLMOS® Power MOSFETs come in TO-257, TO-254, and TO-258 hermetic packages. Units range from 7.4–33.5 A with maximum On-Resistance from 0.080–0.500 ohms. They feature low internal gate resistance for low switching losses and controllable EMI noise, as well as low gate charge for low driving requirements.

Bivar Inc    Irvine CA 92618
Jul 01, 2004 Molded from UL-rated 94V-O Nylon, Series SRM provides lead-free material per Directive 2002/95/EC for Reduction of Hazardous Substances. Mounts accept T-1, T-1¾, and rectangular LED devices, and are available in 18 elevations from 0.100-0.520 in. Leads are guided through dividers within mount to prevent possible shorting. Molded standoffs enable removal of process residues that may accumulate during assembly and facilitate solder joint inspection.

Linear Technology Corp.    Milpitas, CA 95035

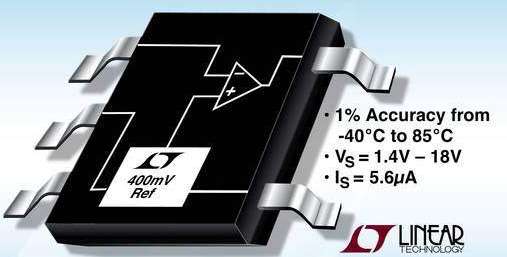

Jun 30, 2004 Model LT6650 features built-in, rail-to-rail output buffer amplifier and ±1% accuracy from -40 to 85ºC. Operating over 1.4-18 V supply range, unit consumes less than 6 µA with supply levels up to 18 V. Using external gain resistors, output voltage can be adjusted from 400 mV up to positive supply rail using on-chip buffer amp. Device can be configured to operate in shunt or series mode, and output buffer is capable of sourcing or sinking up to 200 µA.

Eaton Corporation    Raleigh, NC 27615
Jun 30, 2004 Rack-mount Model TPC2993 consists of 19 in. voltage-regulation power distribution unit in 1U form factor. It accepts low voltage, brown out, or over voltage from 105-137 V. Sensing circuitry reacts to input voltage and adjusts transformer to output regulated 120 V, ±5 V. Nine 120 Vac outlets allow for connection to computers or electronic devices. Front panel has main 15 A circuit breaker that doubles as on/off switch. All-steel enclosure houses 8 NEMA 5-15R receptacles.

Analog Devices, Inc.    Norwood, MA 02062-9106
Jun 29, 2004 Model AD8335 has 4 channels, each with ultra-low noise preamplifier, X-AMP® VGA, and gain control interface. Featuring single-ended input and differential or single-ended outputs, preamplifier provides accurate noise performance with active impedance match set by external feedback resistor. Available in 9 x 9 mm 64-lead LFCSP, Model AD8335 operates from single 5 V supply, consuming 92 mW/channel to meet requirements of medical ultrasound systems.

PTI - Piezo Technology, Inc.    Orlando, FL 32804 2780
Jun 29, 2004 Stratum 3 compliant DIP14 Oven Controlled Crystal Oscillators (OCXOs), models XO5363-001 and XO5363-002, are rated for temperatures from 0 to +70°C and -40 to +85°C respectively. They offer ±4.6 ppm frequency stability for all causes over 15-years and holdover stability of ±0.28 ppm during 24 hr. Both devices operate from one 3.3 Vdc supply with steady-state current consumption of less than 100 mA @ 30°C.

Eurotherm Controls    Leesburg, VA 20175

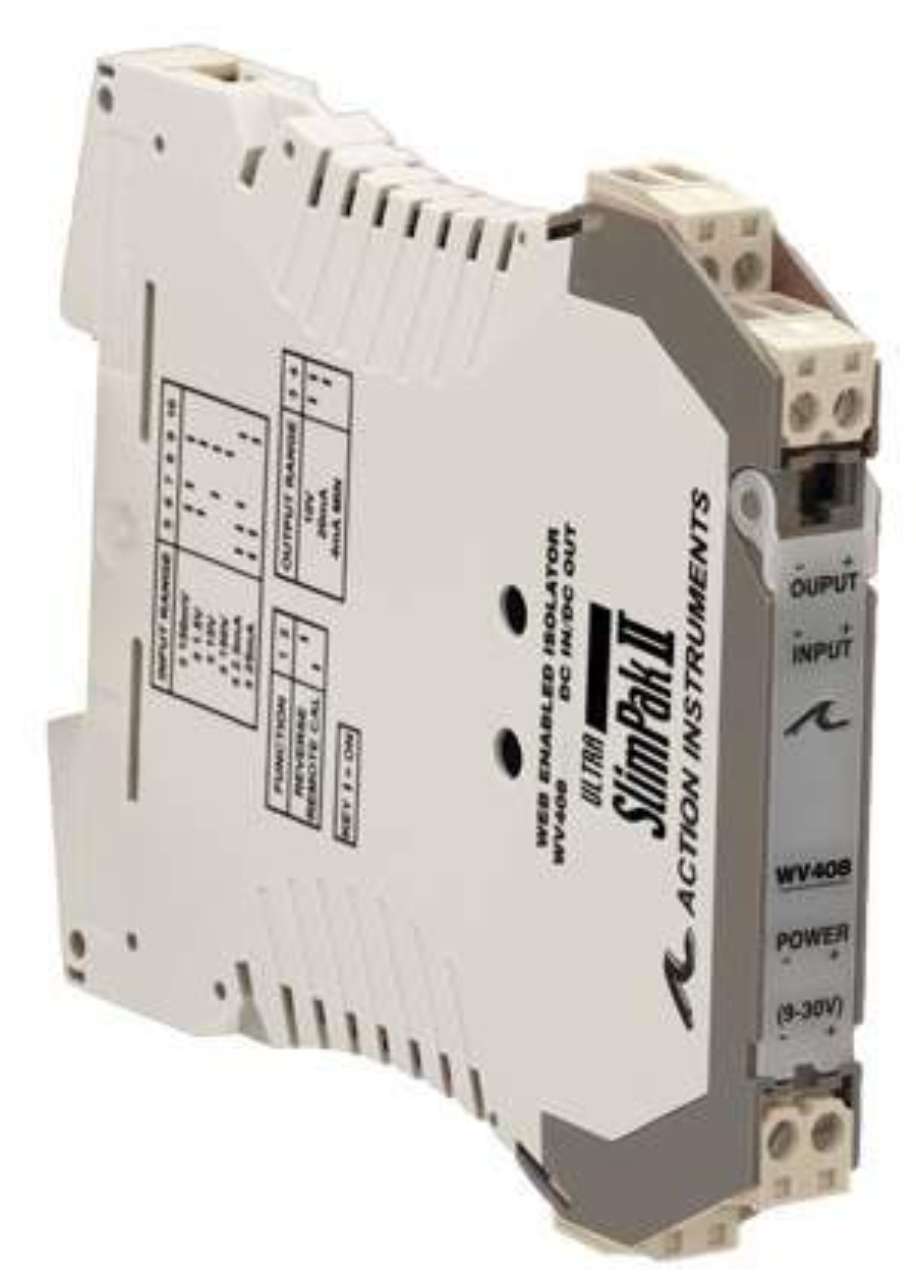

Jun 28, 2004 Ultra SlimPak II Isolating Signal Conditioning Modules and Limit Alarms utilize Smart Power feature that adjusts outputs depending on power required to drive current load. Configured locally using switches to select I/O range, products offer pushbutton calibration, removable terminal blocks, and DIN rail mounting capability. Built-in power bus allows 32 units to be mounted together, while web-viewing capability allows process data to be viewed over Intranet.

KWALITY PHOTONICS PVT. LTD.    HYDERABAD 500 062  India
Jun 28, 2004 PLCC SMD LEDs incorporate lead frame profile that improves heat dissipation. Due to 2,500 k/W thermal resistance rating, devices can be driven with higher currents for enhanced brightness. Products are offered in various colors with typical luminous intensity from 500–3,000 mcd when driven with forward current of 70 mA. LEDs are suited for backlight usage in signs, networking systems, and automotive applications.
