Macro Sensors    Pennsauken, NJ 08110 1334
Feb 04, 2005 Model LVC-2412 single-channel DIN-rail mounted modular unit works either from 24 Vdc, for operation with systems using PLCs or mini-PLCs, or from 12 V for use in mobile and vehicular testing systems. Choice of 3 analog outputs is offered: 0 to +10 Vdc, 0 to 10 Vdc, or 4 to 20 mA current loop. DC input power is isolated from analog outputs allowing unit to be connected in either 4-wire fully isolated I/O configuration or in 3-wire common ground system.

Para Light Corp.    Walnut, CA 91789
Feb 04, 2005 Offered in blue, yellow, and orange, L-5T3XX series LED lamps feature water clear lens and have 30° viewing angle. They operate in -25 to +85°C temperature range, handle forward current up to 70 mA, and come in T-1¾ package, which measures 5 mm in diameter. Lamps are suitable for traffic and outdoor signage as well as various automotive applications.

Beta Dyne Inc.    Bridgewater, MA 02324
Feb 04, 2005 Manufactured in 2 x 1 x 0.39 in. metal case with 6-sided shielding and industry standard pinout, SRAD20 series includes SRAD20S200/5 and SRAD20S200/12 models with input voltage ranges of 6–10 and 9–18 Vdc, respectively. Both have 20 W constant frequency, current mode, adjustable output, step-up switching regulators that provide adjustable output voltage from Vin to 200 Vdc. Series offers line and load regulation at typ ±1% of Vout and utilizes SMD technology.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055
Feb 04, 2005 Available in screw clamp and spring clamp versions, Sub-Miniature Terminal Blocks snap-mount onto 15 mm standard DIN rail. UL approved units feature UL94V-O polyamide insulation body to withstand extreme temperatures. Numerous accessories make them suitable wiring alternative where space is a concern.

Gowanda Electronics Corp.    Gowanda, NY 14070
Feb 03, 2005 Series HL 8527 can handle high voltage spikes associated with starter circuits and electronic ballasts within lighting industry. With current ratings from 67–50 mAdc, units feature inductance from 16,000–55,000 µH at 79 kHz. Additional applications include RF signal circuitry in communications equipment, medical diagnostic equipment, and industrial process control equipment.

Linear Technology Corp.    Milpitas, CA 95035
Feb 03, 2005 Model LTC3204-3.3 features low-noise constant-frequency operation at 1.2 MHz and generates regulated boosted output voltage of 3.3 V from minimum input voltage of 1.8 V, at output currents up to 50 mA. LTC3204-5 produces 5 V output from minimum 2.7 V input at currents up to 150 mA. Automatic Burst Mode® operation at light loads provides low supply current of 48 uA and helps extend battery run time.

Supertex Inc.    Sunnyvale, CA 94619
Feb 03, 2005 With 42 ohm max on-resistance, DN2470 N-channel MOSFET minimizes power dissipation as well as voltage drops and is free from thermal runaway and thermally induced secondary breakdown. Depletion-mode allows construction of normally on solid-state relays and 2 terminal constant current sources. Breakdown voltage provides protection against high-voltage transients in NC solid-state relays, SMPS start-up circuits, converters, and constant current sources.

Altera Corporation    San Jose, CA 95134
Feb 03, 2005 Stratix® II FPGAs feature total I/O pin capacitance from 3.3-6.1 pF. Maximum operating frequencies include 350-400 MHz for M-RAM and M4K blocks, 350-420 MHz for DSP block, and 370-380 MHz for M512 block. LVDS provides signaling speeds of 800-1,040 Mbps. Quartus II v4.2 development software provides tools for generation of toggle information from simulation vectors, automatic model generation, and utilization of full logic mapping, placement, and routing information.

Goal Semiconductor Inc.    Montreal, QC H3B 1H4  Canada
Feb 02, 2005 Shipped with Integrated Development Environment and assembler, UniVersaKit supports all Goal VERSA product families as well as most industry-standard 8051 microcontrollers. It provides evaluation platform for VERSA mixed-signal and FLASH 8051-based MCU families and comes with programming and debugging software. Board includes voltage regulators, RS-232 transceiver, tact switches, LEDs, I²C-based EEPROM, Piezo buzzer and driver circuitry, and VERSA In-Circuit Programmer.

Micrel Semiconductor Inc.    San Jose, CA 95131
Feb 02, 2005 USB On-The-Go (OTG) transceiver chip MIC2555 enables point-to-point communications between USB-enabled appliances without use of PC. Chip performs as PHY for USB OTG serial interfaces and is compatible with various stand-alone microprocessors, ASICs and COT designs, OTG IP cores, and application-specific standard products. Offered in 4 x 4 mm MLFâ„¢ packaging, IC is compliant with USB 2.0 and USB-OTG supplement 1.0a specifications. It also offers ±15k ESD protection.

Curtiss-Wright Controls, Inc.    Gastonia, NC 28052-1167

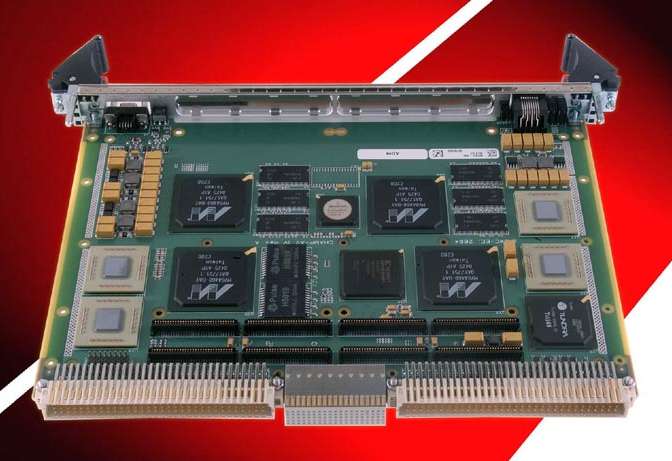

Feb 01, 2005 CHAMP-AV IV drives DSP applications with up to 48 GFLOPs of peak computational power. It features quad 1.5 GHz FreeScale MPC7448 PowerPC processors and QuadFlow architecture, which supports 4 simultaneous node-to-node transfers to deliver total data flow of 3.2 Gb/sec peak. Able to transfer data to adjacent nodes at speeds up to 1.6 Gb/sec peak, each processing node includes 256 Mb or 512 Mb DDR-250 SDRAM and dual 100 MHz 64-bit PCI-X interfaces.

Bivar, Inc.    Irvine, CA 92618 2593
Feb 01, 2005 Measuring 0.059 x 0.063 x 0.024 in., programmable RGB Model SMTC0606 employs 3 individually addressable LED die. Tri-chip design is comprised of single AlGaInP and 2 InGaN/SIC chip dies, featuring peak wavelengths of 635, 520, and 465 nm respectively. Lens appearance when off is water clear. Absolute maximum rating of forward current drive is 125 mA. Unit is encapsulated in epoxy blend to withstand temperature, operation, and assembly processes.

ON Semiconductor, LLC    Phoenix, AZ 85008
Feb 01, 2005 Self-contained BERSâ„¢ NIS6111 couples high-speed comparator and MOSFET driver with power MOSFET to create diode with same forward-drop characteristics as MOSFET, eliminating heat sinks. It is capable of blocking up to 24 V and has typical forward voltage drop of 0.1 V at forward current of 20 A. Offered in 9 x 9 mm QFN package, Model NIS6111 can be used as oring diode used in servers and telecom equipment.

Curtiss-Wright Controls, Inc.    Gastonia, NC 28052-1167
Feb 01, 2005 Air-cooled Manta DX combines single or dual Altivecâ„¢-enabled 1.3 GHz PowerPC 7457 processors with on-board StarFabricâ„¢ bridge, which supports dual, full-duplex 2.5 Gbps links. Featuring SMP shared memory architecture, board includes Tundra Tsi148 VMEbus to PCI-X bus bridge, which supports 2eSST protocol and implements 2 edge source synchronous transfers for sustained VMEbus bandwidth exceeding 300 Mb/s. On-board memory includes 512 Mb, 1 or 2 Gbyte of DDR SDRAM with ECC.

Allegro MicroSystems Inc.    Worcester, MA 01615
Jan 31, 2005 Targeted for use in under-hood environments in 14 or 24 V automotive systems, A8450 incorporates controlled power-up sequencing and power-on-reset functionality as well as fault detection and reporting. IC features 4 regulator outputs: 2 low-voltage outputs that provide DSP or microprocessor core and I/O voltages, and 2 linear 5 V tracking regulators. Both feature current foldback circuitry. Product has 6–45 V input voltage and 150°C operation ratings.

Actel Corp.    Mountain View, CA 94043 4655
Jan 28, 2005 Single-chip, live-at-power-up ProASIC3 and ProASIC3E deliver 64-bit, 66 MHz PCI performance and integrated secure in-system programmability. ProASIC3 offers 30 k to 1 million system gates, 18–108 kbits of true dual-port SRAM, and 81–288 user I/Os, while ProASIC3E provides 600 k to 3 million system gates, 108–504 kbits of true dual-port SRAM, and up to 616 user I/Os. Both feature 1.5 V core voltage and up to 350 MHz external system performance.

Actel Corp.    Mountain View, CA 94043 4655
Jan 28, 2005 FlashPro3 Device Programmer supports company's flash-based ProASIC3 and ProASIC3E FPGA families. Compatible with high-speed USB 2.0 specification, Kit allows engineers to design and program nonvolatile devices as well as examine secure in-system programmability using AES encryption. Also, by connecting programmer to FPGAs already soldered on board using JTAG 10-pin interface, FlashPro3 may be used for in-system programming of customer boards.

Actel Corp.    Mountain View, CA 94043 4655
Jan 28, 2005 DirectCore and CompanionCore IP Portfolios offer 90 intellectual property cores to support company's ProASIC3 and ProASIC3E device families. Ported cores leverage features of devices, including 66 MHz 64 bit PCI performance, on-chip user flash memory, enhanced I/O and memory, and secure in-system programmability. Applications include telecommunications, consumer multimedia, networking, industrial control, encryption, automotive, military/aerospace, and computing.

Ethertouch    Cranford, NJ 07016
Jan 27, 2005 Designed for sensing presence or absence of motion, Model AD7103 40-pin ASIC achieves 16-bit resolution, which enables measurement down to 4 af/rtHz. Configuration features 3 discreet channels with 4 selectable inputs, allowing for 12 independent inputs. In full operational mode, device typically consumes 8.5 mA from 2.6–5.5V power supply. Single chip capacitive sensor includes onboard oscillator, ADC conversion, and serial peripheral interface.

Phoenix Contact    Harrisburg, PA 17111 0100
Jan 27, 2005 CLIPLINE Complete terminal blocks are offered with screw clamp, spring-cage, auto-spring, and insulation displacement connectors to provide proper connection in any application. All connection systems work with one another via dual bridge system, which accepts same push-in jumpers and accessories. Flexible bridge system enables chain, step-down, and skip bridging. Product also incorporates modular testing system and standardized labeling system.
