DiBcom    Palaiseau   France
Feb 11, 2005 Facilitating deployment of digital TV services on hand-held devices, DIB7000â„¢ digital TV chip is capable of de-modulating Digital Video Broadcasting-Handheld (DVB-H) and Digital Video Broadcasting-Terrestrial (DVB-T) transmissions. Product features MPE-FEC frame extraction and correction and enables clear, continuous reception at speeds in excess of 100 mph. Operating at less than 25 mW in DVB-H mode, single chip integrates into small form factor display devices with its 8 x 8 mm package.

Supertex Inc.    Sunnyvale, CA 94619
Feb 11, 2005 Offered in LQFP package, TC7320 is 6-pair N-channel and P-channel MOSFET with integrated gate-source resistor and gate-source zener diode clamps. Model TC7320FG offers 200 V breakdown voltage, 1 A output current, and capacitance that minimizes propagation delay times as well as rise and fall times. MOSFET is designed for use in medical ultrasound transmitters and non-destructive evaluation in material flaw detection applications.

Harting KGaA      Germany
Feb 10, 2005 Measuring 2.54 x 2.54 mm, PCB 2-row Transition Connector is available from 6–64 positions and is suited for all styles of flat cable AWG 28/7. Kinked pin maintains connector securely in PCB, allowing for weight of cable during solder process.

Blockmaster Electronics, Inc.    Elk Grove Village, IL 60007

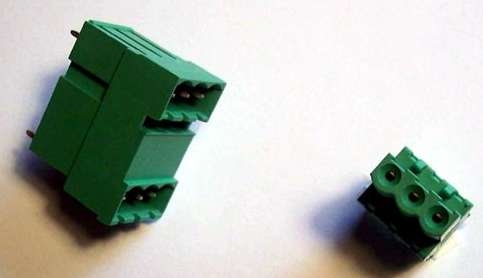

Feb 10, 2005 With multiple sub-series configurations, CRM Series provides almost unlimited mating and polarizing capabilities. Polarization pegs or clips are available to prevent incorrect mating of plugs to CRM header. Offered in configurations of 2–25 poles, PCB pin mounted series have spacings of 5, 5.08, 10, and 10.16 mm pitch depending on style. RoHS compliant products are voltage rated at 15 A @ 300 V and have PA6.6 polyamide housing.

LEDtronics, Inc.    Torrance, CA 90505

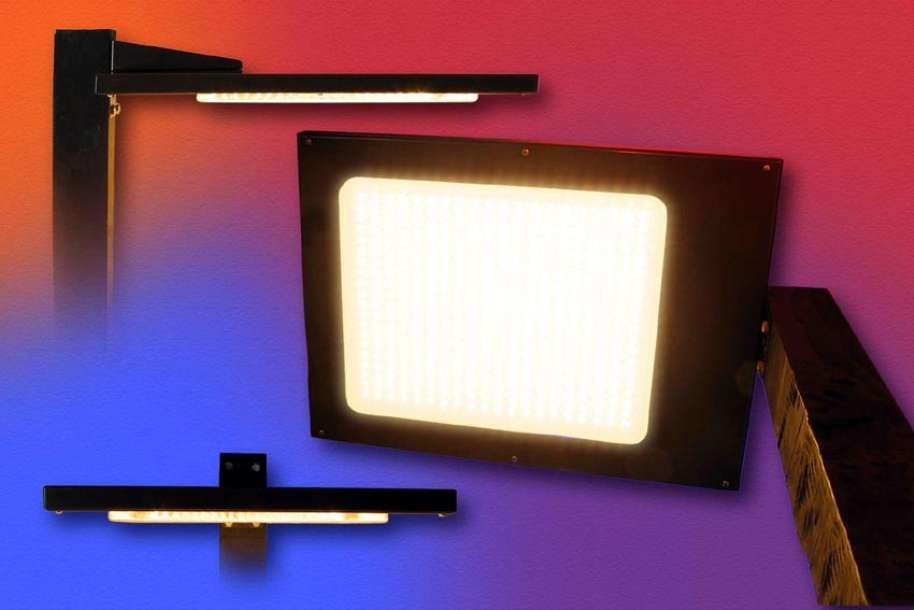

Feb 10, 2005 Series SLL003 Ultra Slim Shoebox LED Cluster Light Module comes 1.5 in. high fixture that weighs 14 lb. Unit features 400 incandescent white 5 mm LEDs mounted on PCB, consumes 20 W, emits 656 candela of light, gives off 700 lumens, and has color temperature of 3,000-3,500 K. Transparent lens is high-impact strength, UV-resistant polycarbonate and stainless steel housing features electrocoat-painted powder-coat finish to protect against corrosion.

Vicor Corp.    Andover, MA 01810 5424

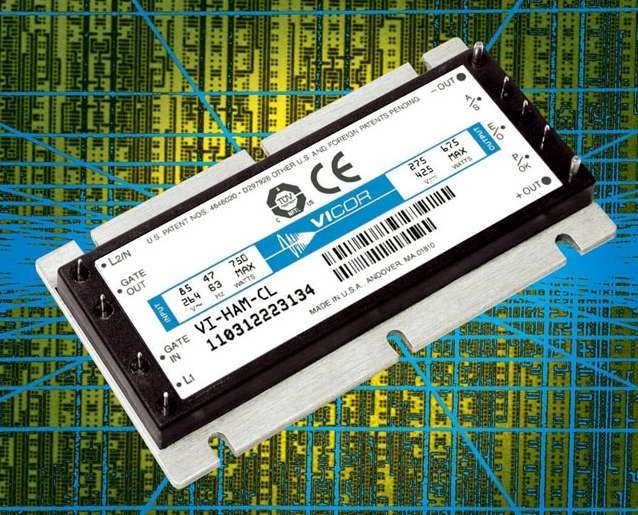

Feb 10, 2005 High-boost Model VI-HAM is a universal ac input, PFC front-end module optimized for use with Series 375 DC-DC converters up to 600 W. Consisting of full-wave rectifier and high-frequency, zero-current switching boost converter, unit includes active inrush current limiting, over temperature and short circuit protection, control, and housekeeping circuitry.

STMicroelectronics    Lexington, MA 02421
Feb 10, 2005 With maximum junction temperature of 175°F, Models STPS1150, STPS2150, and STPS3150 are 150 V Schottky diodes that handle continuous forward currents up to 1, 2, and 3 A, respectively. Negligible reverse recovery charge means near-zero switching losses. Available in surface-mount and axial-lead packages, units minimize voltage transients and oscillations during fast switching, and are suited for secondary rectification of fly-back power supplies.

WAGO Corp.    Germantown, WI 53022

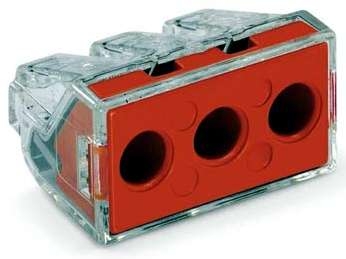

Feb 09, 2005 WALL-NUTS(TM) 773-173 AWG No. 10, 3-conductor, push wire connector provides safe, flexible alternative to twist wire connectors for electrical contractors. It does not require twisting or taping, and transparent housing allows for visual confirmation of connection. Touch-proof and rated to 105°C, each connector has test port to facilitate testing without re-insertion. Product is offered in solid, stranded, or tinned stranded copper with 600 of 1,000 V rating.

Opto 22    Temecula, CA 92590 3614
Feb 09, 2005 Model PCI-AC51 links Pamux bus to PCI-compatible computers. Card provides efficient architecture that allows custom device drivers to run multiple adapters in parallel. LEDs indicate if card has been accessed or if any reads and writes have taken place. It is compatible with company's I/O hardware components capable of communicating via Pamux protocol.

Supertex Inc.    Sunnyvale, CA 94619
Feb 09, 2005 Integrated, 2-channel, 5-level driver IC, MD1711, generates 5-level waveform for CW, PW, and color Doppler images. It features ±2.0 A source and sink peak current, up to 20 MHz output frequency, and 2 separate gate drive voltages. Also available, MD1210 dual MOSFET driver IC drives N- and P-channel MOSFETs. It features symmetrical 6 ns rise and fall time with 1,000 pF load. Output can swing below ground, and low-jitter design generates good Doppler measurements.

Edmund Optics    Barrington, NJ 08007
Feb 08, 2005 TECH SPEC(TM) Shortpass Filters have sharp transition from transmission to reflection, making them useful for fluorescence applications, separating spectral orders, machine vision, and creating custom bandpass filters when combined with color glass longpass filters. With single layer AR coating on back surface, units feature average transmission of 85% and blocking optical density of 2.0.

Foster Transformer Co.    Cincinnati, OH 45223 2571
Feb 08, 2005 Transformer provides standard square wave output that requires less filtering than linear transformers for dc applications. Low component count provides reliability under extreme operating conditions. Transformer suits use in battery chargers, medical equipment, inverter and UPS systems, line voltage stabilizers, industrial automation and machine tools. Models are available for 50 Hz, 60 Hz, and 50/60 Hz, with output ratings from 50 VA to 5.0 kVA.

Sipex Corp.    Miliptas, CA 95035-1701
Feb 08, 2005 Available in 2.4 x 2.5 mm DFN package, 400 mA SP6656 has bit programmable output voltage to dynamically adjust to power requirements of ASICs, DSPs, and microprocessors. Proprietary control loop, 20 µA light load quiescent current, and integrated 0.3 ohm synchronous switches provide efficiency across wide range of output currents. Featuring built-in 625 mA current limit and 140°C over temperature shutdown, unit suits space constrained portable applications.

B & K Precision Corp.    Yorba Linda, CA 92887

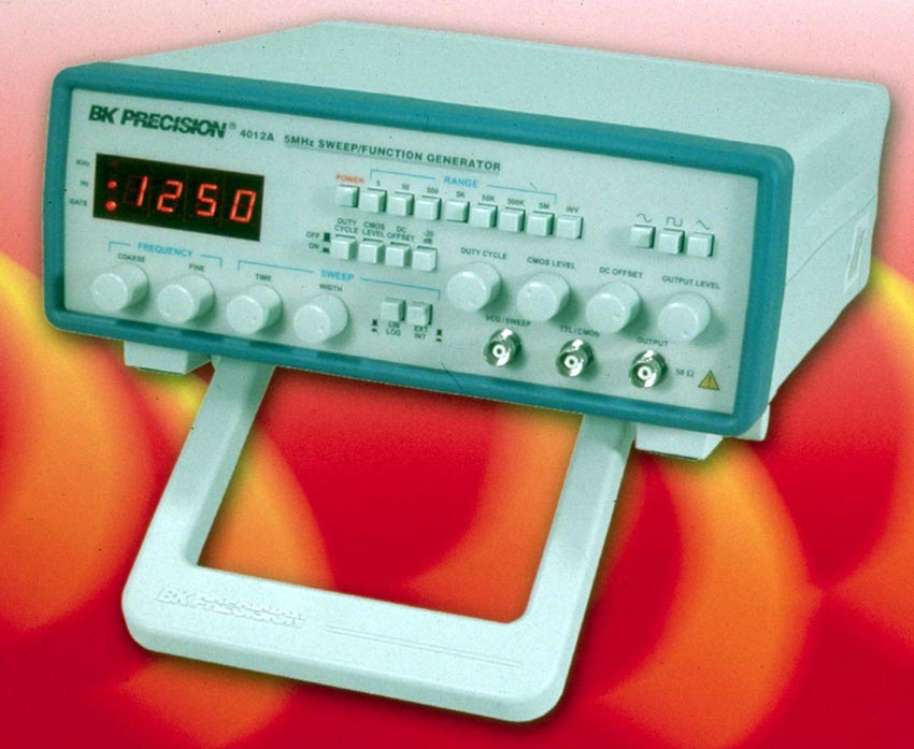

Feb 07, 2005 Model 4012A utilizes standard 115 Vac power source and can produce precision sine, square, or triangle waves over the 0.5 Hz to 5 MHz range. It combines waveform generation, pulse generation, and frequency sweep into one device while also providing built-in frequency counter. Continuously variable dc offset allows output to be injected directly into circuits at correct dc bias level. Unit suits subaudible, audio, ultrasonic, and RF applications.

Vishay Siliconix    Santa Clara, CA 95054
Feb 04, 2005 Models SiP41103, SIP41104, and SiP41105 drive lower and upper MOSFETs in half-bridge configuration, and work in systems with supply voltages from 4.5–50 V. Units operate at switching frequencies of 250 kHz to 1 MHz with driver impedance of less than 1 ohm. Equipped with brake function for motor drive applications, Model SiP42101 operates at 50 kHz. Break-before-make logic prevents shoot-through currents in external MOSFETs. All units come in standard and lead-free packages.

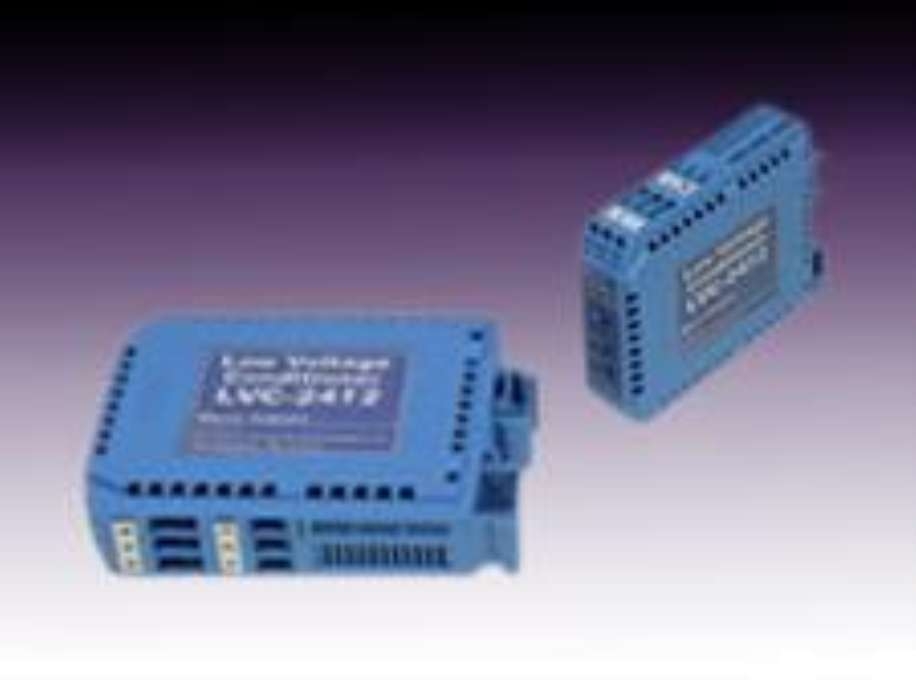

Macro Sensors    Pennsauken, NJ 08110 1334
Feb 04, 2005 Model LVC-2412 single-channel DIN-rail mounted modular unit works either from 24 Vdc, for operation with systems using PLCs or mini-PLCs, or from 12 V for use in mobile and vehicular testing systems. Choice of 3 analog outputs is offered: 0 to +10 Vdc, 0 to 10 Vdc, or 4 to 20 mA current loop. DC input power is isolated from analog outputs allowing unit to be connected in either 4-wire fully isolated I/O configuration or in 3-wire common ground system.

Para Light Corp.    Walnut, CA 91789

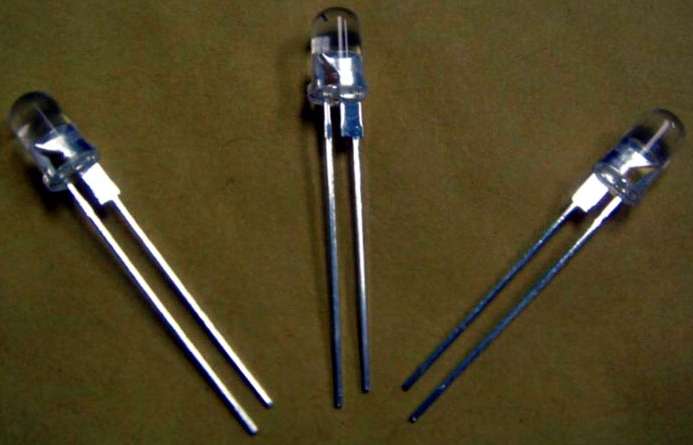

Feb 04, 2005 Offered in blue, yellow, and orange, L-5T3XX series LED lamps feature water clear lens and have 30° viewing angle. They operate in -25 to +85°C temperature range, handle forward current up to 70 mA, and come in T-1¾ package, which measures 5 mm in diameter. Lamps are suitable for traffic and outdoor signage as well as various automotive applications.

Beta Dyne Inc.    Bridgewater, MA 02324
Feb 04, 2005 Manufactured in 2 x 1 x 0.39 in. metal case with 6-sided shielding and industry standard pinout, SRAD20 series includes SRAD20S200/5 and SRAD20S200/12 models with input voltage ranges of 6–10 and 9–18 Vdc, respectively. Both have 20 W constant frequency, current mode, adjustable output, step-up switching regulators that provide adjustable output voltage from Vin to 200 Vdc. Series offers line and load regulation at typ ±1% of Vout and utilizes SMD technology.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055

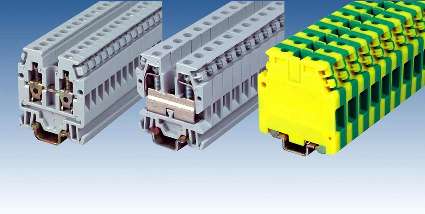

Feb 04, 2005 Available in screw clamp and spring clamp versions, Sub-Miniature Terminal Blocks snap-mount onto 15 mm standard DIN rail. UL approved units feature UL94V-O polyamide insulation body to withstand extreme temperatures. Numerous accessories make them suitable wiring alternative where space is a concern.

Gowanda Electronics Corp.    Gowanda, NY 14070

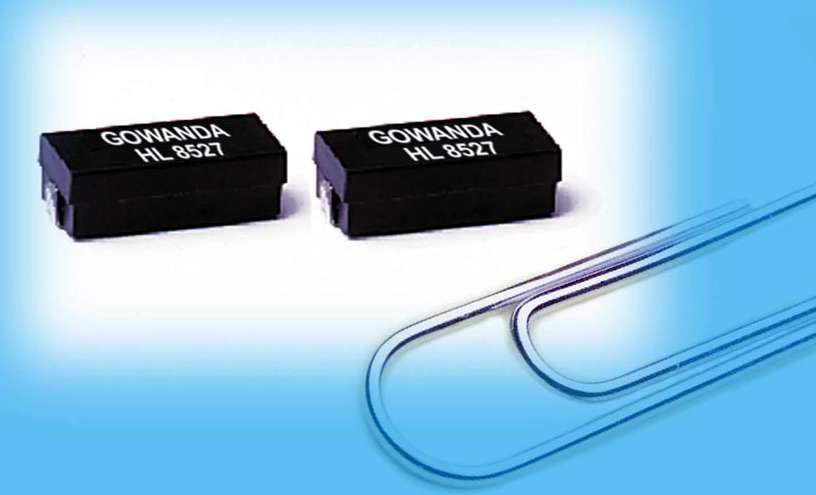

Feb 03, 2005 Series HL 8527 can handle high voltage spikes associated with starter circuits and electronic ballasts within lighting industry. With current ratings from 67–50 mAdc, units feature inductance from 16,000–55,000 µH at 79 kHz. Additional applications include RF signal circuitry in communications equipment, medical diagnostic equipment, and industrial process control equipment.
