MagnaChip Semiconductor    Cheongju-si,Chungbuk   Korea (south)
Sep 09, 2005 Produced using TSMC's 0.25 µm process, IS2320 provides users with single-chip QVGA solution for mobile display products. It supports resolution of 240 RGB x 320 dot and 262K color in 2.0, 2.2, and 2.4 in. panel displays. Along with 68/80 system MPU interface and 18/16/6-bit RGB interface, product contains source driver, gate driver, memory, and embedded power supply.

Altera Corporation    San Jose, CA 95134
Sep 09, 2005

NEC Electronics    Santa Clara, CA 95050
Sep 09, 2005 Low-voltage power MOSFETs serve as switching devices with minimal current leakage to provide power management in high-frequency power supplies and motor control systems. Noise-clipping and ESD protection diodes protect high-speed system data from being degraded because of electromagnetic noise and chips from being damaged by static electricity. LDO voltage regulators maintain stable power supply in systems receiving unstable or unrectified direct current.

STMicroelectronics    Lexington, MA 02421
Sep 07, 2005 Supporting Intel 82573E PCI Express Gigabit Ethernet Controller, 8-Mbit Model M25PE80 provides 16 sectors of memory space, each containing 256 pages. Each page is 256 bytes wide, and all sectors and pages can be erased independently. Operating from 2.7""3.6 V, unit encompasses standard SPI bus with clock speed of 50 MHz for data transfer, and features 1 µA deep power-down mode. RoHS-compliant device comes in 8-pin MLP package measuring 5 x 6 mm.

Harting KGaA      Germany
Sep 07, 2005 Han DD series high pin count, industrial multi-pole inserts feature creepage and clearance distances that comply with IEC 61984 to provide user with optimal safety while in use. Manufactured from polycarbonate to UL94 V0, products are suitable for use in pollution category 3 environments at up to 250 V and 10 A. Versions are available with 24, 42, 72, or 108 contact cavities.

FCI Electronics    Etters, PA 17319 9769
Sep 07, 2005 Featuring dual-beam, double-sided contact system, AirMax VS 4-pair vertical headers and right angle receptacles help improve PCB routing density as well as multiple IMLA counts and spacings. Protective cover on vertical headers is designed for maximum protection of open pin field structure and serves as press-in block. Products use air as dielectric between adjacent conductors, providing optimal signal density while exhibiting minimal insertion loss and crosstalk.

AVX Corp.    Myrtle Beach, SC 29578
Sep 07, 2005 Designed to address dc blocking issues from 15 kHz to 40 GHz in optical transceivers, GZ Series Capacitors match .015 and .020 in. micro strip widths. Units combine Ni-Au terminated MLCs for low frequency coverage, and maxi dielectric single-layer ceramics to facilitate surface mounting. Most applications experience resonance-free performance of less than 0.5 dB through at least 26.5 GHz.

Norstat, Inc.    Rockaway, NJ 07866

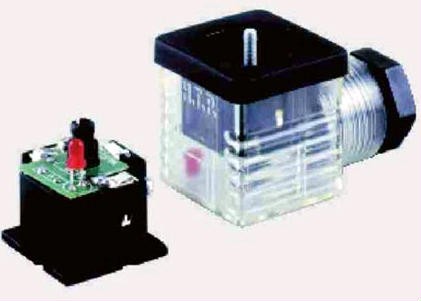

Sep 07, 2005 Available in 6 connector types, DIN 43650 Connectors and Molded Cable Assemblies come with or without LED and surge suppression. All feature impact-resistant, plastic housings with Molded Assemblies offering cable strain relief and protection against environment. Pre-wired units offer cable lengths up to 10 m and are available with M-12 connectors. Unwired connectors carry IP 65 protection rating, while molded assemblies carry protection rating of IP 67.

Ikanos Communications    Fremont, CA 94538
Sep 07, 2005

Silicon Storage Technology Inc.    Sunnyvale, CA 94086
Sep 07, 2005 Supporting 2.4 GHz 802.11 b/g and 5 GHz 802.11a standards, dual-band Model SST13LP02 provides 20 dBm for 802.11b, 18 dBm for 802.11g, and 18 dBm for 802.11a applications. Integrated, temperature-stable, on-chip power detector tolerates output mismatch of VSWR greater than 2:1 at all angles. On-off switching is controllable by baseband chip with minimum reference current of ~2 mA. Applications include notebook PC-based networking, access points, and multimedia equipment.

AVX Corp.    Myrtle Beach, SC 29578

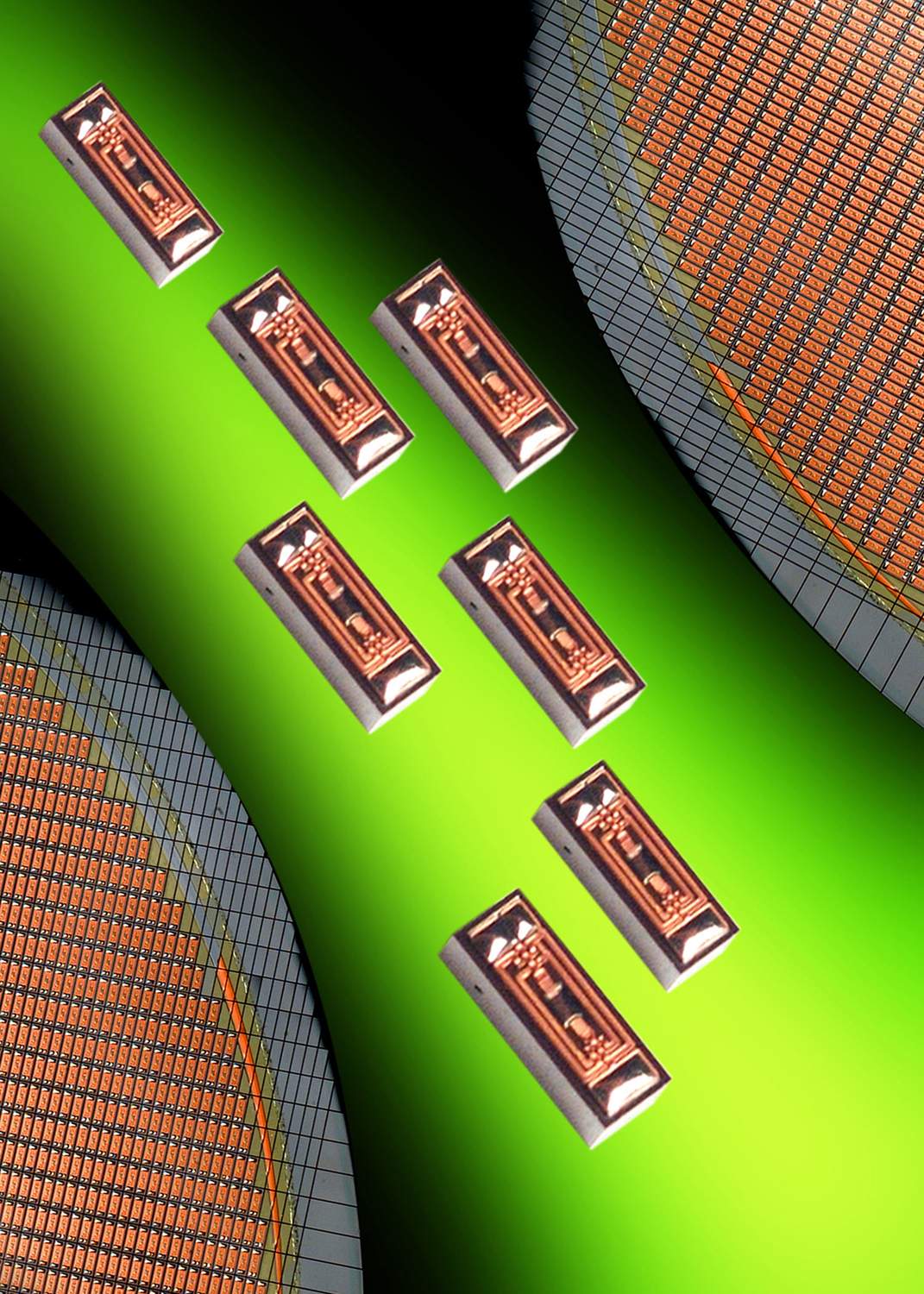

Sep 02, 2005 Offered in 0402 size, surface-mount L0402 provides thin film equivalent of wire-wound inductor, with no constraint in values and inductance range of .82–6.8 nH. Land Grid Array (LGA) packaging and miniature size allow for self-alignment during reflow. Product is suited for automatic assembly in applications such as mobile communications, satellite TV receivers, GPS, vehicle location systems, wireless LANs, filters, and matching networks.

Kemet Electronics Corp.    Greenville, SC 29606
Sep 02, 2005 Voltage and capacitance extensions in surface-mount commercial X5R MLCCs (Multi Layer Ceramic Capacitors) are available with X5R dielectric as well as K (±10%) and M (±20%) tolerances. RoHS-compliant devices offer capacitance ranges from 1.2-22 µF in 0603, 0805, and 1206 EIA case sizes with 10 V ratings. Components provide circuit functions such as decoupling and output filtering to computer, power supply, and automotive markets.

Kemet Electronics Corp.    Greenville, SC 29606
Sep 02, 2005 Commercial, surface-mount X7R MLCCs (Multi-Layer Ceramic Capacitors) offer capacitance ranges from 8.2-10 µF in EIA 1206 case size with 16 V rating. Components provide circuit functions such as decoupling and output filtering to computer, power supply, and automotive markets. Capacitance values are available in X7R dielectric as well as K (±10%) and M (±20%) tolerances. Operating temperature range is -55 to +125°C, with zero bias capacitance shift limited to ±15%.

Micrel Semiconductor Inc.    San Jose, CA 95131
Sep 02, 2005 Housed in SOIC-8 package, QwikRadio® MICRF010 consumes 2.9 mA at 315 MHz and offers data rates up to 2.0 kbps. Recovery time from shutdown is typically 3 ms. Receiver is aimed at variety of applications in automotive, industrial, and consumer markets.

Altera Corporation    San Jose, CA 95134
Sep 02, 2005 Featuring 68,416 logic elements, 90 nm Cycloneâ„¢ II Model EP2C70 provides 1.1 Mbits of embedded memory and 150 dedicated 18 x 18 multipliers, making it suited for DSP applications such as MPEG4 encoding and decoding, video filtering, and wireless infrastructure applications. System designers can implement multiple Nios® II embedded processors in single Cyclone II FPGA.

ON Semiconductor, LLC    Phoenix, AZ 85008

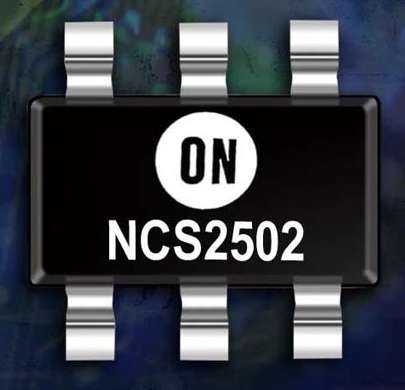

Sep 01, 2005 NCS25xx family of 200 MHz devices allow video designers to achieve 0.02% differential gain and 0.1° differential phase while consuming 1.1 mA of current draw. Model NCS2500 current feedback monolithic op amp features 450 V/uS typ slew rate and drives NTSC/PAL video over 75 ohm lines. Model NCS2501 adds ENABLE input. Model NCS2530 is triple version of NCS2501, where each op amp can be disabled independently. Model NCS2502 is 110 MHz, 650 mA version of NCS2501.

Linear Technology Corp.    Milpitas, CA 95035

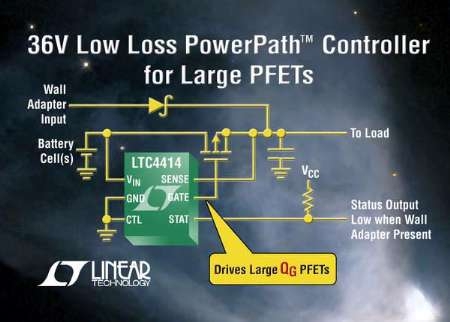

Sep 01, 2005 With 20 mV forward voltage and operating voltage of 3-36 V, PowerPath(TM) LTC4414 permits low-loss OR-ing of multiple input dc power sources. Device enables switchover between multiple batteries or charging of multiple batteries from single charger. It includes reverse battery, overcurrent, and MOSFET protection circuitry. Ultra low 30 µA quiescent current is independent of load current. Housed in 8-pin MSOP package, unit operates from -40 to +125°C.

Micrel Semiconductor Inc.    San Jose, CA 95131
Sep 01, 2005 DC/DC Boost Converter, Model MIC2296 allows for more than 1.2 A of switch current and can step up input voltages from 2.5–10 V to generate output voltage up to 34 V. It offers output over-voltage protection, less than 1% line and load regulation, and 1 µA shutdown current. Housed in 2 x 2 mm leadless package, chip is suited for driving OLEDs, TFT-LCD displays, and WLED camera flashes.

ifm efector, Inc.    Exton, PA 19341
Aug 31, 2005 Measuring 72 mm long, non-contact PK Series has no moving parts and features 316 stainless steel process connection. Locking device prevents unintentional setpoint changes, and 2 LEDs indicate operation and switching status. Welded, gas-tight measuring cell detects gas and liquid pressure up to 5,800 psi and is capable of over 50 million switching cycles without drift. Offering adjustable hysterysis, 3-wire PNP dc units come in ¼ in. NPT or G-¼ BSPP port sizes.

Marktech Optoelectronics    Latham, NY 12110
Aug 30, 2005 Targeted for compact lighting situations, Mini Dorado series is based on quad, flat, lead-free IC packaging and is reflow-solderable. Product features AlGaInP and InGaN die technologies and utilizes exposed pad design that aids with heat transfer. Available in white, blue, green, yellow, and red, RoHS-compliant LEDs can adapt to existing production systems and feature molded lenses as well as choice of 70º, 110º, or 125º viewing angles.
