Lumex Inc.    Carol Stream, IL 60188

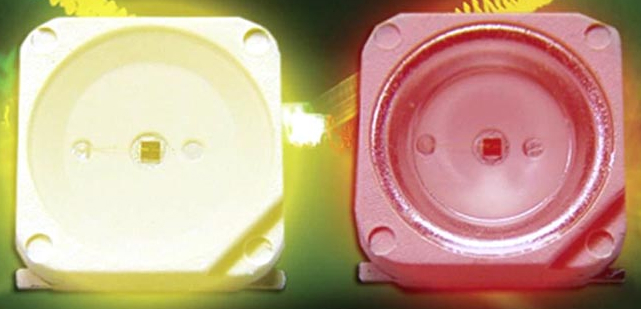

Oct 25, 2005 Surface mount technology LEDs in SML-LX1110xx-TR series are offered in red, yellow, green, and blue colors with typ brightness levels from 2,500-25,000 mcd at If = 350 mA. Internal reflective cavities maximize light output, and polarity mark facilitates identification and proper placement. Offered in RoHS-compliant, 0.394 x 0.394 in. PLCC-4 package, all colors are available with viewing angles (2x Theta) of 90° or 120°.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Oct 21, 2005 Housed in 0.402 x 0.402 in. package with 0.157 in. profile, Model IHLP-4040DZ-15 handles high transient spikes without saturation and operates over frequency range up to 1 MHz. Saturation current and typical DCR values range up to 44 A and from 0.50-5.20 mΩ, respectively, over inductance range of 0.19-2 H. RoHS-compliant unit operates from -55 to +125°C, and features 100% lead-free, shielded composite construction.

Allegro MicroSystems Inc.    Worcester, MA 01615
Oct 21, 2005 Housed in 3 x 3 mm 10-lead MLP package, Series A843X features selectable primary-peak current settings, integrated 40 V MOSFET, and charge-complete indication. Flyback converter employs algorithm to rapidly charge photoflash capacitor to desired voltage. Models A8436 and A8438 offer 3-level, pin-selectable current limit and low-leakage feedback scheme, while Model A8439 features 8-level digitally programmable current limit and continuous-output monitoring scheme.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Oct 21, 2005 Operating from -10 to +40¡Ã†C at up to 95% RH, AST3IS isolation amplifier is designed for use with strain-gage transducers in hazardous areas without Zener barriers. DIN-rail mount unit has ADC capable of up to 8,300,000 counts. With built-in support for RS-485 and MODBUS RTU, transmitter can communicate with process control host without external hardware or additional software. Unit accepts up to six 350 §Ã™, ATEX-approved load cells and is approved to ATEX II GD.

Rogers Corp., Circuit Materials Div.    Chandler, AZ 85224

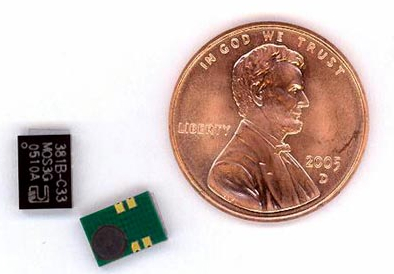

Oct 20, 2005 Operating from 2.0-6.0 Vdc range, D381B stand-alone electroluminescent (EL) lamp driver module combines all external, discrete components required to backlight monochrome displays and keypads on 5 x 7 mm chip. Integrated driver has embedded power inductor and is RoHS- and WEEE-compliant. Turnkey solution utilizes 3-port topology and internally controlled current discharge to reduce audible and electrical noise.

Analog Devices, Inc.    Norwood, MA 02062-9106
Oct 19, 2005 Operating on ±5 to ±15 V supply voltage, ADA4000-1 JFET (junction field effect transistor)-input op amp utilizes iPolar(TM) trench isolation process technology for minimal power consumption and to reduce or eliminate need for heat sinks or cooling fans. Bandwidth is 6 MHz, and slew rate is 20 V/µsec. Requiring 85 µA supply current, ADR12x low-power voltage references come in TSOT-23 package and feature 9 ppm/°C temperature drift over -40 to +125°C range.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Oct 19, 2005 Serial Pulse Data Generator, Model 81142A allows engineers to conduct physical layer tests by providing high-precision, low-jitter signals. With data formats of RZ, R1, and NRZ, system provides programmable pattern and sequence generation for entire range of digital high-speed serial buses. It offers linear delay modulation up to 1 GHz for jitter-tolerance testing, and remote programmable ultra-small pulses to trigger accurate measurements.

Fluke Corp.    Everett, WA 98203
Oct 19, 2005 Combining universal generator and synthesizer, single-channel Model 396 and dual-channel Model 397 include 11 basic waveforms with adjustable parameters accessible from front panel. With 14-bit resolution, units provide 16,384 output levels, allowing video or other complex waveform to be generated with small details superimposed on large signals. Memory in both models can be divided into as many as 4,096 segments, which can be looped and linked in variety of ways.

KYOCERA Corporation    Kyoto 612-8501  Japan
Oct 19, 2005 Measuring 3.2 x 2.5 x 0.55 mm, low-frequency Model CX3225SB features load capacitance of 8 pF and operating temperature of -10 to +70°C. Miniature unit is suited for cellular handsets, portable DVD players, handheld games, tuners, and PDAs. It is RoHS-compliant and compatible with reflow profile of lead-free soldering.

Aston, Inc.    Cincinnati, OH 45242
Oct 19, 2005 UL-Recognized and TUV-Certified model A-15280 takes incoming voltage from 100-240 V, 50/60 Hz and converts it to 120 V @ 1,500 VA, enabling equipment designed to operate in US to work anywhere worldwide. Multiple units can be connected in parallel to achieve higher output capacities. Standard termination is to AMP Universal Mate-N-Lock connector, providing single connection point. Additional output voltages are also attainable by changing taps.

Maxwell Technologies, Inc.    San Diego, CA 92123
Oct 19, 2005 Encased in splash-proof aluminum chassis, 48 V BOOSTCAP® BMOD2600-48 module consists of eighteen 2.7 V BOOSTCAP MC2600 cells. Compact, fully integrated unit can perform for over one million discharge-recharge cycles with maintenance-free operation. Smart boxes include temperature and voltage monitoring as well as internal cell balancing and module-to-module balancing. Applications include heavy-duty transportation, industrial energy storage, and power delivery.

Infinilux, Inc.    Woodland Park, CO 80863
Oct 19, 2005 Featuring 150 lumens output of white (6,500K) light, InfiniPower(TM) IP-3 Series incorporates 0.157 in. thick metal core printed circuit board that allows for control of thermal dissipation and provides plug-and-play mounting method. RoHS-Compliant module measures 2.40 in. in diameter and operates on 10 Vdc @ 350 mA. It features 100° viewing angle, and individual custom optics are available that provide collimated outputs and viewing angles of 15° or 30°.

Geotest - Marvin Test Systems, Inc.    Irvine, CA 92614-5846
Oct 19, 2005 Instruments GP1665W and GP1665H utilize Direct Digital Synthesis (DDS) for stability and accuracy over 10 µHz to 50 MHz frequency range. They feature amplitude and frequency modulation capability; precision trigger, gate, and burst modes; and linear or logarithmic sweep capability over 3 decades, with sweeps down to 1 µHz. Customization of command set firmware ensures GPIB command set compatibility for Wavetek 178 or HP 8165A.

Photonic Products USA    Huntington Beach, CA 92647
Oct 19, 2005 Available in 650 and 635 nm models, Laser Diode Modules produce elliptical, collimated output beam of 3.5 x 1.5 mm with output powers of 0.9 or 4.5 mW and 0.9 or 4.0 mW, respectively. Modules consist of brass housing, laser diode, drive circuit, and adjustable lens. Operating temperature is -10 to +50°C for 650 nm unit and -10 to +40°C for 635 nm model, while beam divergence is less than 1 mrad for both. Electrical connections are made via external flying leads.

STMicroelectronics    Lexington, MA 02421
Oct 18, 2005 Comprised of 8 devices, Series STM67xx dual/triple microprocessor supervisor circuits are suited for applications where processor core requires 1.8 V or lower voltage supply and on-chip peripherals require 3 or 3.3 V supply. All units monitor system supply against fixed threshold value and provide active-low reset output when they detect out-of-tolerance condition. Reset function is guaranteed to be asserted for VCC down to 0.8 V, with minimum duration of 140 ms.

RAF Tabtronics LLC    DeLand, FL 32724
Oct 18, 2005 Utilizing Hyper-X Magnetic Technology, Model HXTH01260 dissipates less than 1% of output power while delivering 12 V at 60 A from 400 Vdc input. Housed in PZ32030 package with 42.40 x 33.66 mm footprint and max height of 33.00 mm, transformers use thick tinned-copper terminations for high current center-tapped secondary. All parts have operating temperature range of +125 to -40°C and meet RoHS requirements.

Para Light Corp.    Walnut, CA 91789
Oct 18, 2005 Mounted on aluminum printed circuit boards, 350 mA Series LS0R15 provides output intensity of 2-10 candelas, total flux from 4-20 lumens, and viewing angles of 60, 90, and 100°. Units are available in single color versions including blue, green, amber, red, and cyan, as well as RGB models with color-changing capability. Applications include reading lights, flashlights, traffic signals, signage, and backlighting.

STMicroelectronics    Lexington, MA 02421
Oct 17, 2005 Emitter Switched Bipolar Transistor Models STC03DE170, STC05DE150, and STC08DE150 feature breakdown voltages of 1.7, 1.5, and 1.5 kV, respectively, and on-resistances of 0.55, 0.17, and 0.11 Ω, respectively. Units combine bipolar junction transistors with MOSFET, connected in cascade configuration and housed in single package. All 3 devices feature Vcs(sat) value of 0.9 V, minimizing conduction losses, while absence of tail currents minimizes turn-off losses.

Bosch Security Systems    Fairport, NY 14450 9199
Oct 14, 2005 EVAC-compliant Plena Loop Amplifier allows hearing-aid users in public buildings to clearly hear announcements, music, or soundtracks. Unit integrates into new or existing sound systems in public areas up to 600 sq meters. Master/slave configuration supports low spillover and quadrature system design, providing standard solution for multiple room applications. Amplifier includes automatic gain control and metal loss compensation.

BI Technologies Corp.    Fullerton, CA 92835-1051
Oct 14, 2005 MHP and SMHP Series provide complete thermal flow from resistive element to integral metal flange of TO-126/220/263/247 packages, enabling specification for high-wattage power electronics circuits that can experience elevated temperatures during operation. Rated for -55 to +155°C operation, SMT and through-hole resistors offer power ratings from 20-140 W. RoHS-compliant MHP Series features 2-leaded packages designed for mounting directly to heatsink.
